| Display Format | Picture | Model No. | Structure | Size (inch) |
Outline Dimension (mm) |
Viewing Area (mm) |
Active Area (mm) |
Dot Size (mm) |
View Direction | Interface | IC | Control-Board | Voltage | Temperature (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 256x128 |  |
CH256128C-L | COG | 71.00x48.00x8.01 | 66.00x37.65 | 60.78x32.94 | 0.21(L)x0.23(B) | 6 UHR | SPI | ST75256 | NEIN | 3.3V | -20℃~+70℃ | |
| 256x128 | |
CH256128A-L | COG | 71.00x48.00x8.05 | 66.00x37.65 | 60.78x32.94 | 0.213(L)x0.233(W) | 6 UHR | MCU/SPI | ST75256 | NEIN | 3,3V | -20℃~+70℃ | |
| 256x128 | |
CH256128B-L | COG | 104.92x64.83x9.30 | 100.16x53.57 | 93.16x46.57 | 0.213(L)x0.233(W) | 6 UHR | MCU/SPI | ST75256 | NEIN | 3,3V | -20℃~+70℃ | |
| 240x160 |  |
CH240160C-2-L | COG | 86.70x64.60x8.20 | 77.58x51.60 | 71.98x47.98 | 0.28(L)x0.28(W) | 12 UHR | MCU/SPI | ST75256 | NEIN | 3.3V | -20℃~+70℃ | |
| 240x160 |  |
CH240160C-L | COG | 3.4 | 86.70x64.60x4.20 | 77.58x51.60 | 71.98x47.98 | 0.28(L)x0.28(B) | 12 UHR | MCU/SPI | ST75256 | NEIN | 3.3V | -20℃~+70℃ |
| 128x88 |  |
CH12888A-L | COG | 77.70x61.60x6.50 | 71.70x49.60 | 66.54x45.74 | 0.50(L)x0.50(B) | 6 Uhr | SPI | ST7571 | NEIN | 3.3V | -20℃~+70℃ | |
| 192x96 |  |
CH19296B-L | COG | 2.18 | 58.4x39.3x9.3 | 53.6x28.5 | 49.52x24.75 | 0.24(L)x0.24(W) | 6 O'CLOCK | MCU/SPI | ST75256 | NO | 3.3V | -20℃~+70℃ |
| 160x160 |  |
CH160160A-2-L | COG | 3 | 79.5x71.0x4.8 | 60.2x60.2 | 54.38x54.38 | 0.32(L)x0.32(W) | 6 O'CLOCK | MCU | UC1698U | NO | 3.3V | -20℃~+70℃ |
| 160x160 |  |
CH160160A-L | COG | 3 | 80.0x72.5x4.8 | 60.4x60.4 | 54.38x54.38 | 0.32(L)x0.32(W) | 6 O'CLOCK | MCU/SPI | UC1698U | NO | 3.3V | -20℃~+70℃ |
| 192x96 |  |
CH19296C-L | COG | 2.74 | 71.3x48.2x9.0 | 66.0x38.0 | 61.04x33.58 | 0.30(L)x0.33(W) | 6 UHR | SPI | ST75256 | NEIN | 3.3V | -20℃~+70℃ |
| 192x96 |  |
CH19296A-L | COG | 2.74 | 71.3x48.2x5.7 | 66.0x38.0 | 61.04x33.58 | 0.30(L)x0.33(W) | 6 O'CLOCK | MCU/SPI | ST75256 | NO | 3.3V | -20℃~+70℃ |
| 192x96 |  |
CH19296A-L | COG | 2.74 | 71.3x48.2x5.0 | 66.0x38.0 | 61.04x33.58 | 0.30(L)x0.33(W) | 6 O'CLOCK | MCU/SPI | ST75256 | NO | 3.3V | -20℃~+70℃ |
| 192x64 |  |
CH19264Q-L | COG | 32.80x79.80x7.50 | 26.00x69.60 | 22.19x66.60 | 0.329(L)x0.329(W) | 6 O'CLOCK | SPI/MCU | UC1604C | YES | 3.3V | -20℃~+70℃ | |
| 192x64 |  |
CH19264N-L | COG | 2 | 55.5x26.1x8.0 | 51.0x17.2 | 47.98x15.98 | 0.23(L)x0.23(B) | 6 UHR | MCU/SPI | ST7525 | NEIN | 3.3V | -20℃~+70℃ |
| 192x64 |  |
CH19264M-L | COG | 2 | 54.0x24.5x4.3 | 51.0x17.2 | 47.99x15.99 | 0.24(L)x0.24(W) | 12 O'CLOCK | SPI | ST75256 | NO | 3.3V | -20℃~+70℃ |
| 192x64 |  |
CH19264K-L | COG | 2.3 | 67.1x27.6x6.1 | 57.5x21.5 | 55.66x18.54 | 0.27(L)x0.27(W) | 6 O'CLOCK | MCU/SPI | UC1604C | NO | 3.3V | -20℃~+70℃ |
| 192x64 |  |
CH19264L-L | COG | 3.38 | 90.0x45.0x6.45 | 84.62x34.06 | 80.62x30.06 | 0.40(L)x0.45(W) | 6 O'CLOCK | MCU/SPI | ST7525 | NO | 3.3V | -20℃~+70℃ |
| 192x64 |  |
CH19264E-L | COG | 4 | 109.25x48.85x5.7 | 104.0x39.0 | 97.49x32.46 | 0.46(L)x0.46(W) | 6 UHR | MCU/SPI | ST7525 | NEIN | 3.3V | -20℃~+70℃ |
| 192x64 |  |
CH19264E-L | COG | 4 | 109.25x48.85x5.7 | 104.0x39.0 | 97.49x32.46 | 0.46(L)x0.46(W) | 6 O'CLOCK | MCU/SPI | ST7525 | NO | 3.3V | -20℃~+70℃ |
| 192x64 |  |
CH19264E-3-L | COG | 4 | 108.70x65.20x5.15 | 104.0x39.0 | 97.49x32.46 | 0.46(L)x0.46(B) | 6 UHR | MCU/SPI | ST7525 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-Q6-L | COG | 2.7 | 71.40x48.50x8.20 | 66.0x37.65 | 60.78x32.94 | 0.45(L)x0.45(W) | 6 O'CLOCK | MCU/SPI | ST7567 | NO | 3.3V | |
| 128x64 |  |
CH12864-Q5-L | COG | 71.20x48.20x11.20 | 66.00x37.65 | 60.78x32.94 | 0.45(L)x0.49(B) | 6 UHR | MCU/SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-Q5-4-L | COG | 1.9 | 71.00x48.00x8.05 | 66.00x37.65 | 60.78x32.94 | 0.45(L)x0.49(B) | 6 Uhr | MCU/SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864F-L | COG | 1.9 | 50.30x39.30x4.50 | 44.00x29.00 | 40.93x24.93 | 0.29(L)x0.36(W) | 6 O'CLOCK | MCU/SPI | ST7565R | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864F-L | COG | 1.9 | 50.30x39.30x4.50mm | 44.00x29.00mm | 40.93x24.93mm | 0.29(L)x0.36(W) | 6 UHR | MCU/SPI | ST7565R | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864F-10-3-L | COG | 1.9 | 50.20x39.20x7.00 | 44.00x29.00 | 40.93x24.93 | 0.29(L)x0.36(W) | 6 O'CLOCK | MCU/SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864F-8-L | COG | 50.3x39.5x5.7 | 44.60x28.80 | 40.93x24.93mm | 0.29(L)x0.36(B) | 6 UHR | SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864A-COG-L | COG | 2.9 | 77.60x48.90x7.00 | 73.00x39.00 | 66.52x33.24 | 0.48(L)x0.48(W) | 6 Uhr | MCU/SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864A-COG-L | COG | 2.9 | 77.60x48.90x7.00 | 73.00x39.00 | 66.52x33.24 | 0.48(L)x0.48(W) | 6 O'CLOCK | MCU/SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-A-1-L | COG | 2.7 | 71.00x48.00x5.15 | 66.00x37.65 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 UHR | MCU/SPI | ST7565R | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-75-6-L | COG | 2.15 | 58.60x38.60x7.50 | 53.60x29.00 | 48.62x24.94 | 0.36(L)x0.37(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-62-2- L | COG | 1.88 | 47.00x35.00x2.90 | 42.90x26.50 | 40.94x24.62 | 0.30(L)x0.37(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-62-2- L | COG | 1.88 | 47.00x35.00x2.90 | 42.90x26.50 | 40.94x24.62 | 0.30(L)x0.37(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-61-PCB-L | COG | 1.81 | 47.96x30.96x8.00 | 43.60x22.40 | 41.58x20.14 | 0.30(L)x0.29(B) | 6 UHR | SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-61-L | COG | 1.81 | 47.96x30.96x8.00 | 43.60x22.40 | 41.58x20.14 | 0.30(L)x0.29(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-60- L | COG | 1.15 | 31.00x22.50x4.20 | 29.00x16.35 | 25.58x14.06 | 0.18(L)x0.20(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-30-L | COG | 2.74 | 71.20x52.20x6.90 | 66.00x39.00 | 61.42x32.62 | 0.46(L)x0.49(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-40- L | COG | 89.90x49.90x6.00 | 70.10x36.60 | 63.98x33.98 | 0.48(L)x0.48(W) | 6 O'CLOCK | MCU/SPI | ST7565R | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-39-L | COG | 68.20x54.39x8.45 | 63.30x44.70 | 56.28x38.36 | 0.40(L)x0.56(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-25-L 插接式 | COG | 76.0x48.0x5.6 | 73.0x39.5 | 66.53x33.25 | 0.49(L)x0.49(W) | 6 O'CLOCK | MCU/SPI | ST7565R | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-37- L | COG | 77.80x49.40x8.50 | 73.00x39.00 | 66.52x33.24 | 0.48(L)x0.48(W) | 6 O'CLOCK | MCU/SPI | ST7567 | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-36- L | COG | 67.90x47.50x7.60 | 61.90x35.50 | 56.93x30.50mm | 0.415(L)x0.447(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-34- L | COG | 59.0x44.0x11.3 | 54.4x34.0 | 51.18x31.34 | 0.49(L)x0.49(W) | 6 O'CLOCK | SPI | UC1701C | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-32-L | COG | 1.53 | 41.20x33.00x4.60 | 36.00x23.00 | 33.25x20.45 | 0.23(L)x0.29(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-29-2-L | COG | 2.16 | 57.20x42.50x5.10 | 54.20x32.50 | 47.97x26.53 | 0.34(L)x0.38(W) | 12 O'CLOCK | MCU/SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-35- L | COG | 2.93 | 80.20x51.20x7.60 | 72.00x40.00 | 66.52x33.24 | 0.49(L)x0.49(W) | 6 UHR | SPI | AIP31567 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-33-L | COG | 1.18 | 34.25x23.50x4.00 | 31.00x16.00 | 26.86x13.42 | 0.19(L)x0.19(W) | 12 UHR | SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-27-2-L | COG | 3.27 | 84.50x59.50x7.10 | 78.50x45.50 | 72.93x39.65 | 0.54(L)x0.59(W) | 6 UHR | SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-27- L | COG | 1.96 | 84.2x56.3x6.95 | 78.5x45.5 | 72.93x39.65 | 0.54(L)x0.59(W) | 6 O'CLOCK | MCU/SPI | ST7565R | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-26-L | COG | 1.96 | 44.90x39.90x8.30 | 39.90x27.90 | 36.08x23.02 | 0.26(L)x0.34(W) | 6 O'CLOCK | MCU/SPI | ST7567R | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-22-L1 | COG | 65.10x43.80x10.1 | 60.50x33.00 | 55.01x27.49 | 0.48(L)x0.48(W) | 6 O'CLOCK | MCU/SPI | ST7565R | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-13-6-L | COG | 60.2x44.2x7.3 | 55.00x31.10 | 47.33x26.21 | 0.34(L)x0.38(W) | 6 UHR | MCU/SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-8-L | COG | 2.7 | 71.00x48.00x5.15 | 66.00x37.65 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 O'CLOCK | MCU/SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-10-L | COG | 59.60x43.00x6.30 | 54.00x32.00 | 49.89x27.49 | 0.36(L)x0.40(W) | 6 O'CLOCK | SPI/MCU | ST7565 | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-12-L | COG | 35.10x31.55x3.75 | 30.70x23.00 | 28.78x20.97 | 0.21(L)x0.31(W) | 6 O'CLOCK | SPI | UC1701X | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-22-4-L | COG | 2.48 | 65.00x44.30x4.80 | 60.00x33.00 | 56.30x28.14 | 0.42(L)x0.42(W) | 6 O'CLOCK | MCU/SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-23-L | COG | 1.96 | 53.10x40.00x7.20 | 45.50x28.40 | 42.48x25.90 | 0.31(L)x0.39(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-23-L Weld | COG | 1.96 | 53.10x40.00x7.20 | 45.50x28.40 | 42.50x25.90 | 0.31(L)x0.39(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-13-3-L | COG | 2.13 | 60.00x41.10x5.85 | 55.00x31.10 | 47.33x26.21 | 0.34(L)x0.38(W) | 6 O'CLOCK | MCU/SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-12-L | COG | 1.4 | 35.10x31.55x3.75 | 30.70x23.00 | 28.78x20.97 | 0.21(L)x0.31(W) | 6 O'CLOCK | SPI | UC1701 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH6029A-L | COG | 2.24 | 59.60x43.00x6.30 | 54.00x32.00 | 49.89x27.49 | 0.36(L)x0.40(W) | 6 O'CLOCK | MCU/SPI | ST7565R | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-24-2-L | COG | 2.42 | 77.40x52.40x6.50 | 70.00x40.00 | 66.52x33.24 | 0.48(L)x0.48(W) | 6 UHR | SPI/MCU | ST7565 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-9-6-L | COG | 2.1 | 58.60x38.60x7.60 | 53.60x28.60 | 48.61x24.93 | 0.35(L)x0.36(W) | 6 UHR | SPI | ST7567B | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-9-3-L | COG | 2.1 | 58.60x38.60x7.60 | 53.60x28.60 | 48.61x24.93 | 0.35(L)x0.36(W) | 6 O'CLOCK | SPI | ST7567B | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-9-7-L | COG | 2.1 | 57.90x38.60x9.80 | 53.50x28.80 | 48.61x24.93 | 0.35(L)x0.36(W) | 6 O'CLOCK | SPI | ST7567B | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-9-L | COG | 2.1 | 58.80x40.80x6.60 | 53.60x28.60 | 48.61x24.93 | 0.35(L)x0.36(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH6031A-5-L插接 | COG | 78.5x51.7x8.9 | 73.00x39.50 | 66.53x33.25 | 0.49(L)x0.49(W) | 12 O'CLOCK | SPI/MCU | ST7565 | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-8-3-L | COG | 2.7 | 71.20x48.20x8.20 | 66.00x37.65 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-8-5-L | COG | 71.40x50.60x8.30 | 66.00x37.65 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 O'CLOCK | SPI/MCU | ST7565R | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-8-11-L | COG | 2.7 | 71.20x48.20x6.60 | 66.00x37.65 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-8-9-L | COG | 2.7 | 71.20x48.20x6.60 | 66.00x37.65 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 O'CLOCK | SPI | ST7565 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-8-8-L | COG | 2.7 | 71.00x48.00x8.05 | 66.00x37.65 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 UHR | Parallel/SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-6-5- L | COG | 36.00x28.00x4.3 | 32.00x19.50 | 30.70x16.62 | 0.22(L)x0.24(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-6- L | COG | 36.00x28.00x4.3 | 32.00x19.50 | 30.70x16.62 | 0.22(L)x0.24(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-6-4-L | COG | 1.3 | 37.90x29.90x5.7 | 32.00x19.50 | 30.70x16.62 | 0.22(L)x0.24(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-24-L | COG | 71.40x46.20x8.65 | 59.00x30.50 | 55.00x27.48 | 0.39(L)x0.39(B) | 6 UHR | SPI | ST7565 | NEIN | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-4-F-L | COG | 51.70x36.20x5.50 | 47.10x26.50 | 44.78x22.38 | 0.33(L)x0.33(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-2-B-L | COG | 1.7 | 45.30x36.00x7.60 | 39.80x25.50 | 37.09x23.01 | 0.26(L)x0.33(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-4-L | COG | 1.97 | 51.70x36.20x5.50 | 47.10x26.50 | 44.78x22.38 | 0.33(L)x0.33(W) | 6 O'CLOCK | SPI | ST7565 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-2-L | COG | 1.7 | 43.60x33.80x3.00 | 39.80x25.50 | 37.09x23.01 | 0.26(L)x0.33(W) | 6 UHR | SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-2-L | COG | 1.7 | 43.60x33.80x3.0 | 39.80x25.50 | 37.09x23.01 | 0.26(L)x0.33(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -30℃~+80℃ |
| 128x64 |  |
CH12864-7-3-L | COG | 1.4 | 35.50x32.30x6.6 | 30.70x23.00 | 28.78x20.97 | 0.21(L)x0.31(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH6031A-L | COG | 2.9 | 78.00x50.90x8.8 | 73.00x39.50 | 66.53x33.25 | 0.49(L)x0.49(W) | 6 UHR | SPI/MCU | ST7567 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH6030C-L | COG | 2.42 | 69.90x42.90x5.50 | 59.00x30.50 | 55.01x27.49 | 0.40(L)x0.40(W) | 6 UHR | SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH6032A-L | COG | 78.40x50.00x11.8 | 71.70x38.80 | 66.52x33.24 | 0.48(L)x0.48(W) | 6 UHR | SPI | ST7565R | NEIN | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH6063A-L | COG | 77.60x48.90x7.0 | 73.00x39.50 | 66.53x33.25 | 0.49(L)x0.49(W) | 6 O'CLOCK | SPI/MCU | ST7565R | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-20-L2 | COG | 2.72 | 81.00x44.00x6.70 | 66.00x37.65 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 UHR | Parallel/SPI | ST7565 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-9-5-L | COG | 2.1 | 64.90x37.00x8.60 | 53.60x28.60 | 48.61x24.93 | 0.35(L)x0.36(W) | 6 UHR | SPI | ST7567B | NEIN | 3.3V | -20℃~+70℃ |
| 256x160 |  |
CH256160A-L | COG | 4.56 | 116.15x77.15x9.40 | 106.31x62.00 | 101.11x56.79 | 0.38(L)x0.34(W) | 6 O'CLOCK | Parallel/SPI | ST75256 | NO | 3.3V | -20℃~+70℃ |
| 160x32 |  |
CH16032F-L | COG | 2.2 | 66.2x29.2x6.3 | 61.0x20.0 | 54.36x11.80 | 0.32(L)x0.35(W) | 6 UHR | Parallel/SPI | ST7525 | NEIN | 3.3V | -20℃~+70℃ |
| 160x32 |  |
CH16032J-L | COG | 3 | 88.1x27.7x6.5 | 82.9x18.5 | 76.76x15.32 | 0.44(L)x0.44(W) | 6 UHR | Parallel/SPI | ST7525 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH6029A-L Welded type | COG | 2.24 | 59.60x43.00x6.30 | 54.00x32.00 | 49.89x27.49 | 0.36(L)x0.40(W) | 6 O'CLOCK | Parallel/SPI | ST7565R | NO | 3.3V | -20℃~+70℃ |
| 128x32 |  |
CH12832-9-2-L | COG | 2.1 | 64.4x29.3x3.3 | 56.9x21.4 | 51.16x15.32 | 0.36(L)x0.41(W) | 6 UHR | Parallel/SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ |
| 128x32 |  |
CH12832-13-L | COG | 2.13 | 84.0x41.0x5.2 | 60.0x18.5 | 56.03x14.53 | 0.34(L)x0.38(W) | 6 O'CLOCK | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 128x32 |  |
CH12832-6-L | COG | 2.38 | 67.6x27.5x6.9 | 62.16x17.14 | 58.82x14.66 | 0.40(L)x0.40(W) | 6 UHR | Parallel /SPI | ST7565R | NEIN | 3.3V | -20℃~+70℃ |
| 128x32 |  |
CH12832-5-L | COG | 2 | 56.6x24.9x6.6 | 52.0x16.0 | 49.0x14.0 | 0.36(L)x0.42(W) | 6 UHR | Parallel/SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-8-2-L | COG | 2.7 | 84.10x52.60x10.7 | 67.00x40.00 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 UHR | Parallel/SPI | ST7567 | NEIN | 3.3V | -20℃~+70℃ |
| 256x160 |  |
CH256160C-L | COG | 4.1 | 104.92x64.83x5.30 | 100.16x53.57 | 93.16x46.57 | 0.34(L)x0.27(W) | 6 O'CLOCK | Parallel/SPI | ST75256 | NO | 3.3V | -20℃~+70℃ |
| 192x64 |  |
CH19264E-2-L | COG | 109.00x48.90x7.50 | 104.0x39.0 | 97.49x32.46 | 0.46(L)x0.46(W) | 6 O'CLOCK | MCU/SPI | ST7525 | NO | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-41- L | COG | 47.40x44.40x4.30 | 41.80x26.10 | 39.30x22.83 | 0.287(L)x0.337(W) | 6 UHR | MCU/SPI | ST7565R | NEIN | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-7-4-L | COG | 1.4 | 35.8x32.5x10.7 | 30.70x23.00 | 28.78x20.97 | 0.21(L)x0.31(W) | 12 UHR | SPI | ST7567 | NO | 3.3V | -20℃~+70℃ |
| 192x64 |  |
CH19264E-5-L | COG | 109.00x61.00x5.8 | 104.00x39.00 | 97.49x32.46 | 0.458(L)x0.458(B) | 6 UHR | MCU/SPI | ST7525 | NEIN | 3.3V | -20℃~+70℃ |
| Display Format | Picture | Model No. | Structure | Size (inch) |
Outline Dimension (mm) |
Viewing Area (mm) |
Active Area (mm) |
Dot Size (mm) |
View Direction | Interface | IC | Control-Board | Voltage | Temperature (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 320x240 |  |
CH320240E-6 | COG | 94.7x83.3x12.0 | 79.2x60.0 | 76.78x57.58 | 0.225(L)x0.225(B) | 6 UHR | MCU | RA8835 | JA | 5V/3.3V | -20℃~+70℃ | |
| 256x128 |  |
CH256128A | COG | 71.20x57.20x8.05 | 66.00x37.65 | 60.78x32.94 | 0.213(L)x0.233(B) | 6 UHR | MCU/SPI | ST75256/GT20L16S1Y | JA | 3.3V/5V | -20℃~+70℃ | |
| 256x128 |  |
CH256128B | COG | 104,92x72,83x9,30 | 100,16x53,57 | 93,16x46,57 | 0,344(L)x0,344(B) | 6 UHR | MCU/SPI | ST75256+GT20L16S1Y | JA | 3,3V/5V | -20℃~+70℃ | |
| 240x160 |  |
CH240160C | COG | 3.4 | 86.70x73.00x8.20 | 77.58x51.60 | 71.98x47.98 | 0.28(L)x0.28(W) | 12 O'CLOCK | MCU/SPI | ST75256 | YES | 3.3V | -20℃~+70℃ |
| 160x160 |  |
CH160160G | COG | 3 | 83.8x76.5x9.0 | 60.0x60.0 | 54.38x54.38 | 0.32(L)x0.32(W) | 6 O'CLOCK | MCU/SPI | ST75161-G2 | YES | 3.3V | -20℃~+70℃ |
| 160x160 |  |
CH160160B-24 | COG | 3 | 83.8x76.5x9.0 | 60.0x60.0 | 54.38x54.38 | 0.32(L)x0.32(W) | 6 O'CLOCK | SPI | UC1698U | YES | 3.3V | -20℃~+70℃ |
| 240x80 |  |
CH24080B | COG | 4 | 130.00x65.00x10.60 | 104.00x39.00 | 98.39x32.79 | 0.41(L)x0.41(W) | 6 O'CLOCK | MCU/SPI | UC1698U | YES | 3.3V | -20℃~+70℃ |
| 192x96 |  |
CH19296A | COG | 4 | 71.3x57.2x5.0 | 66.0x38.0 | 61.04x33.58 | 0.46(L)x0.46(W) | 6 O'CLOCK | MCU/SPI | ST75256 | YES | 3.3V | -20℃~+70℃ |
| 192x64 |  |
CH19264M-2 | COG | 66.0x26.0x6.5 | 49.4x16.6 | 47.99x15.99 | 0.32(L)x0.36(B) | 12 Uhr | SPI | UC1609C | JA | 3.3V | -20℃~+70℃ | |
| 192x64 |  |
CH19264M | COG | 2 | 66.0x26.0x6.5 | 49.4x16.6 | 47.99x15.99 | 0.36(L)x0.32(W) | 12 O'CLOCK | SPI | ST75256 | YES | 3.3V | -20℃~+70℃ |
| 192x64 |  |
CH19264E | COG | 4 | 130.0x65.0x9.5 | 104.0x39.0 | 97.49x32.64 | 0.46(L)x0.46(W) | 12 O'CLOCK | MCU/SPI | ST7525 | YES | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-A-1-Q3 | COG | 71,20x57,00x6,20 | 66,00x37,65 | 60,78x32,94 | 0,46(L)x0,49(B) | 6 UHR | MCU/SPI | ST7565R | JA | 3,3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864A-COG-8 | COG | 2.9 | 93.00x70.00x10.10 | 72.00x38.00 | 66.52x33.24 | 0.49(L)x0.49(W) | 6 UHR | MCU/SPI | ST7567P | JA | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864A-57 | COG | 93.00x70.00x9.80mm | 65.40x38.00 | 60.78x32.94 | 0.45(L)x0.49(B) | 6 UHR | SPI | ST7565 | JA | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864A-COG-4 | COG | 93.00x70.00x13.50m | 71.70x38.80 | 66.52x33.24 | 0.48(L)x0.48(B) | 12 UHR | SPI | ST7567 | JA | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864A-COG | COG | 2.9 | 93.00x70.00x13.50 | 72.00x39.00 | 66.52x33.24 | 0.49(L)x0.49(W) | 6 UHR | SPI | ST7567P | JA | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864A-56 | COG | 101.00x59.00x10.00 | 65.40x38.00 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 UHR | SPI | ST7567 | JA | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-55 | COG | 2.7 | 101.00x59.00x10.00 | 65.40x38.00 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 O'CLOCK | SPI | ST7567 | YES | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-A-1 | COG | 2.7 | 71.20x57.00x8.50 | 66.00x37.65 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 O'CLOCK | MCU/SPI | ST7565R | YES | 5V/3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-59 | COG | 2.7 | 93.00x57.00x9.80 | 65.40x38.00 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 UHR | SPI | ST7567 | JA | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-58-2 | COG | 2.7 | 82.00x54.70x9.80 | 65.40x38.00 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 O'CLOCK | SPI | ST7565R | YES | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-38 | COG | 84.00x44.00x10.30 | 61.00x29.86 | 53.74x26.86 | UC1601S | 6 UHR | SPI | UC1601S | JA | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-26 | COG | 50.9x40.9x8.13 | 39.9x27.9 | 36.08x23.02 | 0.26(L)x0.34(W) | 6 UHR | MCU/SPI | ST7565R | JA | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-27 | COG | 84.20x64.30x6.95 | 78.50x45.50 | 72.93x39.65 | 0.54(L)x0.59(W) | 6 O'CLOCK | MCU/SPI | ST7565 | YES | 5V/3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH1286-22-5 | COG | 65.26x51.96x9.35 | 61.5x34.0 | 55.01x27.49 | 0.40(L)x0.40(W) | 6 UHR | MCU/SPI | ST7565 | JA | 3.3V | -20℃~+70℃ | |
| 128x64 |  |
CH12864-18 | COG | 2.9 | 87.50x67.00x10.00 | 70.00x38.00 | 66.15x33.06 | 0.49(L)x0.0.49(W) | 6 UHR | MCU/SPI | ST7565R | JA | 5V/3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-9 | COG | 2.1 | 54.80x47.50x8.0 | 53.60x28.60 | 48.61x24.93 | 0.35(L)x0.36(W) | 6 O'CLOCK | MCU | ST7567 | YES | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH6029A-V6.0 | COG | 2.2 | 59.60x59.60x7.50 | 54.00x32.00 | 49.89x27.49 | 0.36(L)x0.40(W) | 6 UHR | MCU/SPI | ST7567 | JA | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH6029B | COG | 2.2 | 60.00x52.20x7.50 | 54.00x32.00 | 49.89x27.49 | 0.36(L)x0.40(W) | 6 O'CLOCK | MCU/SPI | ST7565R+ | YES | 5V/3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-8 | COG | 2.7 | 71.20x57.20x8.2 | 66.00x37.65 | 60.78x32.94 | 0.45(L)x0.49(W) | 6 O'CLOCK | MCU/SPI | ST7567 | YES | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-6 | COG | 1.3 | 38.00x36.50x6.50 | 32.00x29.90 | 30.70x19.50 | 0.22(L)x0.24(W) | 6 UHR | SPI | ST7567 | JA | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-4-D | COG | 1.9 | 51.70x43.00x7.5 | 47.10x26.50 | 44.78x22.38 | 0.33(L)x0.33(W) | 6 O'CLOCK | MCU/SPI | ST7565R | YES | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH6063A | COG | 2.9 | 84.00x50.00x8.90 | 73.00x39.50 | 66.53x33.25 | 0.49(L)x0.49(W) | 12 UHR | MCU/SPI | ST7565R | JA | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-6-2 | COG | 1.3 | 40.00x34.50x6.50 | 32.00x19.50 | 30.70x16.62 | 0.22(L)x0.24(B) | 6 UHR | SPI | ST7567 | JA | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-2 | COG | 1.7 | 43.50x40.80x5.50 | 39.80x25.50 | 37.09x23.01 | 0.26(L)x0.33(W) | 6 O'CLOCK | SPI | UC1701X | YES | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-2-2 | COG | 1.7 | 44.50x40.80x6.40 | 39.80x25.50 | 37.09x23.01 | 0.26(L)x0.33(W) | 6 UHR | SPI | ST7567 | JA | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH6063A | COG | 2.9 | 84.00x50.00x7.50 | 73.00x39.50 | 66.53x33.25 | 0.49(L)x0.49(W) | 6 O'CLOCK | SPI/MCU | ST7565R | YES | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH6063H | COG | 2.9 | 93.00x70.00x6.60 | 73.00x39.00 | 66.53x33.25 | 0.49(L)x0.49(W) | 6 UHR | SPI | ST7567 | JA | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH6063C | COG | 2.9 | 79.50x64.00x10.10 | 72.00x38.00 | 66.53x33.25 | 0.49(L)x0.49(W) | 6 O'CLOCK | SPI/MCU | ST7565R | YES | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864F-V4.0 | COG | 1.8 | 54.0x50.0x8.0 | 43.5x29.0 | 40.93x24.93 | 0.29(L)x0.36(W) | 6 O'CLOCK | MCU/SPI | ST7565R | YES | 5V/3.3V | -20℃~+70℃ |
| 320x240 |  |
CH320240D | COG | 3.8 | 102.0x81.4x8.8 | 79.8x60.6 | 76.79x57.59 | 0.225(L)x0.225(W) | 6 O'CLOCK | MCU/SPI | RA8806 | YES | 5V/3.3V | -20℃~+70℃ |
| 320x240 |  |
CH320240D-2 | COG | 3.8 | 94.7x83.3x12.0 | 79.2x60.0 | 76.785x57.585 | 0.225(L)x0.225(W) | 6 O'CLOCK | MCU/SPI | RA8806 | YES | 5V/3.3V | -20℃~+70℃ |
| 192x64 |  |
CH19264K | COG | 2.3 | 78.1x27.6x7.0 | 57.5x21.5 | 55.66x18.54 | 0.27(L)x0.27(W) | 6 O'CLOCK | MCU/SPI | UC1604C | YES | 3.3V | -20℃~+70℃ |
| 128x32 |  |
CH12832-9-2 | COG | 2.1 | 76.0x29.3x4.9 | 56.9x21.4 | 61.16x16.32 | 0.36(L)x0.41(W) | 6 O'CLOCK | MCU/SPI | ST7565 | YES | 3.3V | -20℃~+70℃ |
| 320x240 |  |
CH320240G-5 | COG | 4.7 | 139.0x100.0x10.6 | 103.0x79.0 | 95.985x71.985 | 0.285(L)x0.285(W) | 6 UHR | MCU/SPI | RA8806 | JA | 5V/3.3V | -20℃~+70℃ |
| 320x240 |  |
CH320240E-4 | COG | 3.8 | 94.0x83.5x8.2 | 78.78x59.58 | 76.79x57.59 | 0.225(L)x0.225(W) | 6 O'CLOCK | MCU/SPI | RA8835 | YES | 5V/3.3V | -20℃~+70℃ |
| 320x240 |  |
CH320240F | COG | 3.8 | 100.1x71.9x5.9 | 79.8x60.6 | 76.78x57.59 | 0.225(L)x0.225(W) | 6 O'CLOCK | MCU | RA8806/RA8803 | YES | 5V/3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864F-V2.0 | COG | 1.8 | 54.00x50.00x7.00 | 44.00x29.00 | 40.93x24.93 | 0.29(L)x0.36(W) | 6 O'CLOCK | MCU/SPI | ST7565R | YES | 5V/3.3V | -20℃~+70℃ |
| 256x160 |  |
CH256160A | COG | 4.5 | 116.15x85.95x9.40 | 106.31x62.00 | 101.11x56.79 | 0.38(L)x0.34(W) | 6 O'CLOCK | MCU/SPI | ST75256 | YES | 5V/3.3V | -20℃~+70℃ |
| 320x240 |  |
CH320240E | COG | 3.8 | 100.1x71.9x5.9 | 79.8x60.6 | 76.78x57.59 | 0.225(L)x0.225(W) | 6 O'CLOCK | MCU/SPI | RA8835AP3N | YES | 5V/3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-10 | COG | 2.3 | 59.6x50.6x7.5 | 54.00x32.00 | 49.89x27.49 | 0.36(L)x0.40(W) | 6 O'CLOCK | MCU/SPI | ST7565 | YES | 3.3V | -20℃~+70℃ |
| 128x64 |  |
CH12864-4-E | COG | 79.50x36.20x5.60 | 47.10x26.50 | 44.78x22.38 | 0.33(L)x0.33(B) | 6 UHR | SPI | ST7567 | JA | 3.3V | -20℃~+70℃ |
| Display Format | Picture | Model No. | Structure | Size (inch) |
Outline Dimension (mm) |
Viewing Area (mm) |
Active Area (mm) |
Dot Size (mm) |
View Direction | Interface | IC | Control-Board | Voltage | Touch Screen |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 240x64 |  |
CH24064A | COB | 5.2 | 180.0x65.0x14.0 | 132.0x39.0 | 127.16x33.88 | 0.49(L)x0.49(W) | 6 O'CLOCK | MCU | T6963C | YES | 5V/3.3V | NO |
| 240x128 |  |
CH240128G-2 | COB | 4.8 | 144.0X104.0X12.7 | 114.0X64.0 | 107.95X57.55 | 0.40(L)X0.40(W) | 6 UHR | MCU | T6963C | JA | 5V/3.3V | NEIN |
| 240x128 |  |
CH240128D-5 | COB | 4.8 | 144.0X104.0X12.7 | 114.0X64.0 | 107.95X57.55 | 0.40(L)X0.40(B) | 6 UHR | MCU | T6963C | JA | 5V/3.3V | JA |
| 240x128 |  |
CH240128D | COB | 4.8 | 144.0X104.0X12.7 | 114.0X64.0 | 107.95X57.55 | 0.40(L)X0.40(W) | 6 Uhr | MCU | T6963C | JA | 5V/3.3V | JA |
| 240x128 |  |
CH240128C-5 | COB | 4.8 | 144.0X104.0X12.7 | 114.0X64.0 | 107.95X57.55 | 0.40(L)X0.40(W) | 6 UHR | MCU | T6963C | JA | 5V/3.3V | JA |
| 240x128 |  |
CH240128C-3 | COB | 4.8 | 144.0X104.0X12.7 | 114.0X64.0 | 107.95X57.55 | 0.40(L)X0.40(W) | 6 UHR | MCU | T6963 | JA | 5V/3.3V | |
| 320x240 |  |
CH320240G | COB | 5.1 | 139.0X102.0X12.2 | 103.0X79.0 | 95.97X71.97 | 0.27(L)X0.27(W) | 6 O'CLOCK | MCU | RA8835 | YES | 5V/3.3V | NO |
| 240x128 |  |
CH240128G | COB | 4.8 | 144.0X104.0X12.7 | 114.0X64.0 | 107.95X57.55 | 0.40(L)X0.40(W) | 6 O'CLOCK | MCU | T6963C | YES | 5V/3.3V | NO |
| 160x128 |  |
CH160128B | COB | 4.7 | 129.0x102.0x12.0 | 101.0x82.0 | 92.76x94.19 | 0.54(L)x0.54(W) | 6 UHR | MCU | T6963C | JA | 5V/3.3V | NEIN |
| 122x32 |  |
CH12232E | COB | 2.2 | 84x44x13 | 60.5x18.0 | 48.76x14.68 | 0.36(L)x 0.42(W) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |
| 122x32 |  |
CH12232E | COB | 2.2 | 84.0x44.0x13.0 | 60.5x18.0 | 48.76x14.68 | 0.36(L)x 0.42(B） | 6 UHR | MCU | SED1520 | JA | 5V/3.3V | NEIN |
| 128x64 |  |
CH12864A-4 | COB | 2.9 | 93.0x70.0x13.0 | 70.75x38.85 | 66.52x33.24 | 0.48(L)x0.48(W) | 6 O'CLOCK | MCU | SBN6400 | YES | 5V/3.3V | NO |
| 192x64 |  |

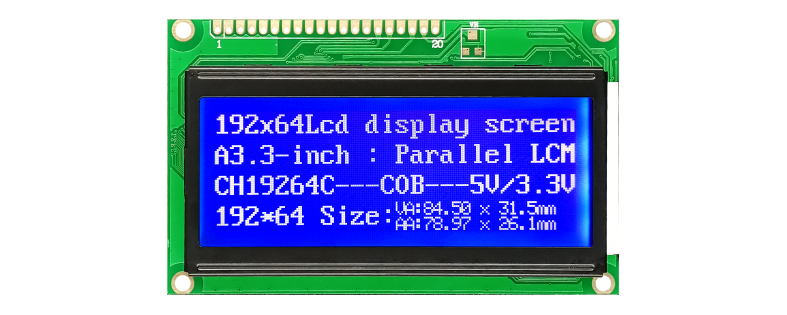

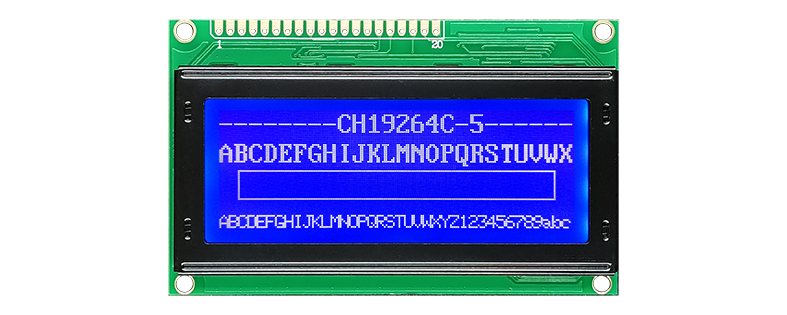

CH19264C | COB | 3.3 | 100.0X60.0X12.0 | 84.5x31.5 | 78.67x26.19 | 0.37(L)x0.37(W) | 6 UHR | MCU | ST7920 | JA | 5V/3.3V | NEIN |
| 128x64 |  |
CH12864I | COB | 2.4 | 75.0x52.7x8.0 | 61.0x33.5 | 55.01x27.49 | 0.40(L)x0.40(W) | 6 UHR | MCU | SBN6400 | JA | 5V/3.3V | NEIN |
| 128x64 |  |
CH12864C | COB | 1.9 | 54.0x50.0x8.0 | 44.0x29.0 | 40.92x24.92 | 0.28(L)x0.35(W) | 6 UHR | MCU | KS0108B | JA | 5V/3.3V | NEIN |
| 122x32 |  |
CH12232C-2 | COB | 2 | 79.0x28.0x7.1 | 61.0x21.0 | 48.76x14.68 | 0.36(L)x 0.42(W) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |
| 64x32 |  |
CH6432B | COB | 0.49 | 58.0x32.0x13.5 | 37.8x16.0 | 30.04x13.4 | 0.47(L)x 0.42(W) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |
| 320x240 |  |
CH320240H | COB | 5.1 | 139.0x102.0x12.2 | 103.0X79.0 | 95.97X71.97 | 0.27(L)X0.27(B) | 6 UHR | MCU | NO | YES | 5V/3.3V | NO |
| 122x32 |  |
CH12232B-2 | COB | 2 | 76.6x28.1x13.0 | 60.5x18.0 | 48.76x14.68 | 0.36(L)x0.42(W) | 6 O'CLOCK | MCU/SPI | ST7920 | YES | 5V/3.3V | NO |
| 122x32 |  |
CH12232A-Large window | COB | 2.2 | 78.0x29.1x7.2 | 61.0x21.0 | 48.76x14.68 | 0.36(L)x 0.42(W) | 6 UHR | MCU | SED1520 | JA | 5V/3.3V | NEIN |
| 128x32 |  |
CH12832B | COB | 2 | 78.0x36.0x9.8 | 60.5x18.0 | 51.16x14.36 | 0.36(L)x0.41(W) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |
| 128x32 |  |
CH12832B-4 | COB | 2.7 | 87.0x40.0x14.1 | 70.0x20.0 | 66.52x16.60 | 0.48(L)x0.48(W) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |
| 128x32 |  |
CH12832B-12 | COB | 2 | 80.0x32.0x12.7 | 60.5x18.0 | 51.16x14.36 | 0.36(L)x0.41(W) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |
| 128x64 |  |
CH12864-7920 | COB | 2.9 | 93.0x70.0x13.0 | 72.0x40.0 | 66.52x33.24 | 0.48(L)x0.48(W) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |
| 128x64 |  |
CH12864D | COB | 2.7 | 78.0x70.0x12.2 | 62.0x44.0 | 56.01x38.35 | 0.39(L)x0.55(W) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |
| 128x64 |  |
CH12864E | COB | 2.7 | 78.0x70.0x12.2 | 62.0x44.0 | 55.01x27.49 | 0.40(L)x0.56(W) | 6 UHR | MCU | AIP31107 | JA | 5V/3.3V | NEIN |
| 128x64 |  |
CH12864I-B | COB | 2.4 | 75.0x52.7x8.0 | 61.0x33.5 | 55.01x27.49 | 0.40(L)x0.40(W) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |
| 128x64 |  |
CH12864K | COB | 1.9 | 54.0x50.0x8.0 | 44.0x29.0 | 40.92x24.92 | 0.267(L)x0.364(W) | 6 O'CLOCK | MCU/SPI | ST7920 | YES | 5V/3.3V | NO |
| 128X64 |  |
CH12864Q | COB | 2.9 | 93.0X70.0X13.0 | 72.0X40.0 | 66.52X33.24 | 0.48(L)X0.48(W) | 6 O'CLOCK | MCU/SPI | ST7920 | YES | 5V/3.3V | NO |

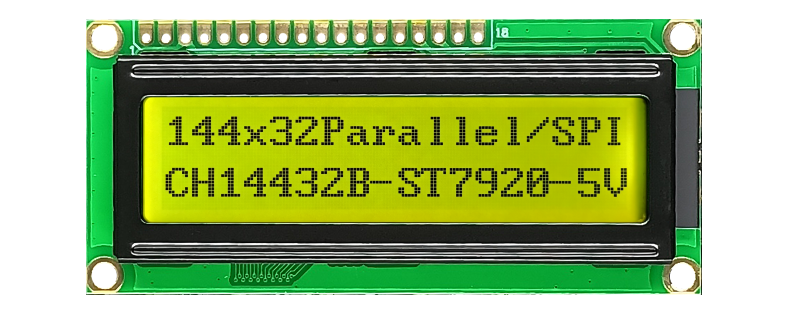

| 144x32 |  |

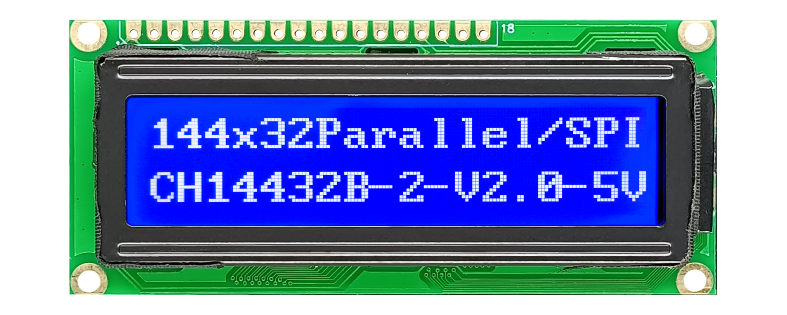

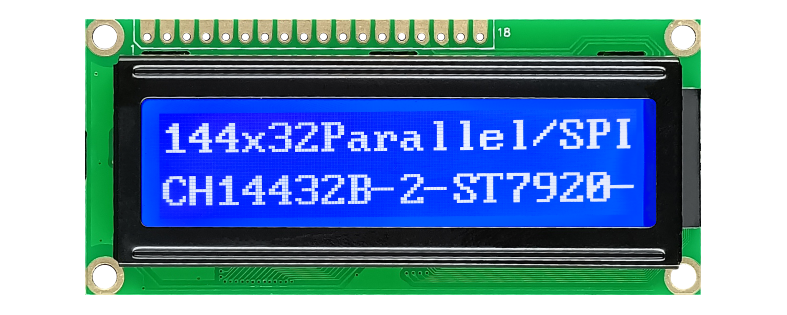

CH14432B | COB | 2.4 | 80.0x36.0x12.0 | 64.5x16.0 | 60.45x13.41 | 0.39(L)x0.39(B) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |

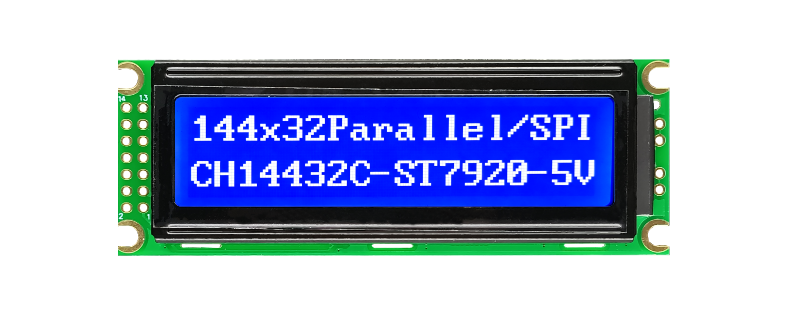

| 144x32 |  |
CH14432C | COB | 2.4 | 85.0x30.0x12.0 | 64.5x16.0 | 60.45x13.41 | 0.39(L)x0.39(W) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |
| 160x32 |  |

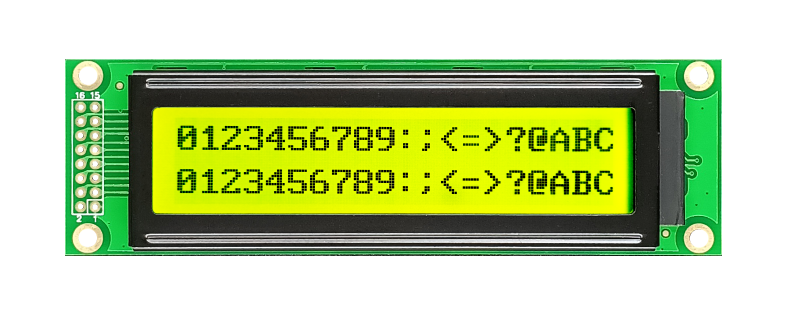

CH16032A | COB | 3 | 116.0x35.0x13.0 | 82.9x18.5 | 76.76x15.32 | 0.44(L)x0.44(W) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |

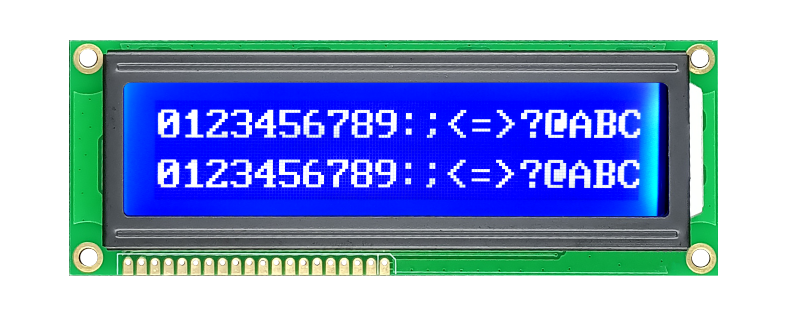

| 160x32 |  |

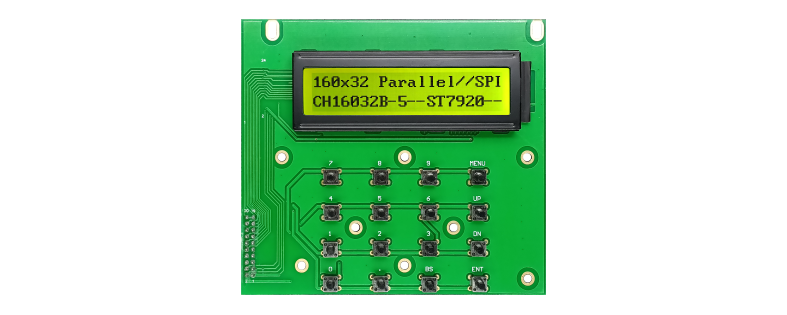

CH16032B | COB | 3.6 | 122.0x44.0x13.0 | 99.0x24.0 | 89.55x18.19 | 0.51(L) x0.52(W) | 6 UHR | MCU/SPI | ST7920 | JA | 5V/3.3V | NEIN |
| 192x64 |  |
CH19264B | COB | 4 | 130.0X65.0X12.5 | 104.0x39.0 | 97.49x32.46 | 0.458(L)x0.458(W) | 6 O'CLOCK | MCU/SPI | ST7920 | YES | 5V/3.3V | NO |
| 192x64 |  |

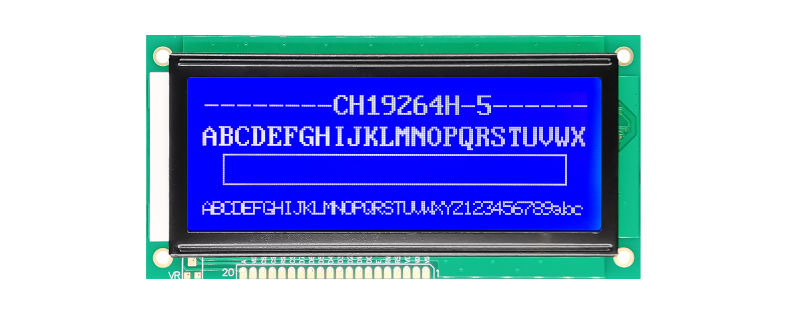

CH19264H-5 | COB | 4 | 130.0x65.0x12.5 | 104.0x39.0 | 97.49x32.46 | 0.46(L)x0.46(W) | 6 UHR | MCU | AIP31107 | JA | 5V/3.3V | NEIN |
| 240x128 |  |
CH240128B | COB | 4.8 | 144.0X104.0X12.7 | 114.0X64.0 | 107.95X57.55 | 0.40(L)X0.40(W) | 6 O'CLOCK | MCU | RA8806 | YES | 5V/3.3V | YES |
| 240x128 |  |
CH240128C | COB | 4.8 | 144.0X104.0X12.7 | 114.0X64.0 | 107.95X57.55 | 0.40(L)X0.40(B) | 6 UHR | MCU | T6963C | JA | 5V/3.3V | JA |
| 240x128 |  |
CH240128H3 | COB | 4.8 | 144.0X104.0X12.0 | 114.0X64.0 | 107.95X57.55 | 0.40(L)X0.40(W) | 6 UHR | MCU | T6963C/RA6963 | JA | 5V/3.3V | NEIN |
| 240x128 |  |
CH240128H4 | COB | 4.8 | 138.0X104.0X12.7 | 114.0X64.0 | 107.95X57.55 | 0.40(L)X0.40(W) | 6 O'CLOCK | MCU | T6963C/RA6963C | YES | 5V/3.3V | NO |
| 240x128 |  |
CH240128L | COB | 4.8 | 144.0X104.0X12.7 | 114.0X64.0 | 107.95X57.55 | 0.40(L)X0.40(W) | 6 O'CLOCK | MCU | LC7981 | YES | 5V/3.3V | NO |
| 240x128 |  |
CH240128R | COB | 4.8 | 144.0X104.0X12.7 | 114.0X64.0 | 107.95X57.55 | 0.40(L)X0.40(W) | 6 UHR | MCU | RA8806/RA8803 | JA | 5V/3.3V | NEIN |
| 320x240 |  |
CH320240A4-CCFL | COB | 5.7 | 167.0x109.0x11.00 | 122.0X92.0 | 115.17X86.37 | 0.33(L)X0.33(W) | 6 O'CLOCK | MCU | NO | YES | 5V/3.3V | NO |
| 320x240 |  |
CH320240A-V4.0 | COB | 5.7 | 160.0X109.0X11.0 | 122.0X92.0 | 115.17X86.37 | 0.33(L)X0.33(W) | 6 UHR | MCU | RA8835 | JA | 5V/3.3V | JA |
| 320x240 |  |
CH320240B | COB | 5.7 | 160.0x109.0x12.4 | 122.0x92.0 | 115.17x86.37 | 0.33(L)x0.33(W) | 6 O'CLOCK | MCU | RA8806 | YES | 5V/3.3V | YES |
| 320x240 |  |
CH320240C | COB | 5.1 | 139.0X102.0X12.2 | 103.0X79.0 | 95.97X71.97 | 0.27(L)X0.27(W) | 6 O'CLOCK | MCU | RA8835 | YES | 5V/3.3V | NO |
| 320x240 |  |
CH320240C-3 | COB | 5.1 | 139.0X102.0X12.2 | 103.0X79.0 | 95.97X71.97 | 0.27(L)X0.27(W) | 6 O'CLOCK | MCU | RA8835 | YES | 5V/3.3V | NO |
| 320x240 | |
CH320240A4-LED | COB | 5.7 | 167.0X109.0X11.0 | 122.0X92.0 | 115.17X86.37 | 0.33(L)X0.33(W) | 6 UHR | MCU | NO | JA | 5V/3.3V | NEIN |
| 240x64 | |
CH24064A | COB | 5.2 | 180.0x65.0x14.0 | 132.0x39.0 | 127.16x33.88 | 0.49(L)x0.49(W) | 6 UHR | MCU | T6963C | JA | 5V/3.3V | NEIN |
| Display Format | Picture | Model No. | Structure | Size (inch) |
Outline Dimension (mm) |
Viewing Area (mm) |
Active Area (mm) |
Character Size (mm) |
View Direction | Interface | IC | Control-Board | Voltage | Touch Screen |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16X2 |  |
CH1602A-I2C | COB | 2.5 | 80.0x36.0x12.7 | 64.5x14.6 | 55.7x11.0 | 2.90(L)x 5.15(B) | 6 UHR | JA | 5V/3.3V | NEIN | ||
| 20x4 |  |
CH2004B | COB | 146.0x62.5x13.0 | 123.5x43.0 | 118.84x38.47 | 1.10(L) )x 0.92(W） | 6 O'CLOCK | MCU | AIP31066 | YES | 5V/3.3V | NO | |
| 40x2 |  |
CH4002A | COB | 182.00x33.5x13.5 | 152.40x17.00 | 147.50x11.50 | 0.65(L)x0.60(W) | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN | |
| 16X2 |  |
CH1602G | COB | 84.00x44.0x 12.70 | 66.0x16.0 | 56.21x11.50 | 0.66(L)x 0.56(W) | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN | |
| 40x4 |  |
CH4004A | COB | 190.00x54.00x12.90 | 146.50x29.80 | 140.45x23.16 | 0.55(L)x 0.50(W) | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN | |
| 8x2 |  |
CH0802B | COB | 1.18 | 58.0x32.0x13.5 | 37.7x16 | 25.74x9.48 | 2.95(L)x 5.55(W) | 6 O'CLOCK | MCU | AIP31066 | YES | 5V/3.3V | NO |
| 8x2 |  |
CH0802A | COB | 1.18 | 58.0x32.0x13.5 | 37.7x16.0 | 25.74x9.48 | 2.95(L)x 5.55(W) | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
| 16X4 |  |
CH1604A | COB | 2.5 | 80.0x46.0x10.7 | 61.4x25.0 | 50.20x20.80 | 2.90(L)x 5.15(W) | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
| 16X1 |  |
CH1601B | COB | 3.9 | 122.0x33.0x11.0 | 99.0x13.0 | 94.84x9.66 | 4.84(L)x 9.66(W) | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
 |
||||||||||||||
| 16X1 |  |
CH1601A | COB | 2.5 | 80.0x36.0x11.0 | 64.5x14.6 | 59.64x5.96 | 3.21(L)x 5.96(W) | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
| 14X1 |  |
CH1401A | COB | 1.1 | 120.00X42.00X8.4 | 94.0X20.7 | 88.5X11.0 | 5.30(L)x 11.00(W) | 6 O'CLOCK | MCU | RW1063 | YES | 5V/3.3V | NO |
| 16X2 |  |
CH1602A | COB | 2.5 | 80.0x36.0x11.0 | 64.5x14.6 | 55.7x11.0 | 2.90(L)x 5.15(W | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
| 16X2 |  |
CH1602B-V2.0 | COB | 2.5 | 80.0x36.0x11.0 | 64.9x15.9 | 55.46x10.76 | 2.96(L)x 5.16(W) | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
| 16x2 |  |
CH1602D | COB | 2.5 | 80.0x36.0x11.0 | 64.5x14.6 | 55.70x11.00 | 4.80(L)x 9.60(W） | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
 |
||||||||||||||
| 20x2 |  |
CH2002A | COB | 3.2 | 116.0x37.0x13.5 | 83.0x18.3 | 75.40x11.50 | 3.22(L)x 5.55(W） | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
| 20x4 |  |
CH2004A | COB | 3.0 | 98.0x65.0x14.0 | 76.0x26.0 | 70.40x20.80 | 3.22(L) )x 5.55(W） | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
| 24x2 |  |
CH2402A | COB | 3.7 | 118.0x36.0x13.1 | 94.5x17.8 | 88.30x11.50 | 3.20(L)x 5.55(W) | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
| 16x4 |  |
CH1604B | COB | 2.5 | 87.0x60.0x10.7 | 61.4x25.0 | 50.20x20.80 | 2.95(L)x 4.75(W) | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
| 16X4 |  |
CH1604C | COB | 2.5 | 87.0x60.0x10.3 | 61.8X29.9 | 56.21X29.9 | 2.95(L)x 4.75(W) | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
| 20x4 |  |
CH2004A-I2C | COB | 3 | 98.0x65.0x14.0 | 76.0x26.0 | 70.40x20.80 | 4.76x0.52mm | 6 UHR | MCU | AIP31066 | JA | 5V/3.3V | NEIN |
| Display Format | Picture | Model No. | Structure | Size (inch) |
Outline Dimension (mm) |
LCD Dimension (mm) |
Active Area (mm) |
View Direction (mm) |
Interface | IC | Control-Board | Brightness (cd㎡) |
Touch Screen | Temperature (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1024X600 |  |
CH070B01 | TFT | 7.0 | 164.88X99.98X5.60 | 156.90X89.58 | 154.21X85.92 | IPS ALL | MIPI | JD9165BA | NO | 1000 | JA | -20℃-70℃ |
| 240 x 240 |  |
CH0128A01 | TFT | 1.28 | 35.6x38.1x3.43 | 32.4x32.4 | IPS ALL | SPI | GC9A01 | NO | 500 | NO | -20℃-70℃ | |
| 480 x 480 |  |
CH395SQ0006B-A | TFT | 3.95 | 74,66x76,54x2,13 | 74,26×76,18 | 71,86x70,18 | IPS ALL | RGB | ST7701SN | NEIN | 500 | NEIN | -20℃-70℃ |
| 320X480 |  |
CH035A-P | TFT | 3.5 | 76,90X63,90X2,90 | 52,96X81,34 | 48,96X73,44 | 6 UHR | MCU | ST7365P | NEIN | 500 | NEIN | -20℃-70℃ |
| 800×1280 |  |
CH080B01 | TFT | 8 | 123,45X195,03X4,28 | 107,64×172,22 | IPS ALL | MIPI | GSL3676 | NO | 500 | JA | -20℃-70℃ | |
| 240x320 |  |
CH24QI344 | TFT | 2.4 | 42,72X60,26X2,25 | 36,72X48,96 | 12 Uhr | RGB | ILI1941V | NEIN | 500 | NEIN | -20℃-70℃ | |
| 800X480 |  |
CH070A-P-B | TFT | 7.0 | 165.00X100.00X3.5 | 156.81X88.78 | 153.84X85.63 | 6 Uhr | SPI/MCU | NO | NO | 500 | NEIN | -20℃-70℃ |
| 1024X600 |  |
CH070A-P-B | TFT | 7.0 | 165.00X100.00X3.5 | 156.68X88.94 | 154.21X85.92 | IPS ALL | SPI/MCU | NO | NO | 500 | NO | -20℃-70℃ |
| 1024X600 |  |
CH070A-P-B-TP | TFT | 7.0 | 165,00X100,00X4,98 | 156,68X88,94 | 154,21X85,92 | IPS ALL | SPI/MCU | NO | NO | 500 | JA | -20℃-70℃ |
| 1024X600 |  |
CH070A-P-B-GP | TFT | 7.0 | 165.00X100.00X4.79 | 156.68X88.94 | 154.21X85.92 | IPS ALL | SPI/MCU | NO | NO | 500 | JA | -20℃-70℃ |
| 800X480 |  |
CH0500A-P | TFT | 5.0 | 120.8X76.10X3.0 | 110.3X67.4 | 108.00X64.80 | IPS ALL | SPI/MCU | ST7262 | NO | 500 | NO | -20℃-70℃ |
| 800X480 |  |
CH0500A-P-GP | TFT | 5.0 | 120.8X76.10X4.08 | 110.3X67.4 | 108.00X64.80 | IPS ALL | SPI/MCU | ST7265 | NO | 500 | JA | -20℃-70℃ |
| 480X272 |  |
CH430 | TFT | 4.3 | 105.50X67.07X3.1 | 97.92X56.7 | 95.04X53.86 | IPS ALL | SPI/MCU | ST7262 | NO | 500 | NO | -20℃-70℃ |
| 240×320 |  |
CH032A-S | TFT | 3.2 | 55.04X77.50X2.50 | 51.06×71.00 | 48.6×64.8 | 6-Uhr | SPI | ST7789T3 | NEIN | 500 | NEIN | -20℃-70℃ |
| 240×320 |  |
CH032A01 | TFT | 3.2 | 55.04X77.40X3.70 | 51.06×71.00 | 48.6×64.8 | IPS ALL | SPI | ST7789+BOE | NO | 500 | NO | -20℃-70℃ |
| 480X800 |  |
CH0397A01 | TFT | 3.97 | 57,14x96,85x2,12 | 55,44X93,9 | 51,84X86,4 | IPS ALL | MIPI | ST7701S-G5 | NO | 500 | NEIN | -20℃-70℃ |
| 240×320 |  |
CH028A01 | TFT | 2.8 | 50.00x69.20x2.30 | 64.65×46.00 | 43.2×57.6 | 12 Uhr | MCU | ST7789V | NEIN | 500 | NEIN | -20℃-70℃ |
| 800X480 |  |
CH0500A-P-TP | TFT | 5.0 | 120.8X76.10X3.55 | 110.3X67.4 | 108.00X64.80 | IPS ALL | SPI/MCU | ST7265 | NO | 500 | JA | -20℃-70℃ |
| 480X272 |  |
CH0500B-P | TFT | 5.0 | 120,8X76,10X3,0 | 110,3X67,4 | 108,00X64,80 | IPS ALL | SPI/MCU | ST7265 | NEIN | 500 | NEIN | -20℃-70℃ |
| 80×160 |  |
CH0096A-S-B03 | TFT | 0.96 | 13.50X27.95X1.5 | 26.99×13.20 | 21.70×10.80 | IPS ALL | SPI | ST7735S | NEIN | 500 | NEIN | -20℃-70℃ |
| 800X480 |  |
CH430-GT | TFT | 4.3 | 105.5X67.07X3.1 | 97.92X56.7 | 95.04X53.86 | IPS ALL | SPI/MCU | ST7262 | NEIN | 500 | JA | -20℃-70℃ |
| 800X480 | |
CH430-TP | TFT | 4.3 | 105.50x67.07x3.1 | 97.92X56.7 | 95.04X53.86 | IPS ALL | SPI/MCU | ST7262 | NEIN | 500 | JA | -20℃-70℃ |
| 1024X600 |  |
CH101A-P-B01 | TFT | 10.1 | 235.00X143.00X3.50 | 225.80X128.10 | 222.72X125.28 | 6 UHR | SPI/MCU | NO | NO | 500 | NO | -20℃-70℃ |
| Display Format | Picture | Model No. | Structure | Size (inch) |
Outline Dimension (mm) |
LCD Dimension (mm) |
Active Area (mm) |
View Direction (mm) |
Interface | IC | Control-Board | Brightness (cd㎡) |
Touch Screen | Temperature (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 240x320 |  |
CH032A-S | TFT | 3.2 | 65.00x77.70x4.60 | 51.60x71.0 | 48.60x64.80 | 6 UHR | SPI | ST7789T3 | YES | 500 | NO | -20℃-70℃ |
| Display Format | Picture | Model No. | Structure | Type | Outline Dimension (mm) |
Viewing Area (mm) |
Screen printing (mm) |
View Direction | Duty | Interface | IC | Control-Board | Voltage | Temperature (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LCD 7-Segment-Anzeige |  |
CH-D3373A | COB | HTN | 190,00x123,00x12,0 | / | / | 6 UHR | / | SPI | HT1621 | JA | 5V | -20℃~+70℃ |
| LCD 7-Segment-Anzeige |  |
CH-D2371A | COB | VA | 179,0x144,2x13,5 | / | / | 6 UHR | / | SPI | VKS232 | JA | 5,0V | -25℃~+75℃ |
| lcd 7-Segment-Anzeige |  |
CH-D2372A | COB | HTN | 179.00x144.20x13.50 | / | / | 6 UHR | / | SPI | HT1622 | JA | 5V | -25℃~+75℃ |
| LCD 7-Segment-Anzeige |  |
CH26439 | COB | HTN | 179,00x144,20x13,50 | / | / | 6 UHR | / | SPI | HT1621B | JA | 5V | -20℃~+70℃ |
| LCD 7-Segment-Anzeige |  |
CH26351 | COB | STN | 82.0x56.100x9.7 | / | / | 6 UHR | / | SPI | HT1622 | JA | 5V | -20℃~+70℃ |
| LCD 7-Segment-Anzeige |  |
CHF68535H | COB | FSTN | 55.0x44.8x2.8 | / | / | 6 UHR | / | SPI | / | NEIN | 3,3V | -30℃~+80℃ |
| lcd 7 segment display |  |
CH604324LA | COB | HTN | 71.0x37.0x2.8 | / | / | 12 UHR | / | SPI | / | / | 3V | -10℃~+60℃ |
| LCD 7-Segment-Anzeige |  |
CH624222 | COB | HTN | 164.00x73.00x 8.2 | / | / | 6 UHR | / | SPI | HT1621B | NEIN | 5V | -20℃~+70℃ |
| LCD 7-Segment-Anzeige |  |
CH623097 | COB | HTN | 55.00x29.00x 2.8 | / | / | 6 UHR | / | SPI | / | NEIN | 4,5V | -20℃~+70℃ |
| LCD 7-Segment-Anzeige |  |
CH623463 | COB | HTN | 136.0x57.8x 2.8 | / | / | 6 UHR | / | SPI | / | NEIN | 5V | -20℃~+70℃ |
| LCD 7-Segment-Anzeige |  |
CH624019 | COB | HTN | 45.2x28.12x 2.8 | / | / | 6 UHR | / | SPI | / | NEIN | 5V | -20℃~+70℃ |
| LCD 7-Segment-Anzeige |  |
CH624266 | COB | HTN | 78.00x57.00x 2.8 | / | / | 6 UHR | / | SPI | / | NEIN | 5V | -20℃~+60℃ |
| LCD 7-Segment-Anzeige |  |
CH624266 | COB | HTN | 60.0x45.00x 2.8 | / | / | 6 UHR | / | SPI | / | NEIN | 3V | -20℃~+60℃ |
| LCD 7-Segment-Anzeige |  |
CH75828N | COB | VA | 57,8x101,0x 2,8 | / | / | 12 UHR | / | SPI | / | NEIN | 4,4V | -20℃~+70℃ |
| LCD 7-Segment-Anzeige |  |
CH625067 | COB | HTN | 68.0x42.5x2.6 | / | / | 12 UHR | / | SPI | / | NEIN | 3V | -20℃~+60℃ |
| LCD 7-Segment-Anzeige |  |
CH623055 | COB | VA | 79.0x10.0x 5.4mm | / | / | 6 UHR | / | SPI | / | NEIN | 3.2V | -20℃~+60℃ |
| LCD 7-Segment-Anzeige |  |
CHT68853H | COB | TN | 56.0x30.2x2.8 | / | / | 6 UHR | / | SPI | / | NEIN | 5V | -30℃~+80℃ |
| LCD 7-Segment-Anzeige |  |
CH-H62819H | COB | HTN | 190.0x123.0x12.0 | / | / | 6 UHR | / | SPI | HT1621 | JA | 5V | -20℃~+70℃ |
| LCD 7-Segment-Anzeige |  |
CH-D1669A | COB | TN | 146.0x123.5x2.8 | / | / | 6 UHR | / | SPI | / | NEIN | 5V | -30℃~+80℃ |
| lcd 7-Segment-Anzeige |  |
CH624461 | COB | HTN | 42.00x25.00x2.8 | / | / | 6 UHR | / | SPI | / | NEIN | 3V | -10℃~+60℃ |
| lcd 7-Segment-Anzeige |  |
CH-D1586A | COB | HTN | 190.0x123.0x12.0 | / | / | 6 UHR | / | SPI | HT1621 | JA | 3V | -20℃~+70℃ |
| Display Format | Picture | Model | Structure | Size (inch) |
Outline Dimension (mm) |
Viewing Area (mm) |
Active Area (mm) |
Dot Size (mm) |
View Direction | Interface | Power Supply | IC | Control-Board | Temperature (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 128x64 |  |
CH0242A01 | OLED | 2.42 | 72,00x43,00x4,20 | 57,00x29,50 | 55,01x27,49 | IPS ALL | SPI | 3,3V | SSD1309 | YES | -40℃-70℃ | |
| 128x64 |  |
CH0096A01 | OLED | 0.96 | 27,30x27,80x2,65 | 23,74x12,86 | 21,74x10,86 | 0,15(L)x0,15(B) | IPS ALL | IIC | 3,3V | SSD1306 | JA | -40℃-70℃ |
| 128x64 |  |
CH013A01 | OLED | 1.3 | 35,40x33,50x2,60 | 31,42x16,70 | 29,42x14,70 | 0,21(L)x0,21(B) | IPS ALL | SPI/IIC | 3,3V | SH1106 | JA | -40℃~70℃ |
| 128x32 |  |
CH0091A01 | OLED | 0.91 | 32,5x20,5x2,55 | 24,38x7,58 | 22,38x5,58 | 0,175(L)x0,175(B) | IPS ALLE | SPI | 3,3V | SSD1306 | JA | -30℃-80℃ |
