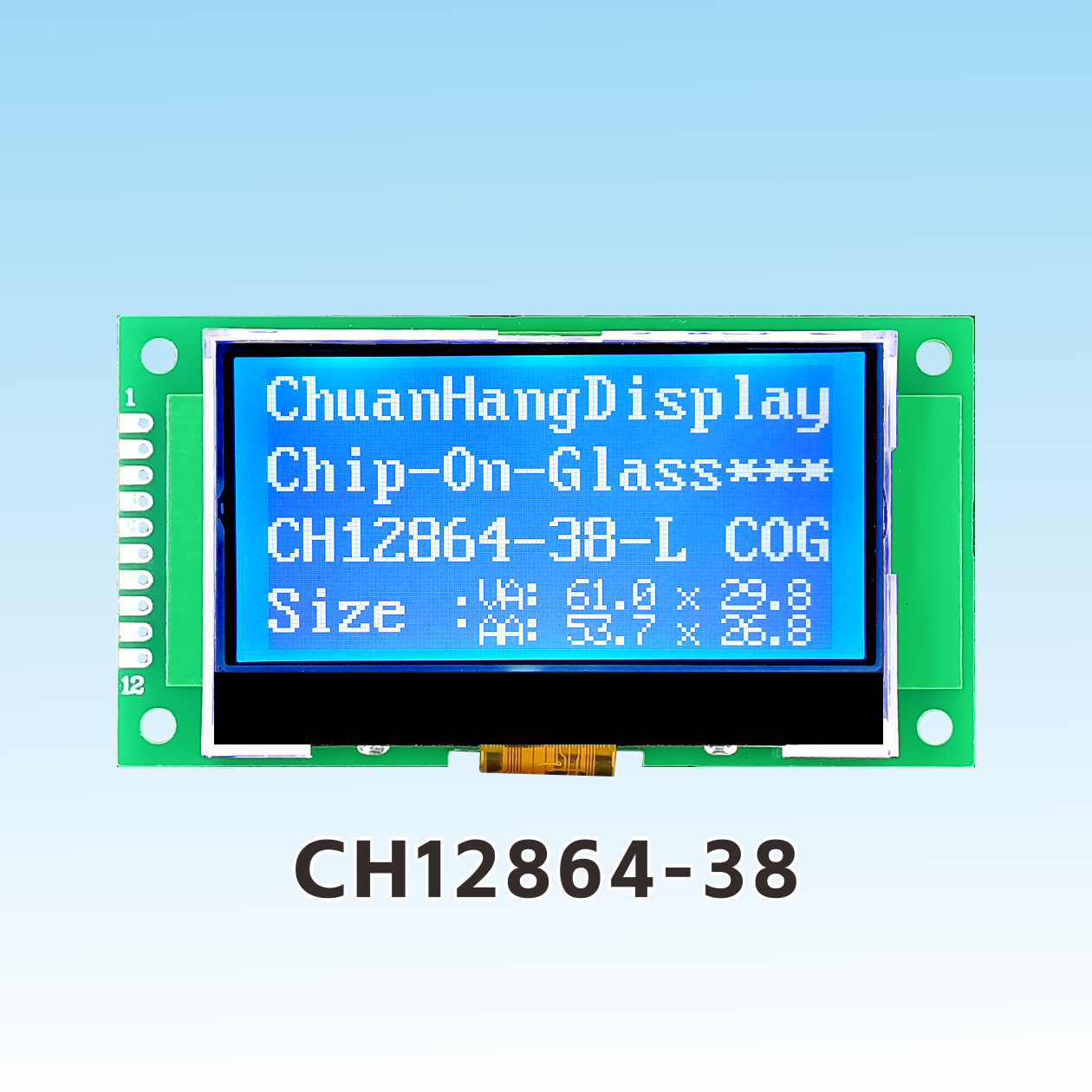

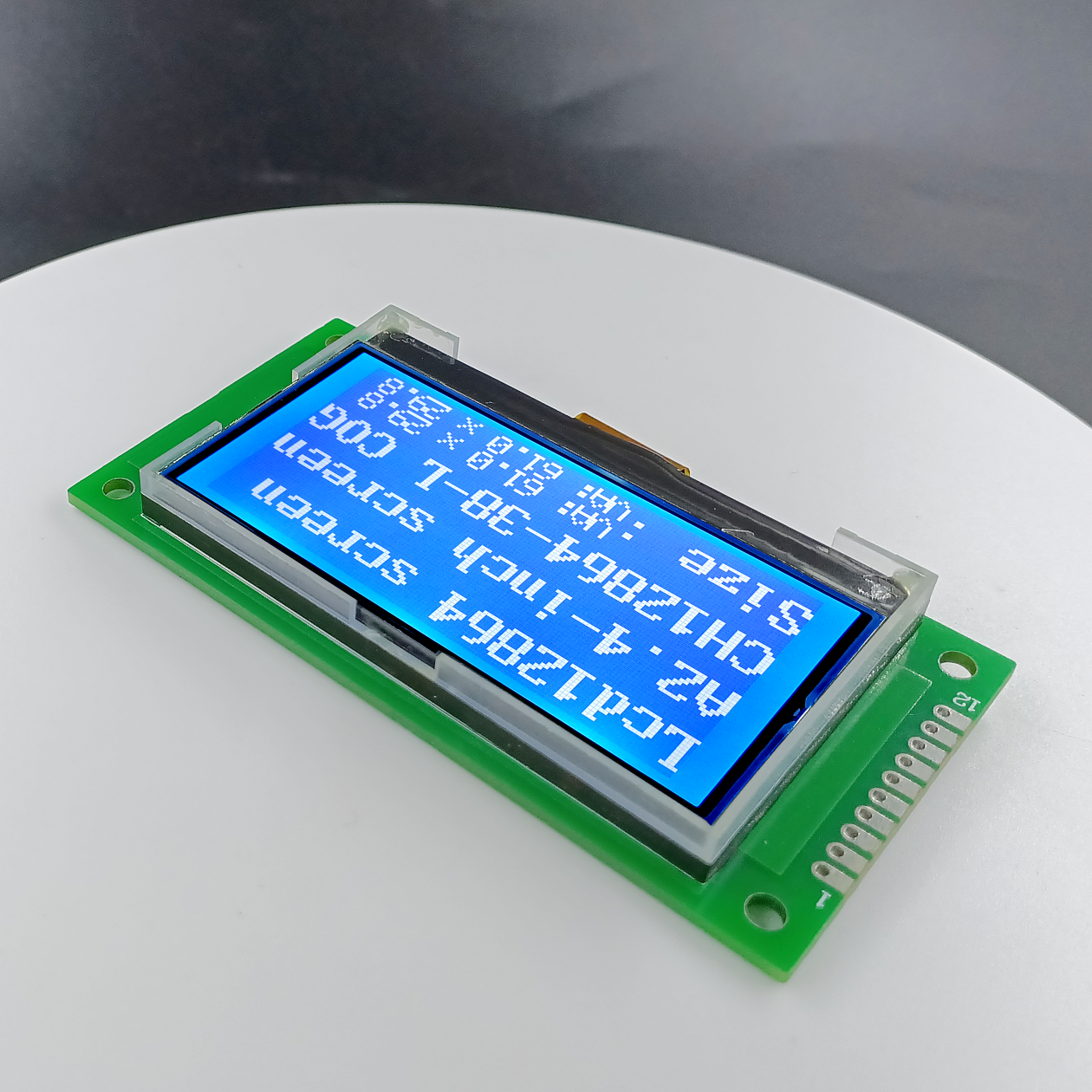

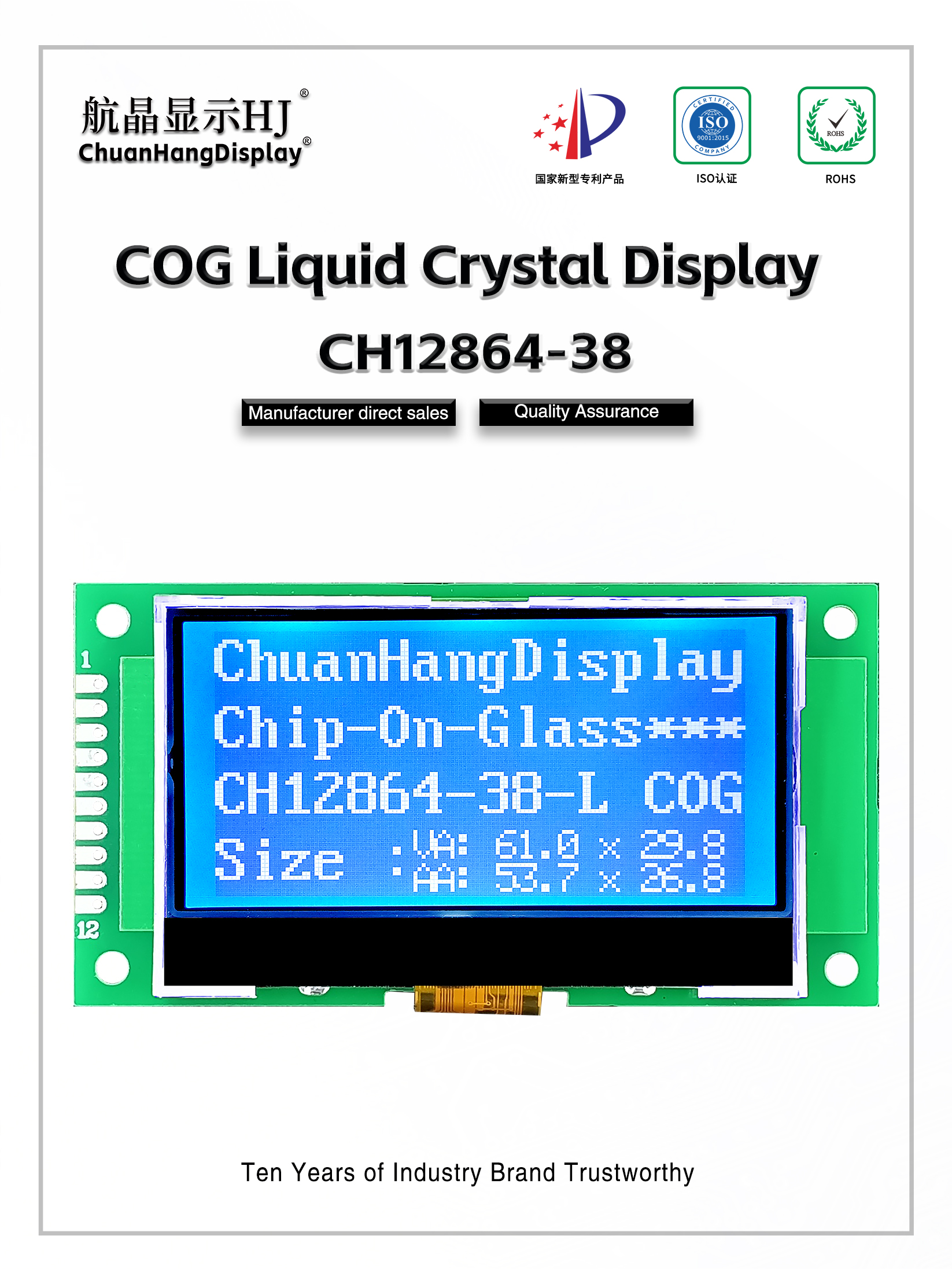

CH12864-38

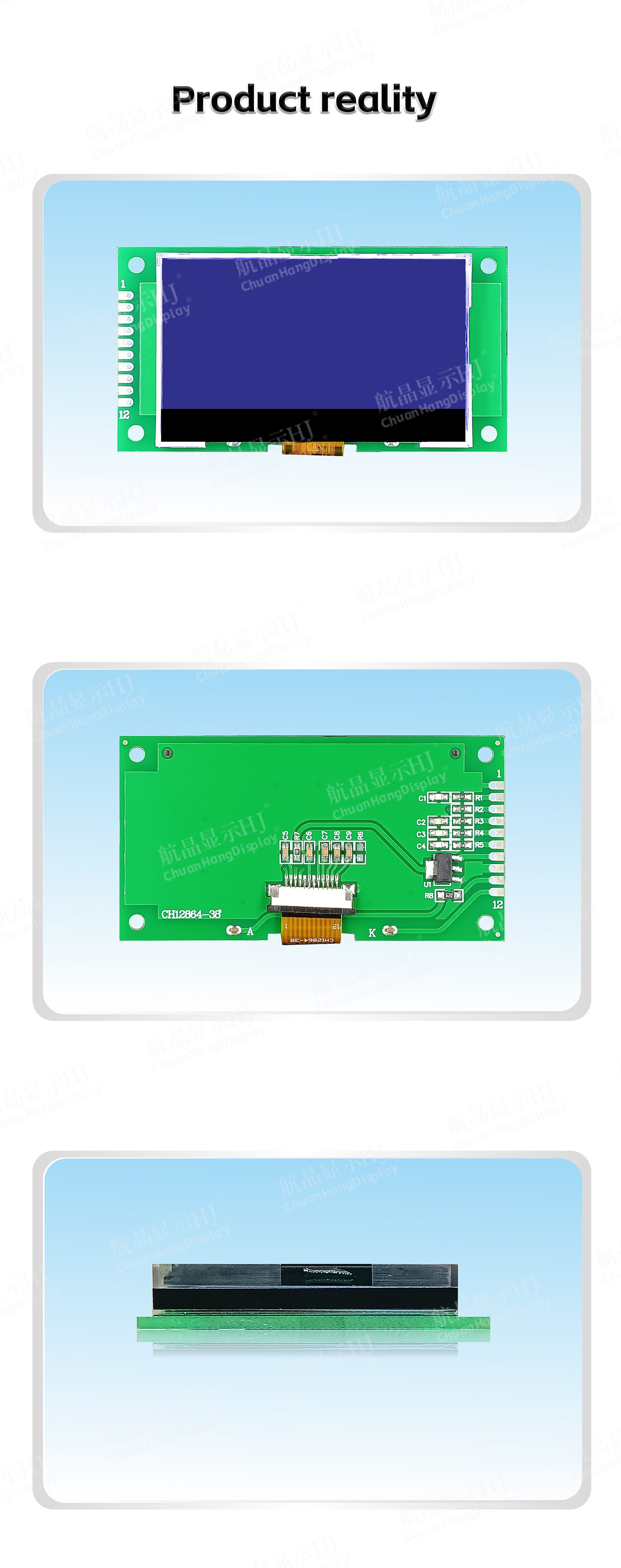

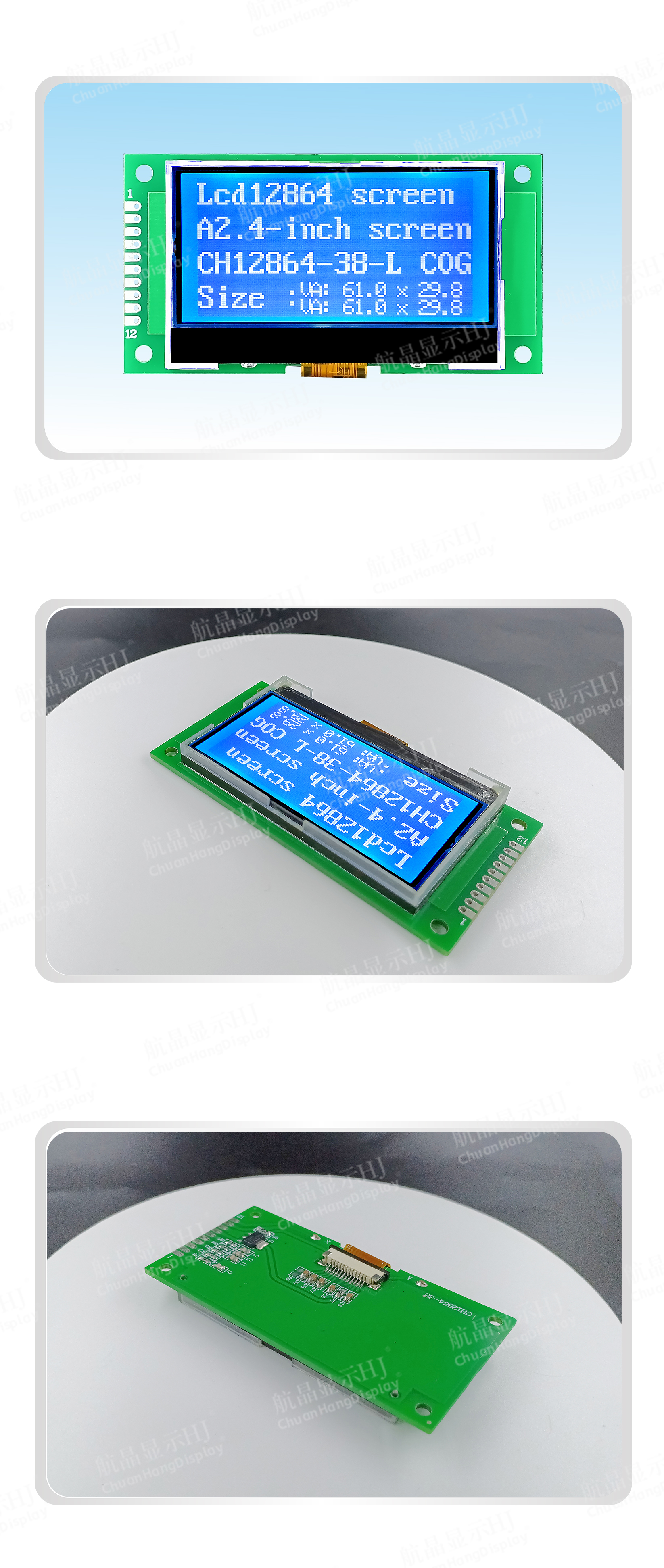

Product Description

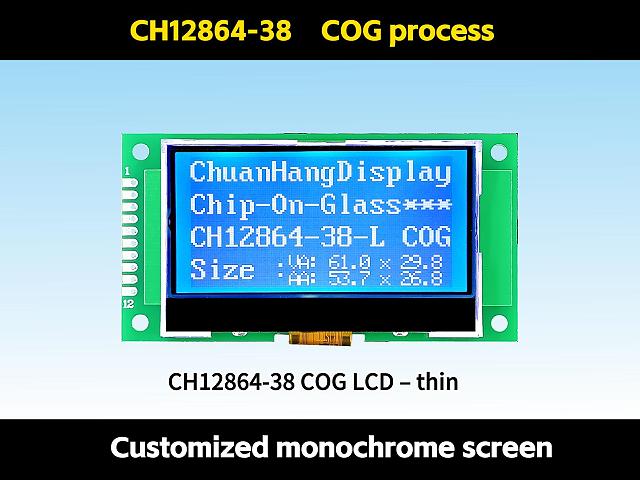

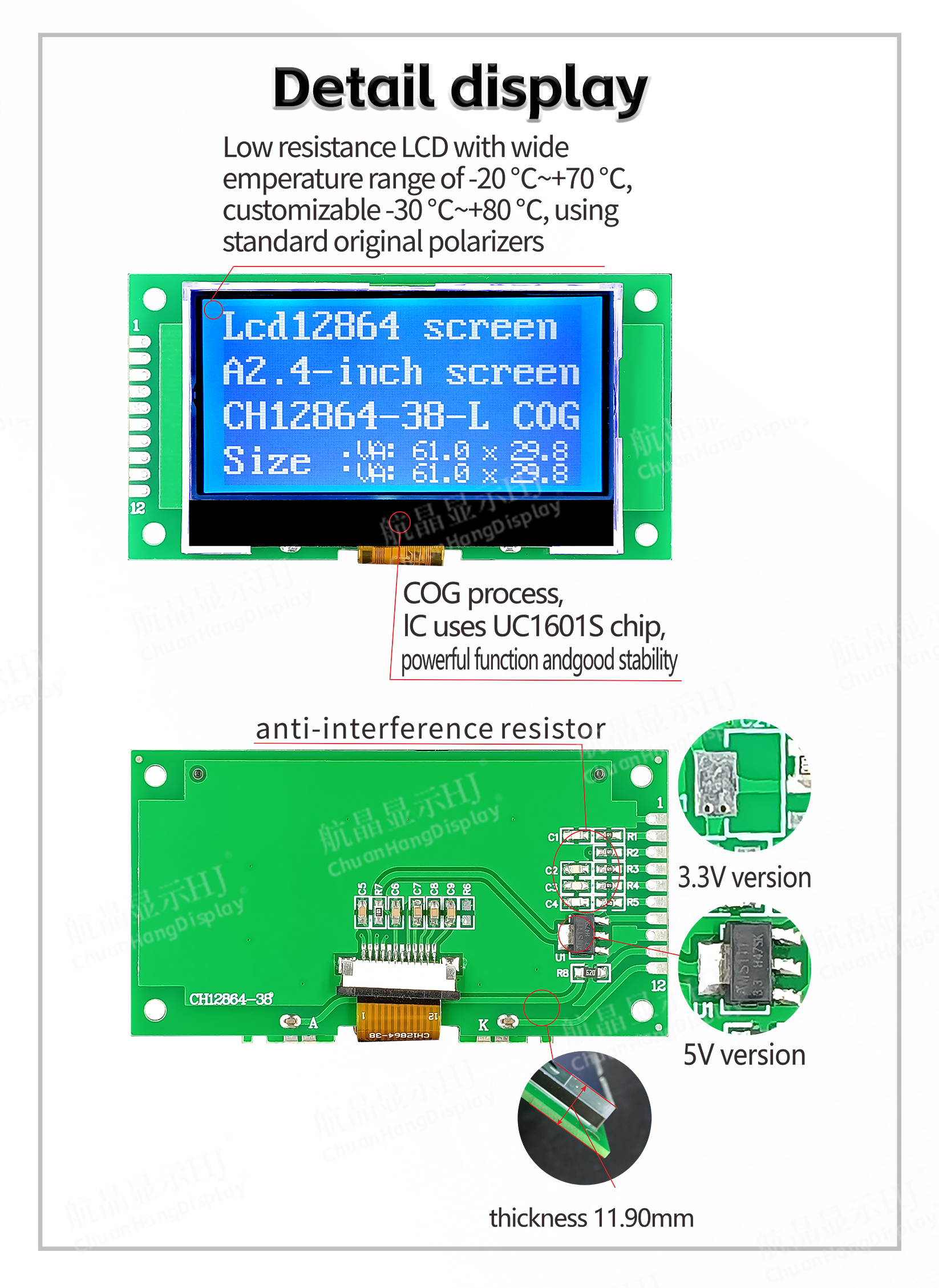

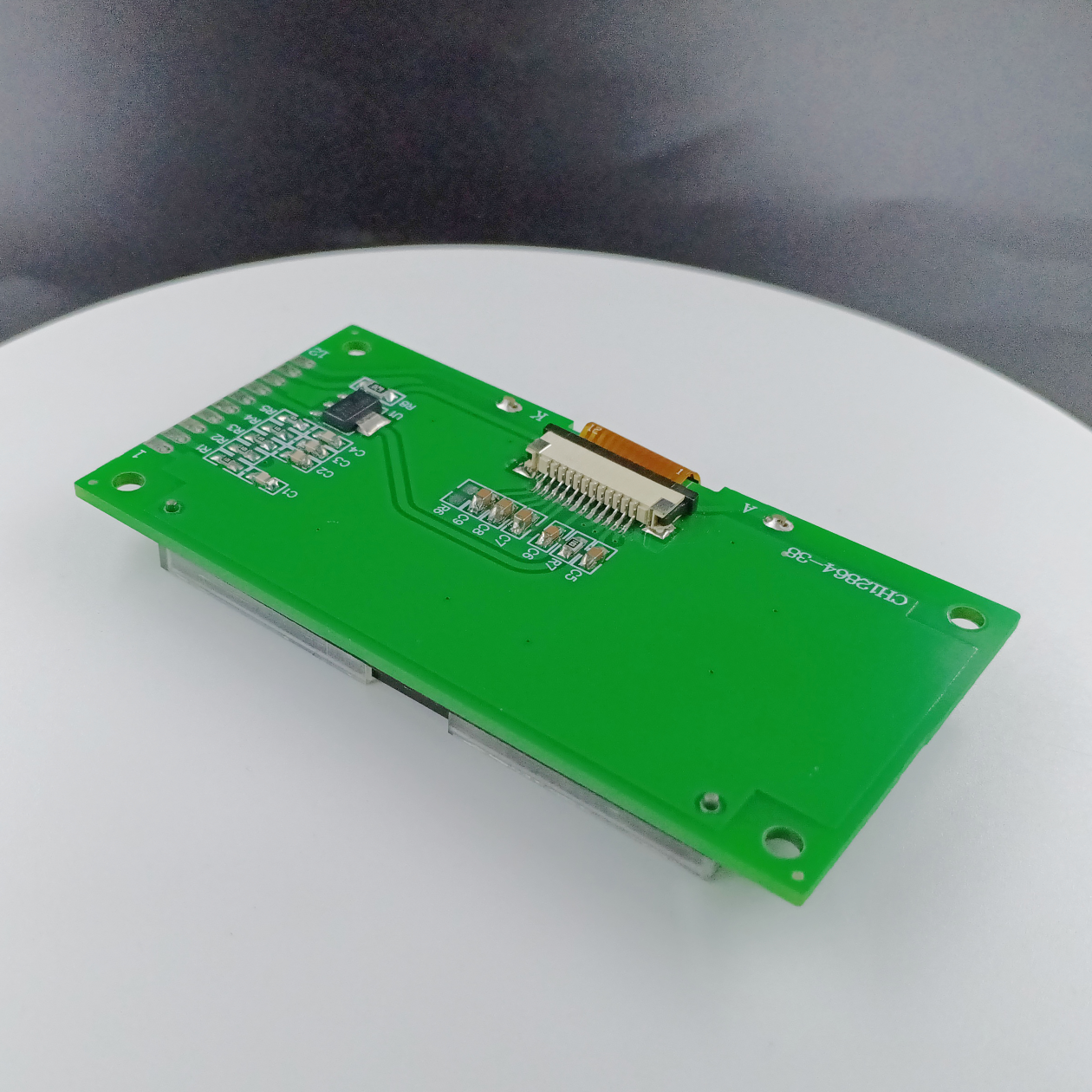

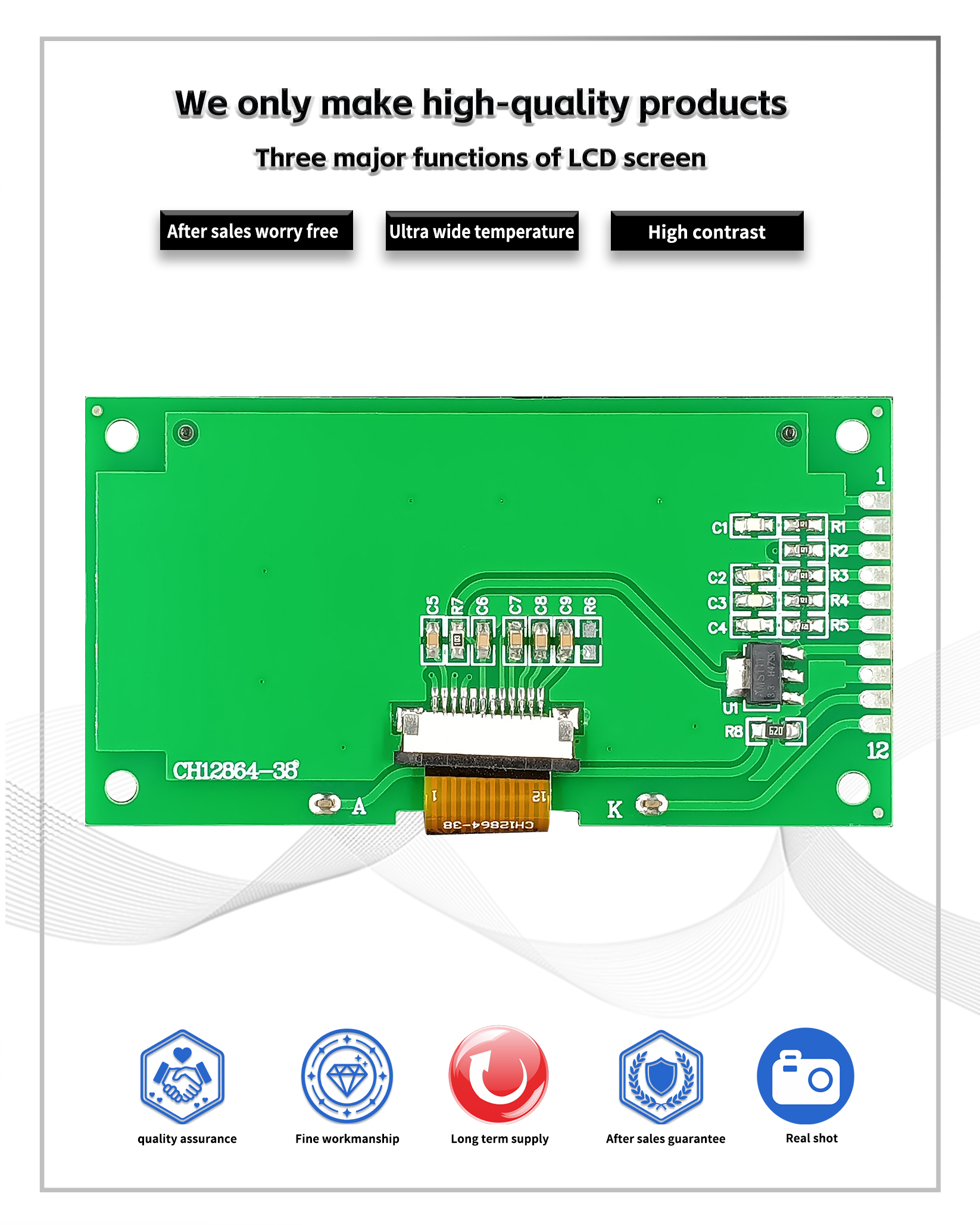

1.1 COG technology, with FPC flexible cable for connection, the product includes backlighting and a PCB, is pre-assembled, has a thin profile, and offers stable structure.
1.2 The IC uses the UC1601 chip, which does not have a built-in character set; the programmer must create the character set.
1.3 Low power consumption, operating at 3.3V, with backlight current limited to 1mA when the backlight is off, and up to 60mA when the backlight is on.
1.4 The A and K LEDs are connected to the PCB, and require separate power supply of 2.9V~3.0V.

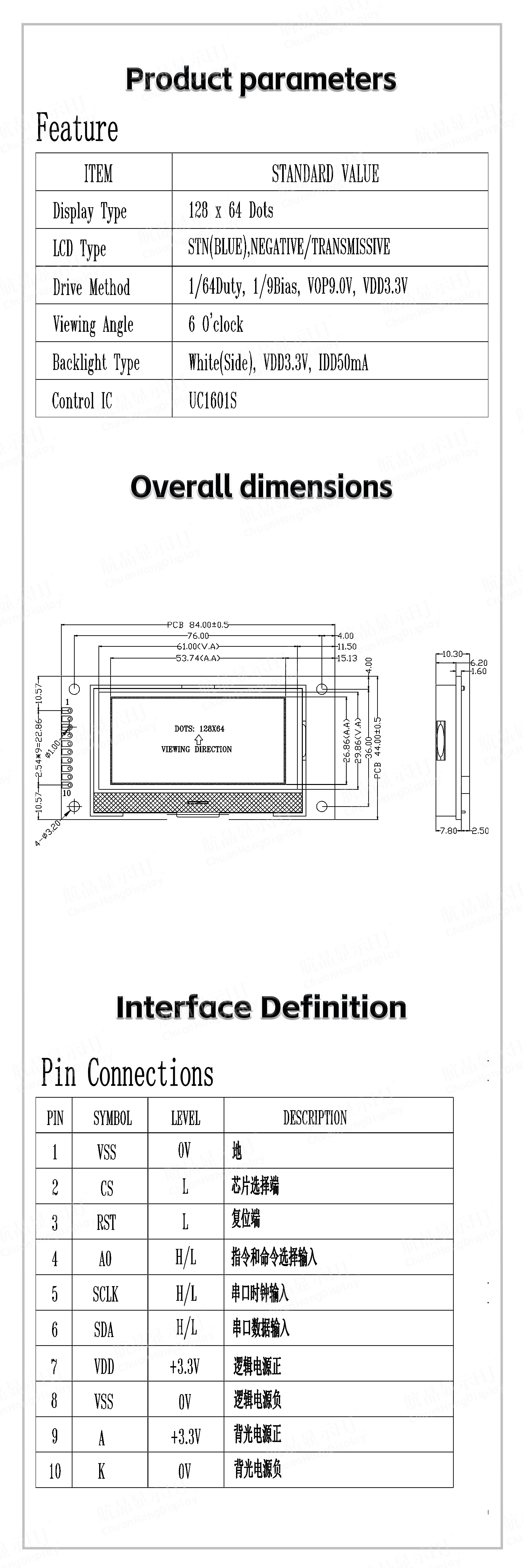

1.5 Product Features:
· Internal display data RAM is 64x128 bits.
· External capacitor generates voltage boost.
· Contrast adjustment is software-controlled.
· Displays 8 characters x 4 lines (16x16 dot matrix).
· Single image ≤ 128x64 dot matrix.
· 4-line SPI interface communication.
· Rich functionality: Displays on/off and positive/negative display modes.
1.2 The IC uses the UC1601 chip, which does not have a built-in character set; the programmer must create the character set.
1.3 Low power consumption, operating at 3.3V, with backlight current limited to 1mA when the backlight is off, and up to 60mA when the backlight is on.
1.4 The A and K LEDs are connected to the PCB, and require separate power supply of 2.9V~3.0V.
1.5 Product Features:
· Internal display data RAM is 64x128 bits.
· External capacitor generates voltage boost.
· Contrast adjustment is software-controlled.
· Displays 8 characters x 4 lines (16x16 dot matrix).
· Single image ≤ 128x64 dot matrix.
· 4-line SPI interface communication.
· Rich functionality: Displays on/off and positive/negative display modes.
