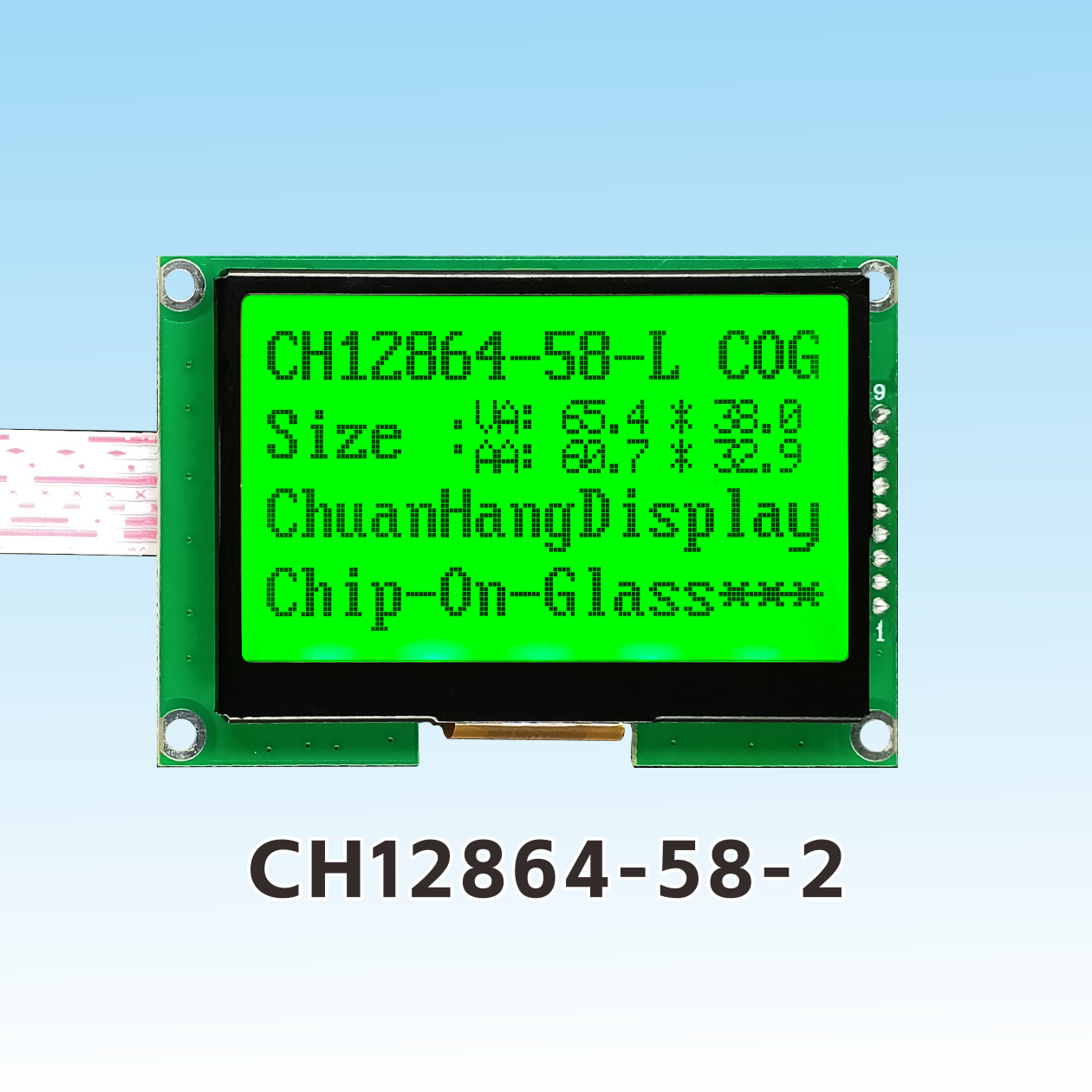

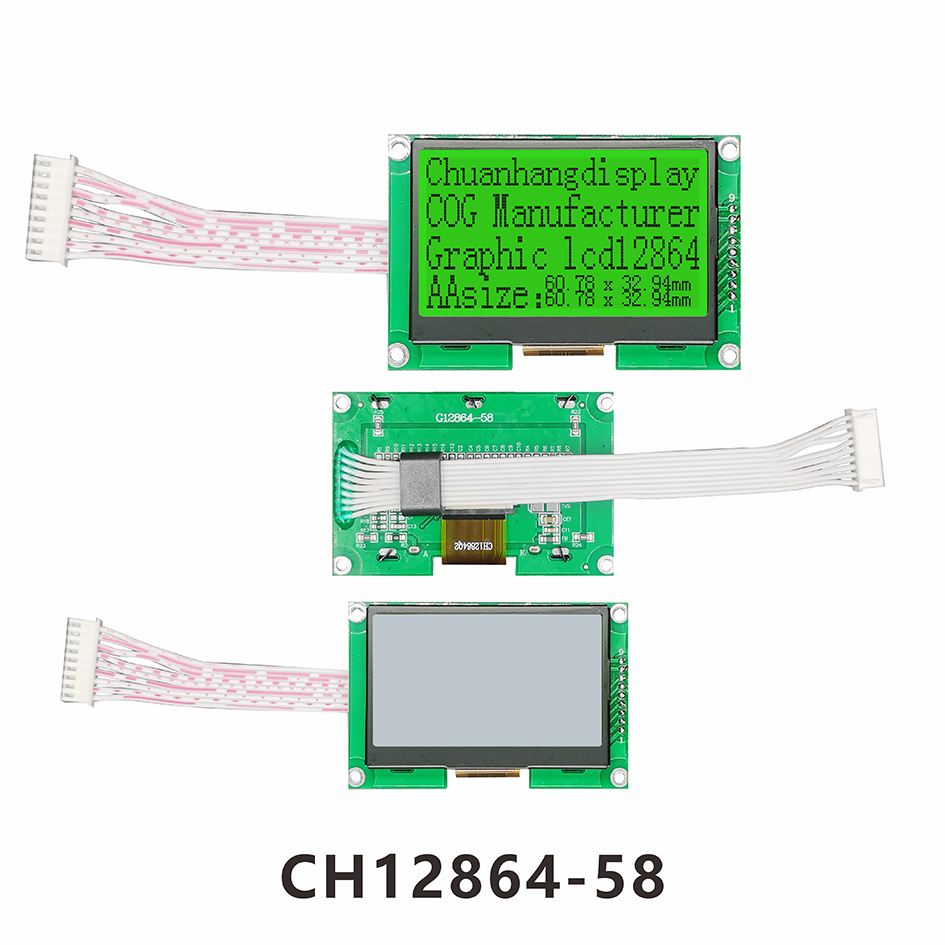

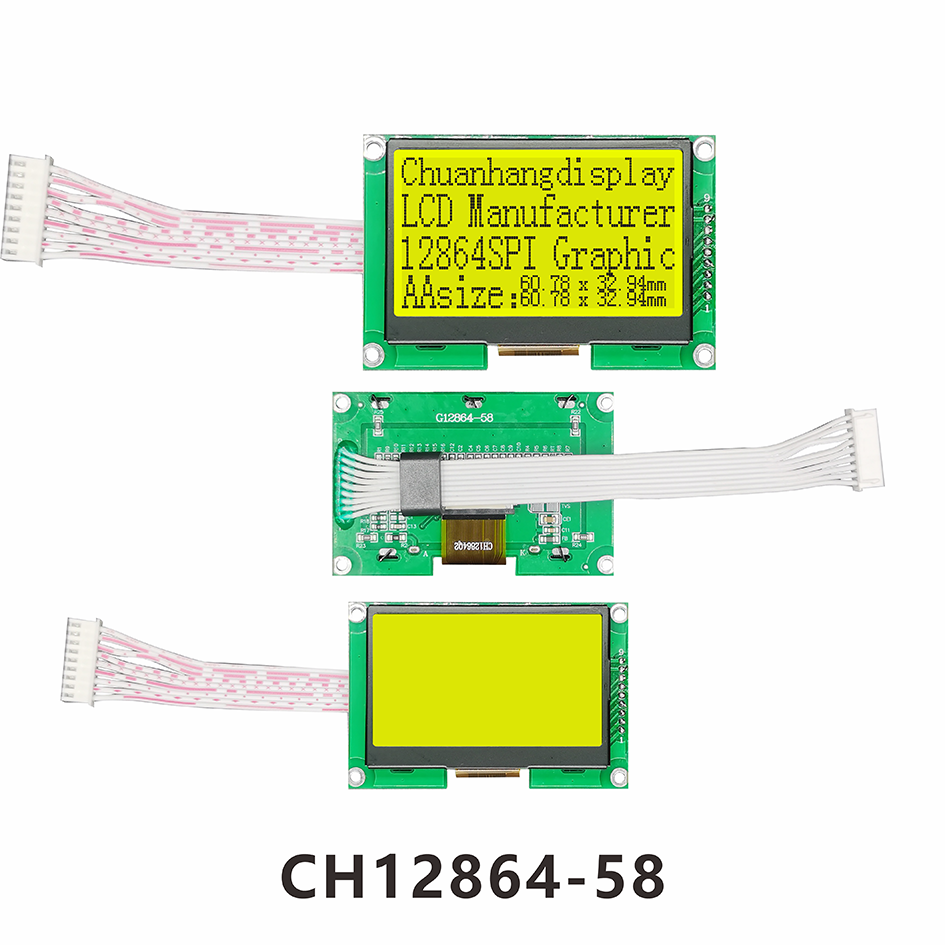

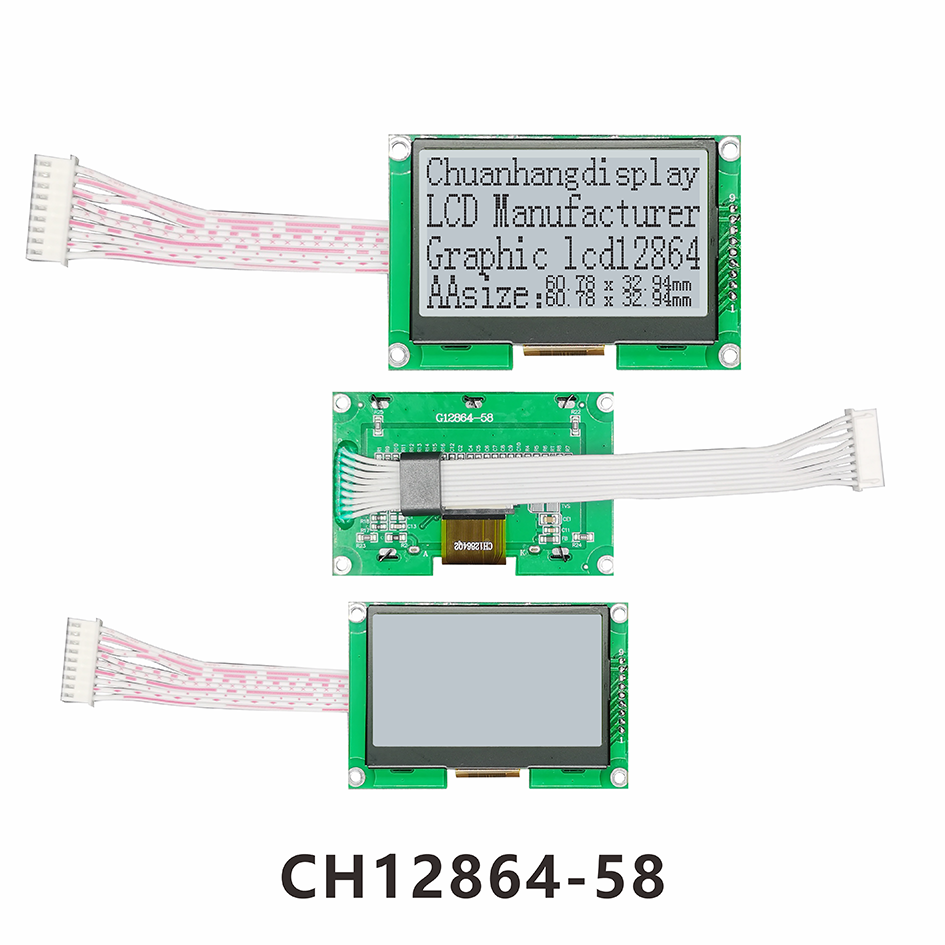

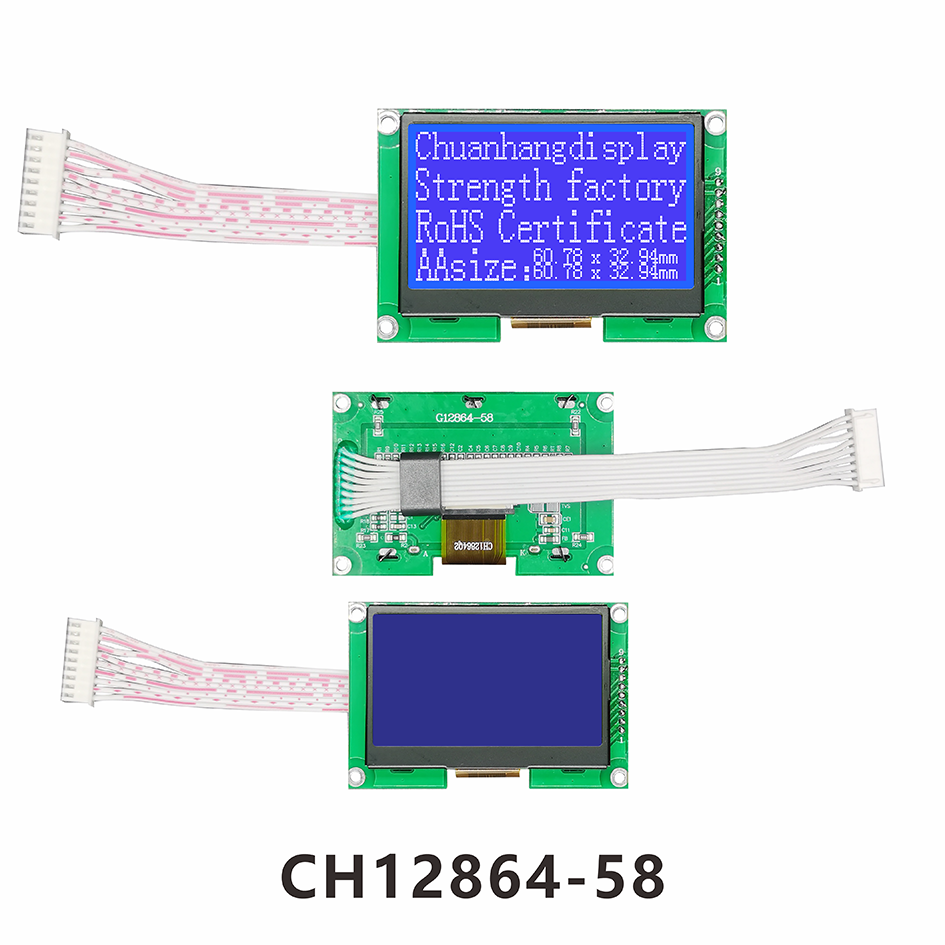

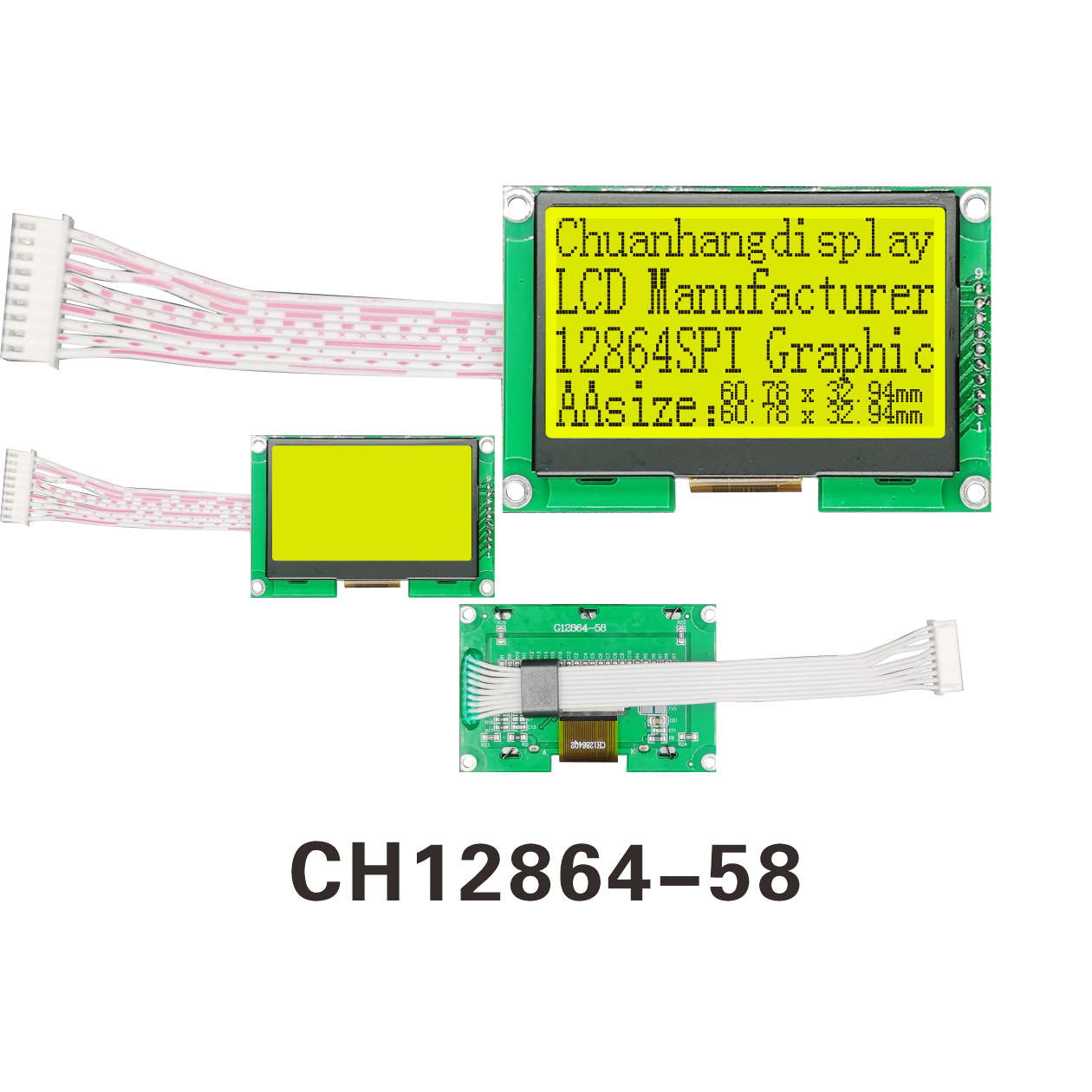

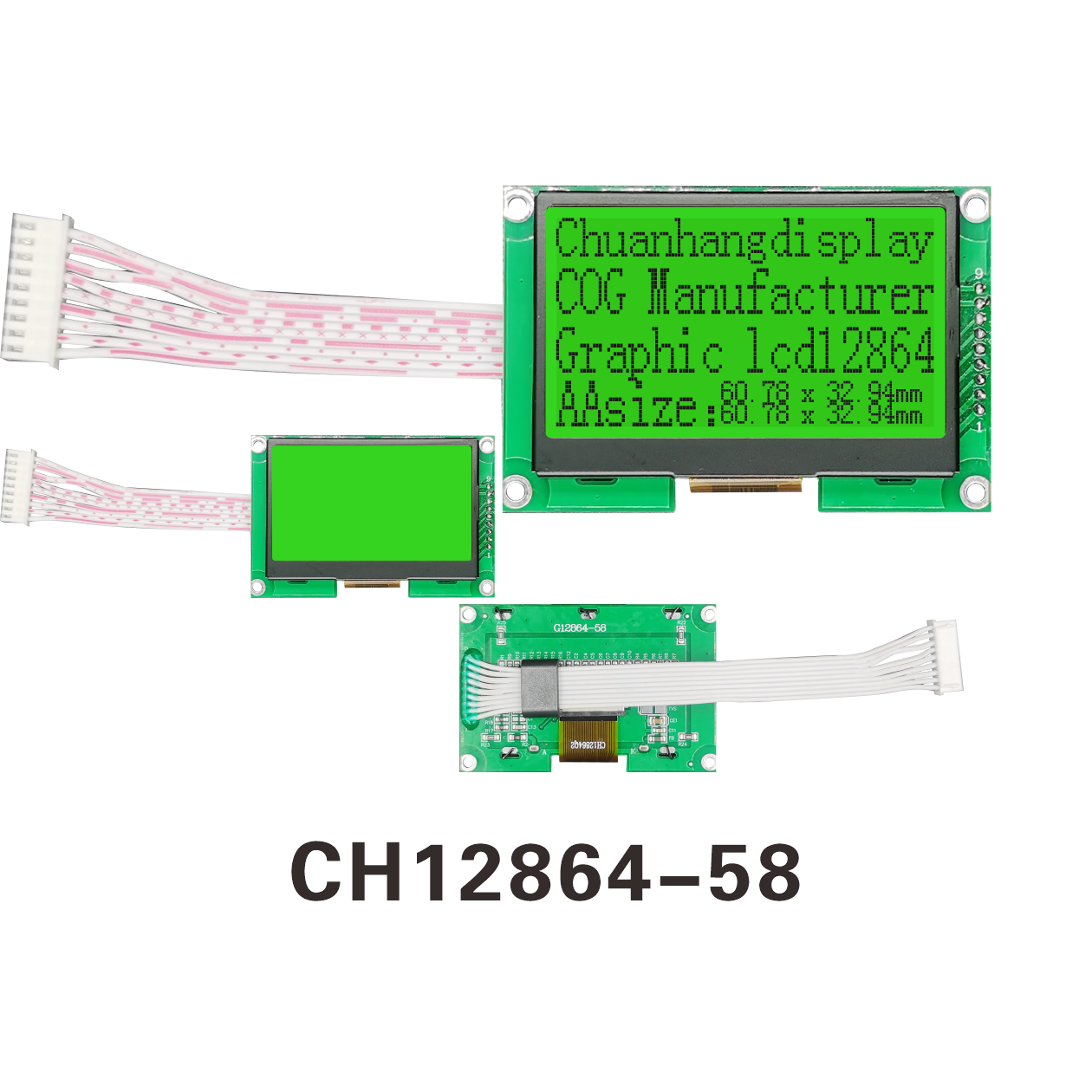

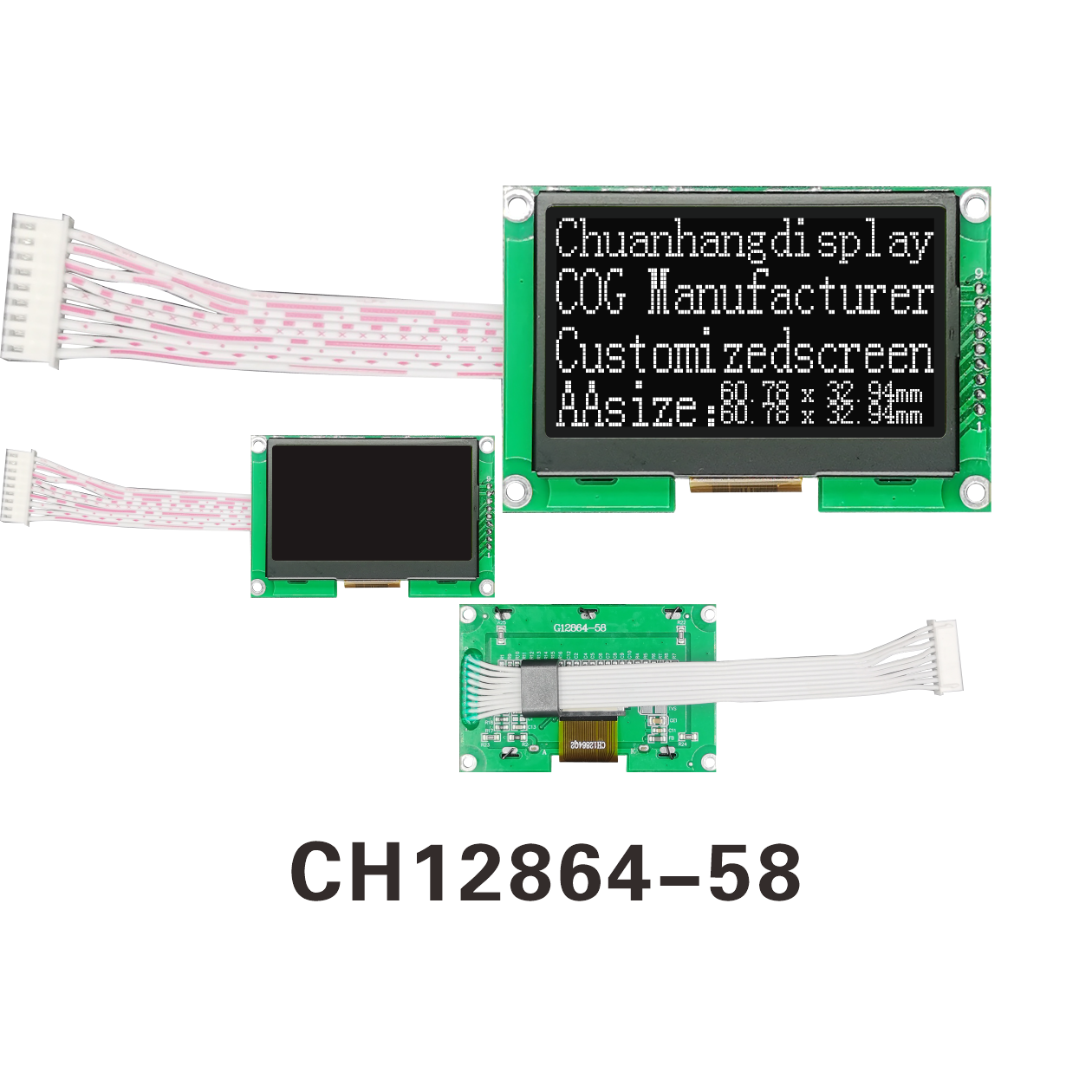

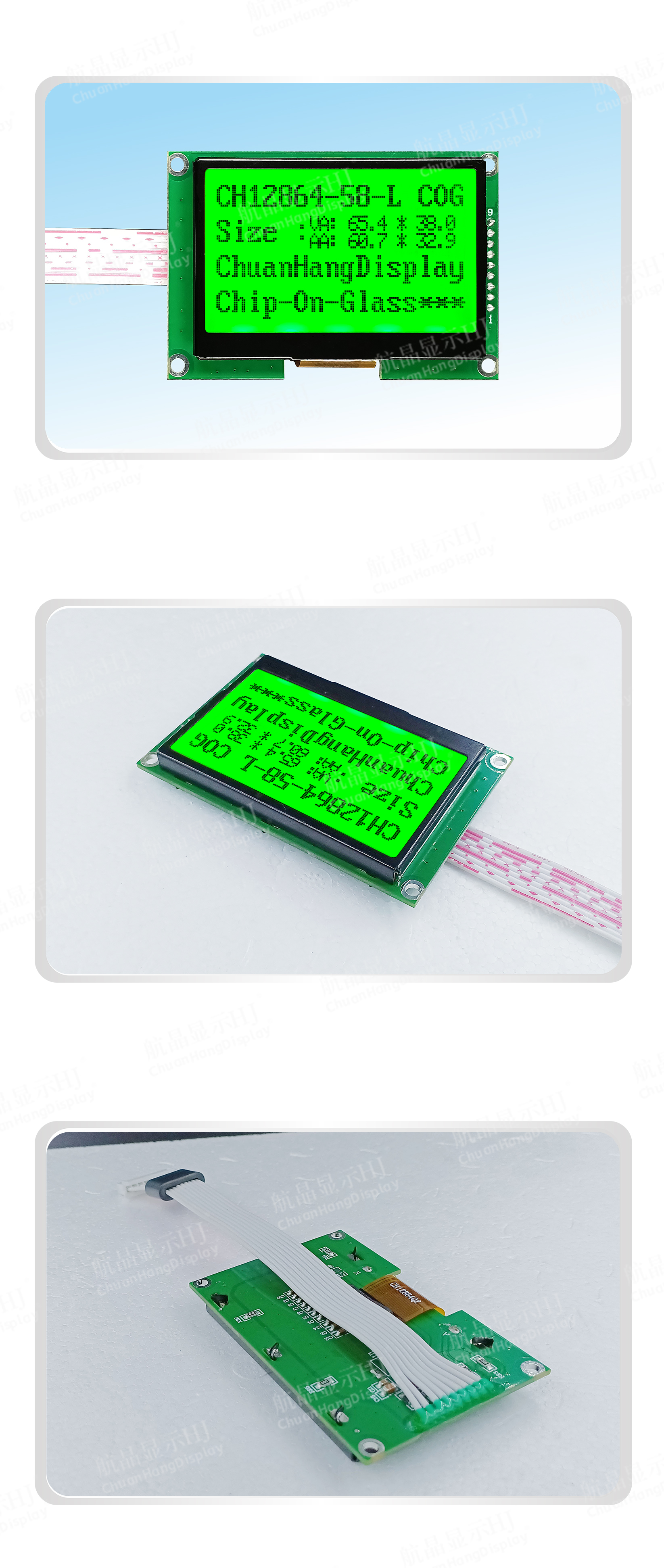

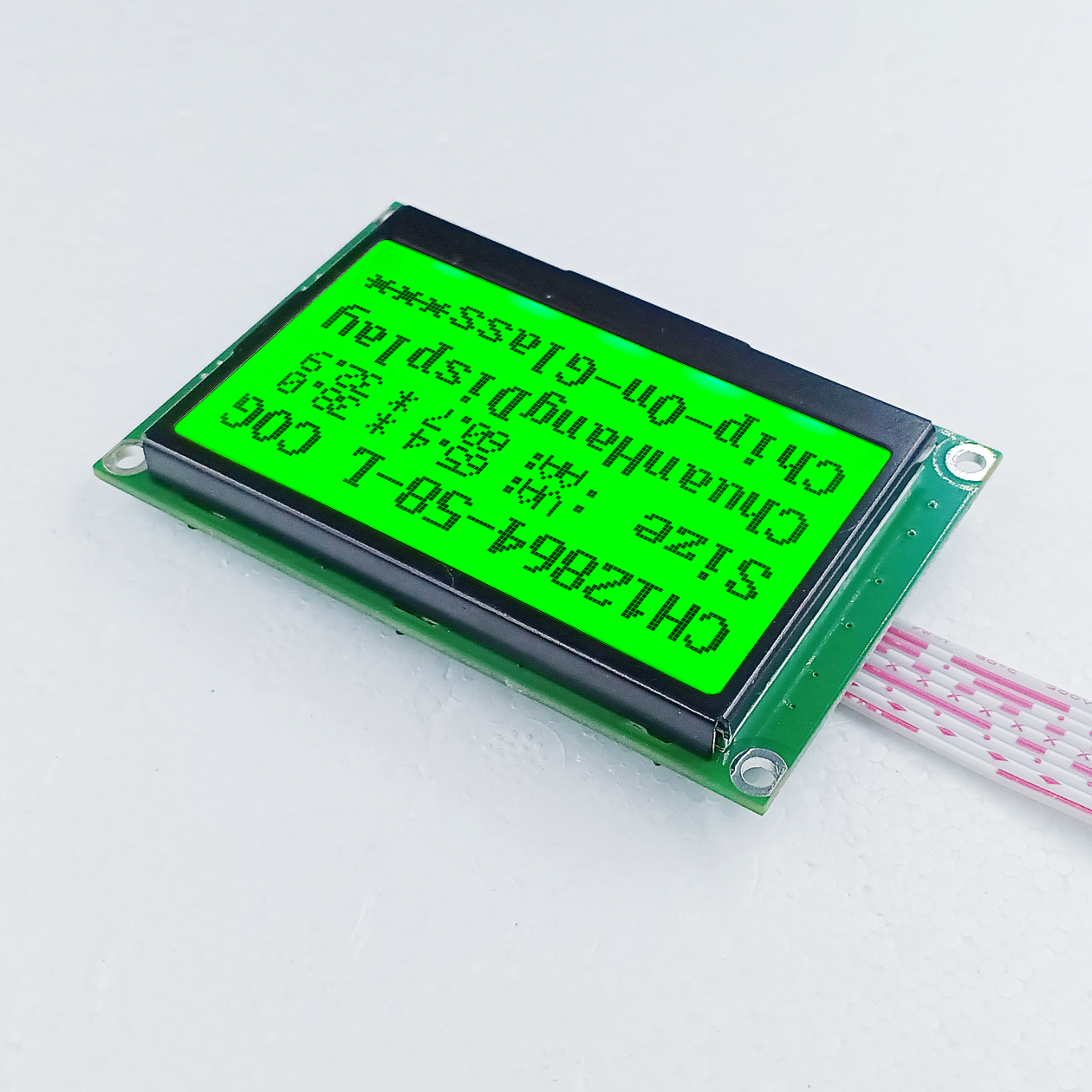

CH12864-58mini 12864 display

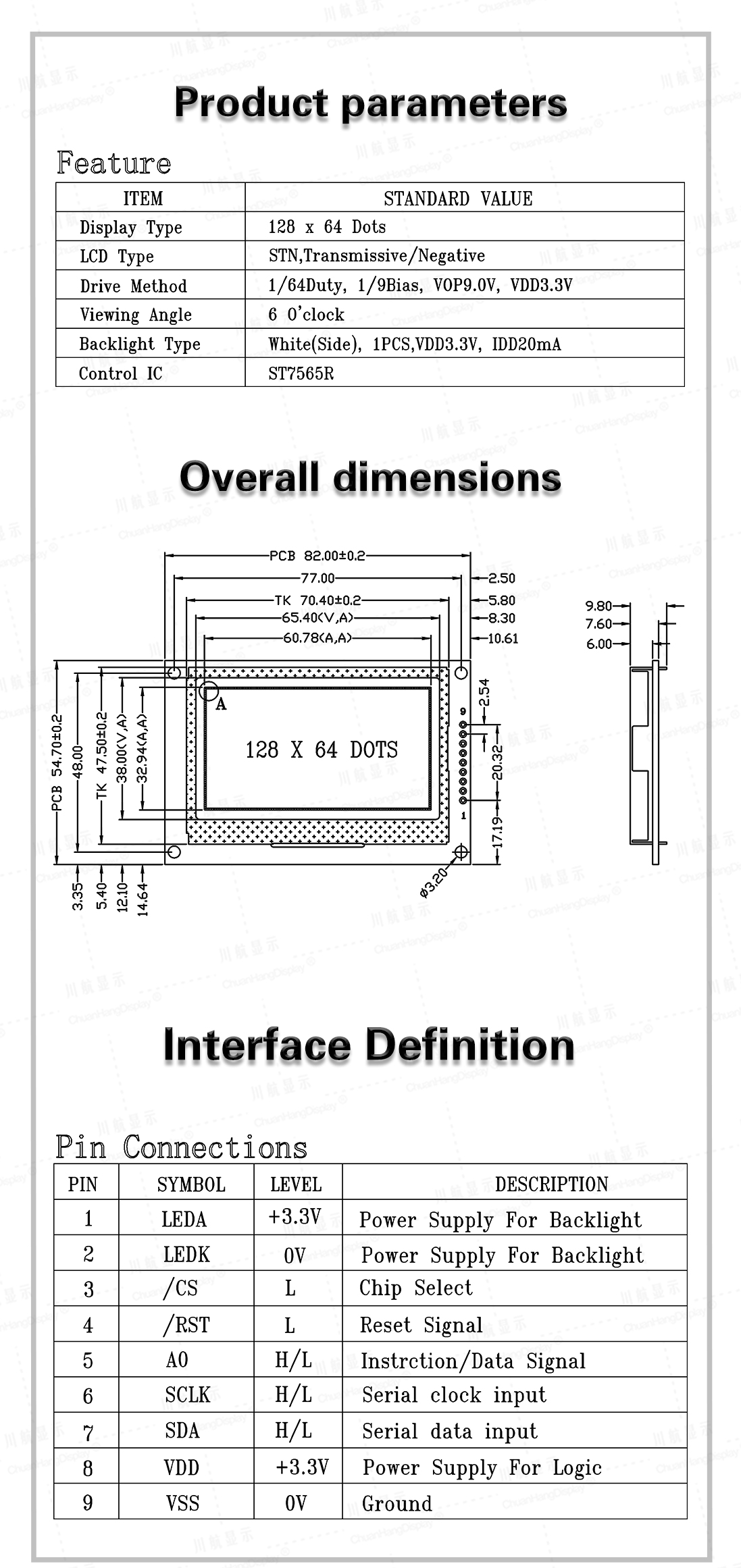

Product Description

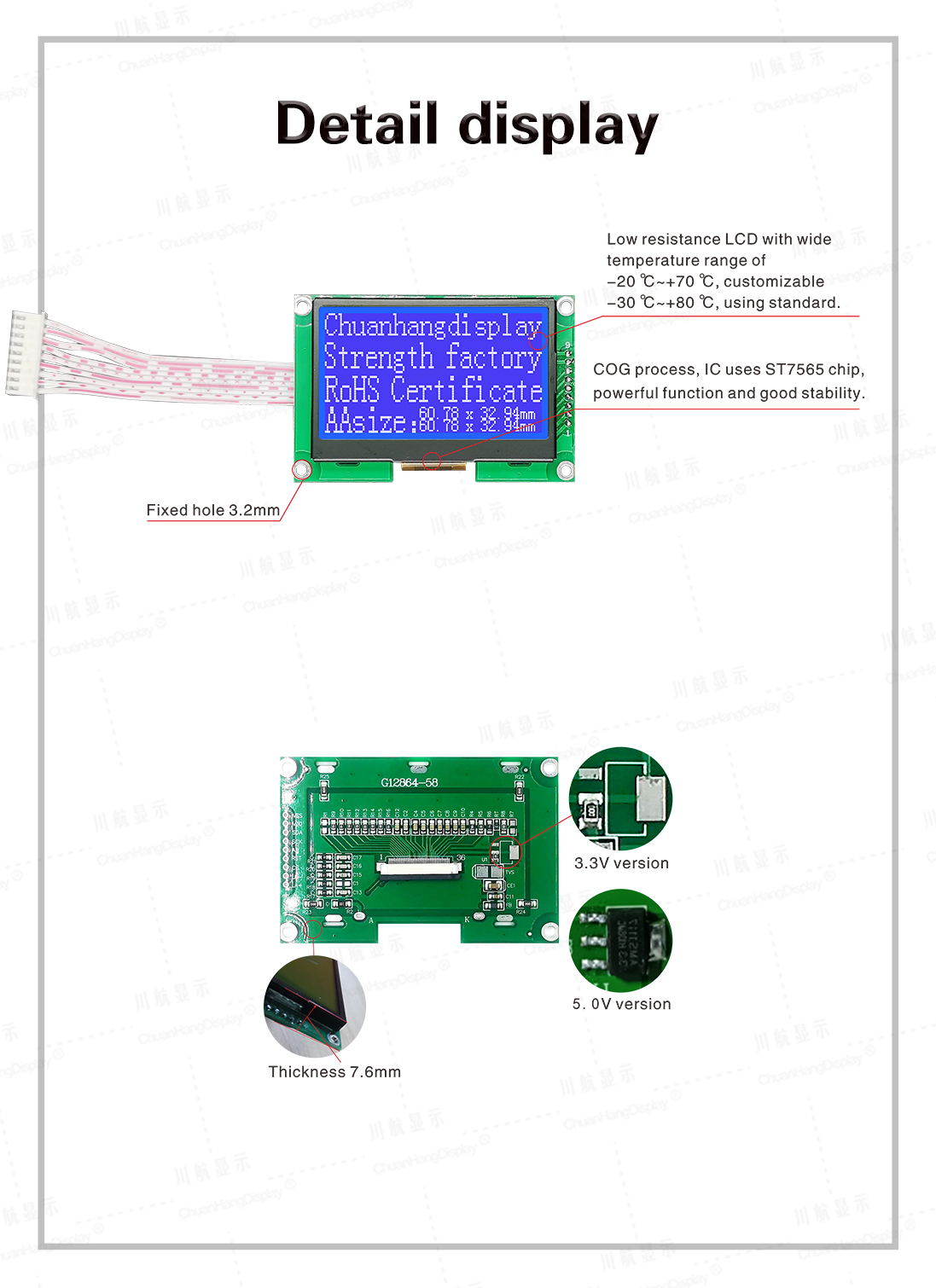

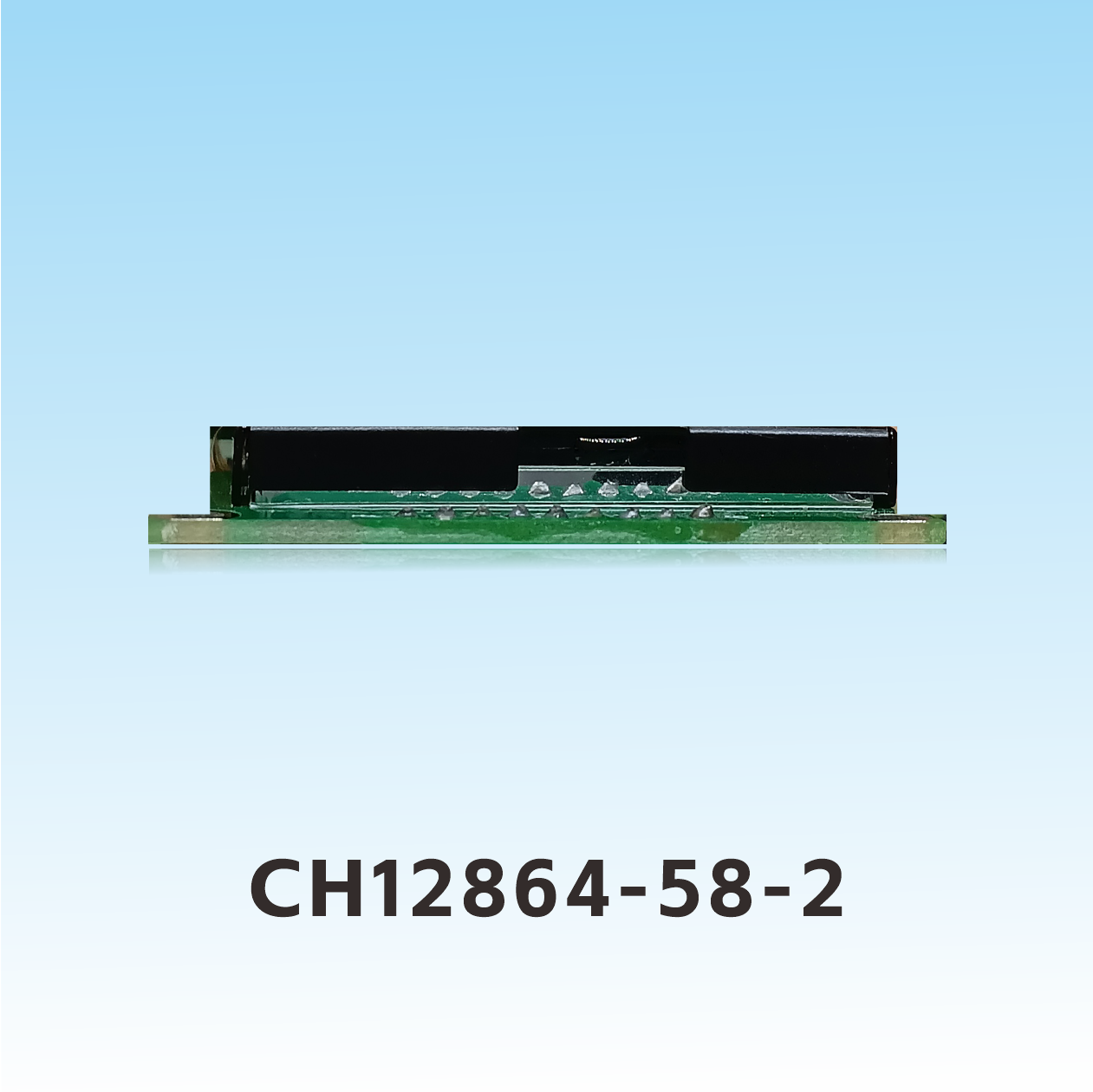

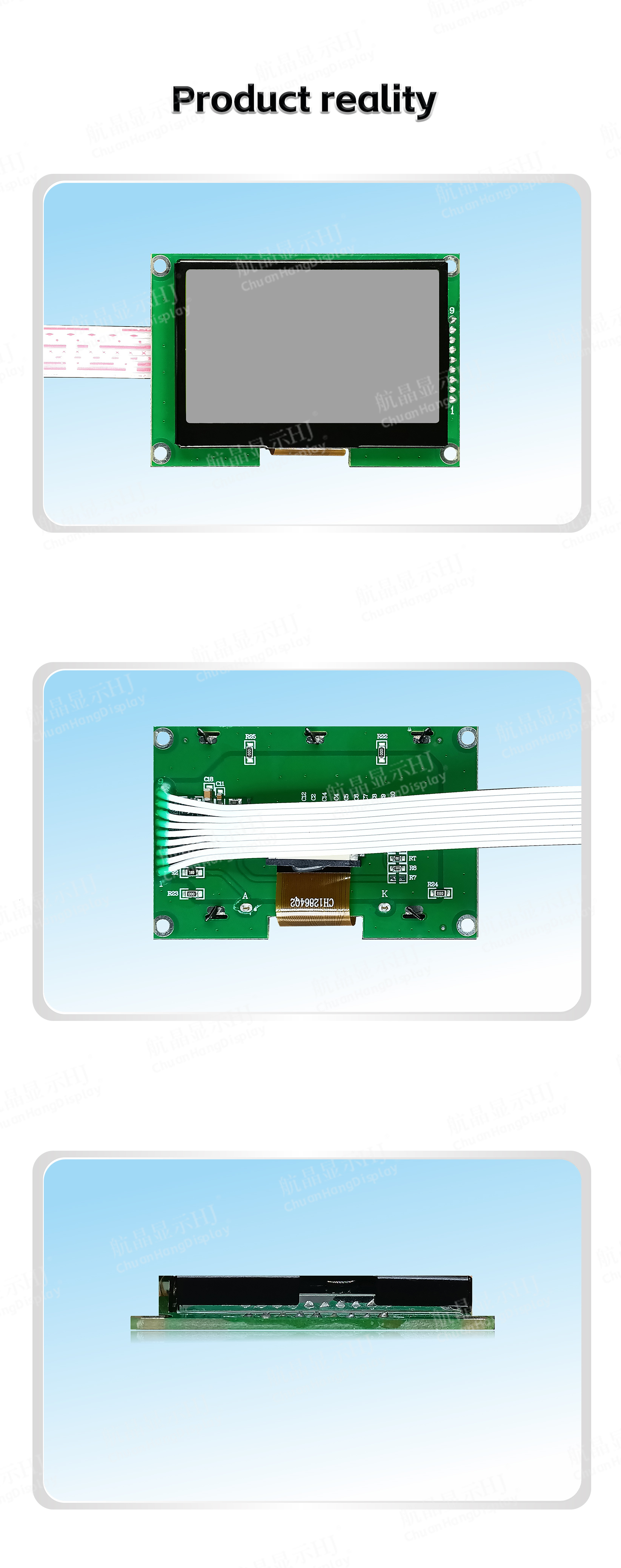

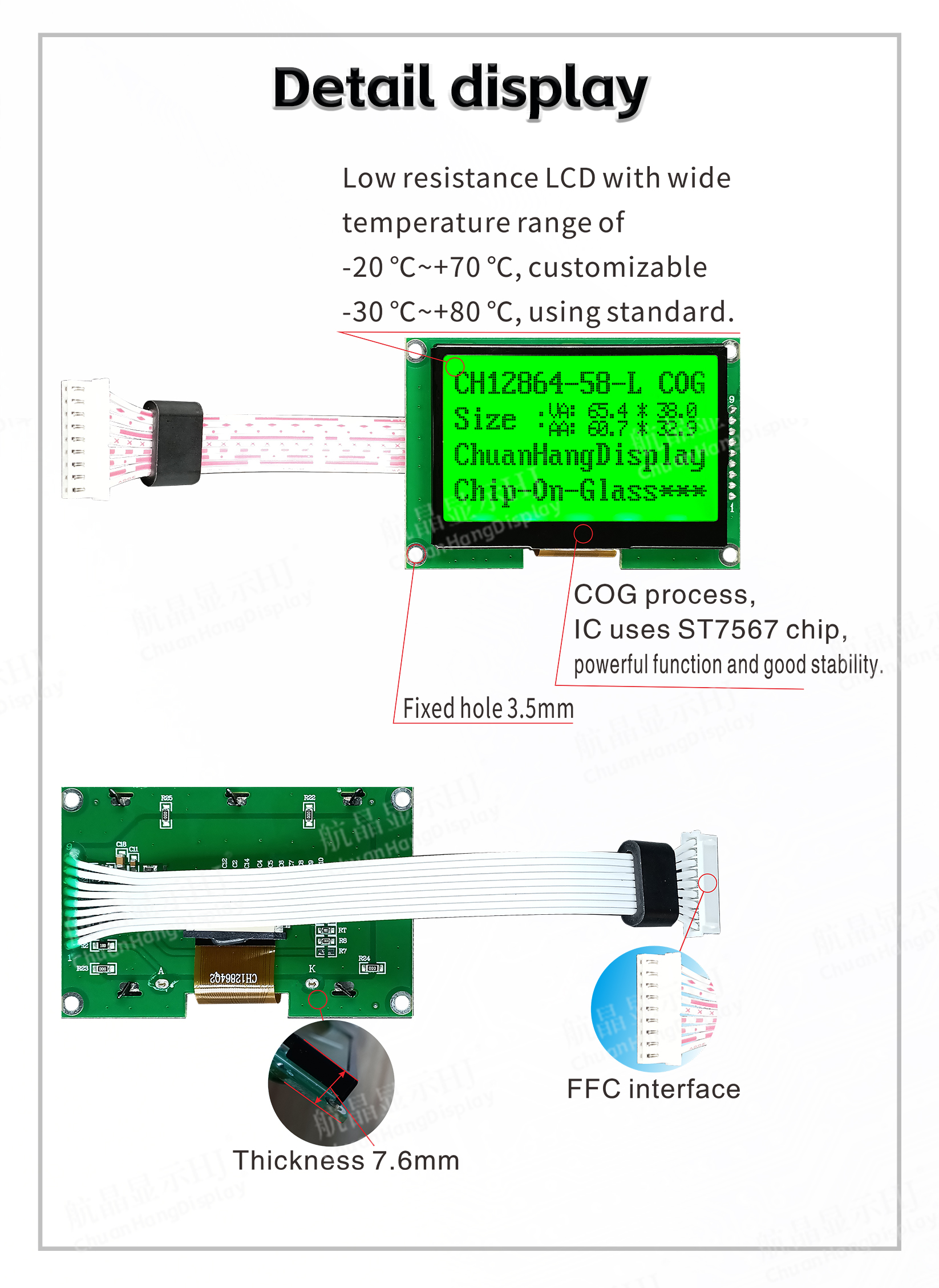

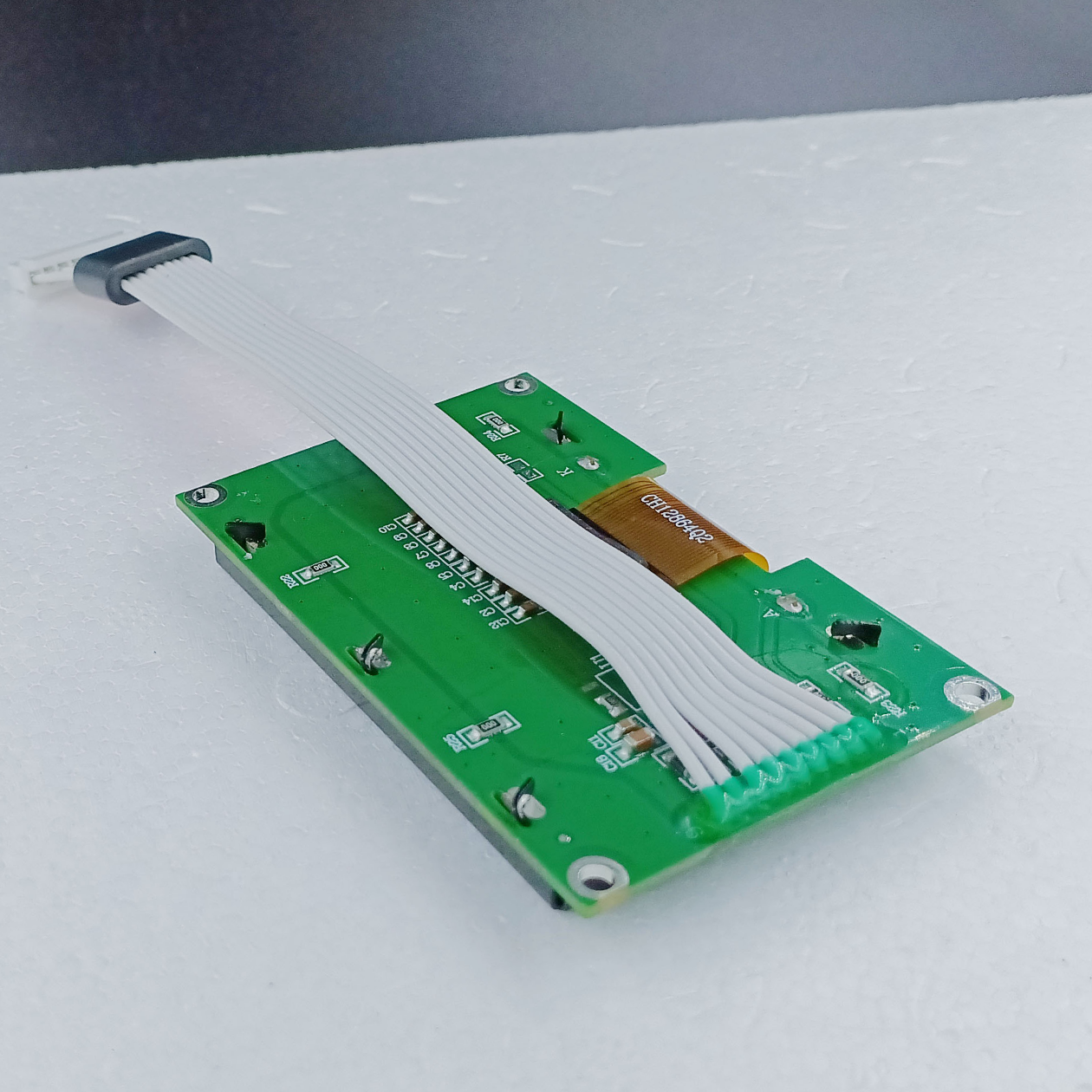

1.1 COG process, FPC soft wiring is a plug-in interface, the product is with backlight, with iron frame, with FFC wiring, has been assembled, The thickness is thin and the structure is stable.
1.2 IC uses ST7565R, there is no word library in the chip, and the programmer compiles his own word library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, backlight current within 30mA.

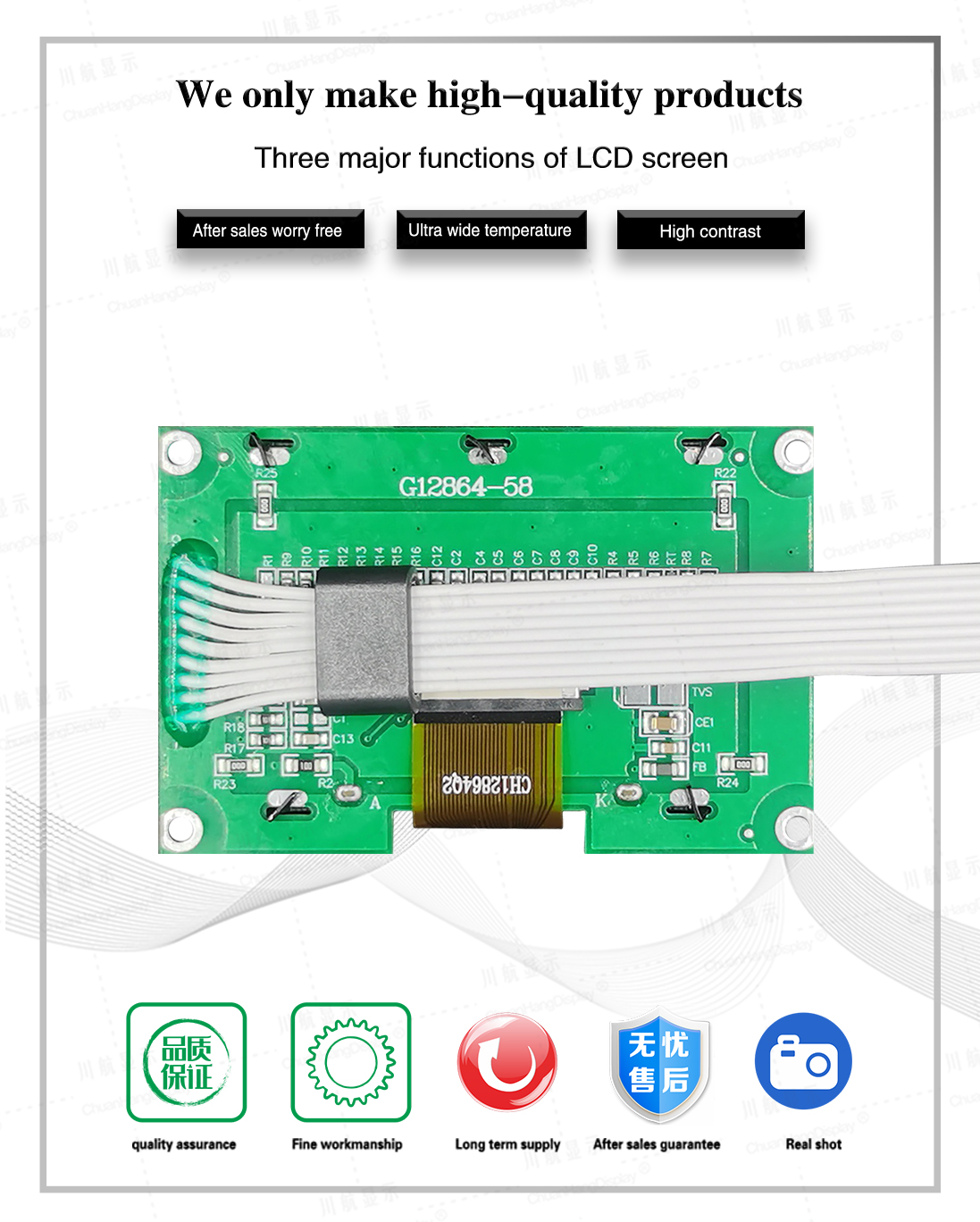

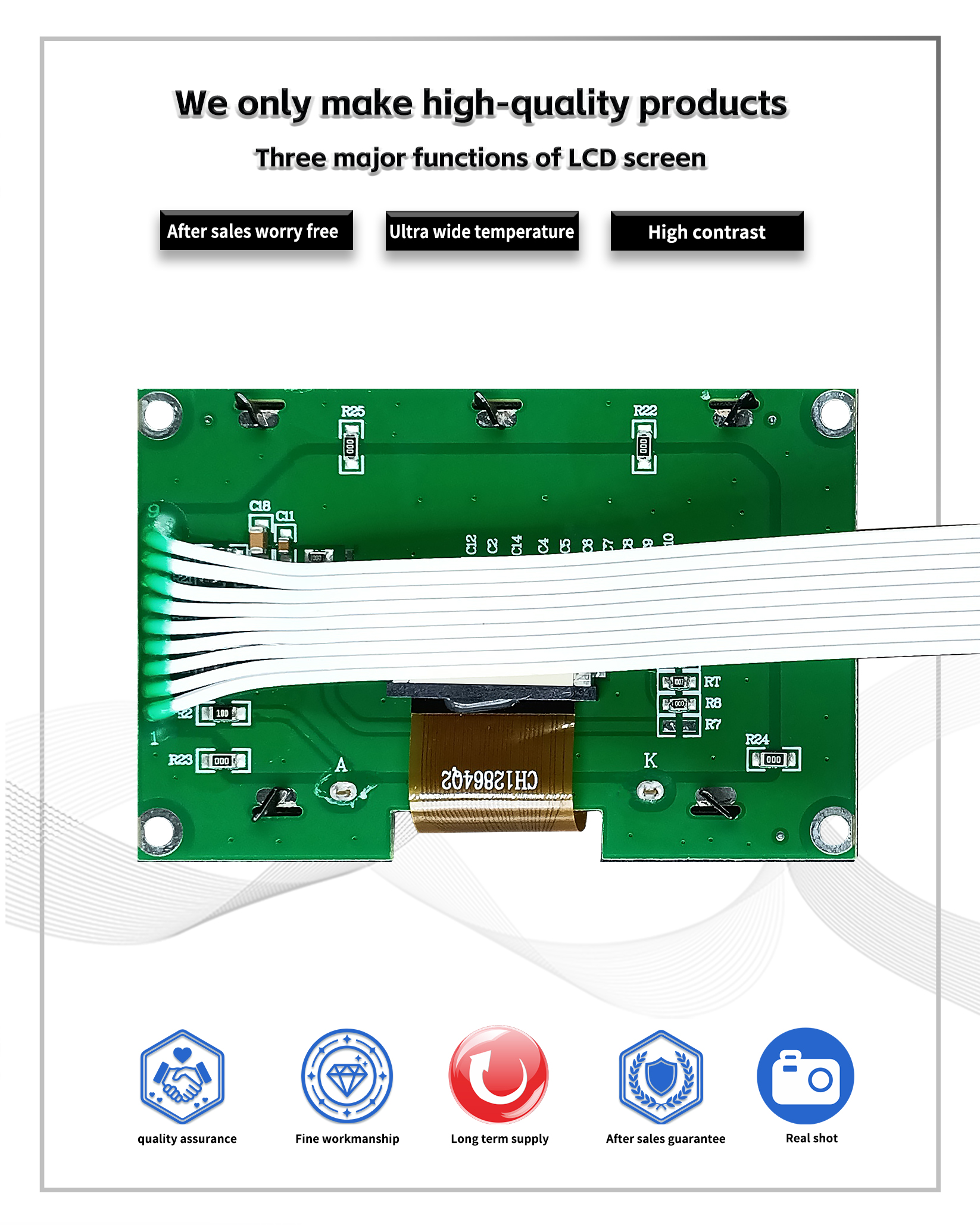

1.4 LED backlights A and K have been fixed on the PCB board, and A and K need to be supplied with 3.3V separately.

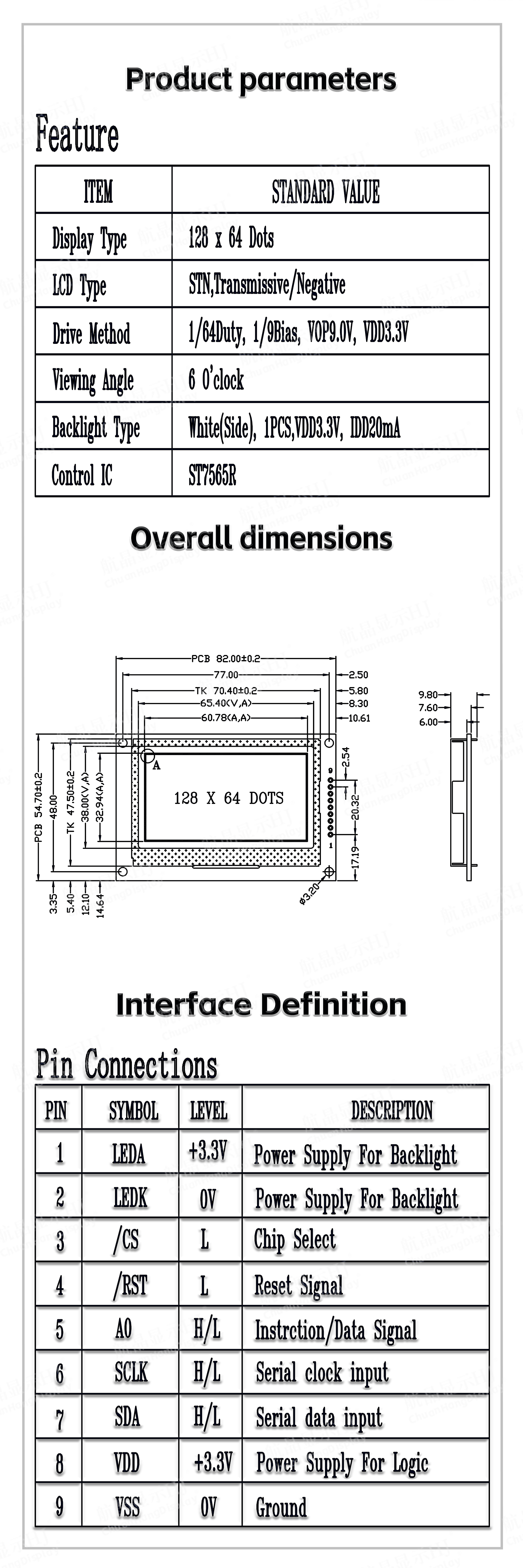

1.5 Product features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates a boost.
The contrast is adjusted by the software.
One screen displays 8 characters x 4 lines (16x16 dot matrix).
Single picture ≤128x64 dot matrix. 4-wire SPI interface communication.
Rich functions: interface display on/off, positive/reverse display.
1.2 IC uses ST7565R, there is no word library in the chip, and the programmer compiles his own word library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, backlight current within 30mA.
1.4 LED backlights A and K have been fixed on the PCB board, and A and K need to be supplied with 3.3V separately.
1.5 Product features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates a boost.
The contrast is adjusted by the software.
One screen displays 8 characters x 4 lines (16x16 dot matrix).
Single picture ≤128x64 dot matrix. 4-wire SPI interface communication.
Rich functions: interface display on/off, positive/reverse display.
