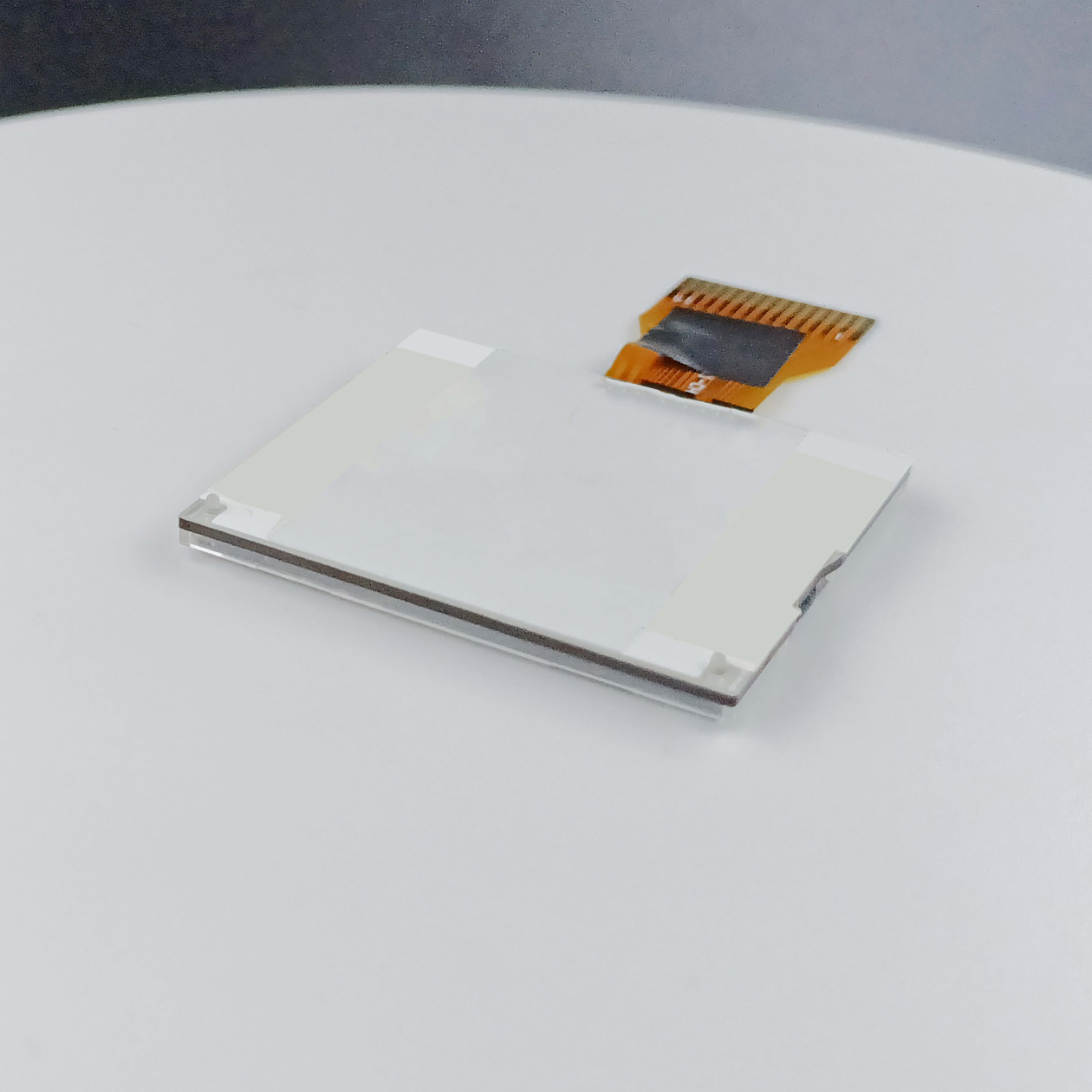

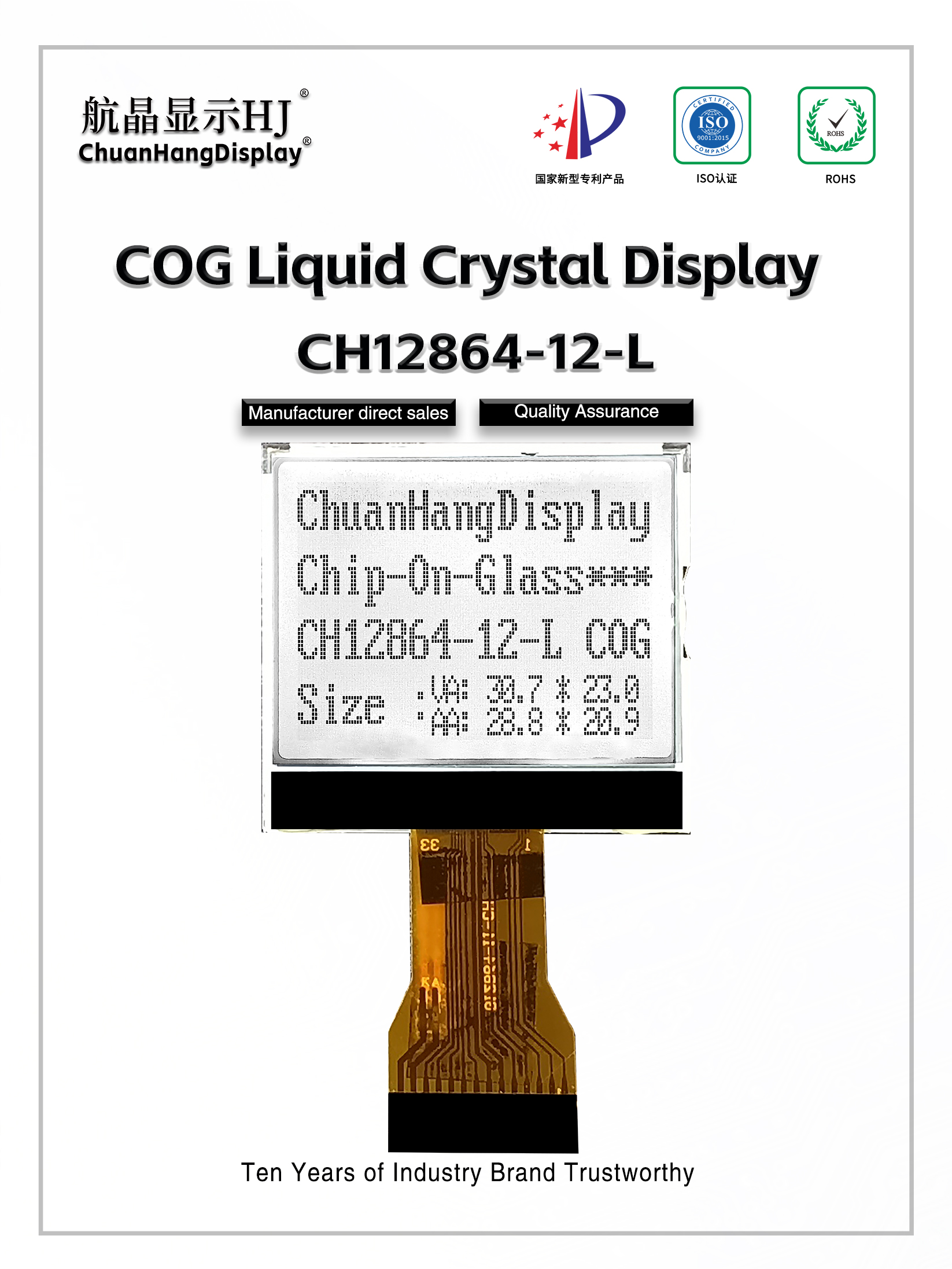

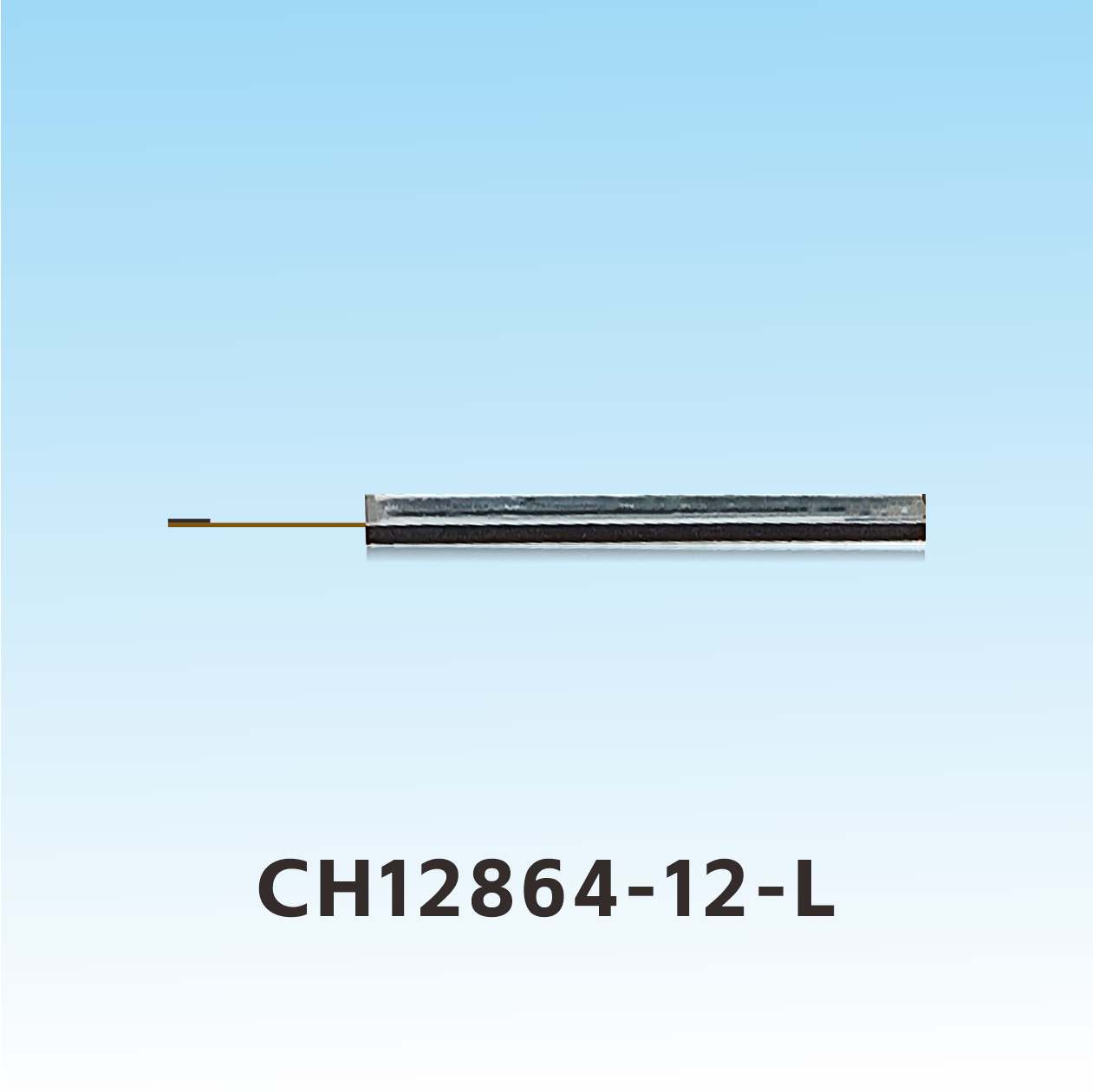

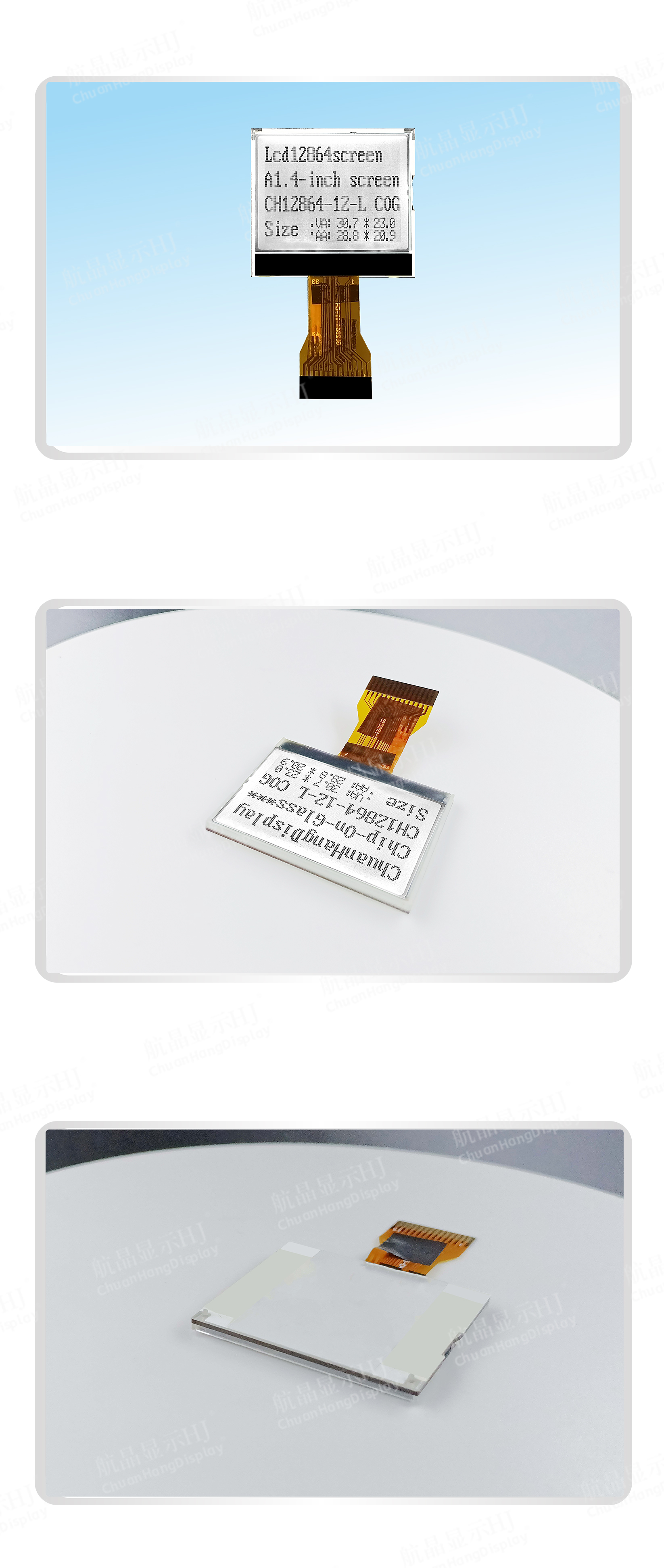

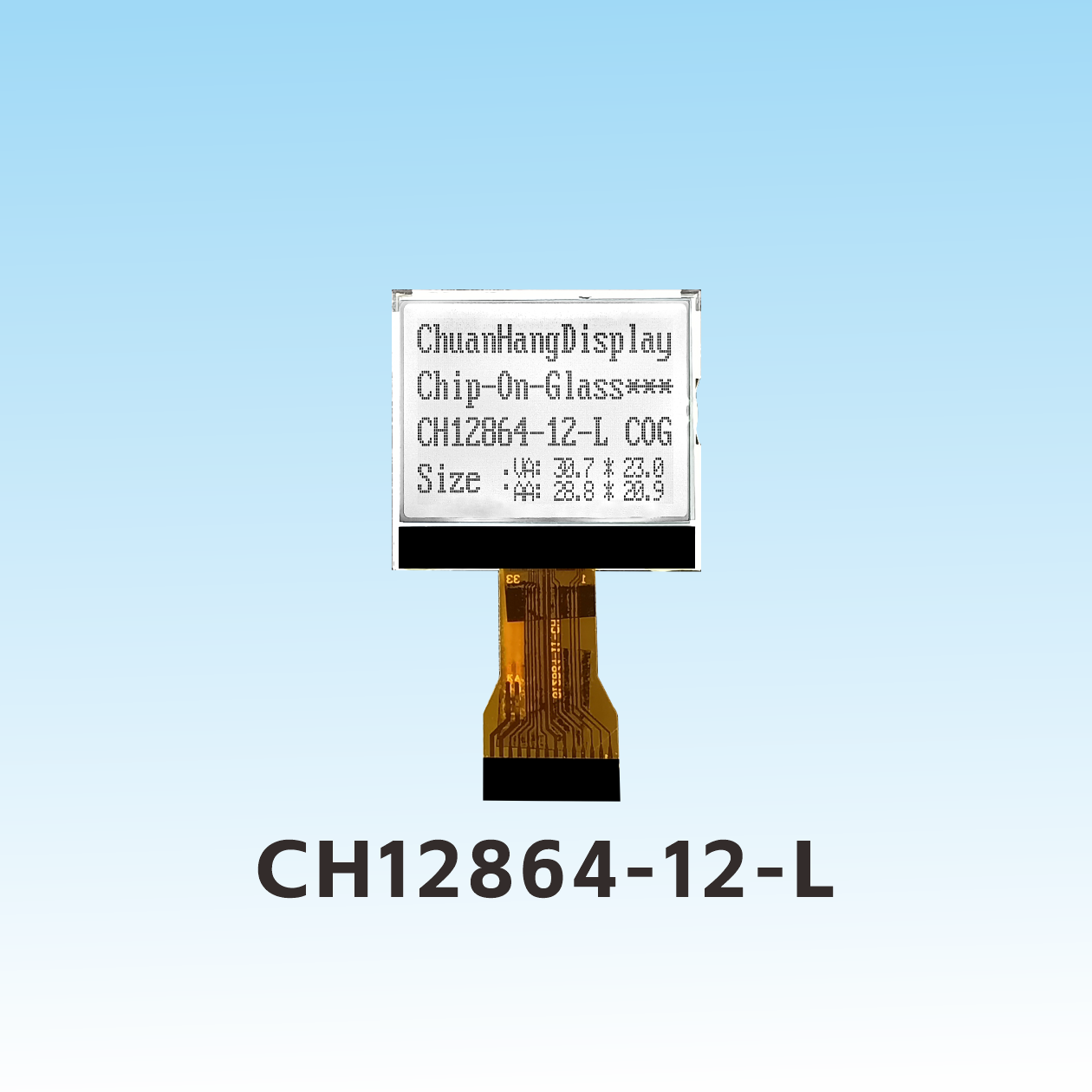

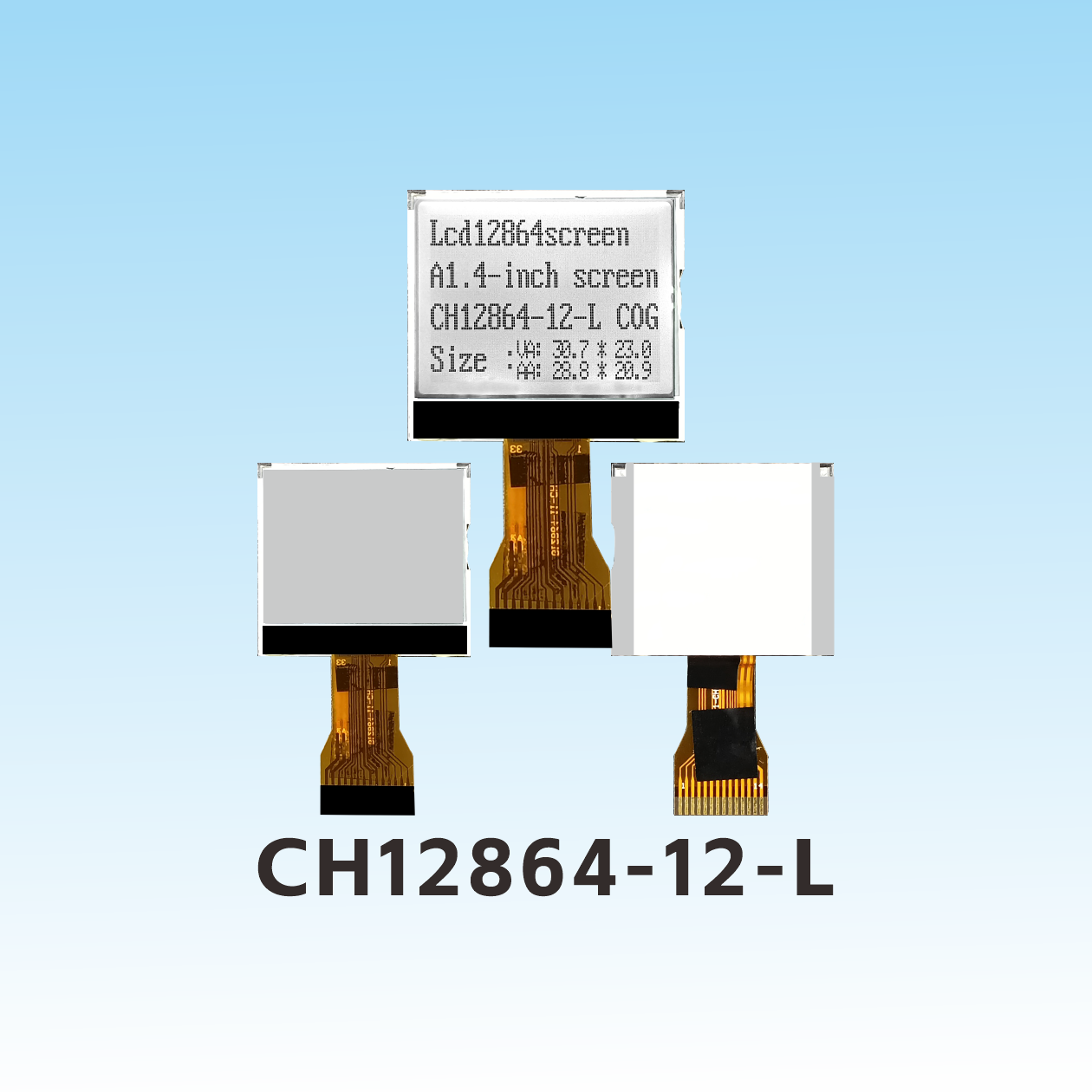

CH12864-12- L

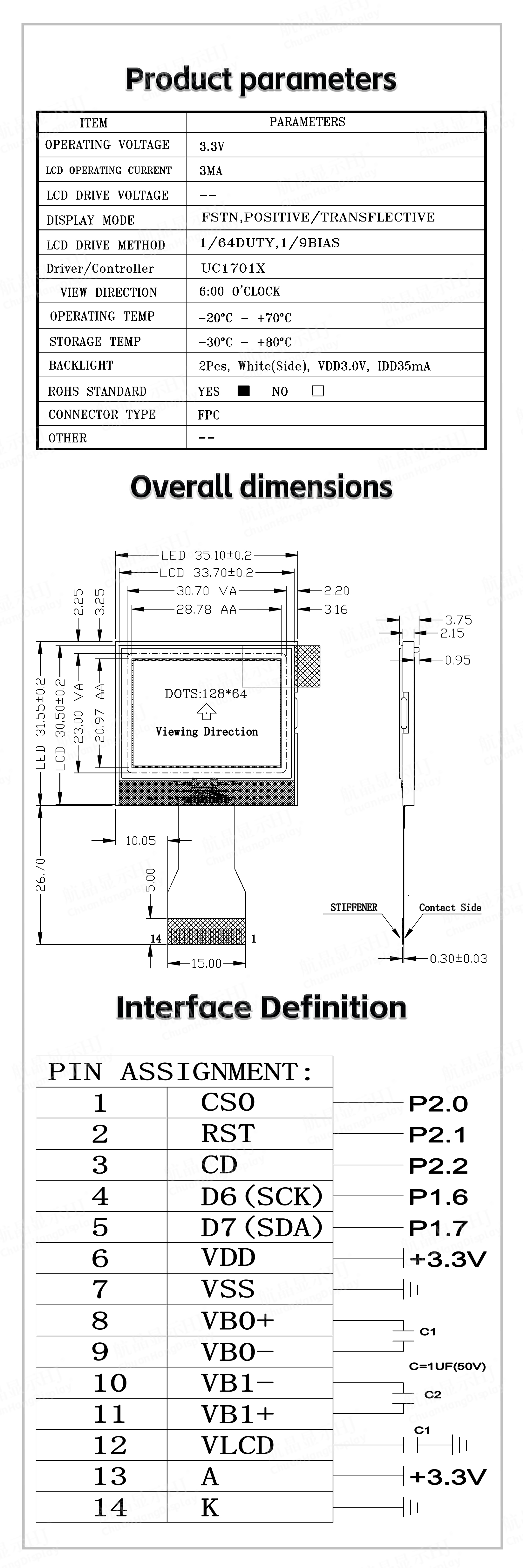

Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH12864-12-L |
| Resolution | 128x64 | screen size | 1.4" |
| Outline Dimension(L*W*H) | 35.10x31.55x3.75mm | Visible Area(L*W) | 30.70x23.00mm |
| Active Area(L*W) | 28.78x20.97mm | Dot Size (mm) | 0.21(L)x0.31(W) |
| Type | COG | Connection Method | FPC |
| Supply Voltage | 3.3V | Interface Type | SPI |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/64Duty |
| Display Type | FSTN | Driver IC | UC1701X |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 3.3V | production capacity | Self-produced |
| Character libraries | Whether to bring PCB | NO |
