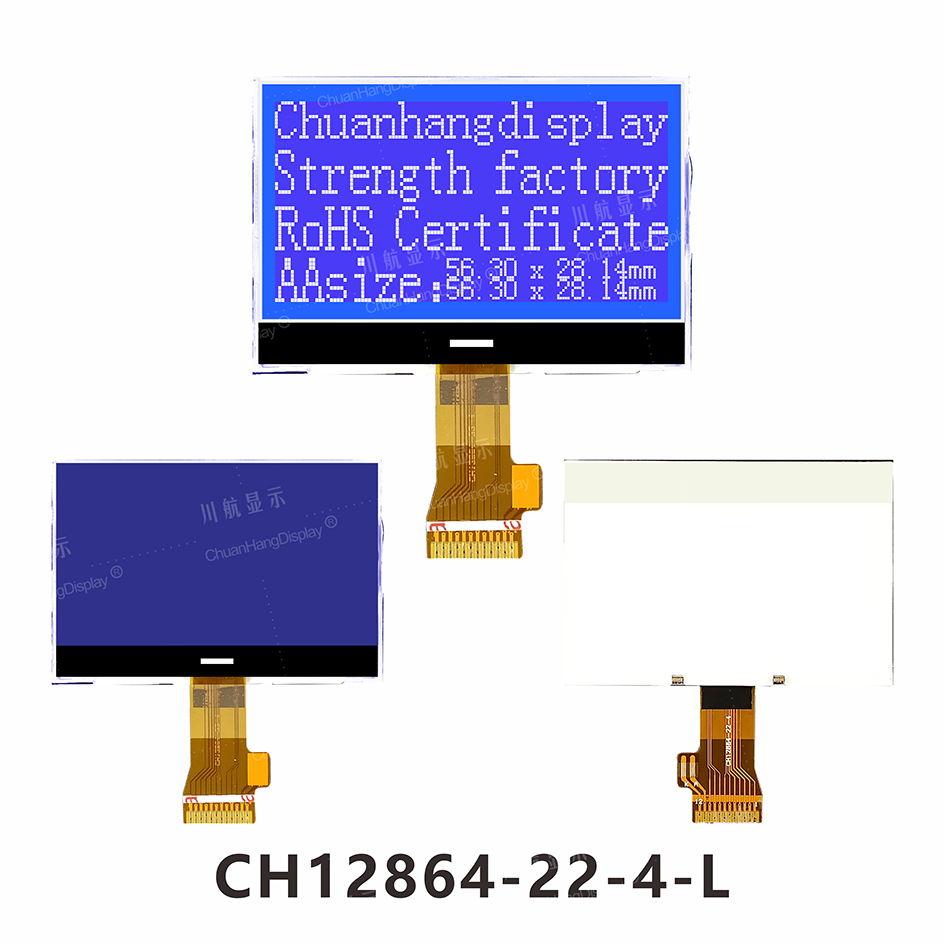

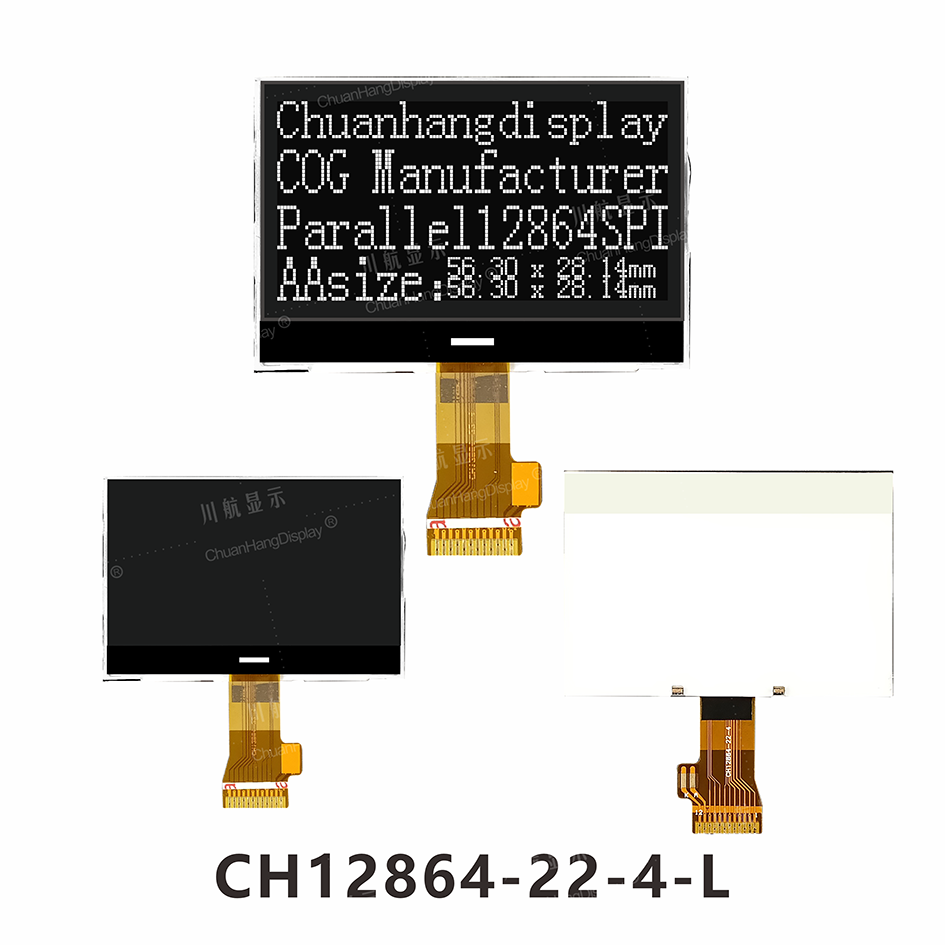

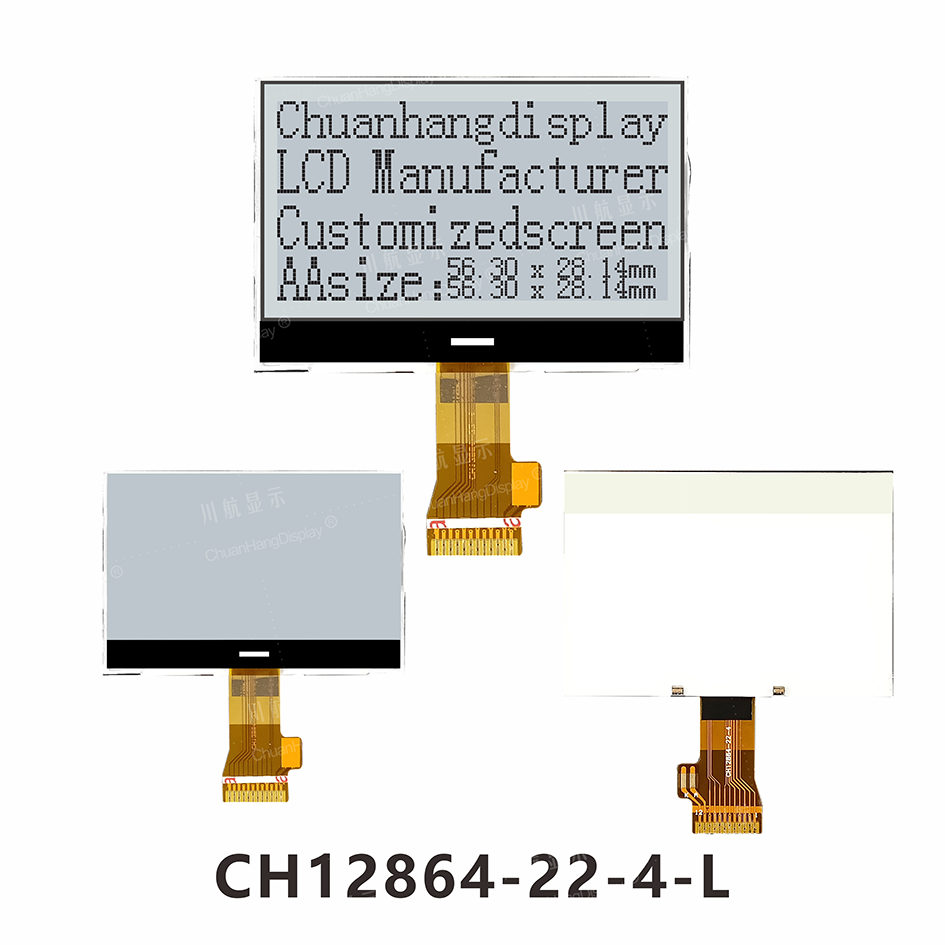

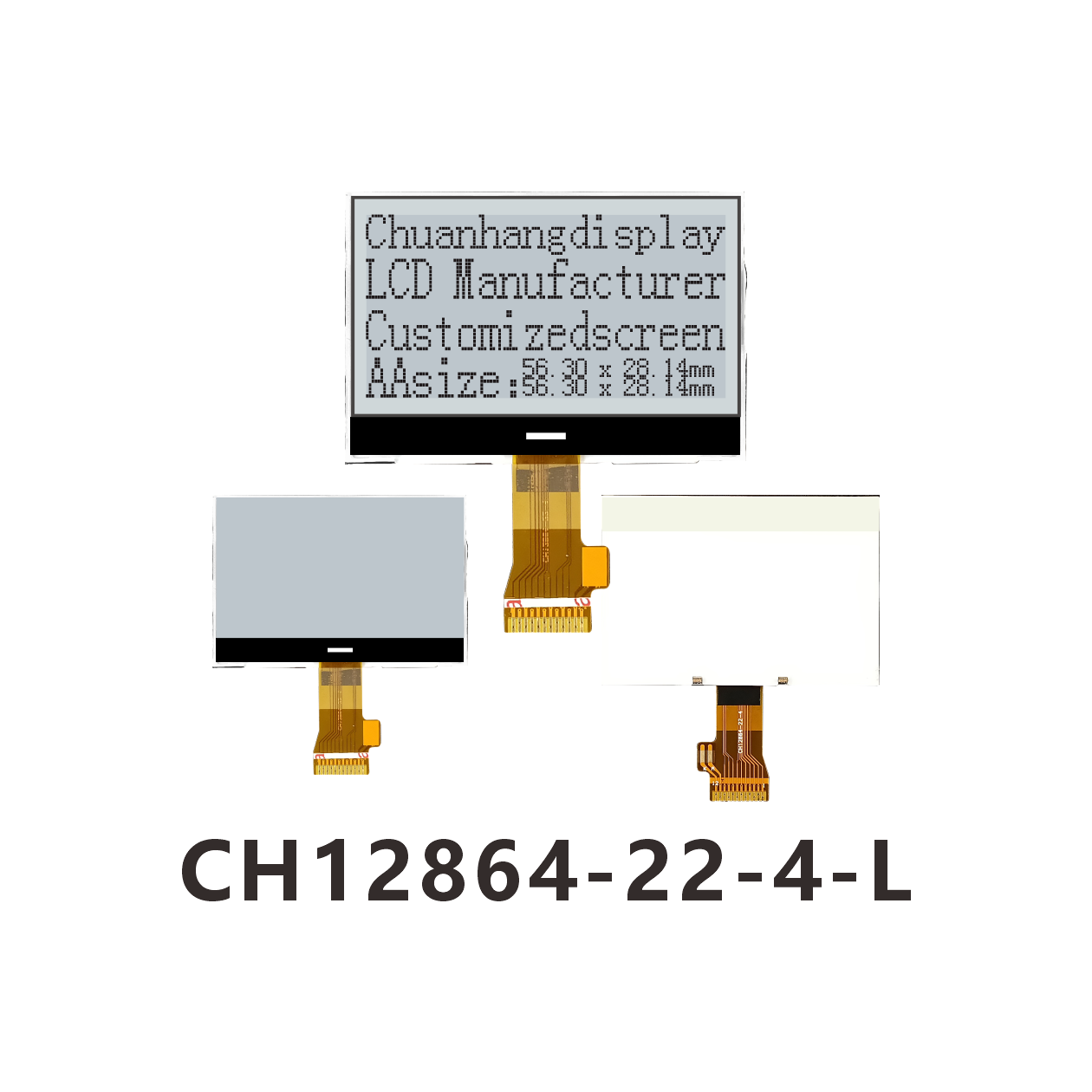

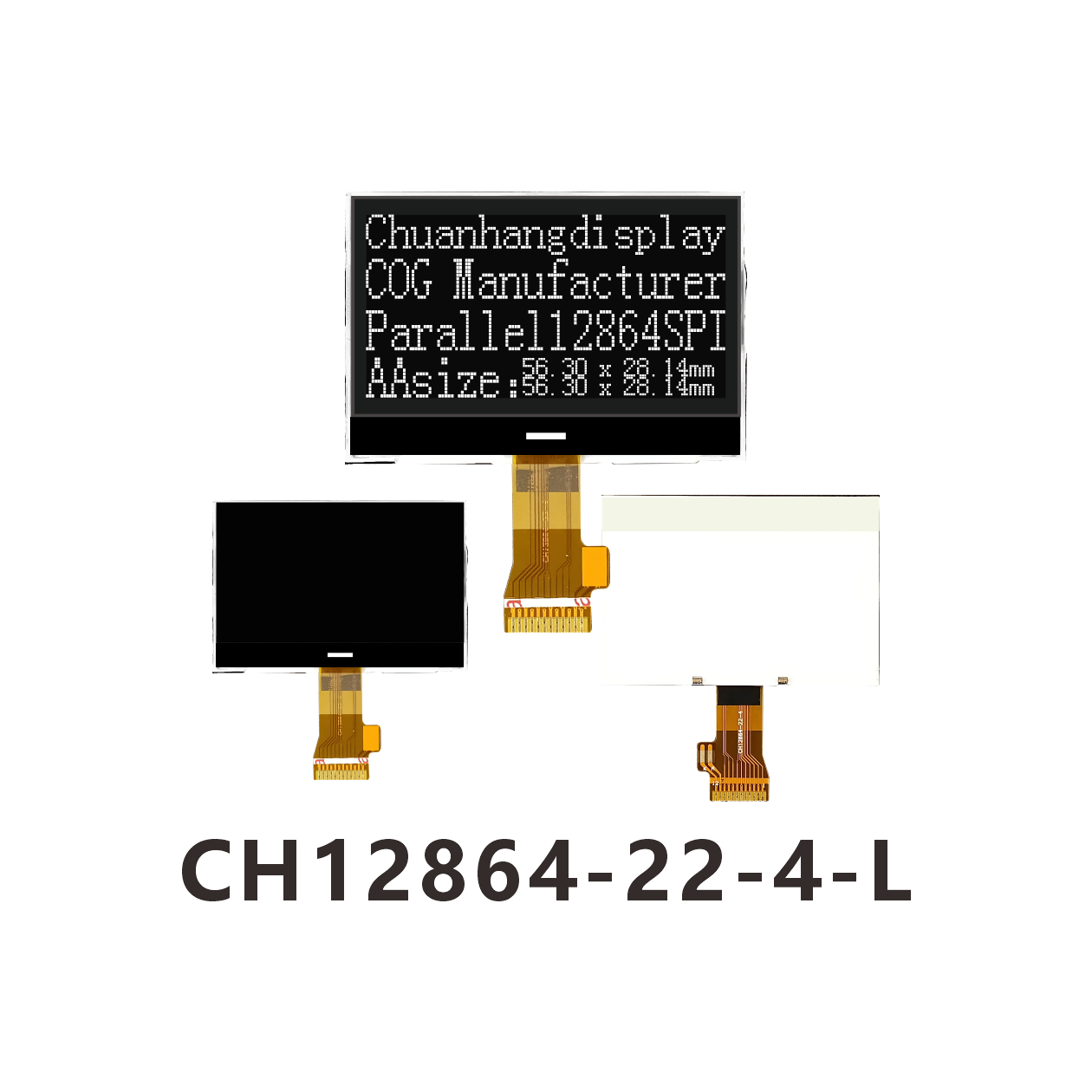

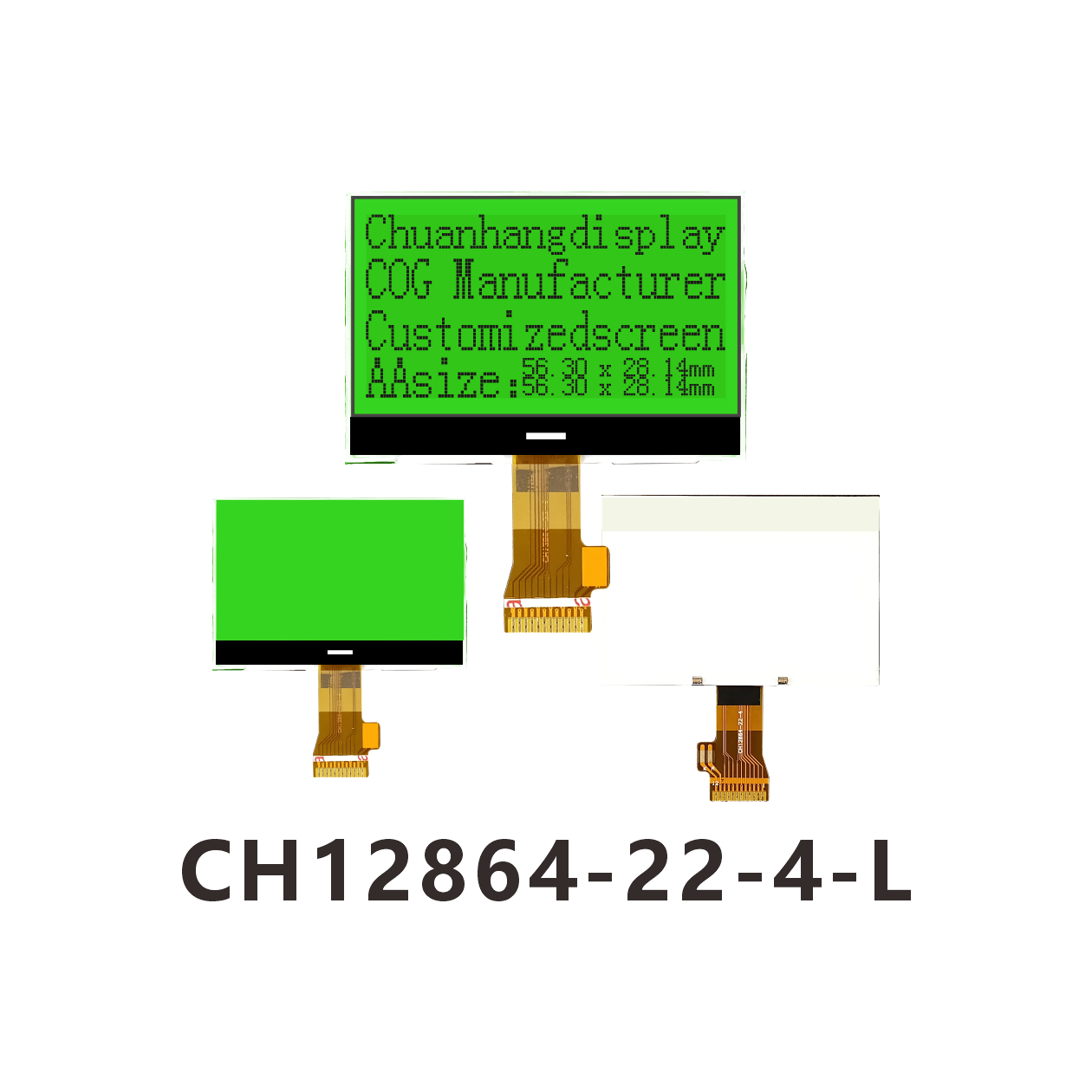

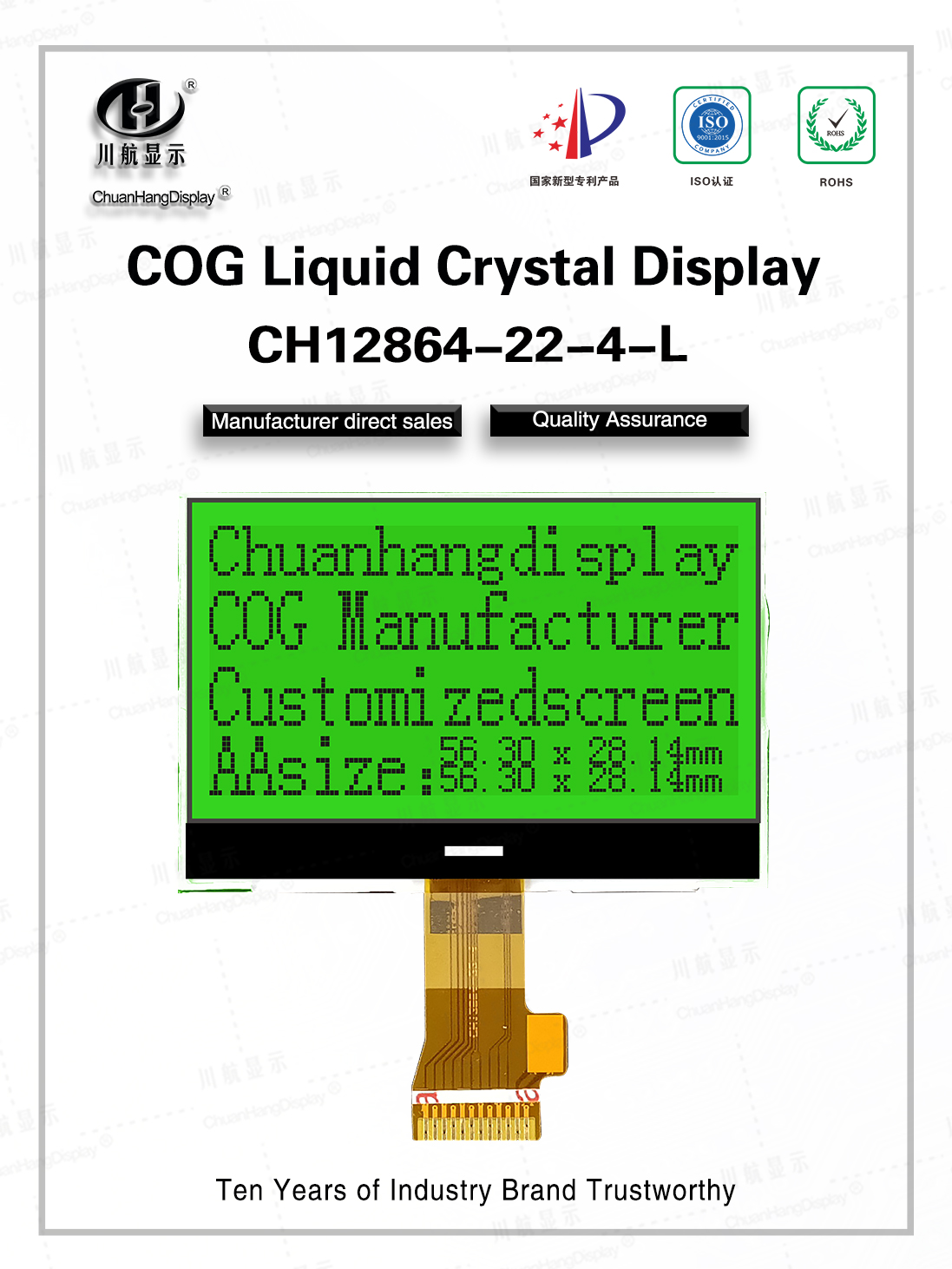

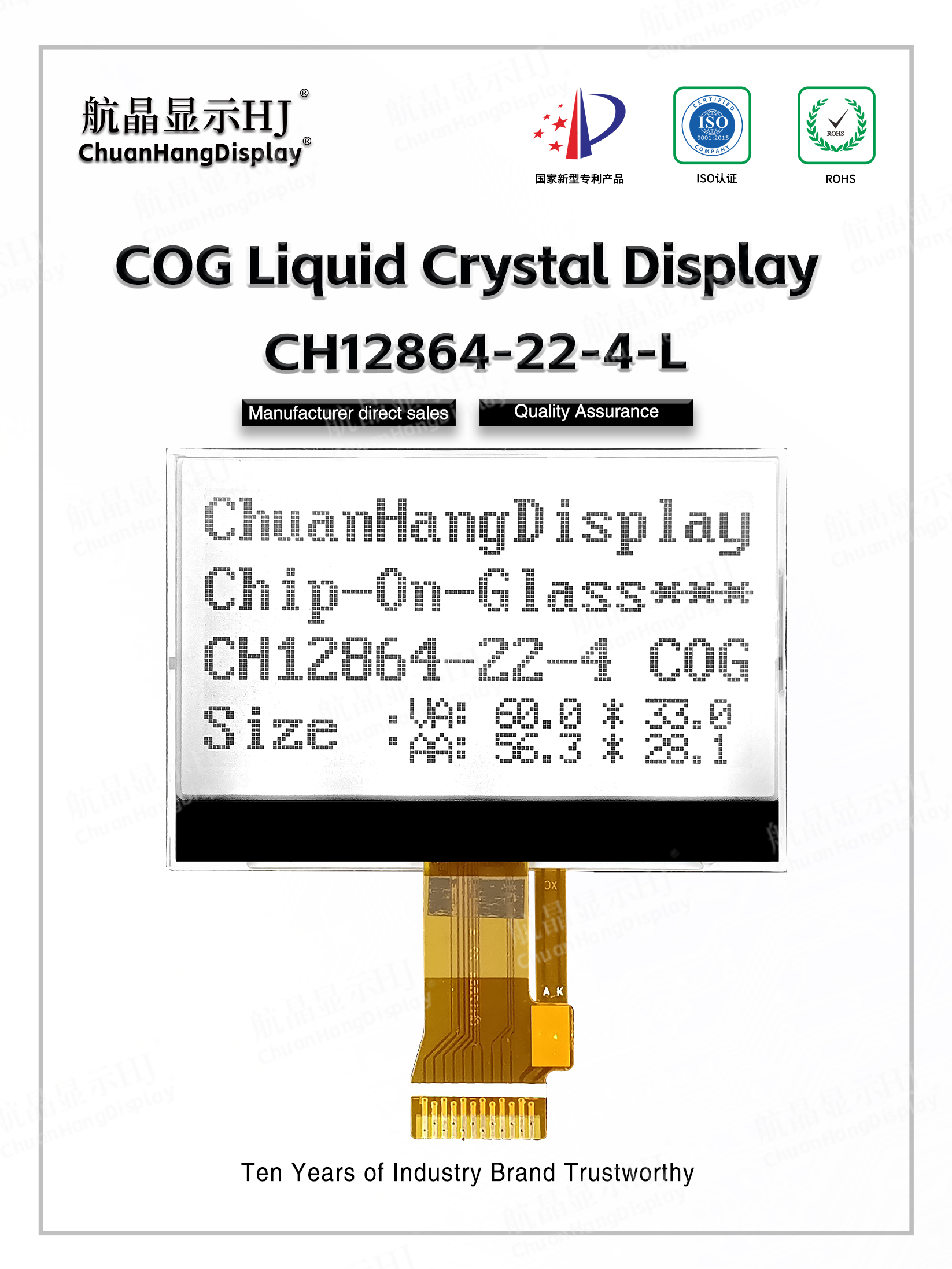

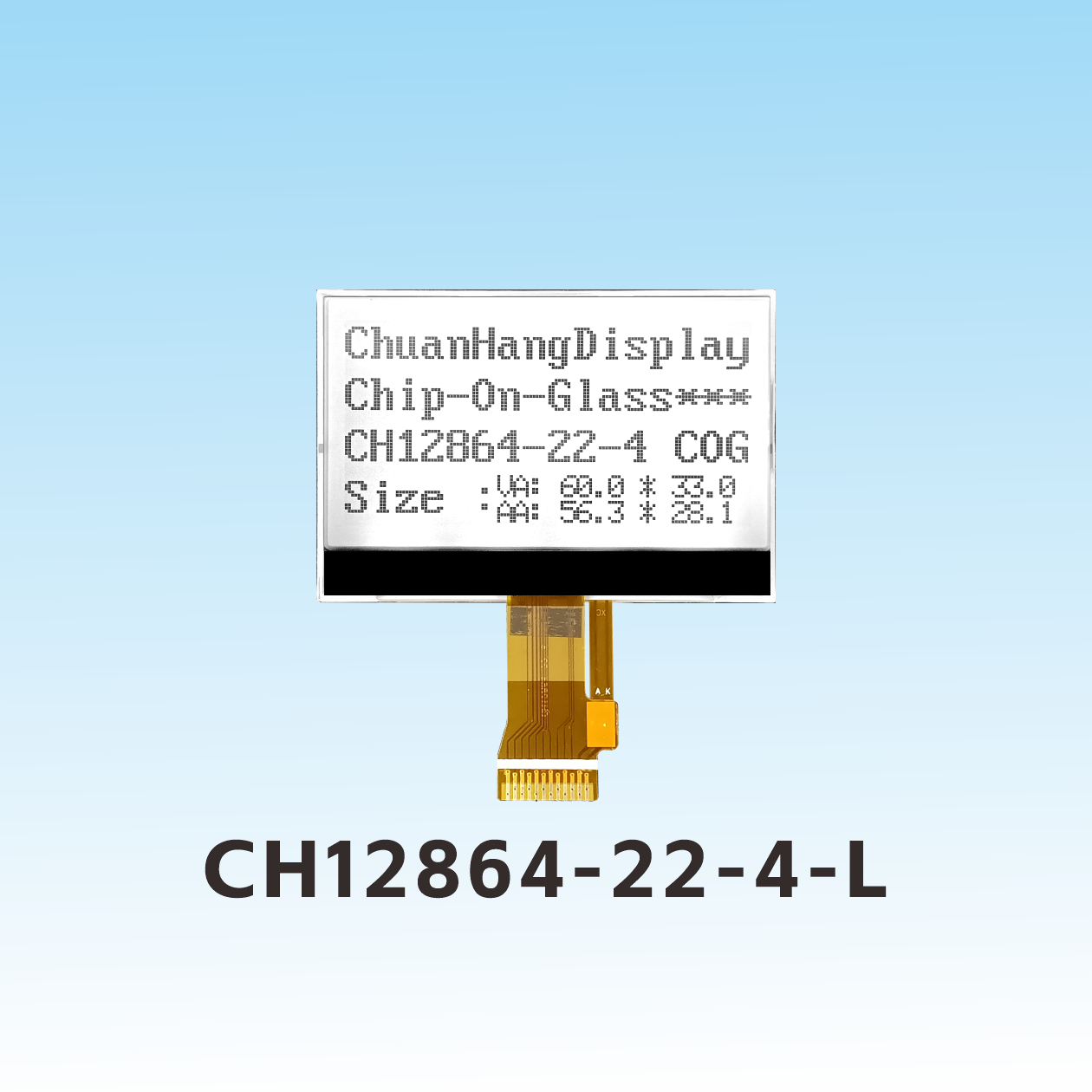

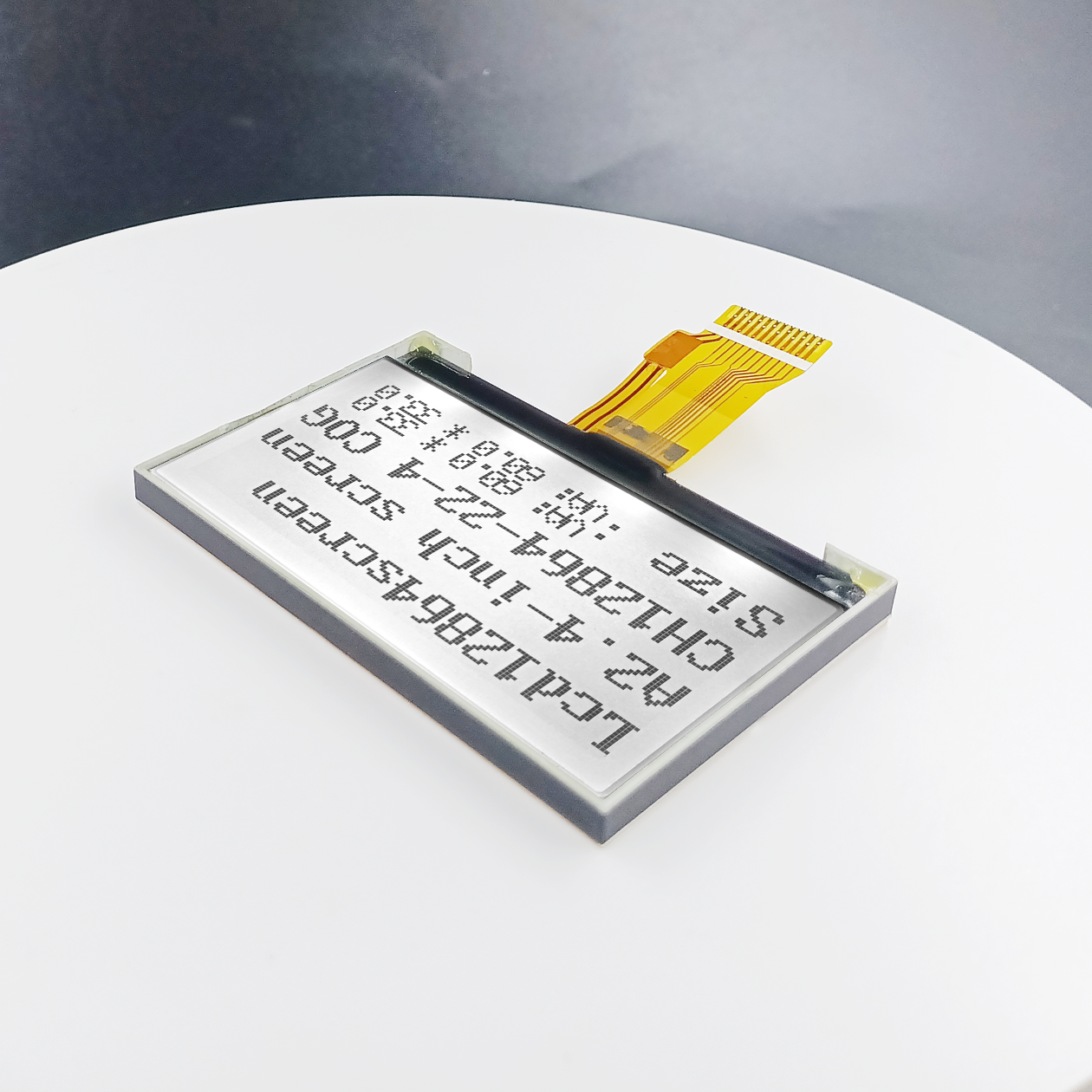

CH12864-22-4-L2 cog lcd 12864 spi

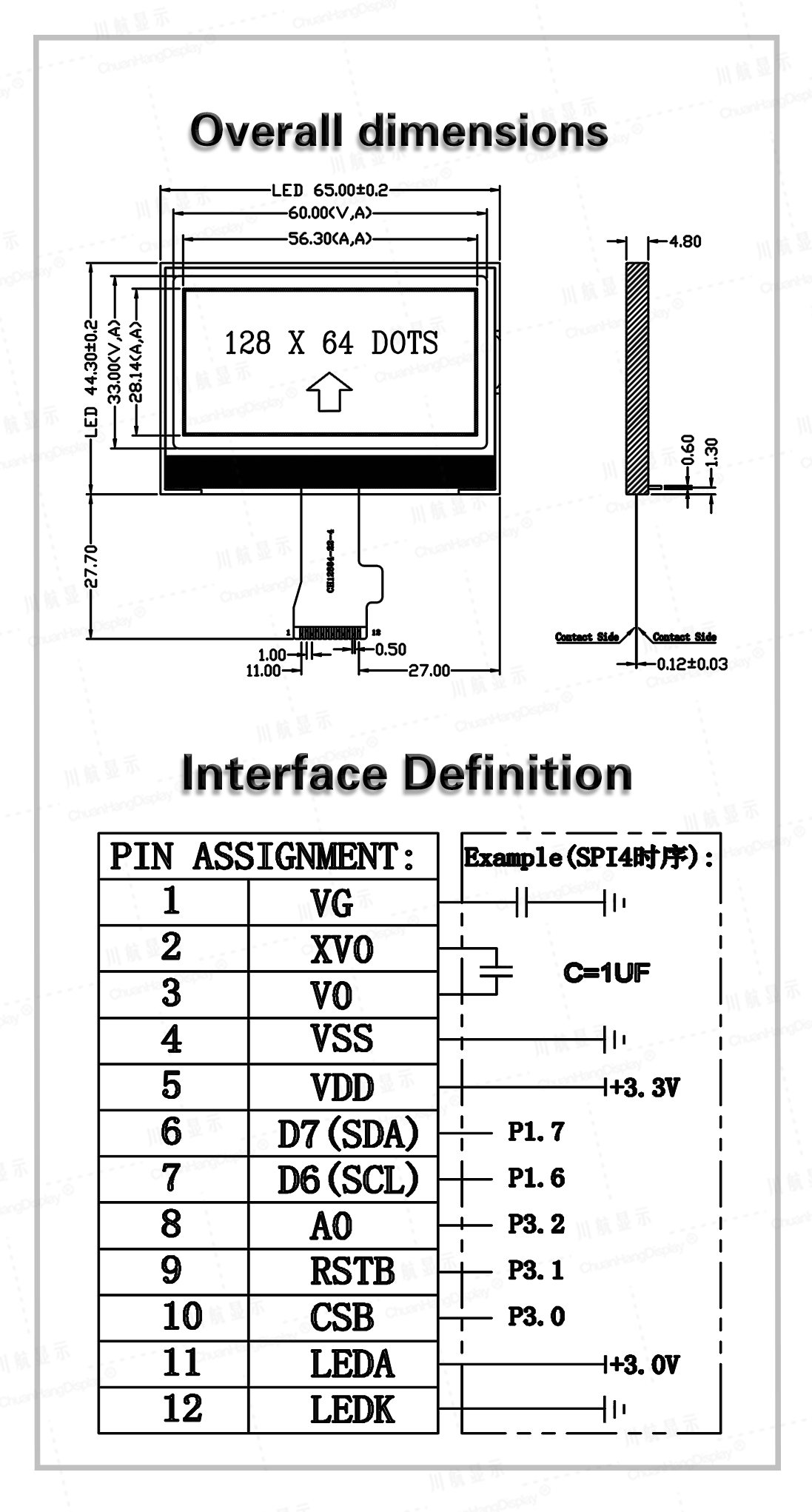

Product Description

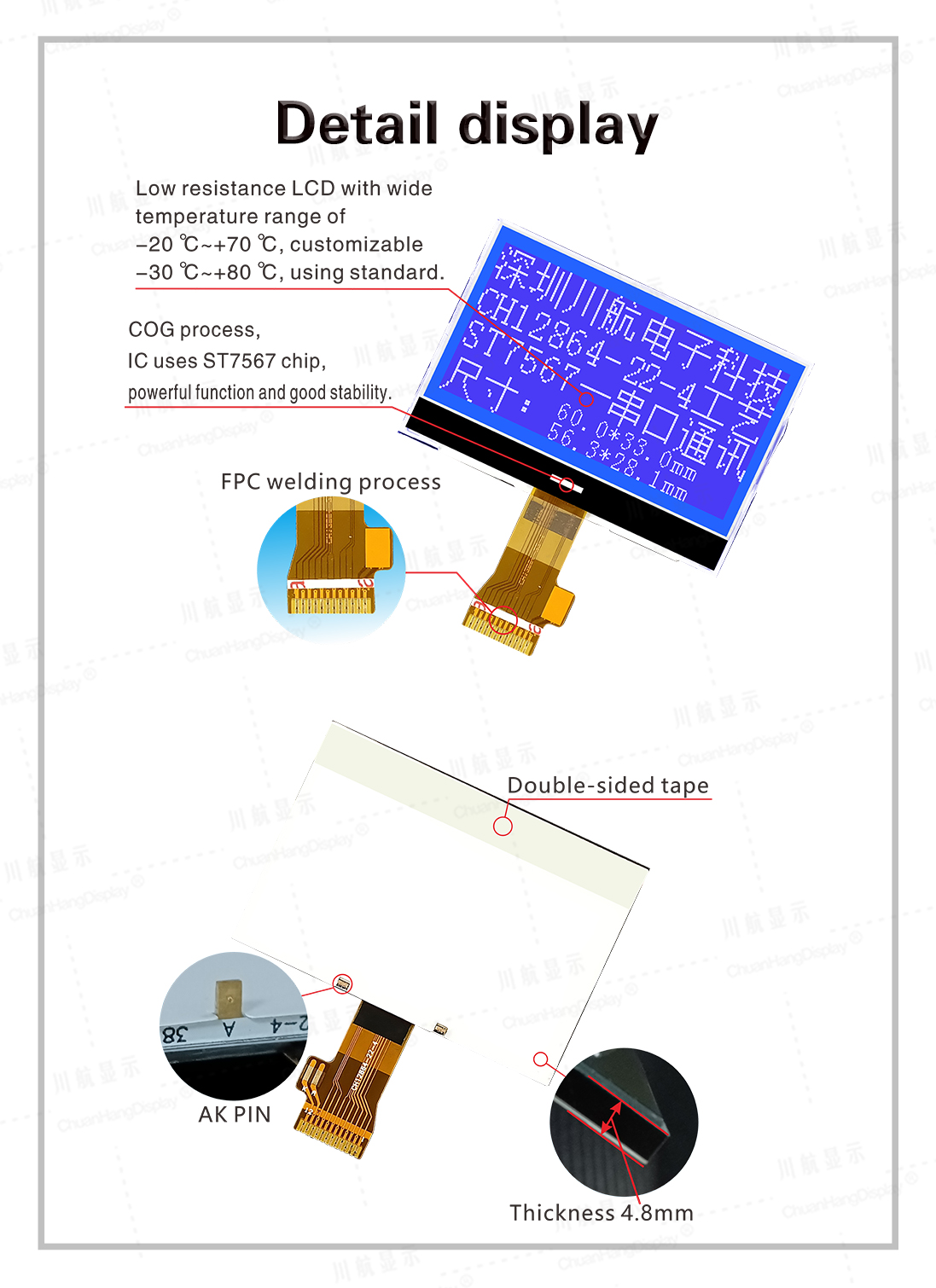

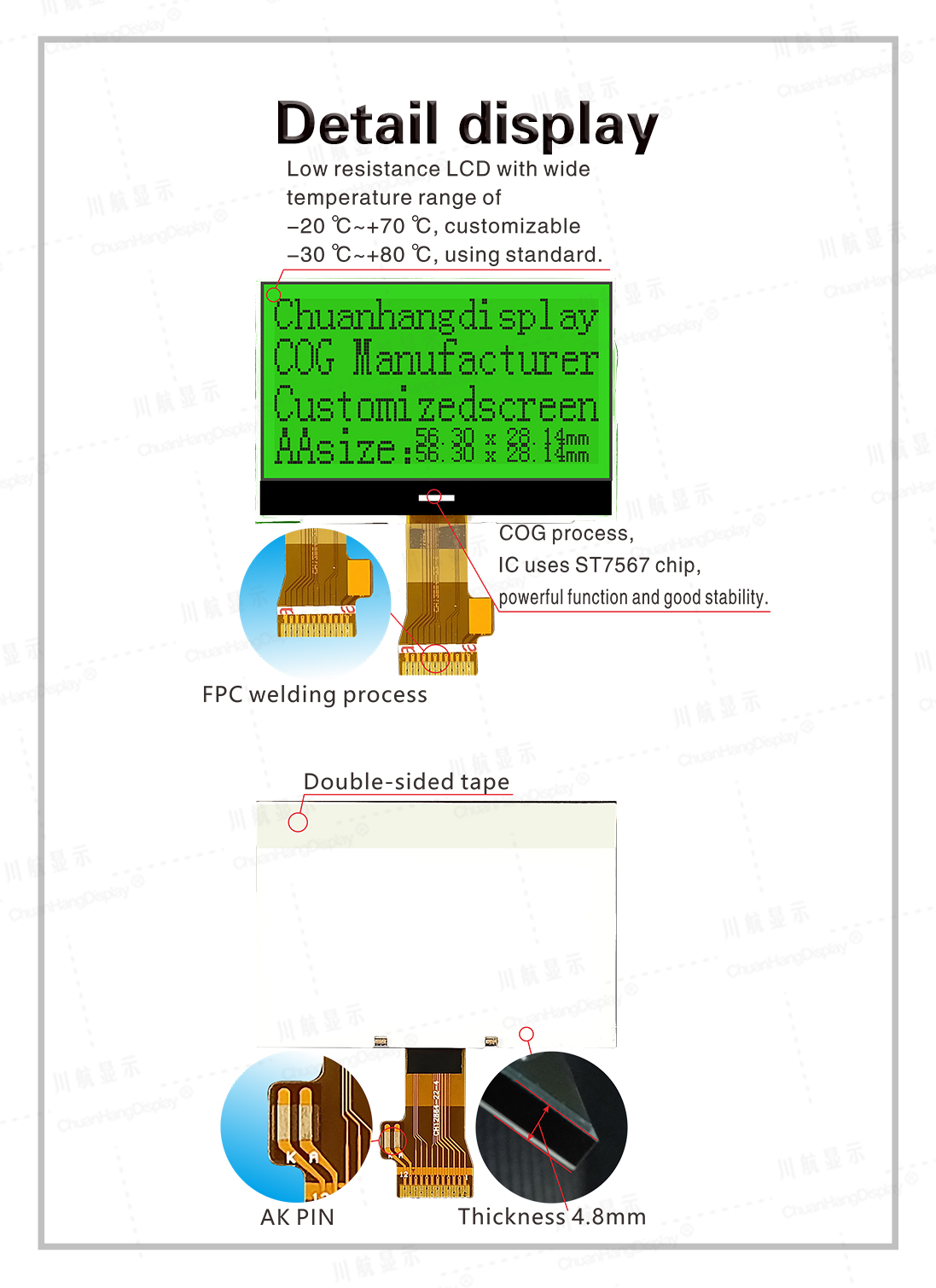

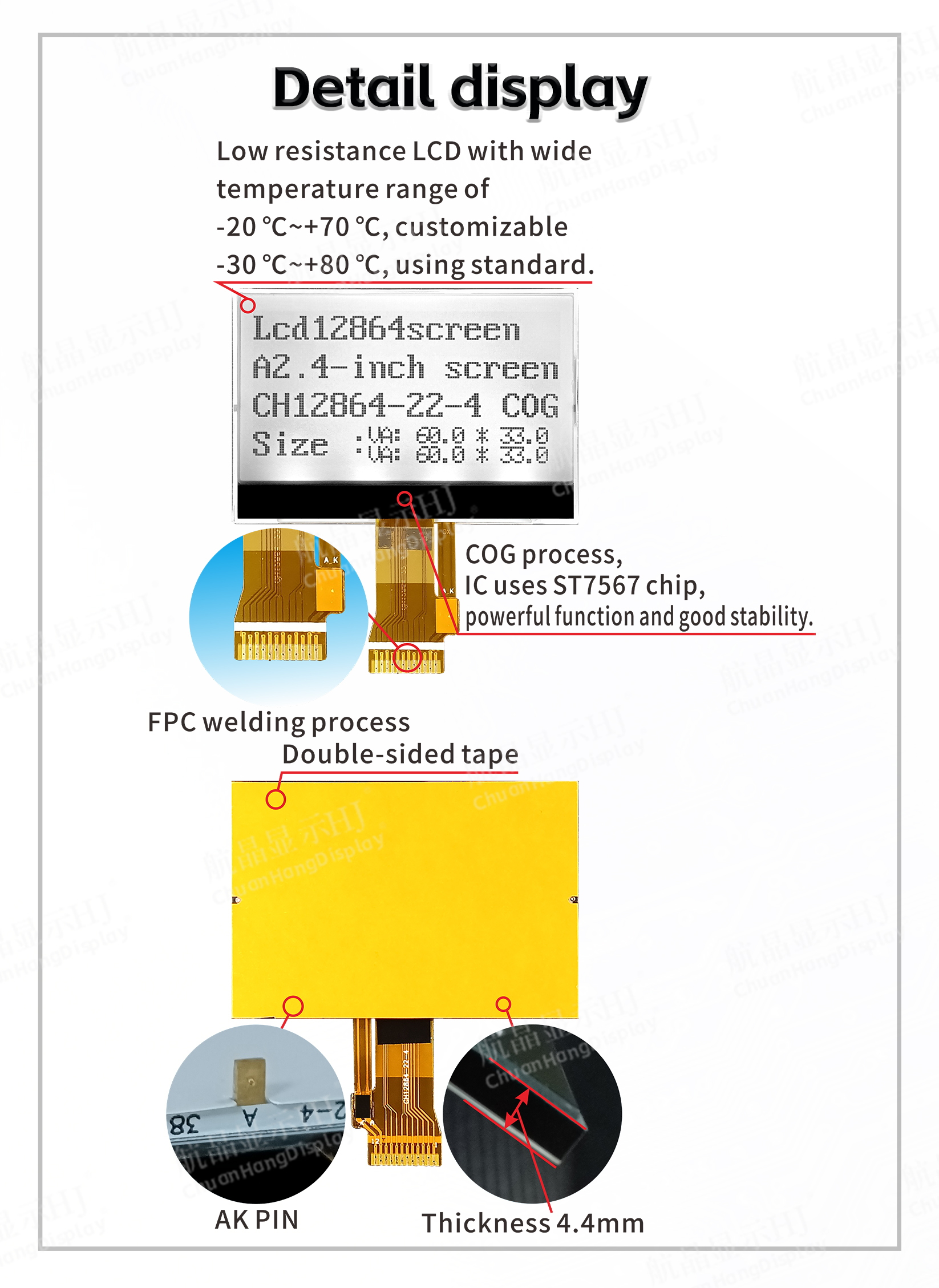

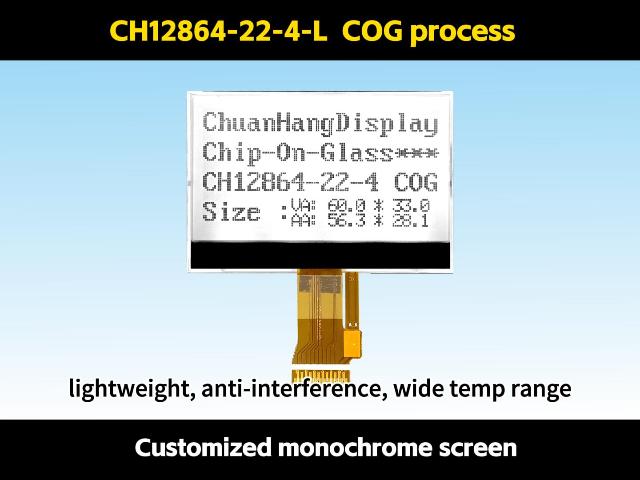

1.1 COG technology, FPC soft line is welded, the product has backlight, has been assembled, thin thickness, stable structure.
1.2 IC uses ST7567, there is no word library in the chip, and the programmer compiles his own word library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, backlight current within 80mA.
1.4 LED backlight A and K are PCB boards, and A and K need to be supplied separately with 2.9V~3.0V.
1.5 Product features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates a boost.
The contrast is adjusted by the software.
One screen displays 8 characters x 4 lines (16x16 dot matrix).
Single picture ≤128x64 dot matrix.
4-wire SPI interface communication.
Rich functions: interface display on/off, positive/reverse display.

PDF Download Demo code

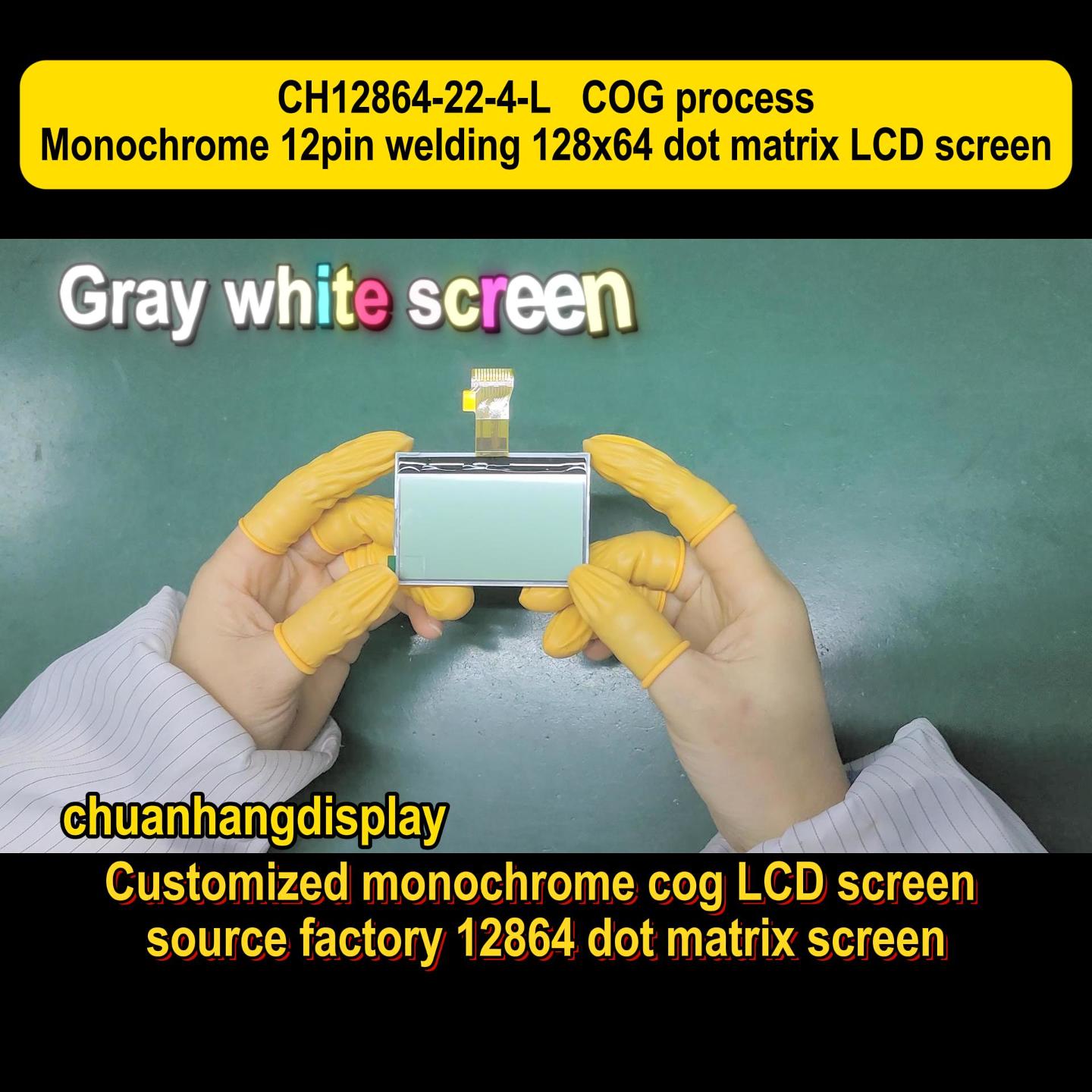

Video Presentation

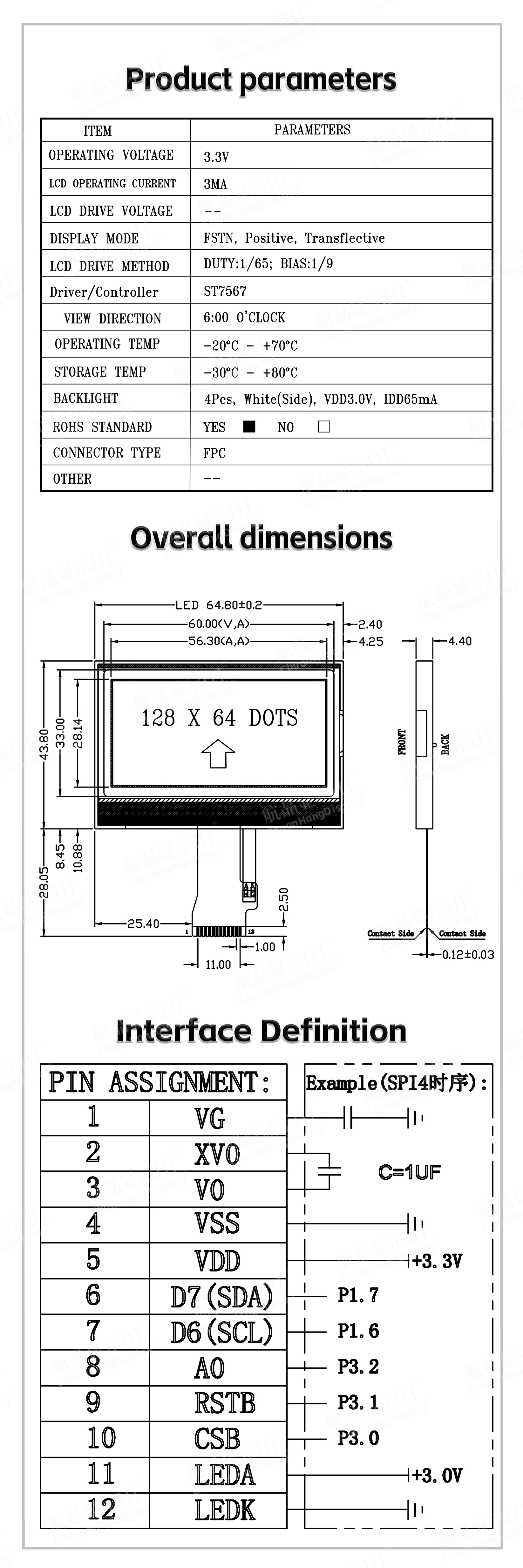

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864-22-4-L2
Resolution	128x64	screen size
Outline Dimension(LWH)	65.00x44.30x4.80mm	Visible Area(L*W)	60.00x33.00mm
Active Area(L*W)	56.30x28.14mm	Character Size(L*W)
Type	COG	Connection Method	FPC
Supply Voltage	DC 5V/3.3V	Interface Type	4-bit or 8-bit parallel port
Viewing Direction	6 O'CLOCK	Driving Method	1/16Duty,1/5Bias
Display Type		Driver IC	AIP31066
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	DC 5V/3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO
