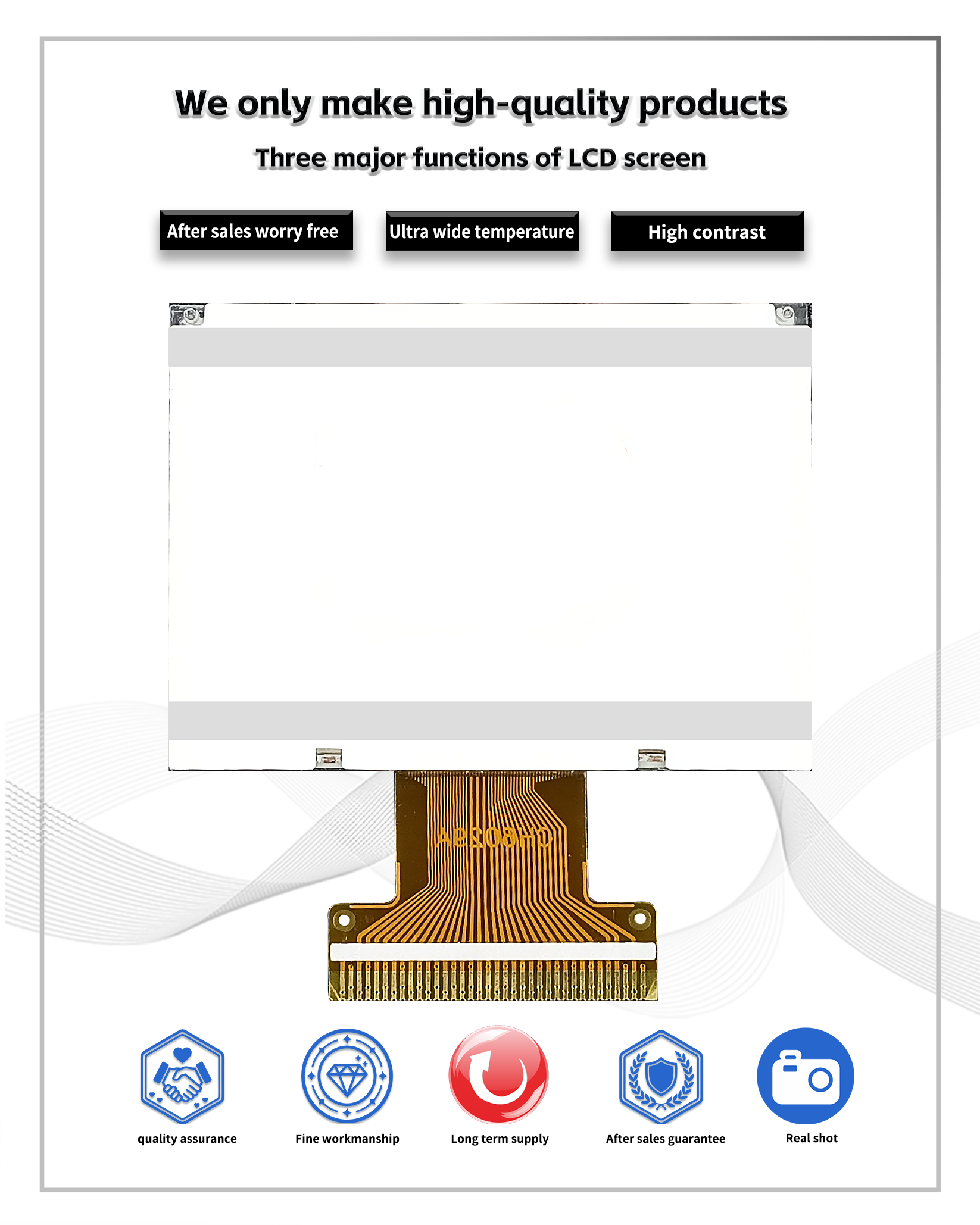

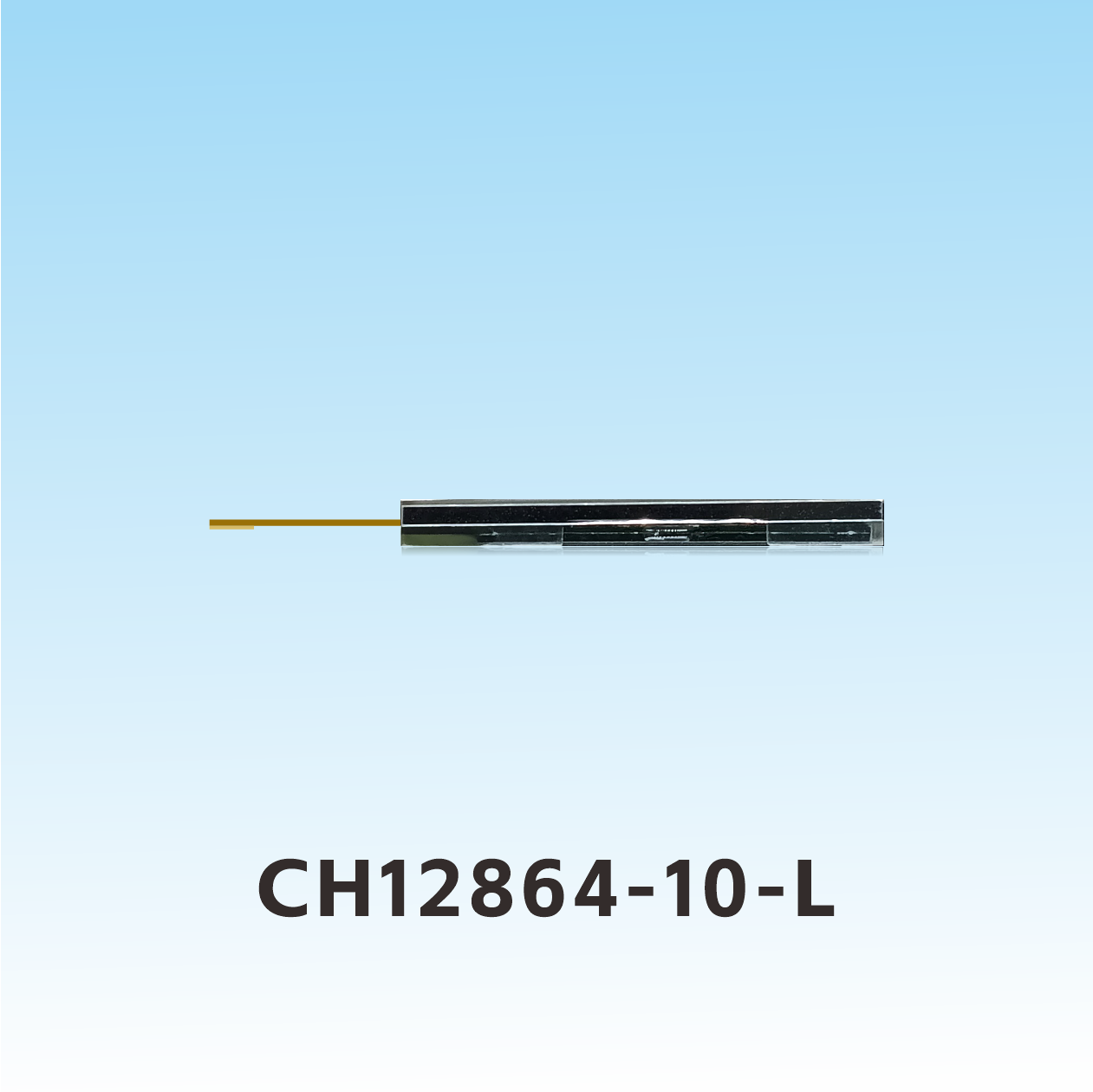

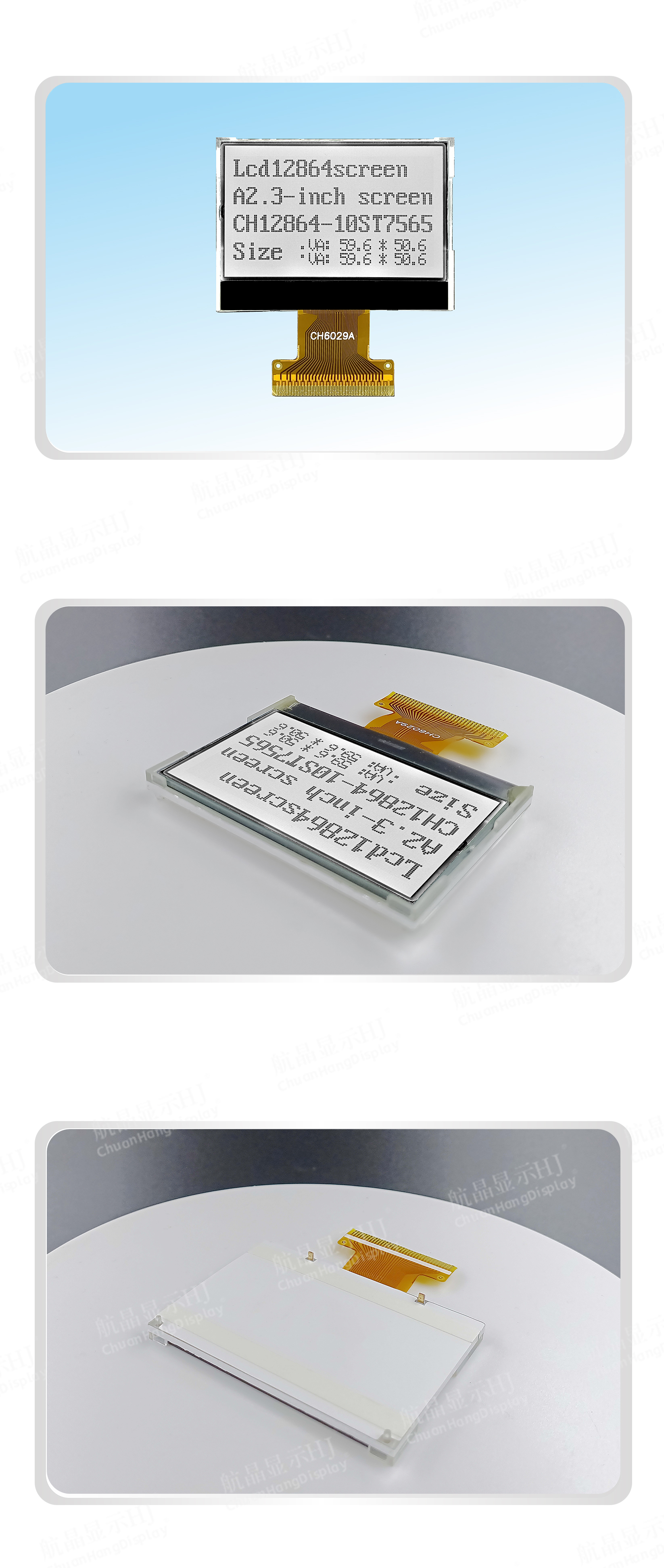

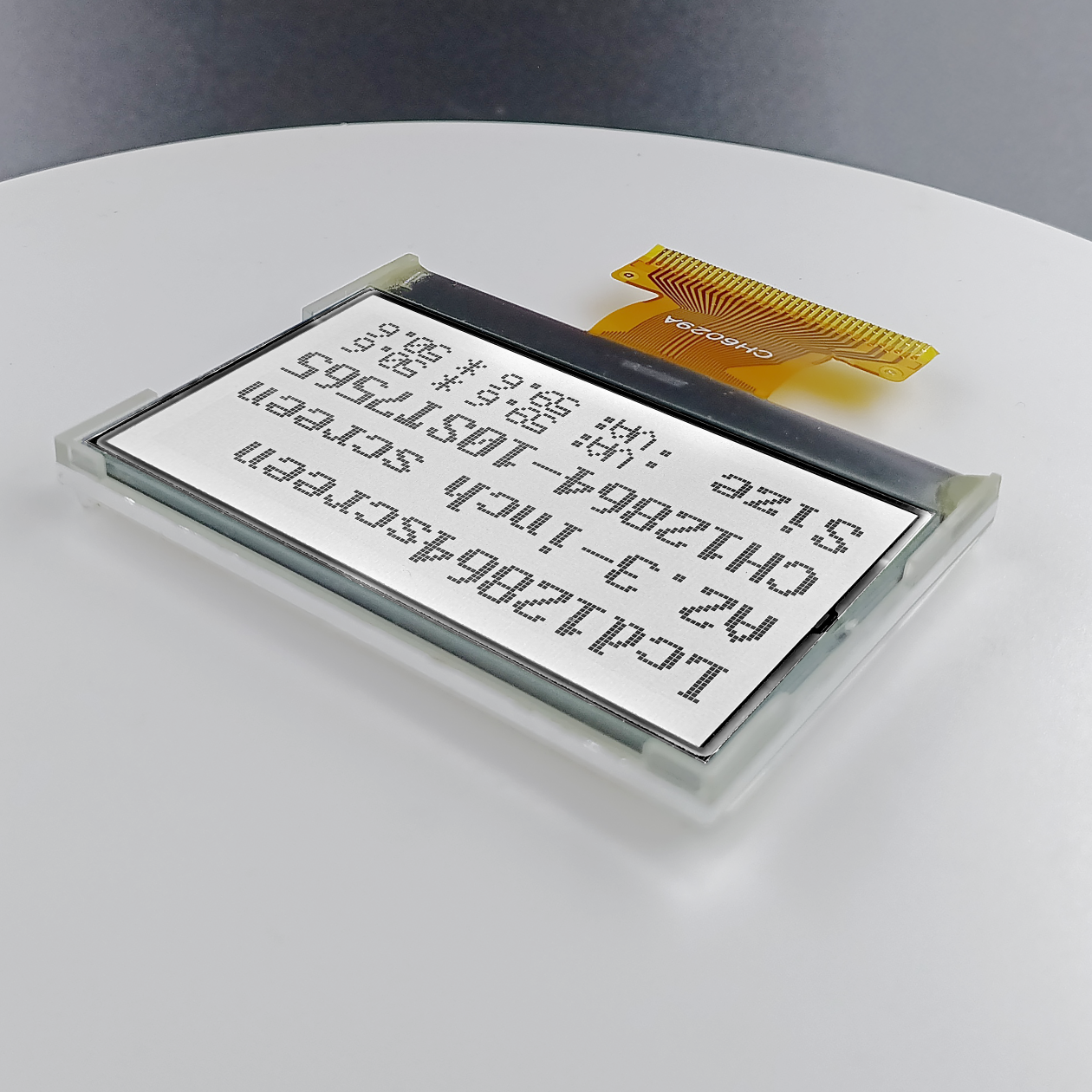

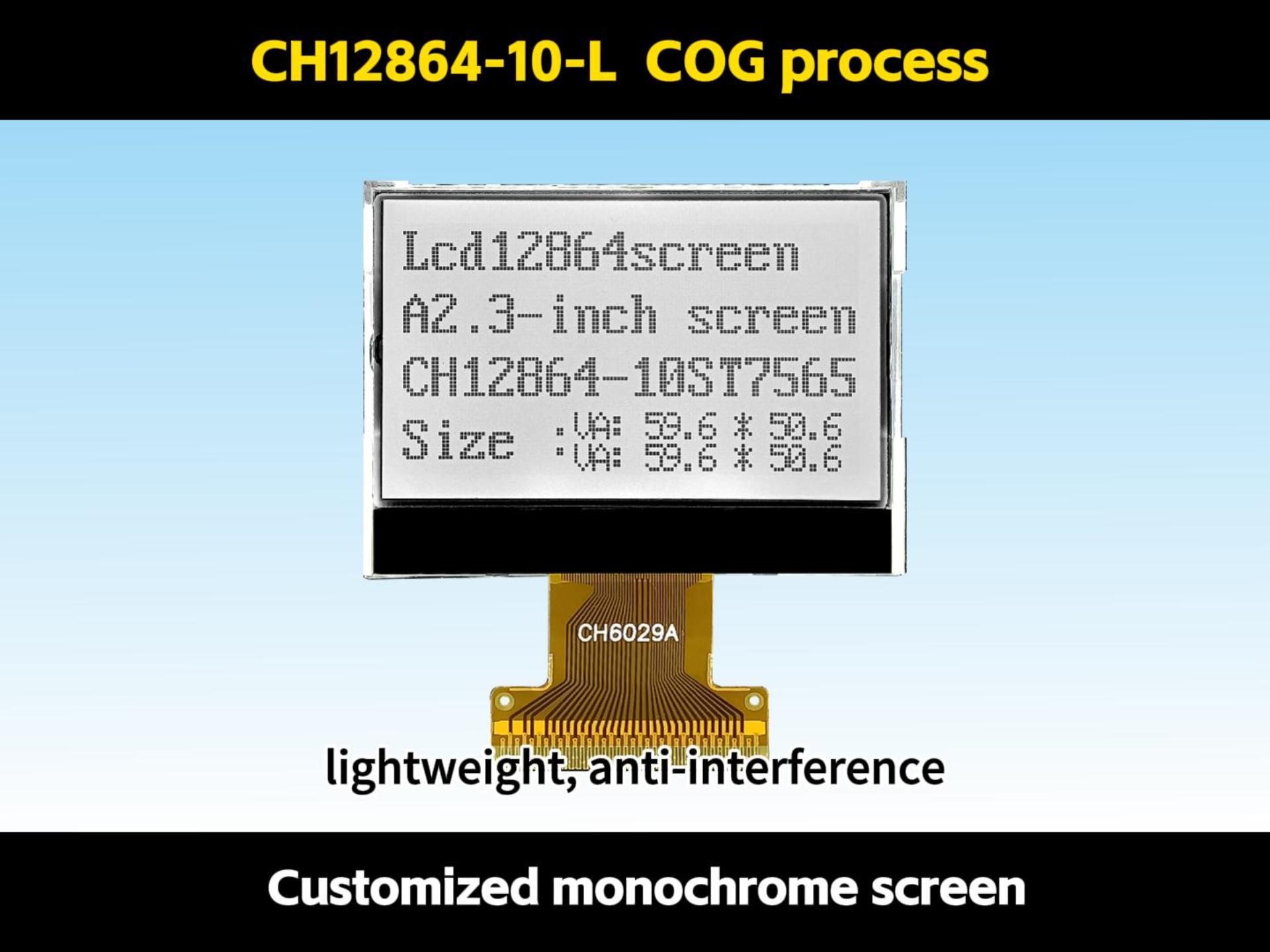

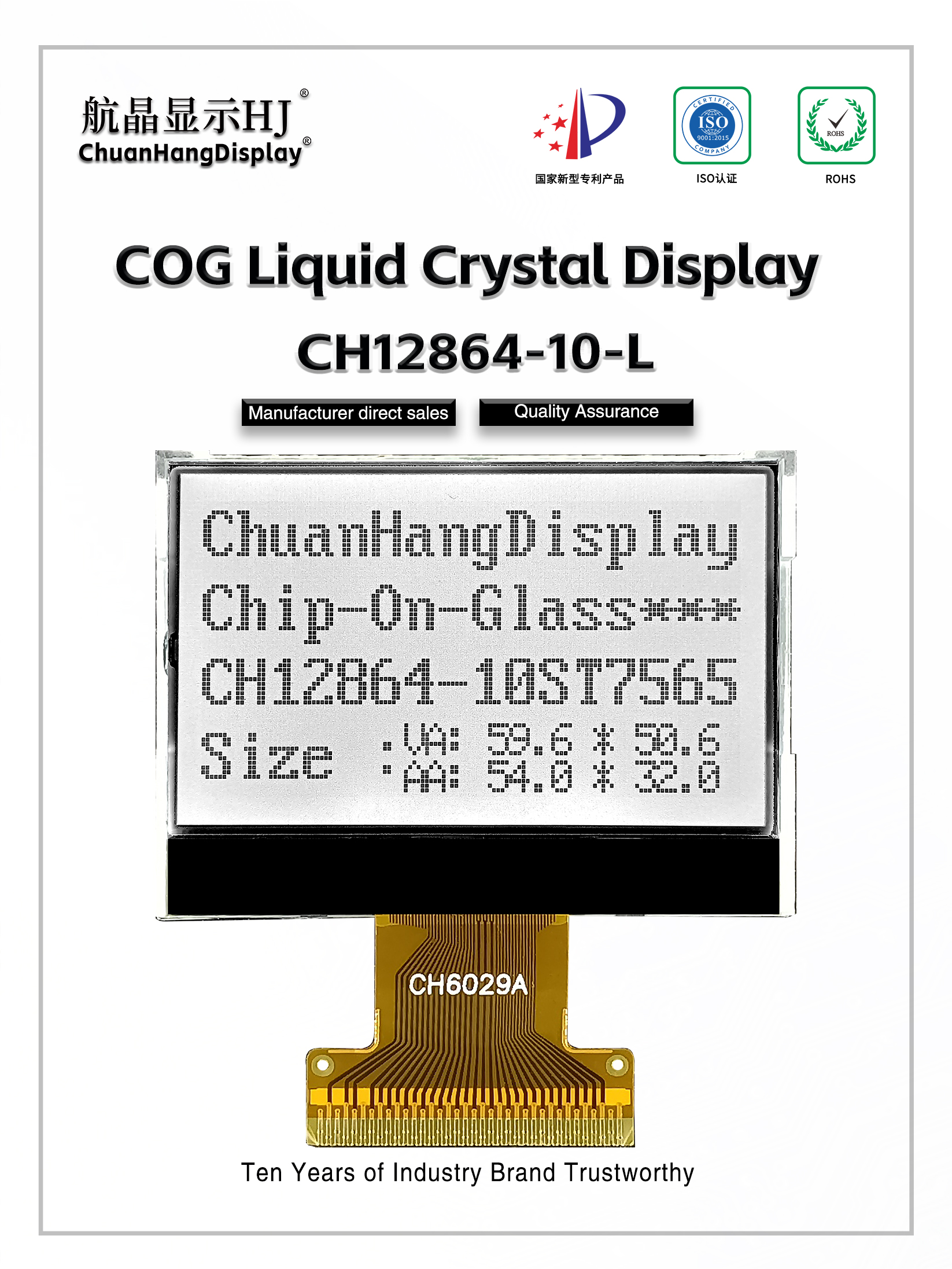

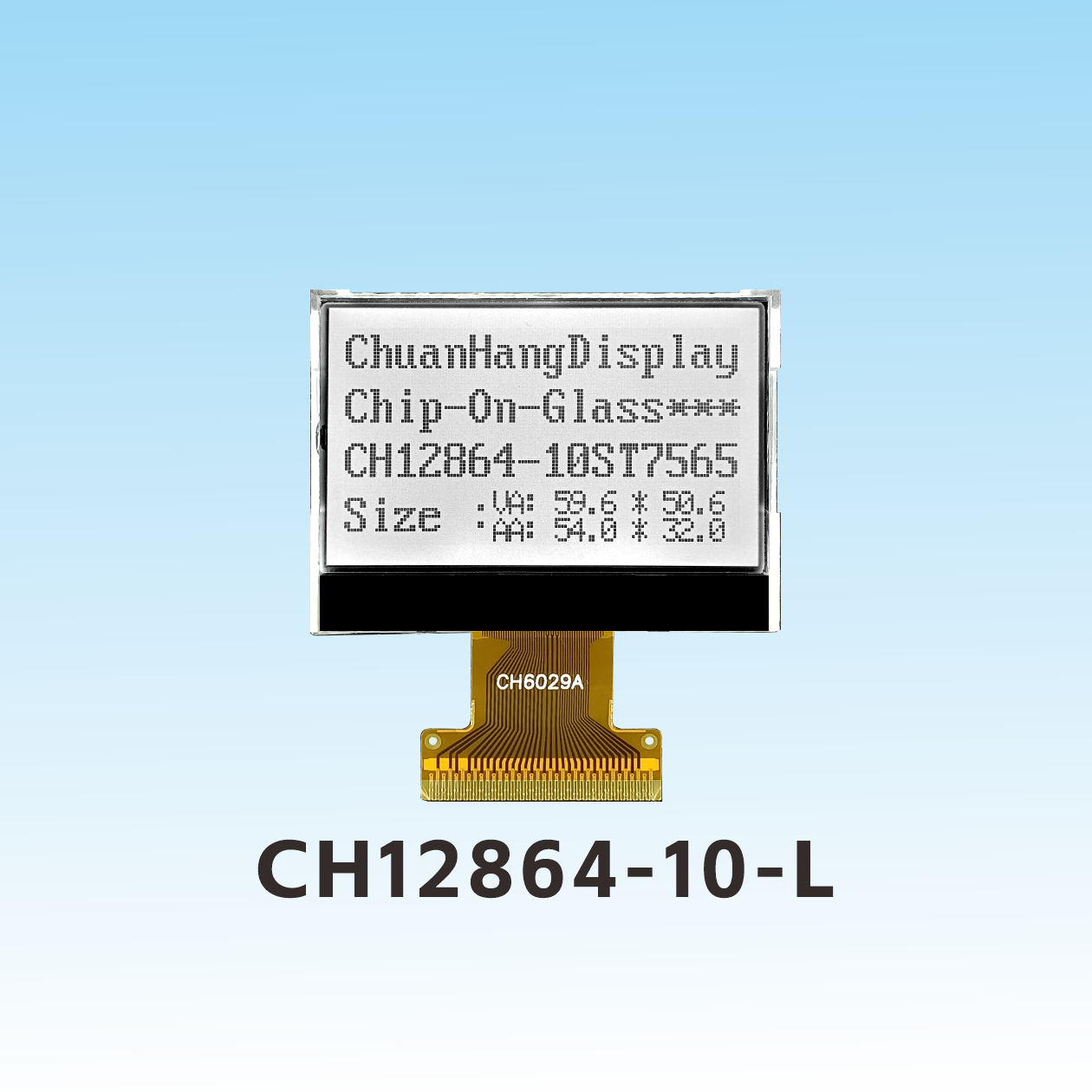

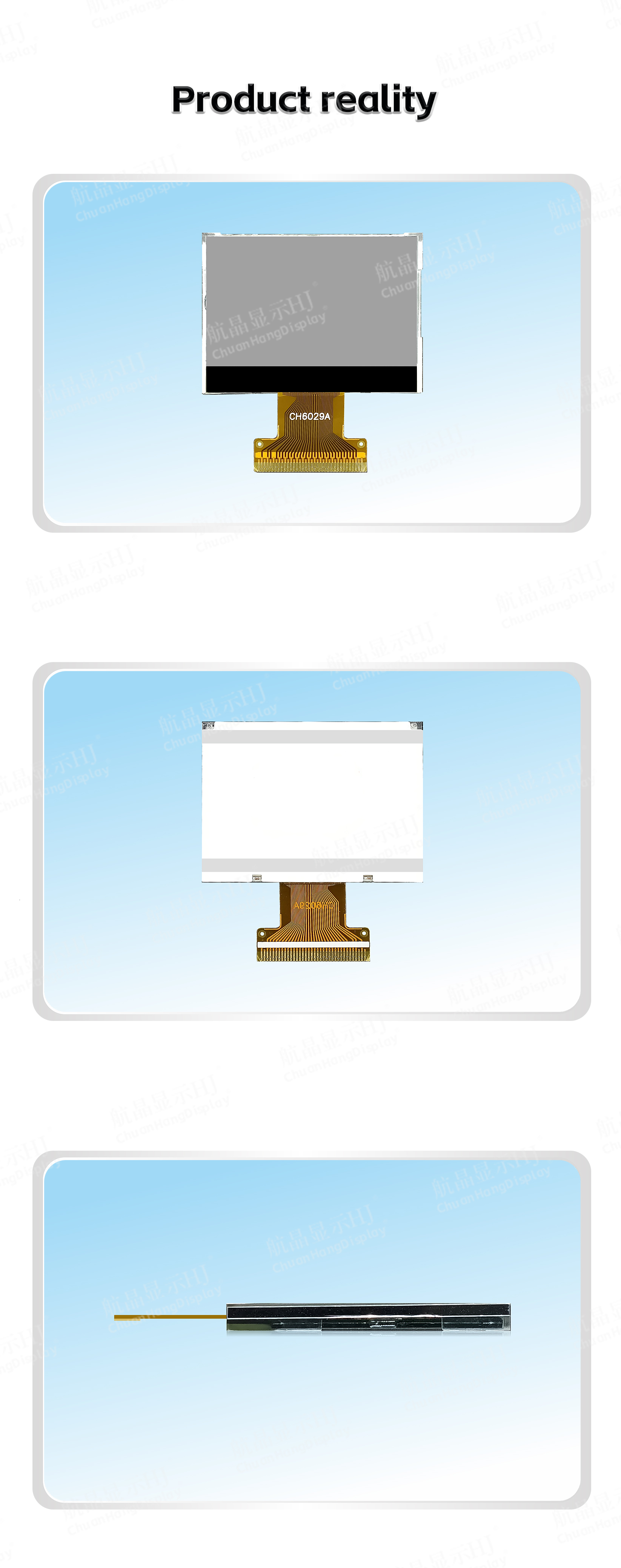

CH12864-10-L

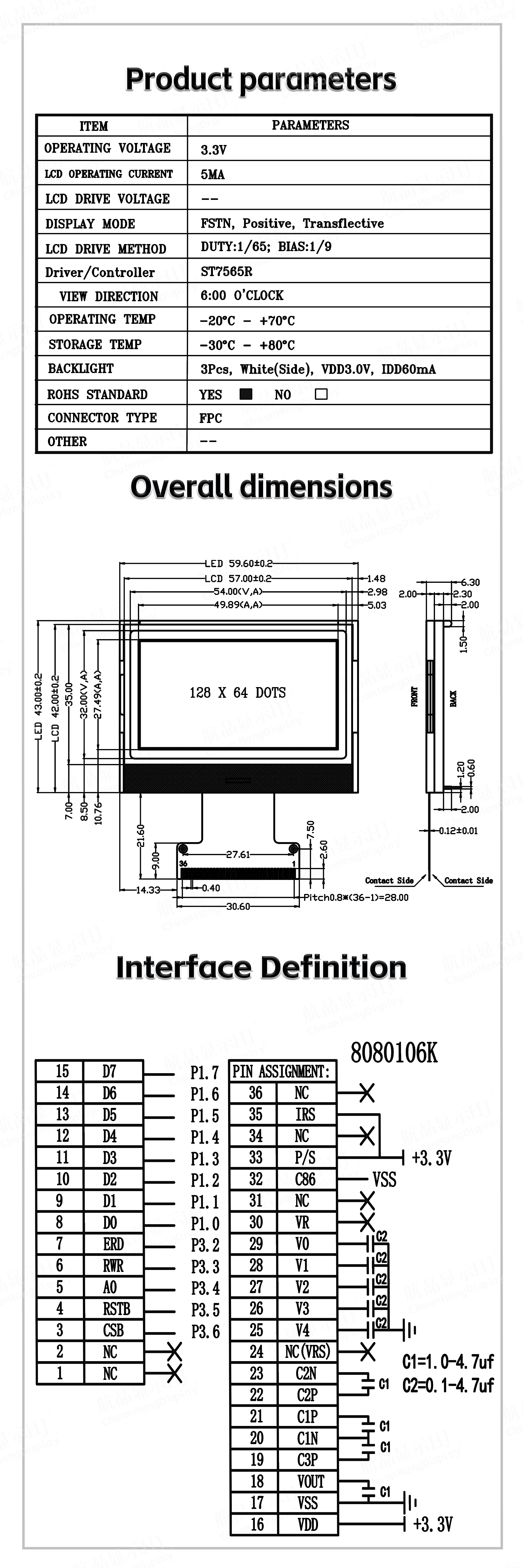

Product Description

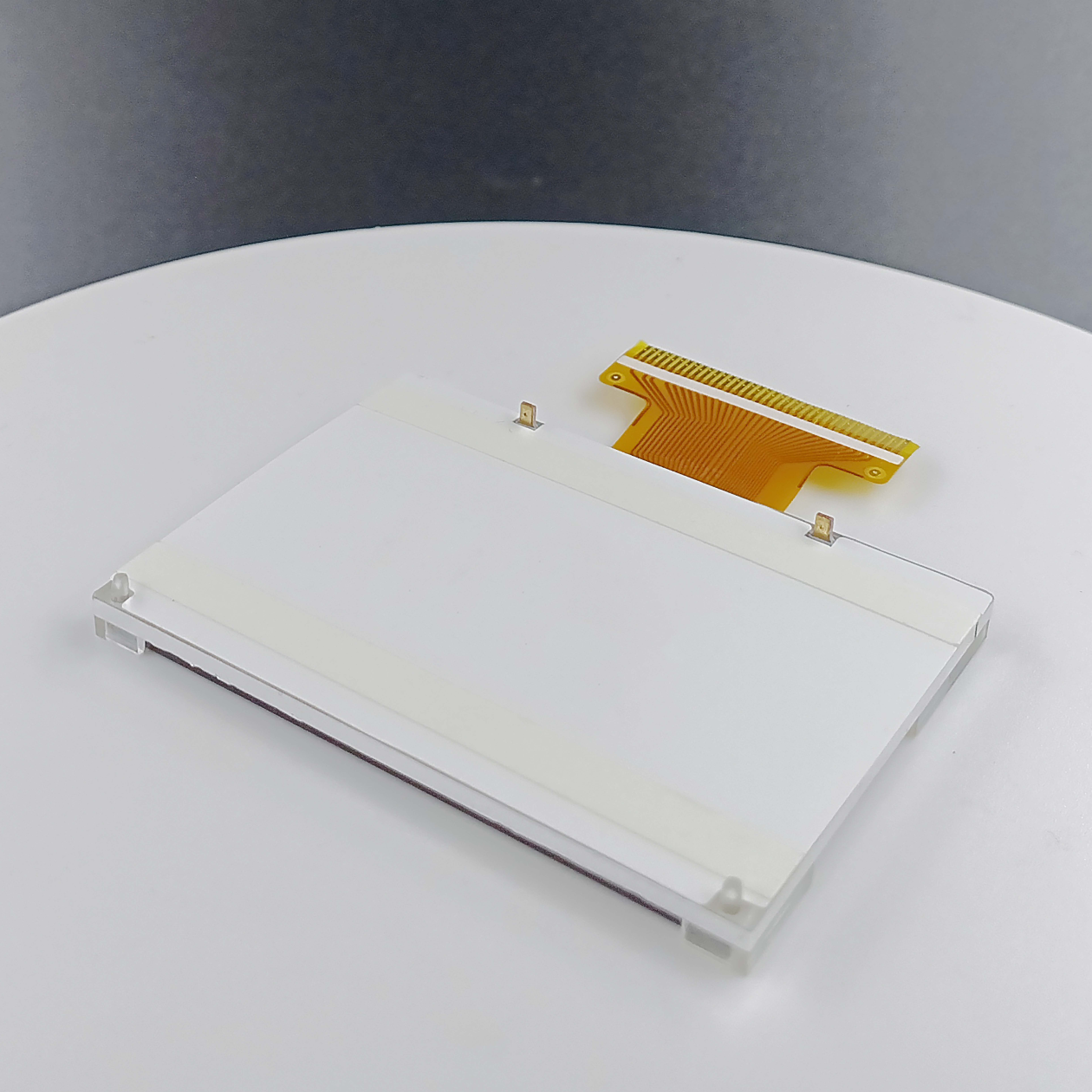

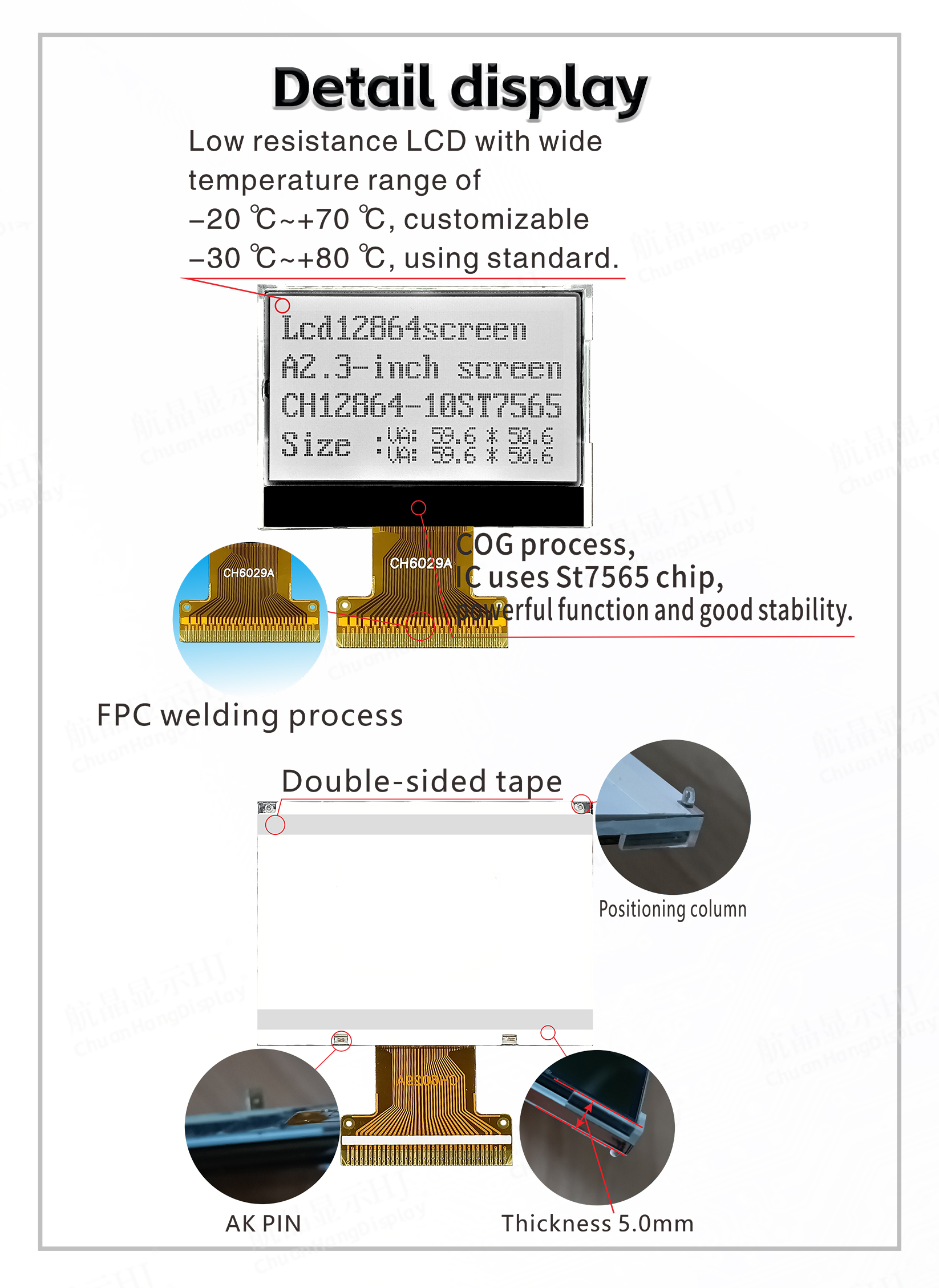

1.1cOG process, FPC soft line is the welding port, the product has backlight, thin thickness, stable structure.
1.2IC uses ST7565R, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, with backlight current within 80mA.
1.4 LED backlight A and K are PCB boards. A and K need to be supplied separately 2.9V~3. OV.
1.5 Product features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates a boost.
The contrast is deepened and lightened by the software.
One screen displays 8 characters x 4 lines (16x16 dot matrix).
Single picture ≤128x64 dot matrix.
You can choose a 4-wire SPI interface or 8-bit parallel port 6800 timing or 8080 timing, and the circuit can be configured.
Rich functions: The interface shows on/off, positive display/reverse display, read/modify/write.
1.2IC uses ST7565R, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, with backlight current within 80mA.
1.4 LED backlight A and K are PCB boards. A and K need to be supplied separately 2.9V~3. OV.
1.5 Product features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates a boost.
The contrast is deepened and lightened by the software.
One screen displays 8 characters x 4 lines (16x16 dot matrix).
Single picture ≤128x64 dot matrix.
You can choose a 4-wire SPI interface or 8-bit parallel port 6800 timing or 8080 timing, and the circuit can be configured.
Rich functions: The interface shows on/off, positive display/reverse display, read/modify/write.
