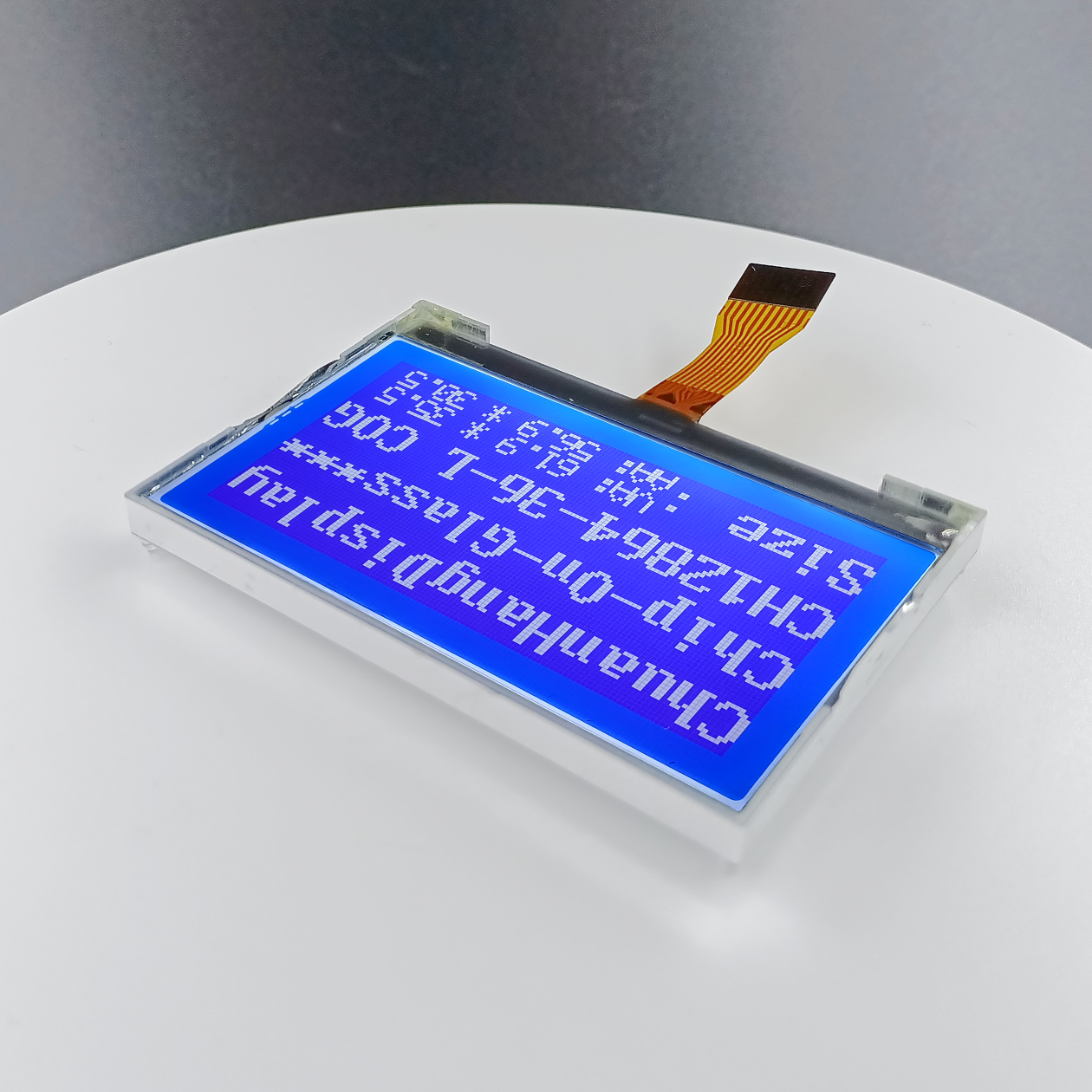

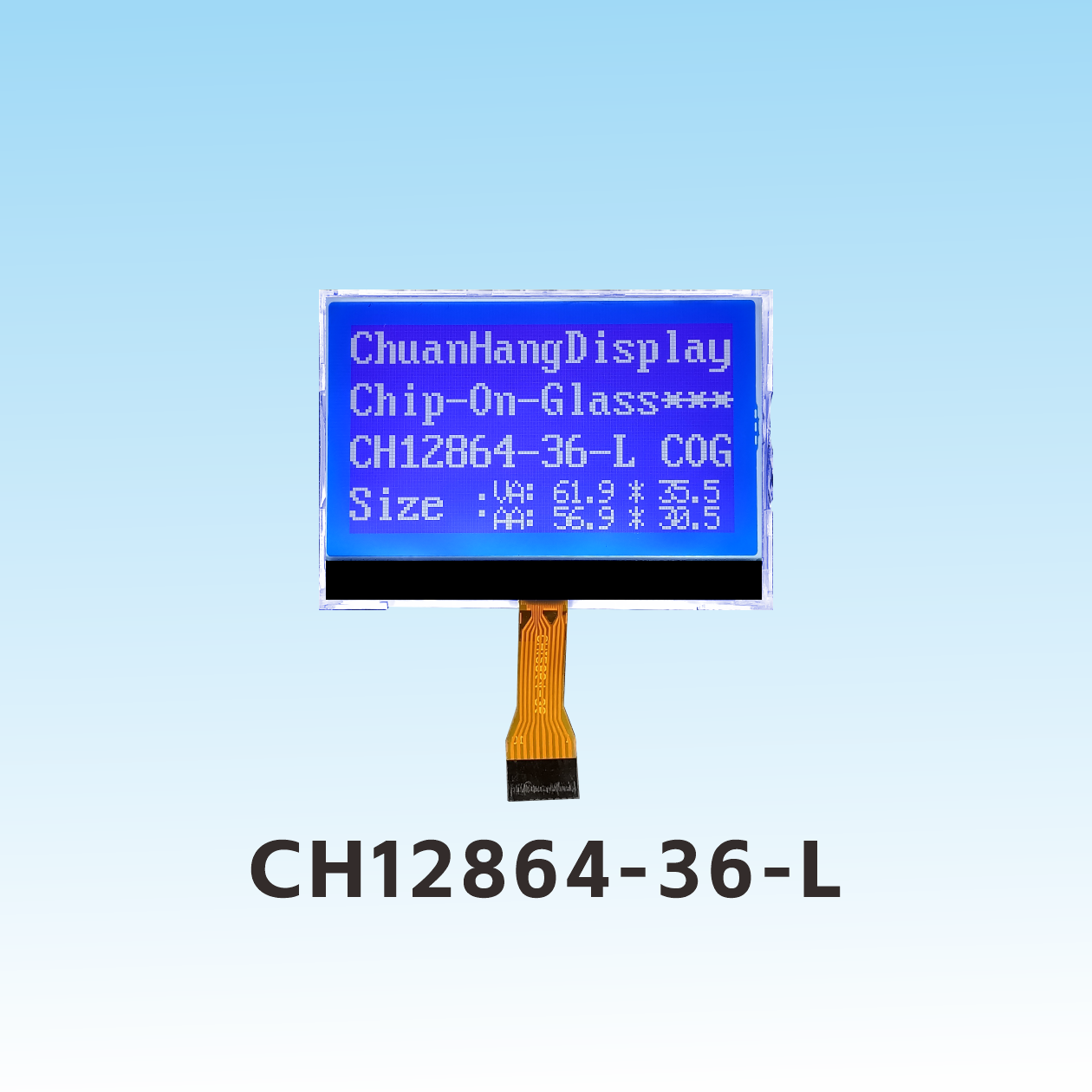

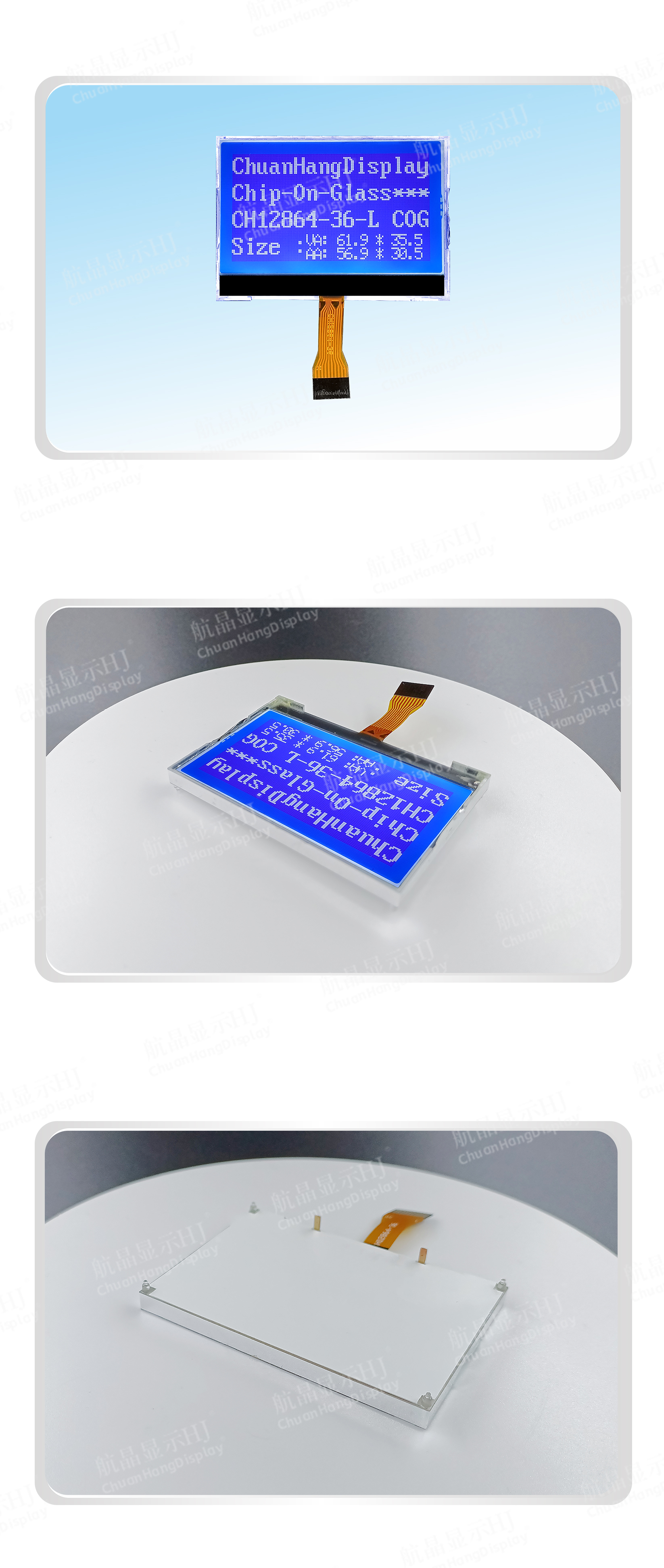

CH12864-36- L
Product Description

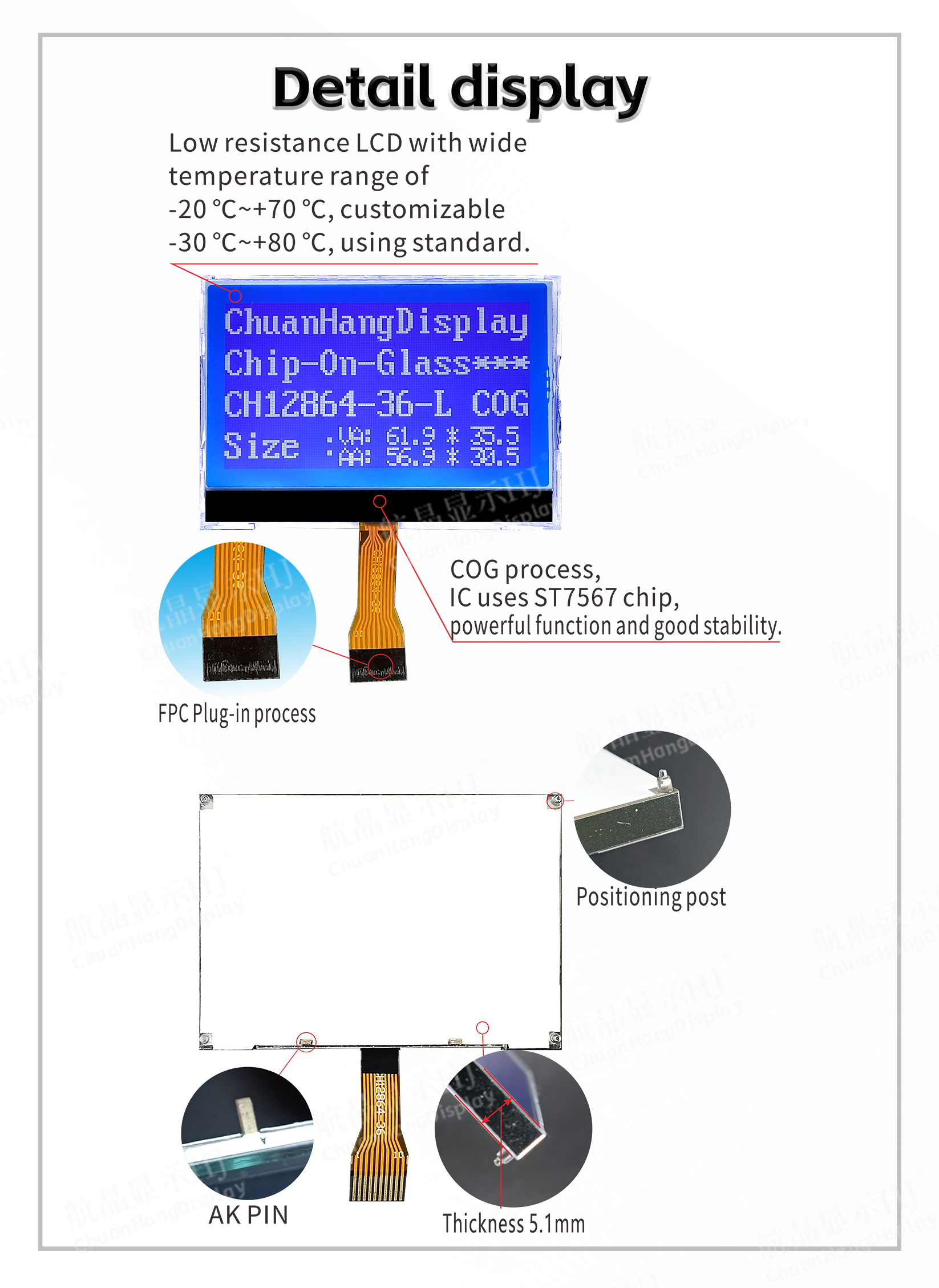

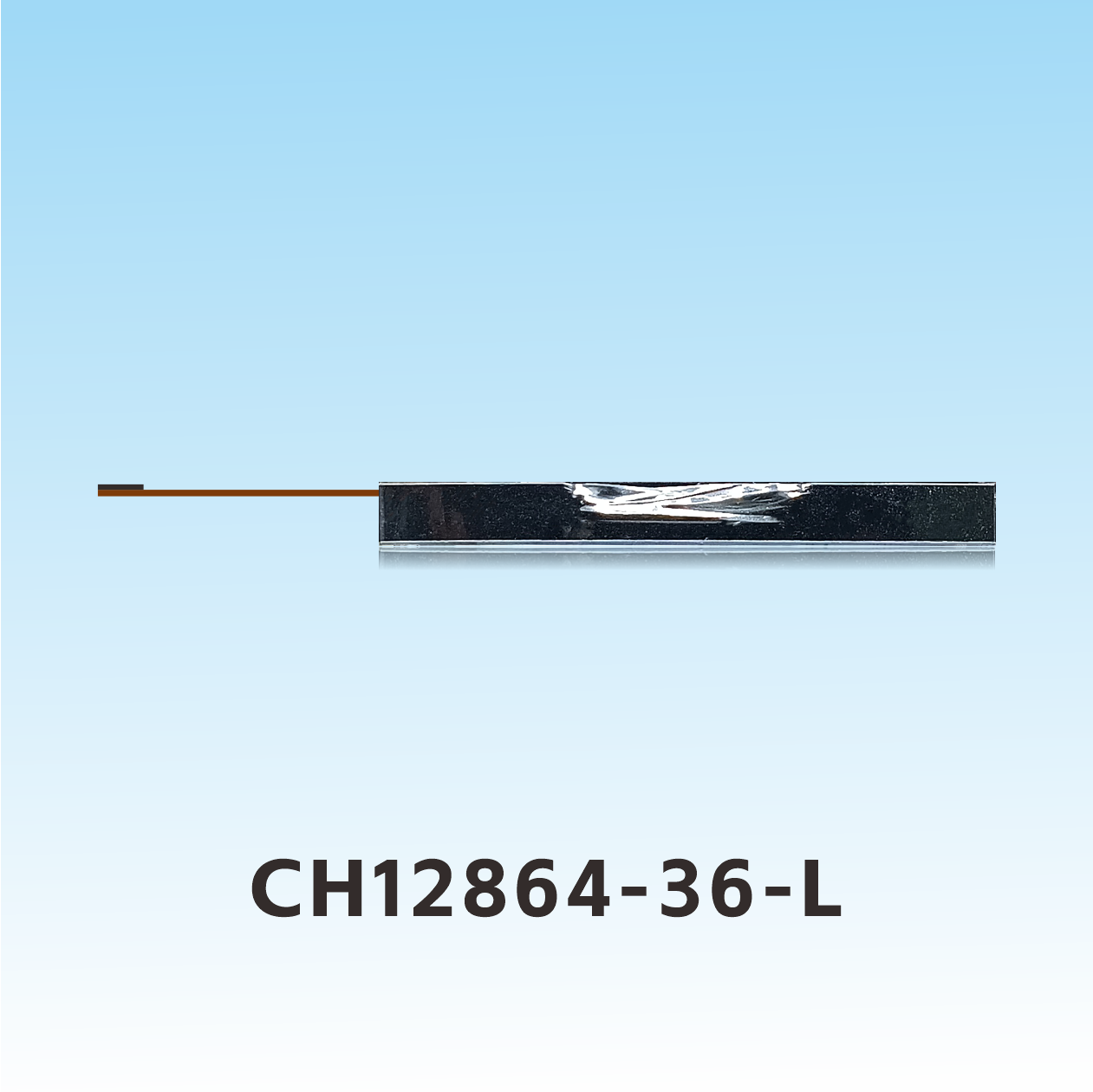

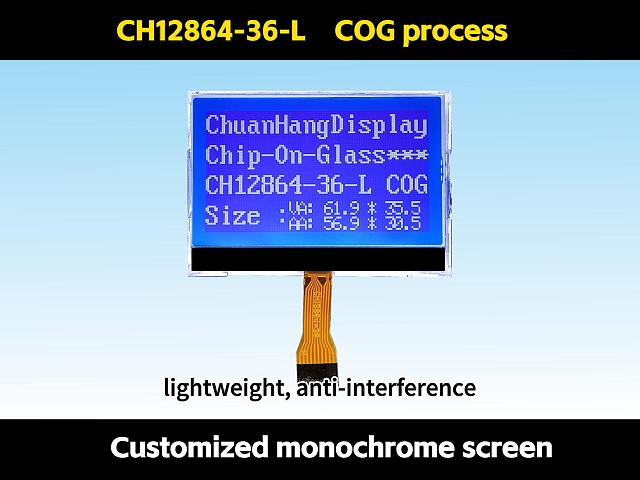

1.1 COG process, FPC flexible cable as a plug connector, product with backlight, pre-assembled, thin profile, stable structure.
1.2 The IC uses the ST7567, which lacks an internal character library, requiring programmers to create their own.
1.3 Low power consumption, 3.3V power mode, with no backlight current within 1mA and backlight current within 60mA.

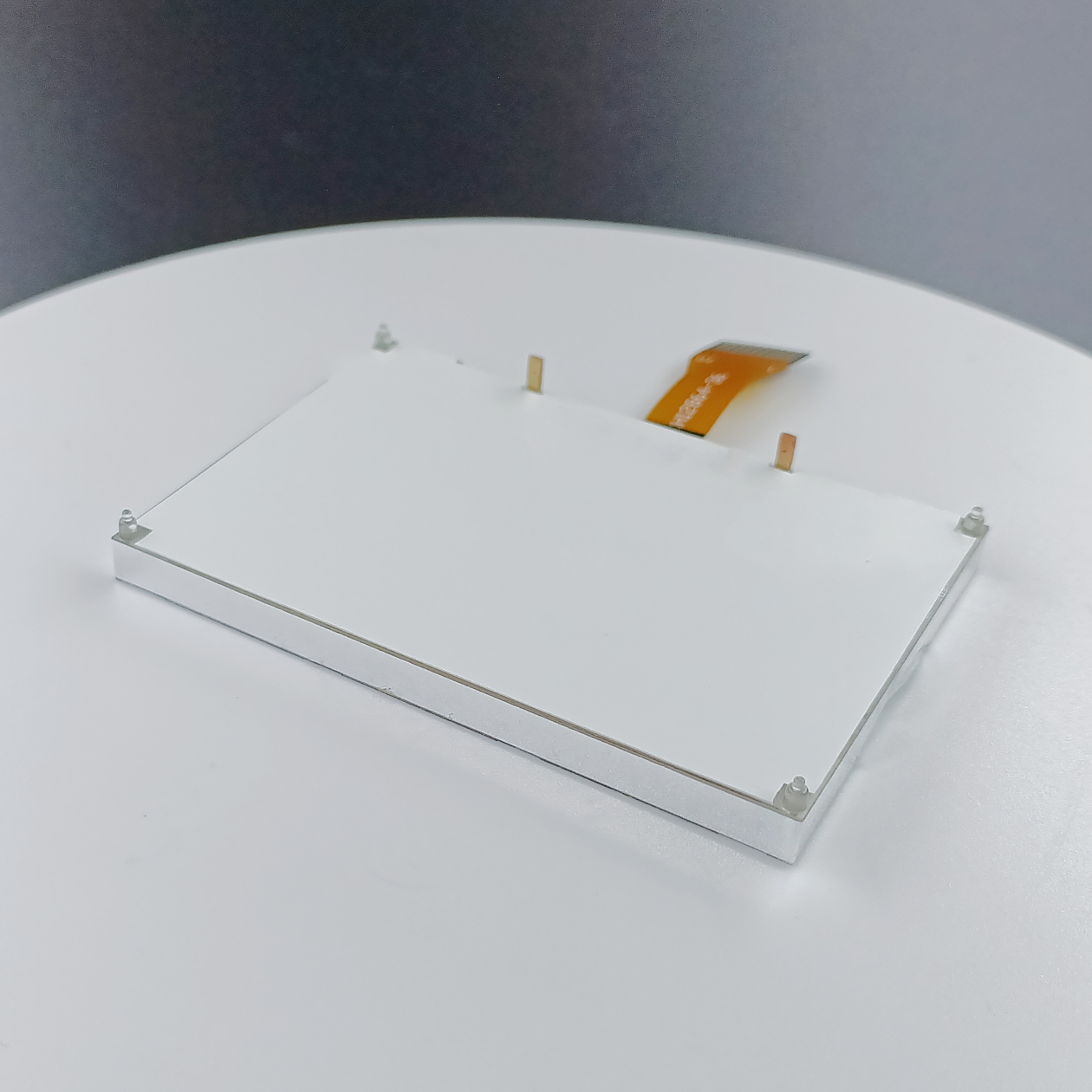

1.4 LED backlight A and K are PCB boards, requiring separate power supply of 2.9V~3.0V for A and K.
1.5 Product Features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates voltage boosting.
The contrast is adjusted by the software to be deeper or lighter.
Display 8 characters per line x 4 lines (16x16 dot matrix)
Single image ≤128x64 dot matrix.
4-wire SPI interface communication.
Rich features: Interface displays On/Off, Normal/Reverse.
