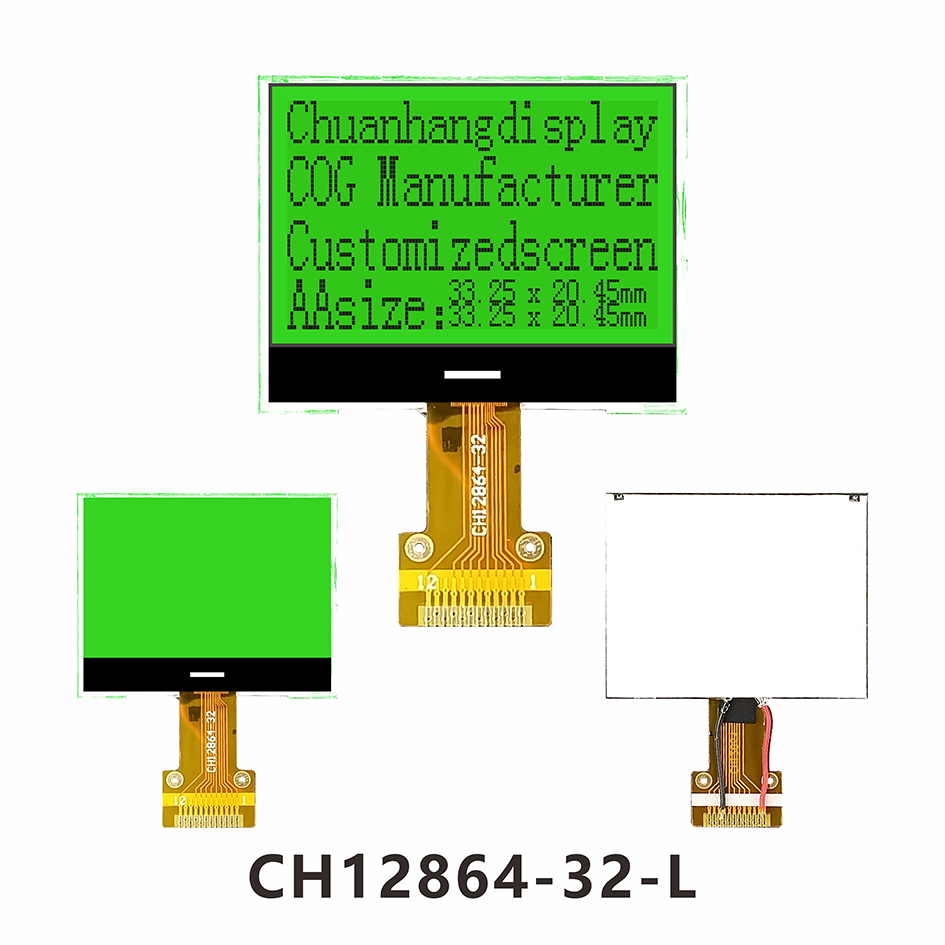

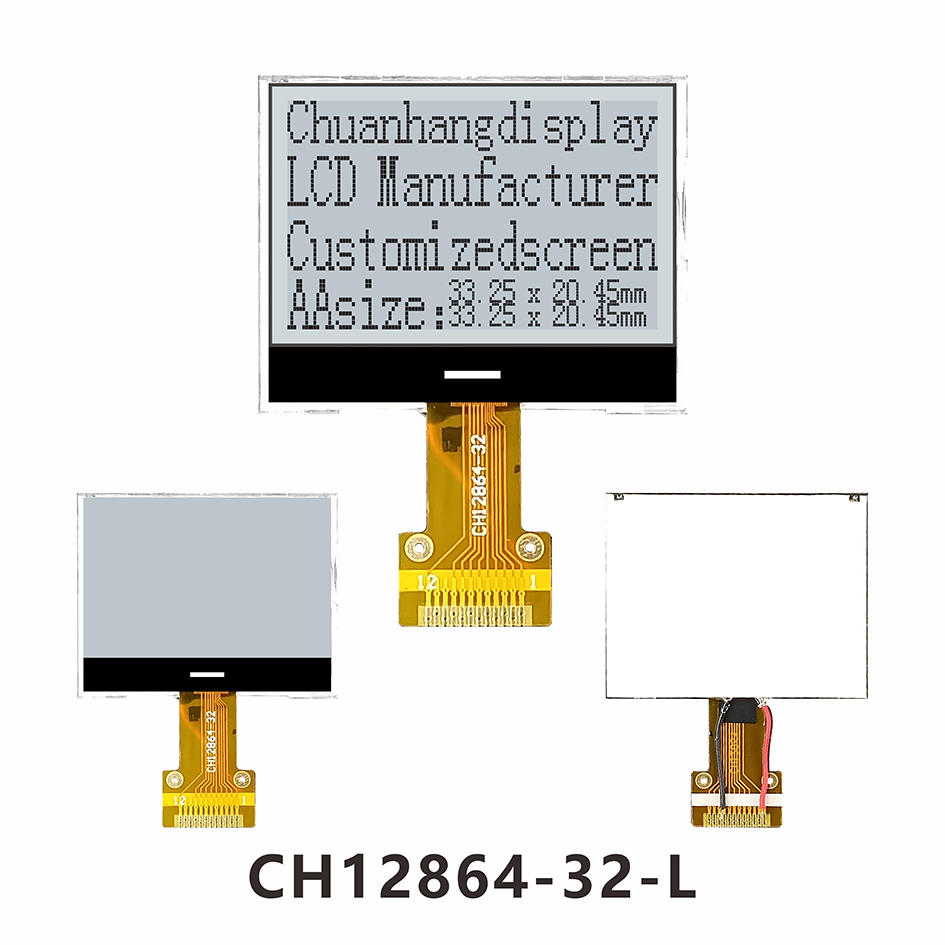

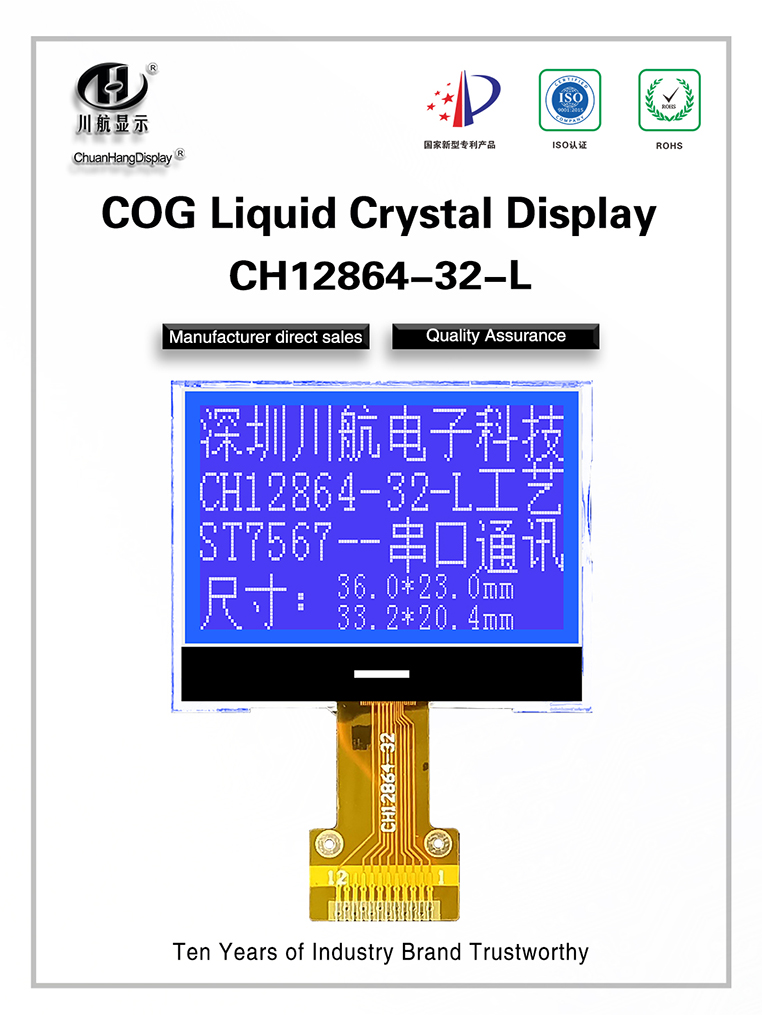

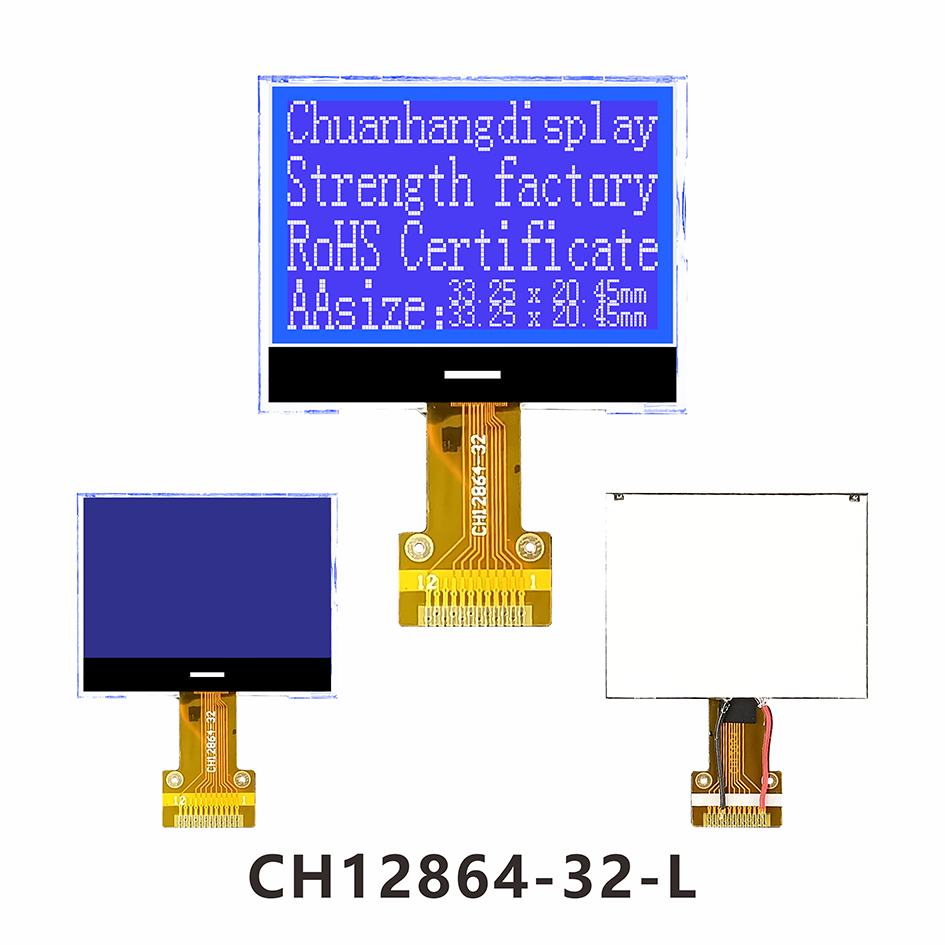

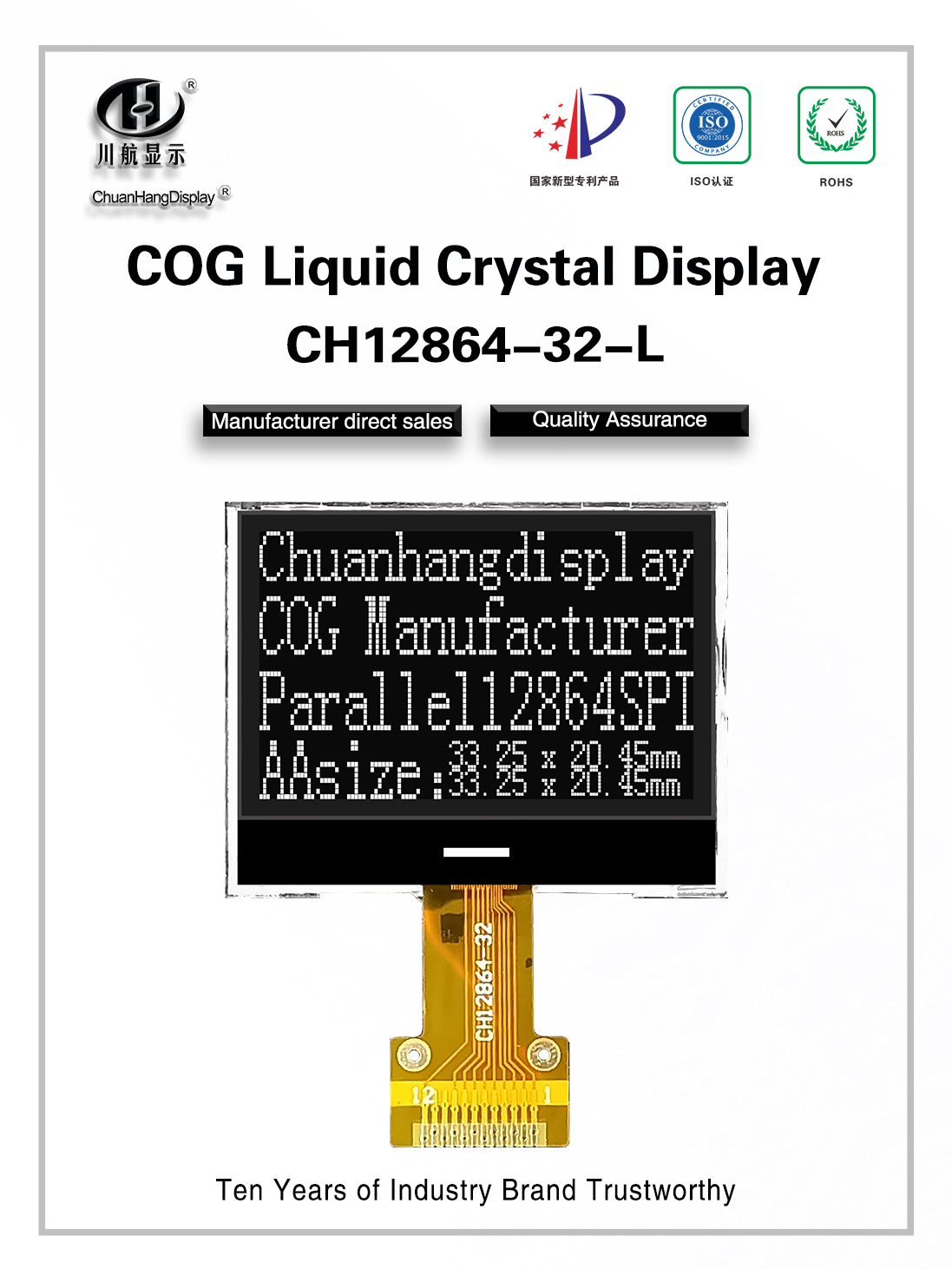

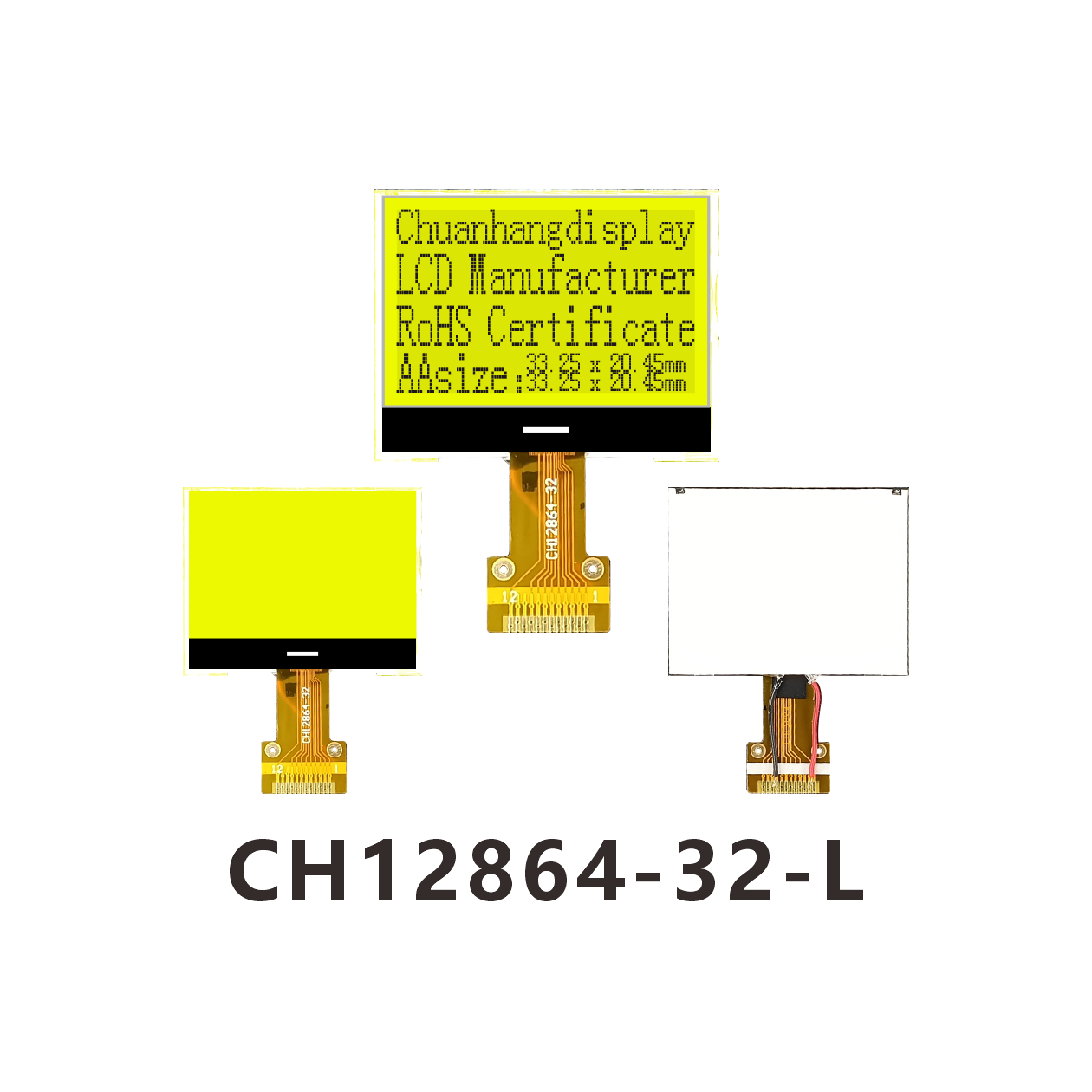

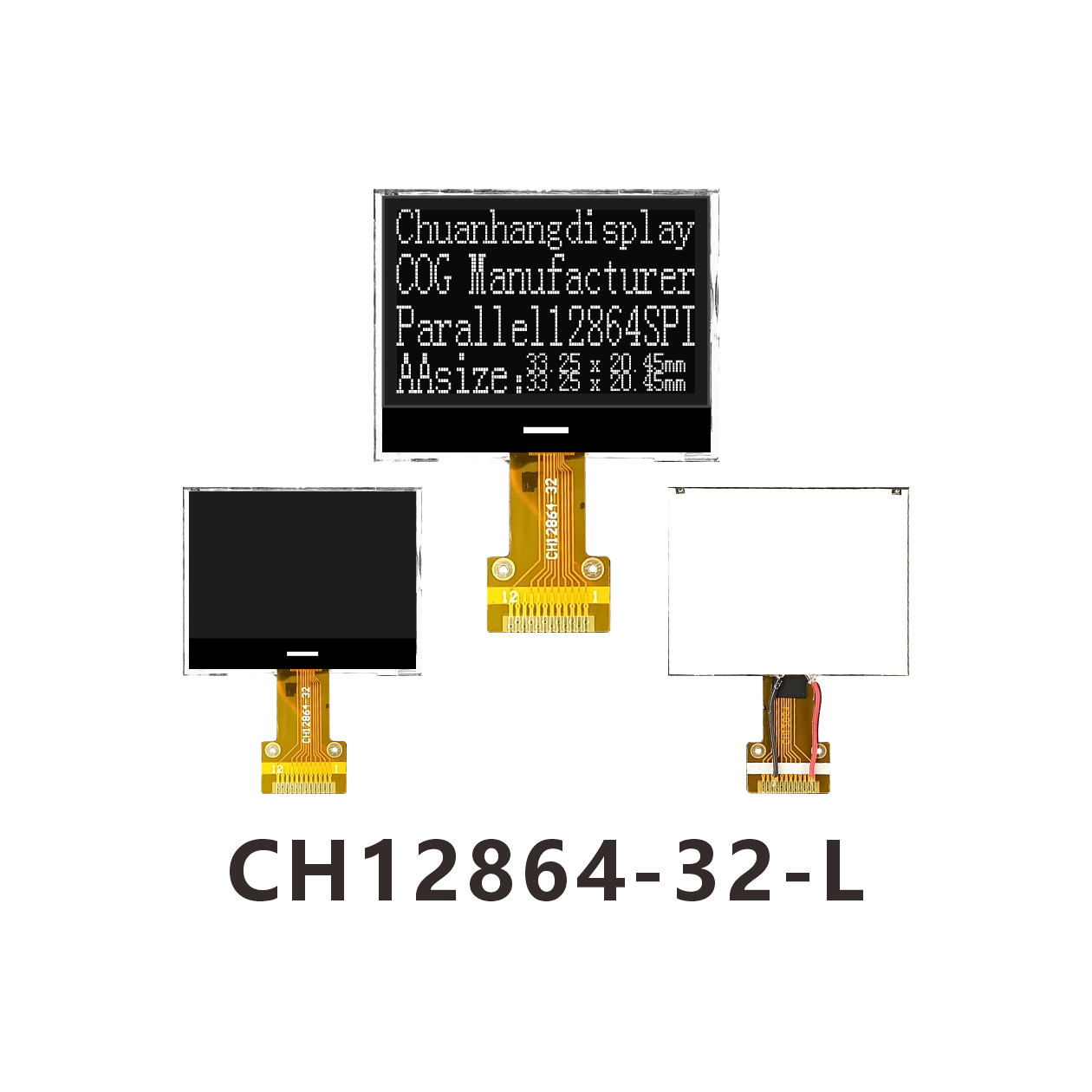

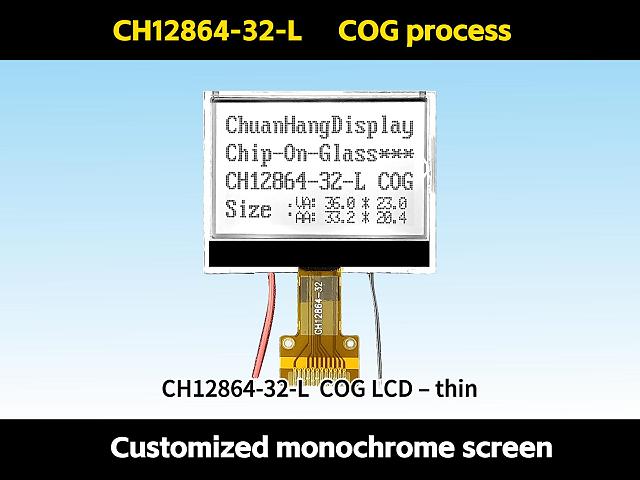

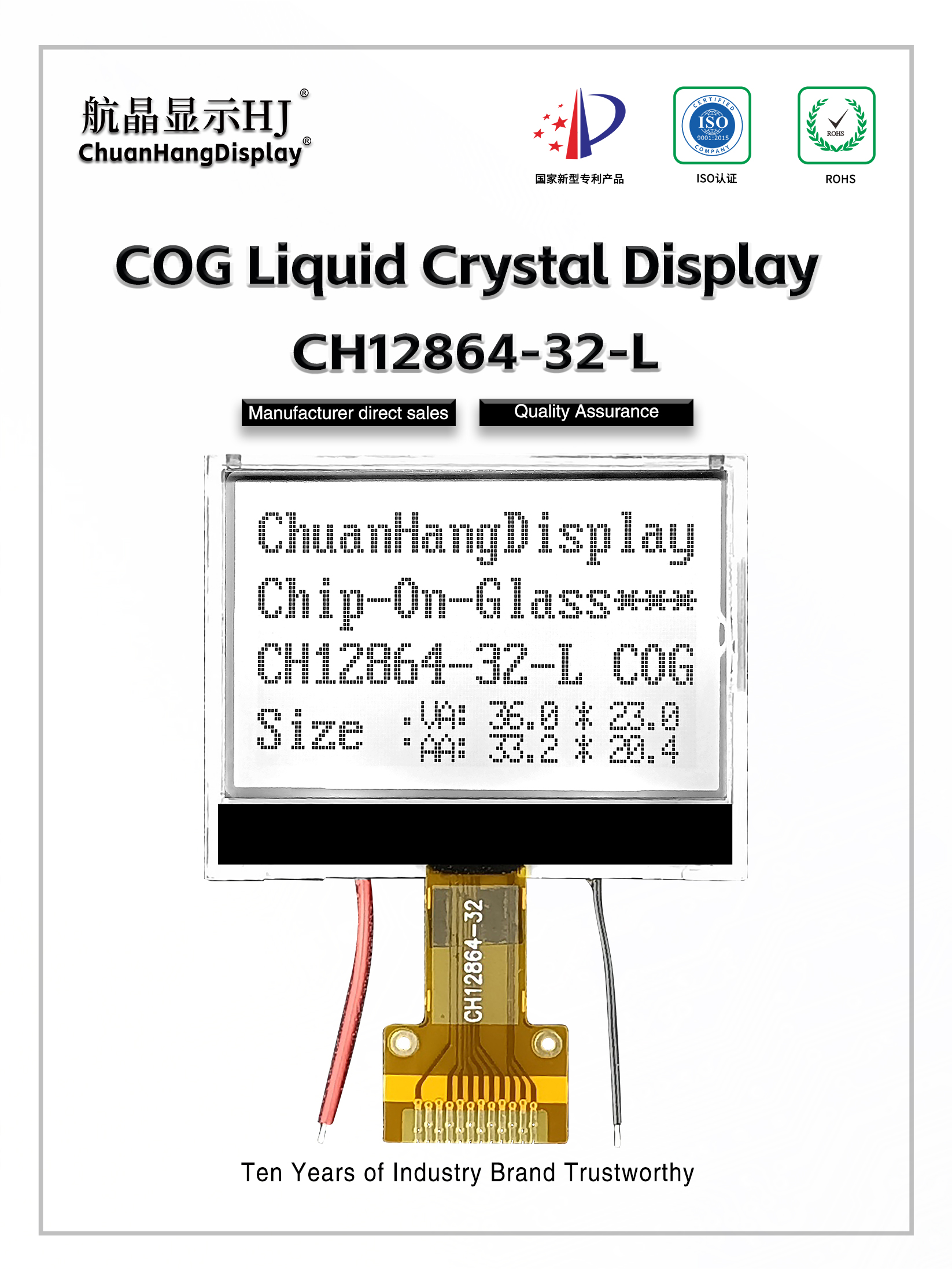

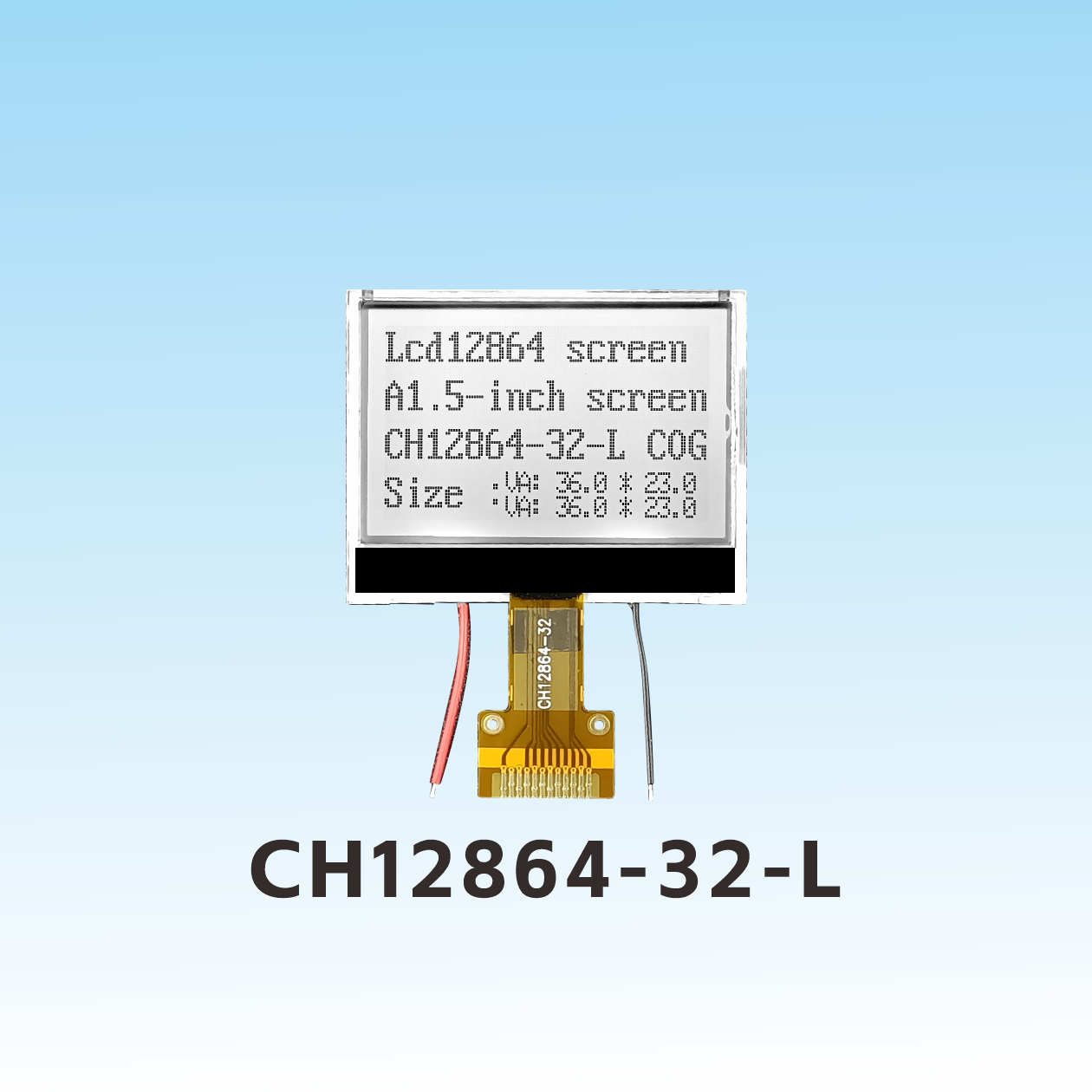

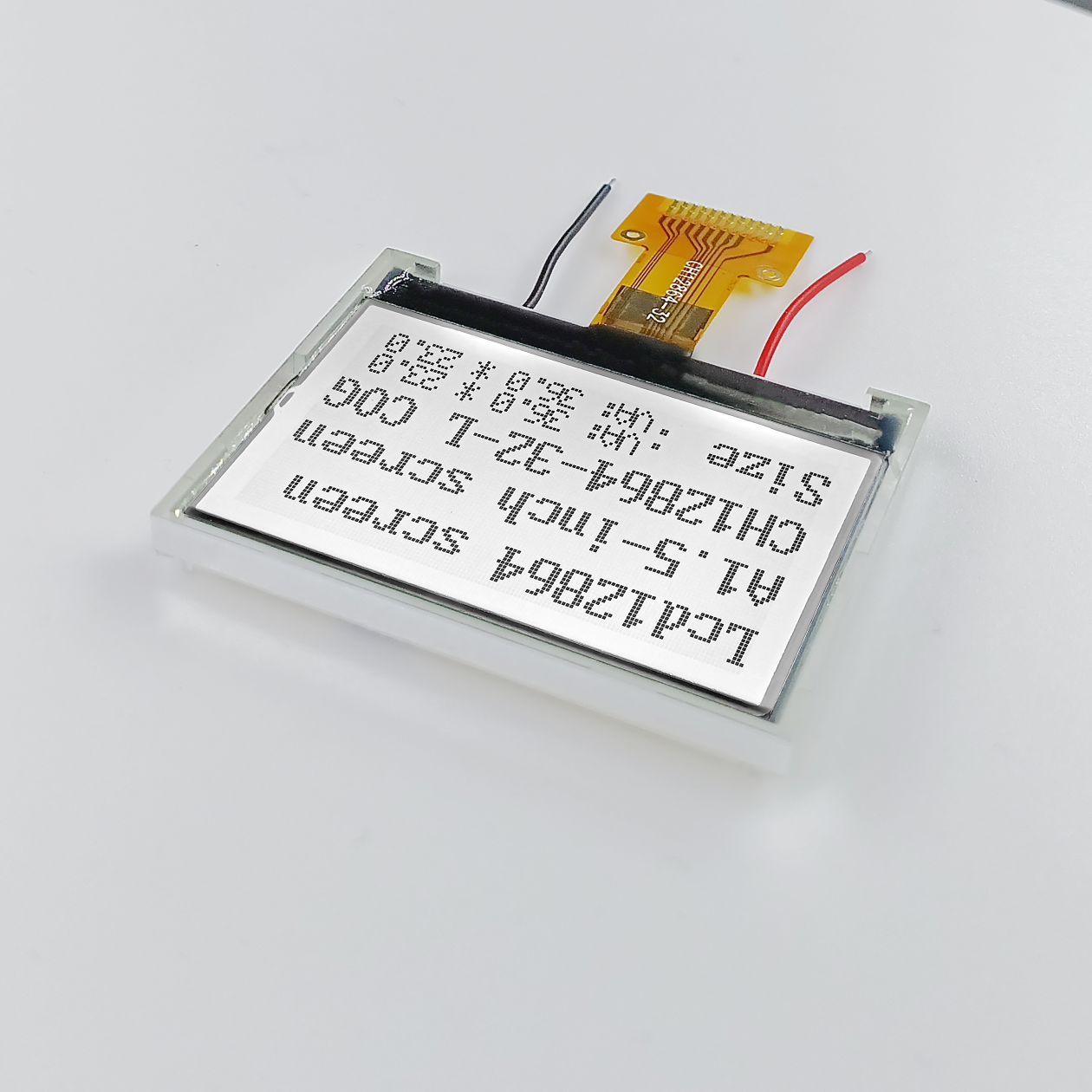

CH12864-32-L 焊接12864b v2.0 arduino library

Product Description

PDF Download Demo code

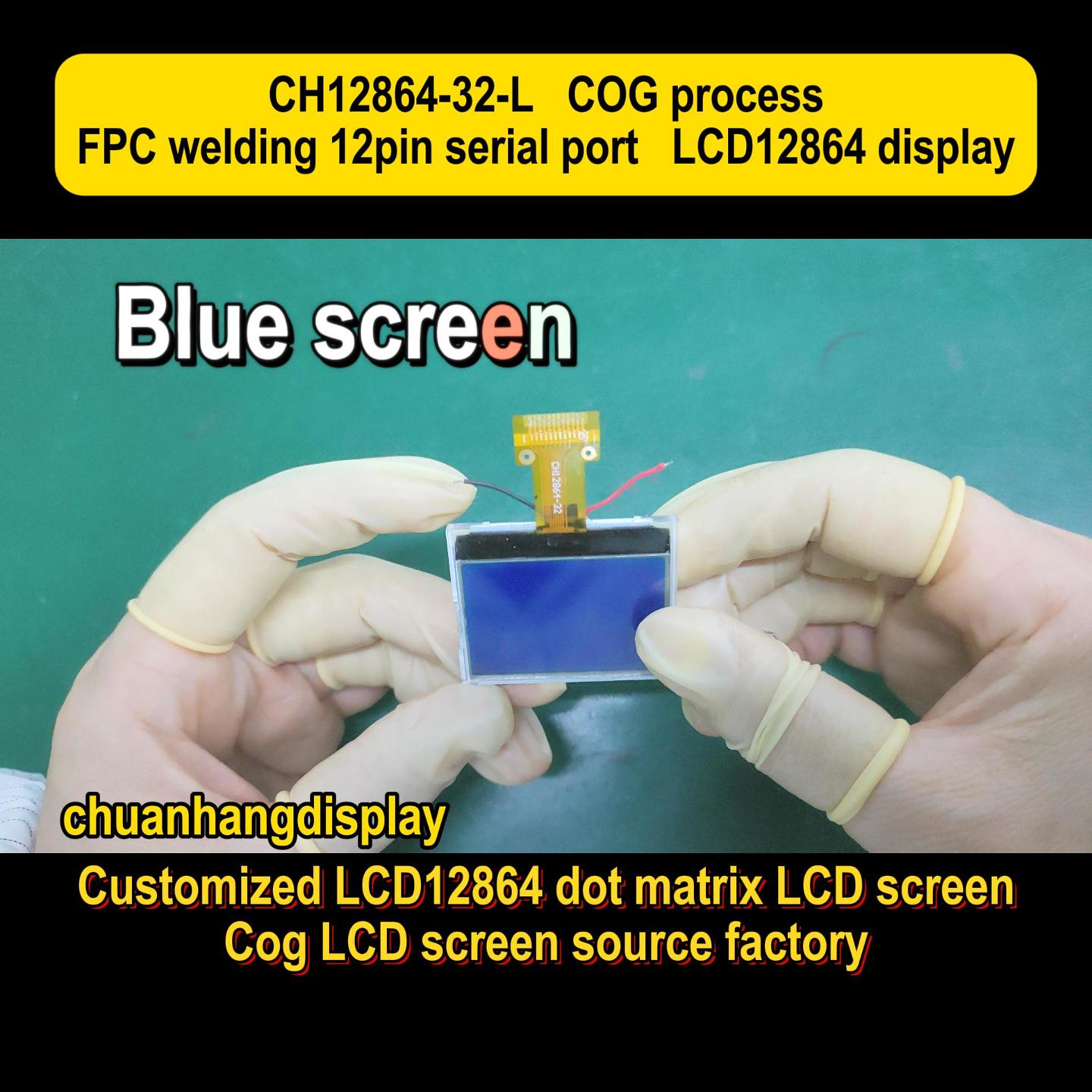

Video Presentation

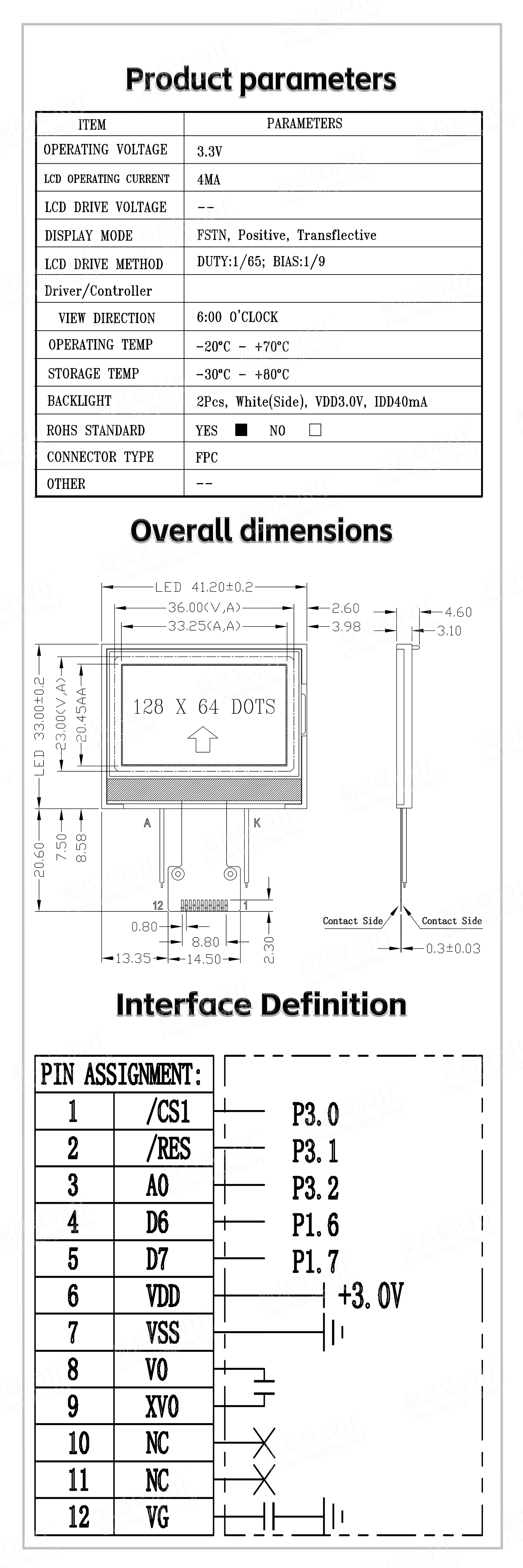

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864-32-L
Resolution	128x64	screen size

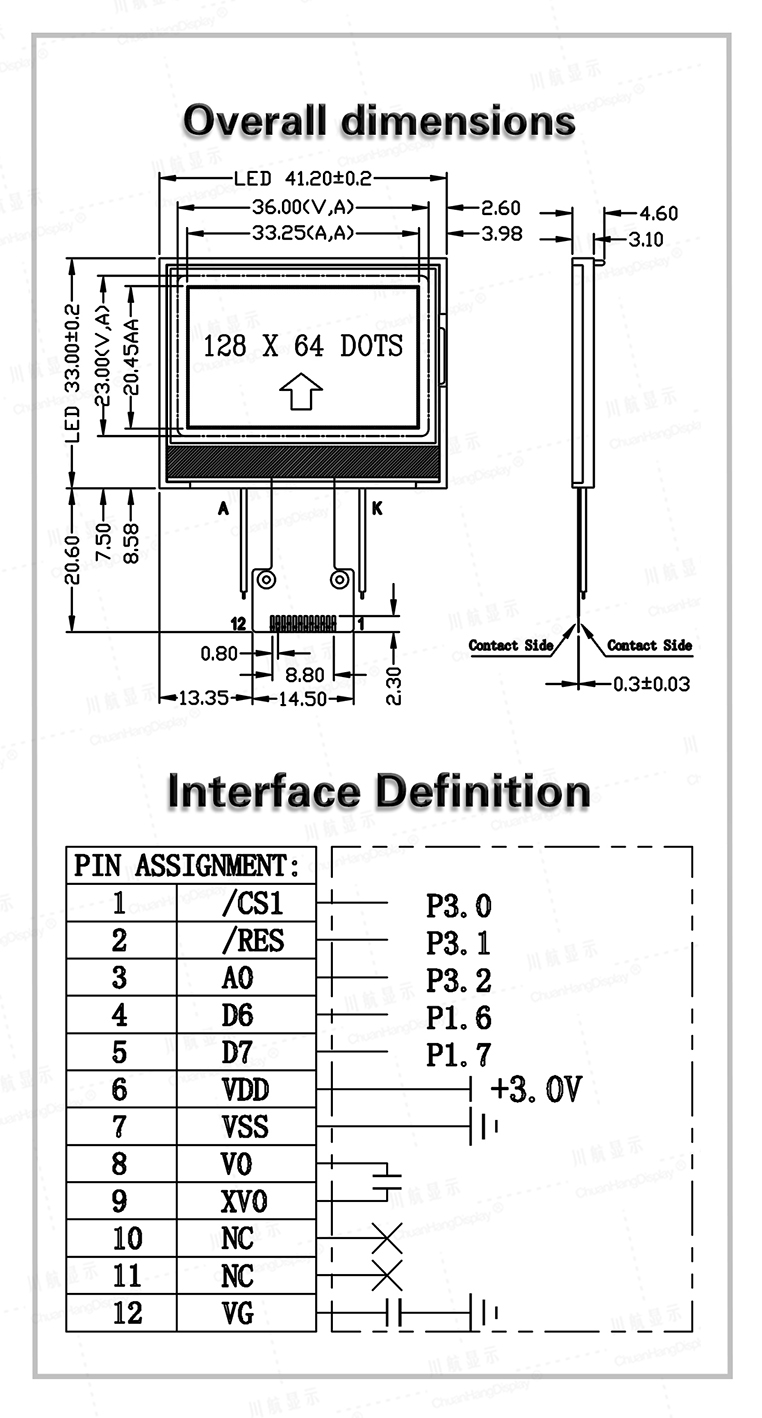

Outline Dimension(LWH)	41.20x33.00x4.60mm	Visible Area(L*W)	36.00x23.00mm
Active Area(L*W)	33.25x20.45mm	Character Size(L*W)
Type	COG	Connection Method	FPC
Supply Voltage	DC 5V/3.3V	Interface Type	4-bit or 8-bit parallel port
Viewing Direction	6 O'CLOCK	Driving Method	1/16Duty,1/5Bias
Display Type		Driver IC	AIP31066
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	DC 5V/3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO

Product Datasheet

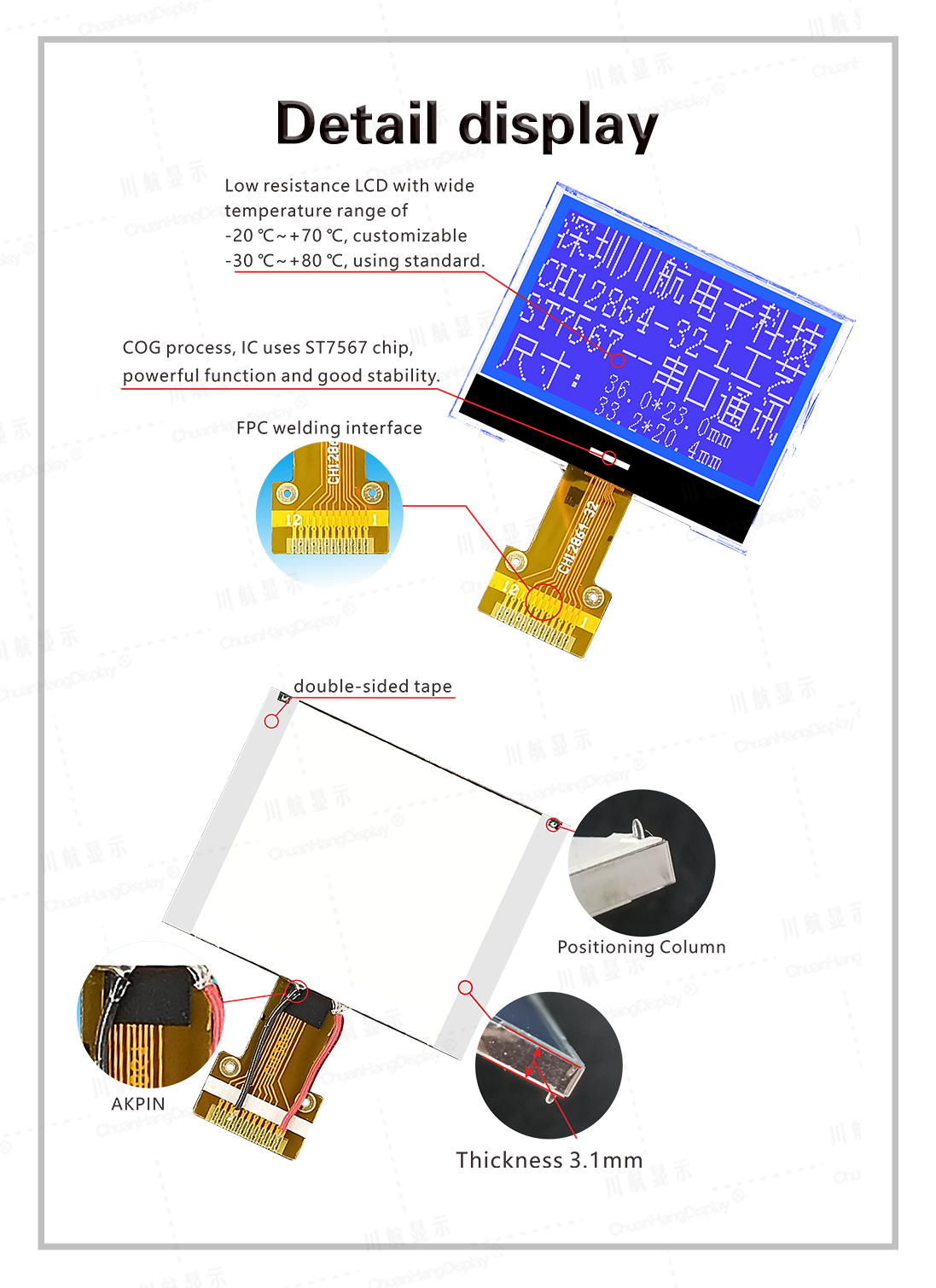

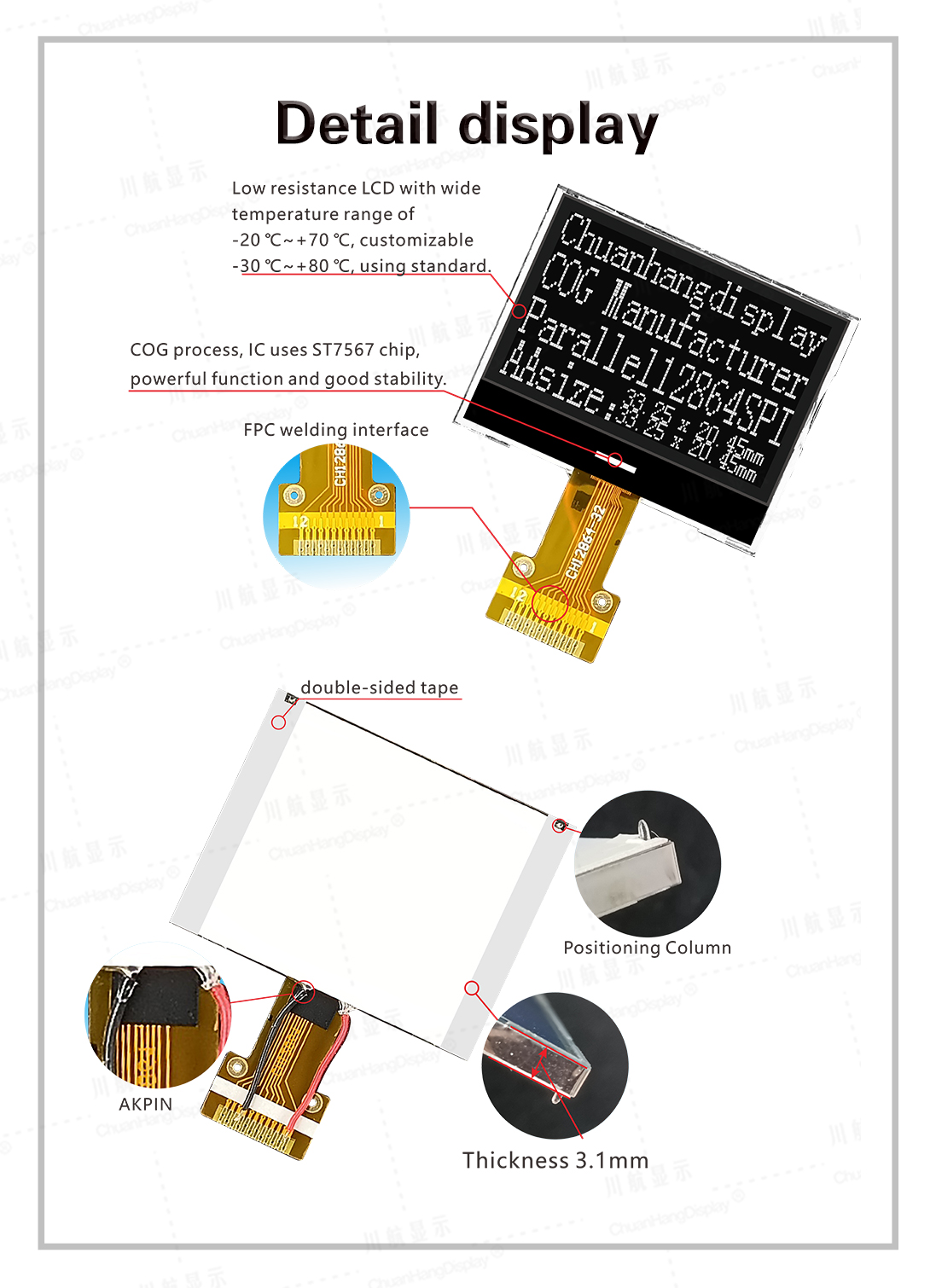

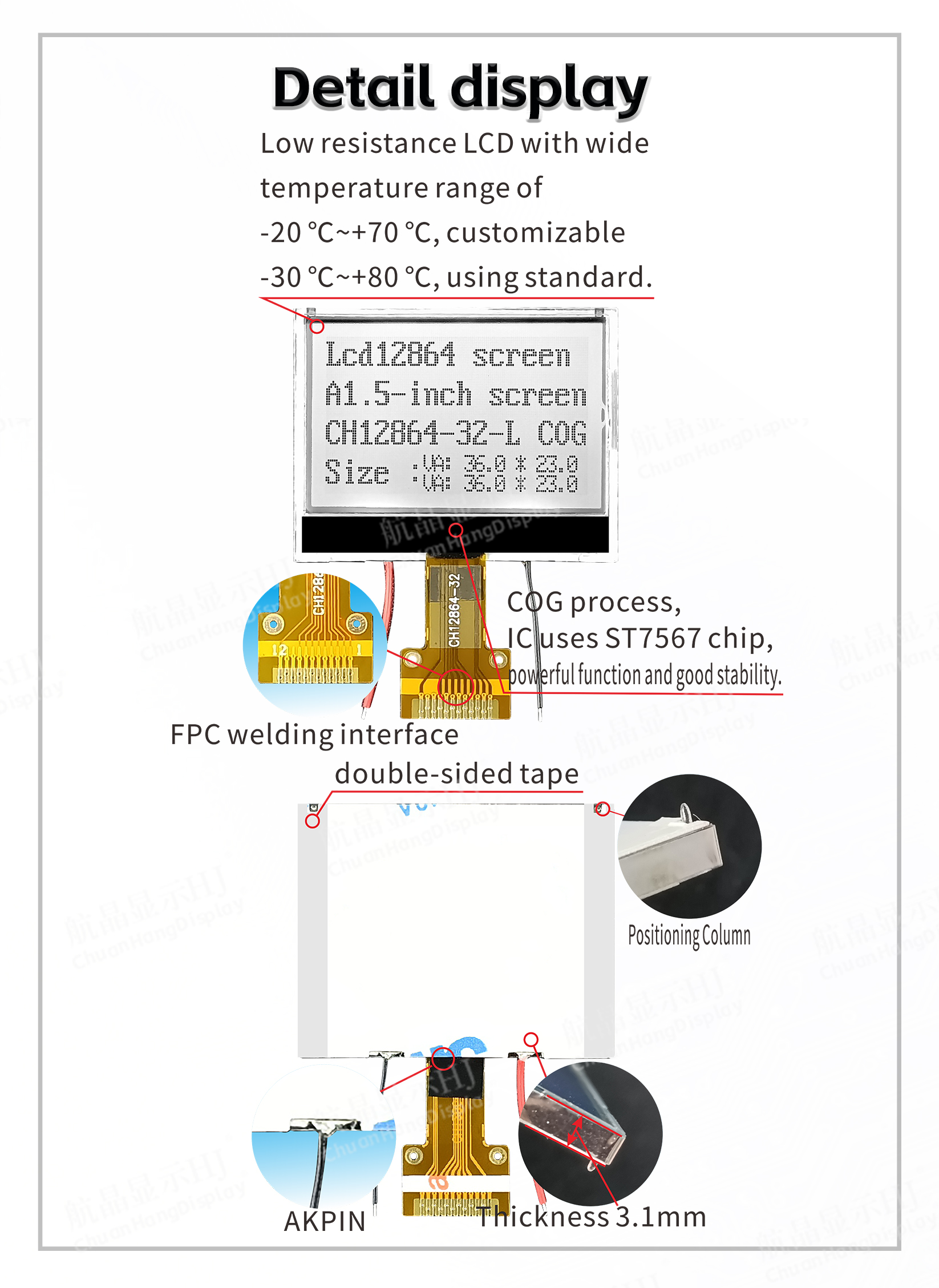

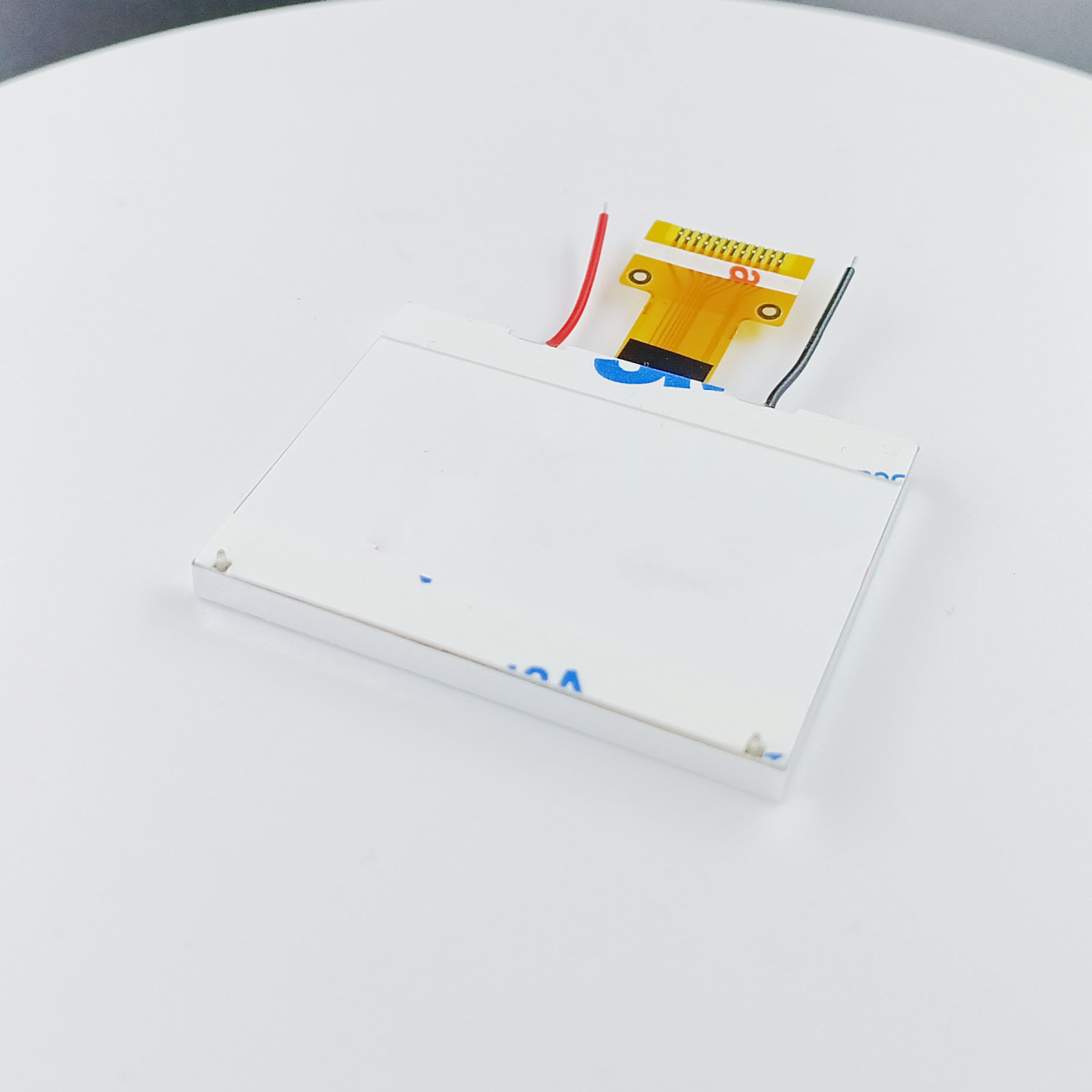

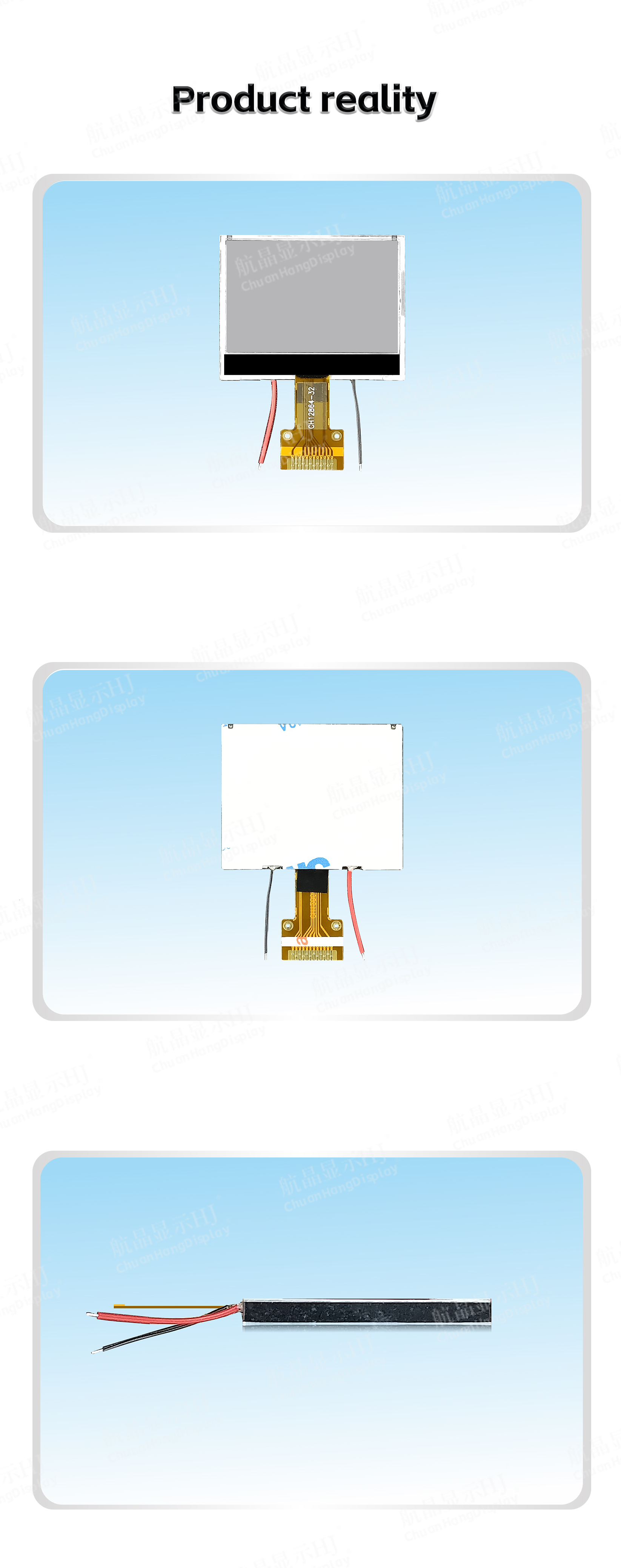

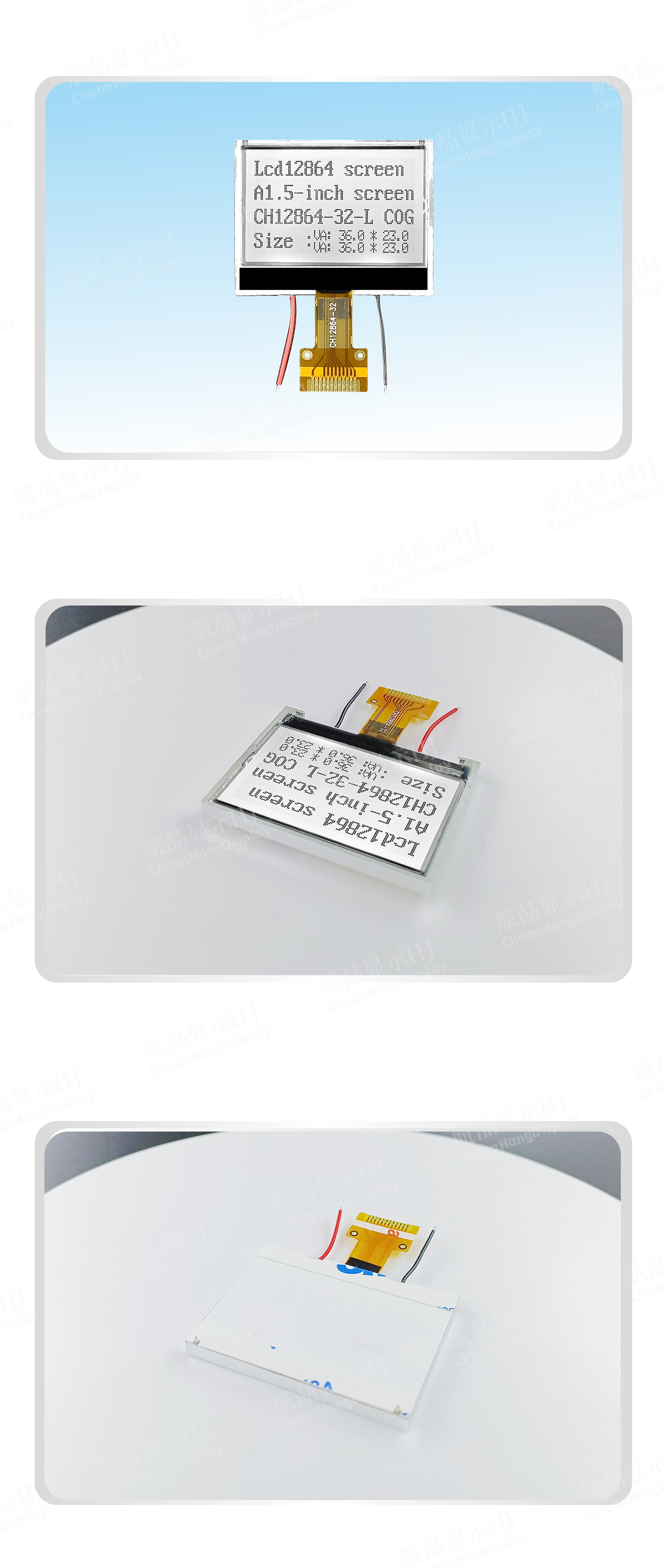

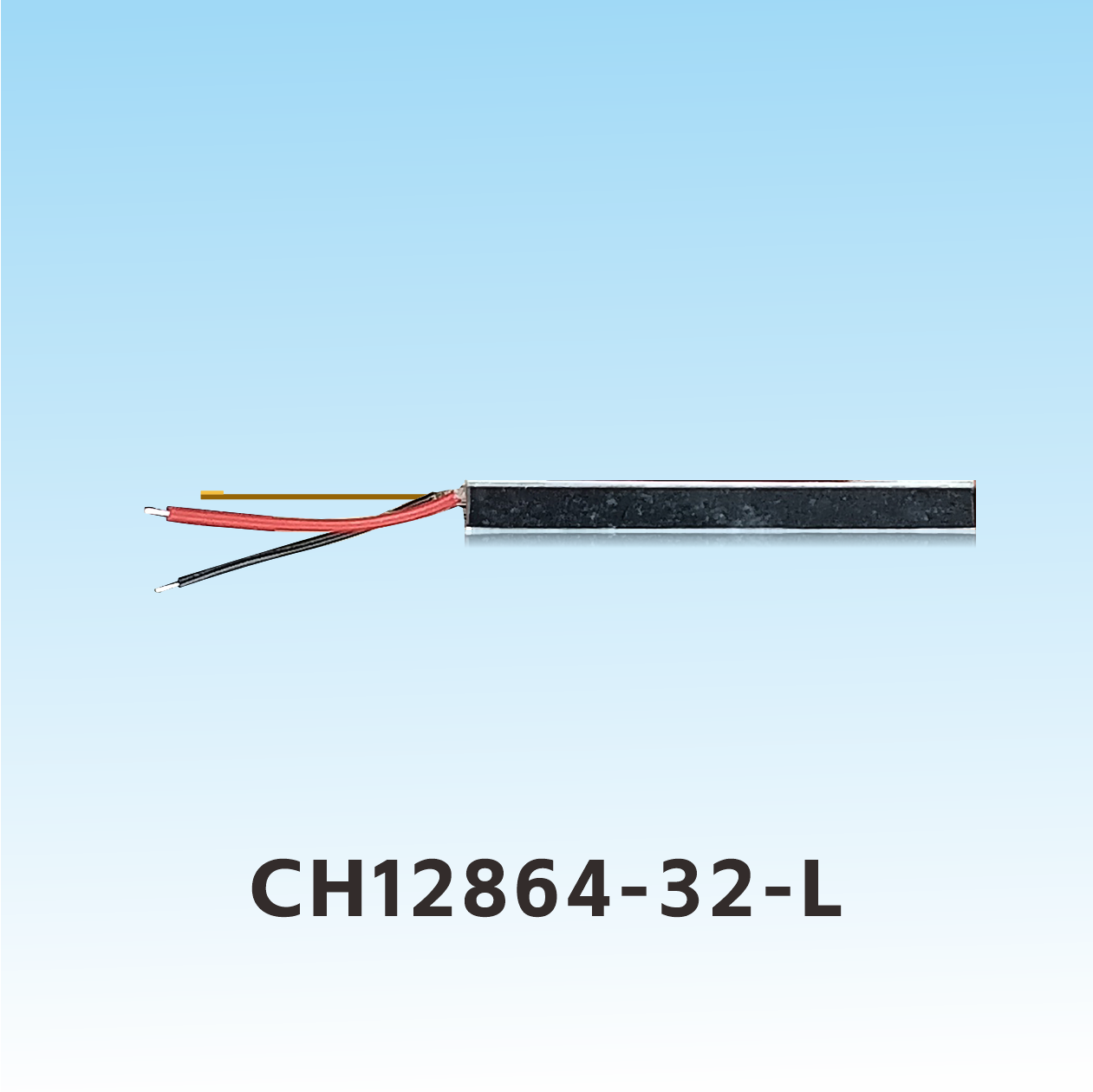

Product Display

Previous：

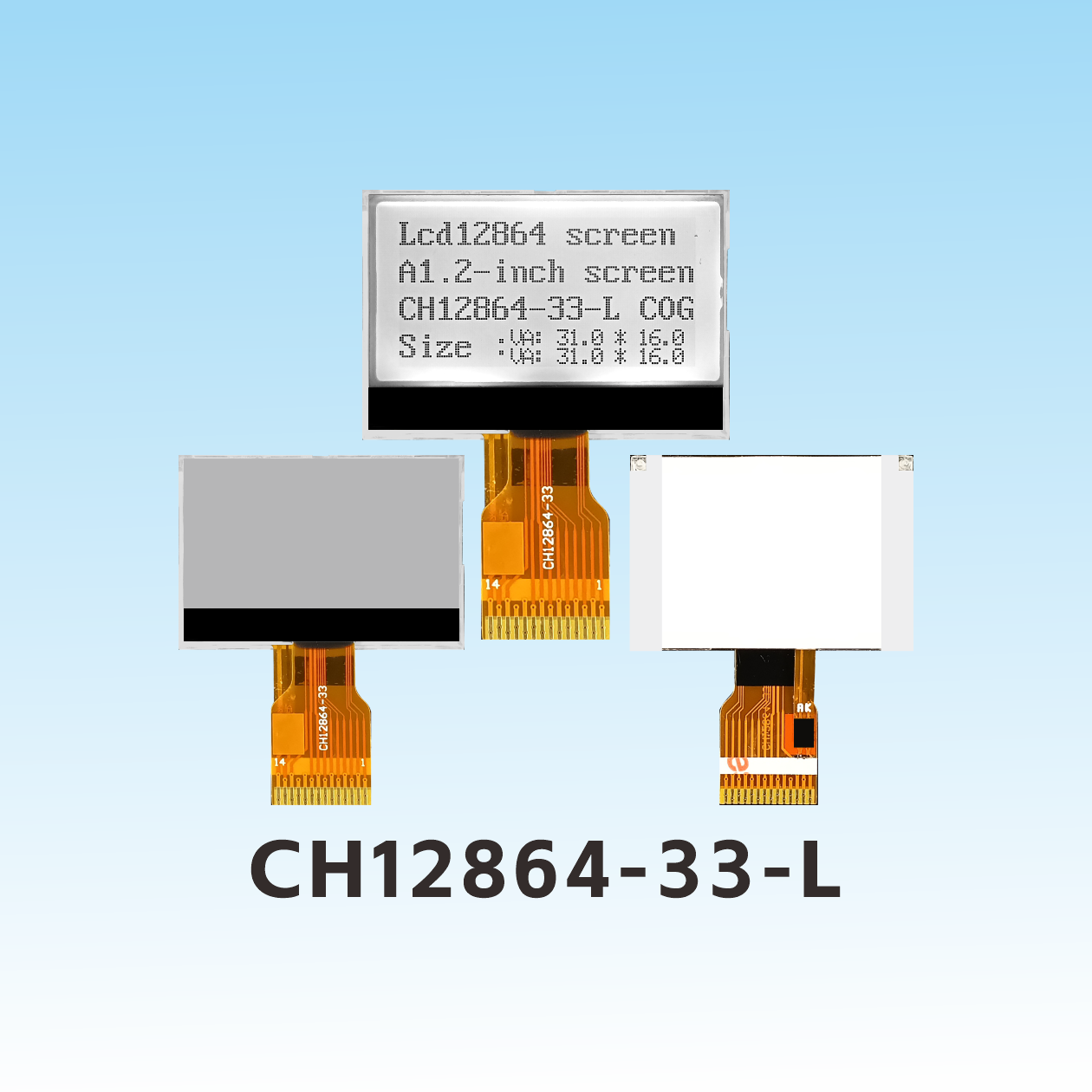

CH12864-33- L 128x64 graphic lcd display price in india

Next：

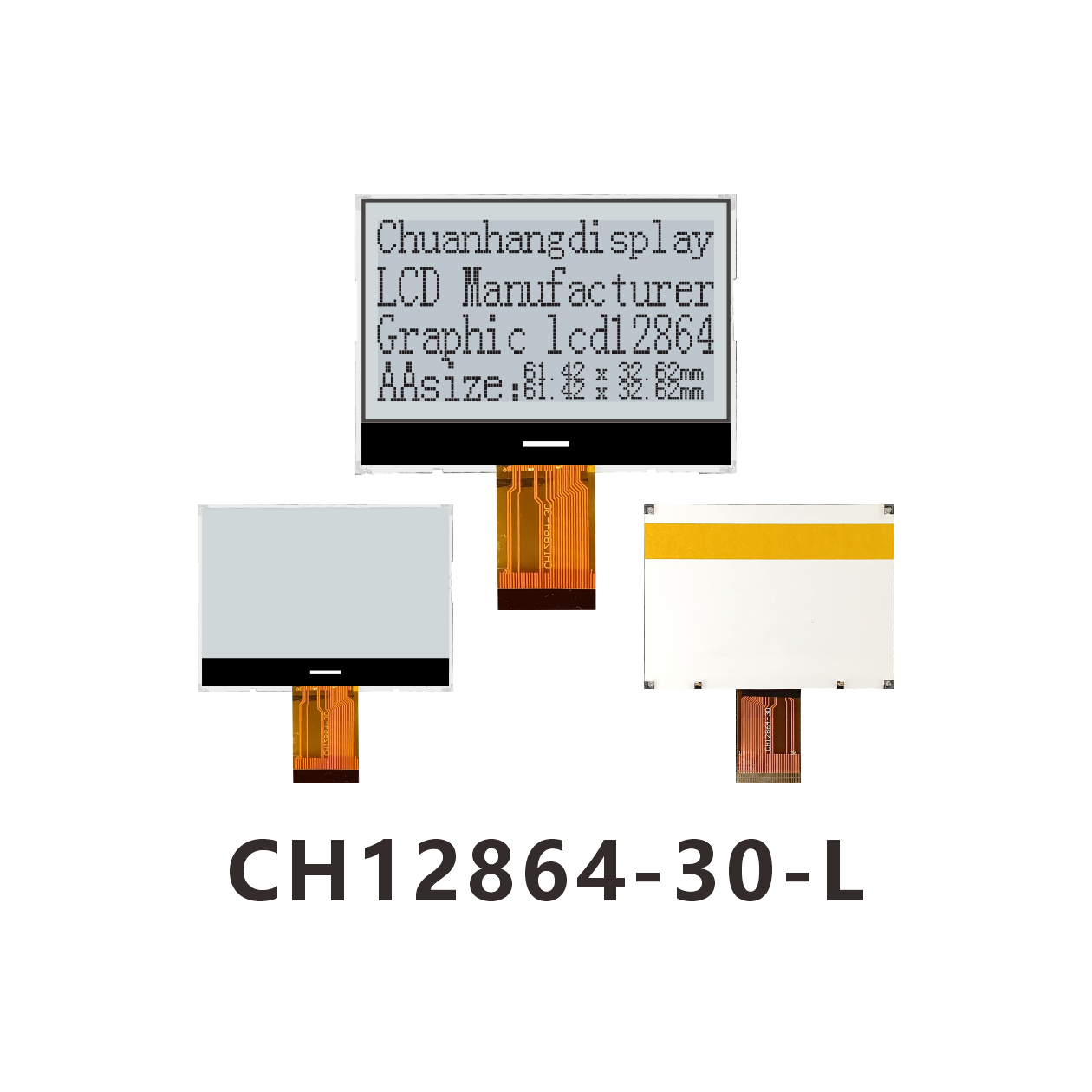

CH12864-30- L creality 12864 lcd screen
