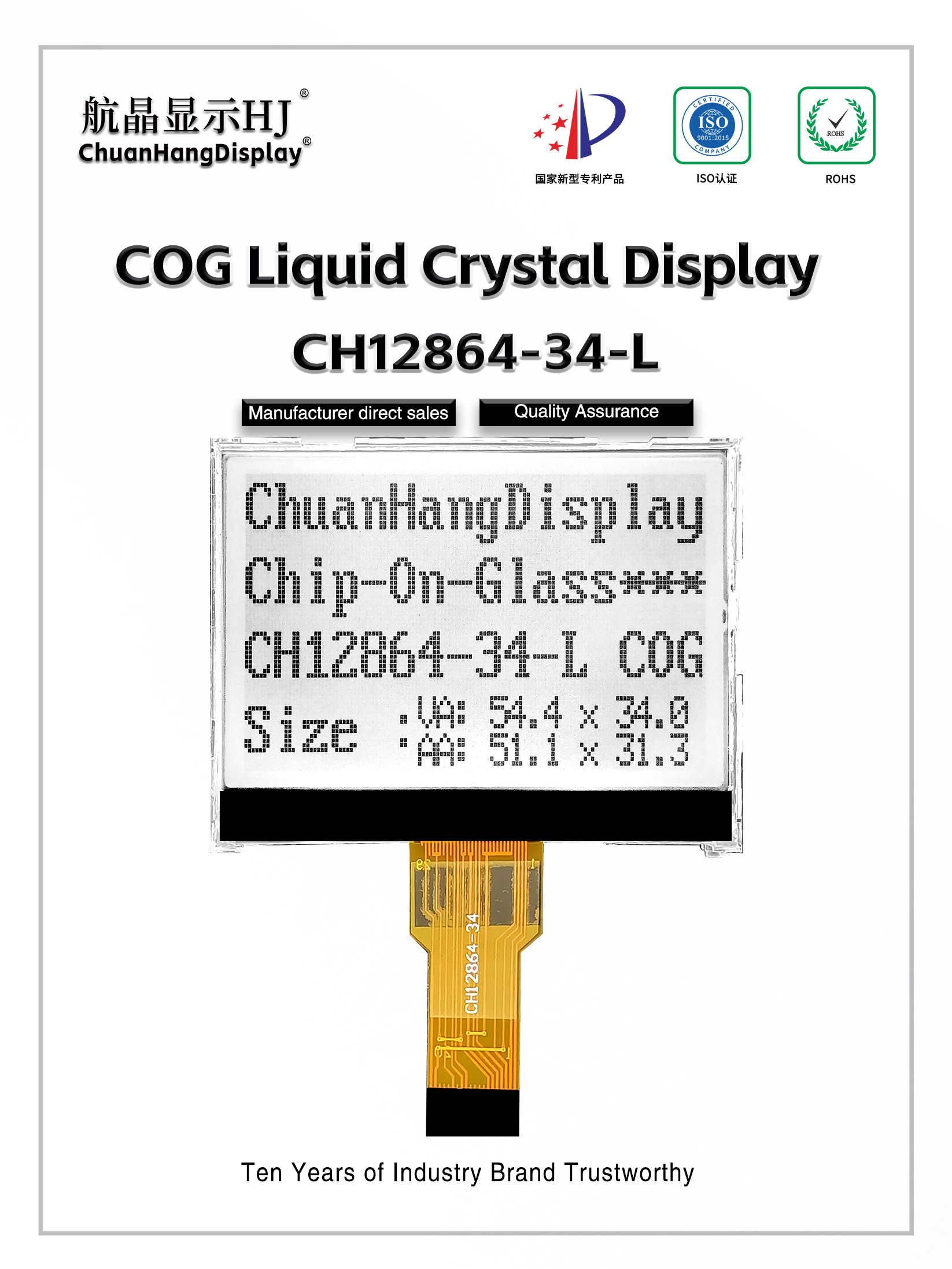

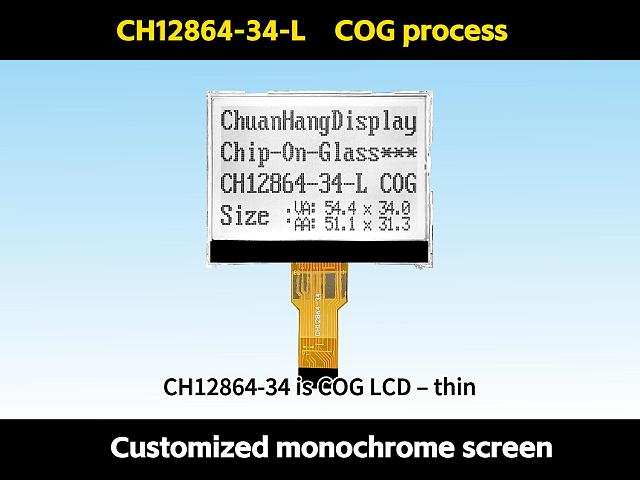

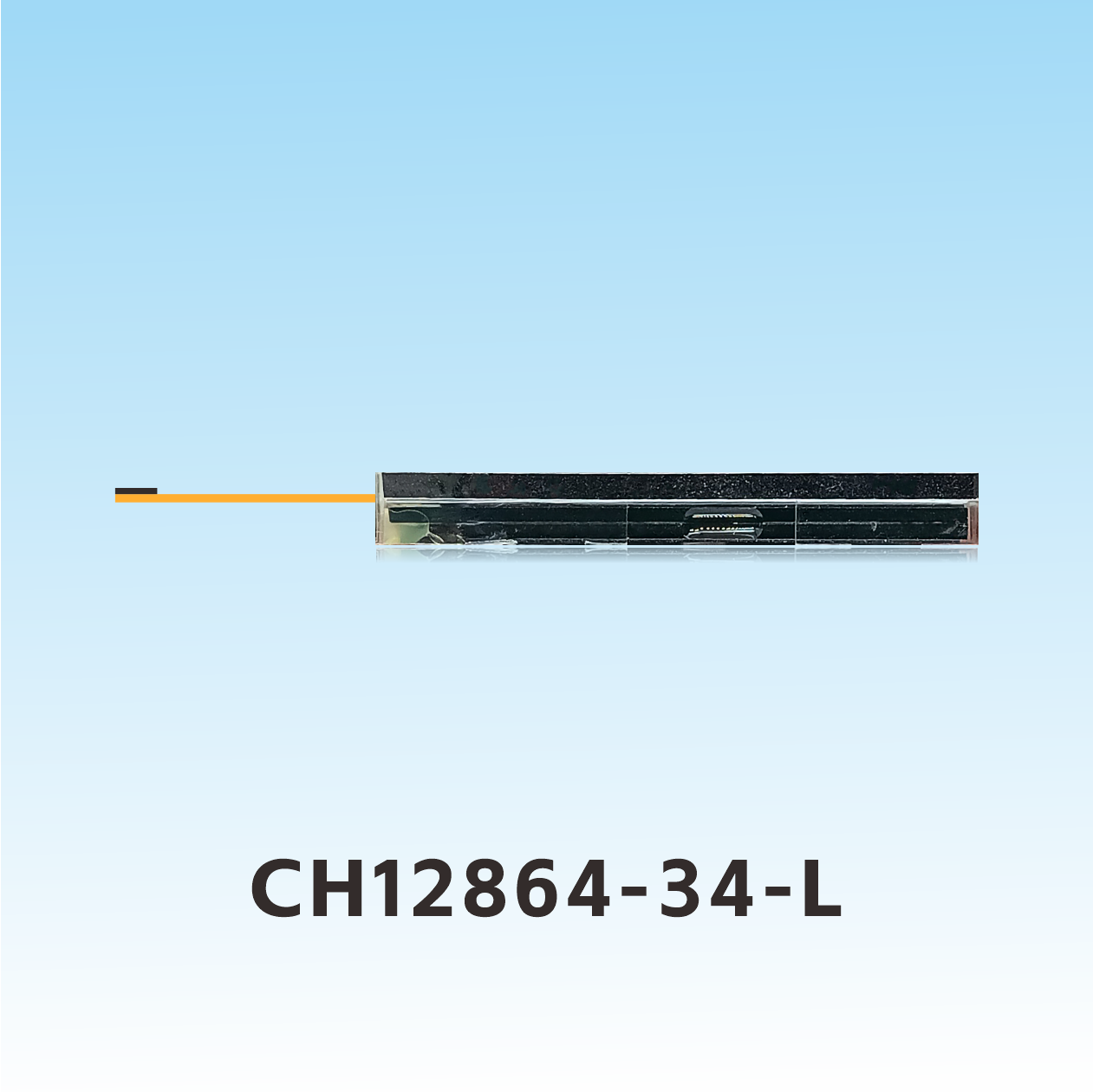

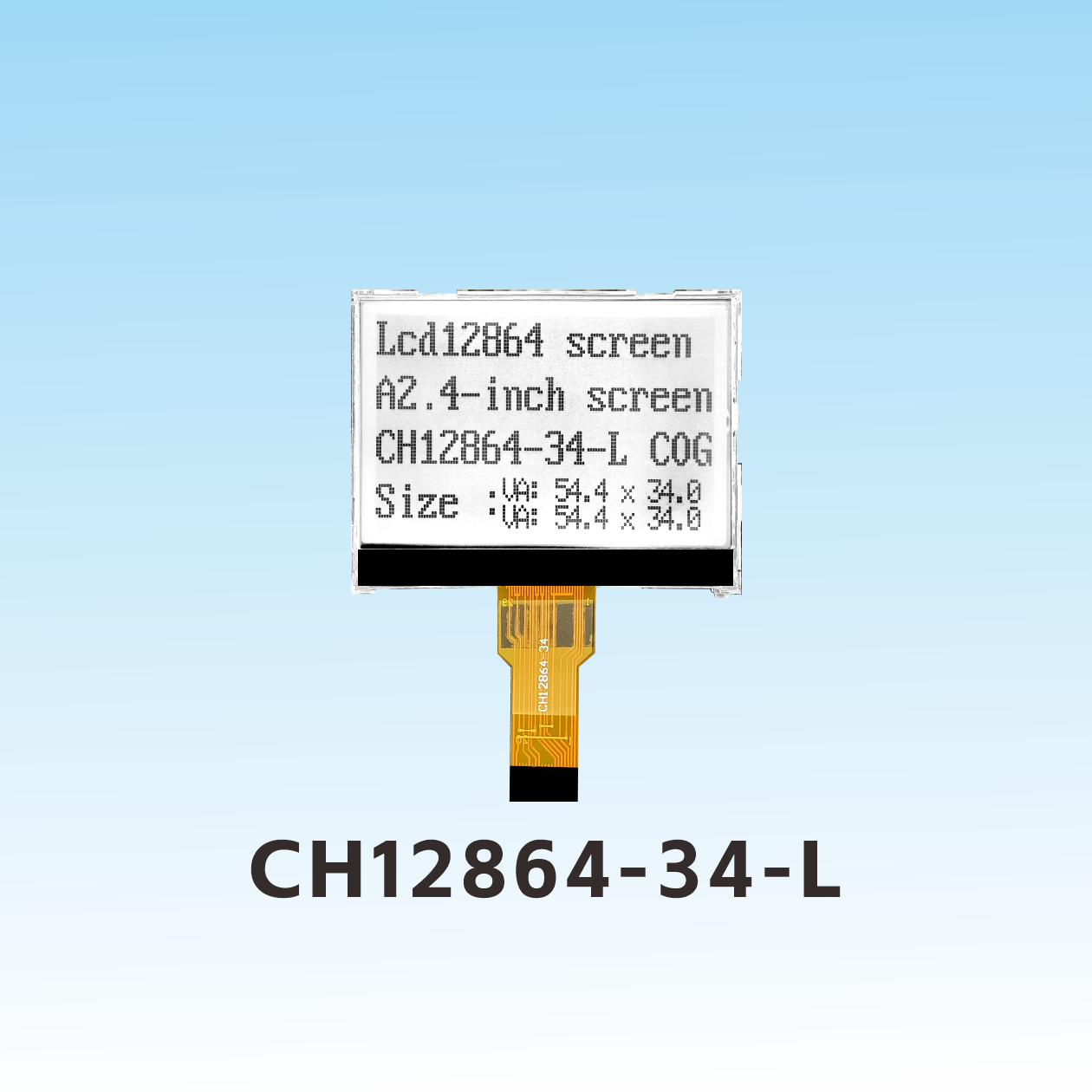

CH12864-34- L

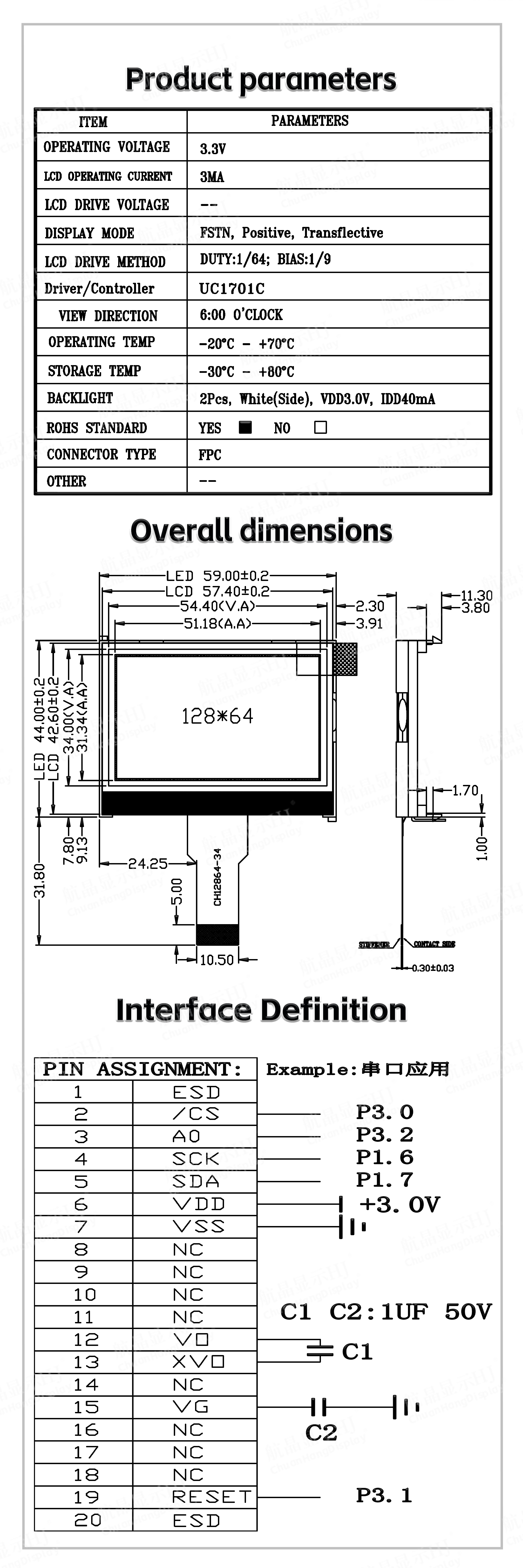

Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH12864-34- L |
| Resolution | 128x64 | screen size | |
| Outline Dimension(L*W*H) | 59.0x44.0x11.3mm | Visible Area(L*W) | 54.4x34.0mm |
| Active Area(L*W) | 51.18x31.34mm | Dot Size (mm) | 0.38(L)x0.47(W) |
| Type | COG | Connection Method | FPC |
| Supply Voltage | 3.3V | Interface Type | SPI |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/64Duty |
| Display Type | FSTN | Driver IC | UC1701C |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 3.3V | production capacity | Self-produced |
| Character libraries | Whether to bring PCB | NO |
