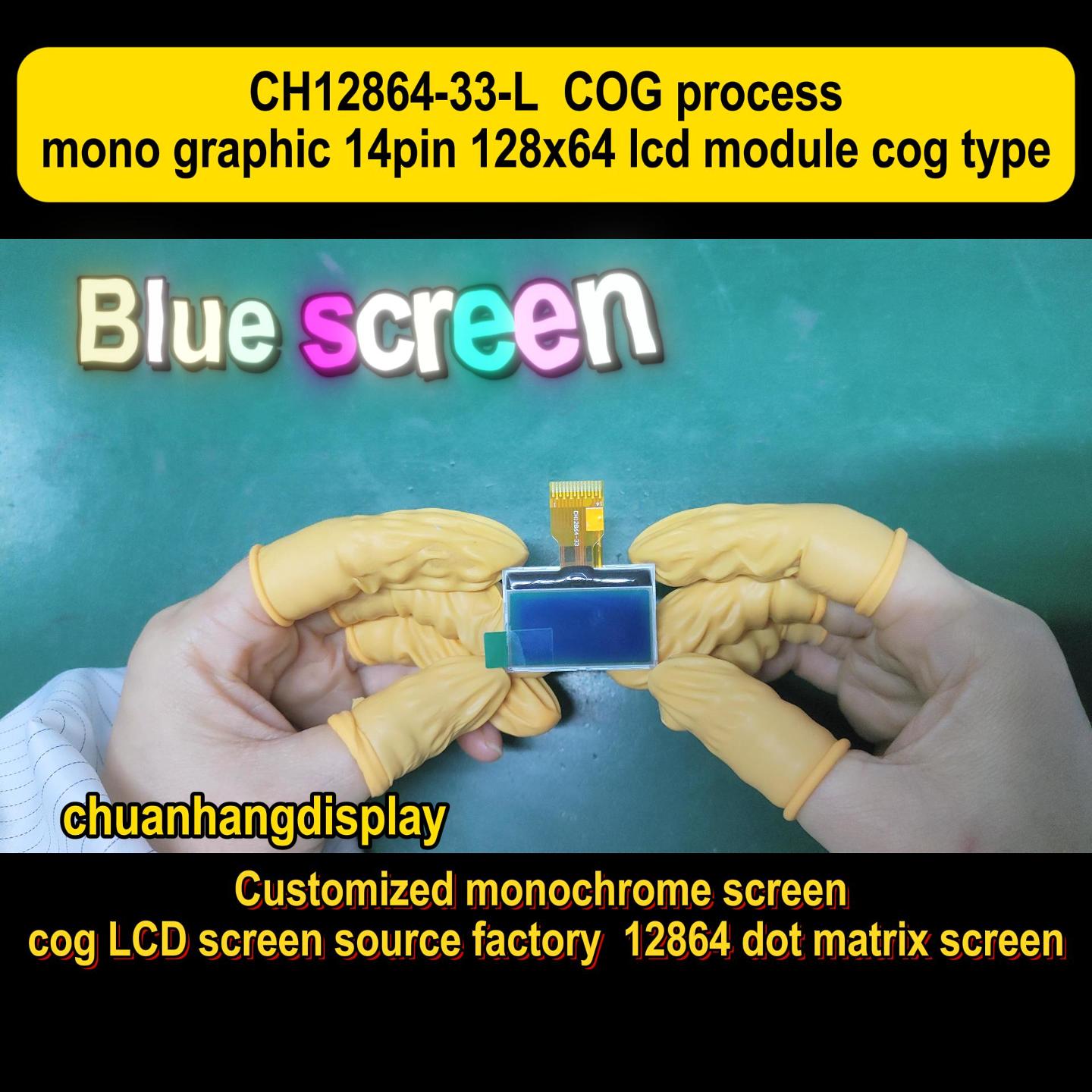

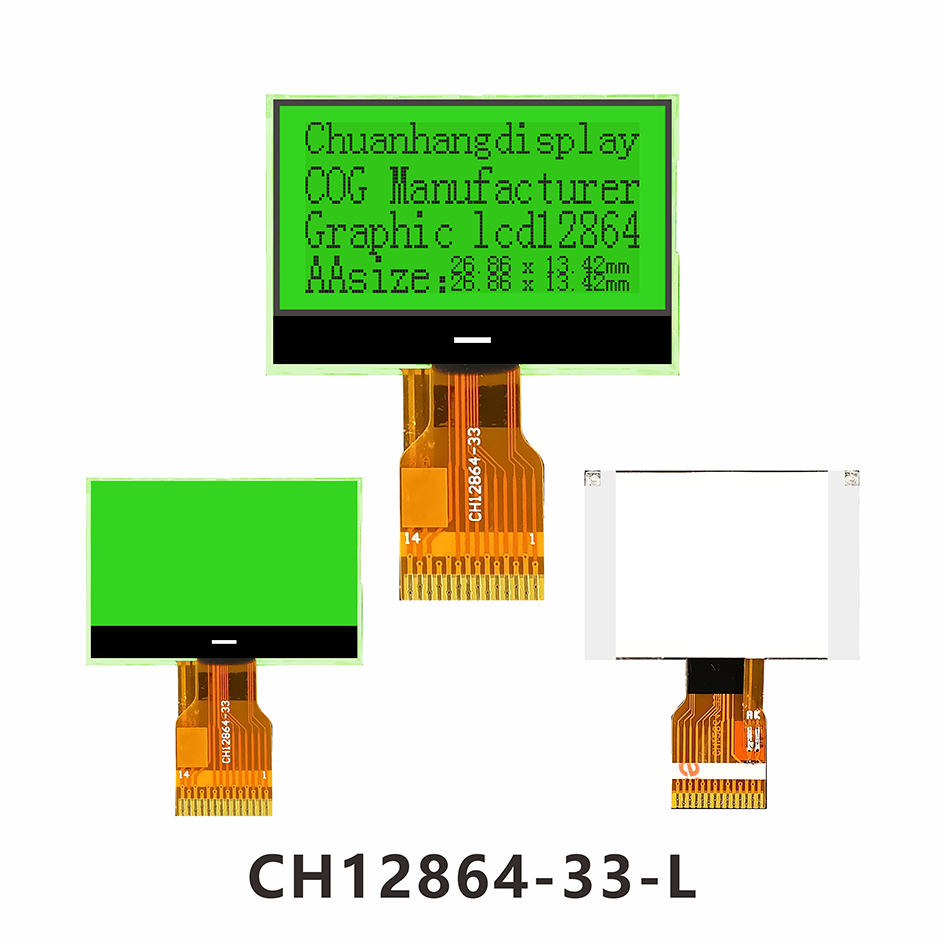

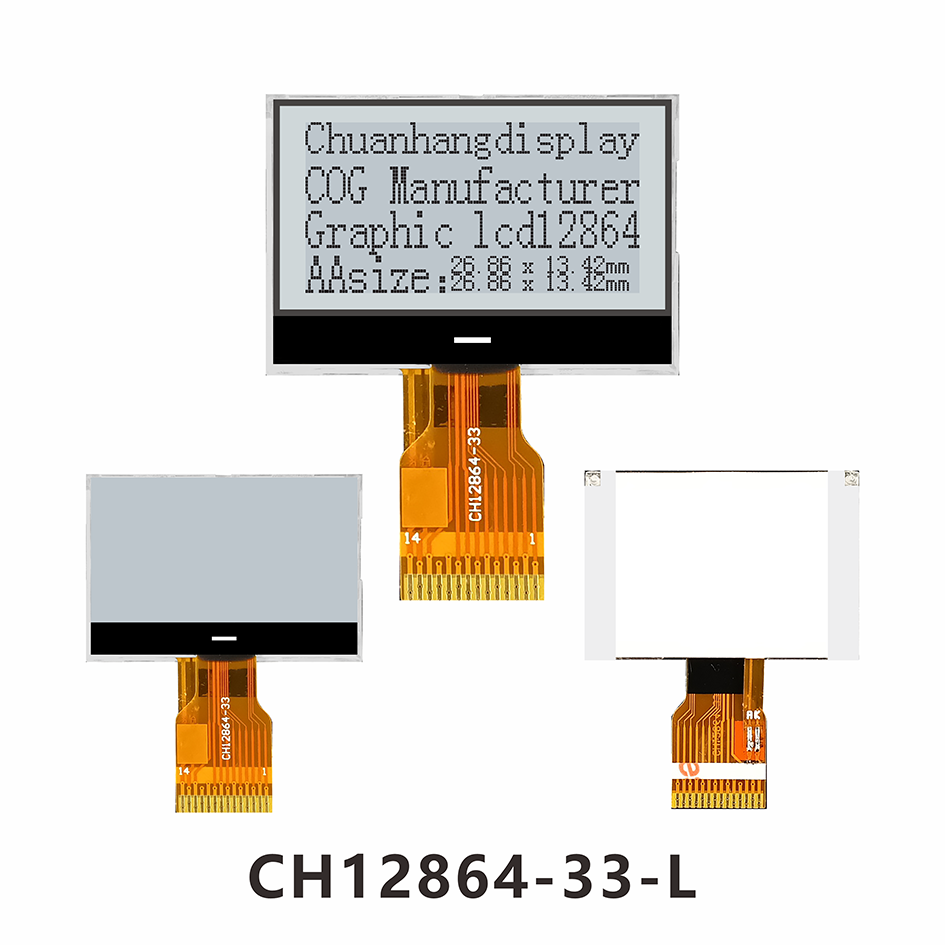

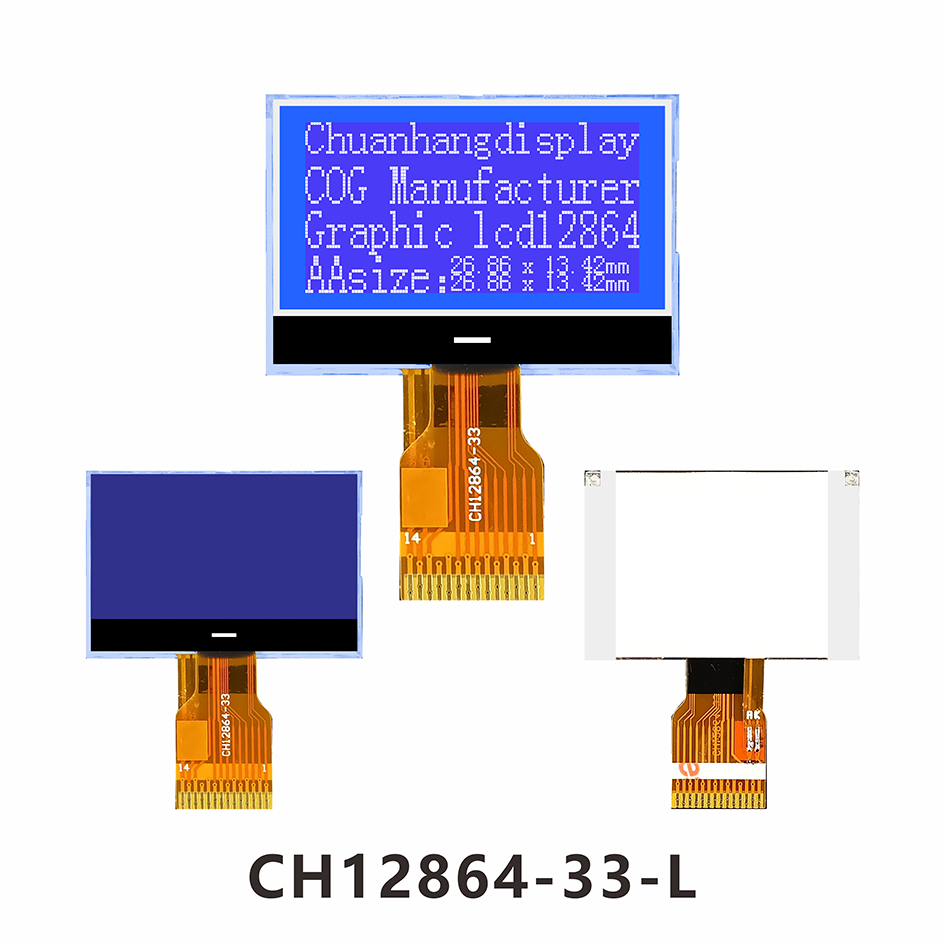

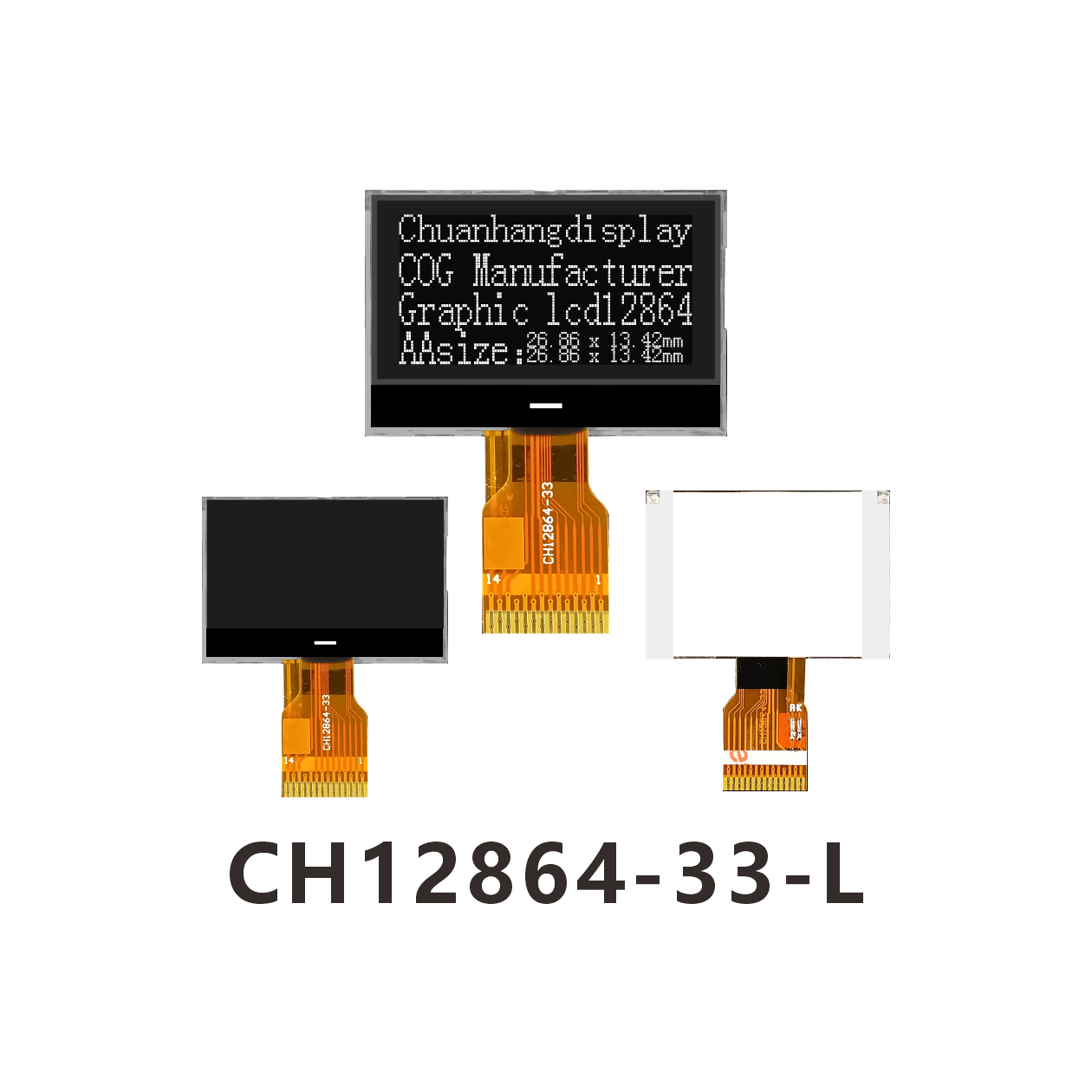

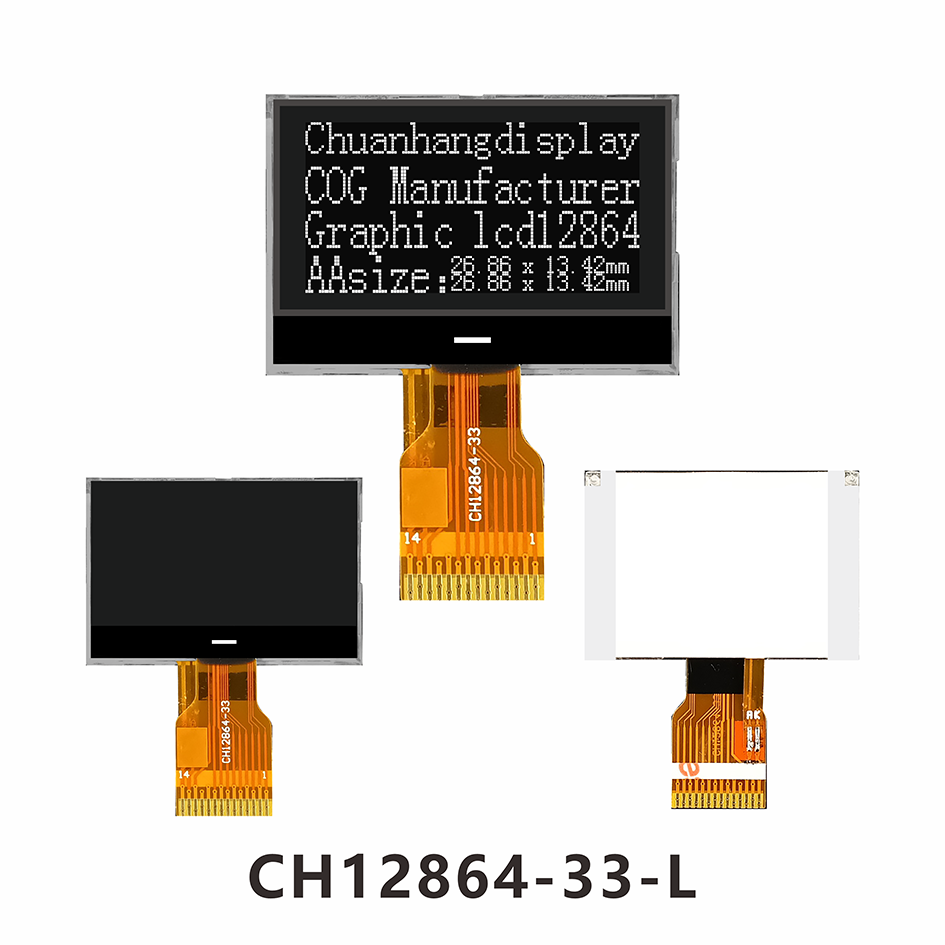

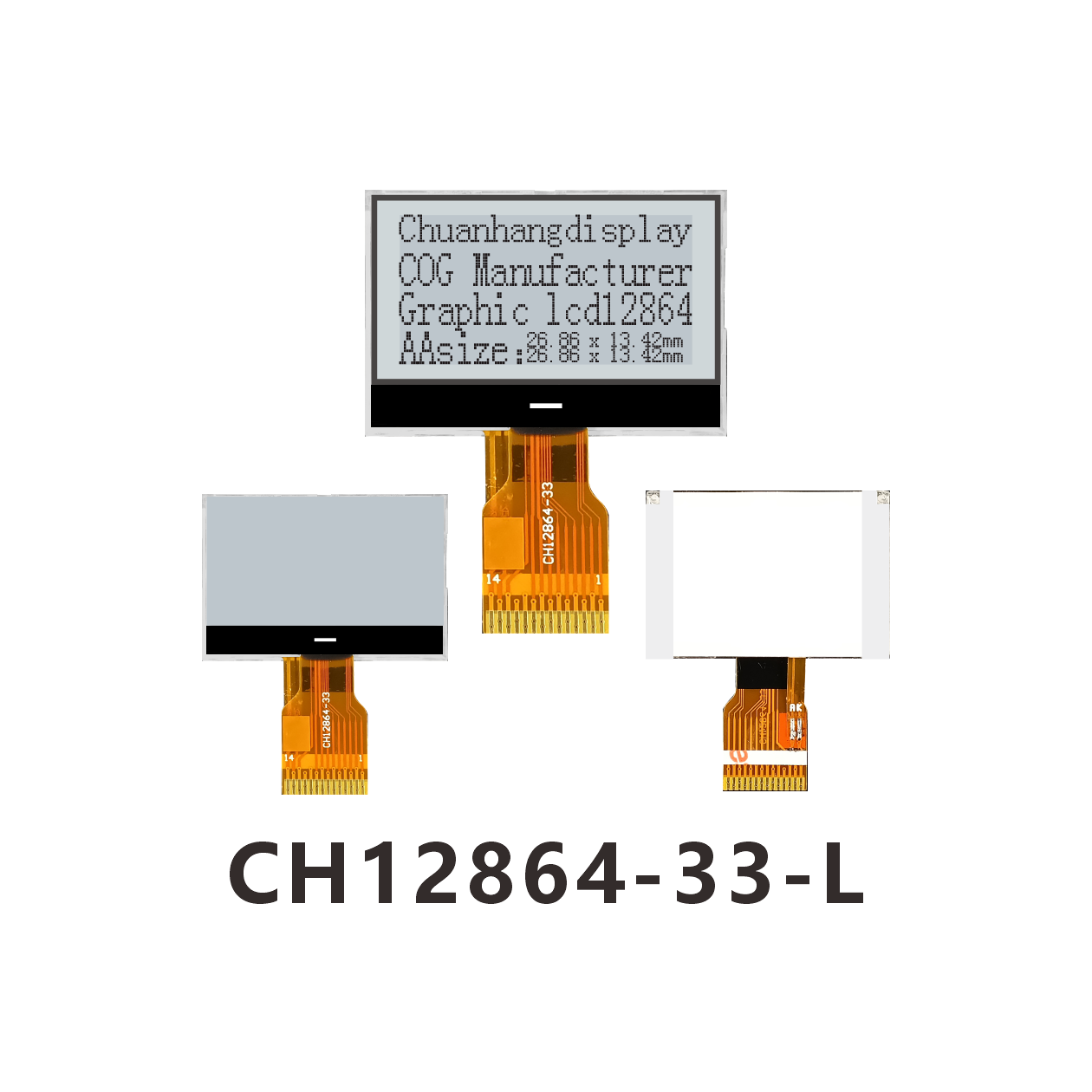

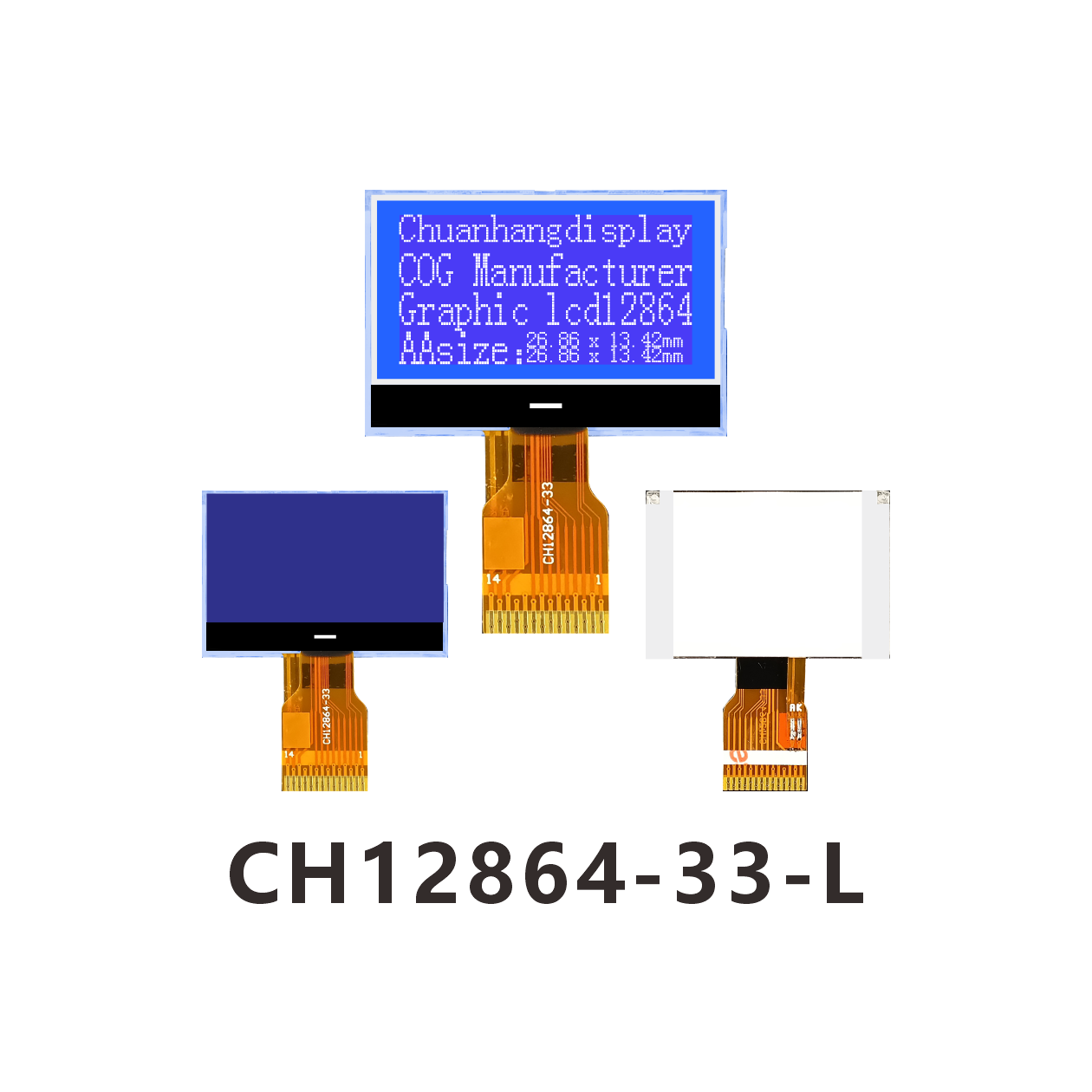

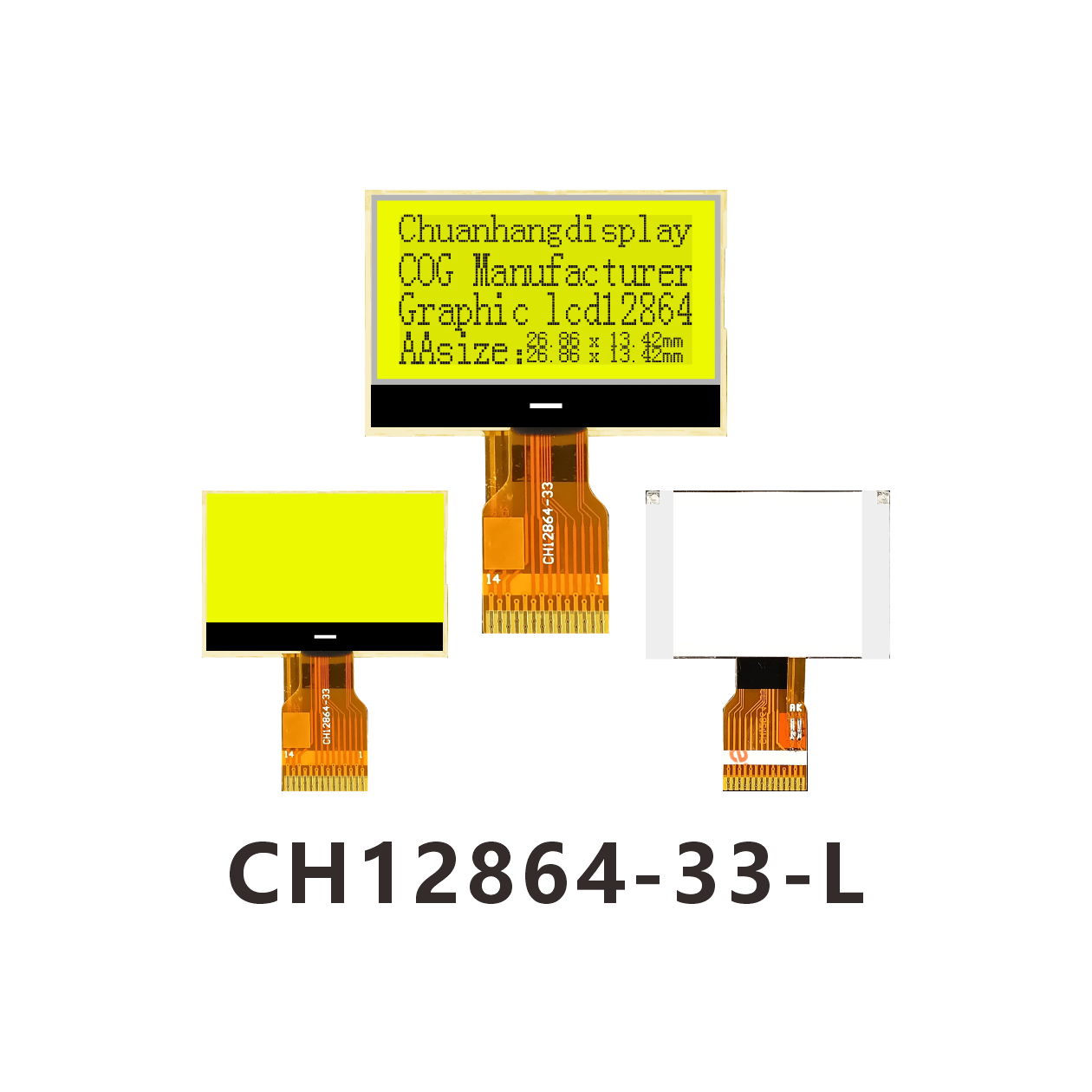

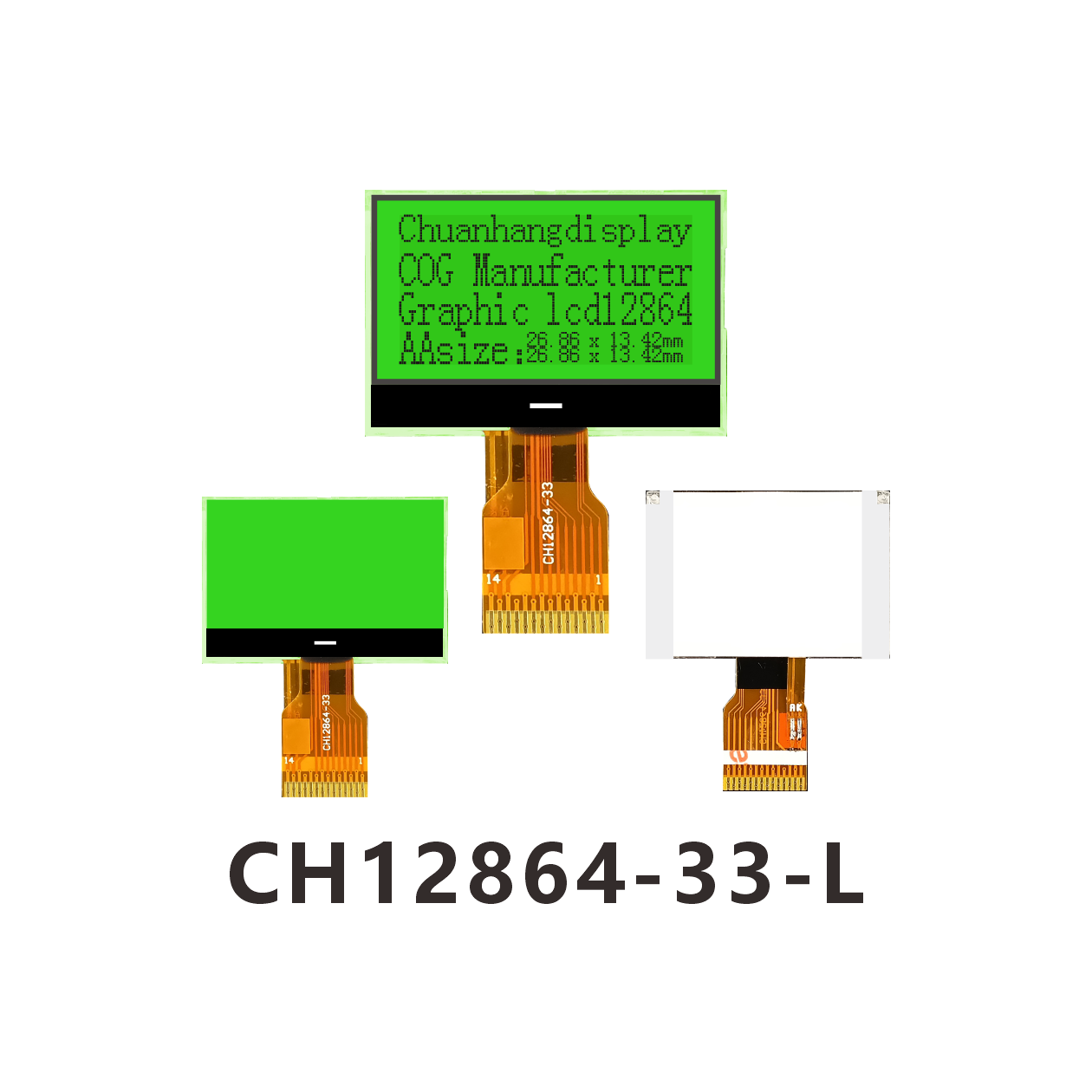

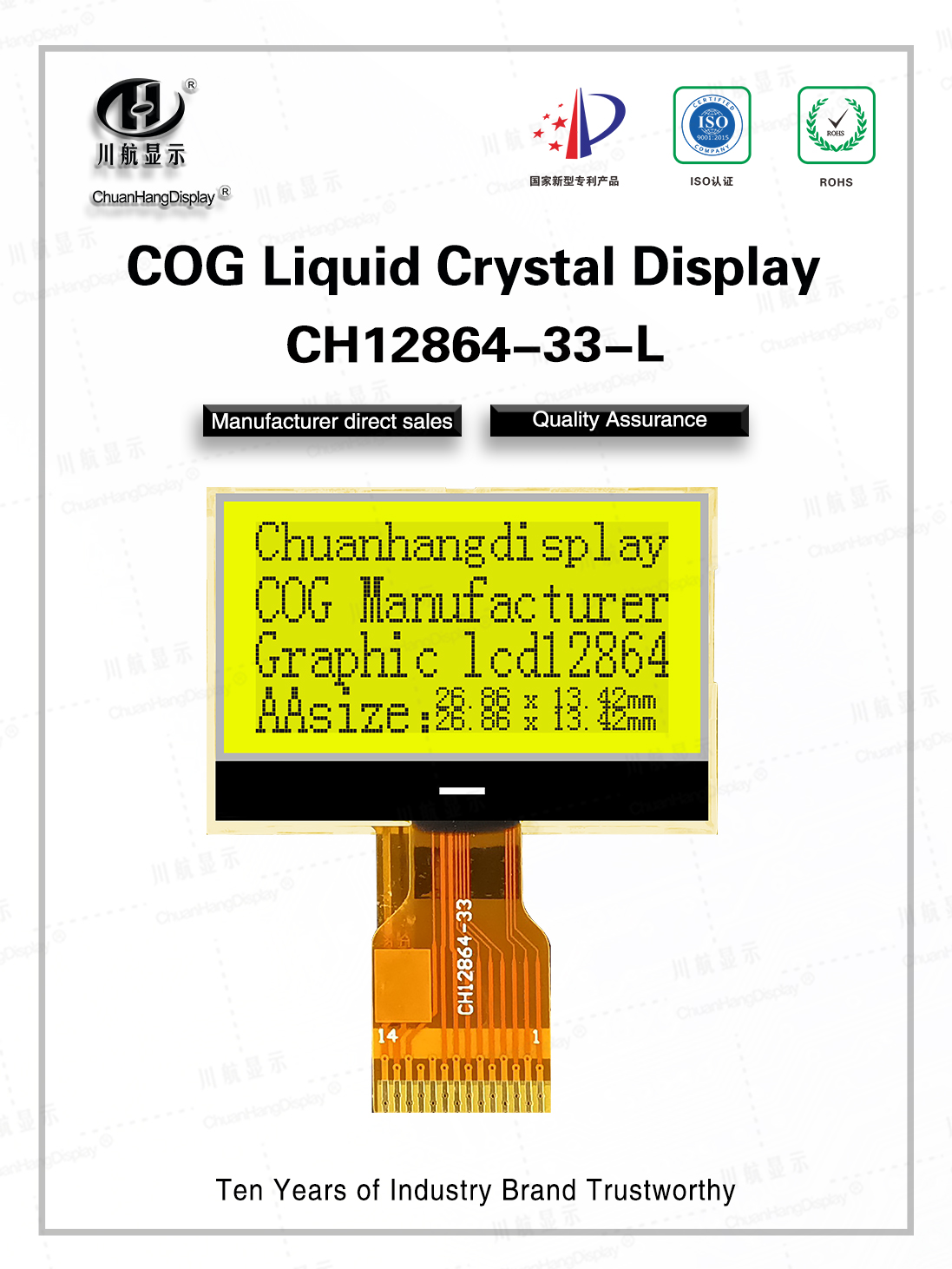

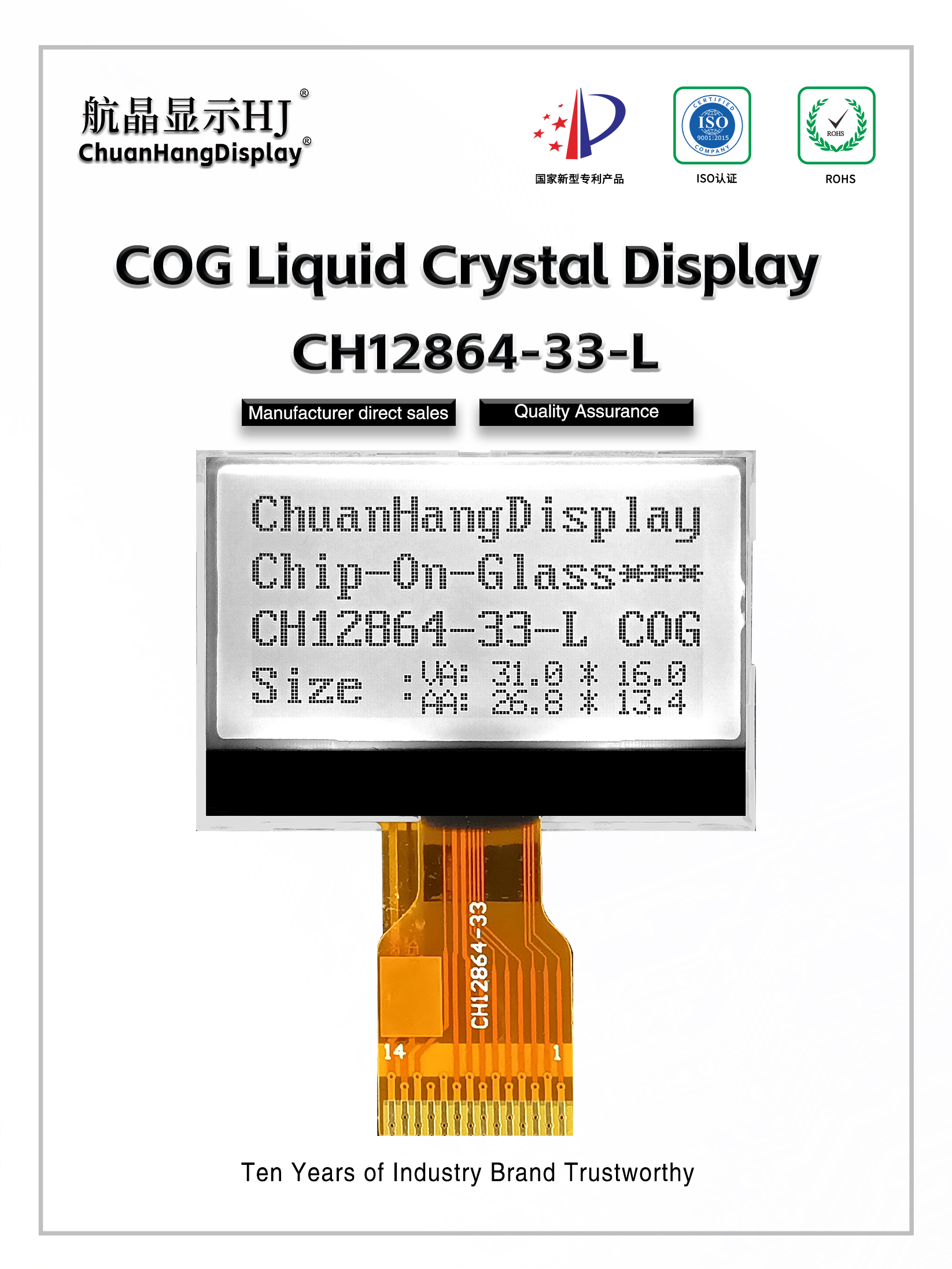

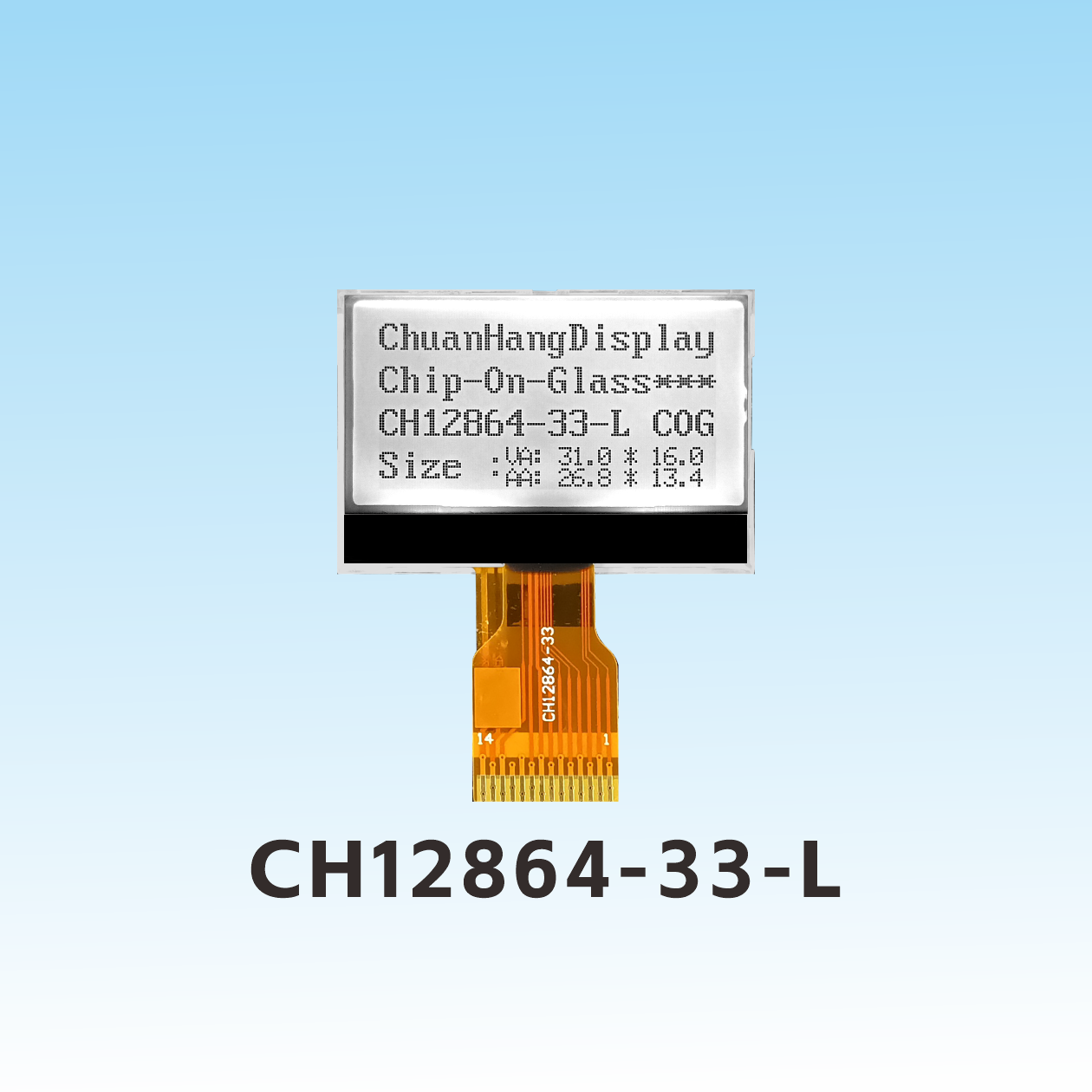

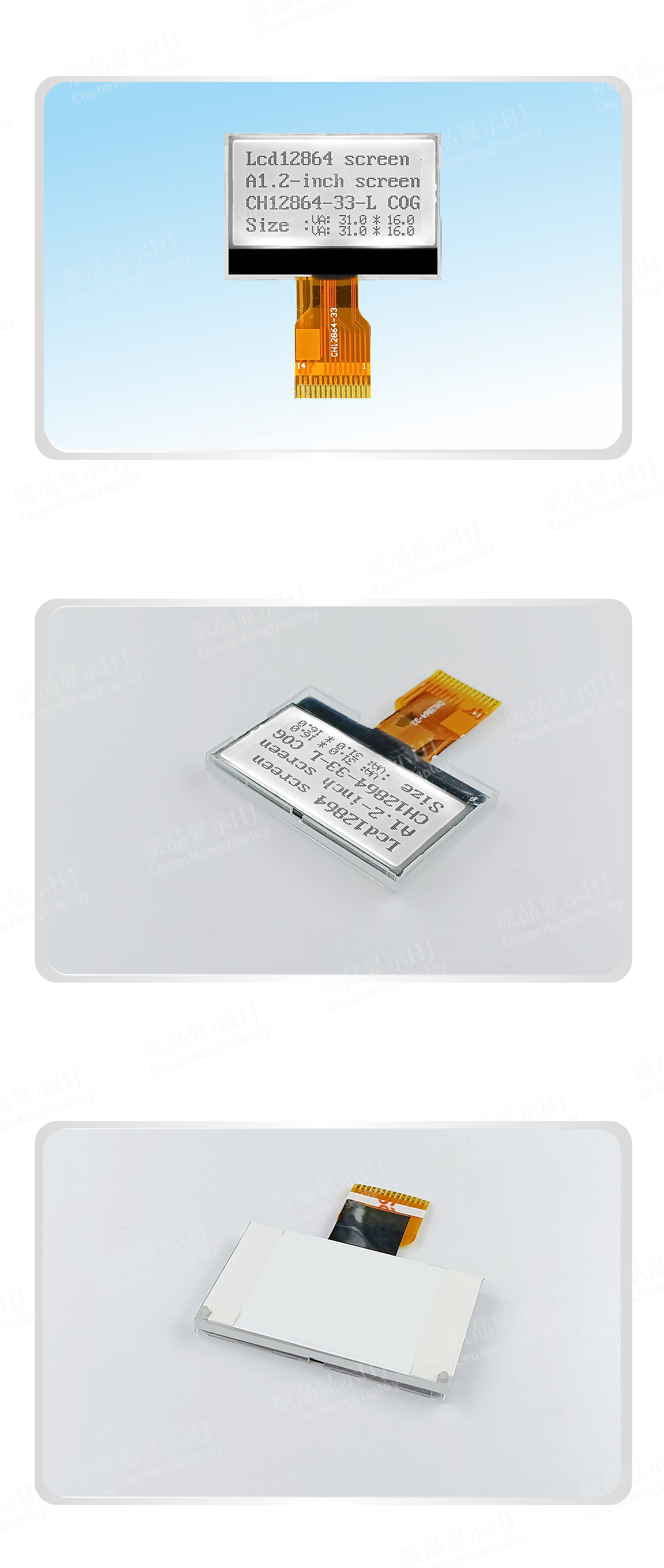

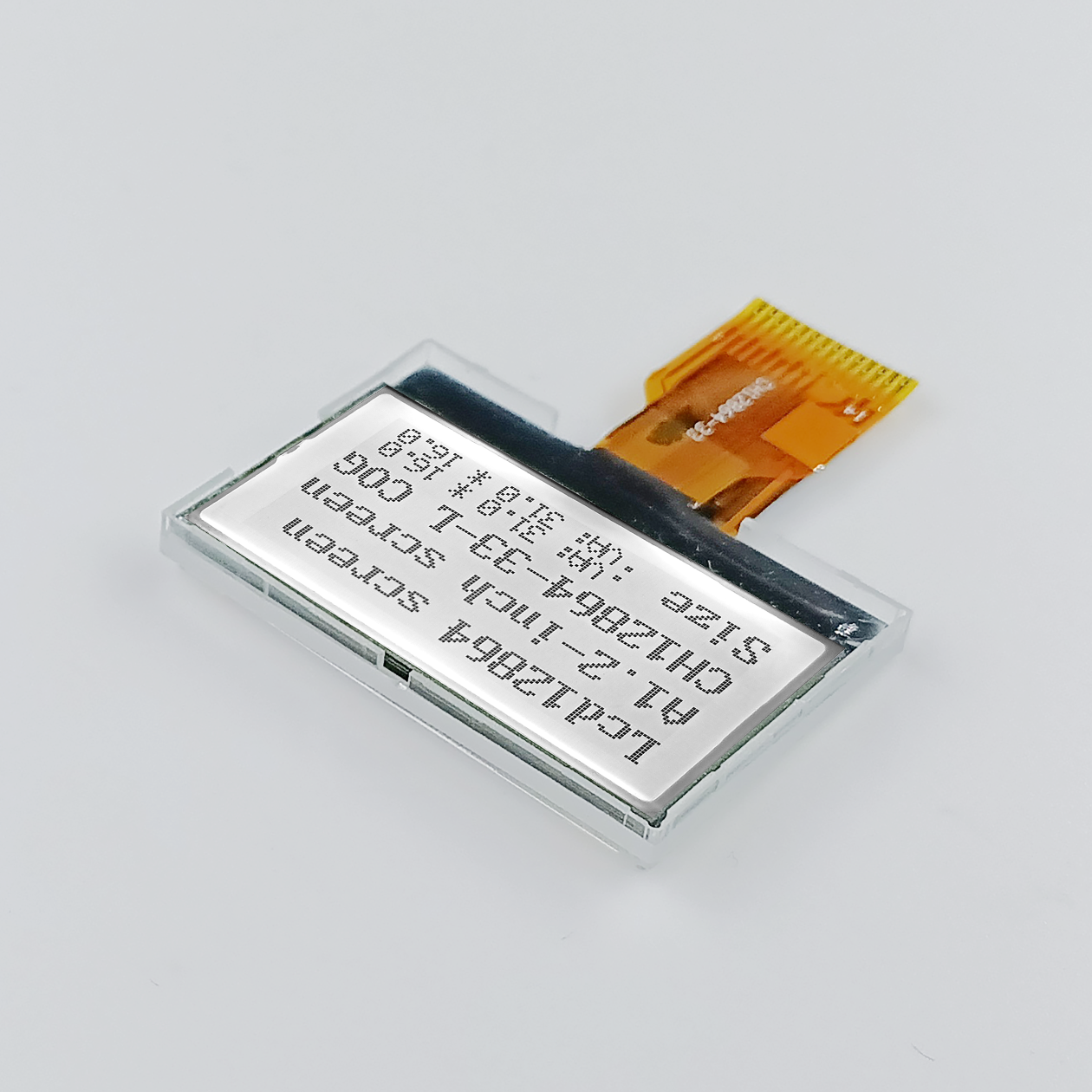

CH12864-33- L 128x64 graphic lcd display price in india
Product Description

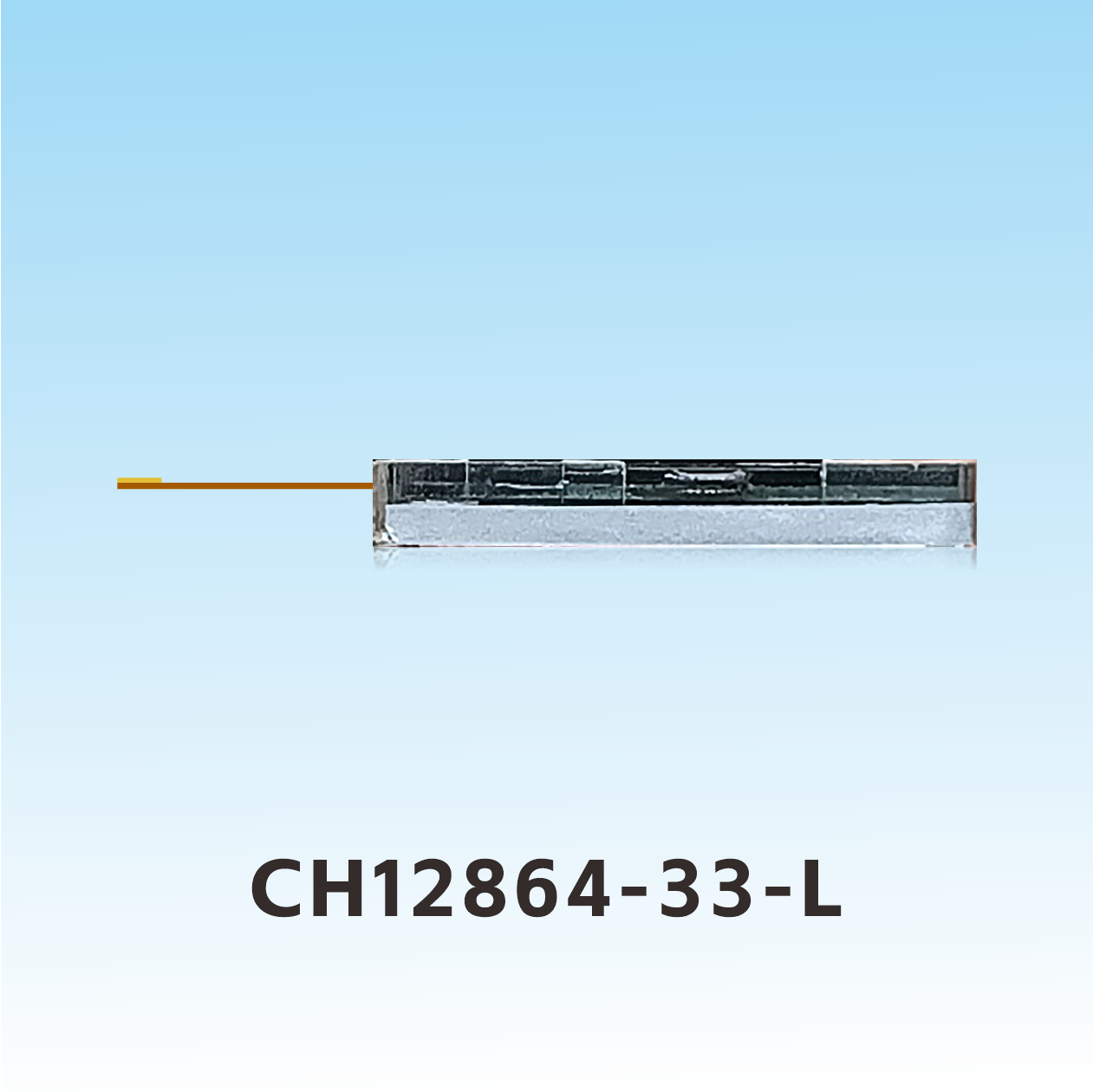

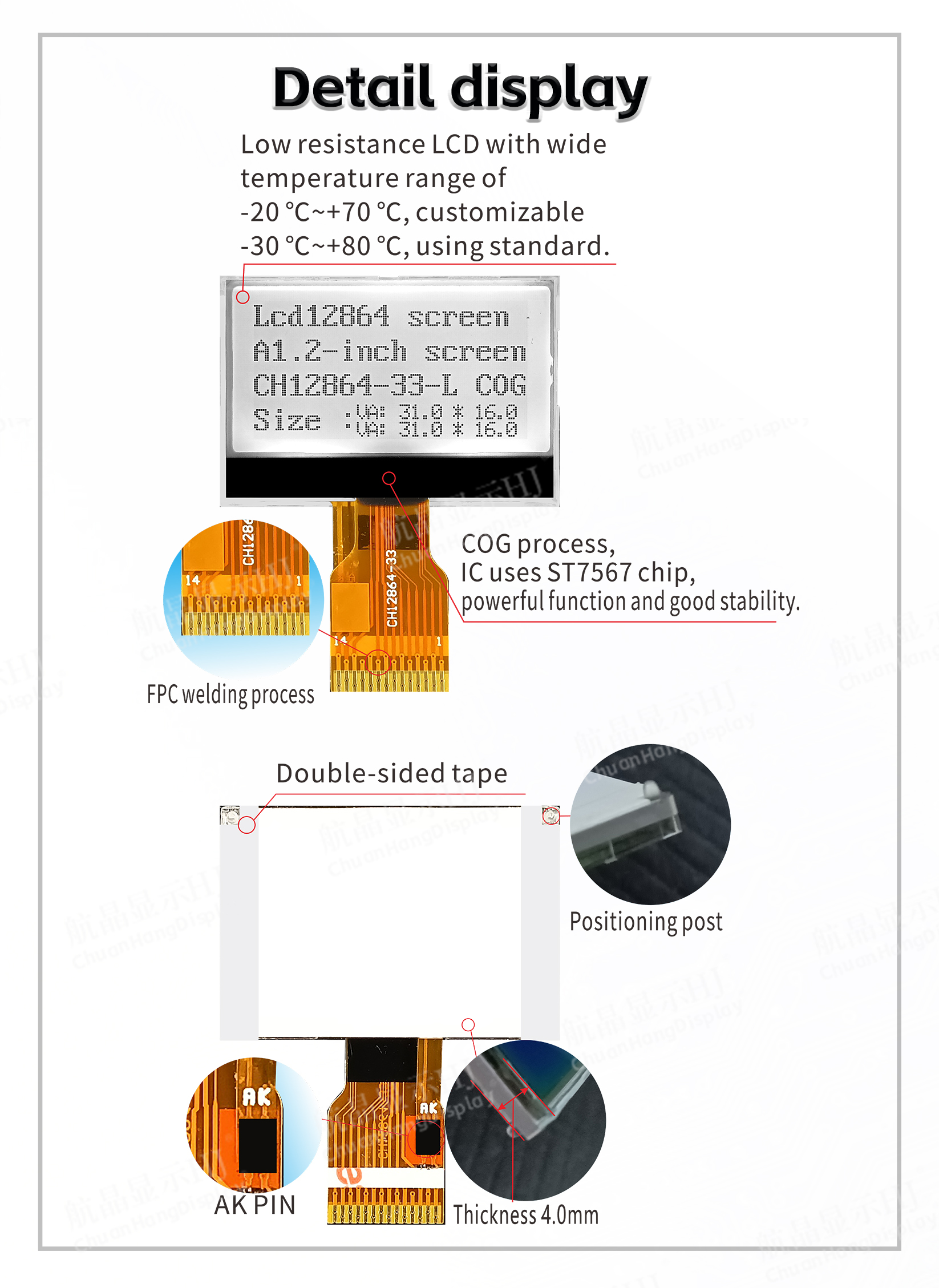

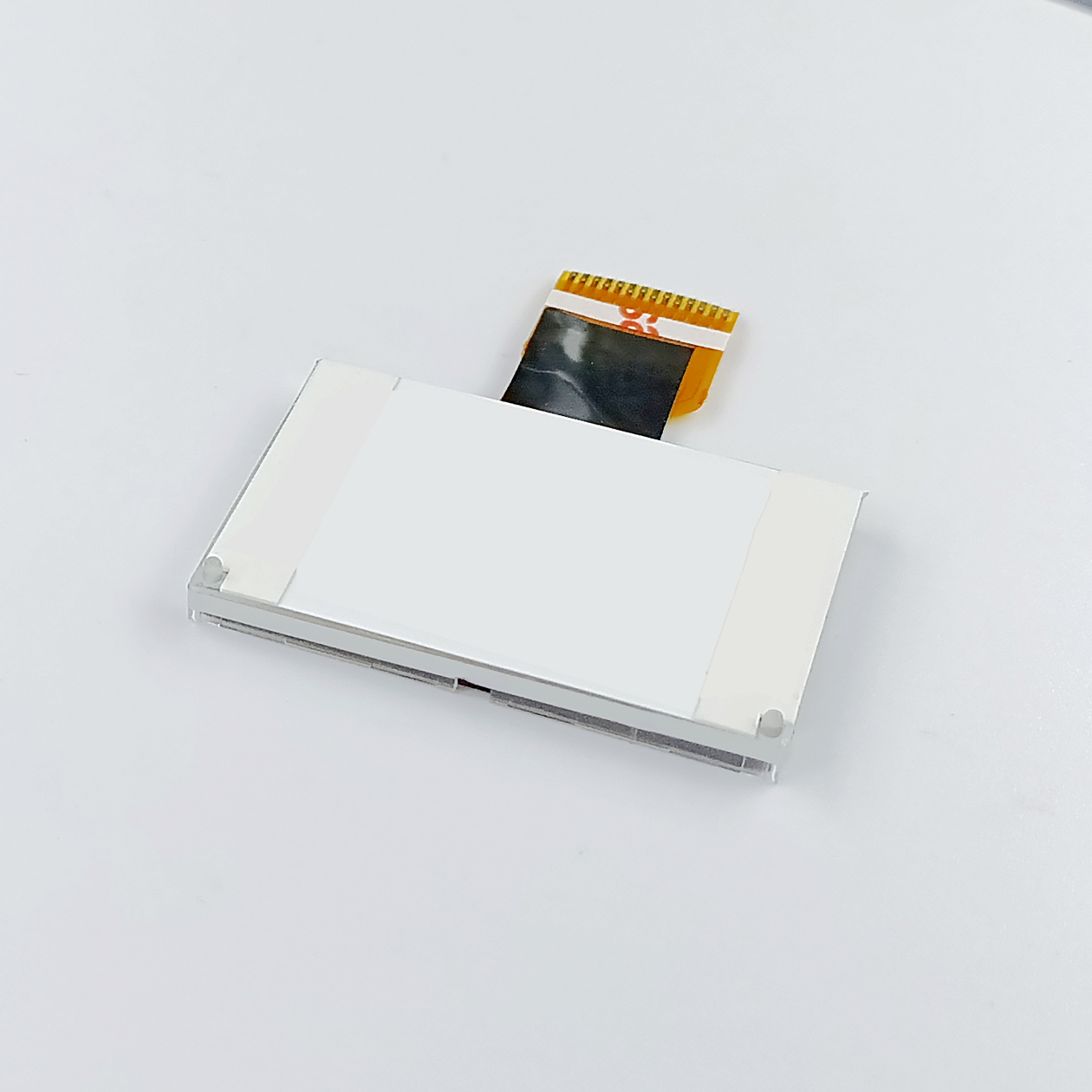

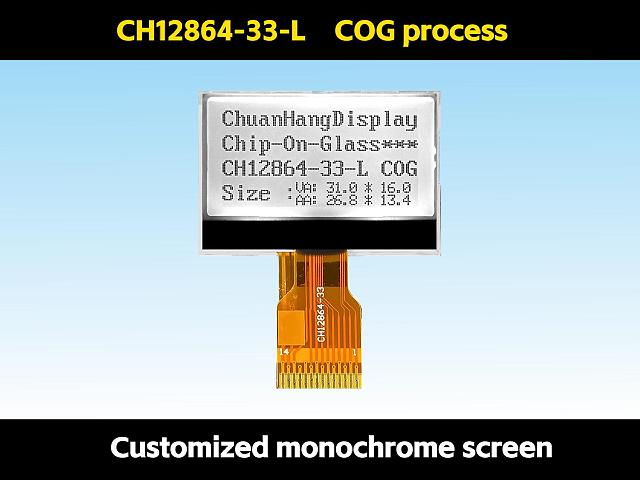

1.1 COG process, FPC soft wiring is a welding port, the product has backlight, assembled, thin thickness, and stable structure.

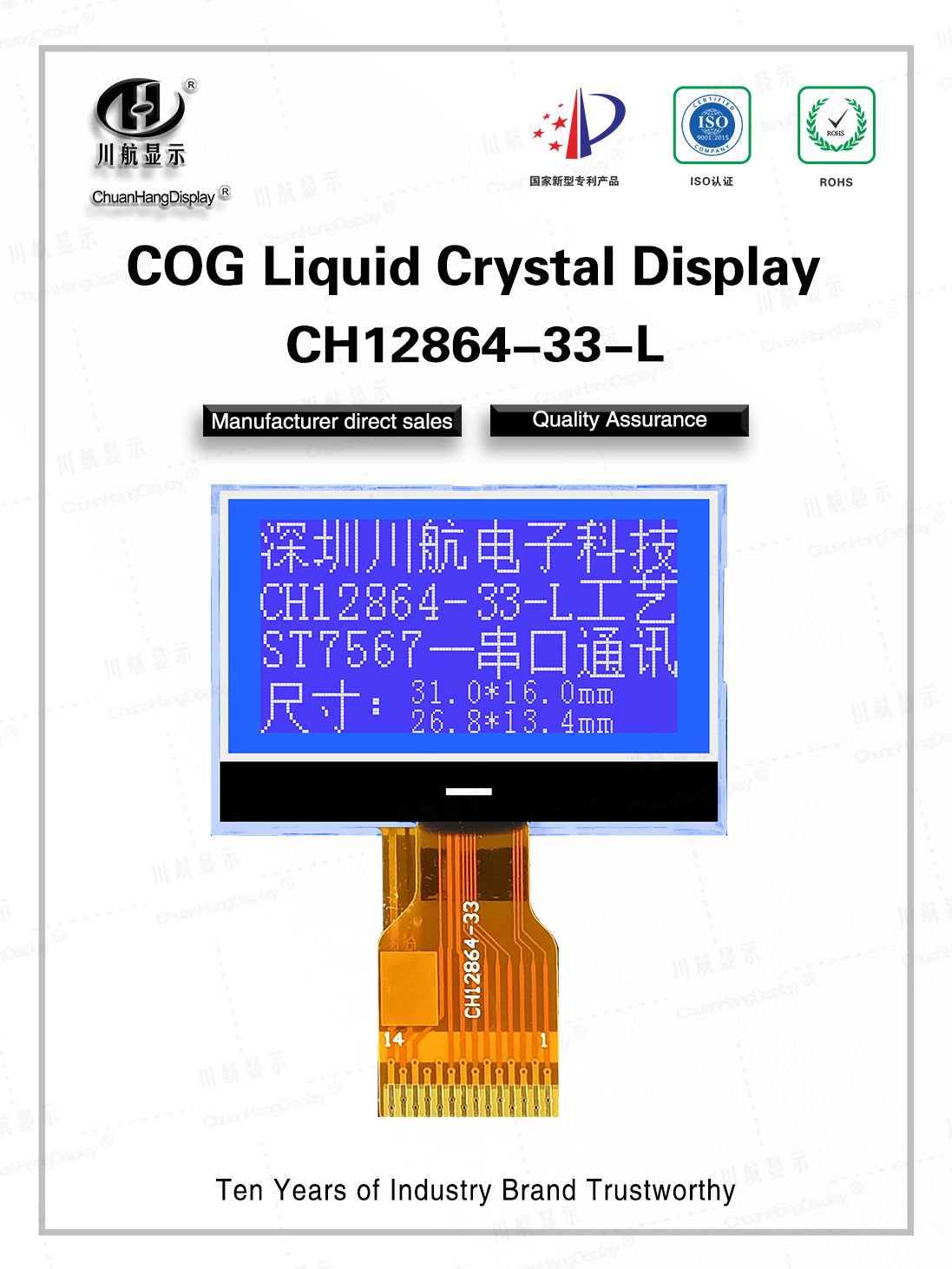

1.2 IC uses ST7567, there is no font library in the chip, and the programmer compiles his own font library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA and backlight current within 60mA.
1.4 LED backlight A and K are FPC wiring, and A and K need to supply power separately from 29V to 3.0V.

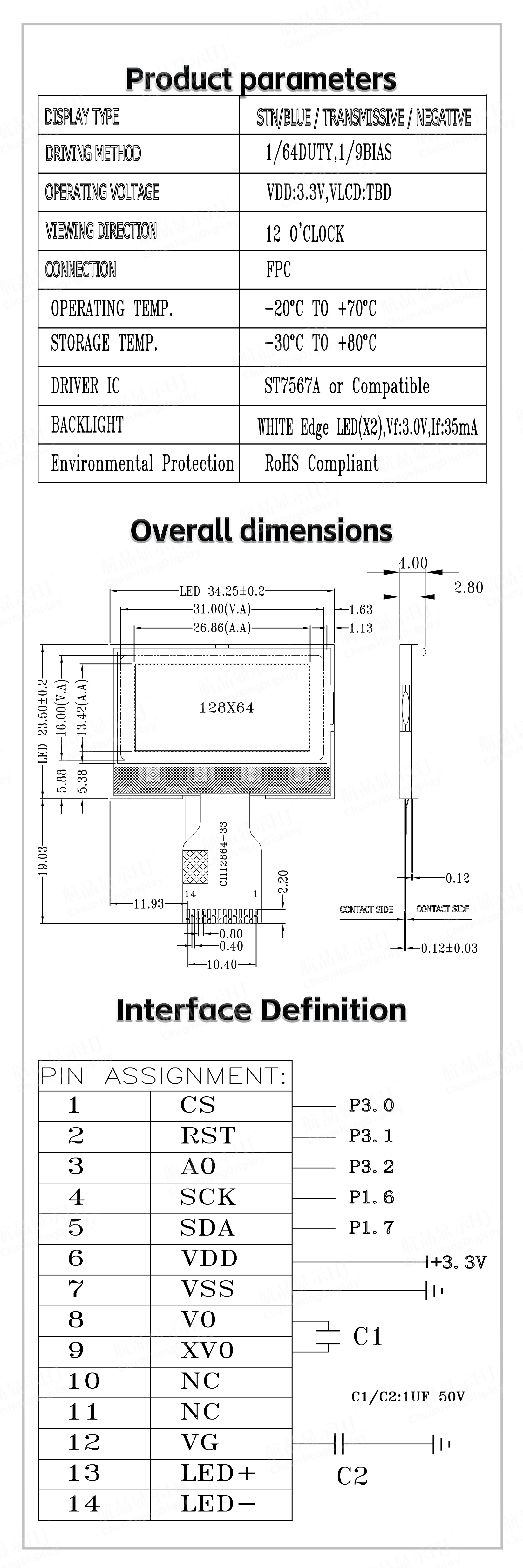

1.5 Product features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates a boost.
The contrast is adjusted by the software.
One screen displays 8 characters x4 lines (16x16 dot matrix).
Single picture ≦128x64 dot matrix. 4-wire SPI interface communication.
Rich functions: interface display on/off, positive/reverse.
