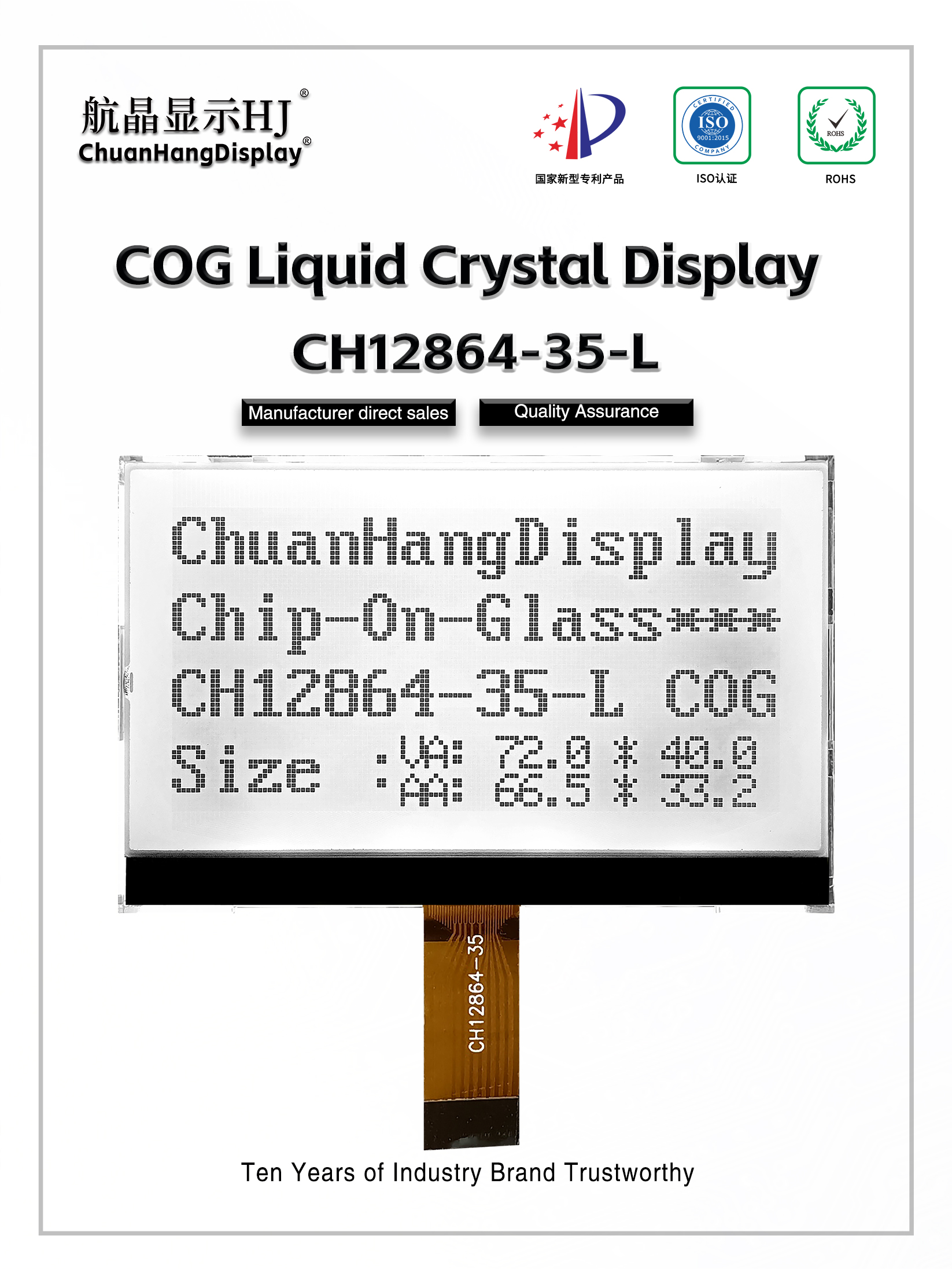

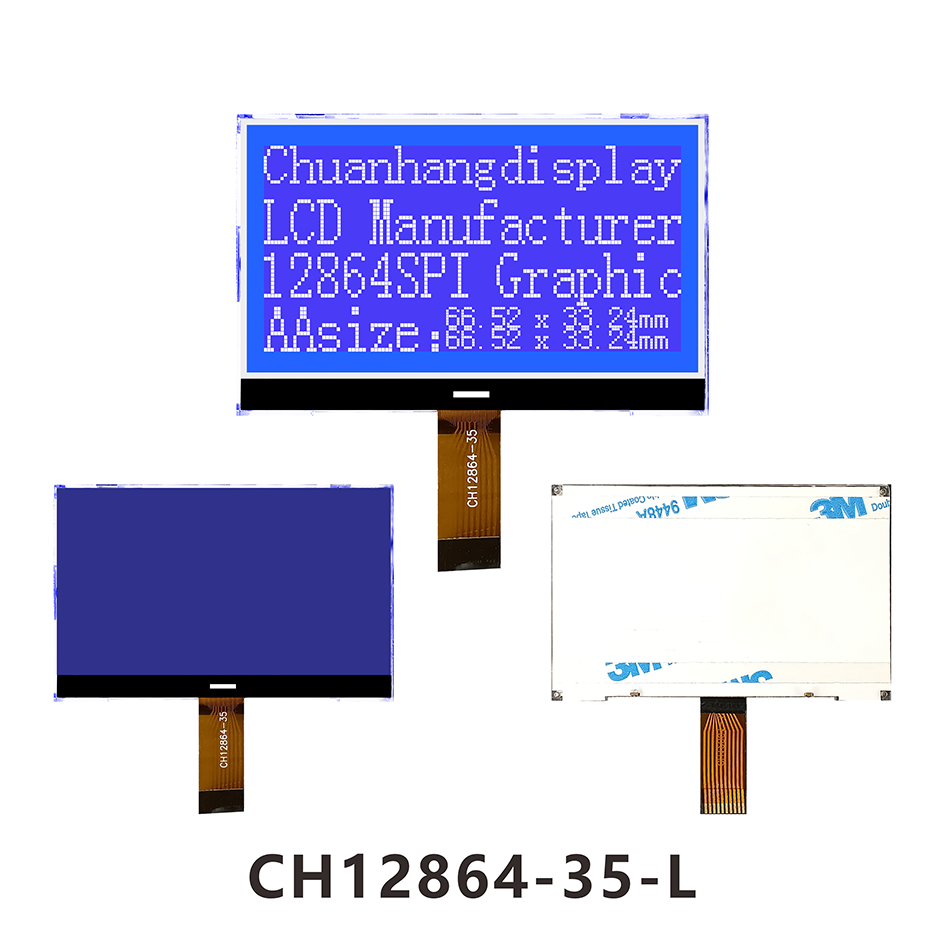

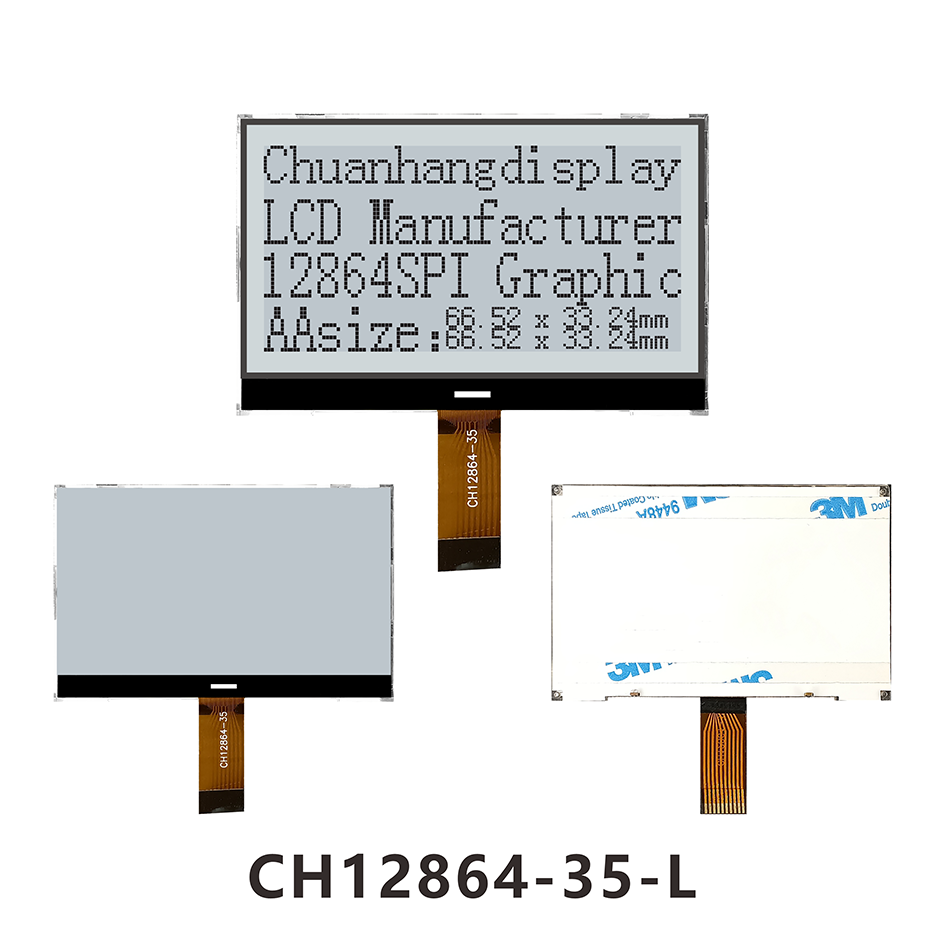

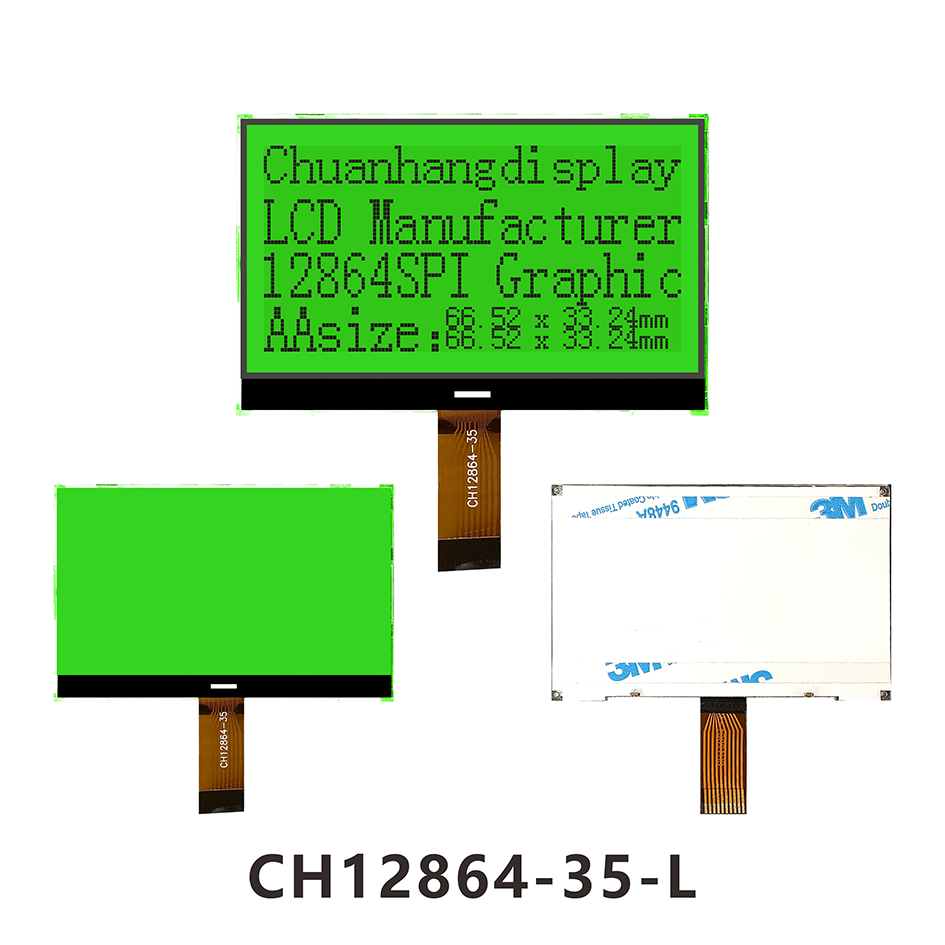

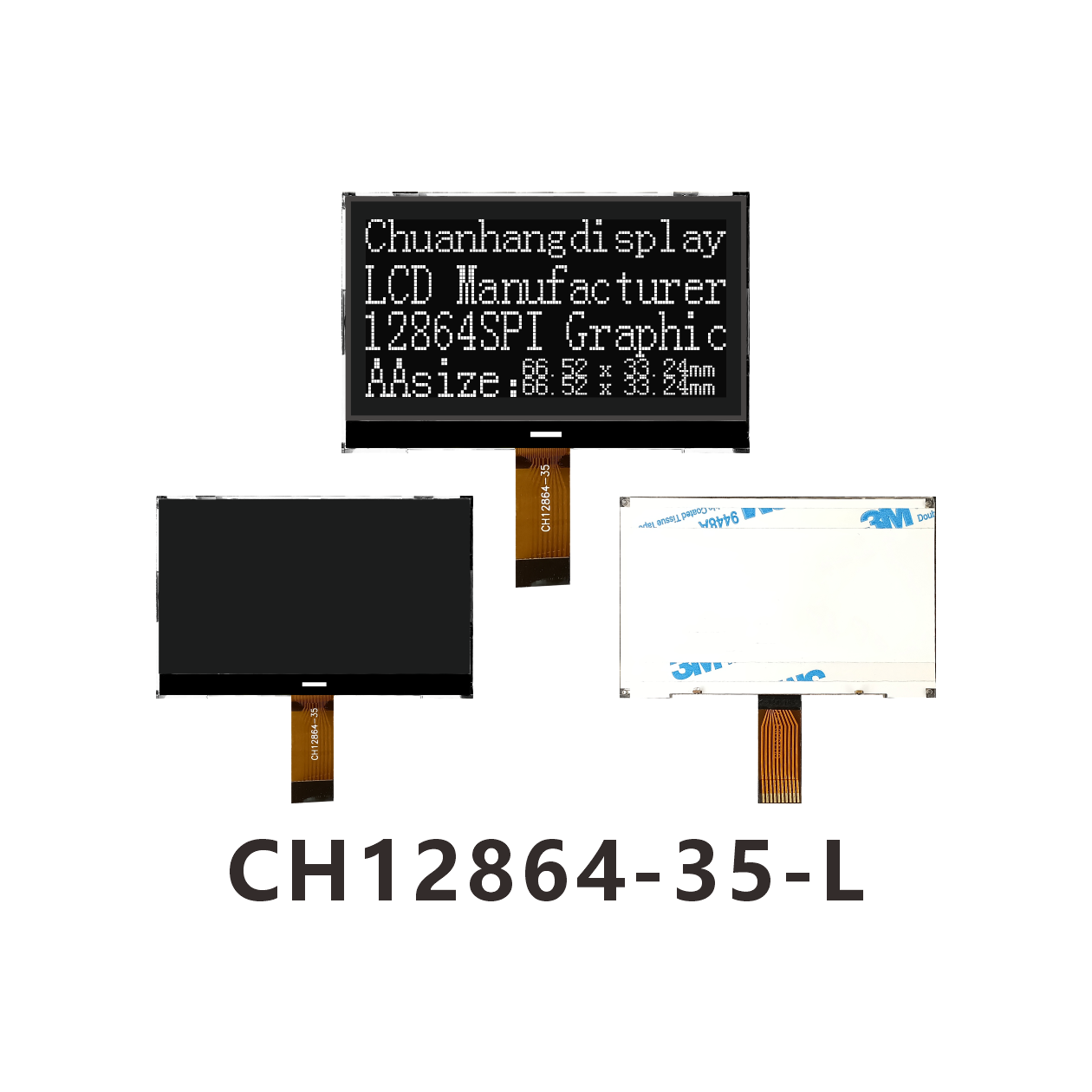

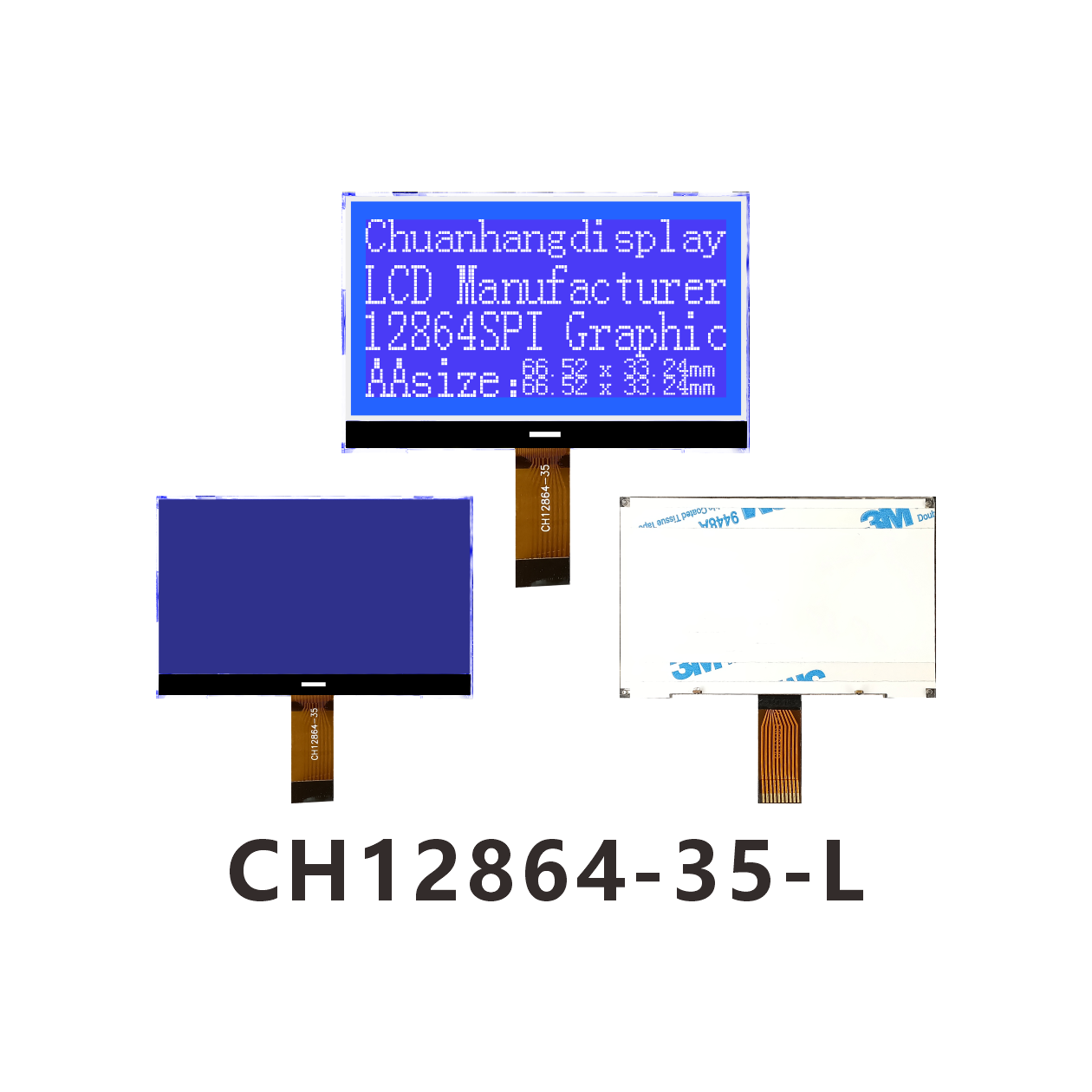

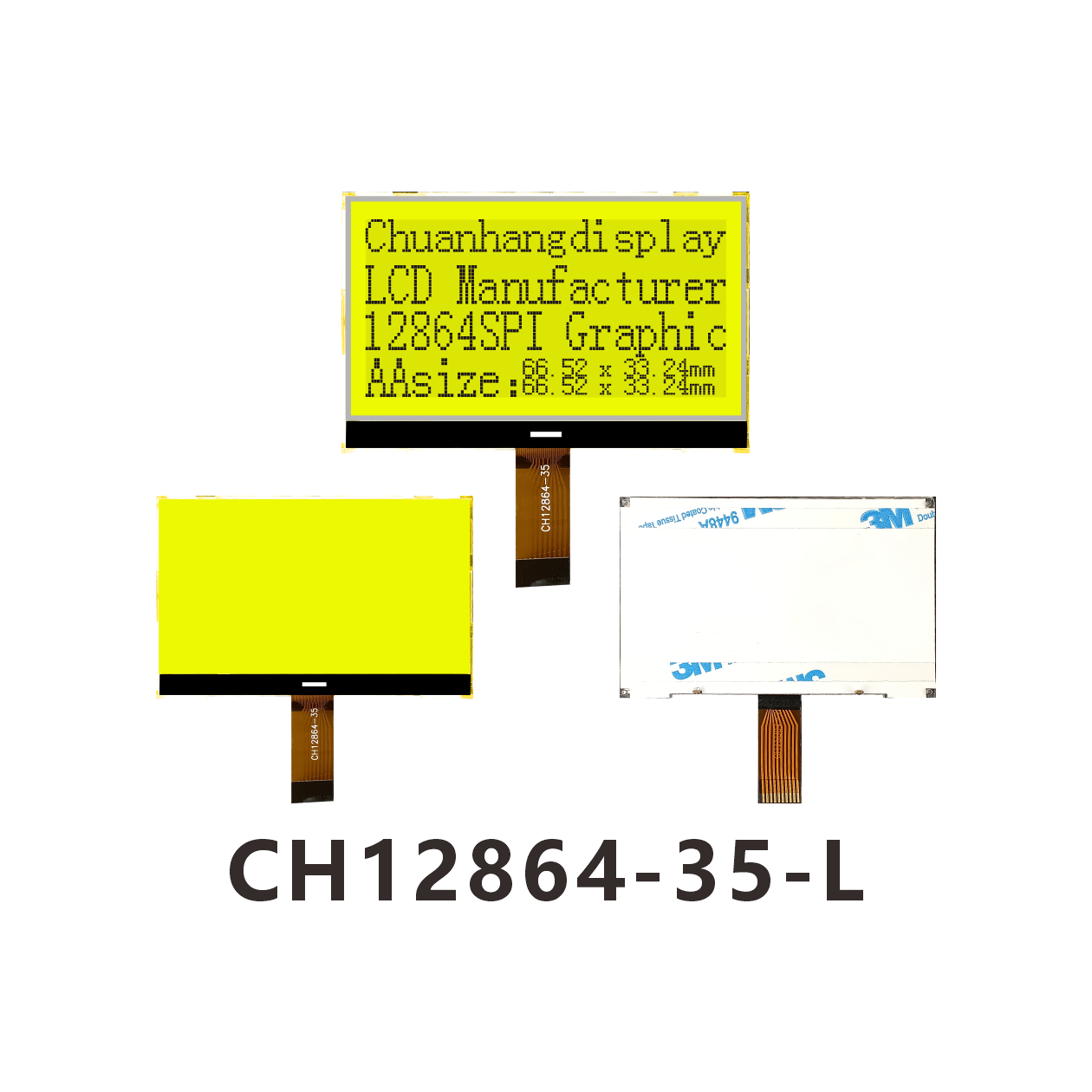

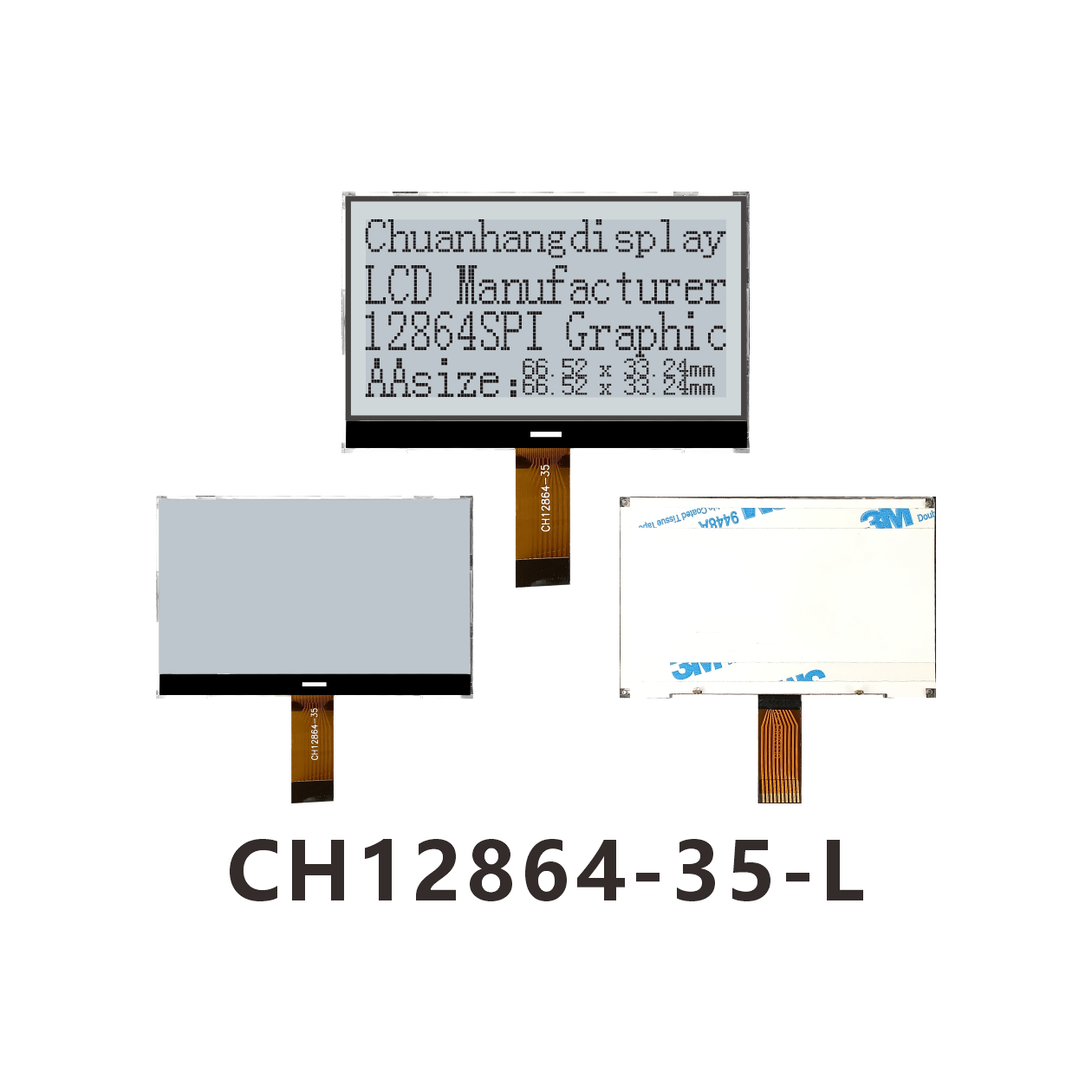

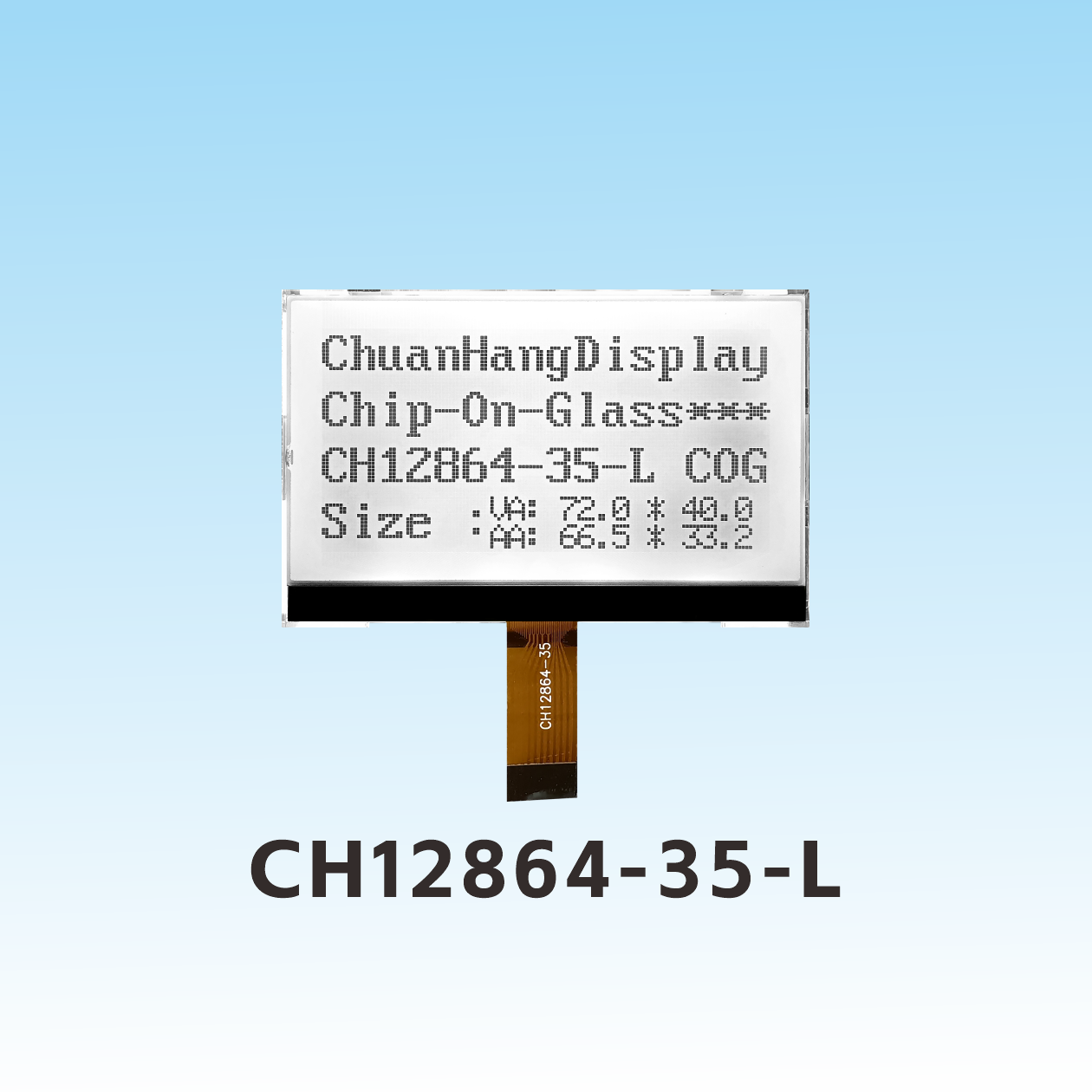

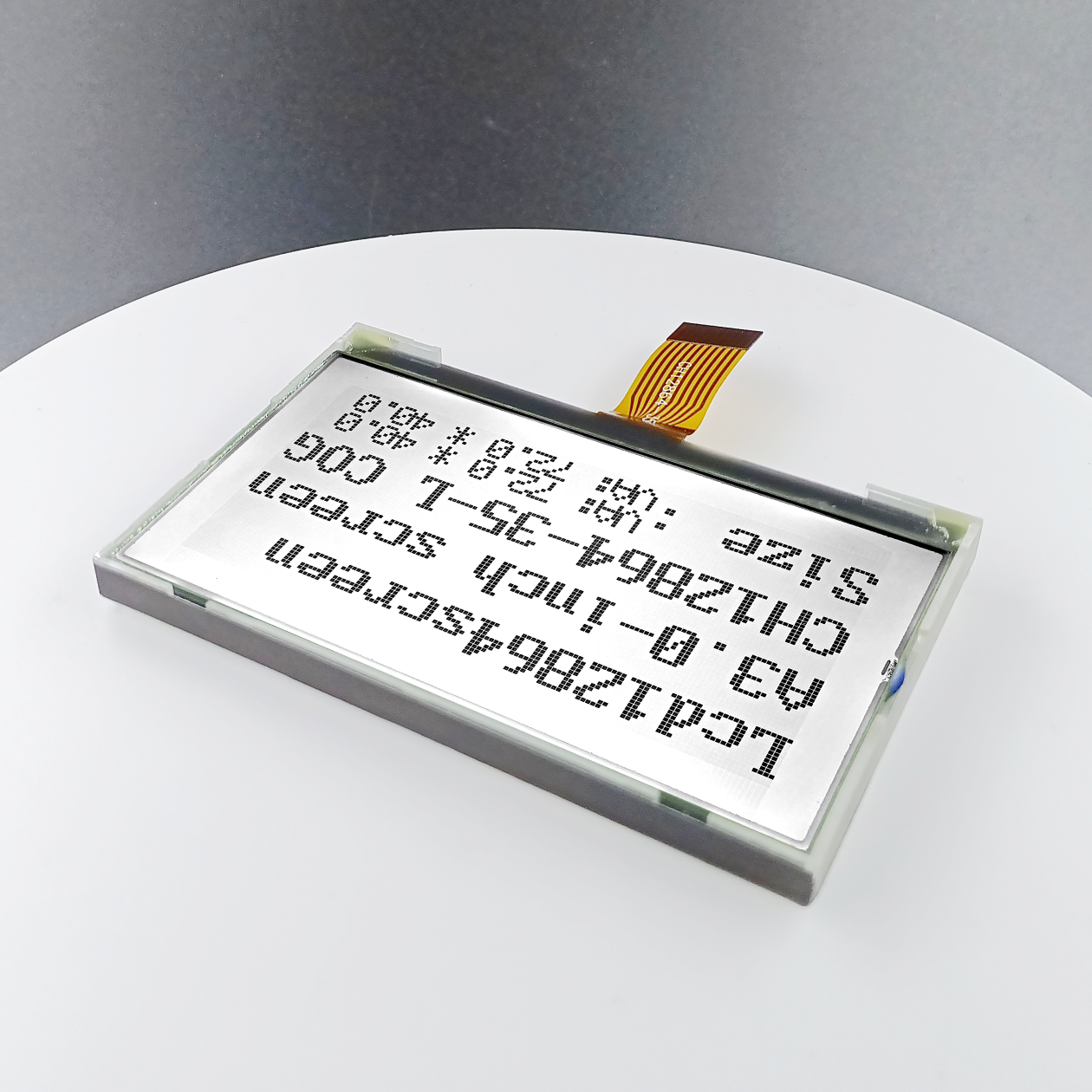

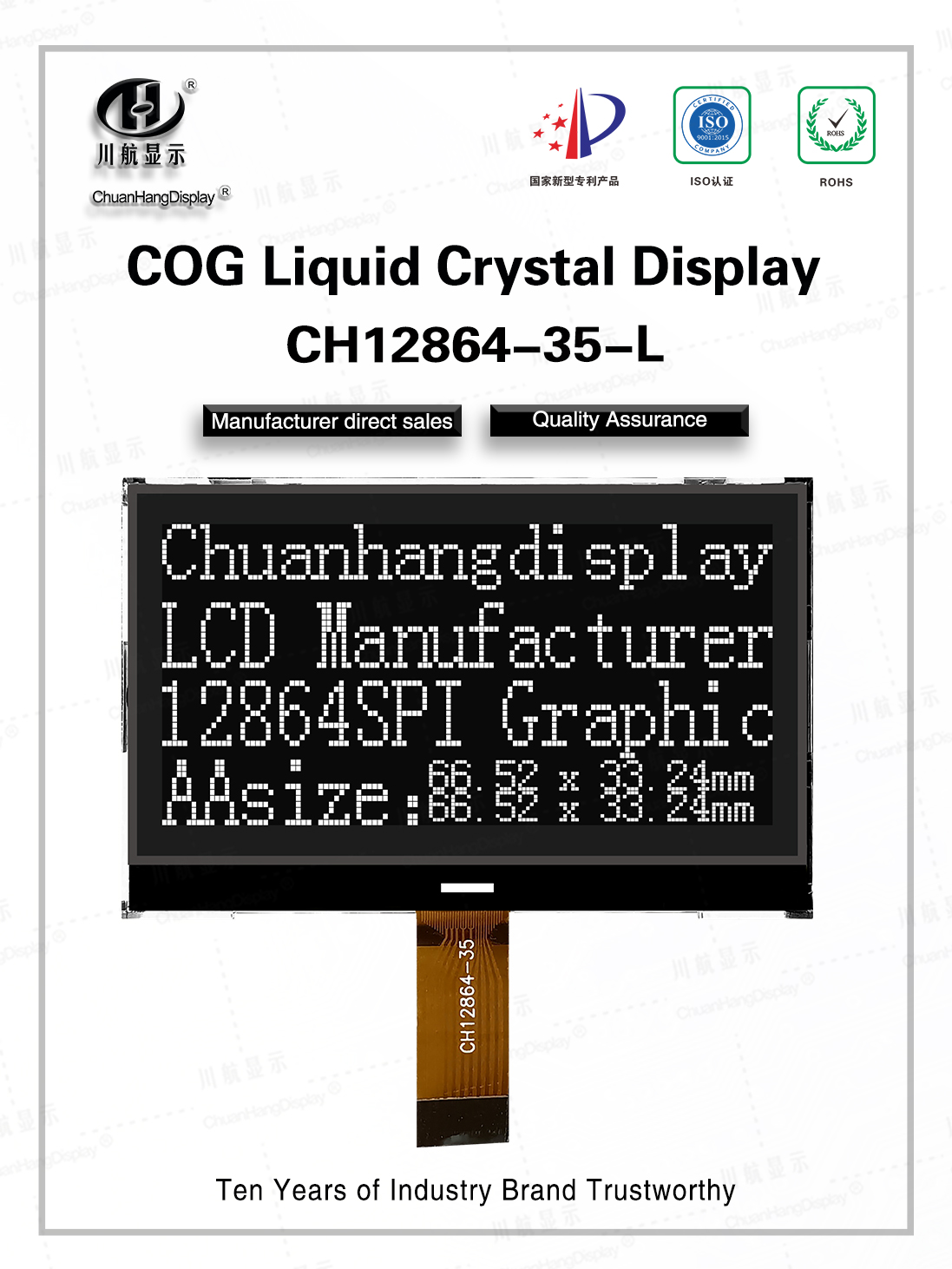

CH12864-35- L插接128 64 cog lcd

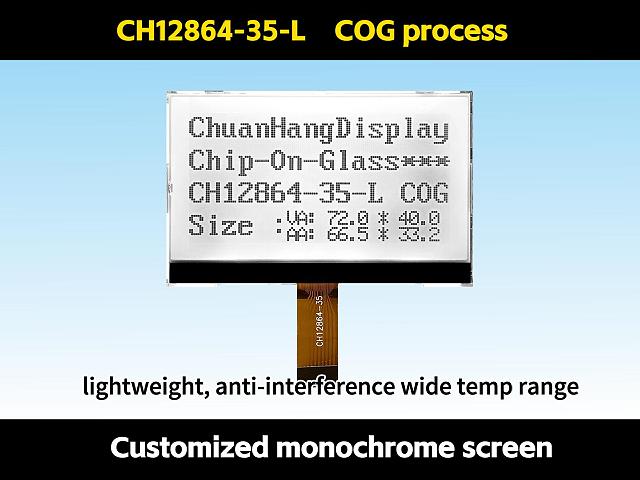

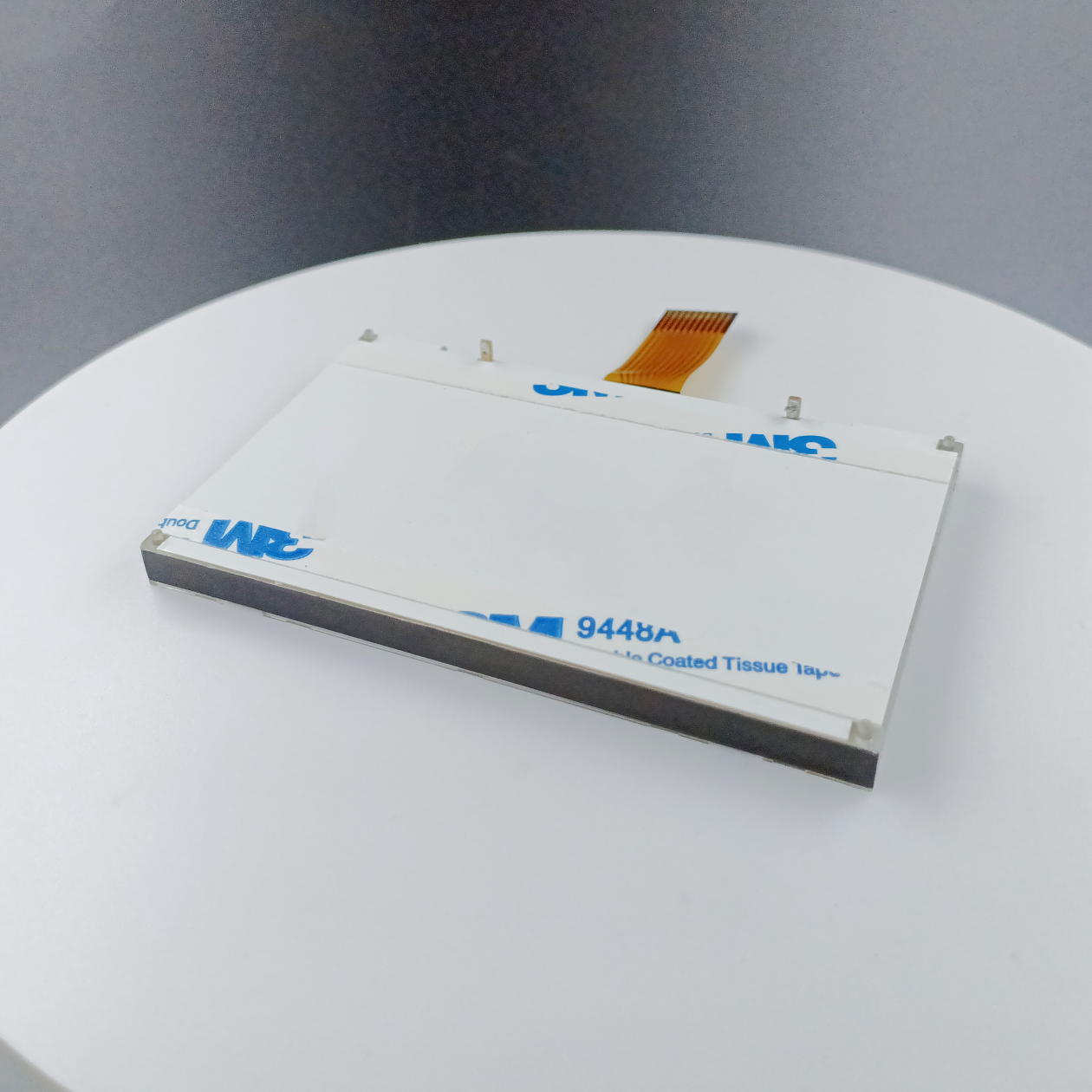

Product Description

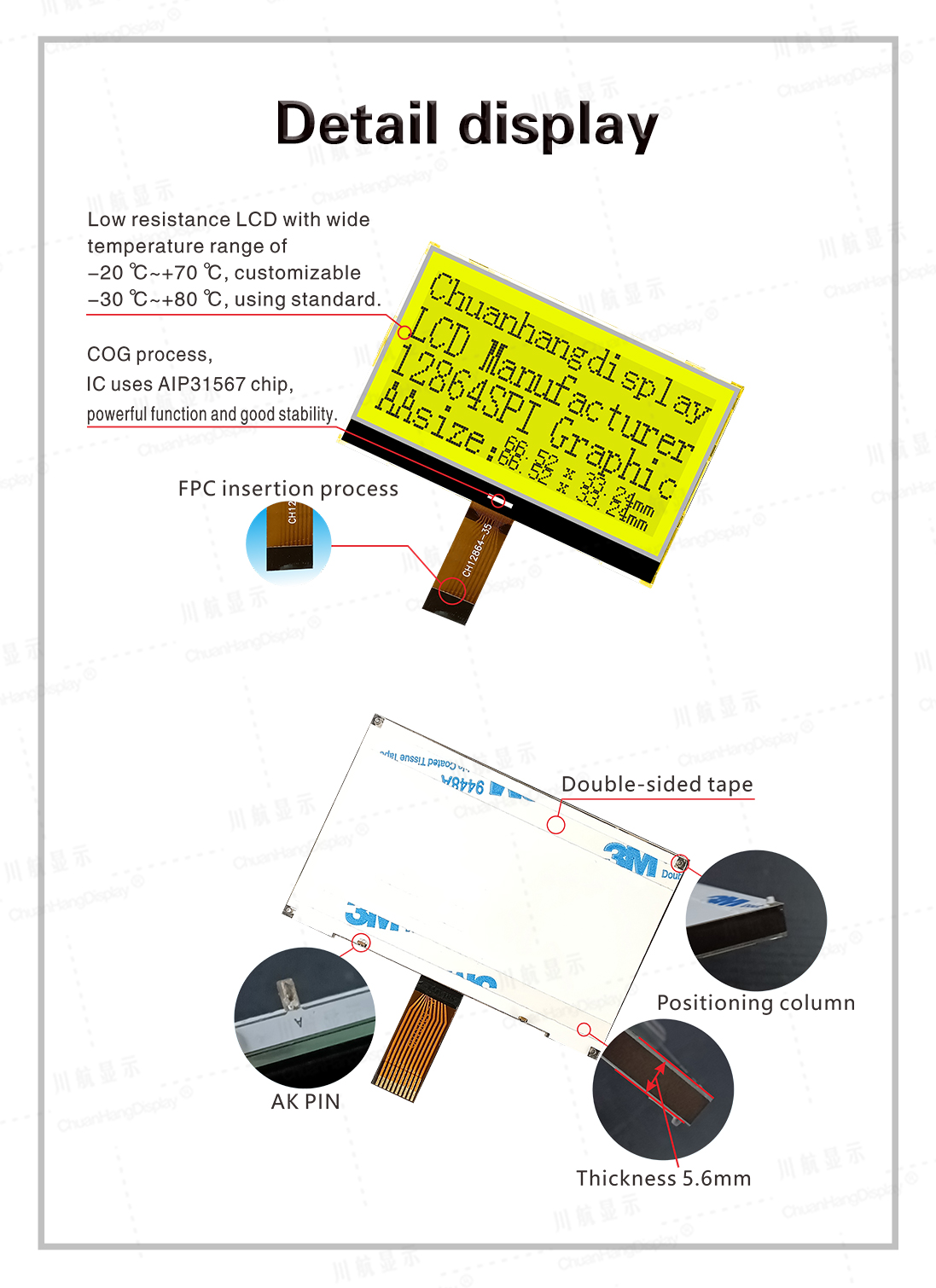

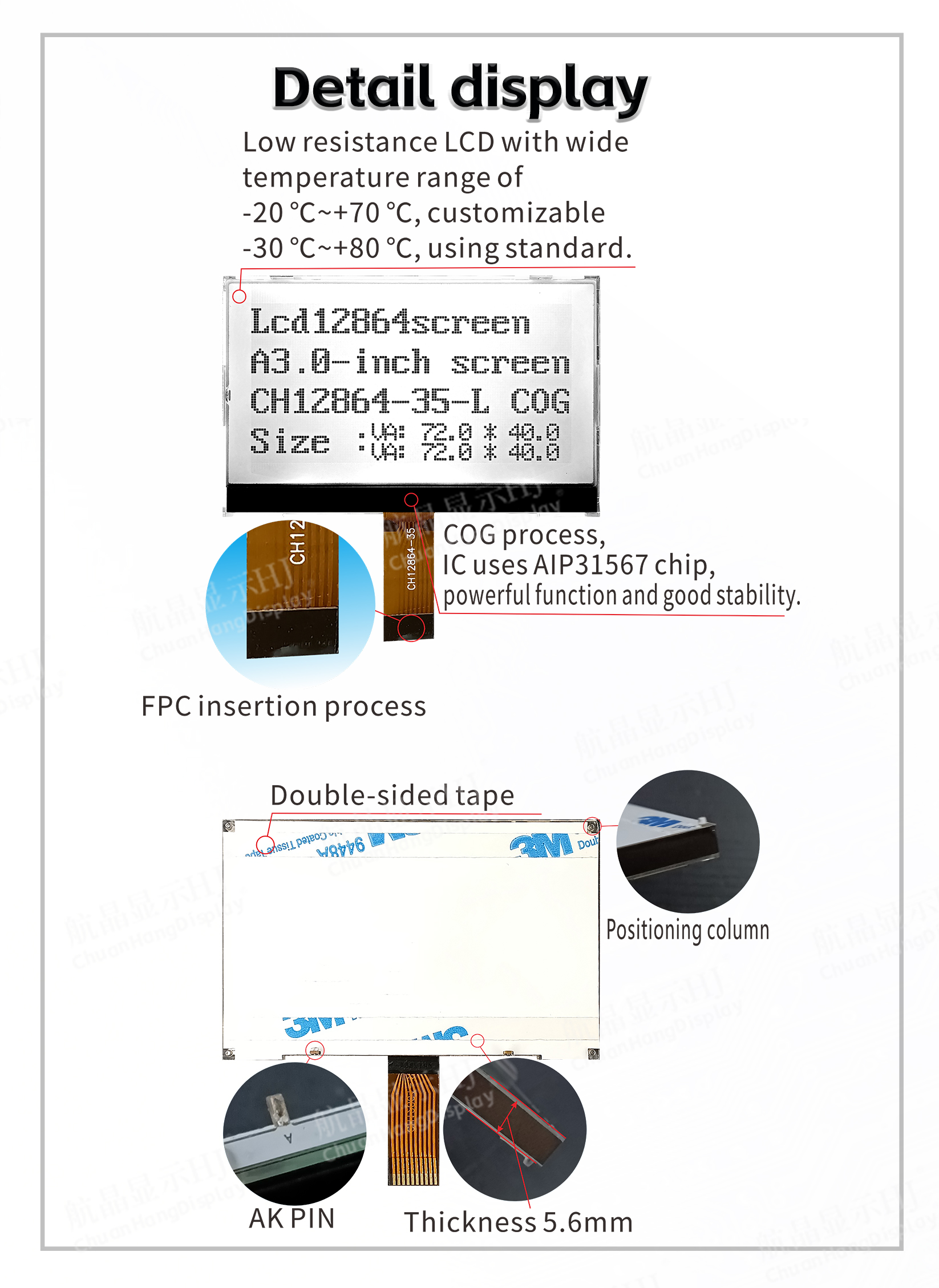

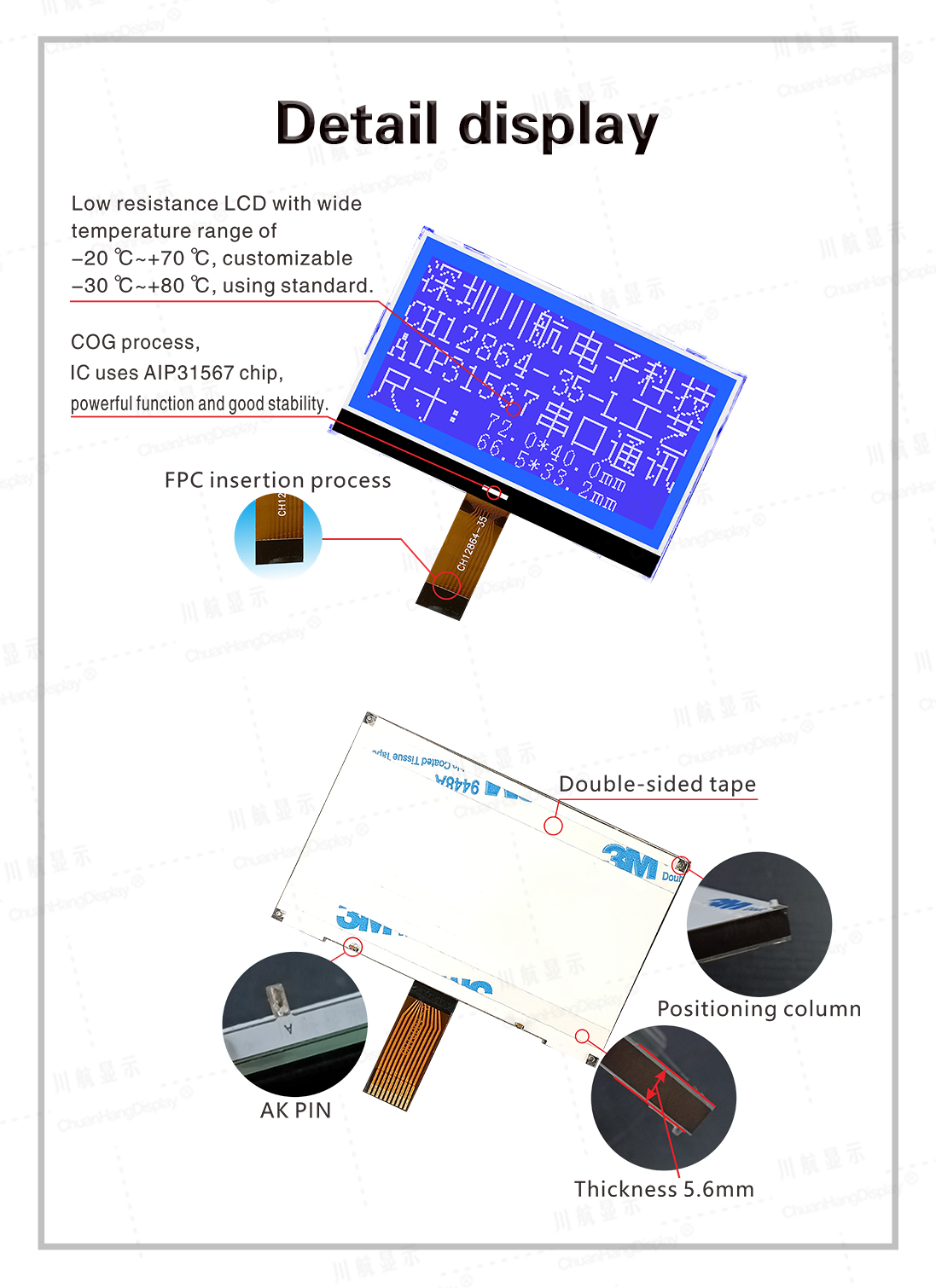

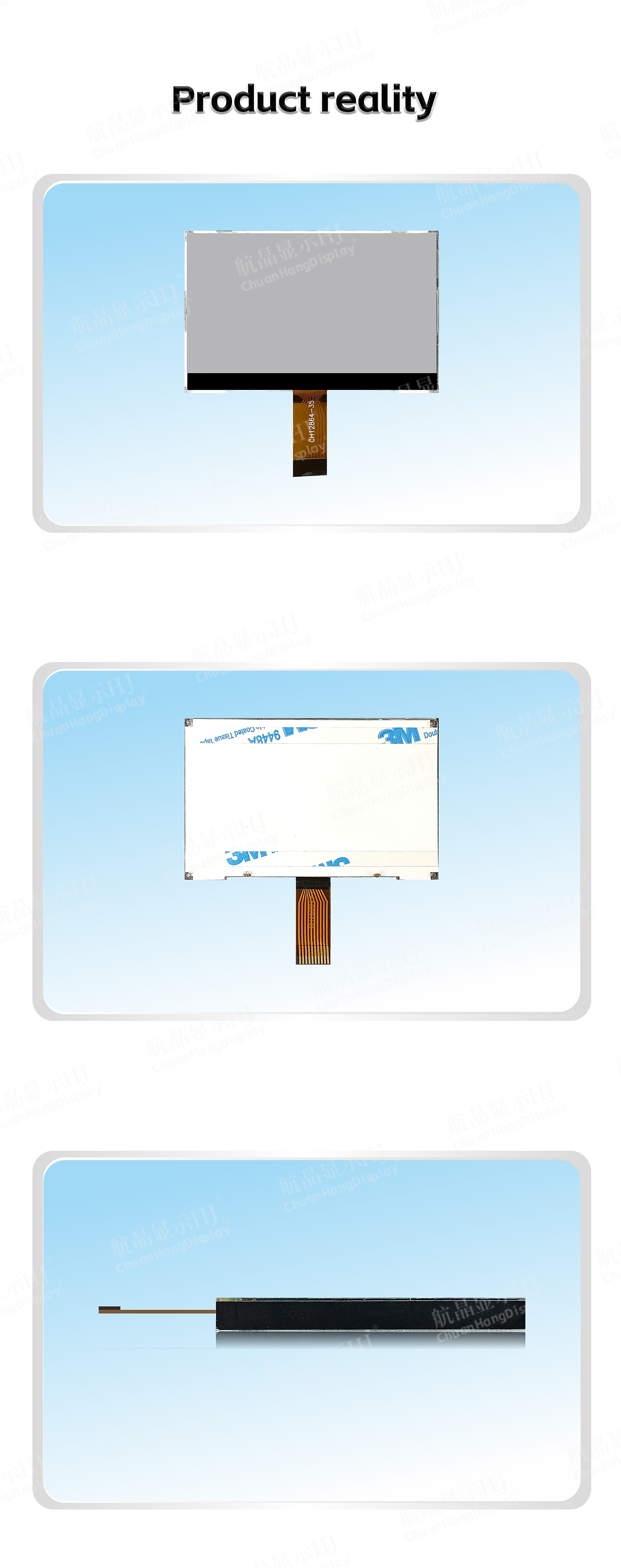

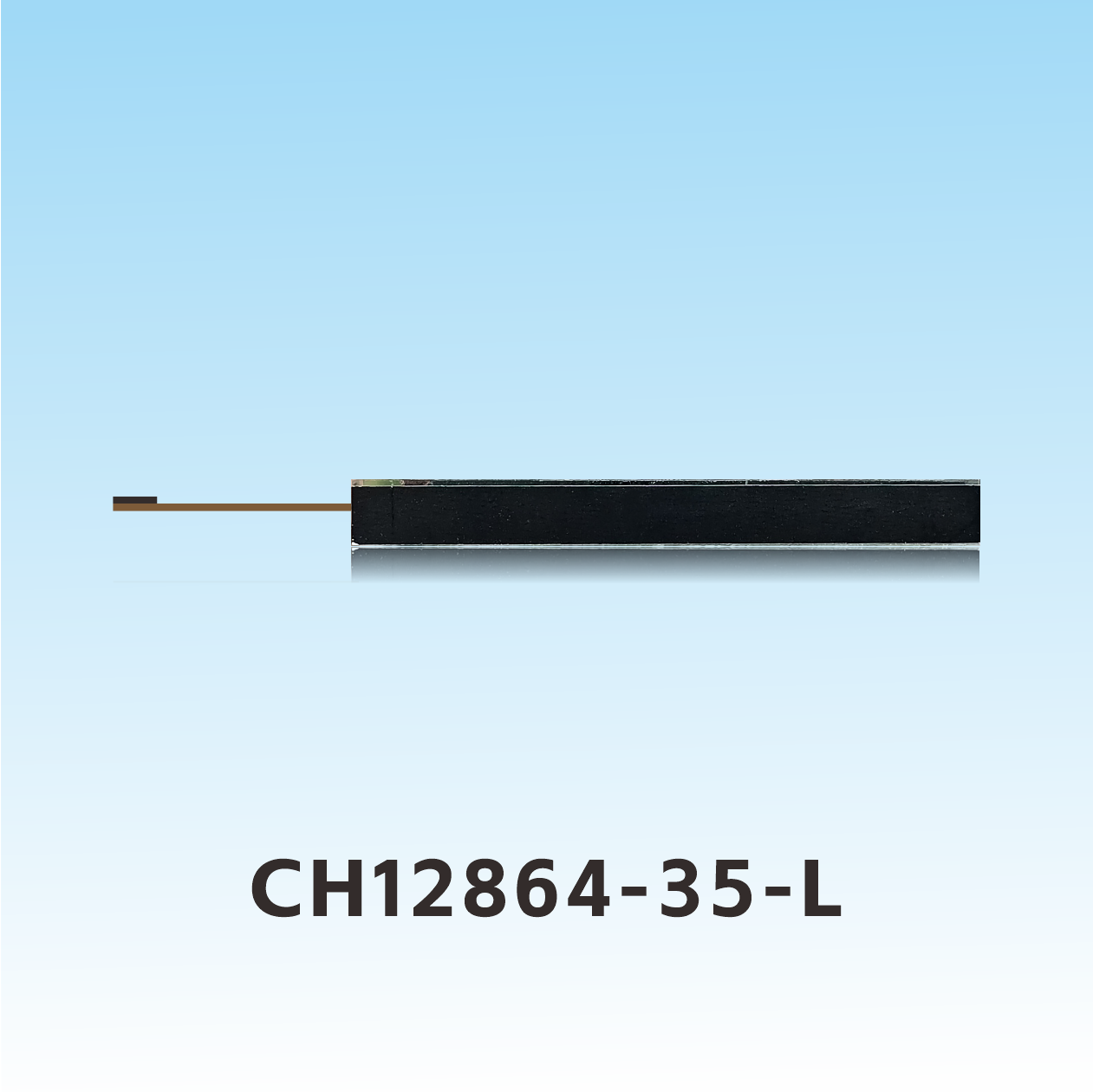

1.1 COG process, FPC soft wiring is a plug-in interface, the product has a backlight, thin thickness and stable structure.
1.2 IC uses AIP31567. There is no font library in the chip, and the programmer compiles his own font library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, backlight current within 100mA.
1.4 LED backlight A and K are PCB boards. A and K need a separate power supply of 2.9V~3.0V.
1.5 Product features:
The built-in display data RAM is 64x128 bits. Multiple external capacitors generate boost.
The contrast ratio is adjusted by the software.
One screen shows 8 characters x 4 lines (16x16 dots).
Single picture ≦128x64 dot matrix. 4-wire SPI interface communication.
Rich functions: interface display on/off, positive/reverse display.

PDF Download Demo code

Video Presentation

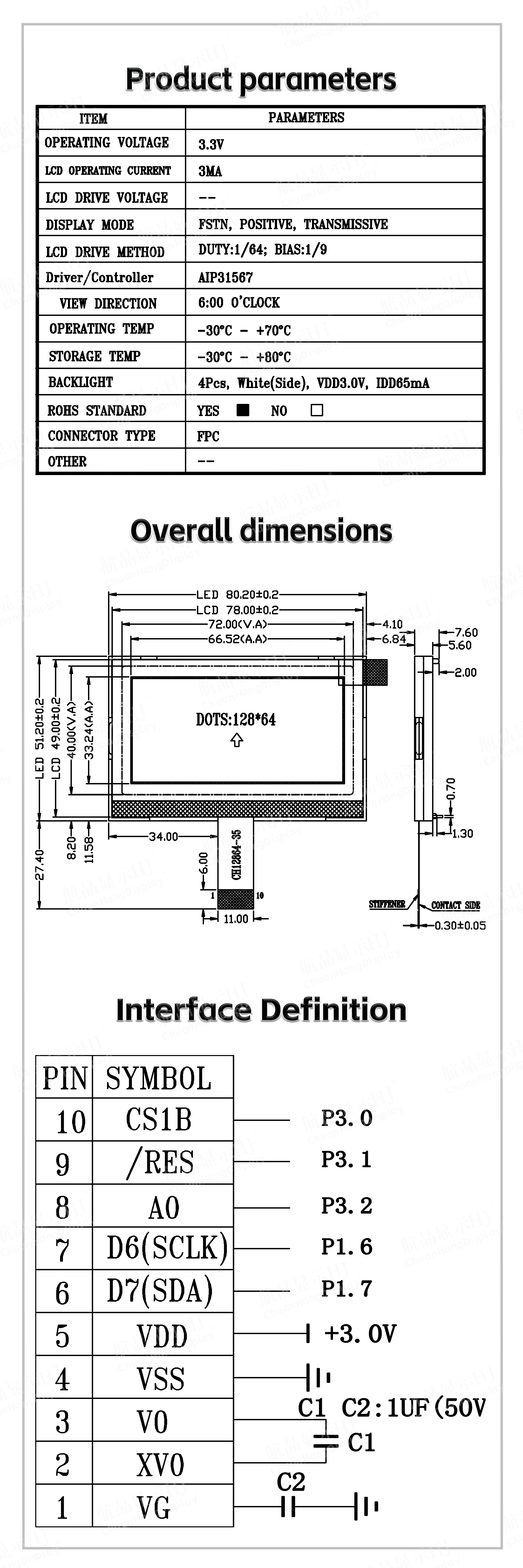

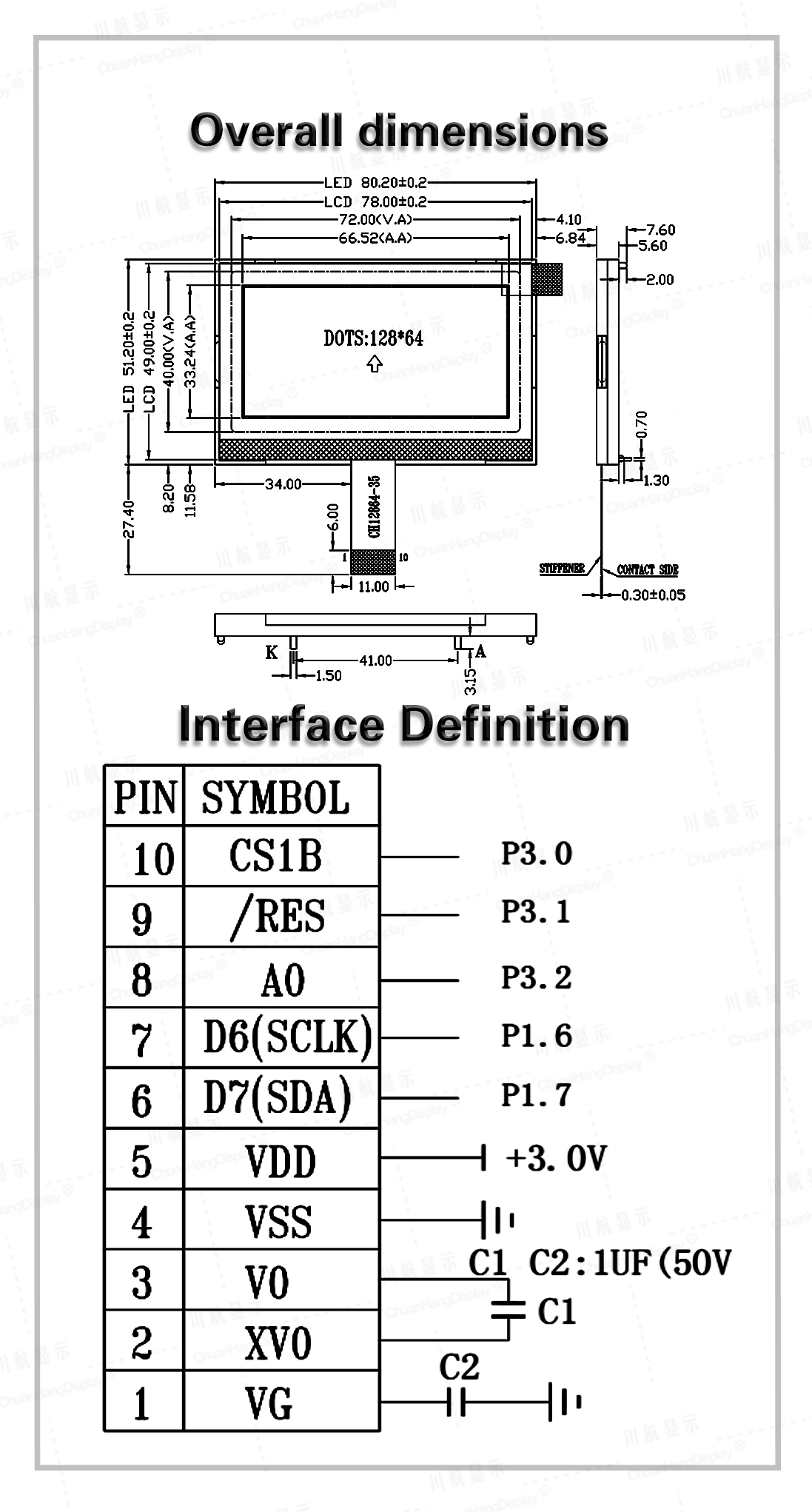

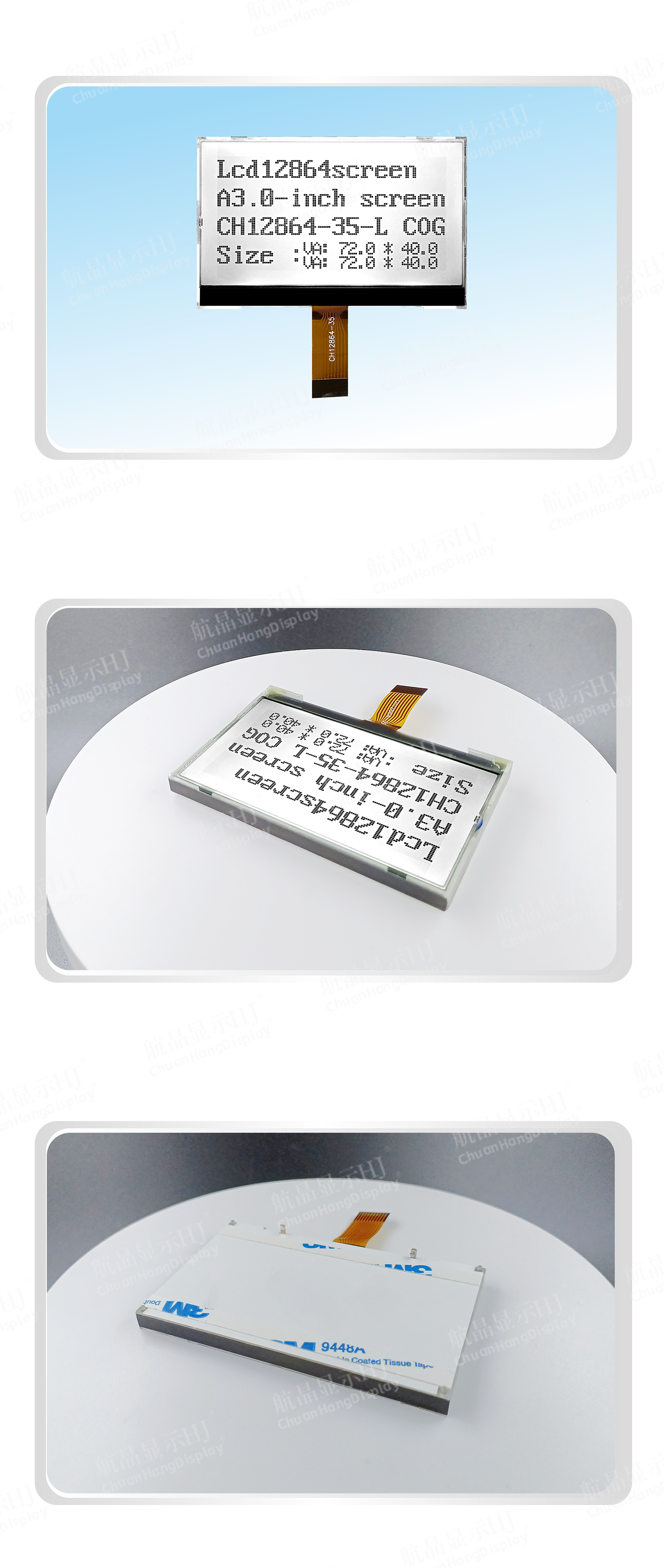

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864-35- L插接
Resolution	128x64	screen size
Outline Dimension(LWH)	80.20x51.20x7.60mm	Visible Area(L*W)	72.00x40.00mm
Active Area(L*W)	66.52x33.24mm	Character Size(L*W)
Type	COG	Connection Method	FPC
Supply Voltage	DC 5V/3.3V	Interface Type	4-bit or 8-bit parallel port
Viewing Direction	6 O'CLOCK	Driving Method	1/16Duty,1/5Bias
Display Type		Driver IC	AIP31066
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	DC 5V/3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO
