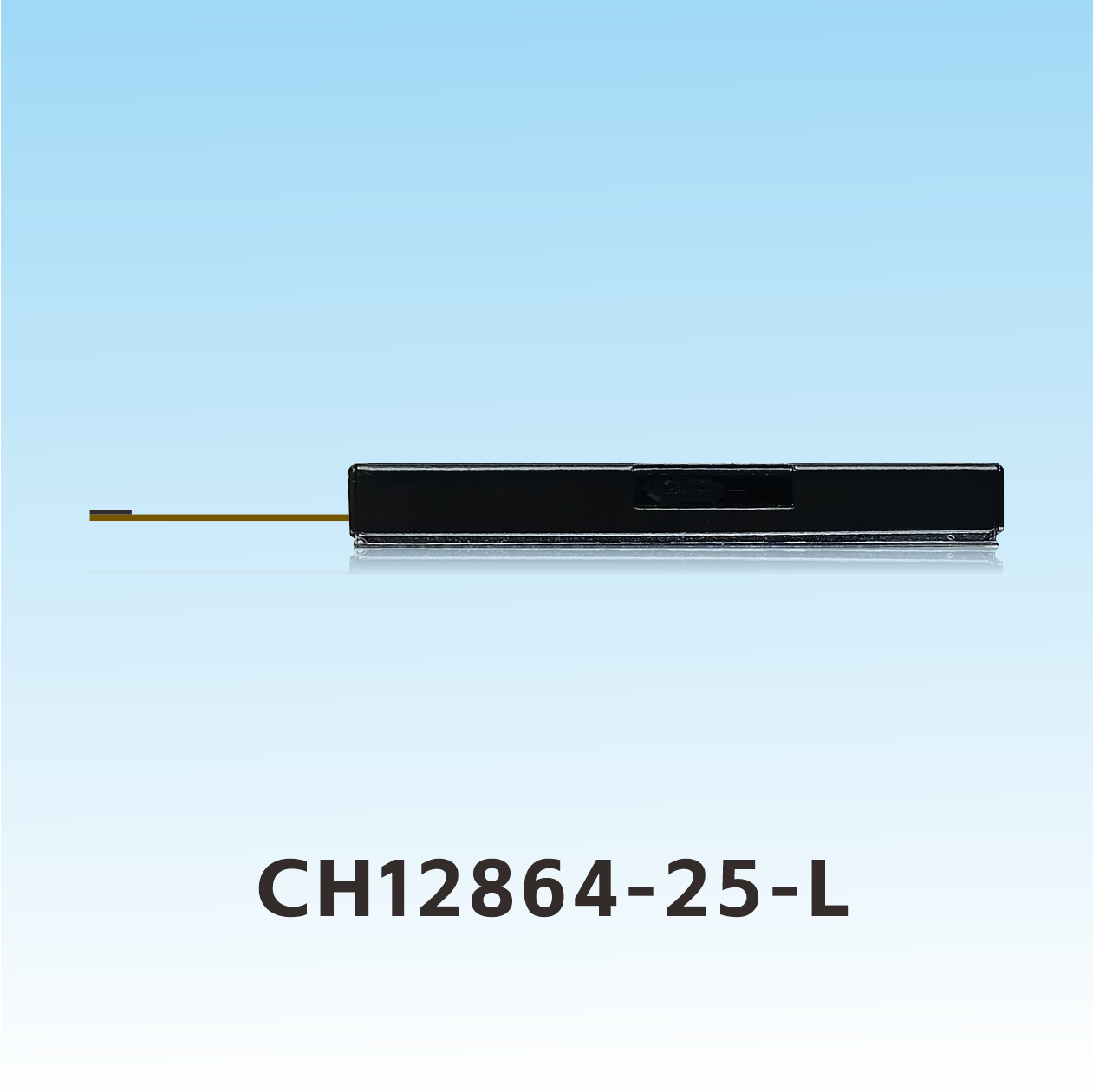

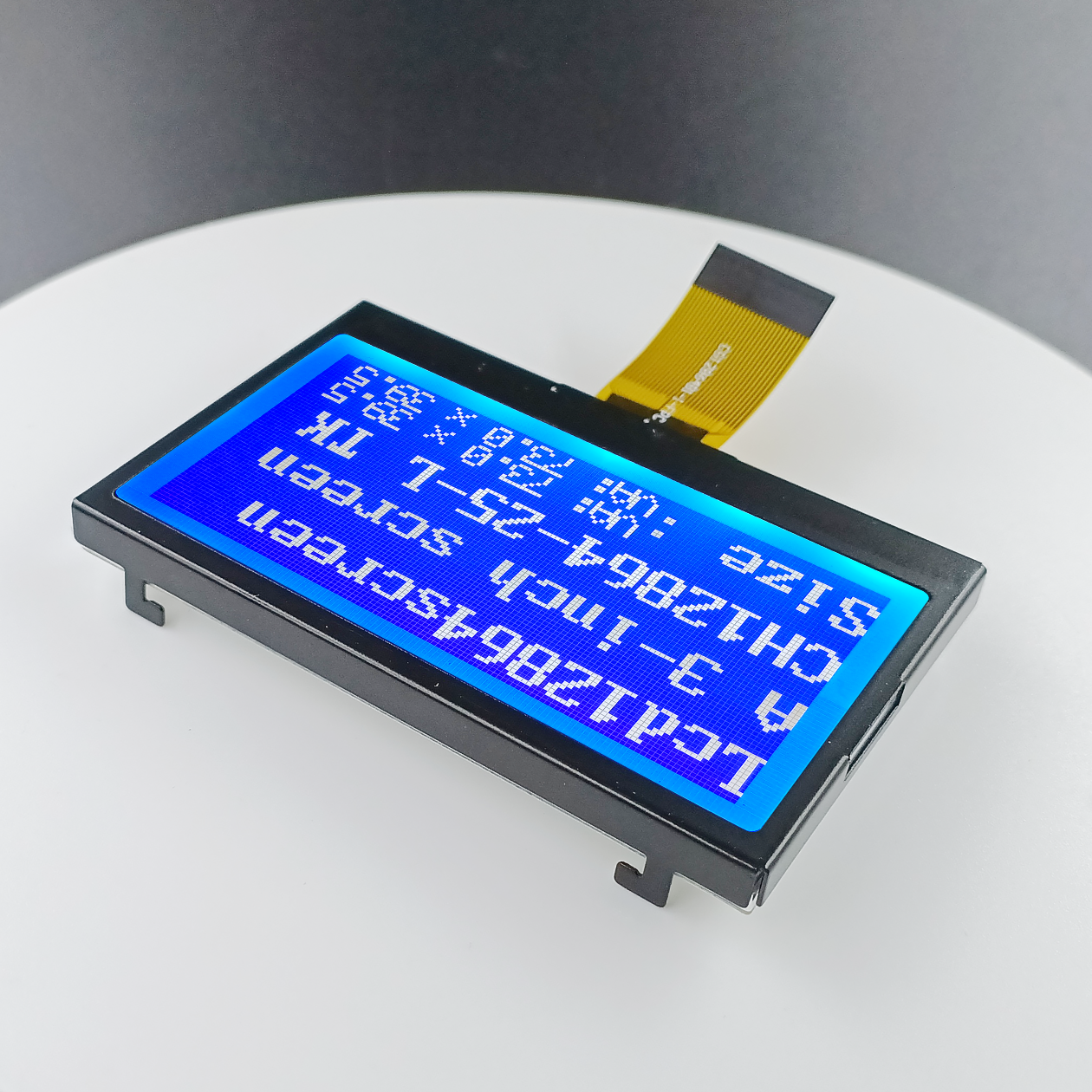

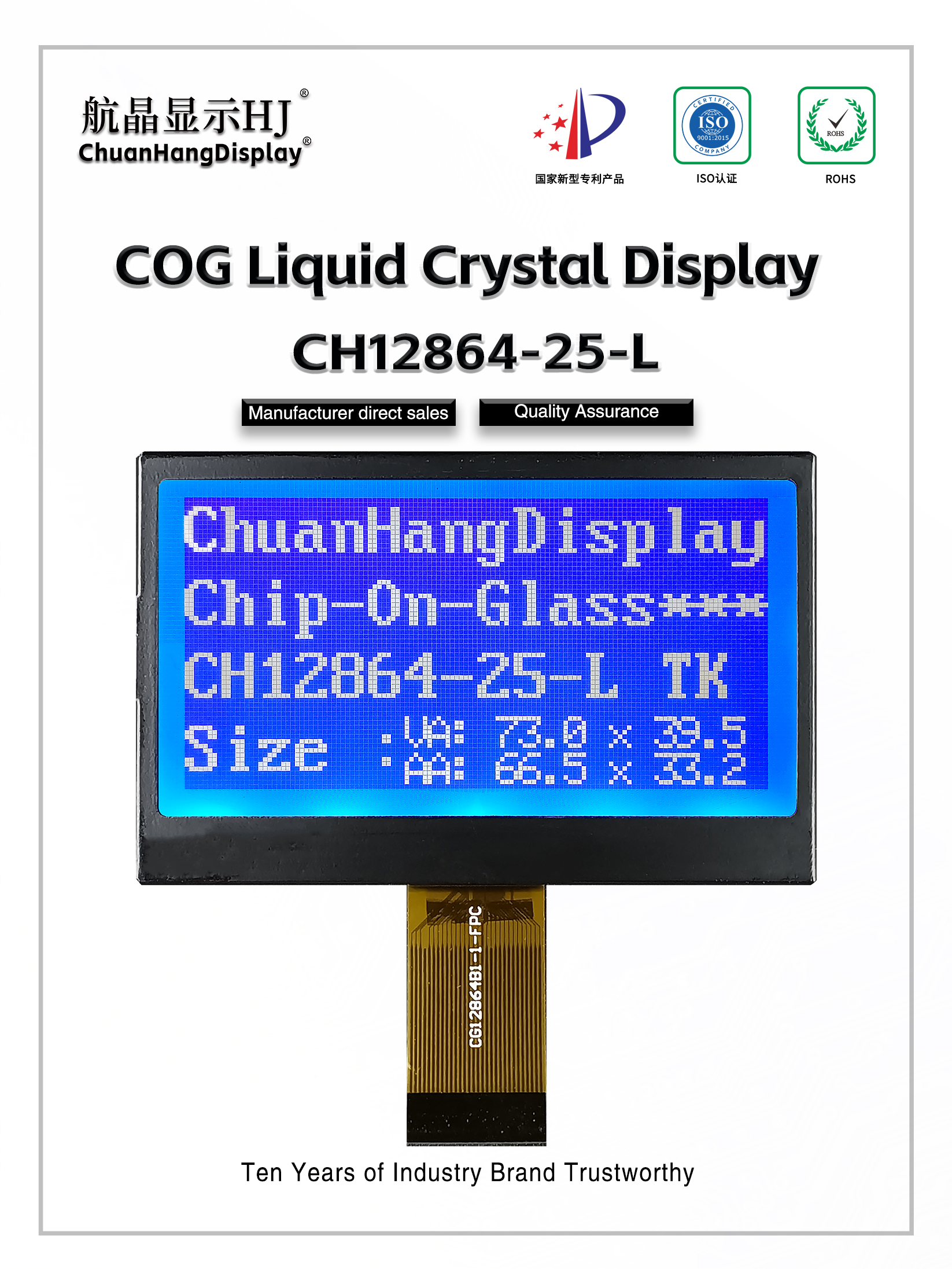

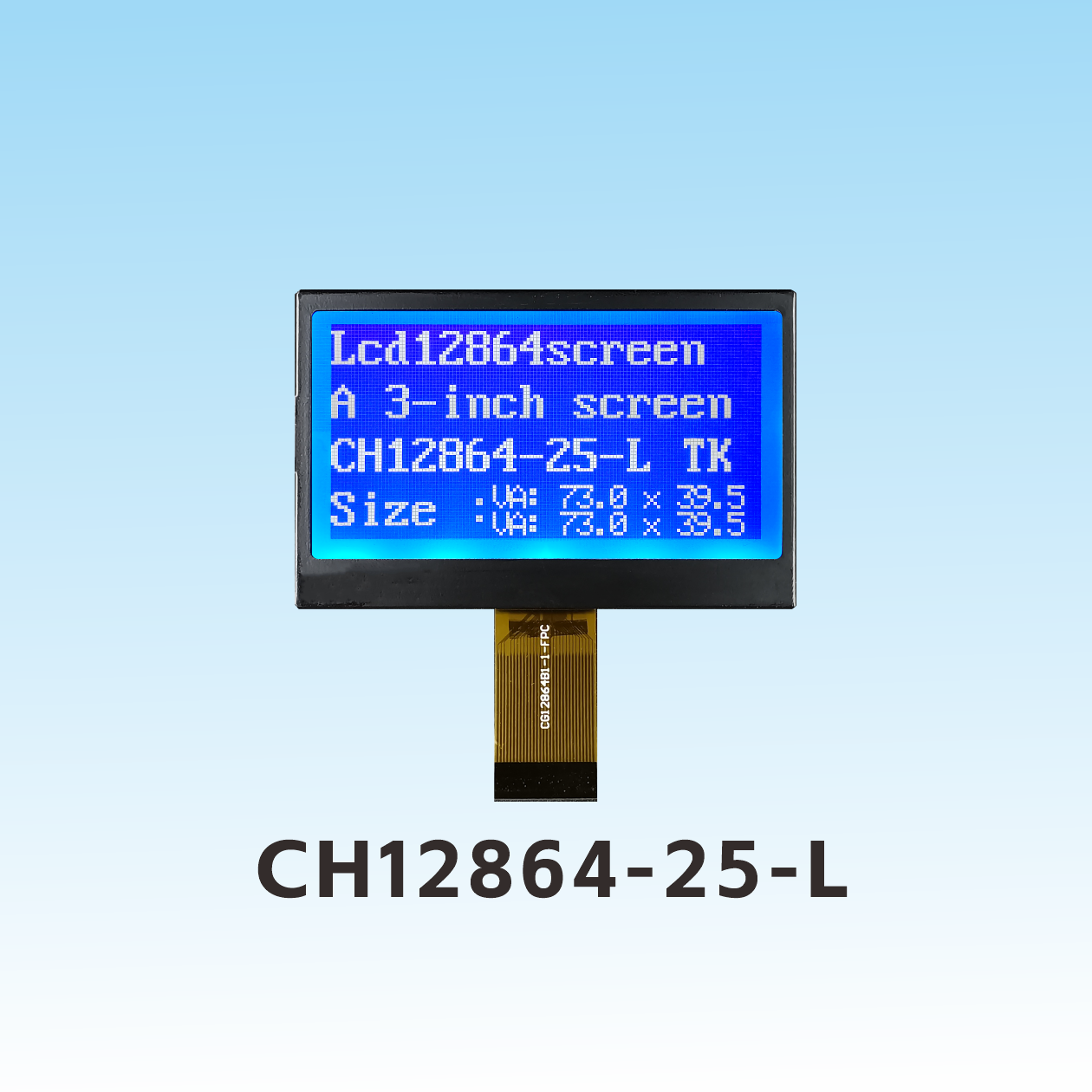

CH12864-25- L 12864 display price

Product Description

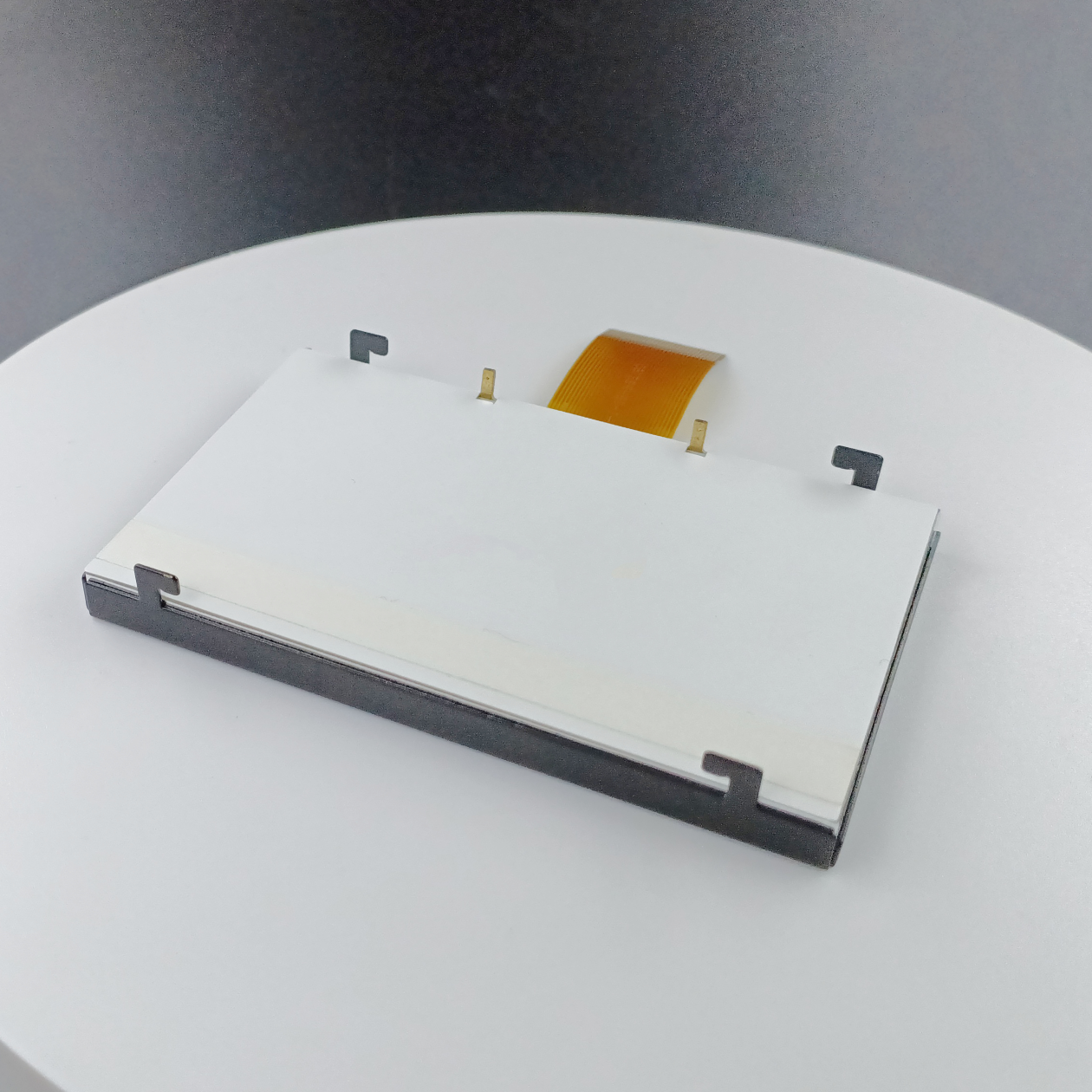

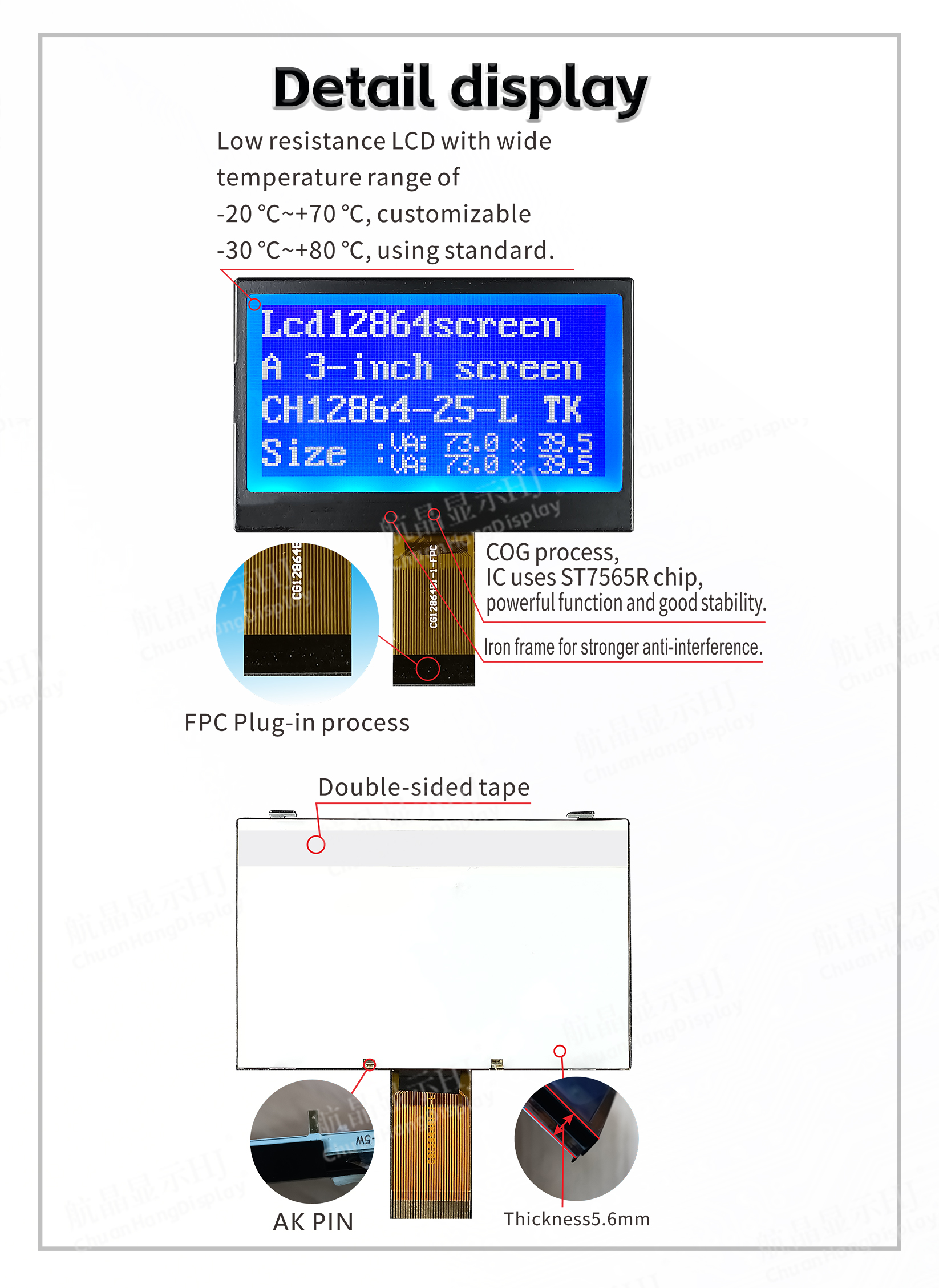

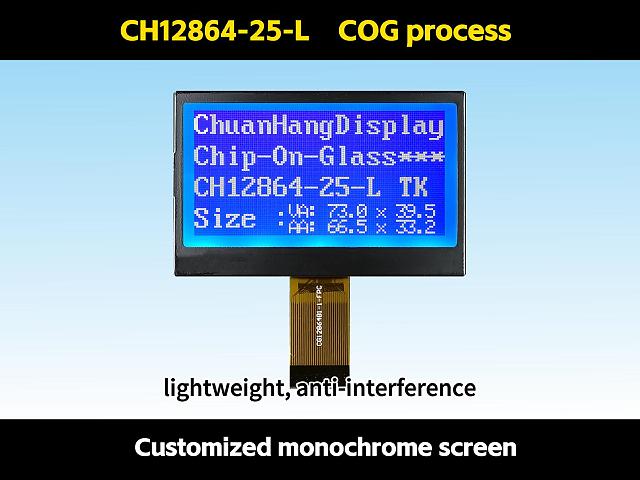

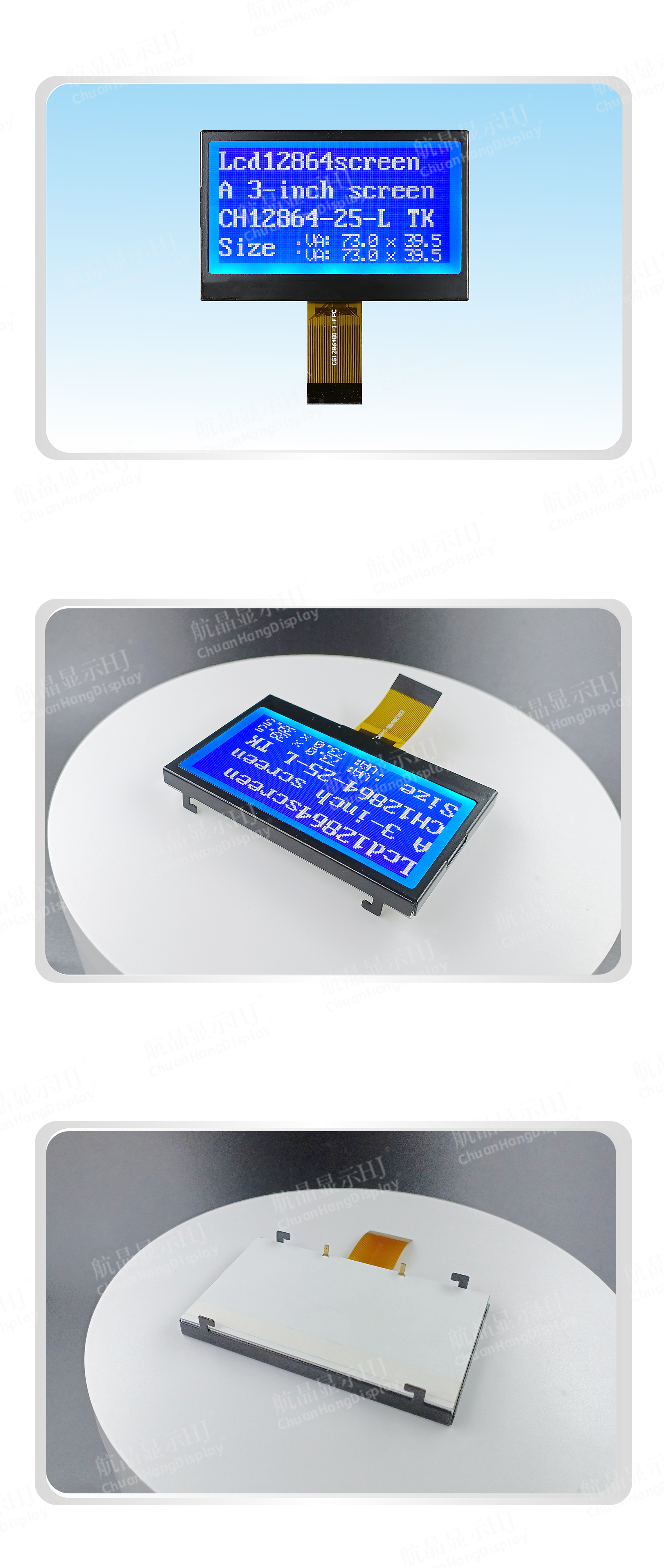

1.1 COG process, FPC flexible cable as plug interface, product with backlight, iron frame, assembled, thin thickness, stable structure.
1.2IC uses ST7565R, and there is no font library inside the chip. Programmers can create their own font library.
1.3 Low power consumption, 3.3V power mode, no backlight current within 1mA, with backlight current within 60mA.
1.4 LED backlight A and K are PCB boards, and A and K require separate power supply of 2.9V~3.0V.
1.5 Product Features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates a boost.
The contrast is adjusted by software to adjust depth and depth.
One screen displays 8 characters x 4 lines (16x16 dot matrix).
Single image ≤ 128x64 dot matrix.
4-wire SPI interface communication.
Rich features:
The interface displays on/off, forward/reverse.

PDF Download Demo code

Video Presentation

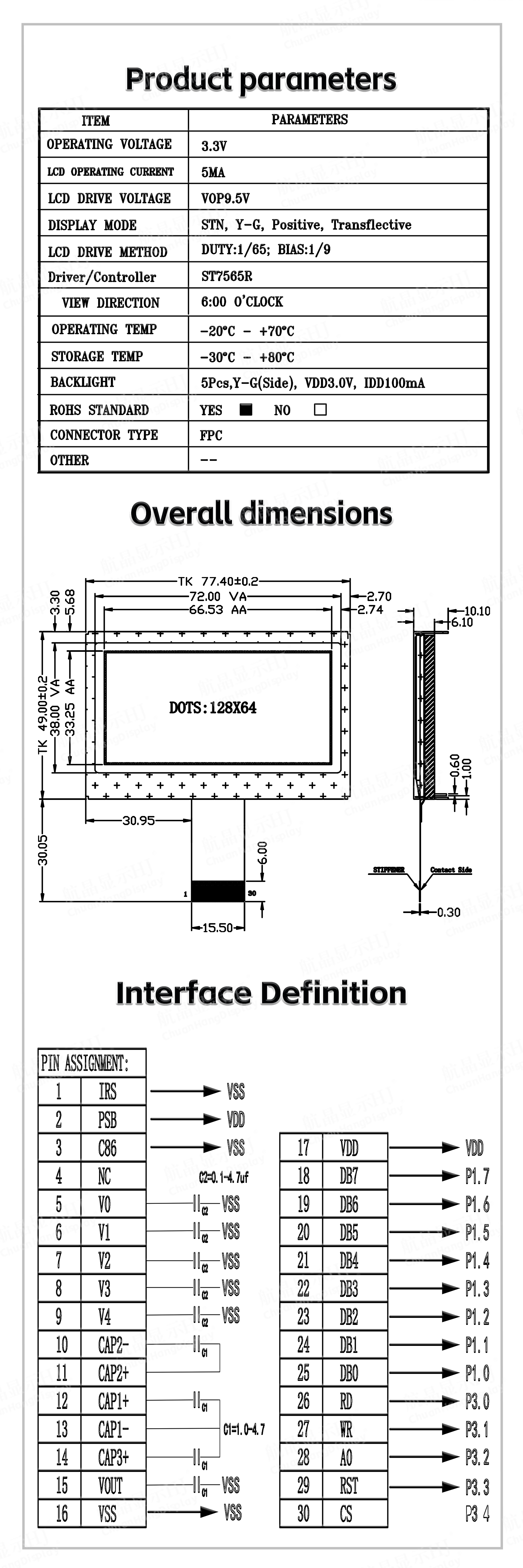

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864-27- L
Resolution	128x64	screen size
Outline Dimension(LWH)	76.0x48.0x5.6mm	Visible Area(L*W)	73.0x39.5mm
Active Area(L*W)	66.53x33.25mm	Dot Size (mm)	0.49(L)x0.49(W)
Type	COG	Connection Method	FPC
Supply Voltage	3.3V	Interface Type	MCU/SPI
Viewing Direction	6 O'CLOCK	Driving Method	1/64Duty
Display Type	STN	Driver IC	ST7565R
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO
