CH12864-35- L

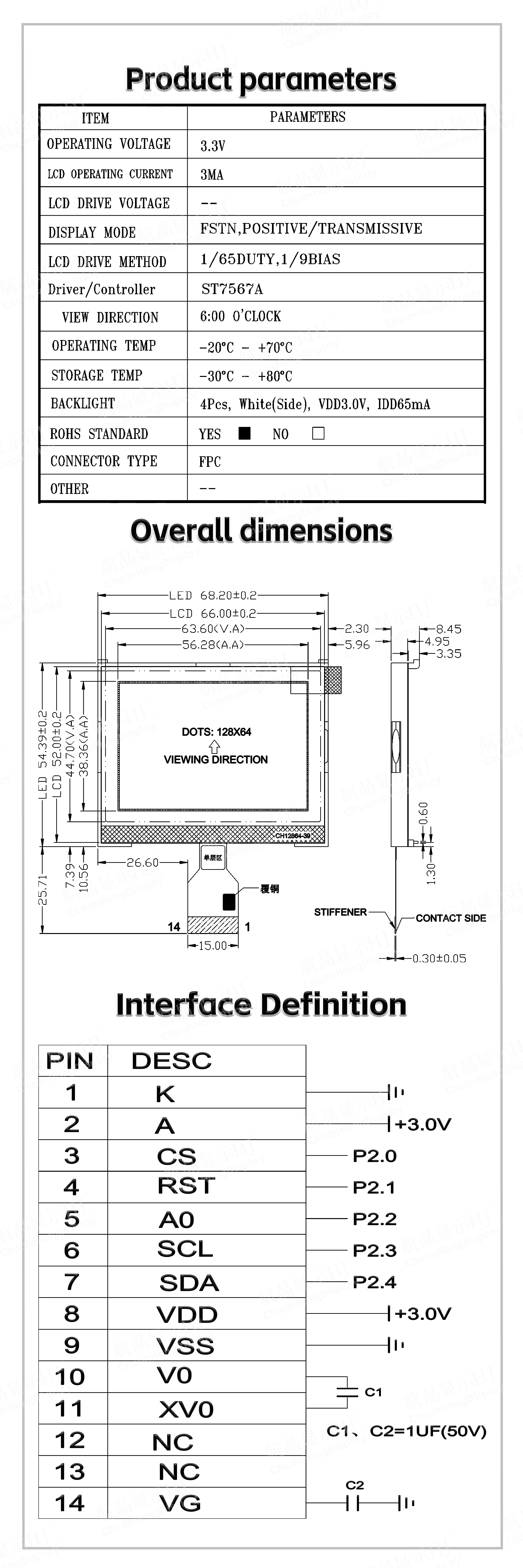

Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH12864-35- L |
| Resolution | 128x64 | screen size | |
| Outline Dimension(L*W*H) | 84.2x56.3x6.95mm | Visible Area(L*W) | 78.5x45.5mm |
| Active Area(L*W) | 72.93x39.65mm | Dot Size (mm) | 0.54(L)x0.59(W) |
| Type | COG | Connection Method | FPC |
| Supply Voltage | 3.3V | Interface Type | MCU/SPI |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/64Duty |
| Display Type | FSTN | Driver IC | ST7565R |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 3.3V | production capacity | Self-produced |
| Character libraries | Whether to bring PCB | NO |
