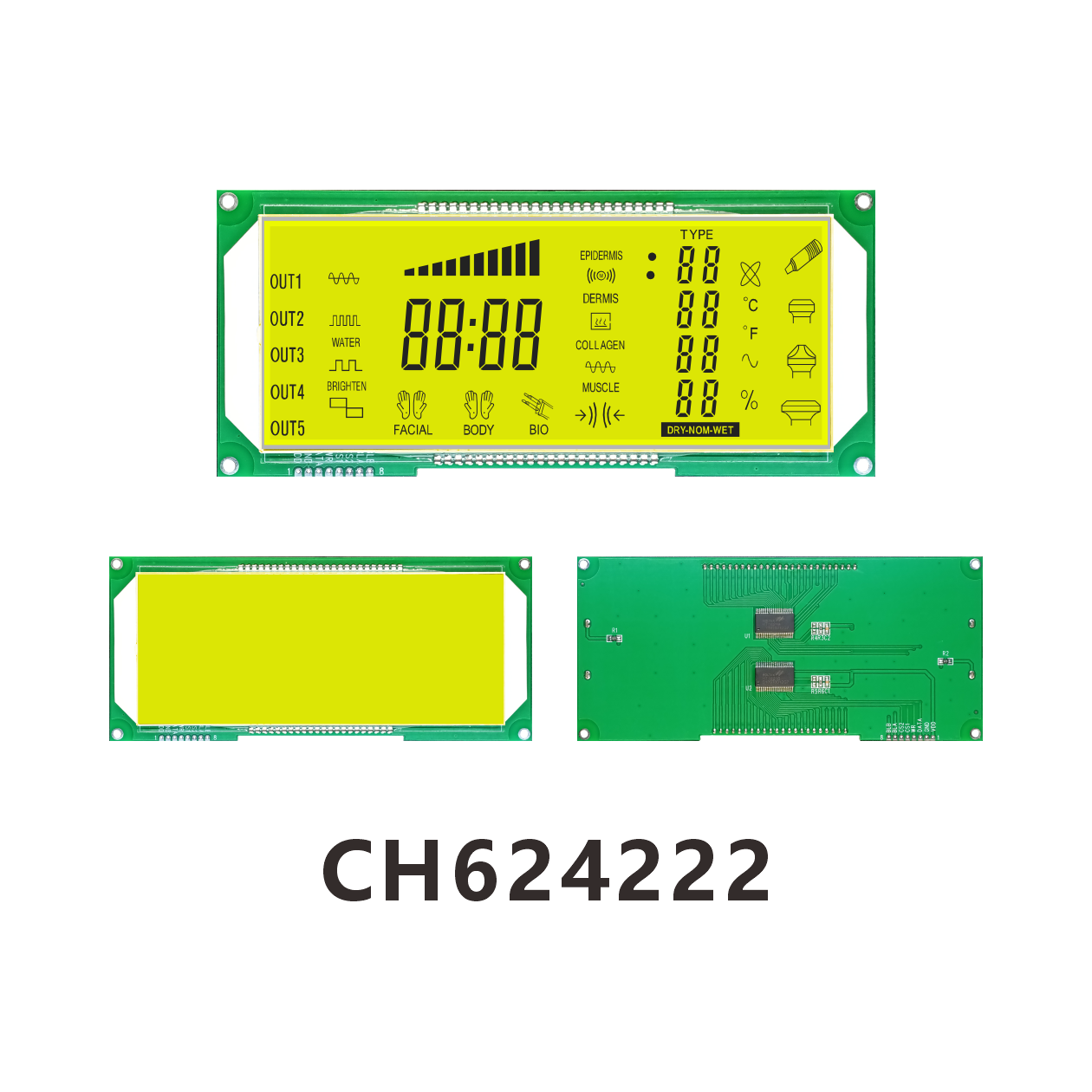

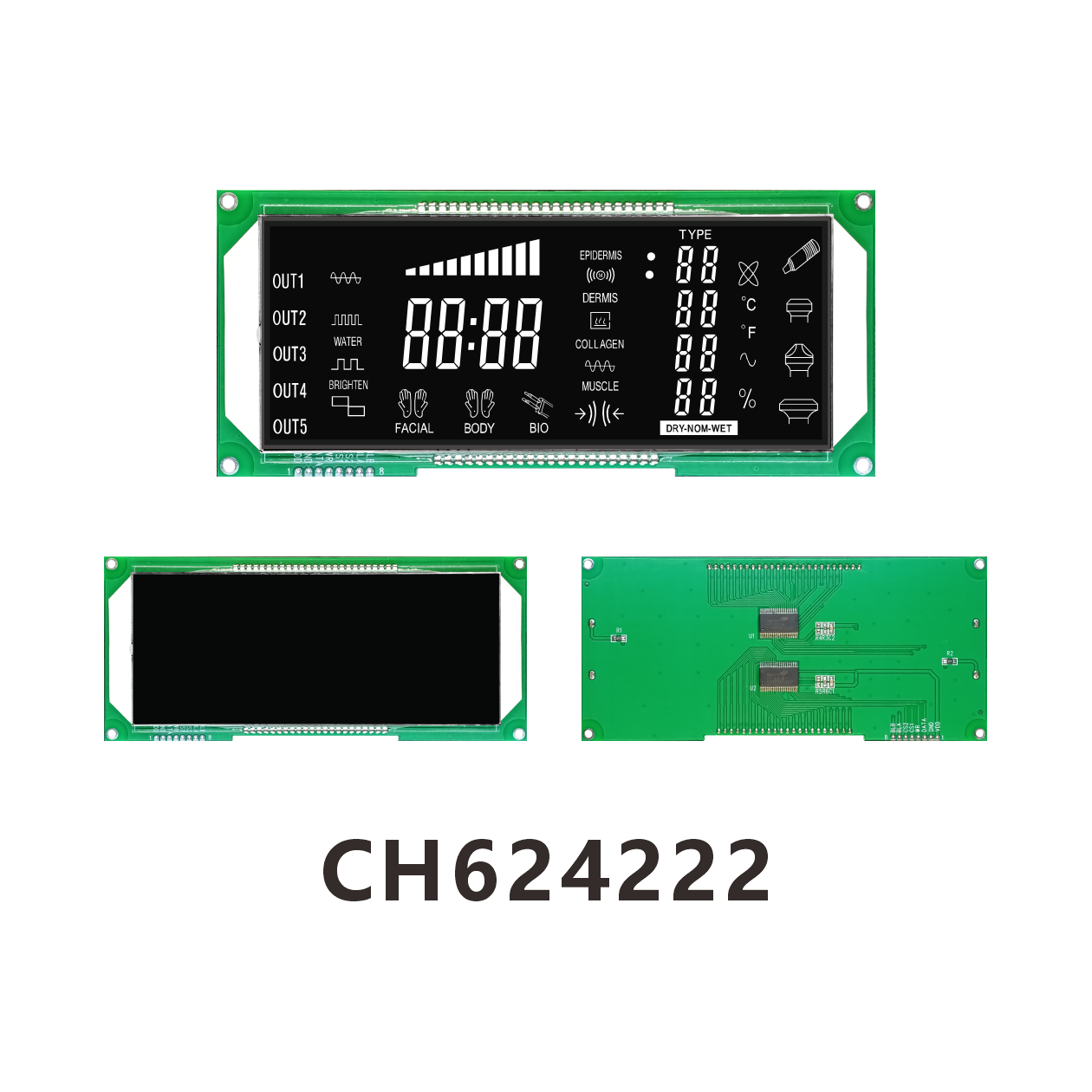

CH624222 Electronic Cashier System Screen

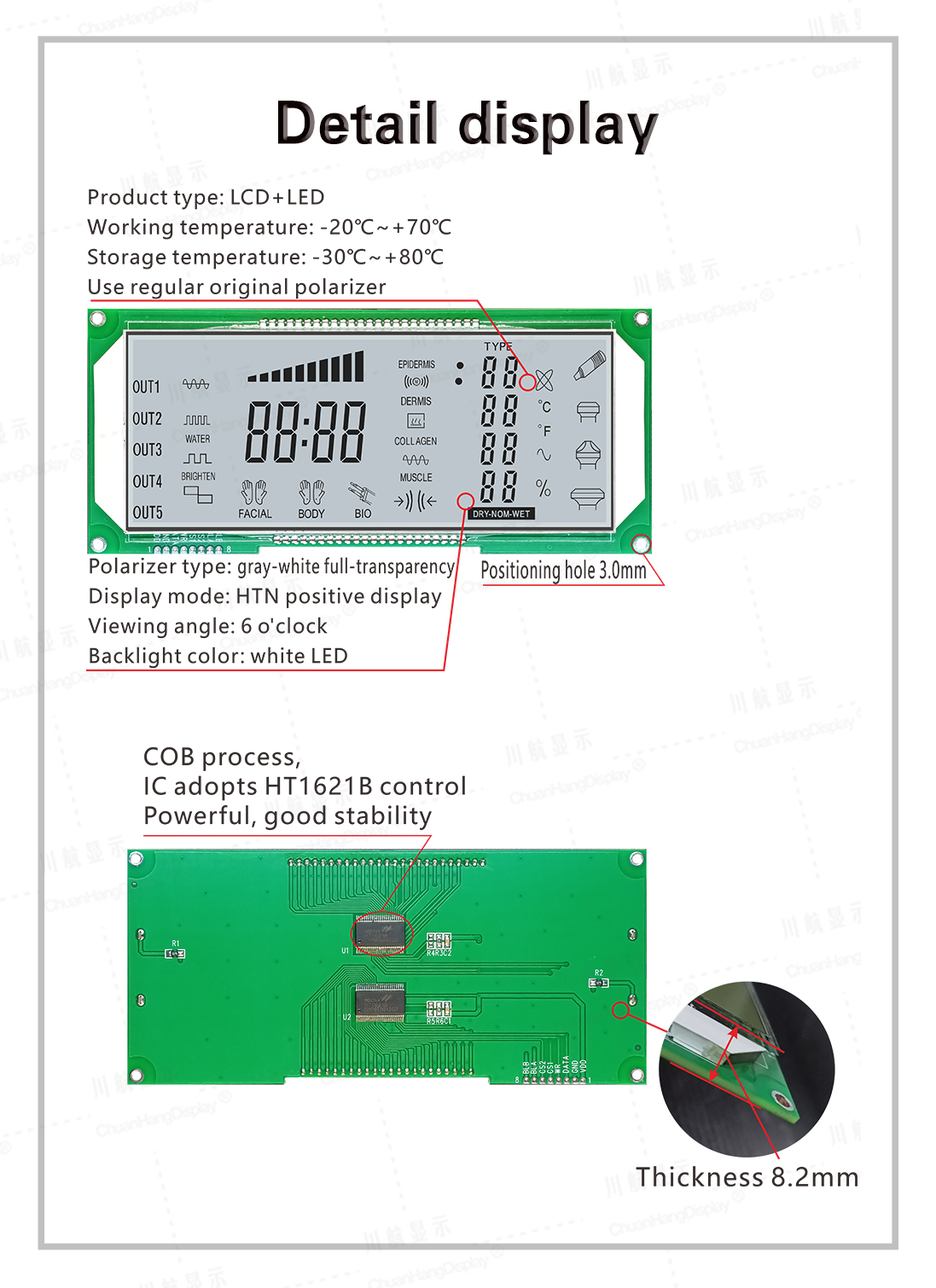

Product Description

LCD Material: HTN LCD
Display Mode: HTN/POSITIVE/TRANSMISSIVE
Polarizer Type: Grey film/full-permeable

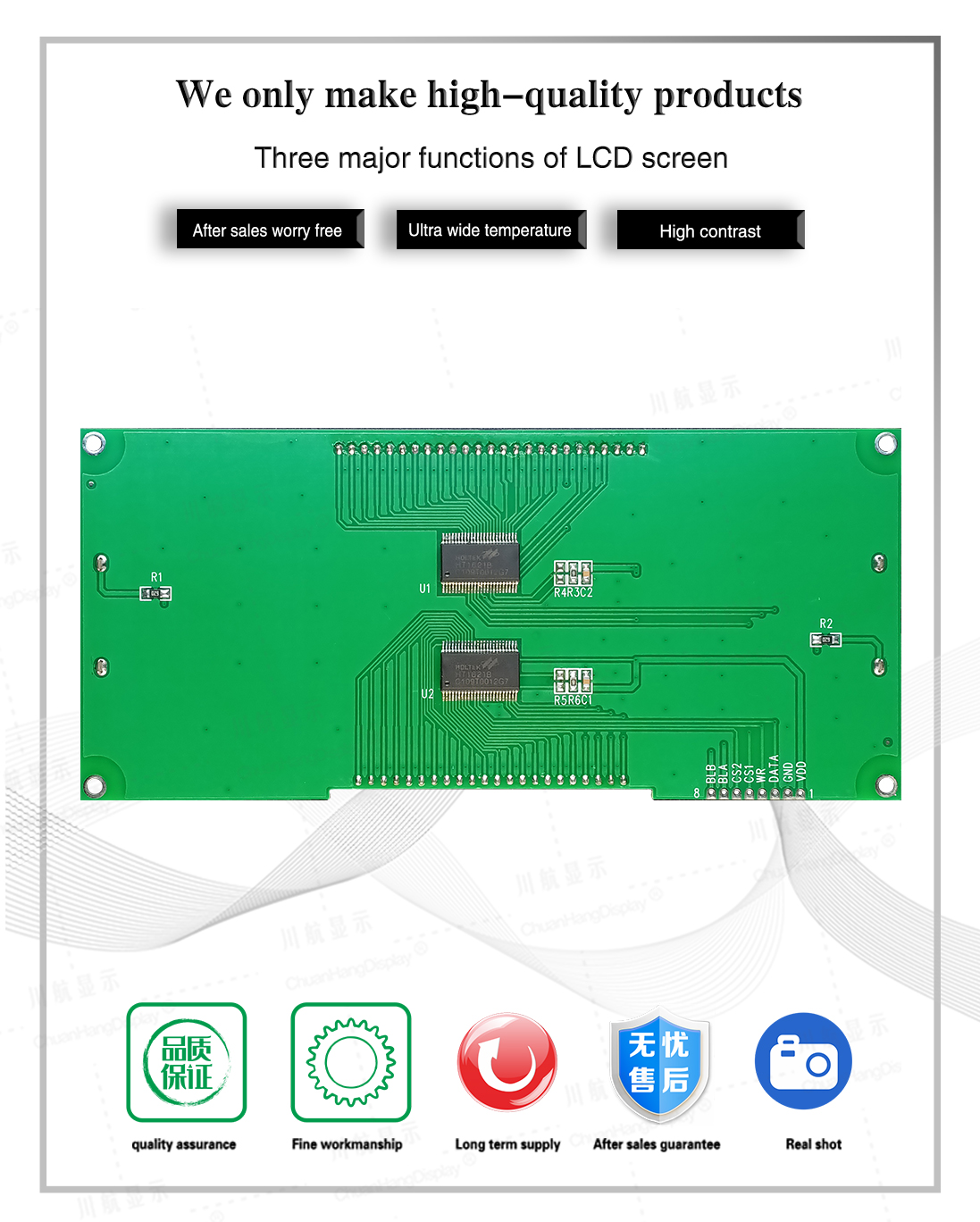

Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 5V
Operating Temperature: -20℃~+70℃
Connection Method: Conductive strip
Backlight ：White LED
Application industry: Electronic cash register system

PDF Download Demo code

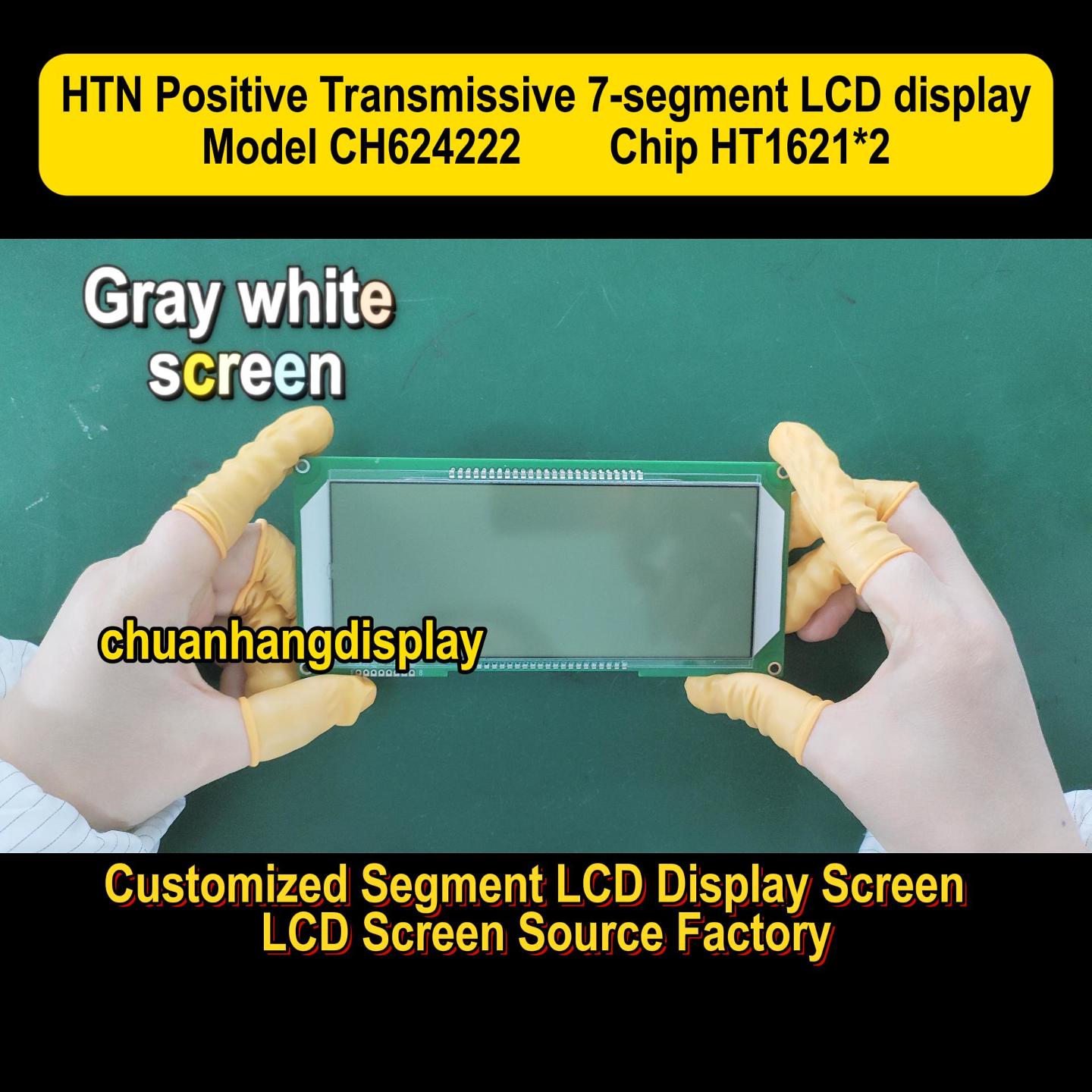

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH624222
Display Mode	HTN/POSITIVE/TRANSMISSIVE	Display Size	Customized

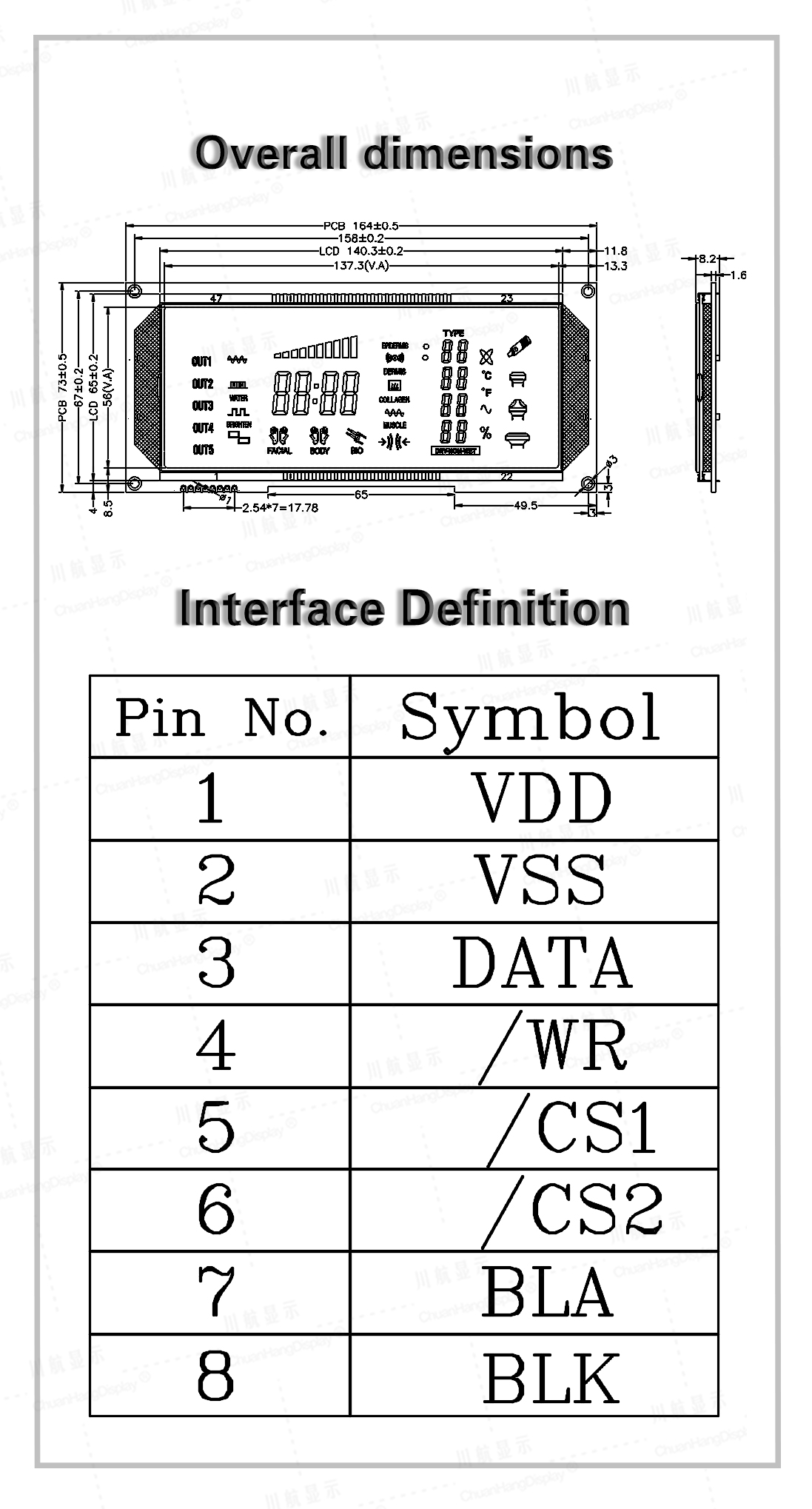

Outline Dimension(LWH)	164.00x73.00x 8.2mm	Visible Area(L*W)	/
Active Area(L*W)	137.3.00x56.00mm	Character Size(L*W)	/
Type	COB	Connection Method	Conductive strip
Supply Voltage	5V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	/
Display Type	HTN	Driver IC	HT1621B
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight	White LED	Production Capacity	Self-produced
Character libraries	/	Whether to bring PCB	YES
