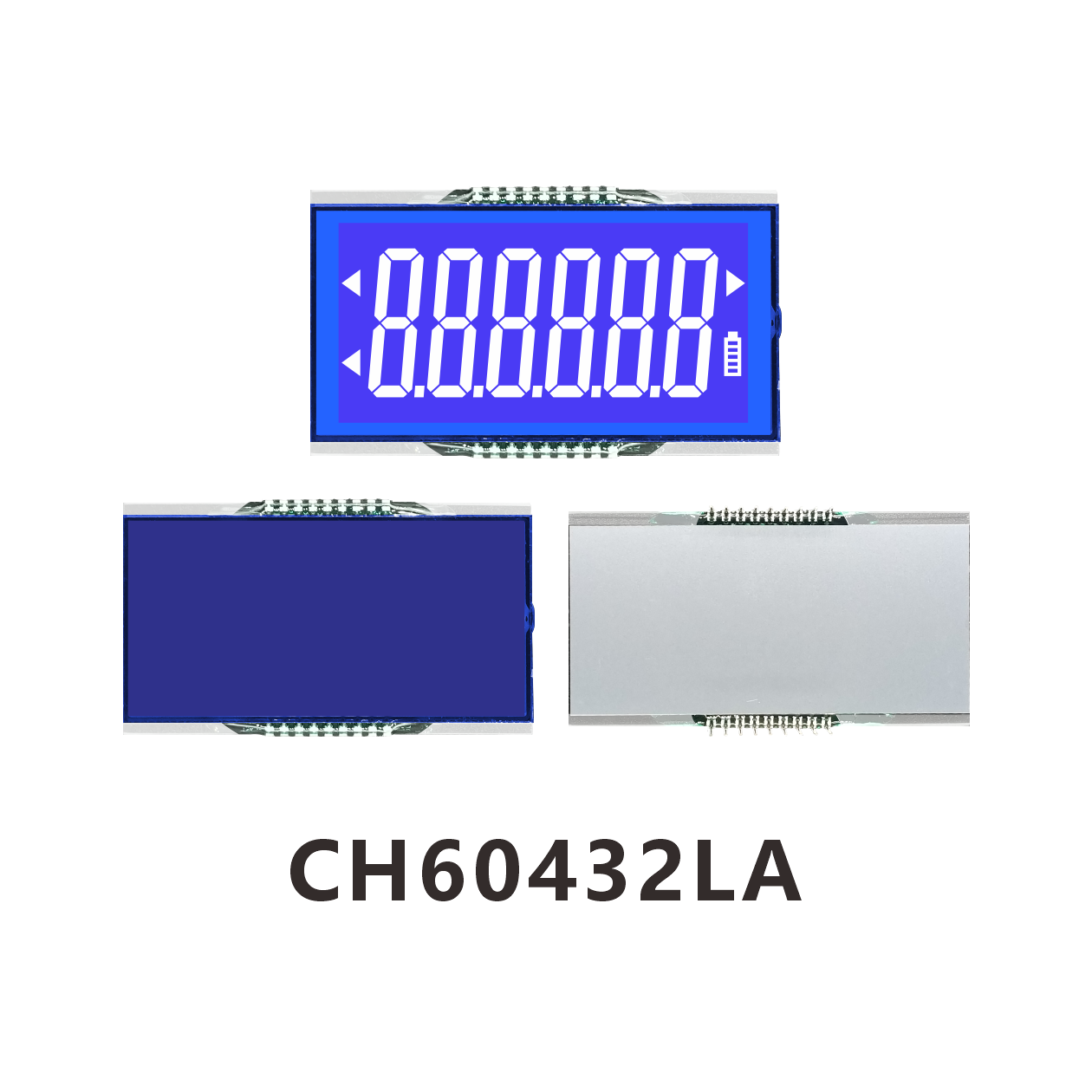

CH604324LA Electronic scale LCD

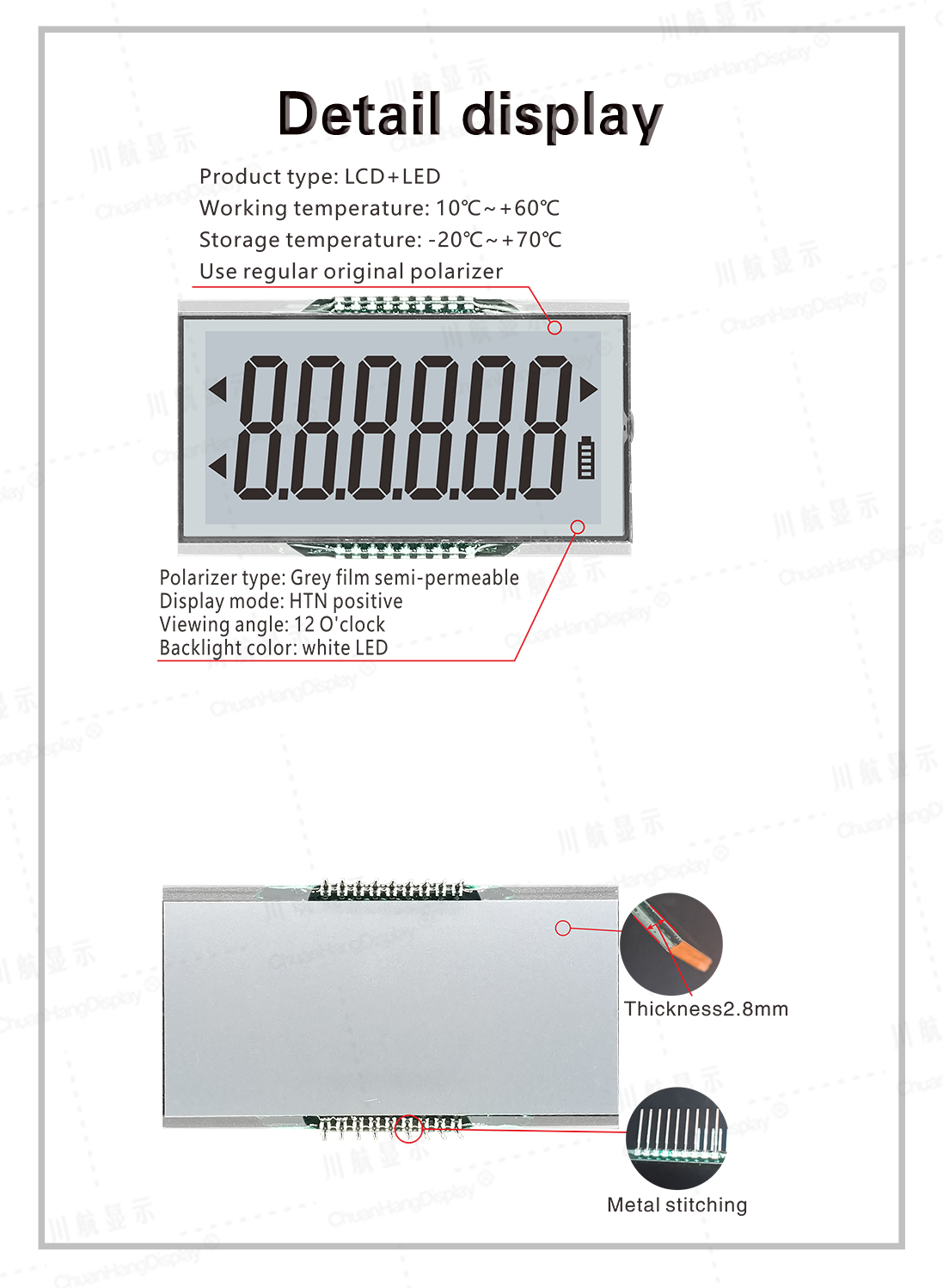

Product Description

LCD Material: HTN LCD
Display Mode: Positive Display
Polarizer Type: Grey film/semi-permeable
Process Type: COB
View Direction: 12 O'CLOCK
Working Voltage: 3V
Operating Temperature: -10℃~+60℃
Connection Method: PIN
Backlight ：White LED
Application industry: Electronic scale

PDF Download Demo code

Video Presentation

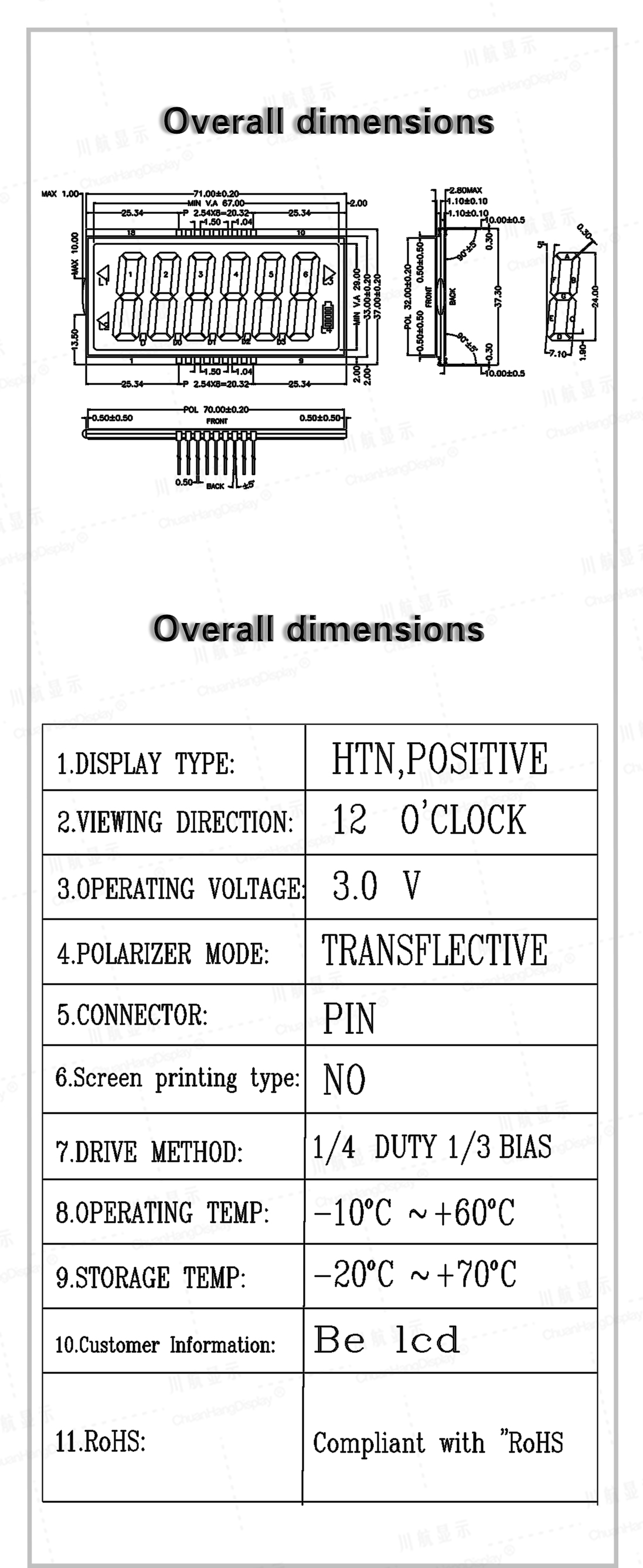

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH604324LA
Display Mode	Positive Display	Display Size	Customized
Outline Dimension(LWH)	71.0x37.0x2.8mm	Visible Area(L*W)	/
Active Area(L*W)	67.0x29.0mm	Character Size(L*W)	/
Type	COB	Connection Method	PIN
Supply Voltage	3V	Interface Type	SPI
Viewing Direction	12 O'CLOCK	Driving Method	/
Display Type	HTN	Driver IC	/
Operating Temperature	-10℃~+60℃	Storage Temperature	-20℃~+70℃
Backlight	White LED	Production Capacity	Self-produced
Character libraries	/	Whether to bring PCB	NO

Product Datasheet

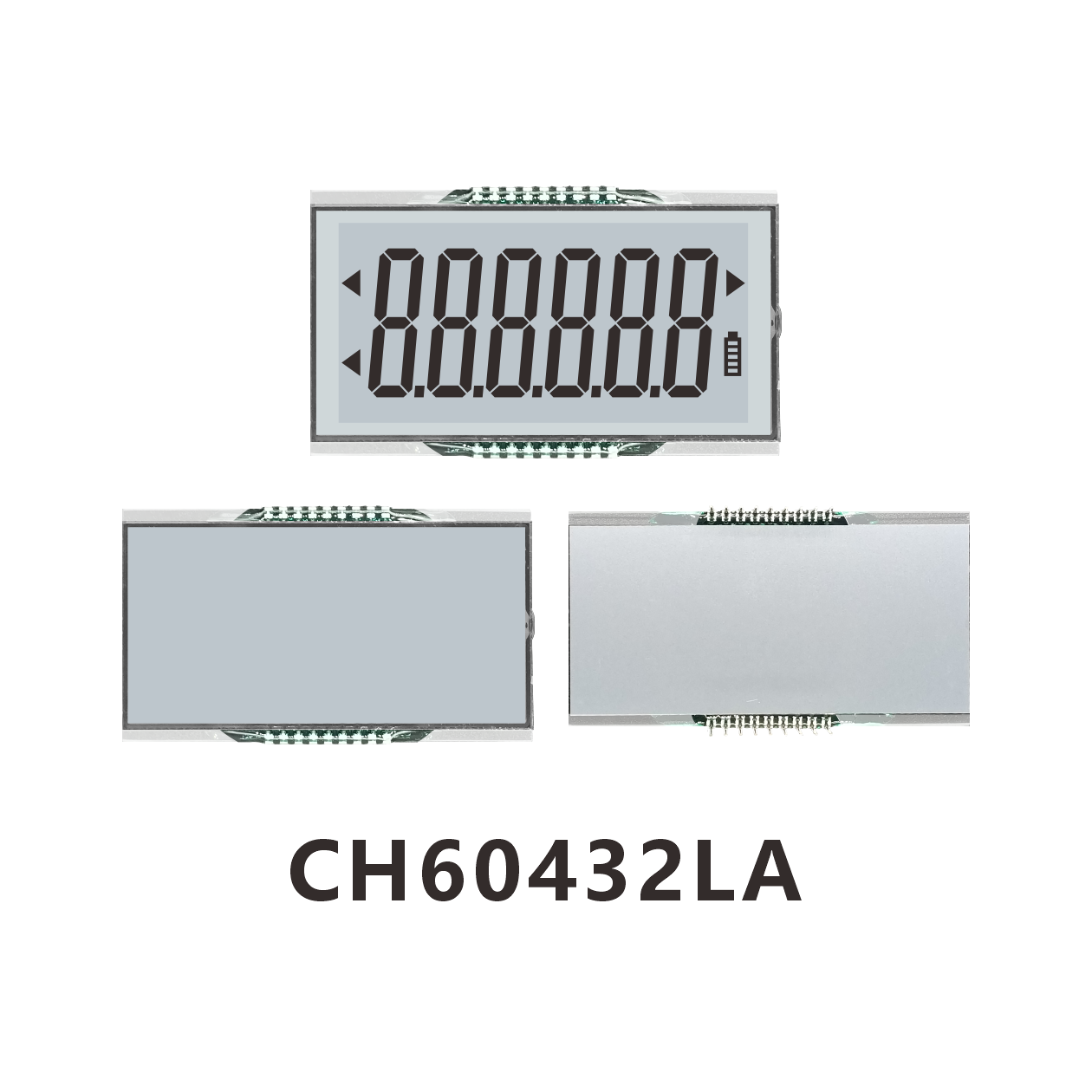

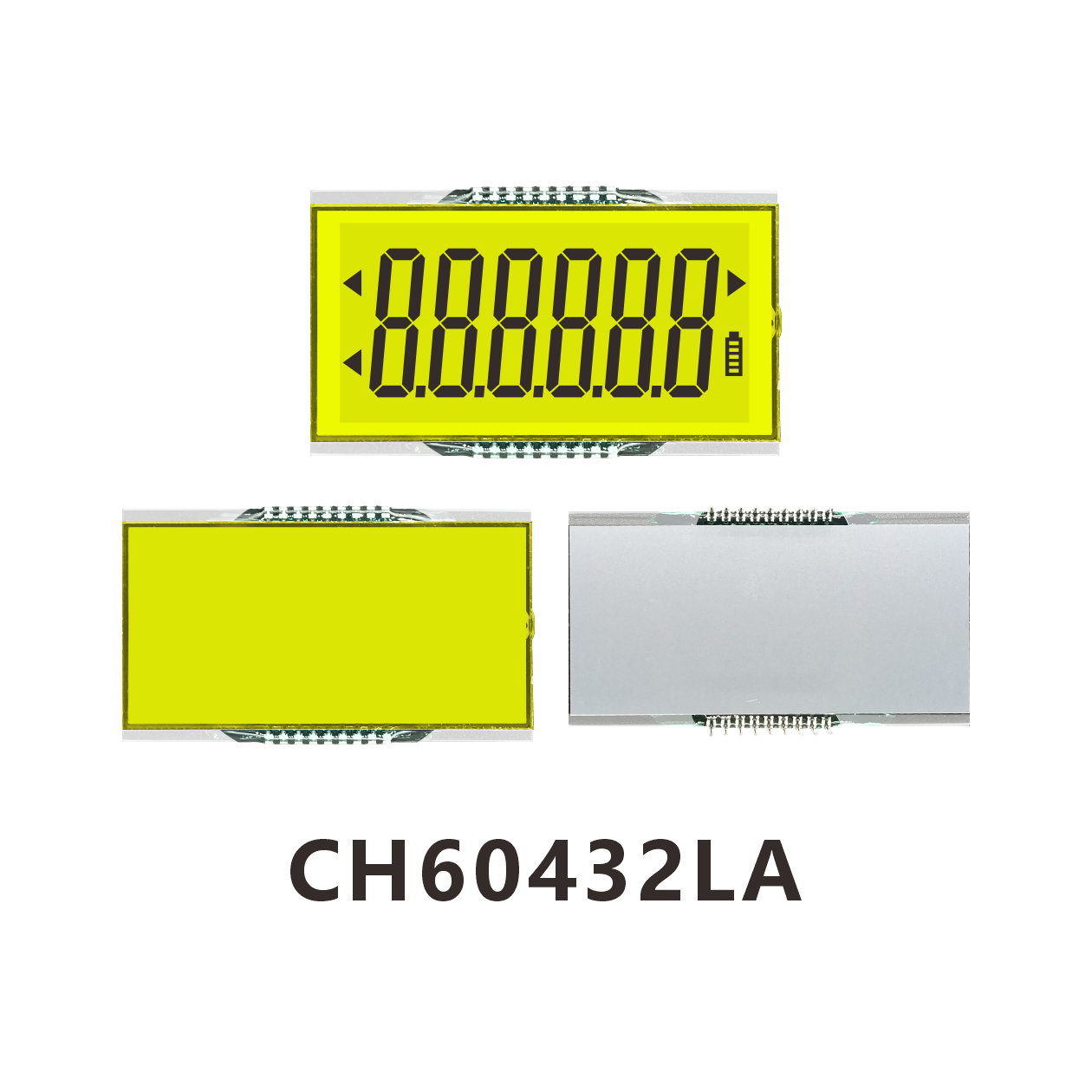

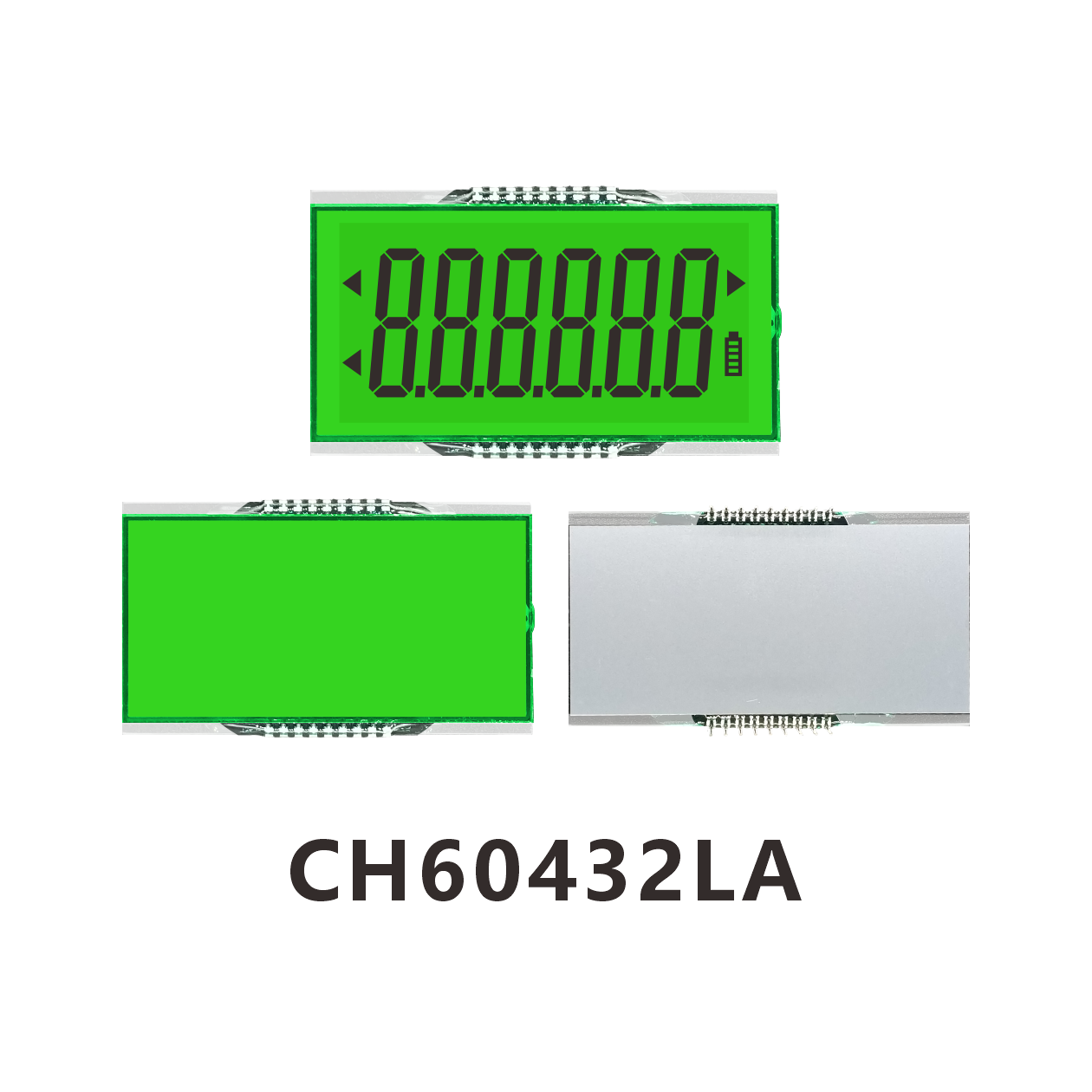

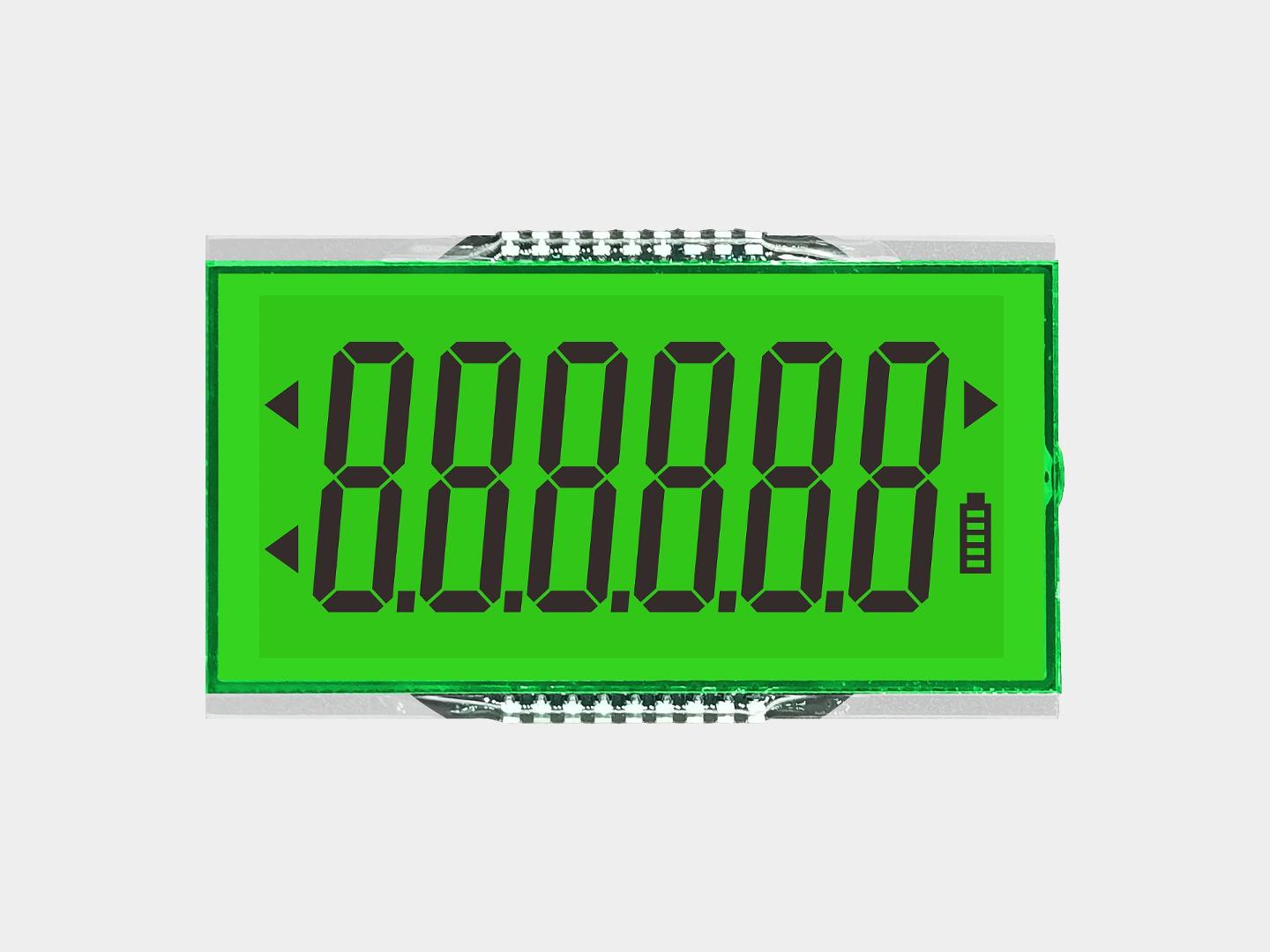

Product Display
