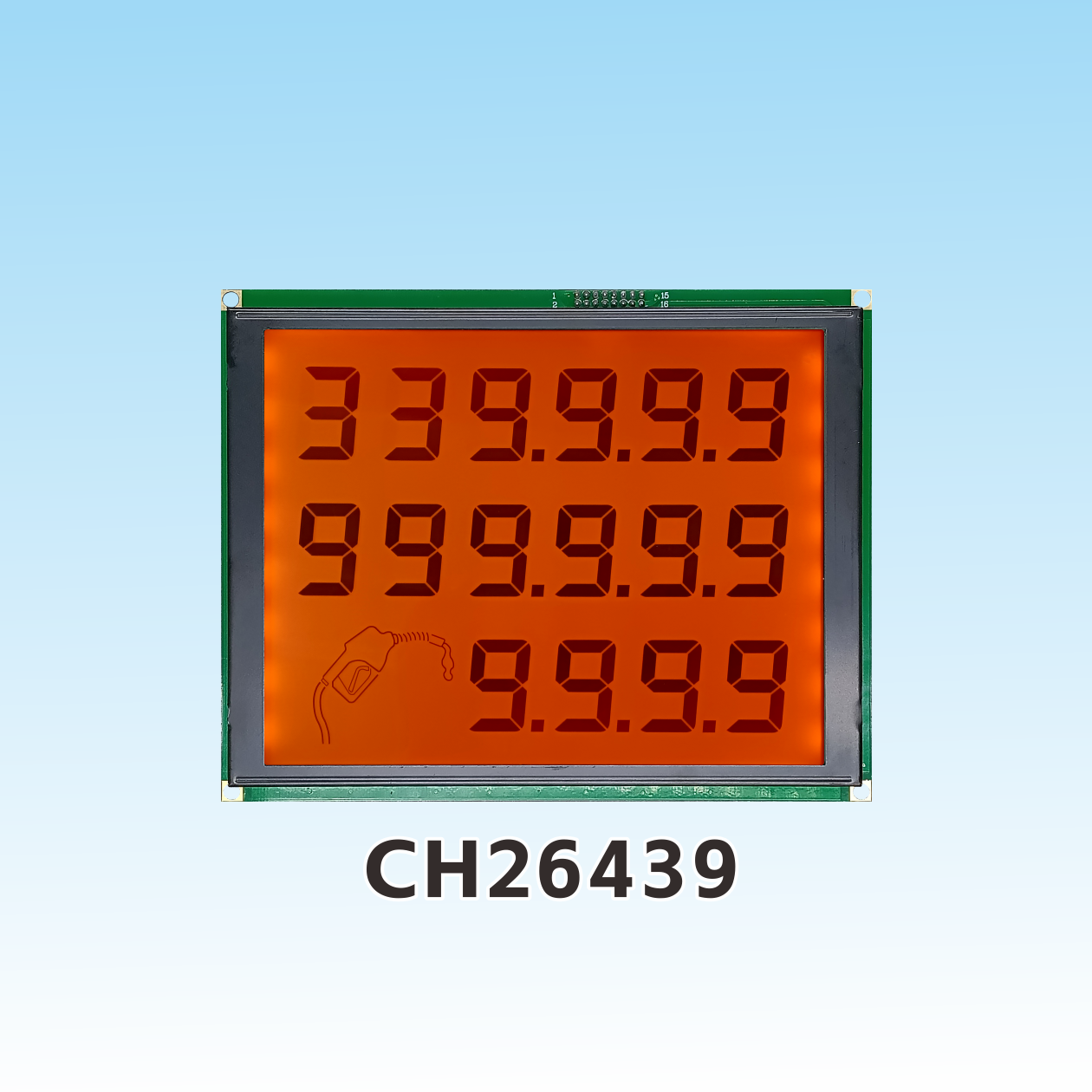

the seven segment display

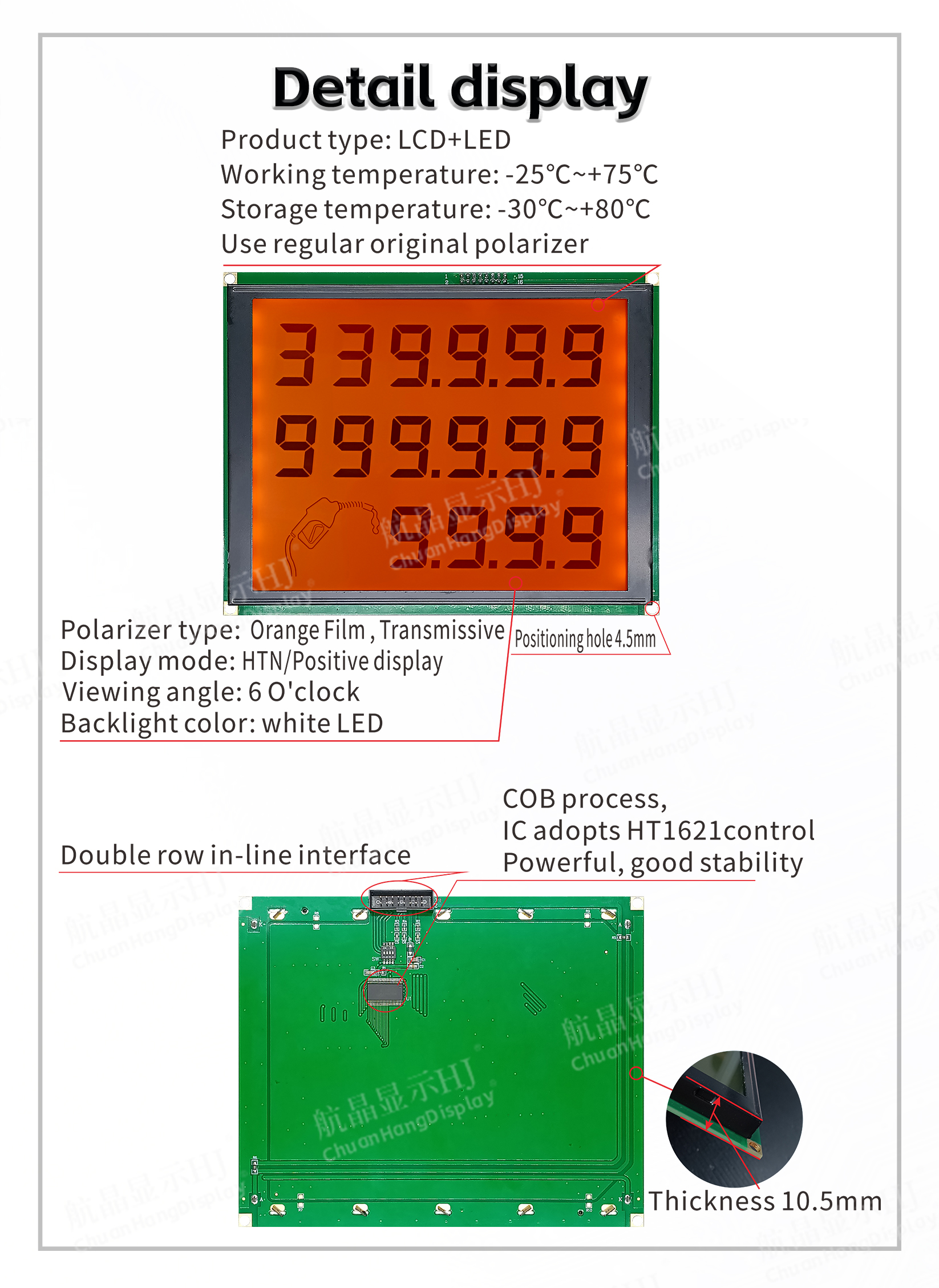

Product Description

LCD Material: HTN LCD
Display Mode: Positive Display
Polarizer Type: Grey film/full penetration
Process Type: COB
View Direction: 6 O'CLOCK
IC:HT1621B
Working Voltage: 5.0V
Operating Temperature: -20~70℃
Connection Method: Conductive strip
Backlight ：White LED

PDF Download Demo code

Video Presentation

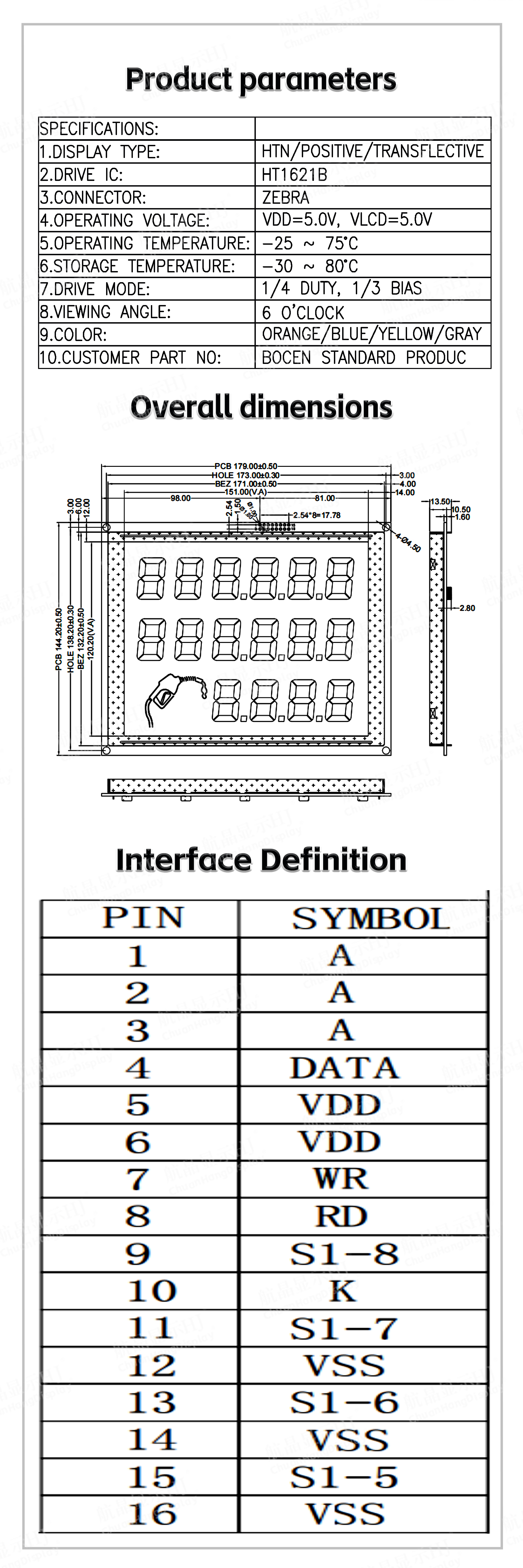

Product Parameters

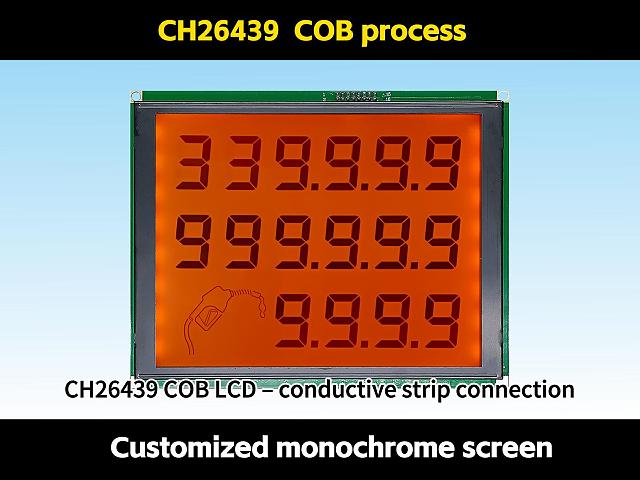

Product Brand	ChuanHangDisplay	Product Model	CH26439
Display Mode	Positive Display	Display Size	Customized

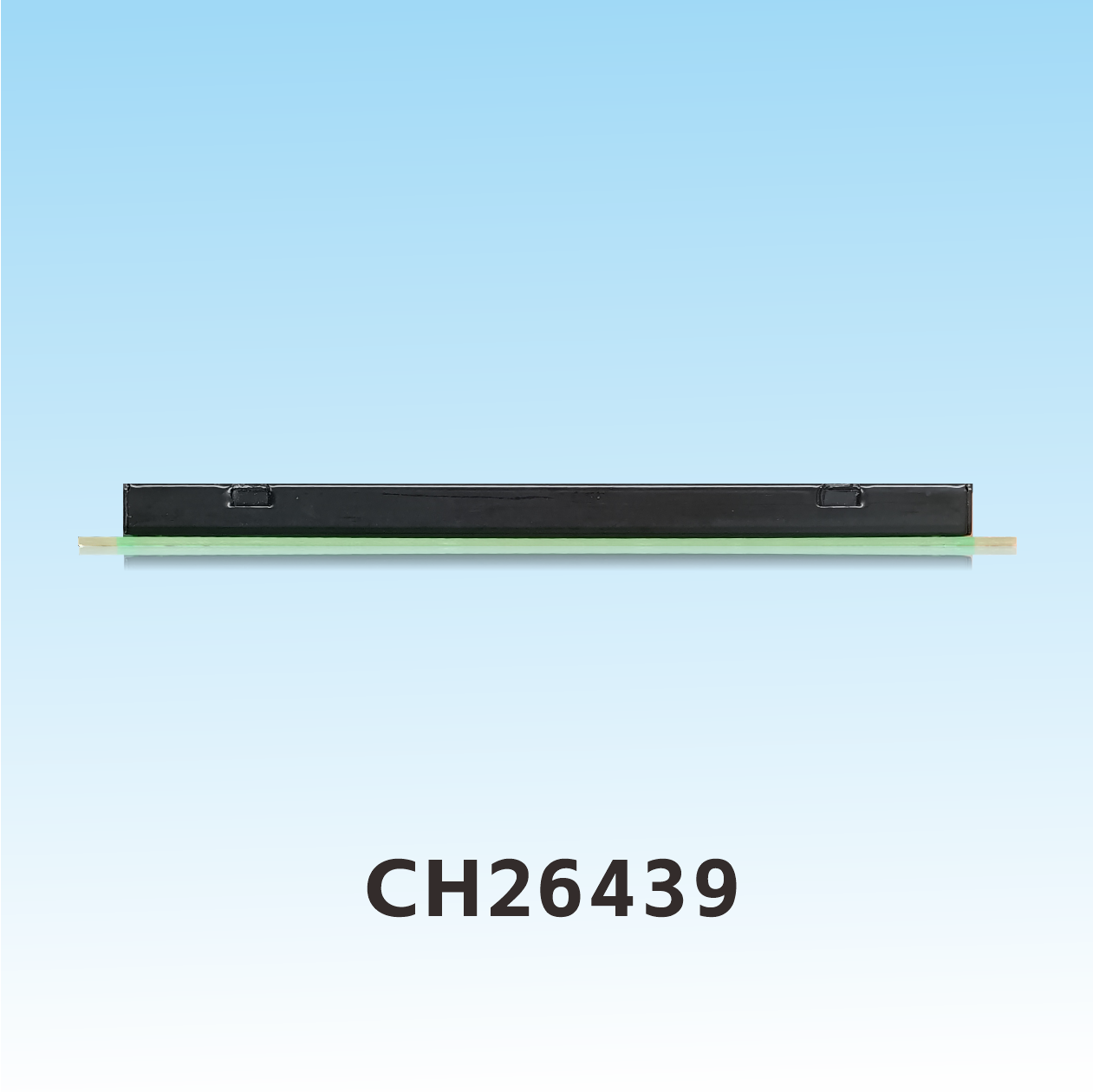

Outline Dimension(LWH)	179.00x144.20x13.50mm	Visible Area(L*W)	/
Active Area(L*W)	151.00x120.20mm	Character Size(L*W)	/
Type	COB	Connection Method	Conductive strip
Supply Voltage	5V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	/
Display Type	HTN	Driver IC	HT1621B
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight	White LED	Production Capacity	Self-produced

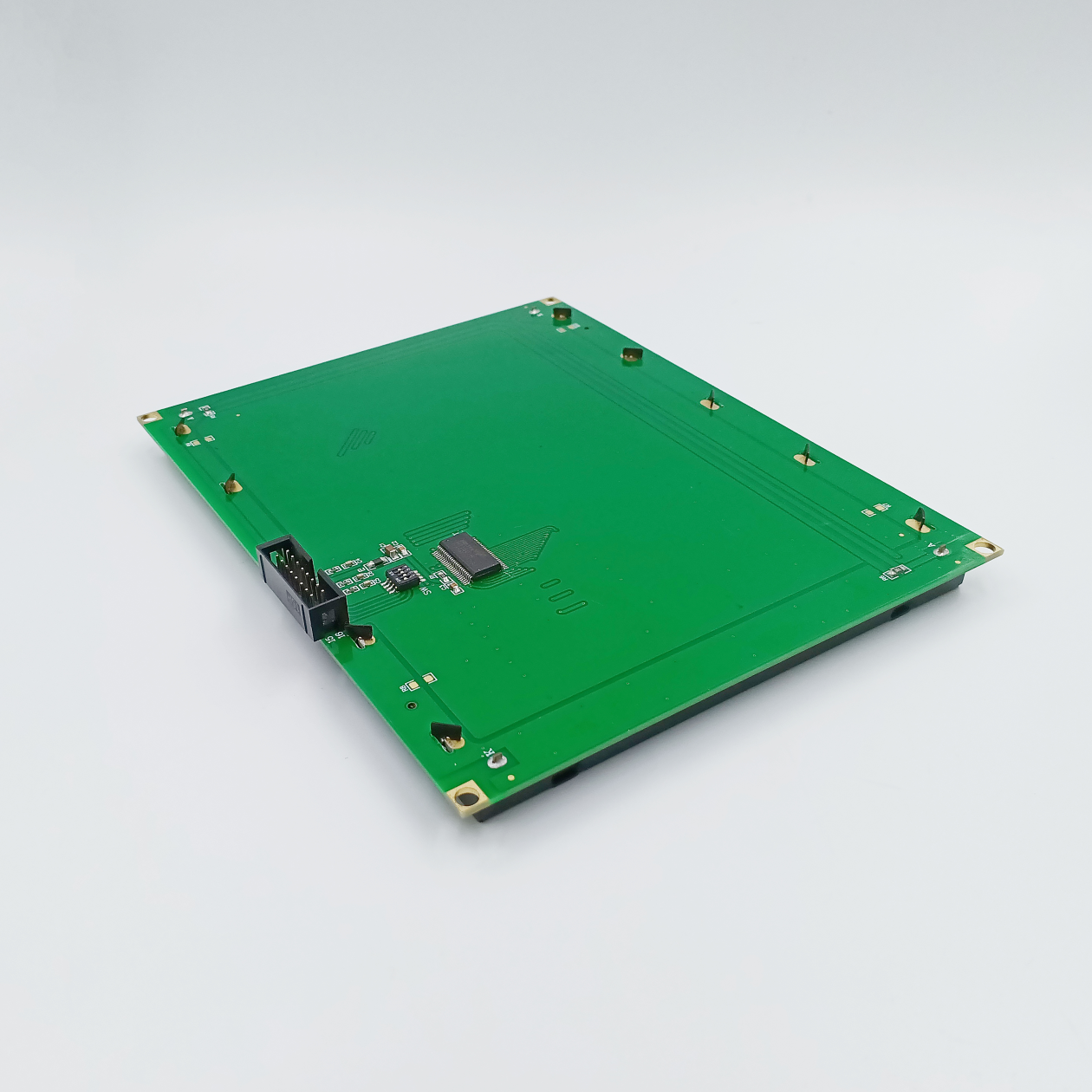

Character libraries	/	Whether to bring PCB	YES
