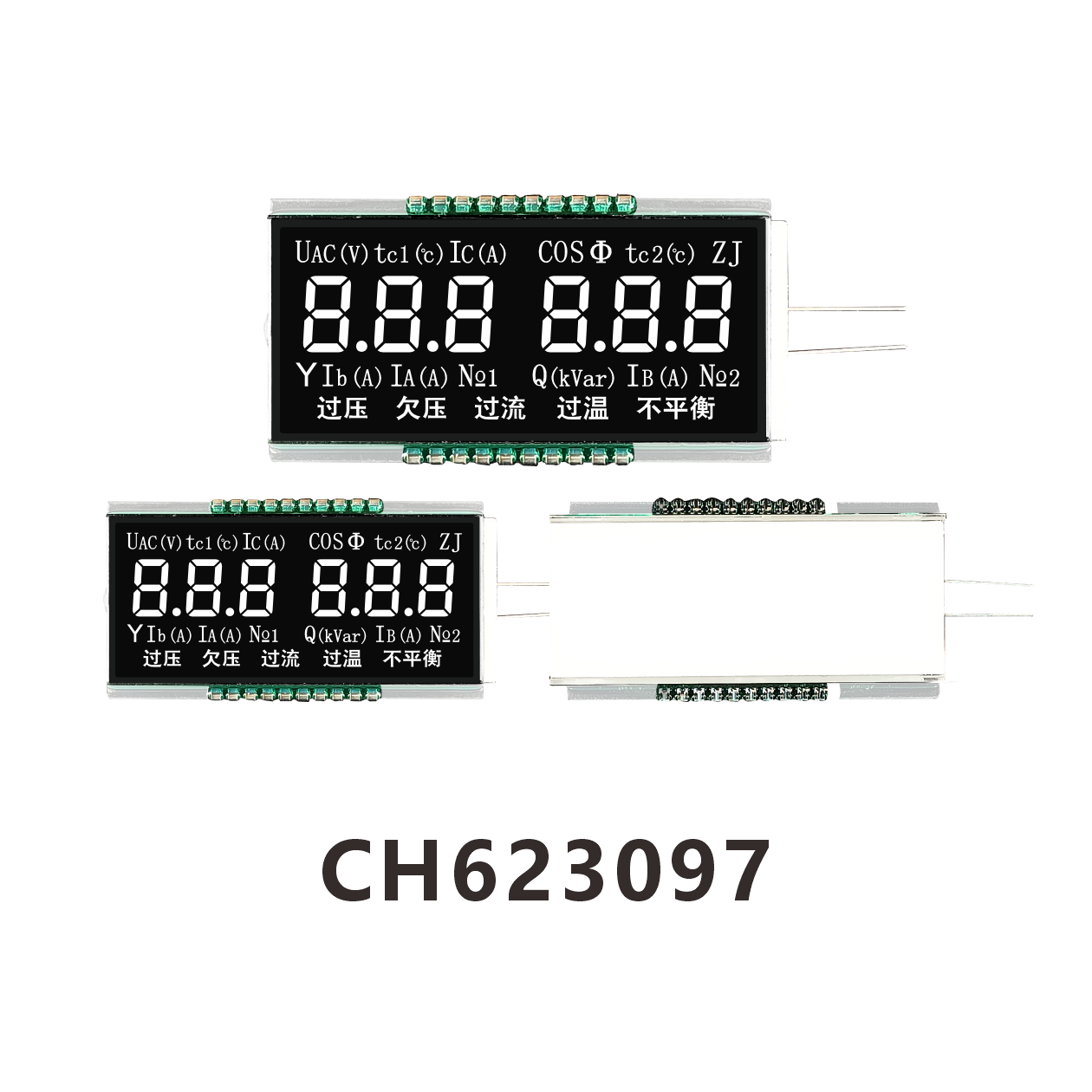

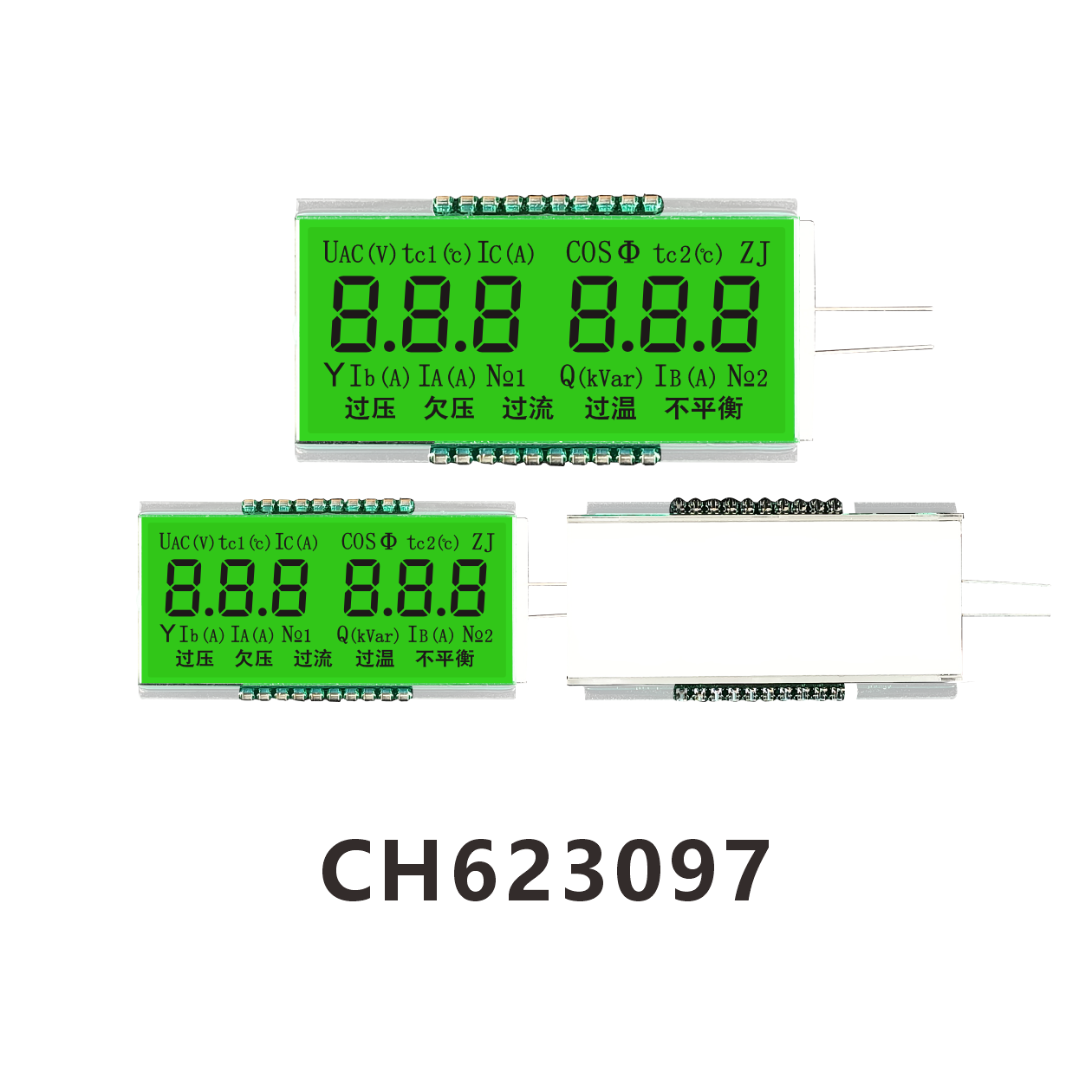

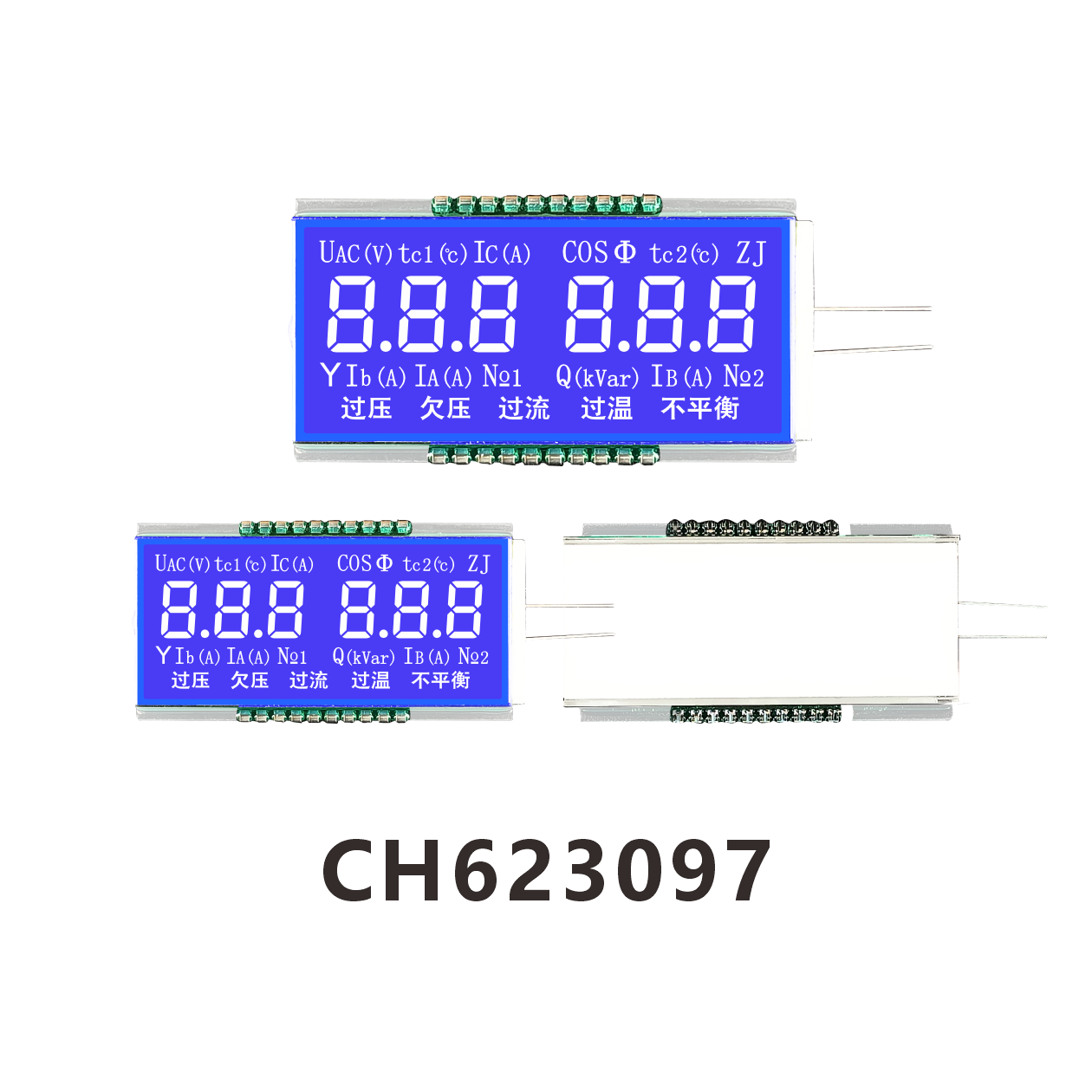

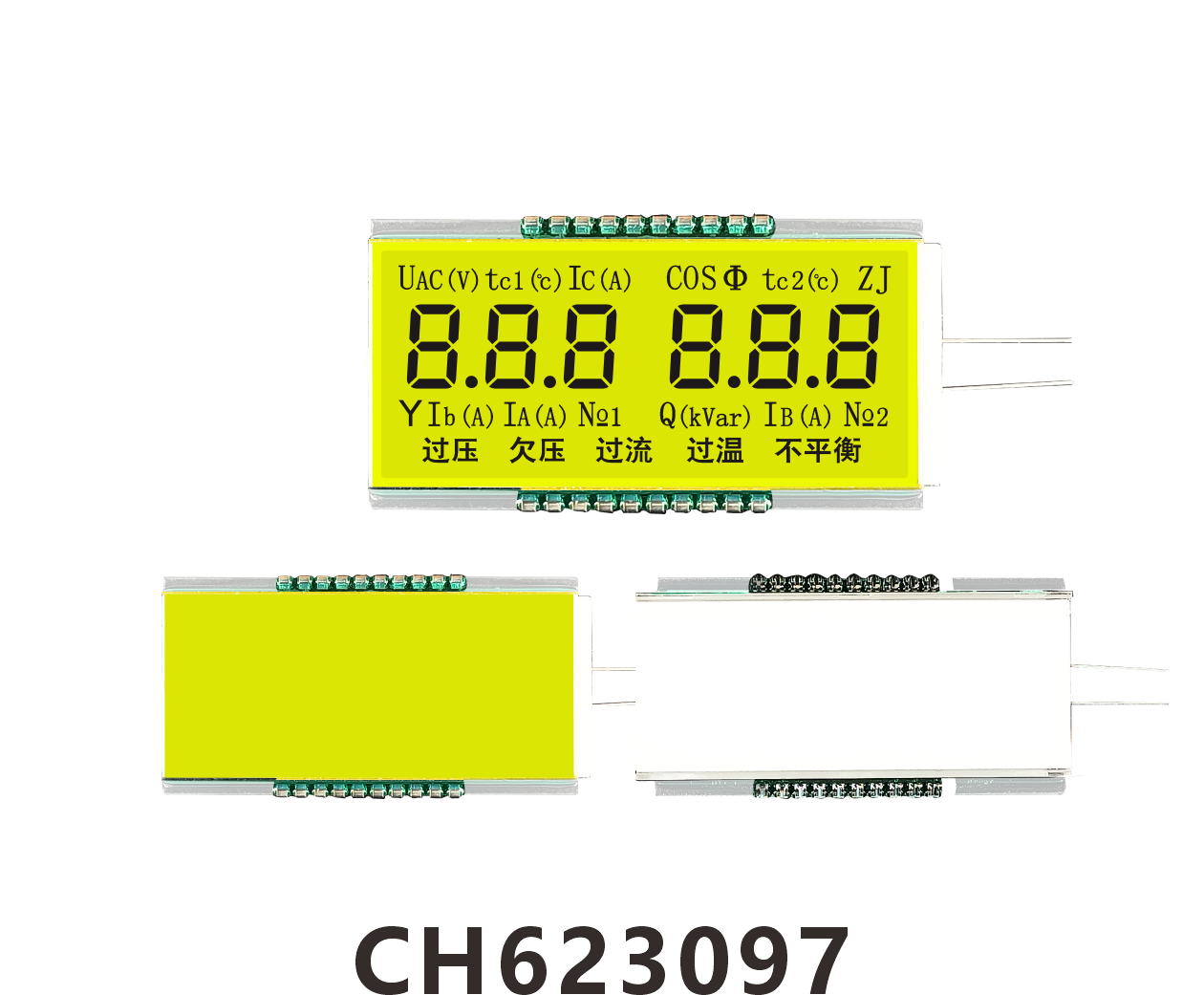

CH623097 Dual power switch HTN Monochrome LCD Display

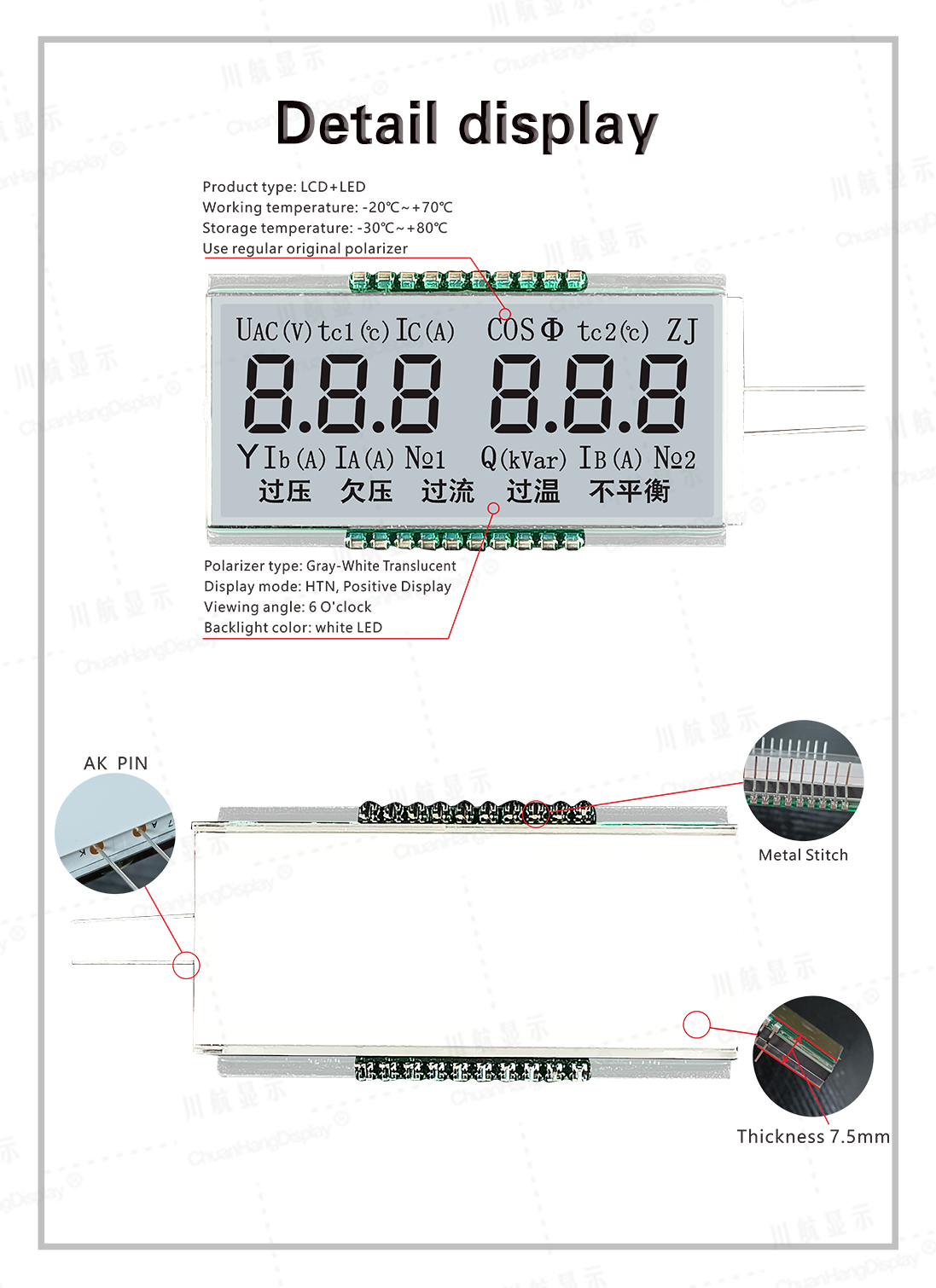

Product Description

LCD Material: HTN LCD
Display Mode: HTN/POSITIVE
Polarizer Type: Grey film/semi-permeable
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 4.5V
Operating Temperature: -20℃~+70℃
Connection Method: PIN
Backlight ：White LED
Application industry: dual power switch/low-voltage electrical

PDF Download Demo code

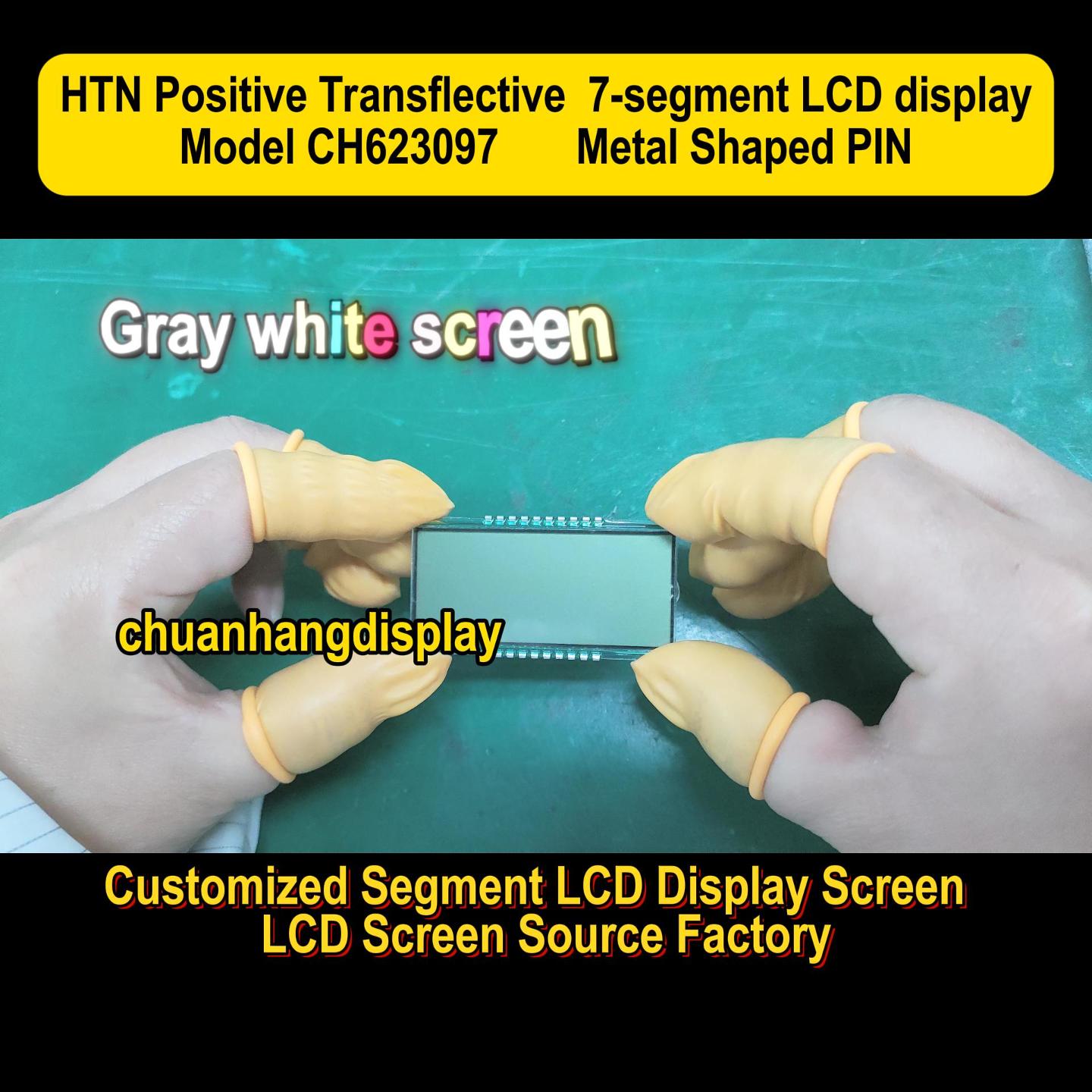

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH623097
Display Mode	HTN/POSITIVE	Display Size	Customized

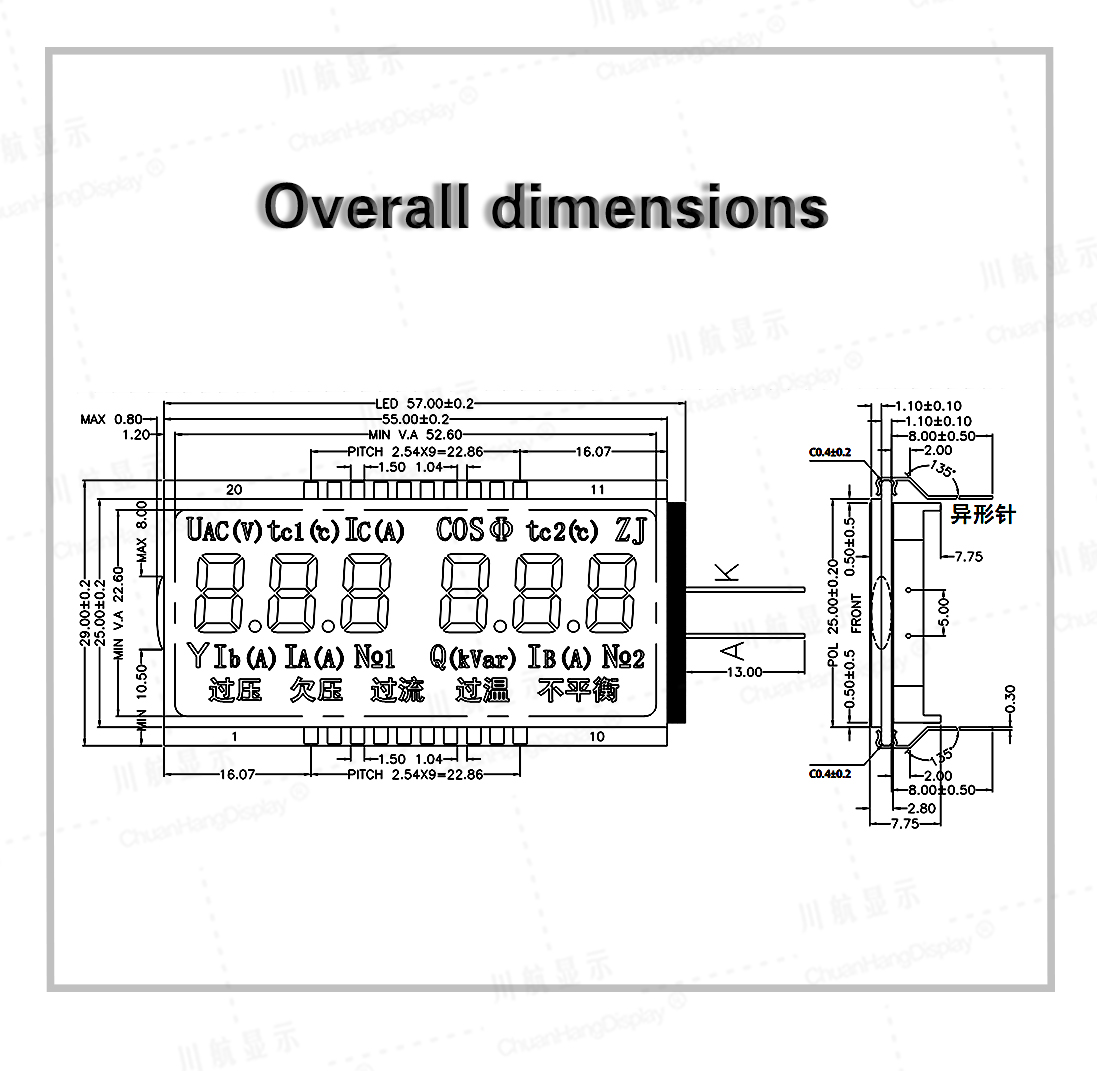

Outline Dimension(LWH)	55.00x29.00x 2.8mm	Visible Area(L*W)	/
Active Area(L*W)	52.60x22.60mm	Character Size(L*W)	/
Type	COB	Connection Method	PIN
Supply Voltage	4.5V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	/
Display Type	HTN	Driver IC	/
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight	White LED	Production Capacity	Self-produced
Character libraries	/	Whether to bring PCB	NO

Product Datasheet

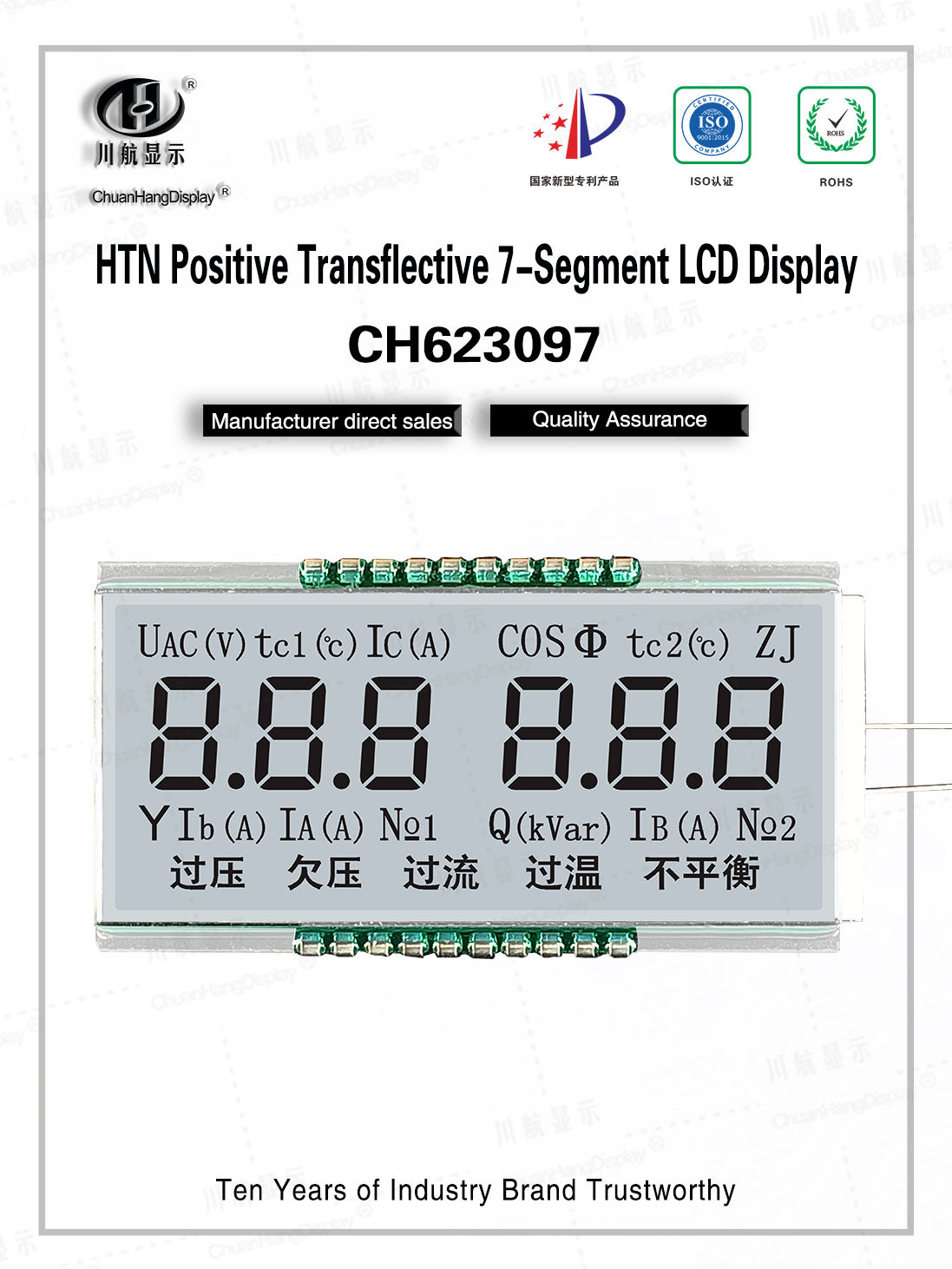

Product Display
