Product Description

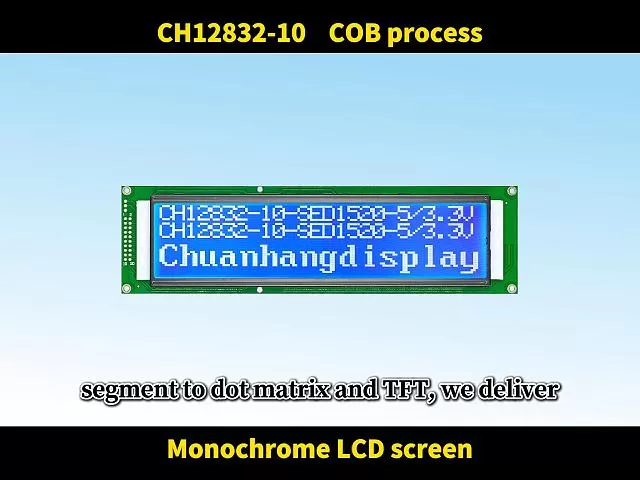

Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH12832B-10
Resolution128X32screen size
Outline Dimension(L*W*H)225.0x61.0x12.1mmVisible Area(L*W)180.5x41.0mm
Active Area(L*W)179.15x38.29mmDot Size (mm)
1.35(L)x1.15(W)
TypeCOBConnection MethodConductive strip
Supply Voltage  5V/3.3V Interface TypeMCU
Viewing Direction6 O'CLOCK Driving Method1/32Duty,1/6Bias
Display Type STNDriver ICSED1520
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight parameters 5V/3.3Vproduction capacitySelf-produced
Character libraries
Whether to bring PCBYes

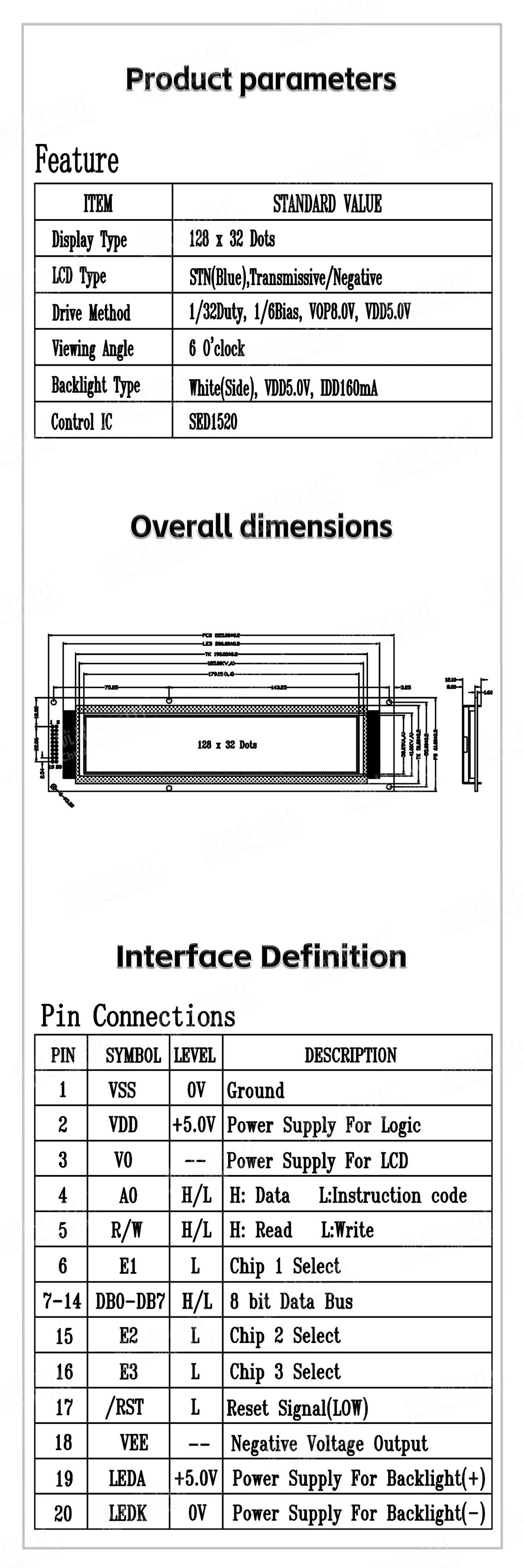

Product Datasheet

CH12832-10-英文版-详情页_04

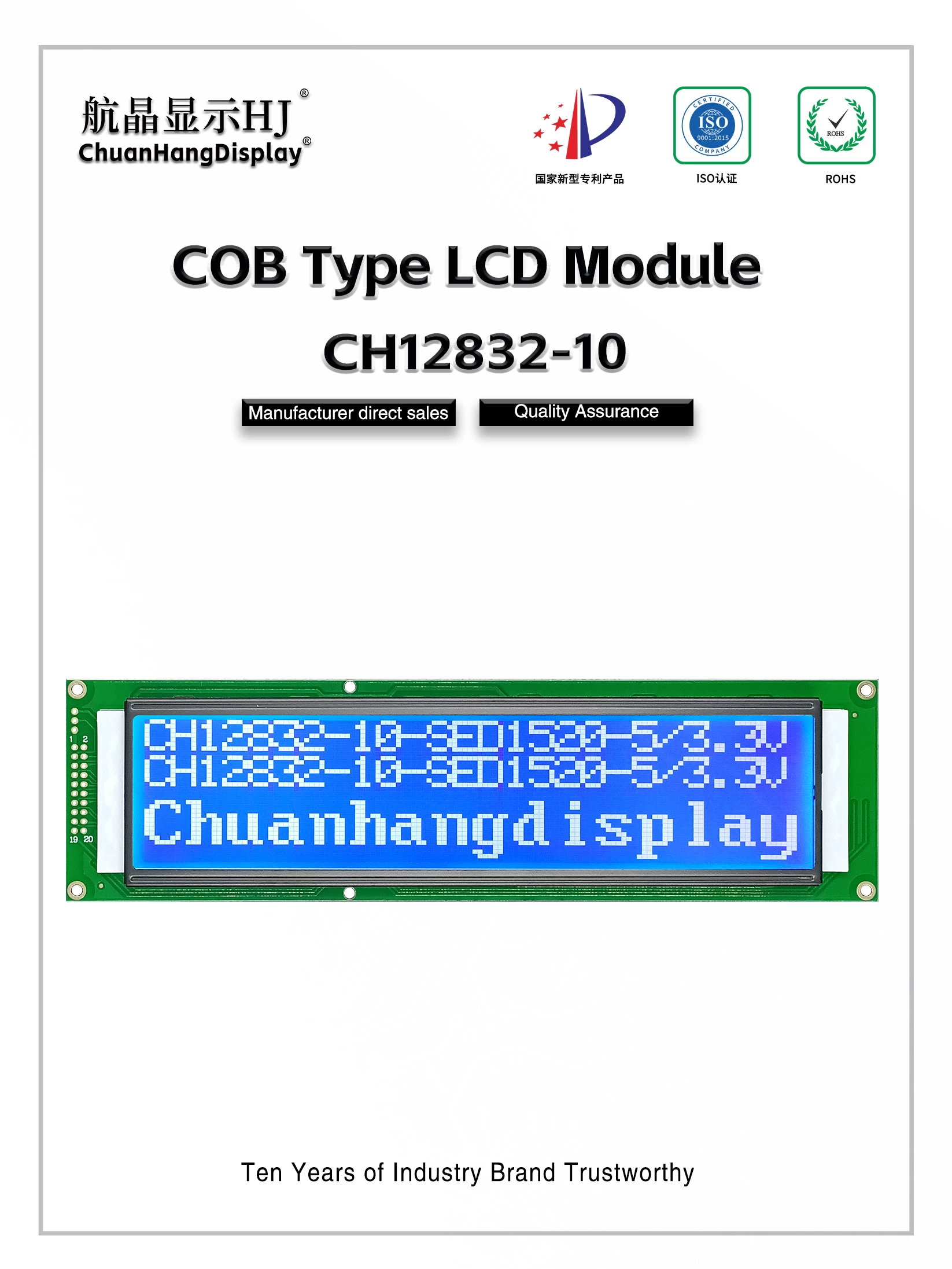

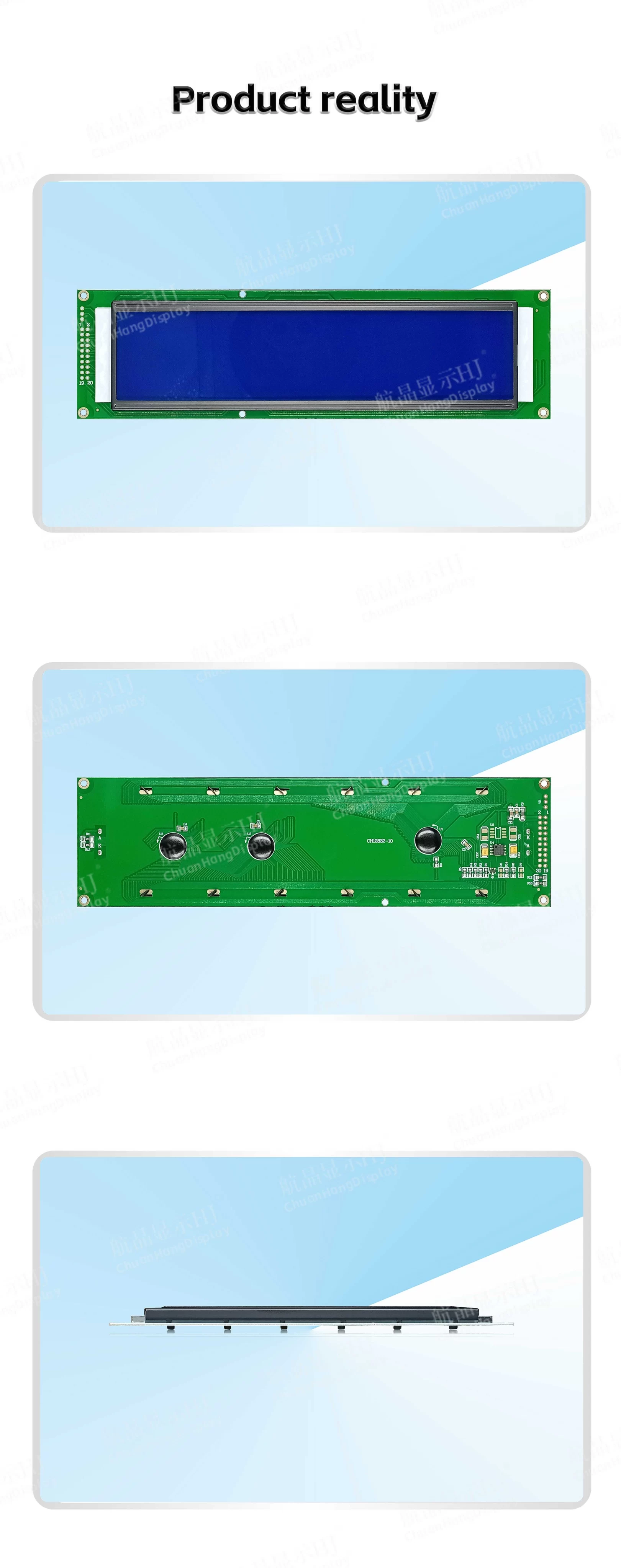

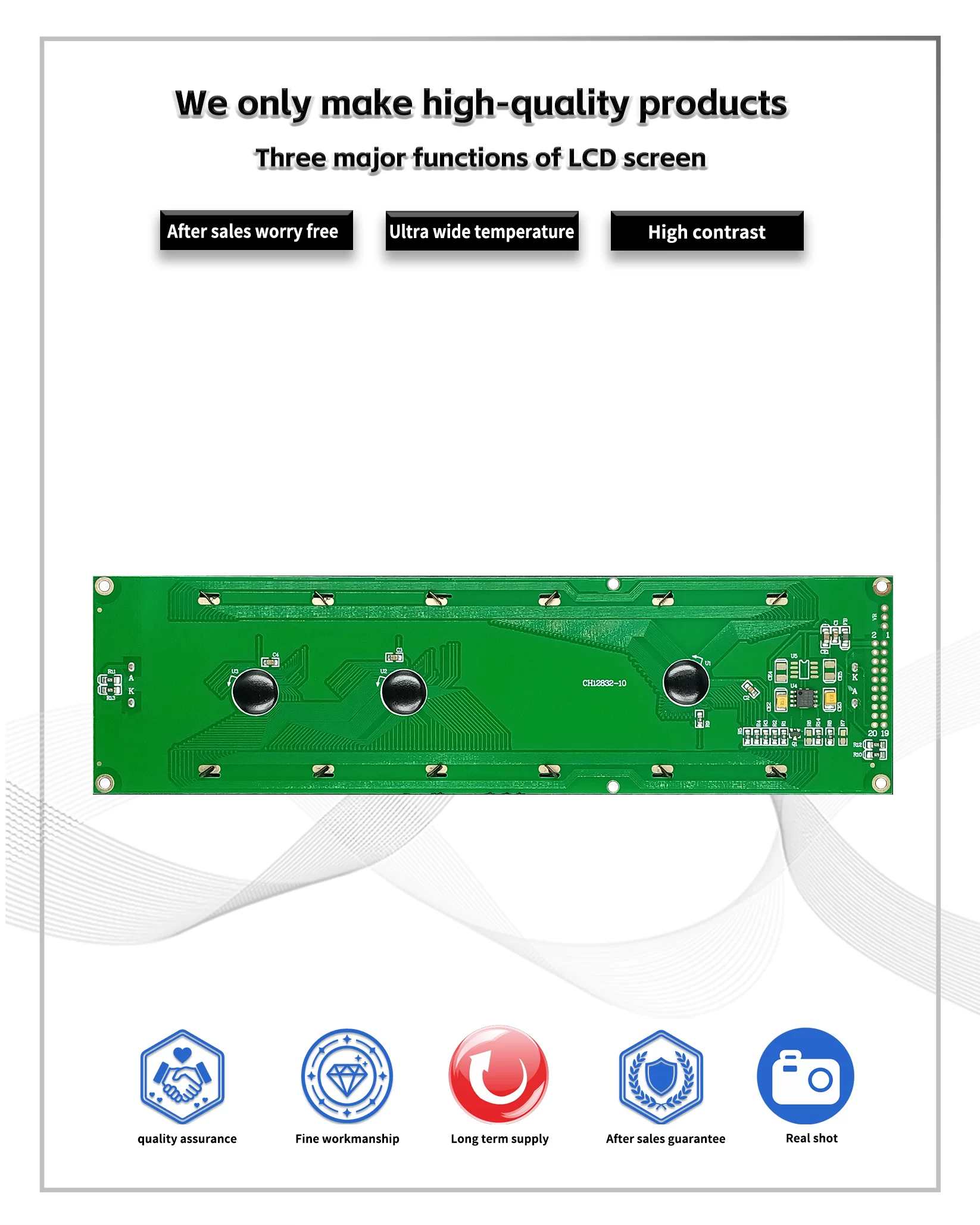

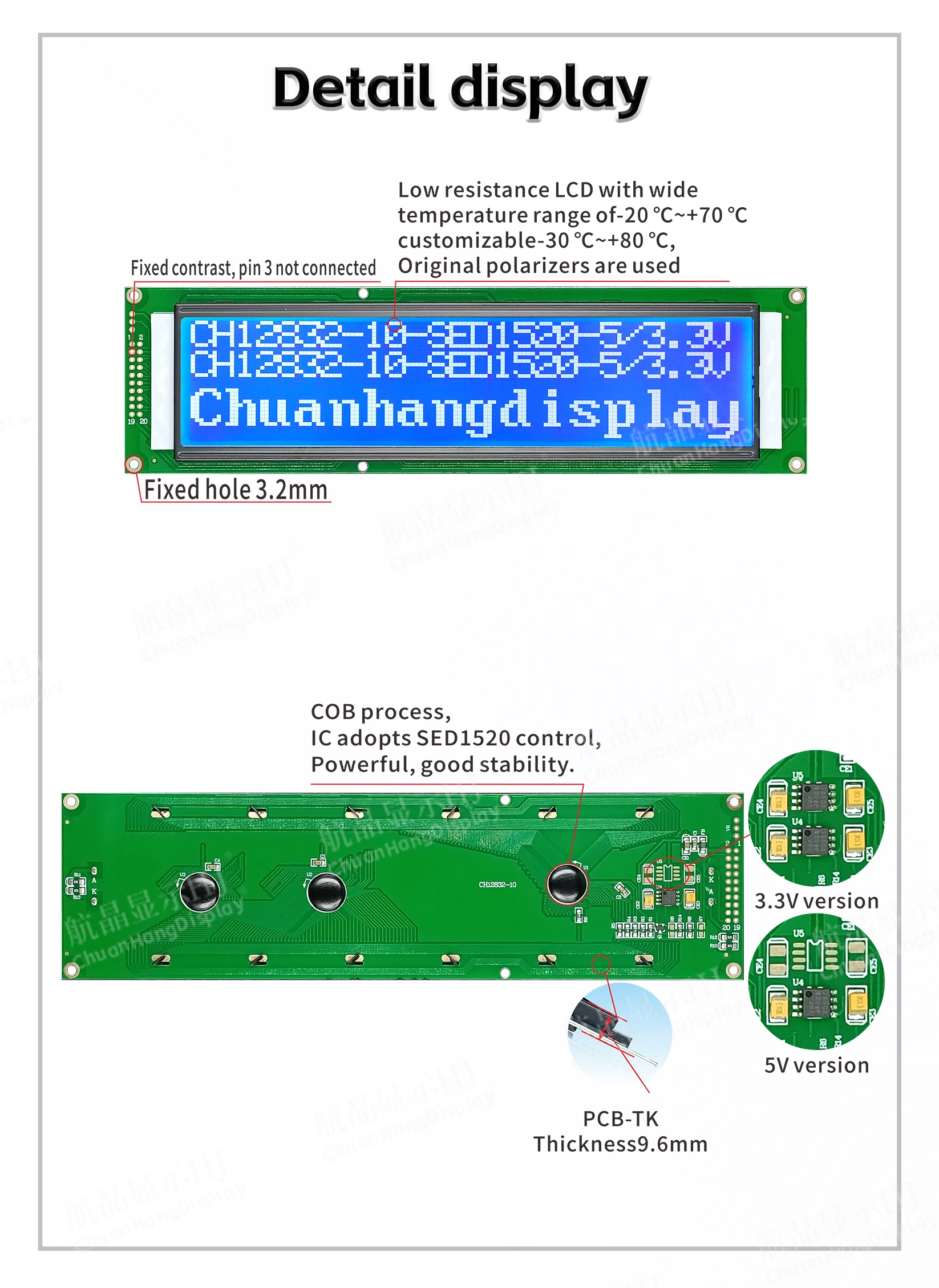

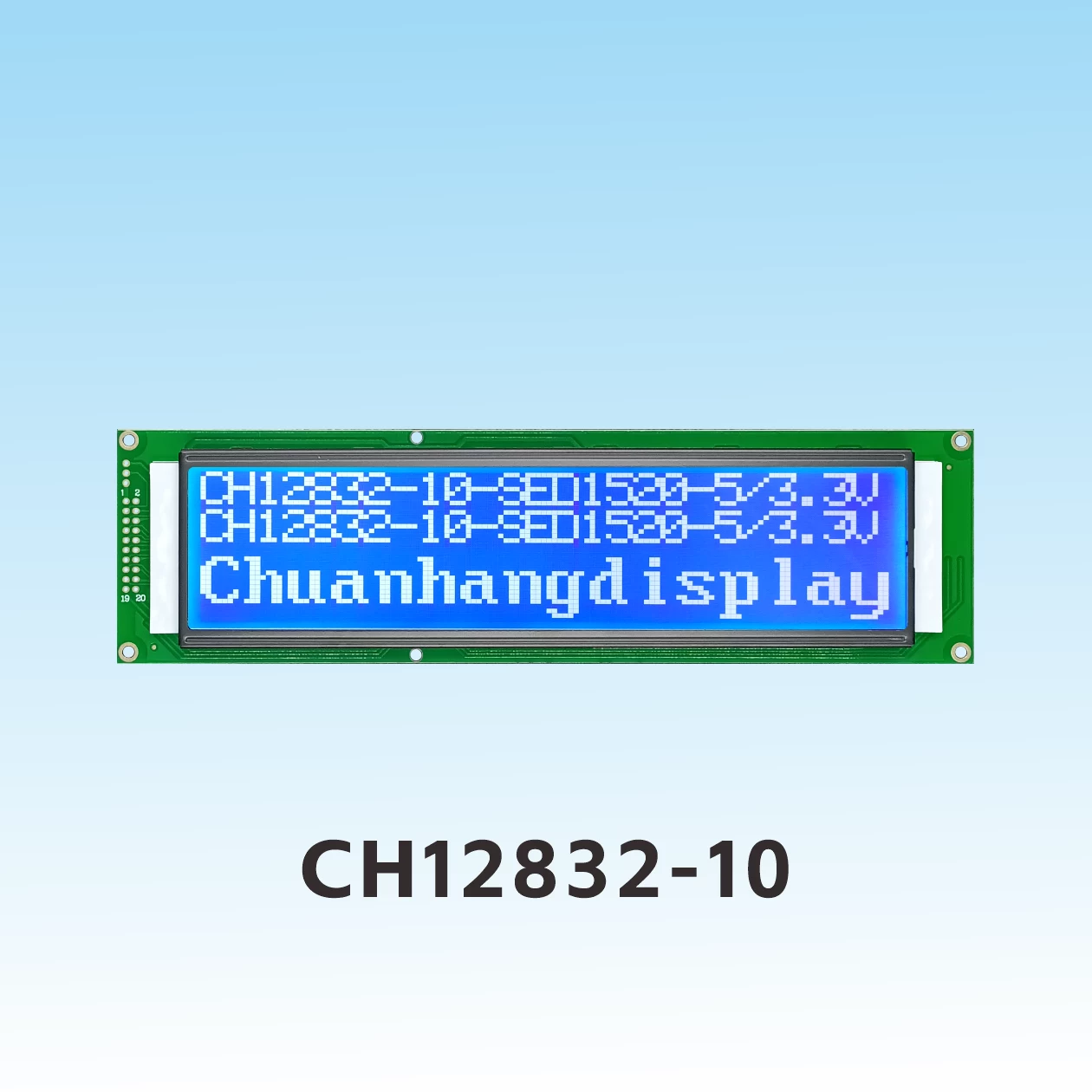

Product Display

CH12832-10-英文版-详情页_01

CH12832-10-英文版-详情页_01

CH12832-10-英文版-详情页_01

CH12832-10-英文版-详情页_01
