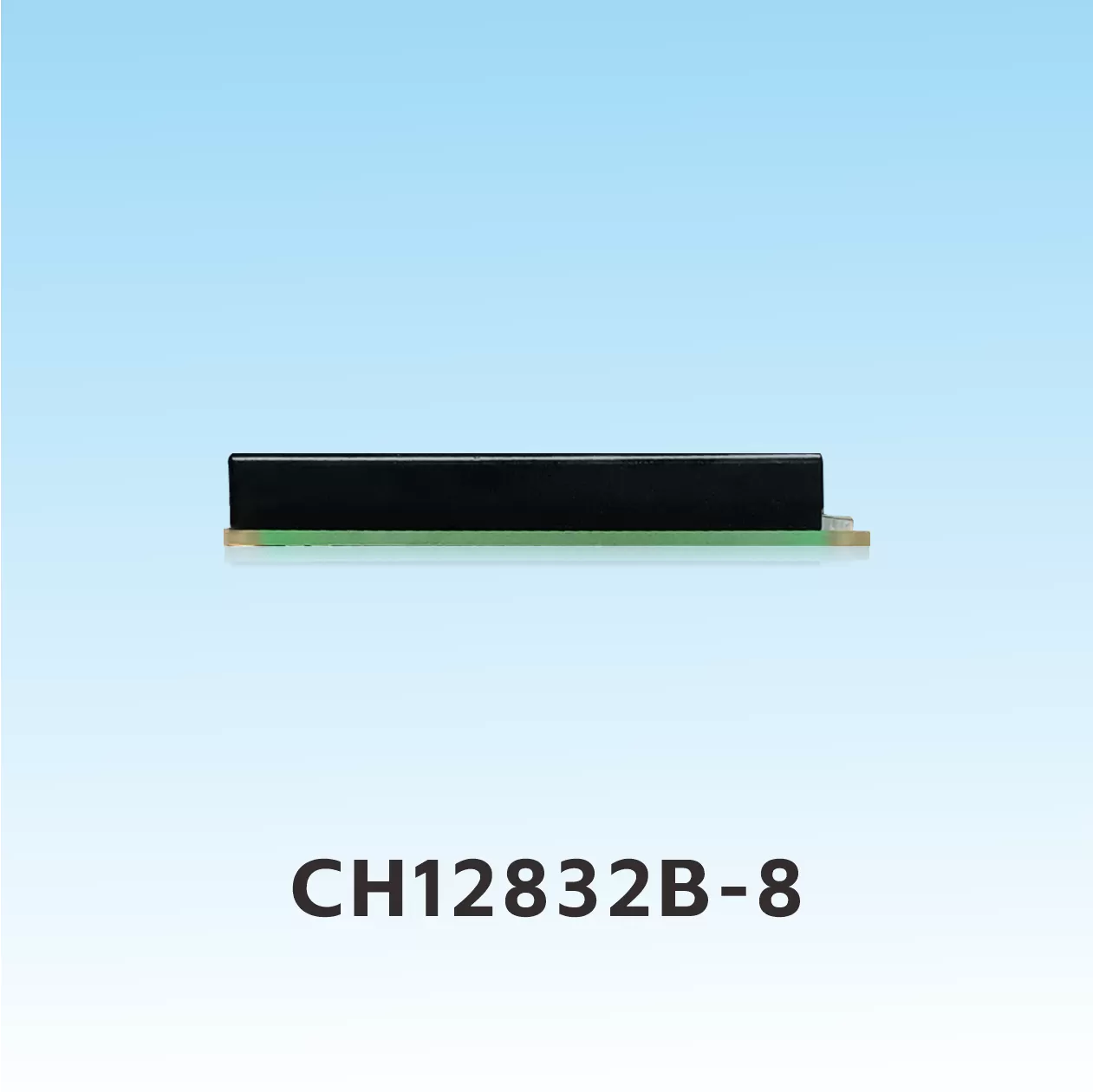

CH12832B-8 128x32 Graphic LCD Display (AIP31066)

CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)
CH12832B-8 128x32 Graphic LCD Display (AIP31066)

CH12832B-8 128x32 Graphic LCD Display (AIP31066)

Product Description

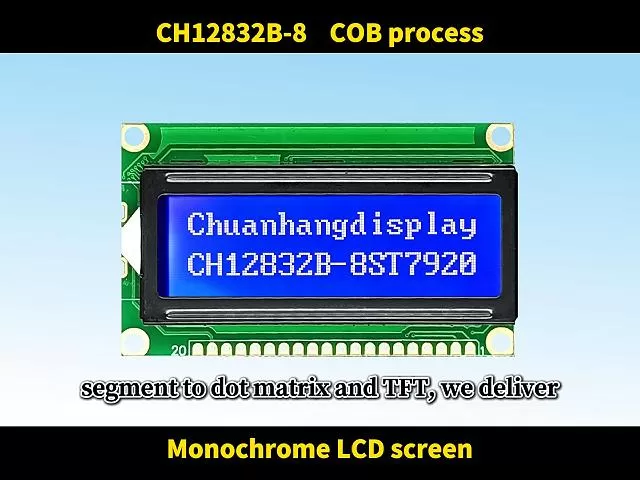

Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH12832B-8
Resolution128X32screen size
Outline Dimension(L*W*H)70.00x 42.0x 9.8mmVisible Area(L*W)60.5x 18.0mm
Active Area(L*W)51.16x 14.36mmDot Size (mm)0.36(L)x0.45(W)
TypeCOBConnection MethodConductive strip
Supply Voltage  5V/3.3V Interface TypeMCU/SPI
Viewing Direction6 O'CLOCK Driving Method1/32Duty,1/6Bias
Display Type STNDriver ICST7920
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight parameters  5V/3.3Vproduction capacitySelf-produced
Character libraries
Whether to bring PCBYes

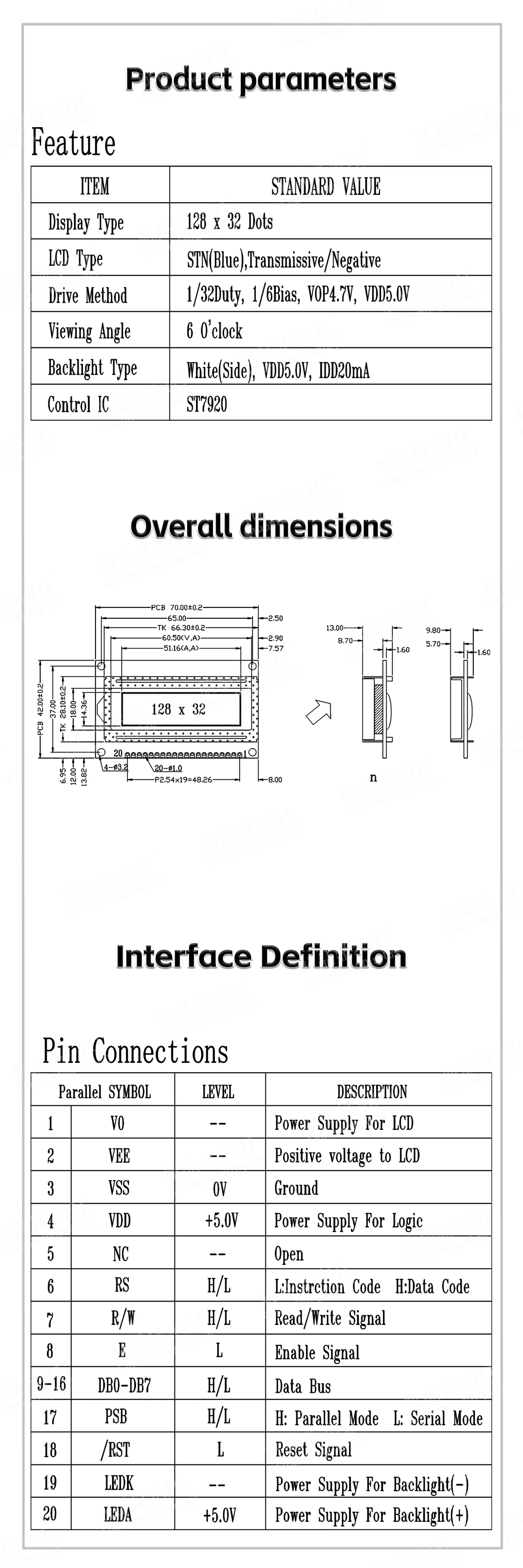

Product Datasheet

CH12832B-8-英文版-详情页_04

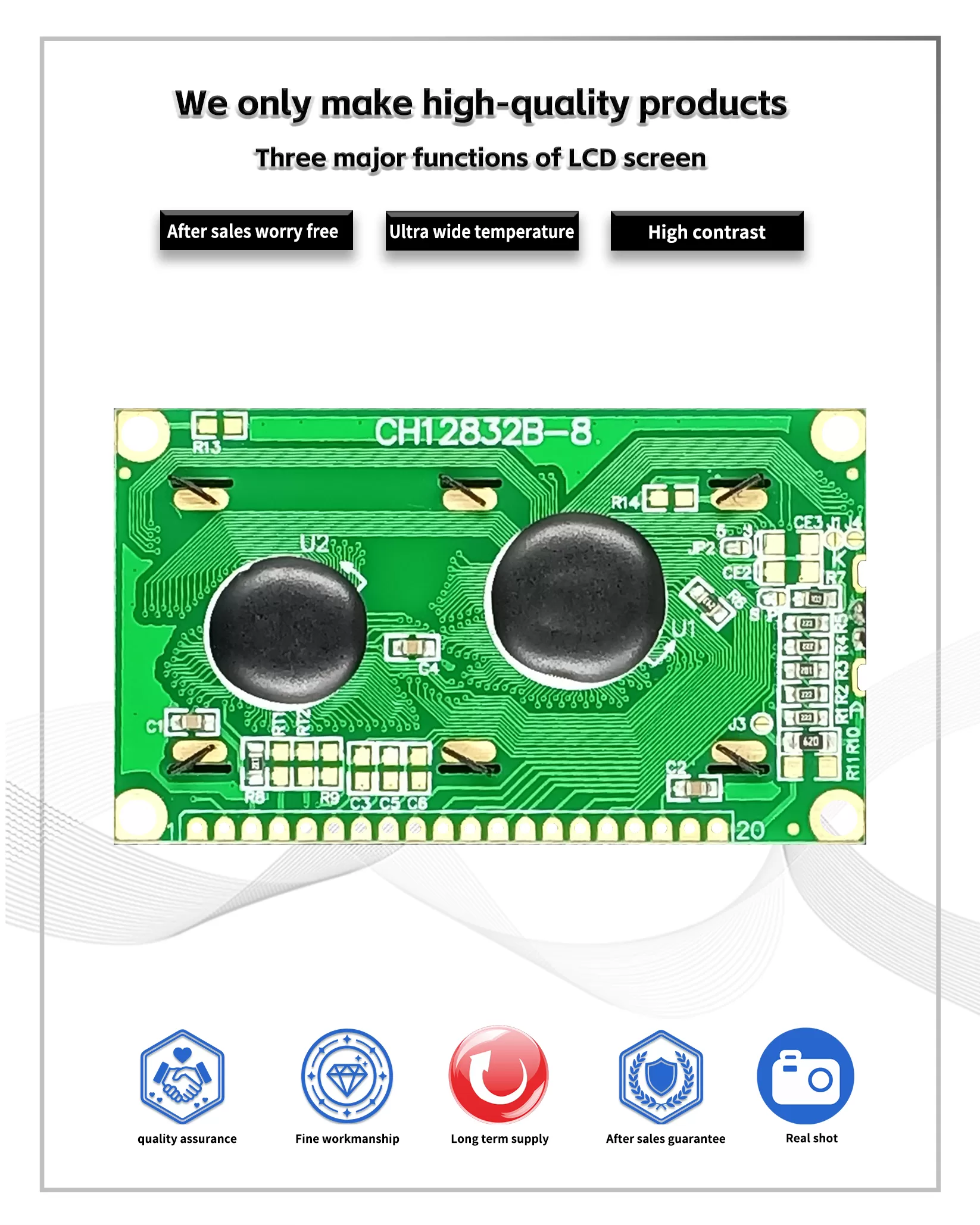

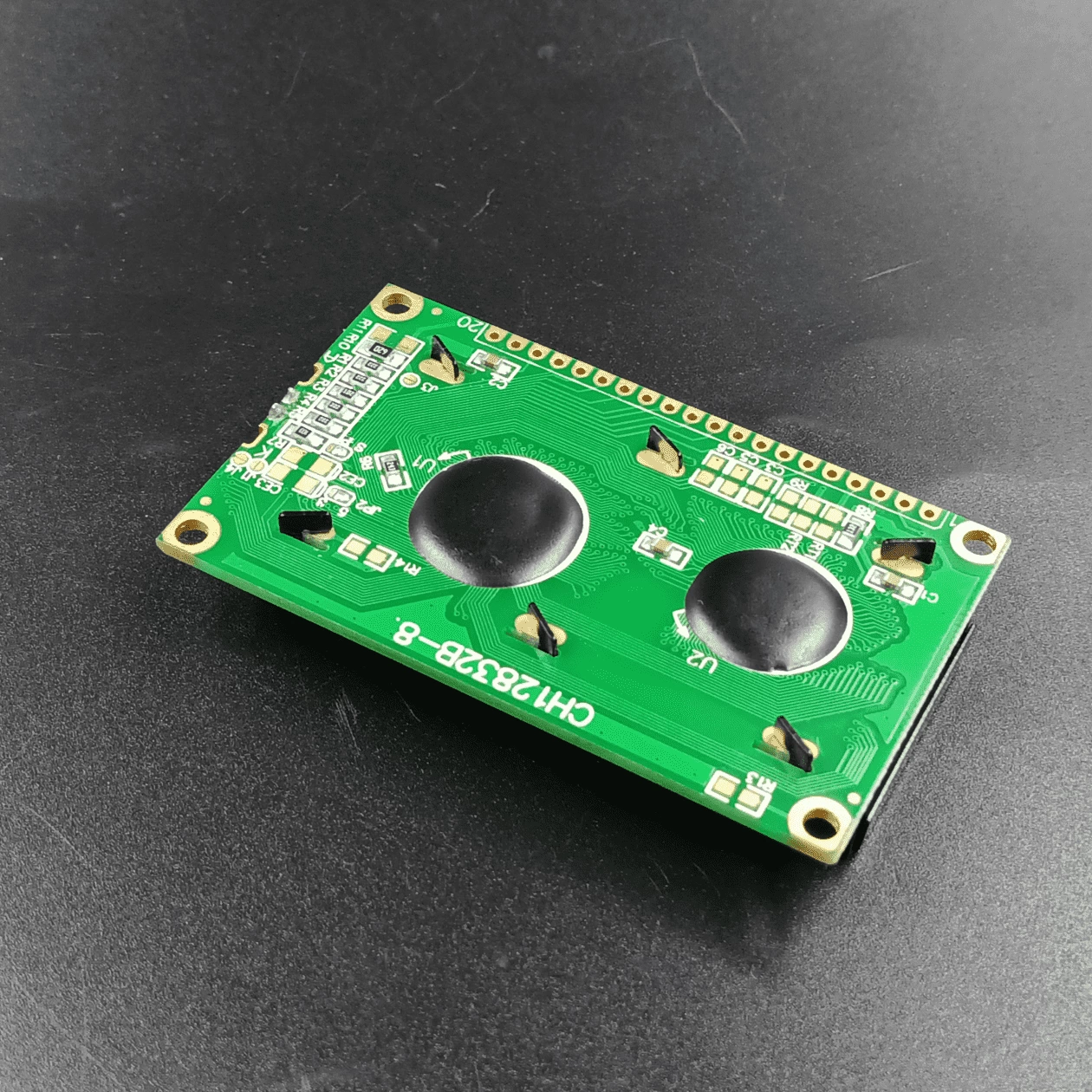

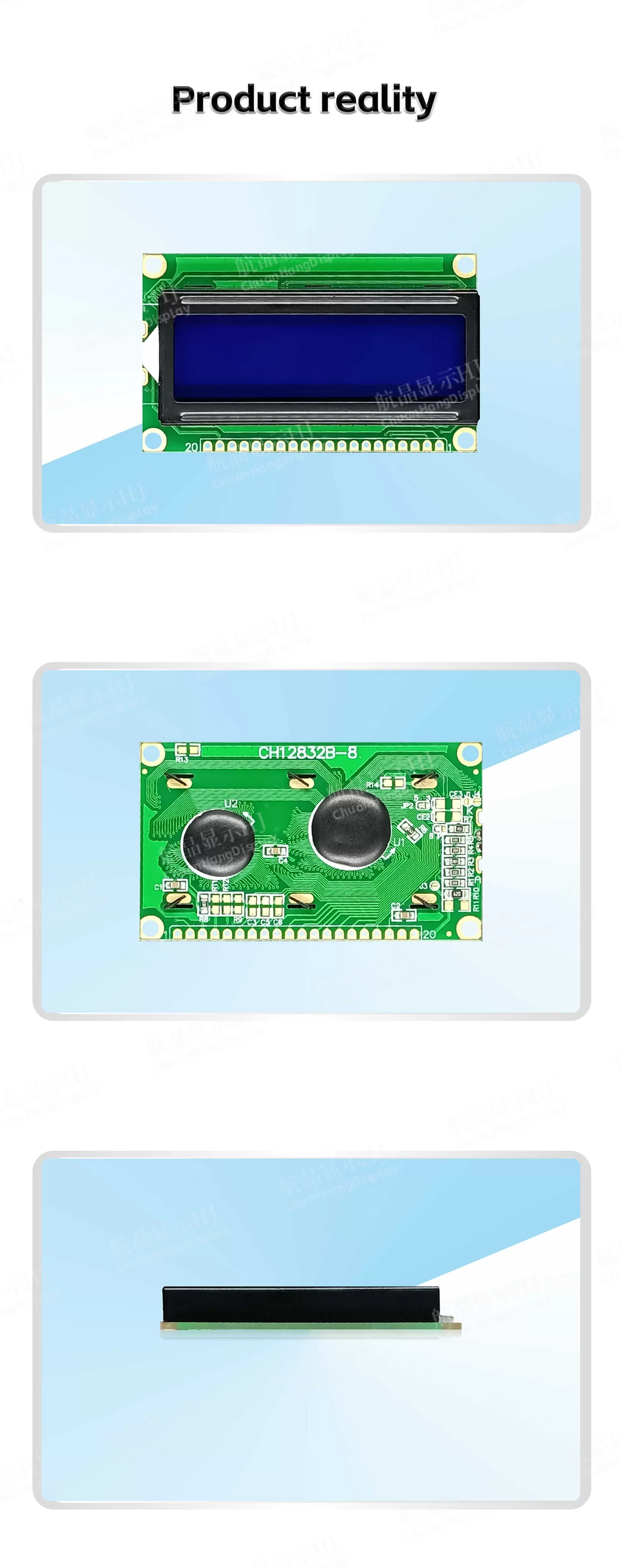

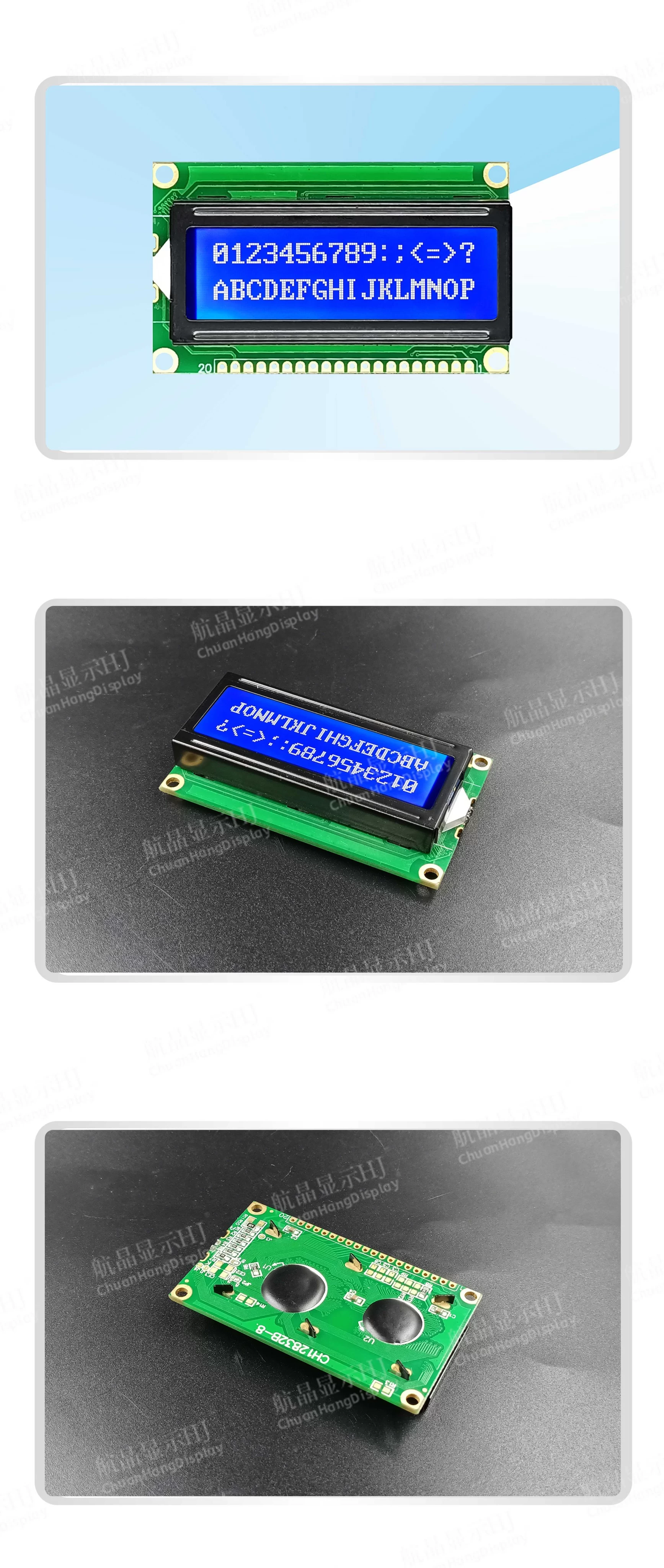

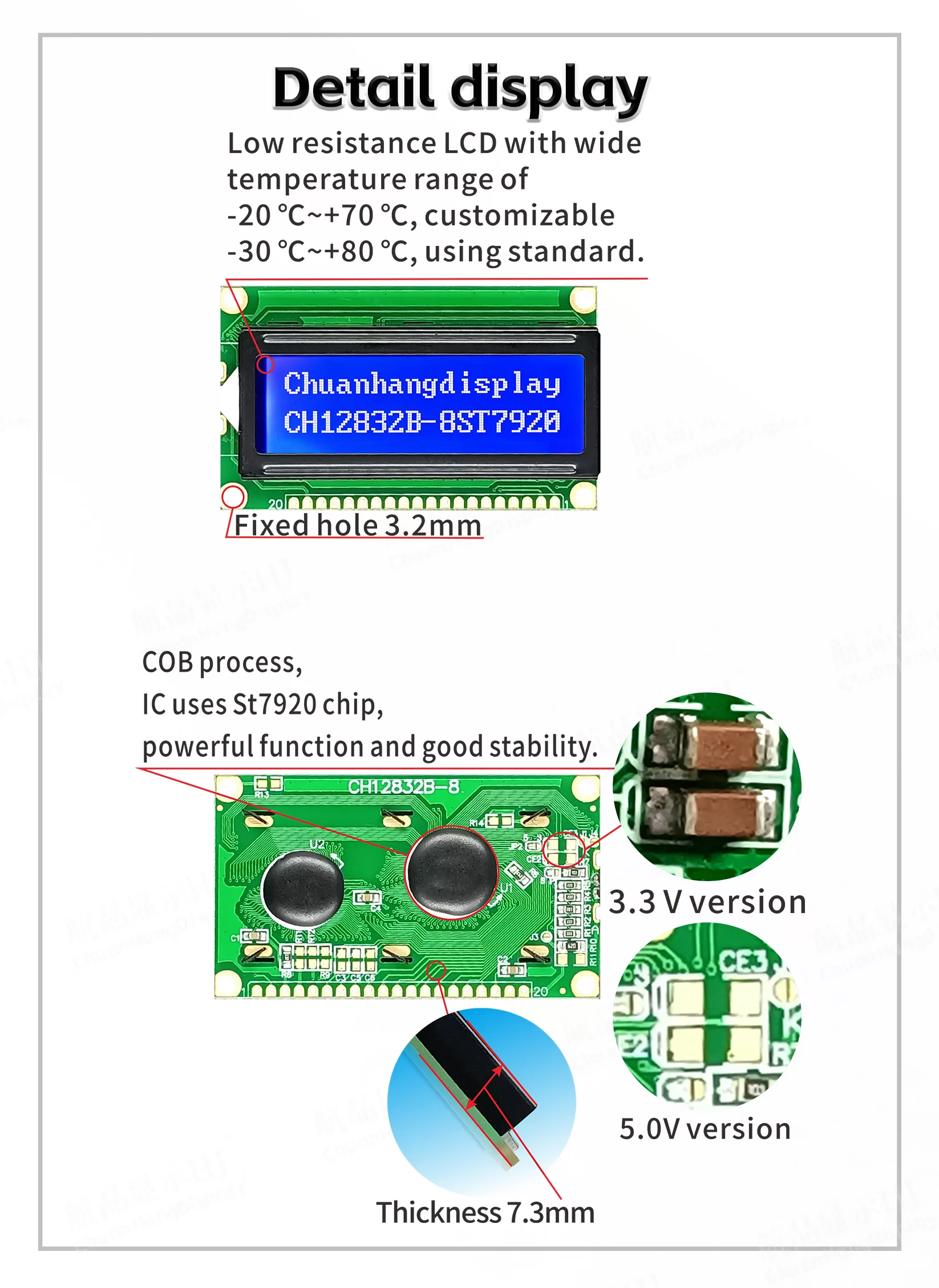

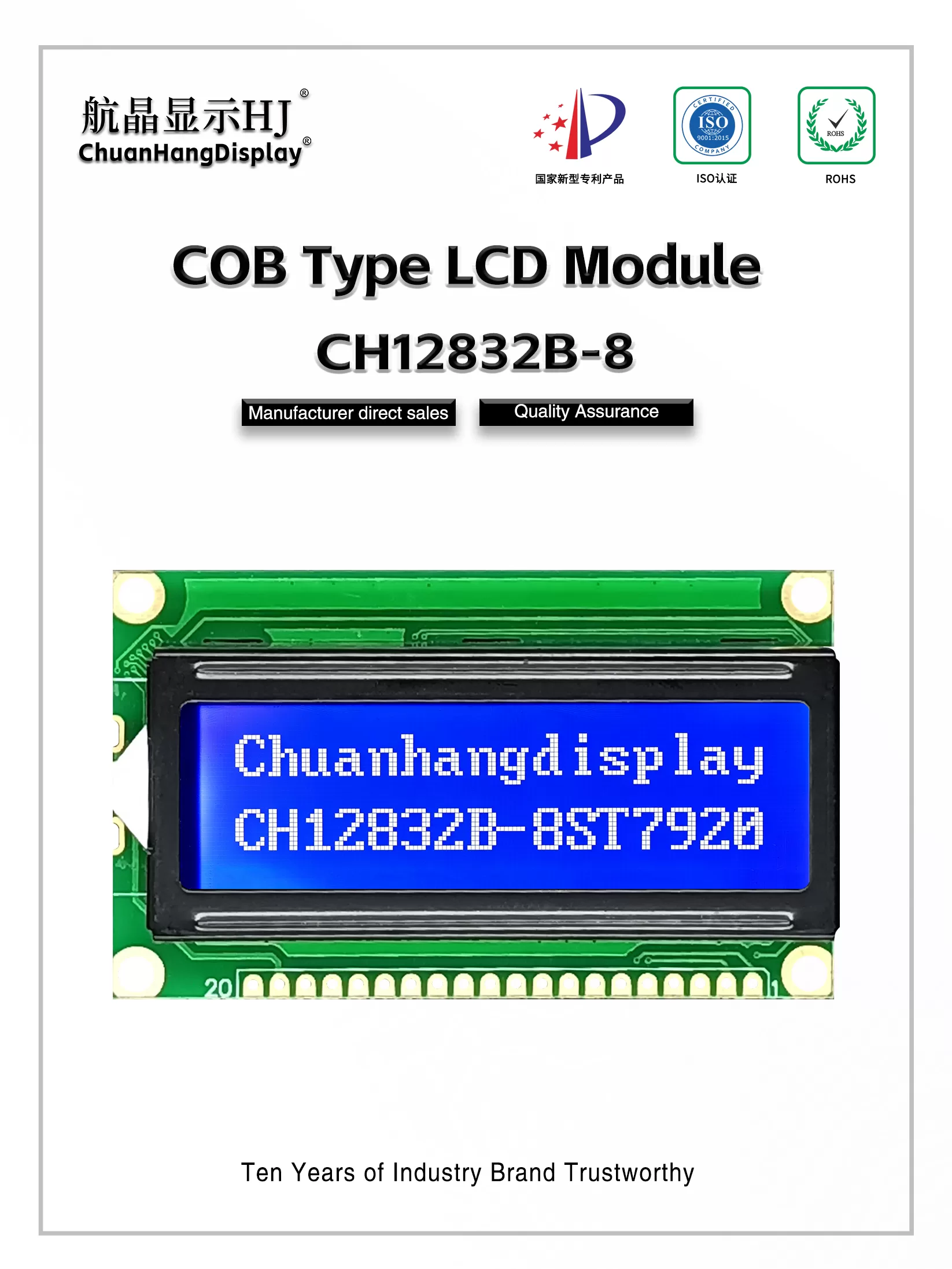

Product Display

CH12832B-8-英文版-详情页_01

CH12832B-8-英文版-详情页_01

CH12832B-8-英文版-详情页_01

CH12832B-8-英文版-详情页_01

CH12832B-8-英文版-详情页_01
