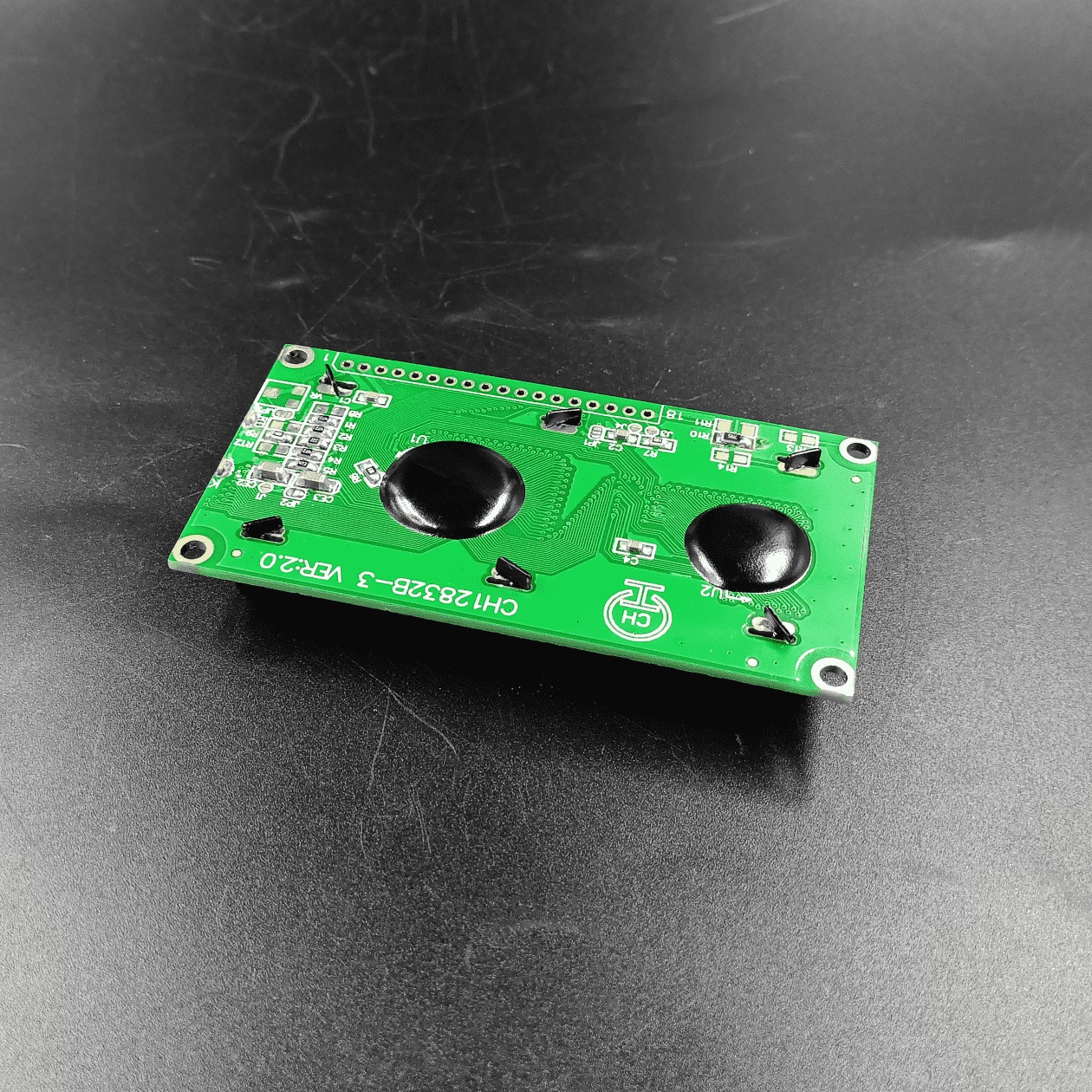

CH12832B-3 128x32 Graphic COB LCD Display

CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display
CH12832B-3 128x32 Graphic COB LCD Display

CH12832B-3 128x32 Graphic COB LCD Display

Product Description

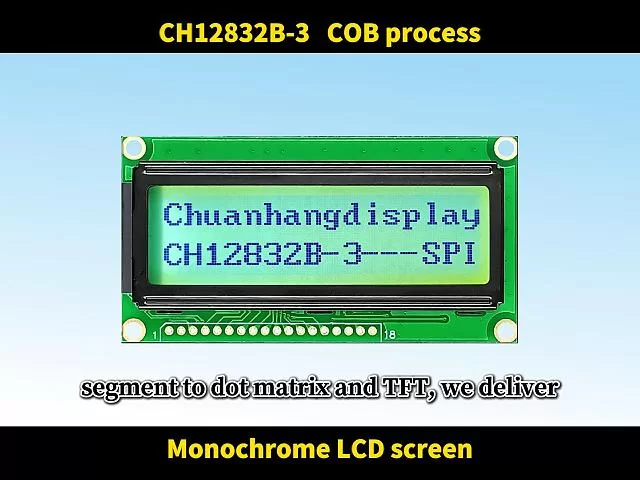

Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH12832B-3
Resolution128X32screen size
Outline Dimension(L*W*H)84.0x44.0x14.1mmVisible Area(L*W)70.0x20.0mm
Active Area(L*W)66.52x16.6mmDot Size (mm)0.48(L)x0.48(W)
TypeCOBConnection MethodConductive strip
Supply Voltage  5V/3.3V Interface TypeMCU/SPI
Viewing Direction6 O'CLOCK Driving Method1/32Duty,1/6Bias
Display Type STNDriver ICST7920
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight parameters  5V/3.3Vproduction capacitySelf-produced
Character libraries
Whether to bring PCBYes

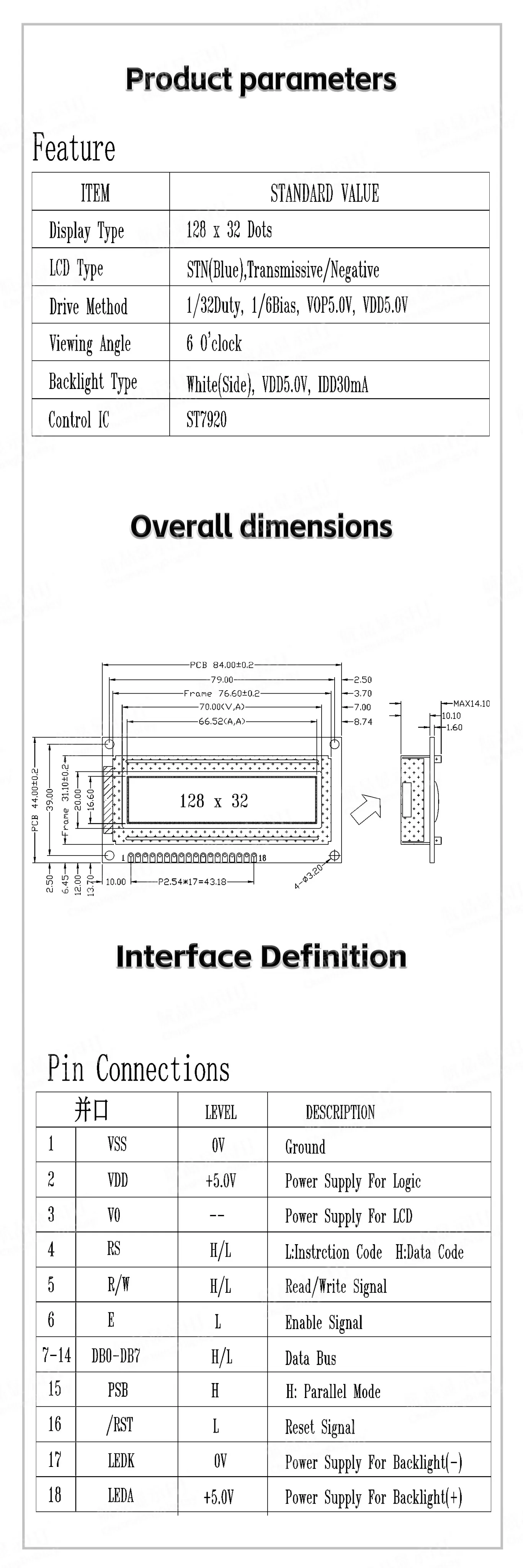

Product Datasheet

CH12832B-3-英文版-详情页_04

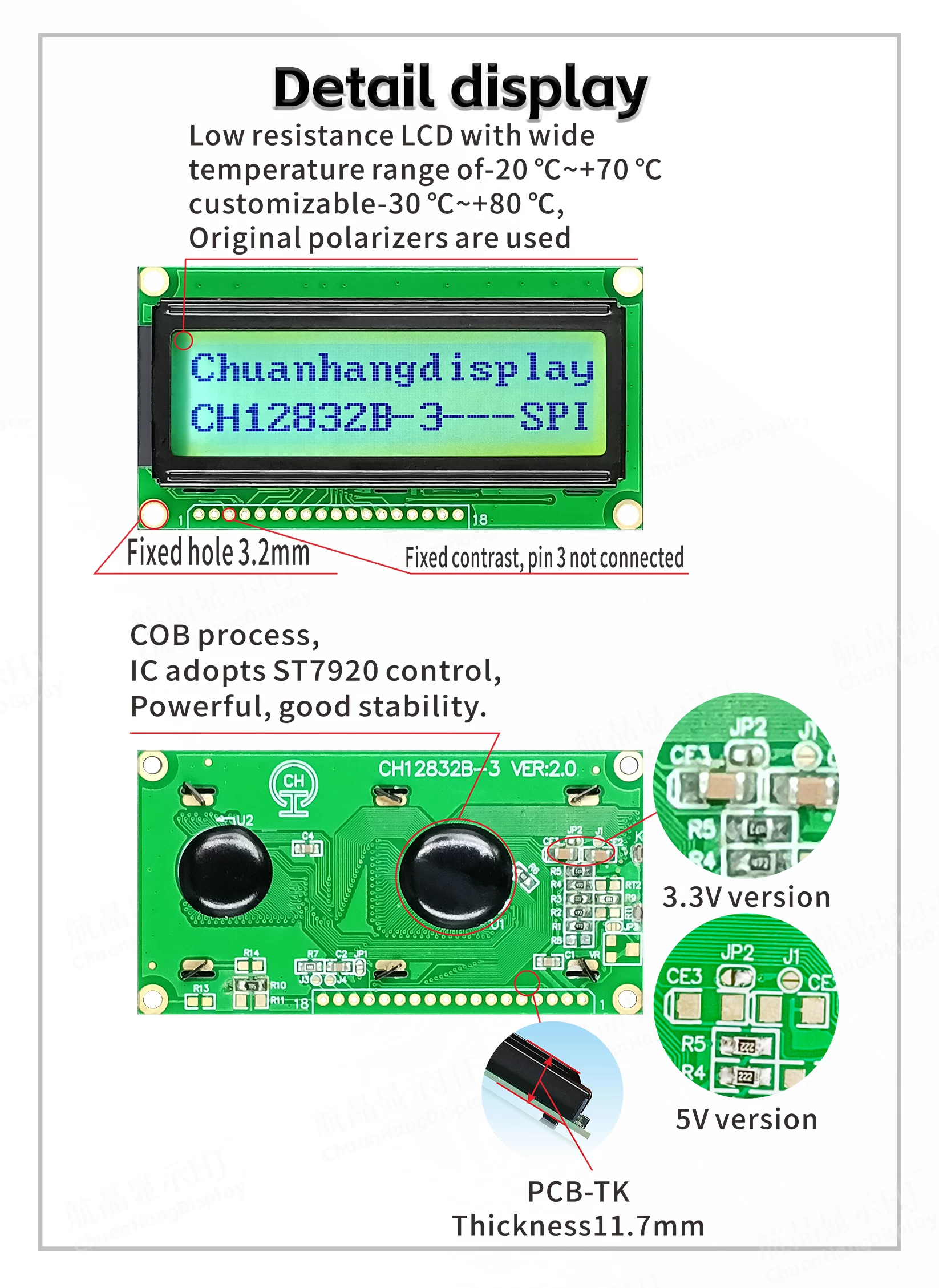

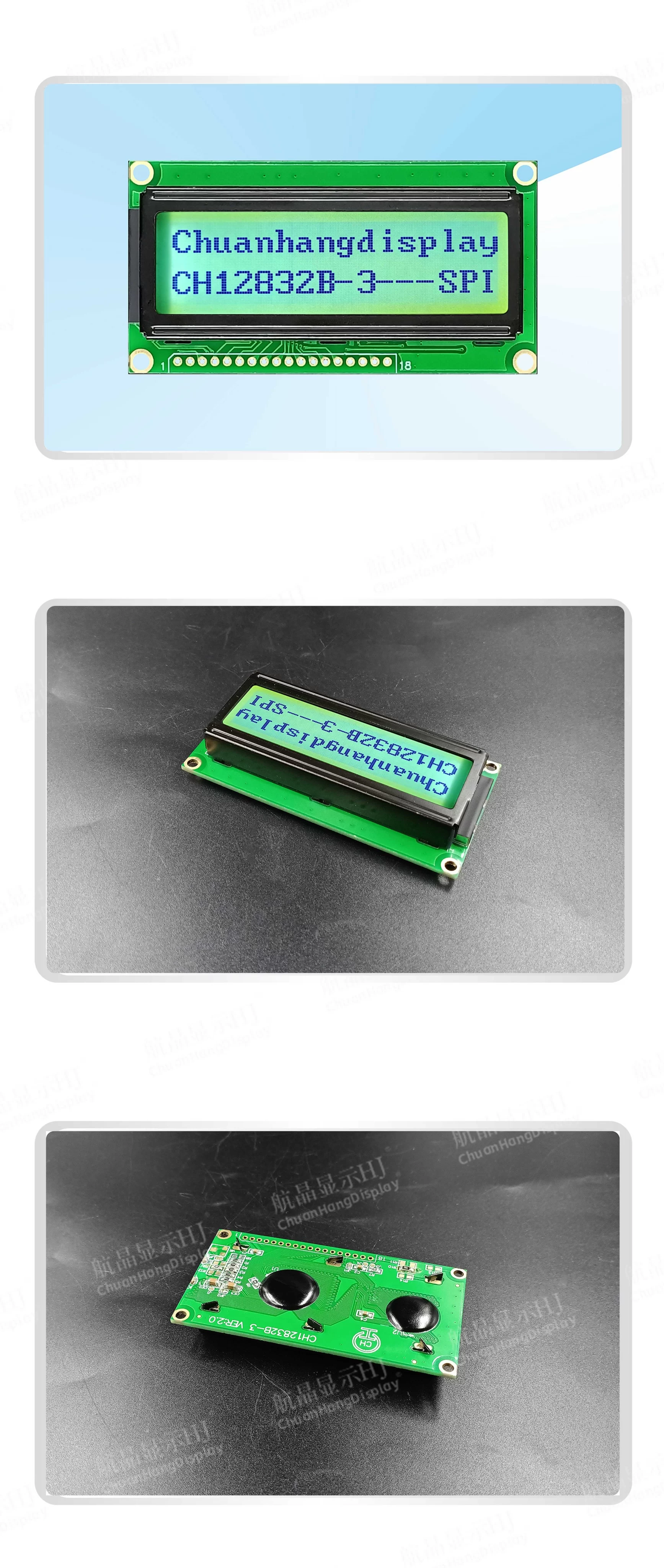

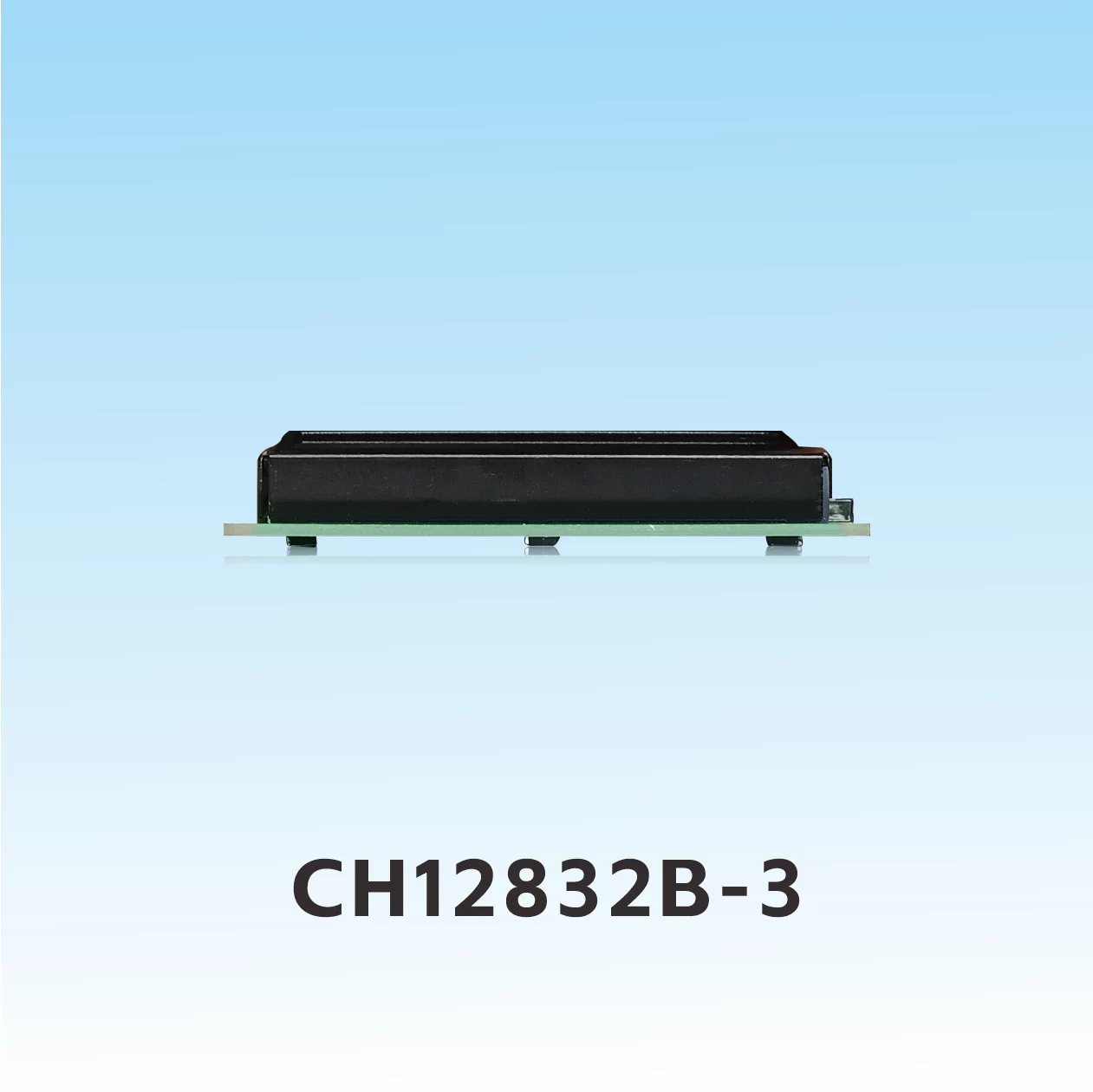

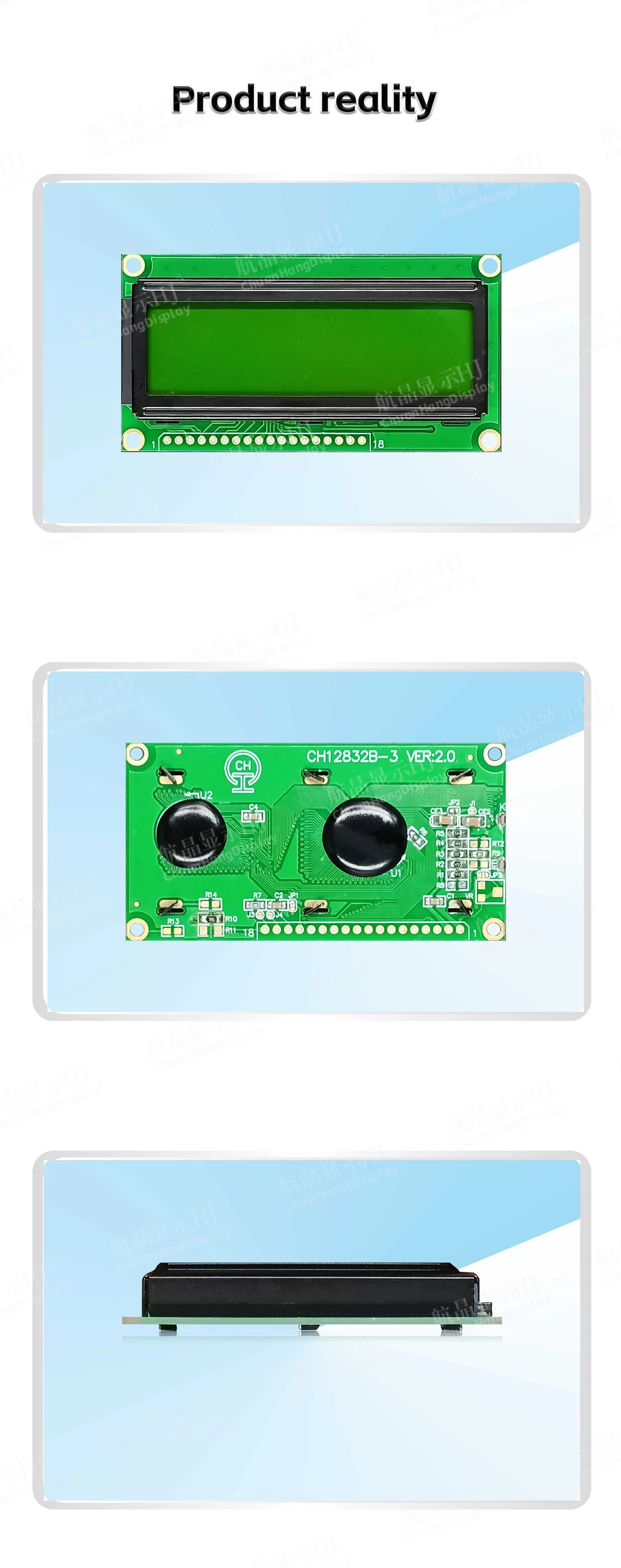

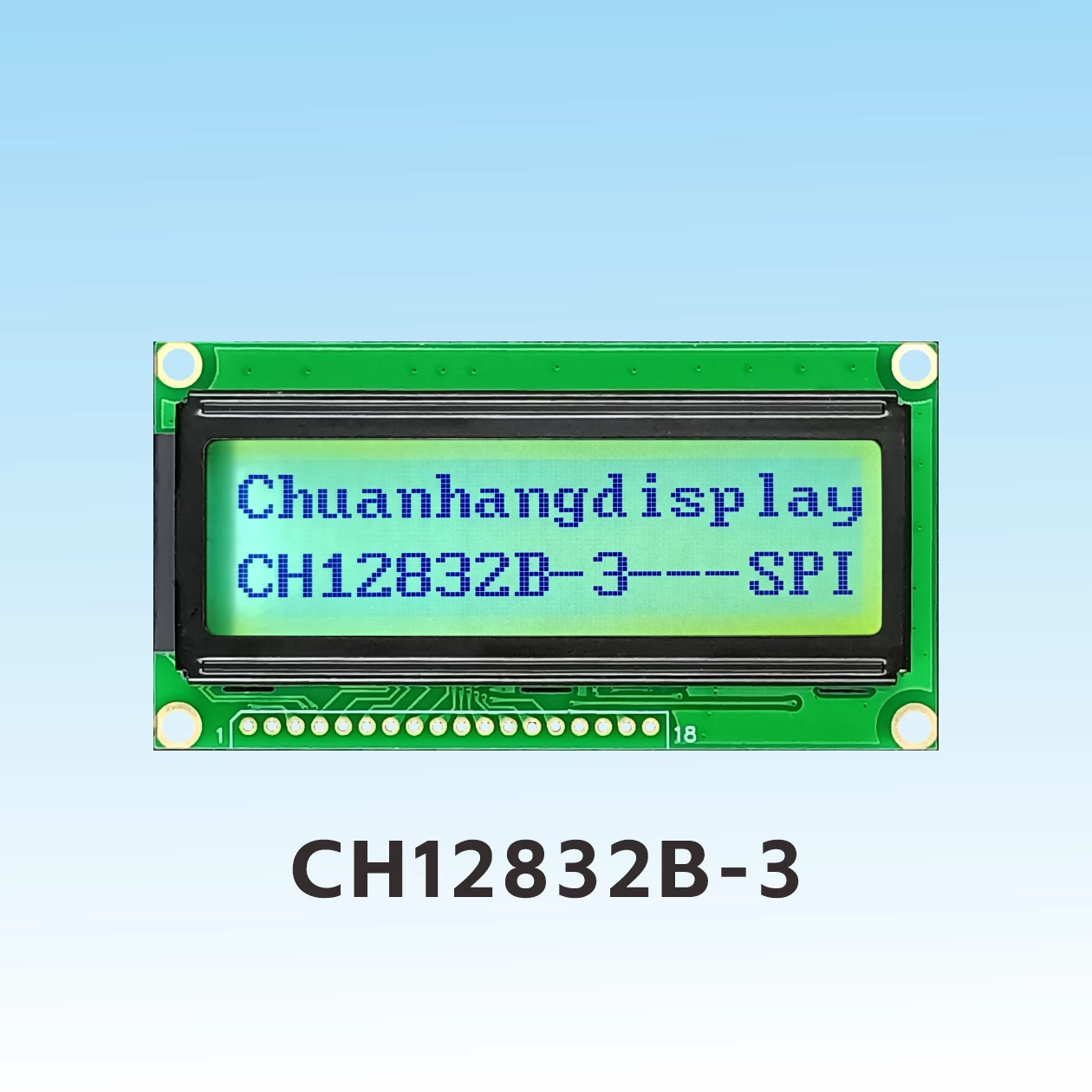

Product Display

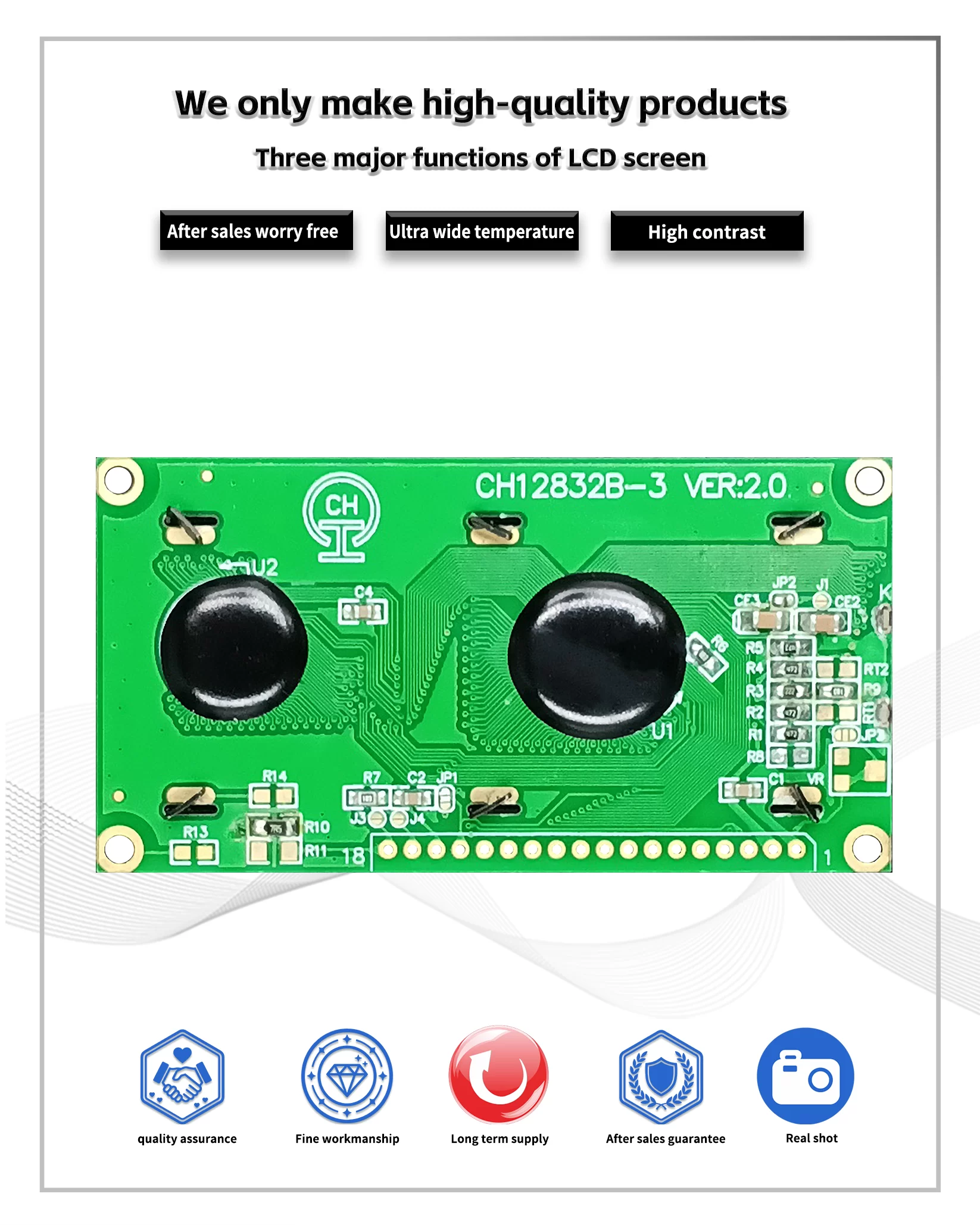

CH12832B-3-英文版-详情页_01

CH12832B-3-英文版-详情页_01

CH12832B-3-英文版-详情页_01

CH12832B-3-英文版-详情页_01

CH12832B-3-英文版-详情页_01
