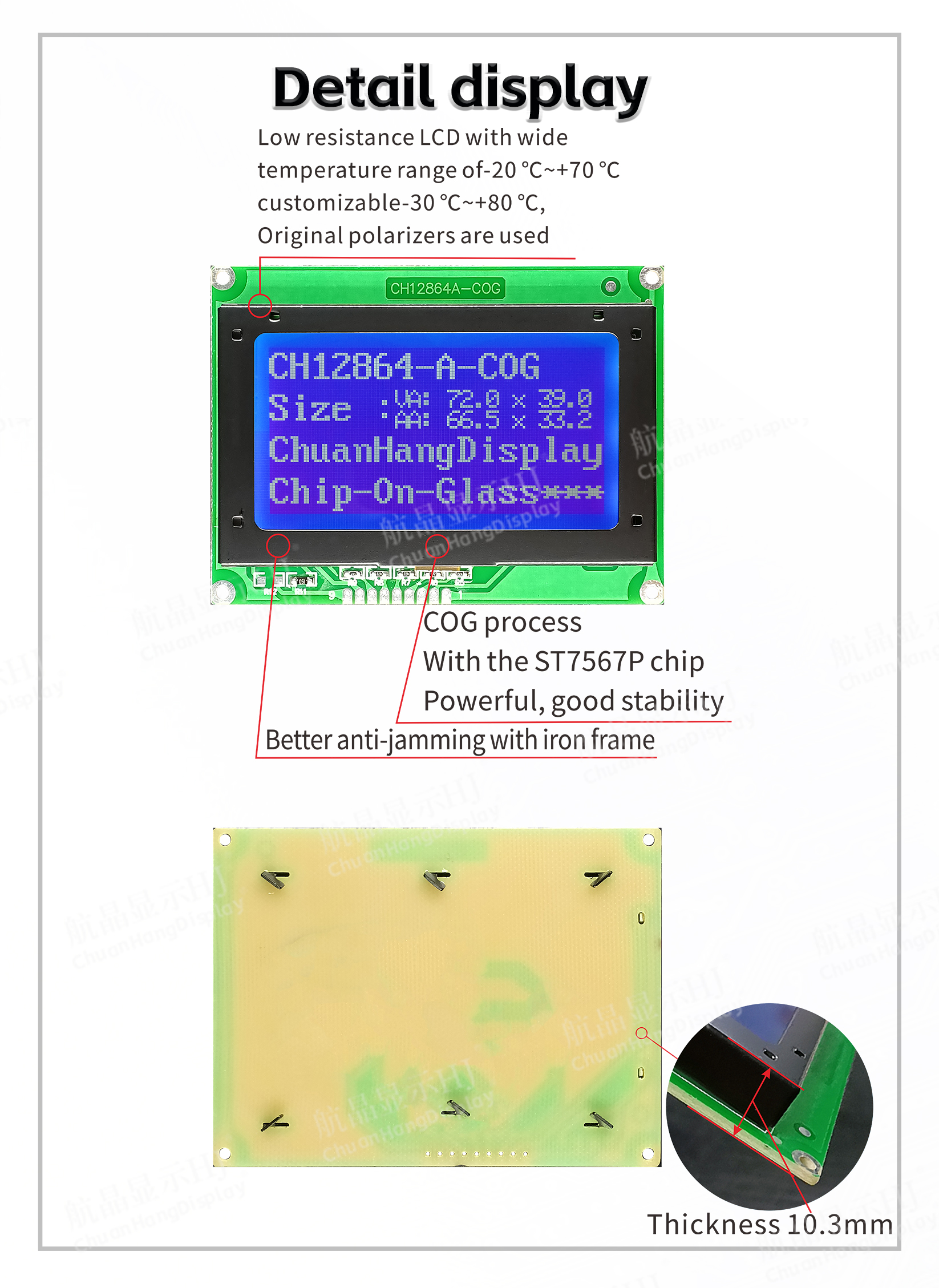

Selecting and integrating a commercial LCD screen into industrial equipment, medical devices, or public interactive kiosks is a complex technical decision. Unlike consumer-grade displays, commercial display modules must withstand demanding operating conditions, including continuous operation, temperature extremes, high ambient lighting, and physical exposure.
A display failure in an industrial terminal or medical monitor leads to operational downtime, safety concerns, and increased maintenance costs. For system integrators and product design engineers, a comprehensive understanding of the structural, optical, and electrical characteristics of liquid crystal panels is necessary to ensure long-term reliability and minimize the total cost of ownership.
To make informed sourcing decisions, it is vital to understand the physical and chemical layers that comprise a modern display panel. At its core, an LCD screen is a multi-layered optoelectronic system that modulates light rather than emitting it directly.
The structural layers of a display stack, from the outer surface to the back, include:
Front Polarizer: Filters outgoing light waves to a specific linear plane.Color Filter Glass: Contains the red, green, and blue subpixel matrices.Liquid Crystal Layer: Modulates the polarization angle of light via voltage manipulation.TFT Glass Substrate: Features the active matrix transistor grid controlling individual pixels.Rear Polarizer: Filters incoming backlight to a single polarization plane.Backlight Unit (BLU): Provides the primary light source, typically using light-emitting diodes (LEDs).
The modulation of light relies on two polarizers oriented perpendicular to each other, sandwiching a thin layer of liquid crystals.
The rear polarizer filters the light from the backlight, allowing only waves in a specific plane to pass. The front polarizer acts as an analyzer. Without the liquid crystal layer manipulating the light, no light would pass through the front polarizer, resulting in a black state.
Liquid crystals exist in a mesomorphic state—between solid crystal and isotropic liquid. By applying an electrical charge, the physical orientation of these molecules shifts, twisting or untwisting the polarization angle of the light, which determines how much light passes through the outer polarizer.
Active matrix displays use a thin-film transistor array deposited on a glass substrate. Each subpixel has its own dedicated transistor and capacitor, allowing the system to maintain its electrical state without continuous charging cycles. This substrate material is typically categorized into three types:
Amorphous Silicon (a-Si): The traditional standard for B2B panels. It is cost-effective, reliable, and highly stable, though it has limited electron mobility.Indium Gallium Zinc Oxide (IGZO): This material offers significantly higher electron mobility than a-Si, allowing for smaller transistors, higher pixel densities, lower power consumption, and faster response times.Low-Temperature Poly-Silicon (LTPS): Offers the highest electron mobility but involves a complex manufacturing process, making it more common in high-end portable electronics than industrial terminals.
Because liquid crystals do not emit light, the backlight unit defines the panel's luminance, color uniformity, and lifespan.
Edge-lit LED Backlights: LEDs are positioned along the perimeter of the panel, using a light guide plate to distribute illumination across the active area. This configuration allows for thin panel profiles and lower power consumption.
Direct-lit LED Backlights: LEDs are placed in a grid pattern directly behind the LCD array. This structure provides higher uniform brightness and is highly suitable for outdoor or high-ambient-light environments.
The alignment of liquid crystal molecules under an electric field determines the viewing angles, contrast ratios, and response speeds of the panel. The three primary active-matrix configurations used in commercial designs are Twisted Nematic (TN), In-Plane Switching (IPS), and Vertical Alignment (VA).
In TN panels, liquid crystal molecules twist 90 degrees in their default state, allowing light to pass. When a voltage is applied, they untwist to block light. While highly cost-effective and capable of fast refresh rates, TN displays suffer from poor color reproduction and restricted viewing angles. Viewing a TN panel from below or from the sides often leads to severe color inversion, making them unsuitable for medical imaging or complex control panels.
IPS panels orient liquid crystal molecules parallel to the glass substrates. When an electric field is applied, the molecules rotate within the plane. This horizontal rotation ensures that light is refracted uniformly in all directions, providing wide viewing angles of 178 degrees without color shifting. Furthermore, when pressure is applied to an IPS surface, the horizontal alignment remains stable, meaning they do not exhibit the wave distortion common in other panel types, making them a preferred choice for capacitive touchscreens.
VA displays feature vertically aligned crystals that tilt when energized, allowing light through. In their default state, the vertical orientation blocks light effectively, leading to deep blacks and native contrast ratios up to 5000:1. While VA panels offer excellent image depth, they are susceptible to slight color shifting when viewed off-center and can exhibit slower response times, particularly during dark transitions.
When selecting the correct LCD screen for high-reliability applications, system integrators must evaluate specific environmental factors that consumer-grade panels are not designed to withstand.
Commercial equipment is often installed in unconditioned outdoor environments, manufacturing floors, or near heat-generating components.
Every liquid crystal material has a temperature range where it functions properly. If the temperature exceeds the clearing point, the liquid crystal transitions into an isotropic liquid, turning the panel black. Industrial panels use specialized wide-temperature formulations that operate between -30°C and 85°C, preventing isotropic phase transition in direct sunlight.
At very low temperatures, liquid crystals become viscous, which significantly slows down response times, causing ghosting or delayed image transitions. Integrated heater glass panels or specialized low-temperature driving algorithms are required to mitigate this issue.
Outdoor kiosks, marine navigation displays, and medical diagnostic screens require high readability under bright sunlight or artificial light.
Standard indoor screens offer 250 to 350 nits. Outdoor-readable panels require at least 1000 nits, and often up to 2500 nits, to overcome ambient sunlight reflection.
Standard panels contain air gaps between the cover glass and the LCD surface. This creates multiple glass-to-air boundaries, causing approximately 4.5% reflection at each boundary. If ambient light is stronger than the backlight, the image becomes washed out.
Filling the air gap with an Optically Clear Adhesive (OCA) or Liquid Optically Clear Adhesive (LOCA) index-matches the glass and polarizer layer, reducing internal reflections to less than 0.2%. This greatly improves contrast and sunlight readability without requiring excessive backlight luminance, which would otherwise generate high heat loads.
Procurement teams and design engineers face several technical hurdles during the sourcing phase of their project life cycles.
Often referred to as display burn-in, image retention occurs when static UI elements, such as navigation bars or dashboard parameters, are displayed continuously. This can cause charge buildup within the liquid crystal layer, leaving a ghost image even after the graphic changes.
Choosing industrial-grade controllers with pixel-shifting firmware and utilizing high-quality liquid crystal materials significantly reduces this charge buildup. Working with professional manufacturers like Chuanhang Display helps mitigate these risks by providing customized display modules that undergo rigorous environmental stress testing.
A major issue when sourcing displays is the brief product life cycle of consumer-grade electronics. Consumer panels are often redesigned every 12 to 18 months, altering dimensions, FPC pinouts, or backlight drive currents.
Industrial projects, by contrast, often require stable product availability for 5 to 10 years to recoup engineering and certification costs (particularly in medical and automotive sectors). Sourcing must prioritize manufacturers that offer locked bills of materials (BOM), guaranteeing form, fit, and function compatibility over extended periods.
A typical BOM Lock Control Process includes:
Initial Engineering Approval of the prototype module.Locking of active layers, including Glass, TFT, and the Backlight Unit.Establishing a Product Change Notification (PCN) protocol requiring at least six months of notice.Setting End of Life (EOL) support and Last Time Buy options.
Commercial panels often need to be integrated into custom enclosures, requiring modifications to the cover glass.
Chemically strengthened glass or thermal tempering is necessary to withstand impact. A rating of IK08 or IK10 is standard for public terminals.
Anti-Glare (AG) chemical etching diffuses specular reflections, making screens easier to read. Anti-Reflective (AR) coatings apply thin-film destructive interference layers to reduce glare. Anti-Fingerprint (AF) hydrophobic coatings minimize fingerprint smudges on capacitive touch surfaces.
Evaluating B2B display suppliers involves assessing both initial capital expenditure and long-term operating costs.
Total Cost of Ownership (TCO) is divided into two primary categories:
Direct Sourcing Costs: Panel & Backlight Unit, Controller Board & Driver ICs, and Non-Recurring Engineering (NRE) fees.Indirect Lifecycle Costs: Field Failures & RMA Processing, System Redesign due to EOL Panels, and Downtime and Warranty Repairs.
When a project requires a custom FPC layout, custom backlight brightness, or specific bezel designs, manufacturers apply NRE charges. These fees cover tooling modifications, optical simulation, and prototype assembly. For custom configurations, partnering with an experienced developer like Chuanhang Display ensures that NRE costs remain reasonable while meeting exact project parameters.
Ensure that your supplier adheres to robust quality management systems:
ISO 9001: For general industrial and commercial designs.IATF 16949: Required for automotive and high-reliability transport systems.ISO 13485: Necessary for medical equipment integration, requiring rigorous documentation and change-control protocols.
Successfully integrating an LCD screen into a commercial system requires careful consideration of optical parameters, thermal performance, and mechanical integration. Choosing the correct panel technology, backlight design, and surface treatment ensures that your display remains functional in demanding operational environments.
At Chuanhang Display, we cooperate with engineering teams globally to deliver high-durability displays tailored to your industrial needs. Our technical experts assist in navigating the selection process, providing specialized design support from the initial prototype phase through mass production.
For detailed technical specifications, project evaluations, or custom display development, please contact our engineering sales team to submit your inquiry today.
A1: The lifespan is primarily determined by the Half-Brightness Lifetime of the Backlight Unit (BLU). Modern industrial LED backlights are typically rated for 50,000 to 100,000 hours of continuous use before their luminance drops to 50% of the initial output. Other factors include driver IC thermal stability, polarizer degradation under high UV exposure, and environmental humidity.
A2: IPS panels are generally preferred for multi-user human-machine interfaces (HMIs) because of their wide viewing angles (178°/178°) and touch stability, which prevents visual distortion during touch interaction. VA panels are better suited for static digital signage where high contrast ratios are needed to display rich graphics, provided wide viewing angles are not primary requirements.
A3: Optical bonding fills the internal air gap between the outer cover glass and the polarizer layer with index-matched optical adhesive. This eliminates two reflective boundaries (glass-to-air and air-to-polarizer), reducing total ambient light reflection from approximately 8.5% down to less than 1%. This enhancement maintains contrast and legibility in high ambient light without generating excess heat.
A4: The clearing point is the specific temperature at which the liquid crystal formulation undergoes a phase change, transitioning from an ordered anisotropic state to an isotropic liquid. When this happens, the panel loses its light-modulating capability, turning dark. Industrial displays utilize liquid crystals with clearing points above 105°C to prevent this issue in high-temperature or outdoor applications.
A5: Reliable industrial suppliers offer Product Change Notifications (PCNs) at least six to twelve months before making structural changes to a panel. They also lock the Bill of Materials (BOM) to ensure components remain unchanged during the production run, and they offer Last-Time-Buy (LTB) support to prevent abrupt supply line disruptions.
