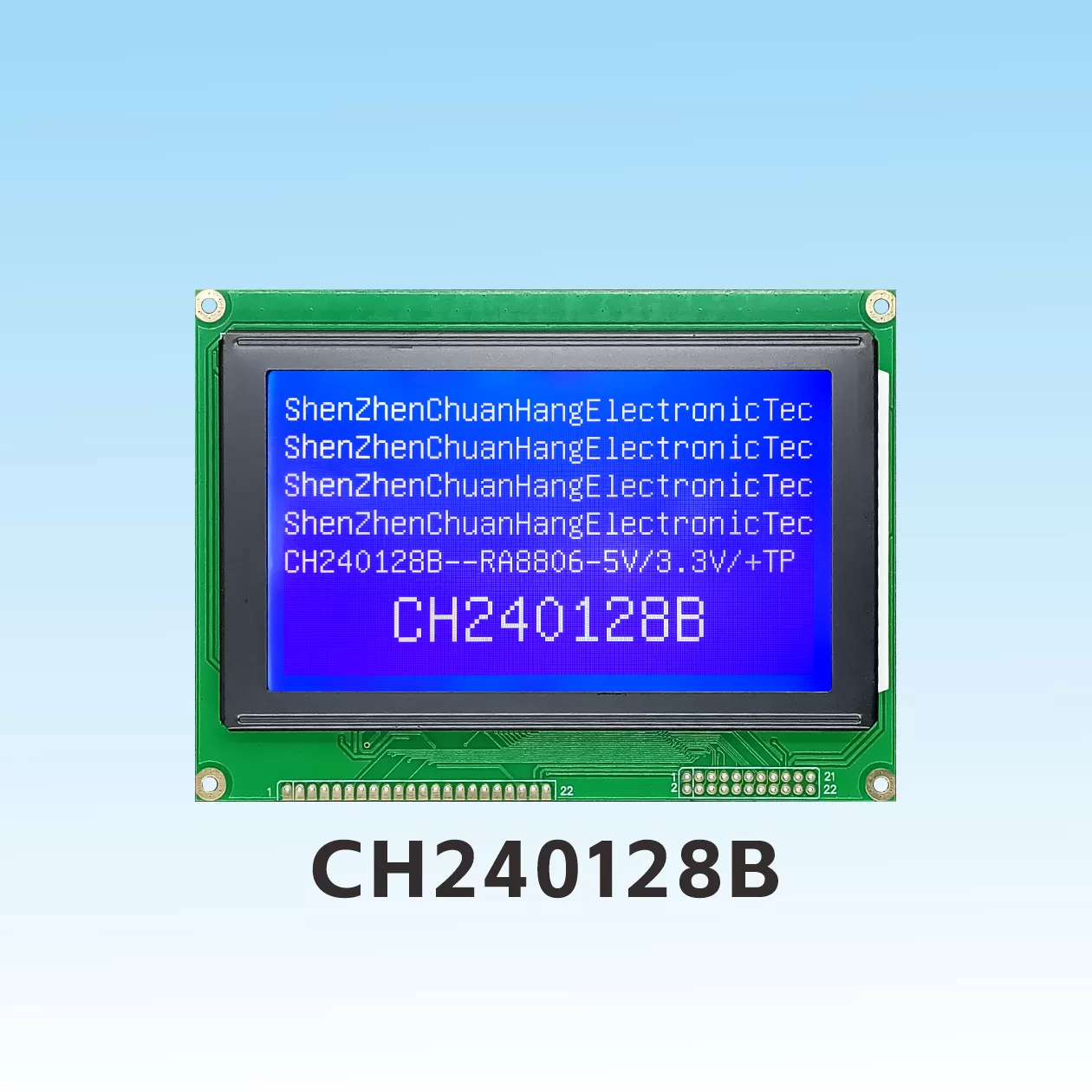

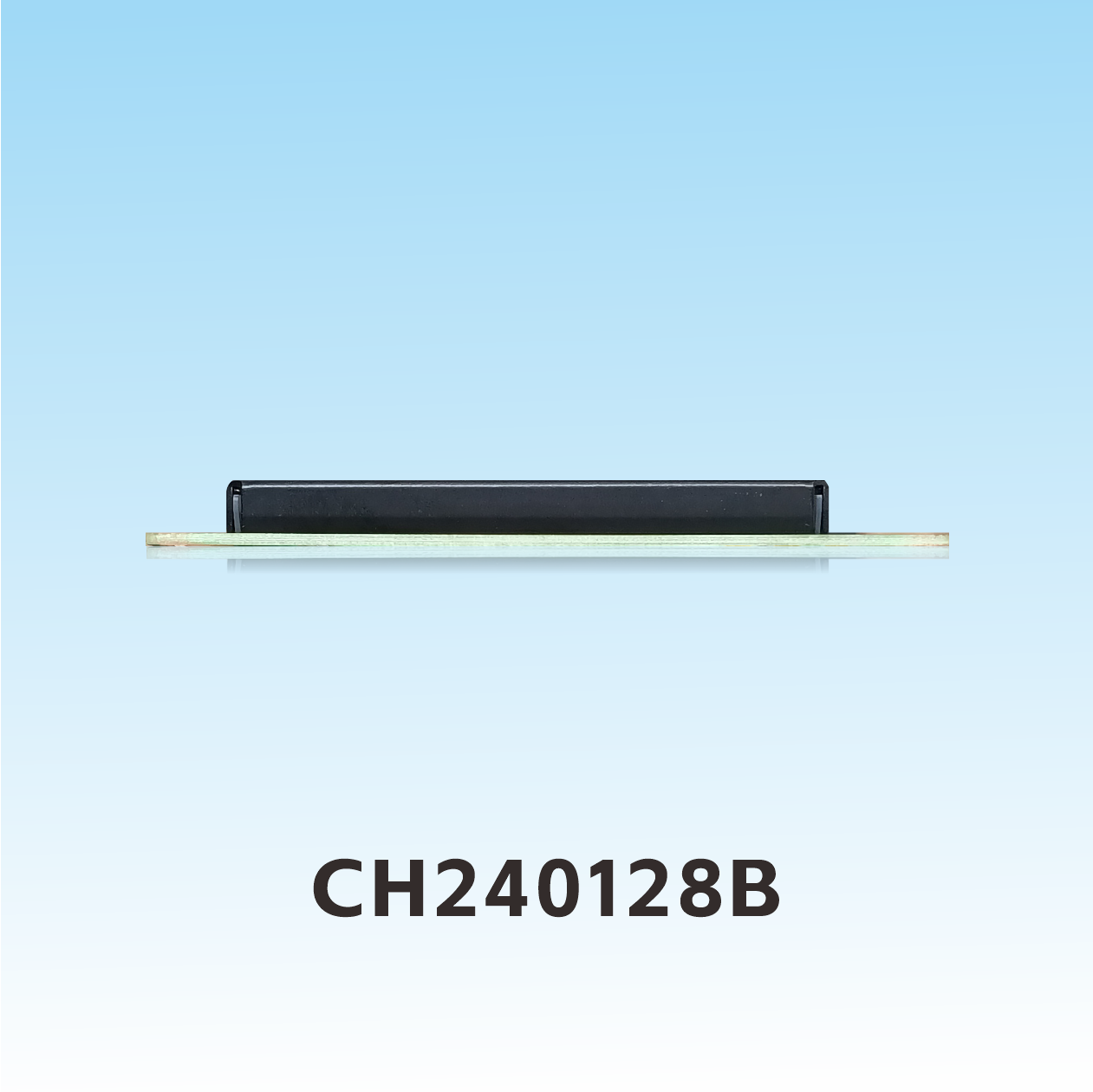

CH240128B

Product Description

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH240128B
Resolution	240X128	screen size	4.8"
Outline Dimension(LWH)	144.00x104.00x 12.7mm	Visible Area(L*W)	114.0X64.0 mm
Active Area(L*W)	107.95X57.55 mm	Dot Size (mm)	0.40(L)X0.40(W)
Type	COB	Connection Method	Conductive strip
Supply Voltage	5V/3.3V	Interface Type	MCU
Viewing Direction	6 O'CLOCK	Driving Method	1/128Duty,1/12Bias
Display Type	STN	Driver IC	AIP31086
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	5V/3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	Yes

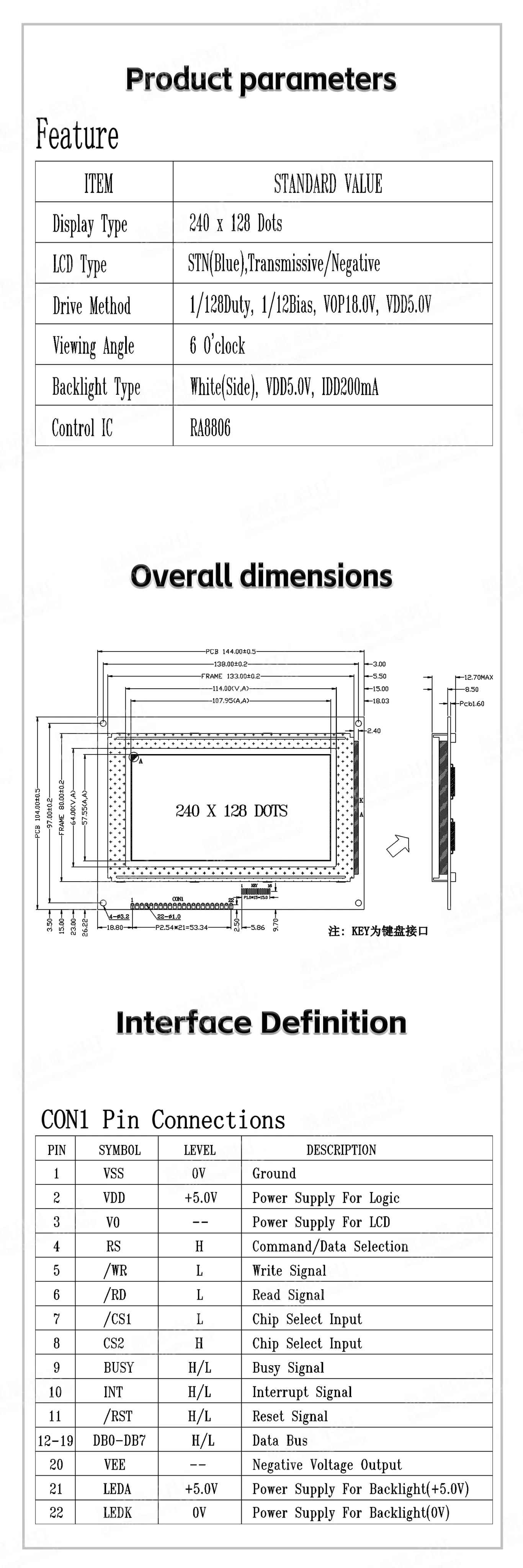

Product Datasheet

CH240128B-英文版-详情页_04

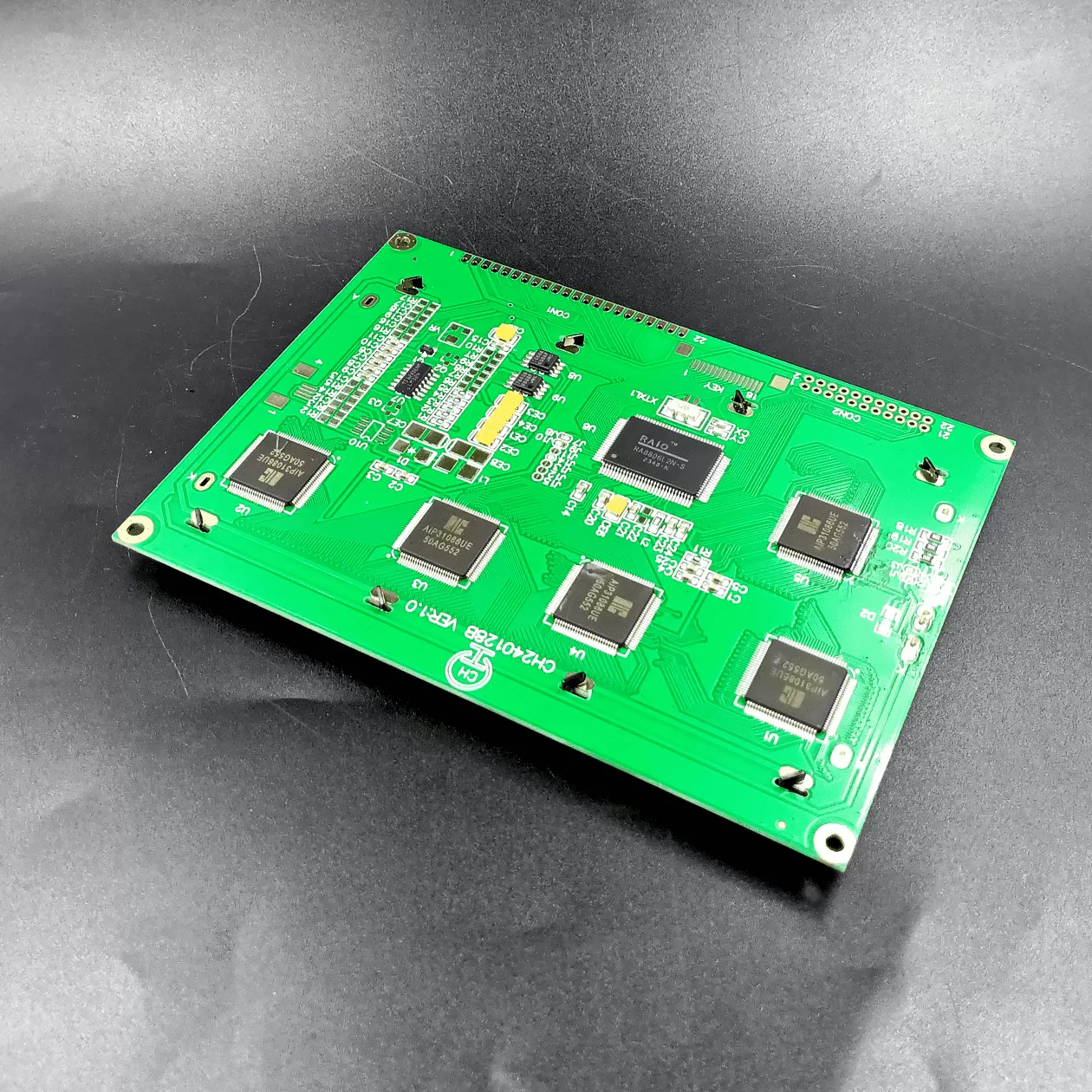

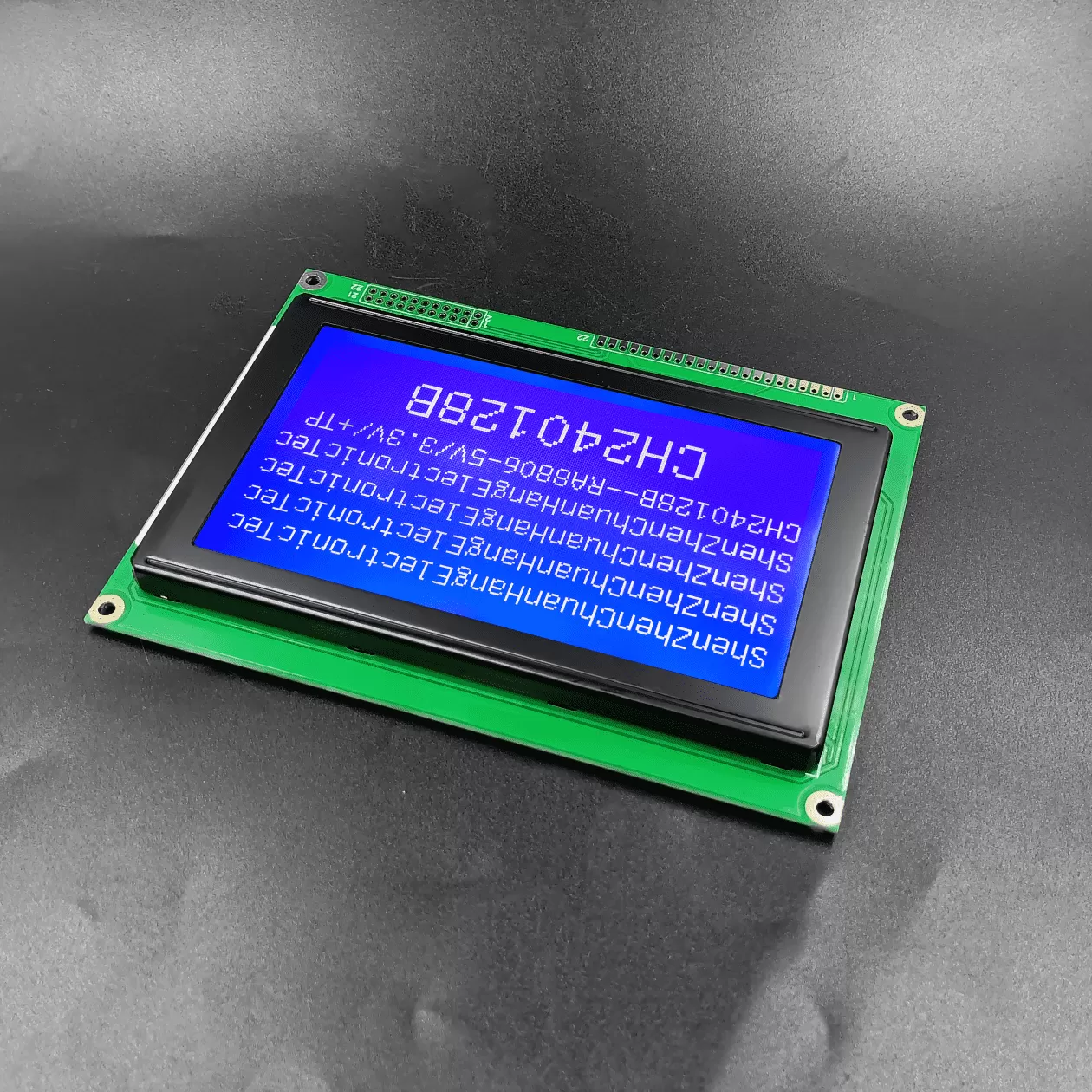

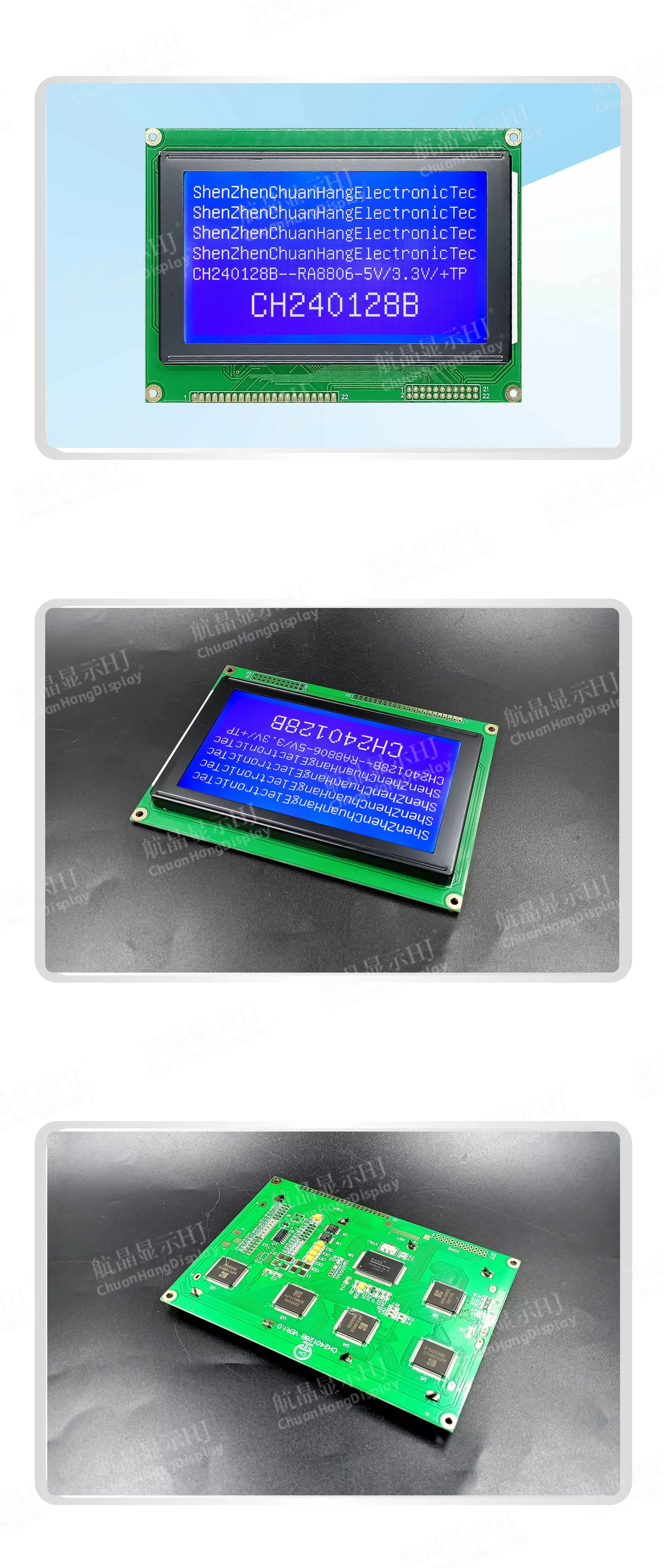

Product Display

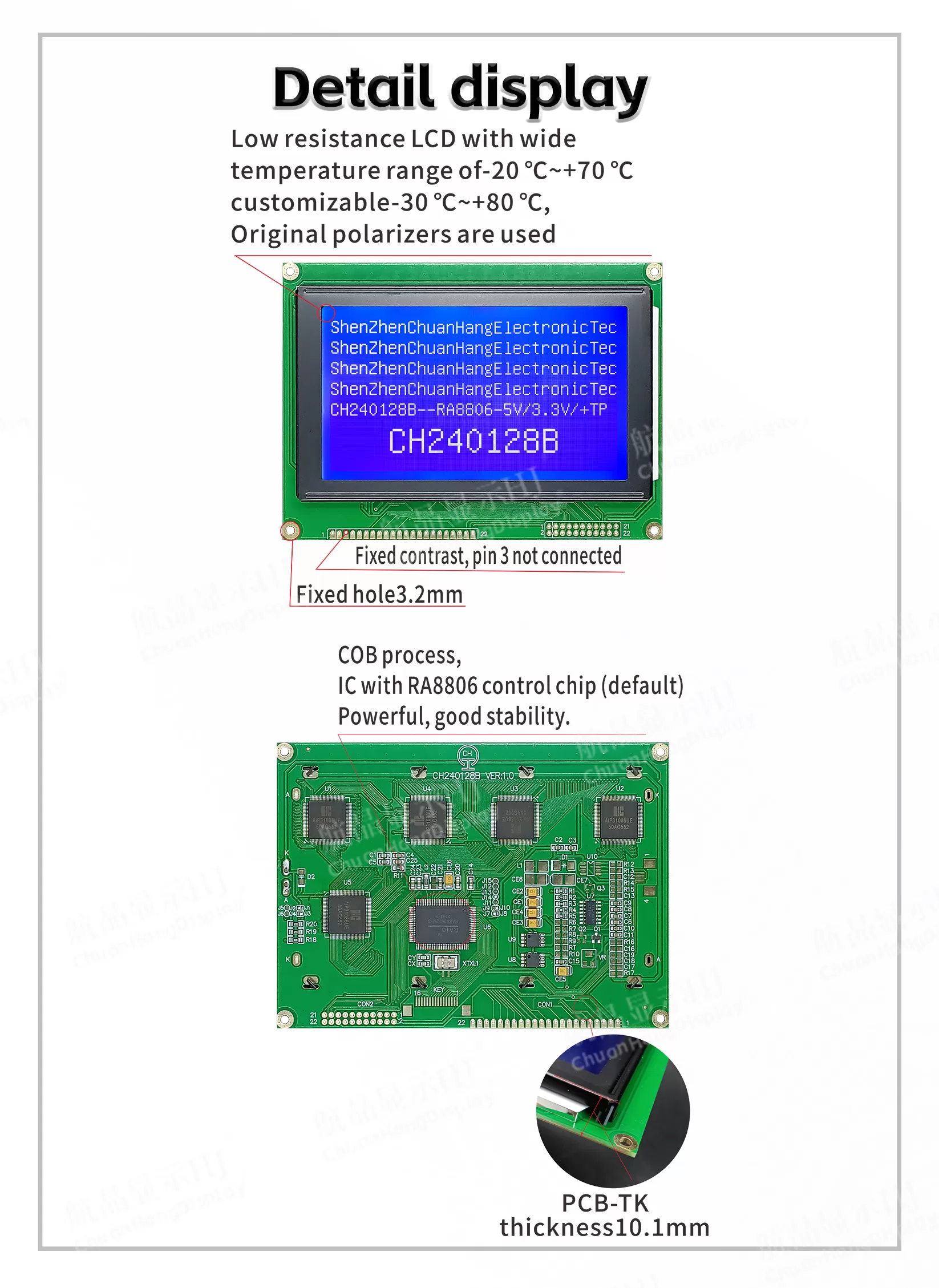

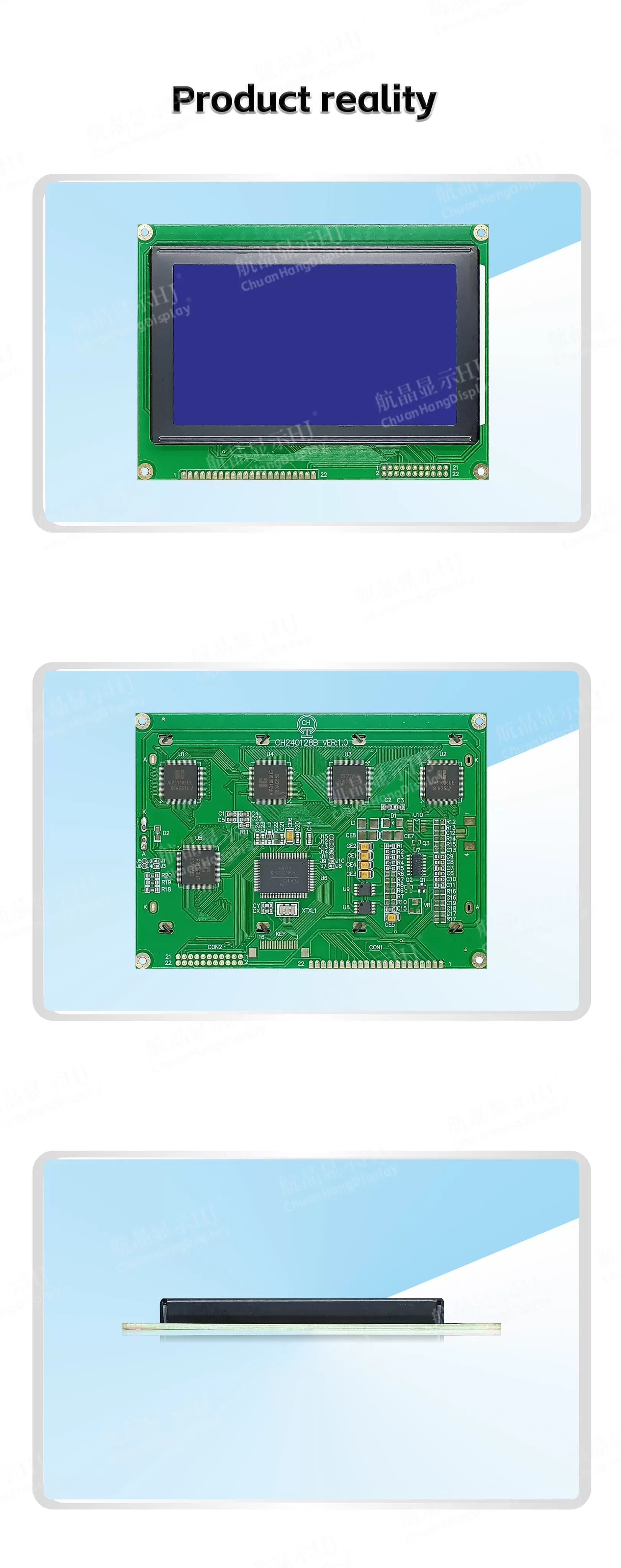

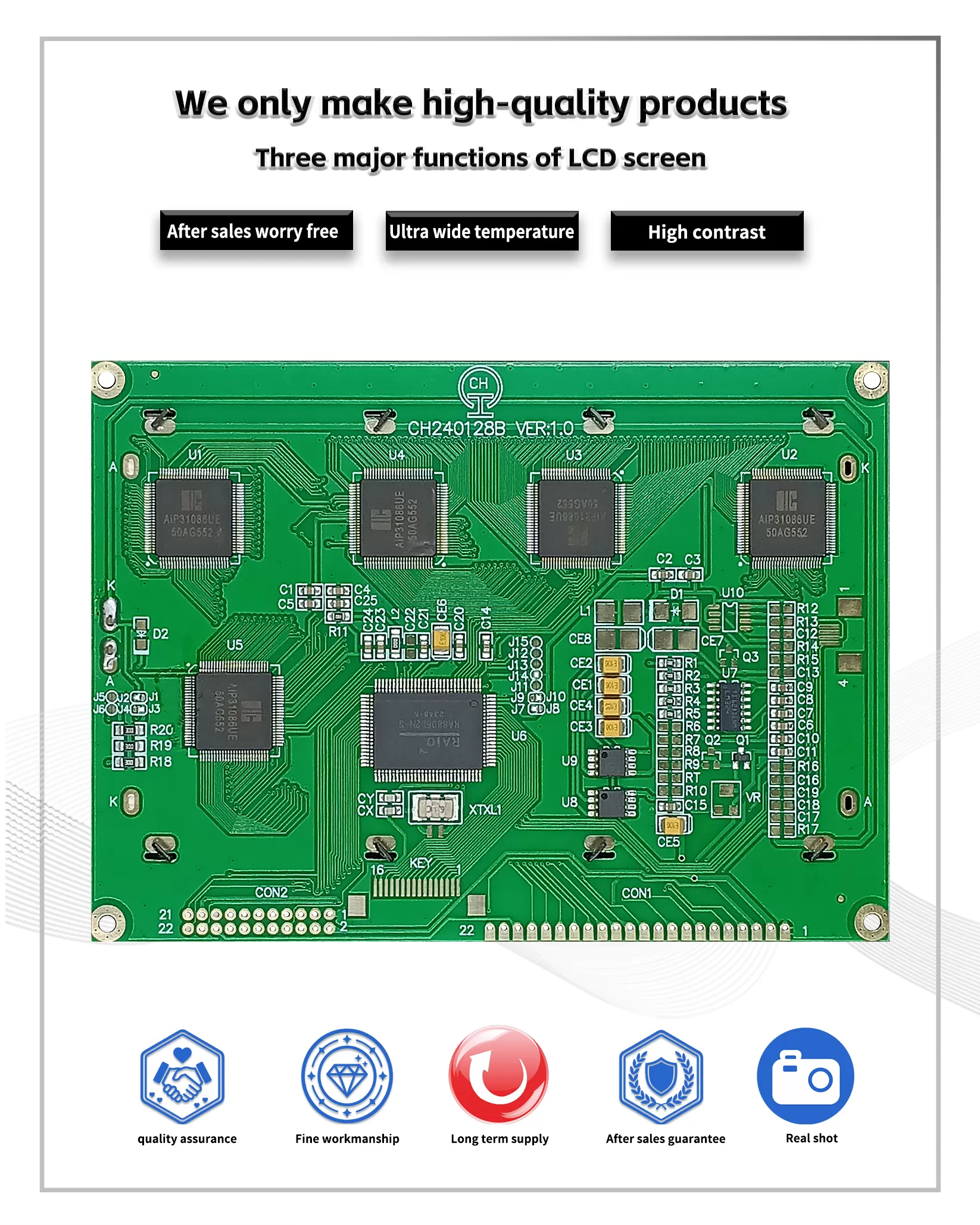

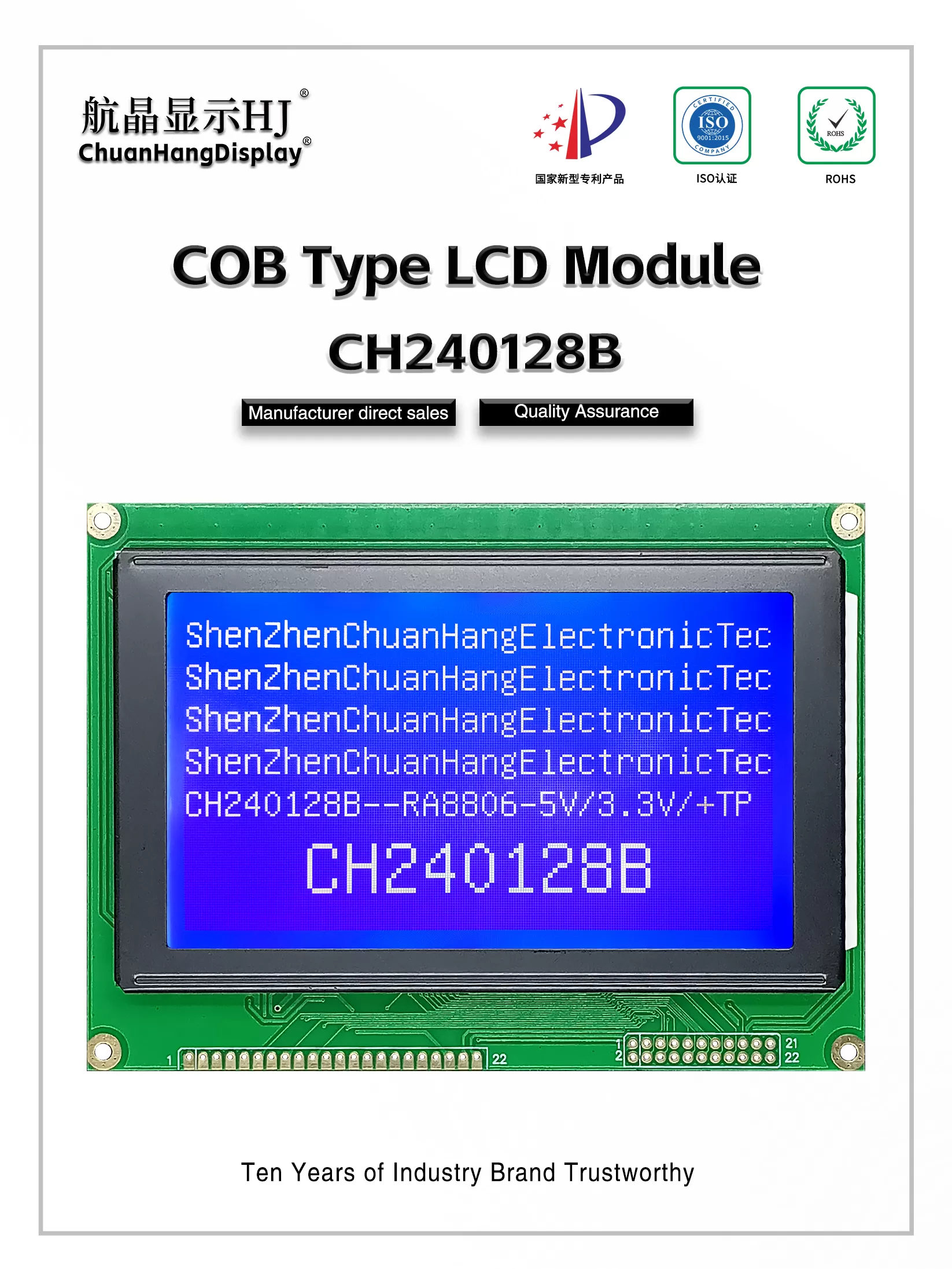

CH240128B-英文版-详情页_01

CH240128B-英文版-详情页_01

CH240128B-英文版-详情页_01

CH240128B-英文版-详情页_01

CH240128B-英文版-详情页_01
