Product Description
Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH240128K
Resolution240X128screen size5.4"
Outline Dimension(L*W*H)170.0X92.0X11.9 mmVisible Area(L*W)128.0X74.0 mm
Active Area(L*W)119.97X63.97mmDot Size (mm)0.47(L)X0.47(W)
TypeCOBConnection MethodConductive strip
Supply Voltage5V/3.3V Interface TypeMCU
Viewing Direction6 O'CLOCK Driving Method1/128Duty,1/12Bias
Display Type STNDriver ICT6963C
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight parameters5V/3.3Vproduction capacitySelf-produced
Character libraries
Whether to bring PCBYes

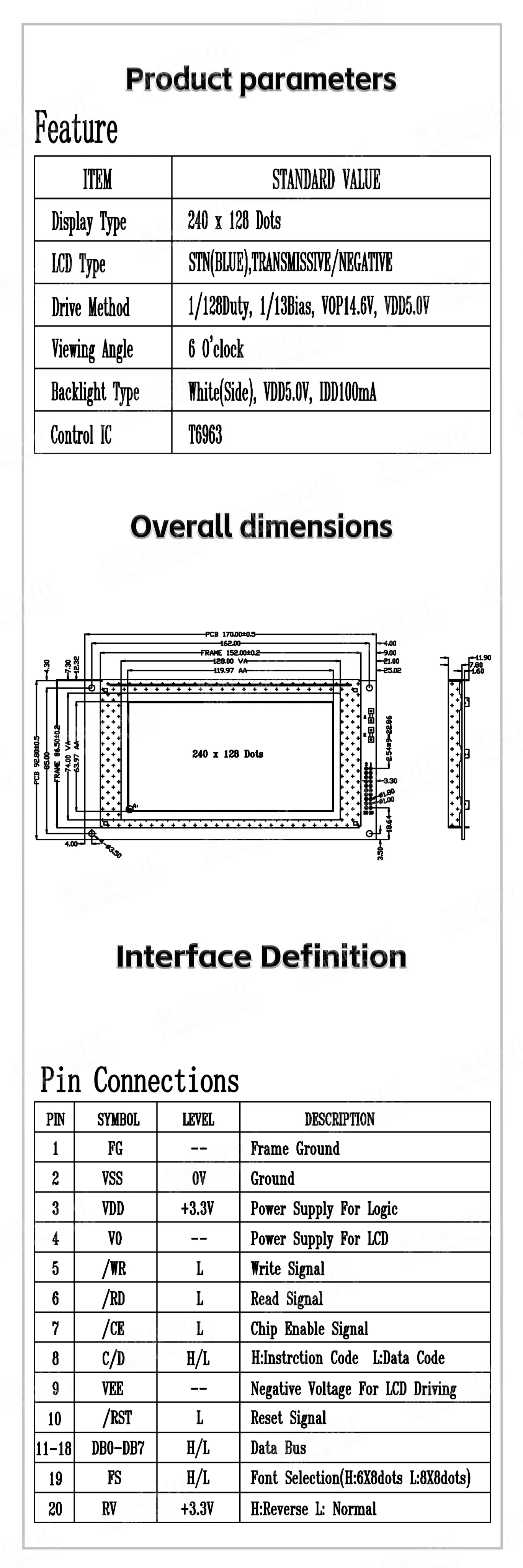

Product Datasheet

CH240128K-英文版-详情页_04

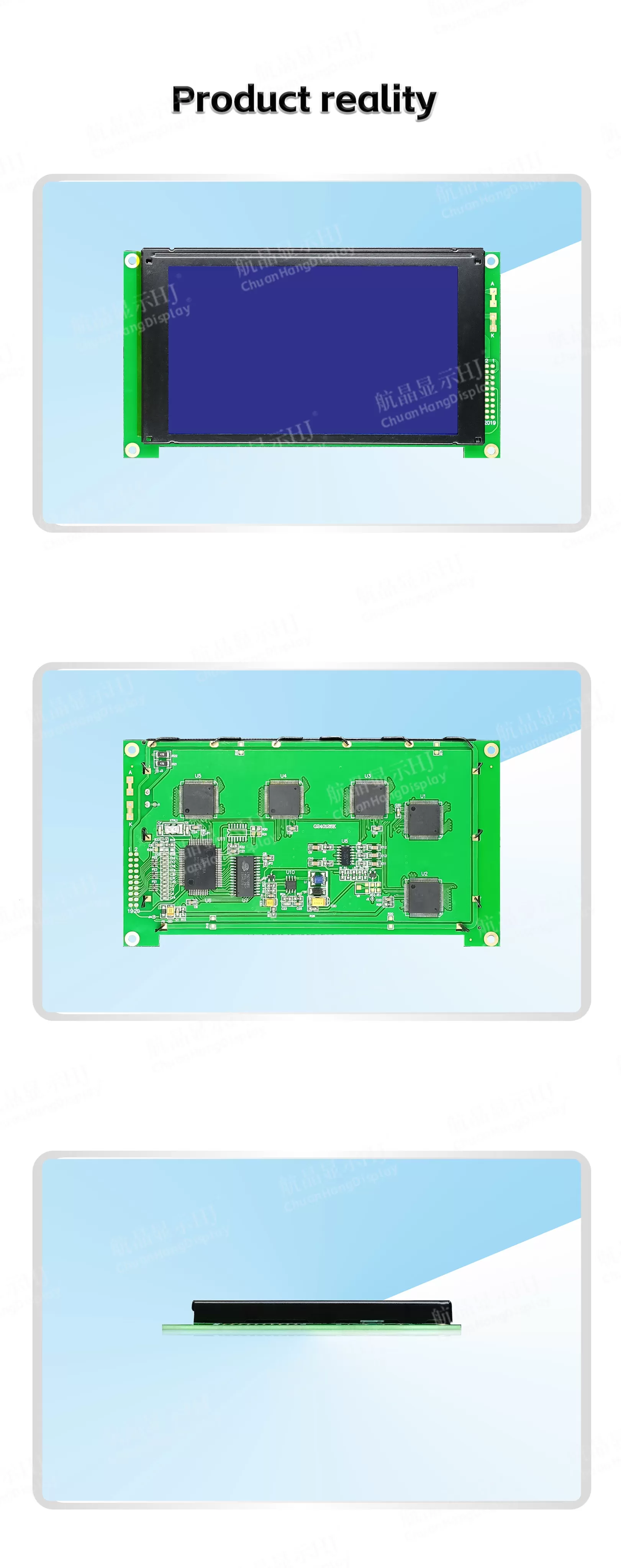

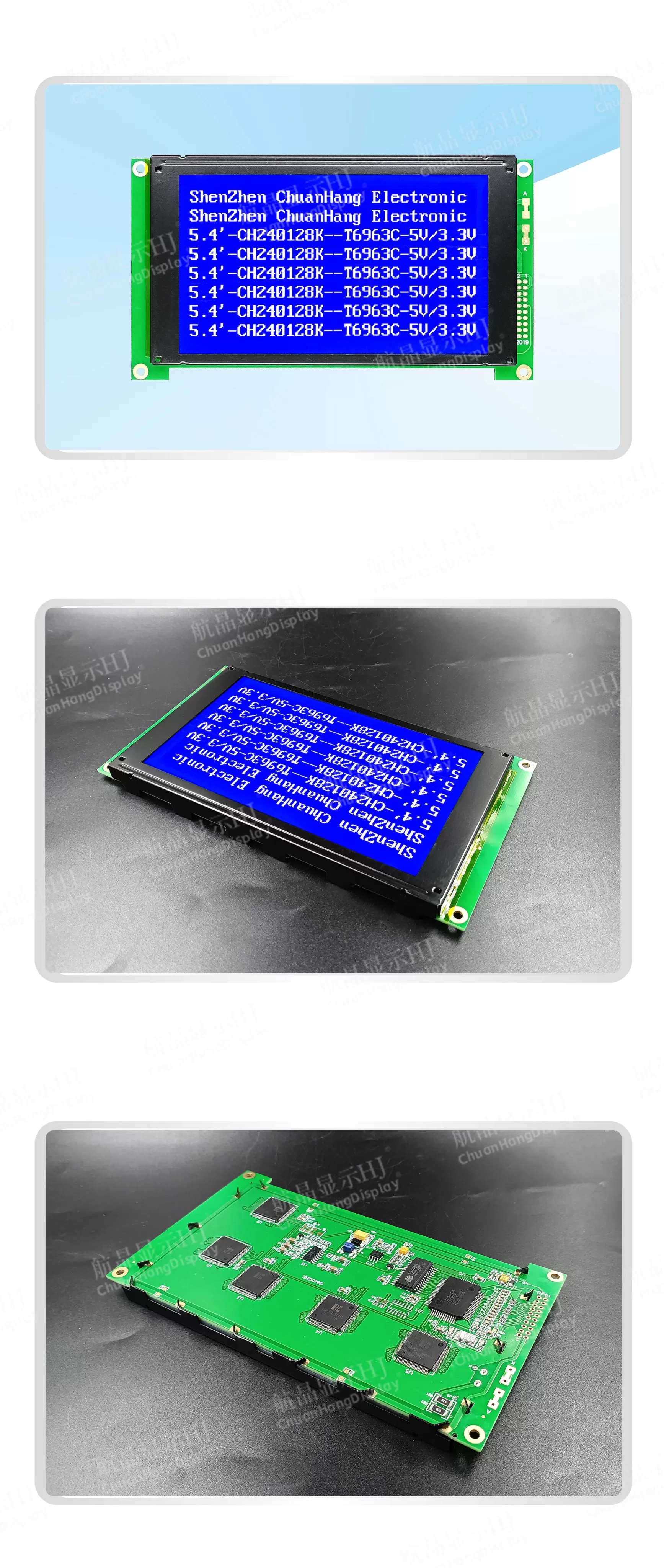

Product Display

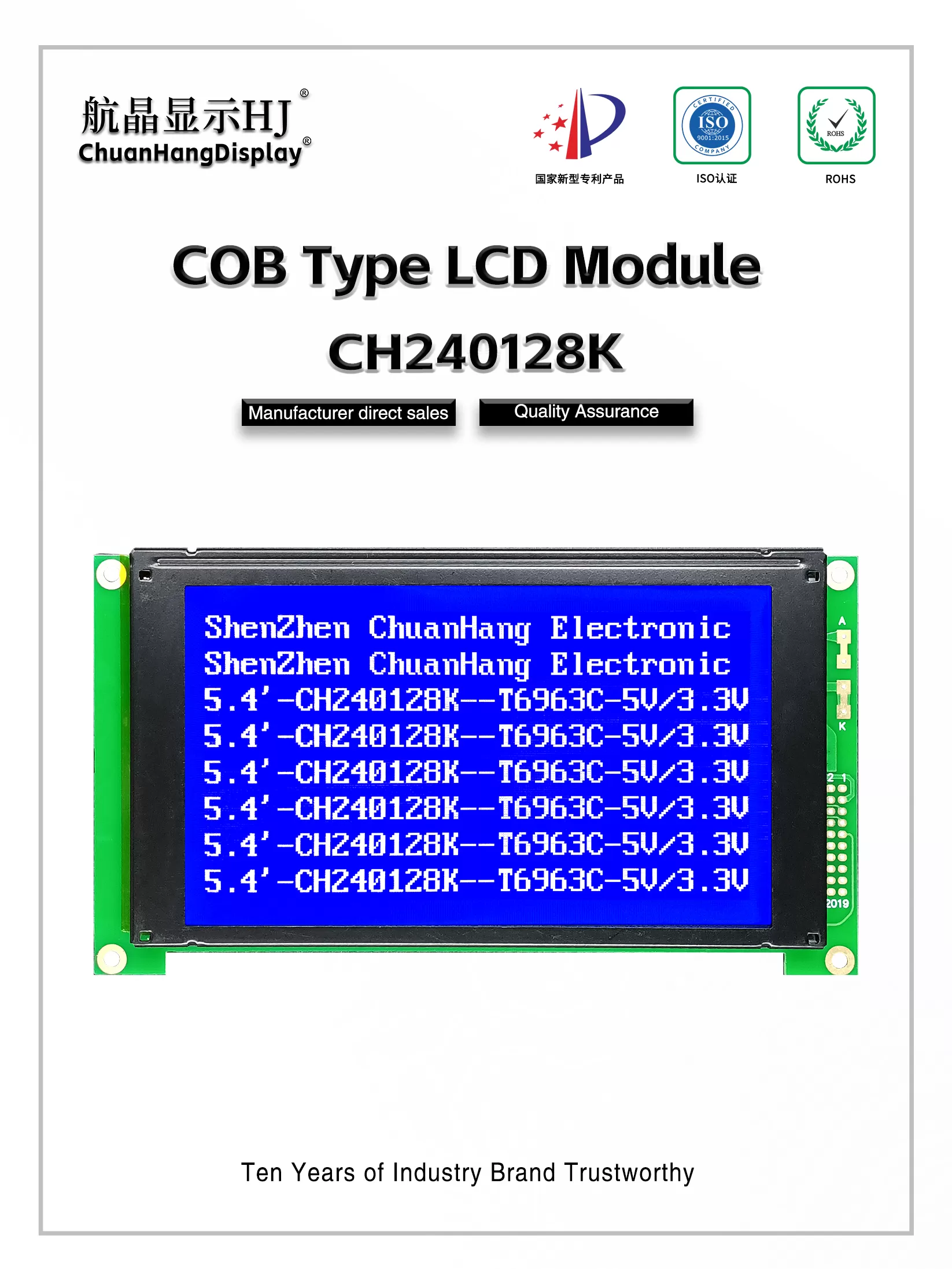

CH240128K-英文版-详情页_01

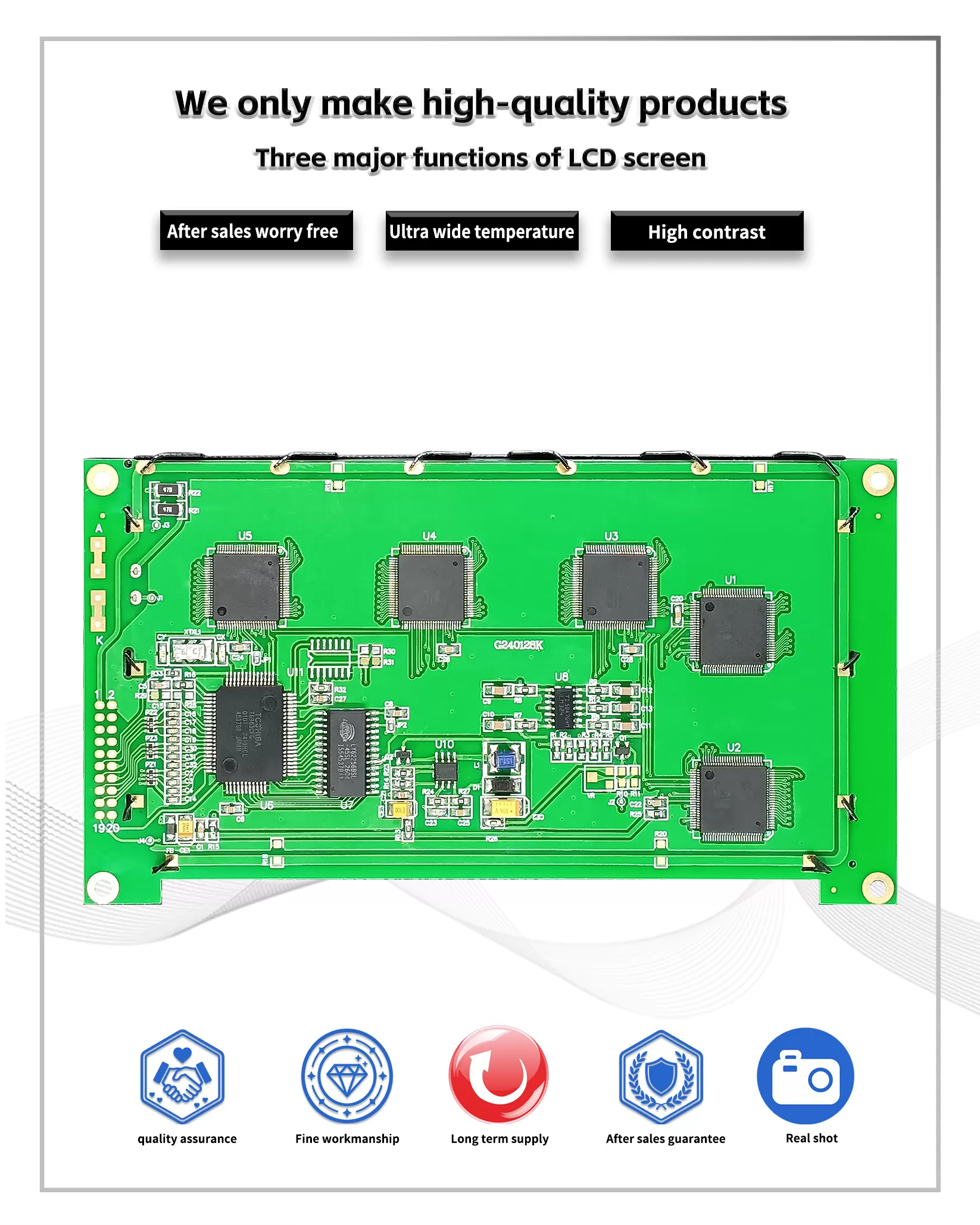

CH240128K-英文版-详情页_01

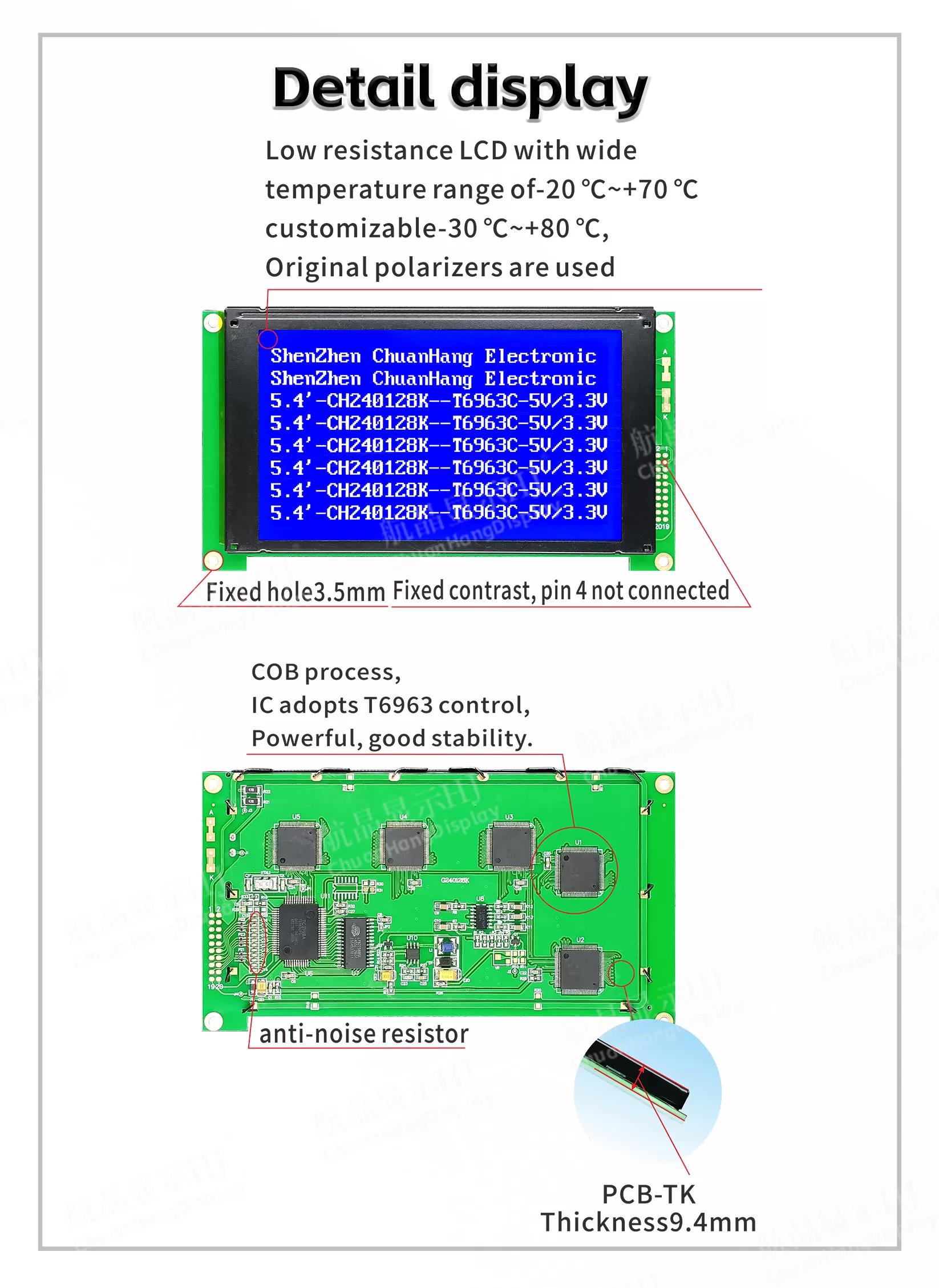

CH240128K-英文版-详情页_01

CH240128K-英文版-详情页_01

CH240128K-英文版-详情页_01
