7 Inch TFT CH070B01TFT

Product Description

Product size: 7-inch TFT resistor touch
Resolution: 1024xRGBx600
Viewing angle:IPS full viewing angle
Interface type:RGB
Module size: 164.88X99.98X5.60mm
Active area: 154.21.00X85.92mm
Cable interface: 40 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH070B01
Resolution	1024xRGBx600	Screen size	7.0”
Outline Dimension(LWH)	164.88X99.98X5.60mm	Active Area(L*W)	154.21X85.92mm
Type	COG	Communication interface	RGB
Operating Voltage	3.3V	Interface Type	40PIN
Viewing Direction	IPS full viewing angle	Display Color	TFT
Driver IC	JD9165BA	Operating Temperature	-20℃ --70℃
Storage Temperature	-30℃ --80℃	Production capacity	Self-produced
Whether to bring PCB	NO	Connection Method	FPC

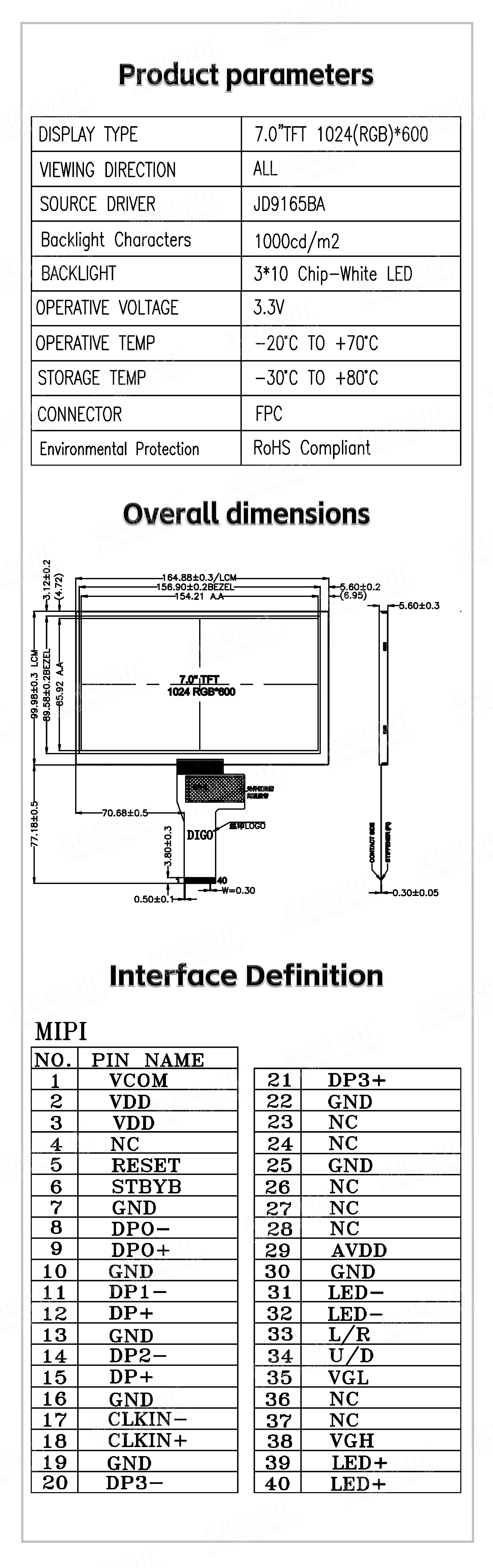

Product Datasheet

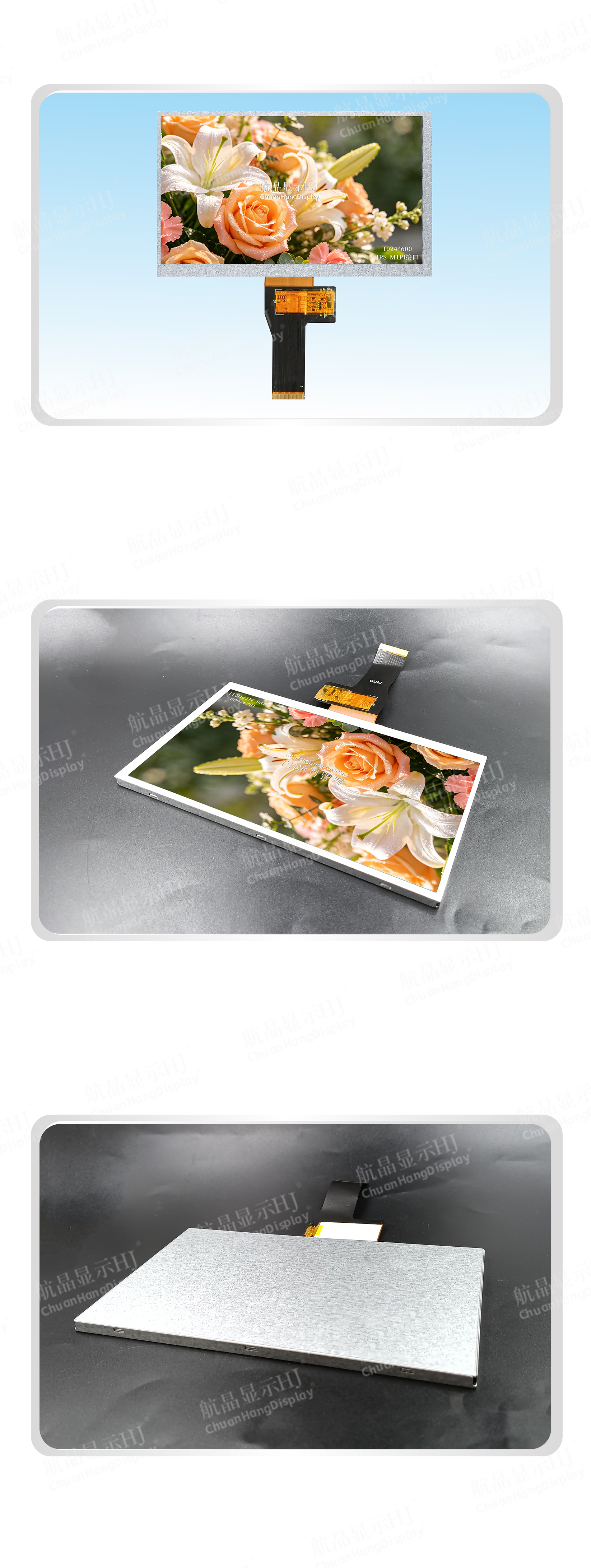

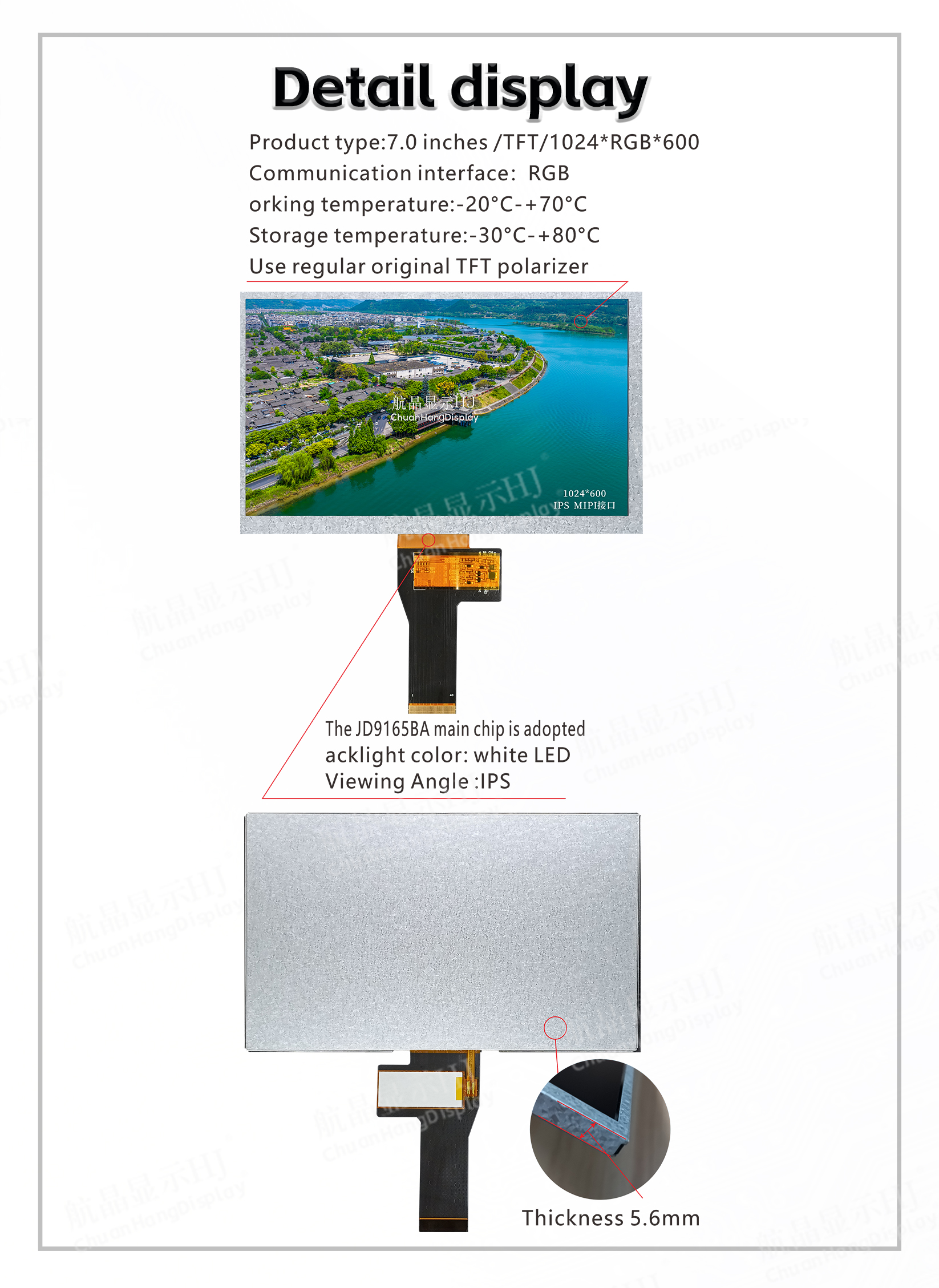

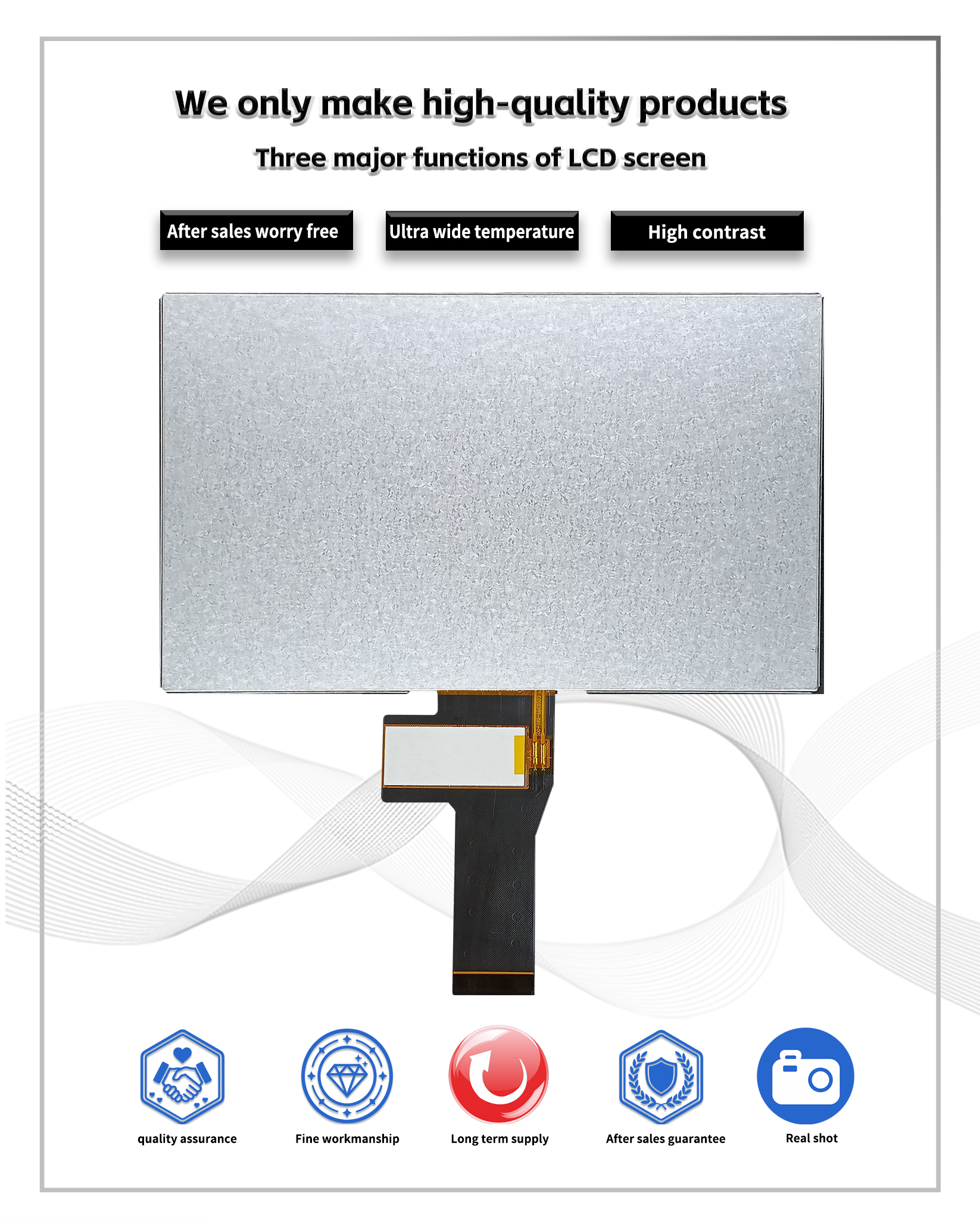

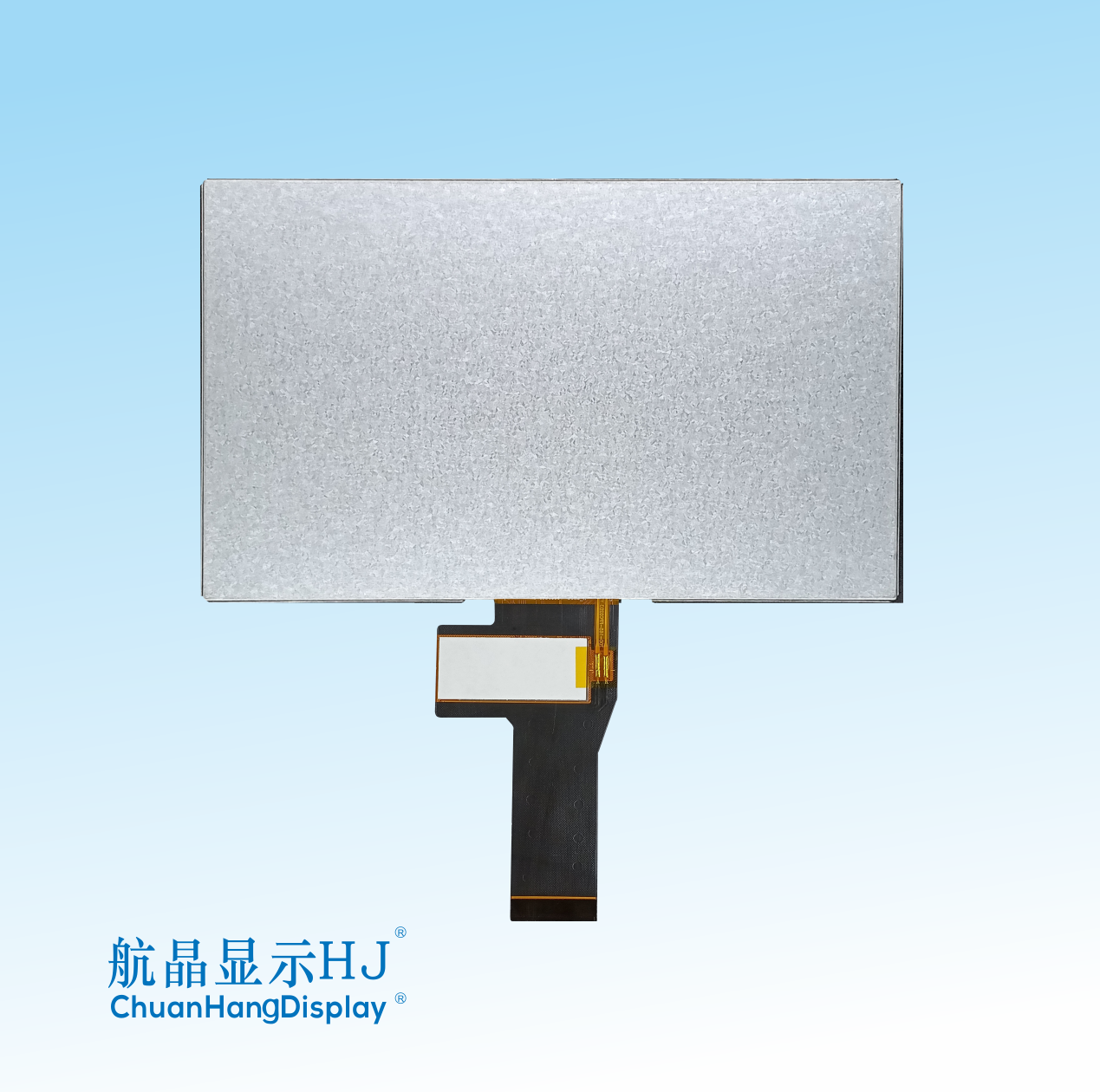

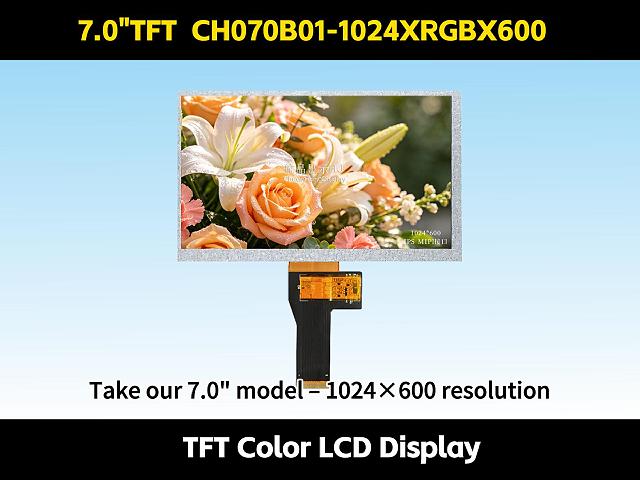

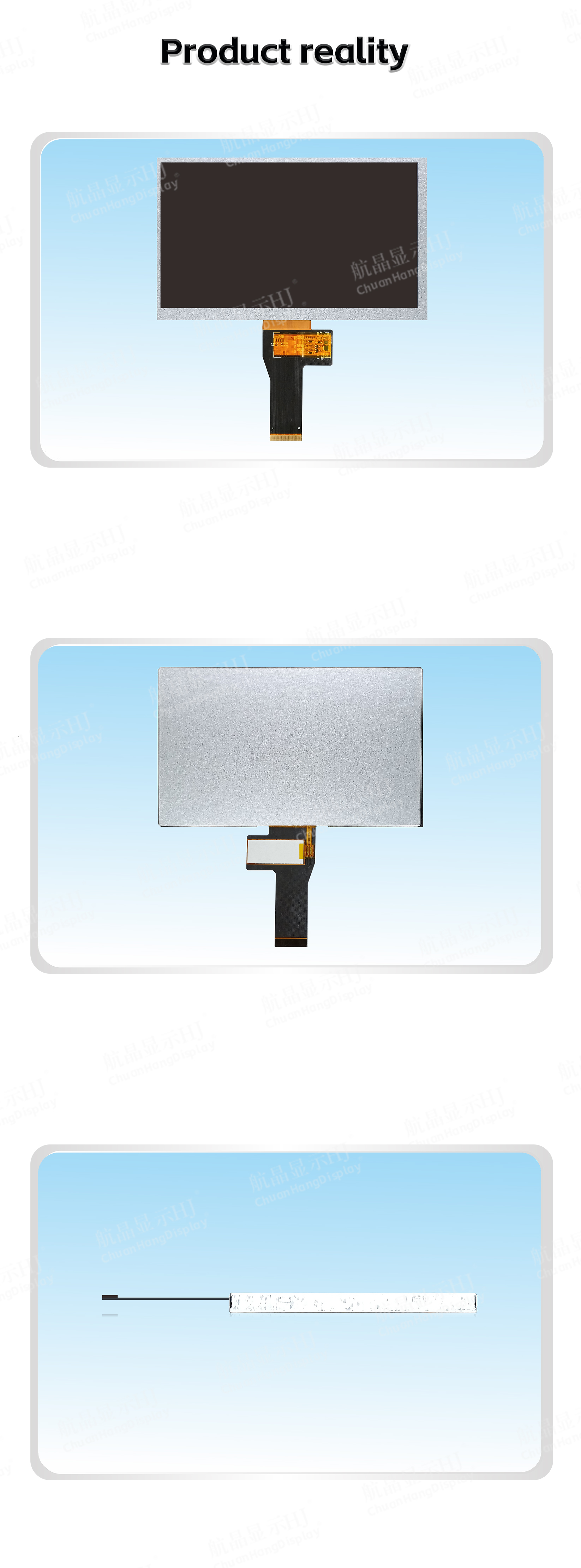

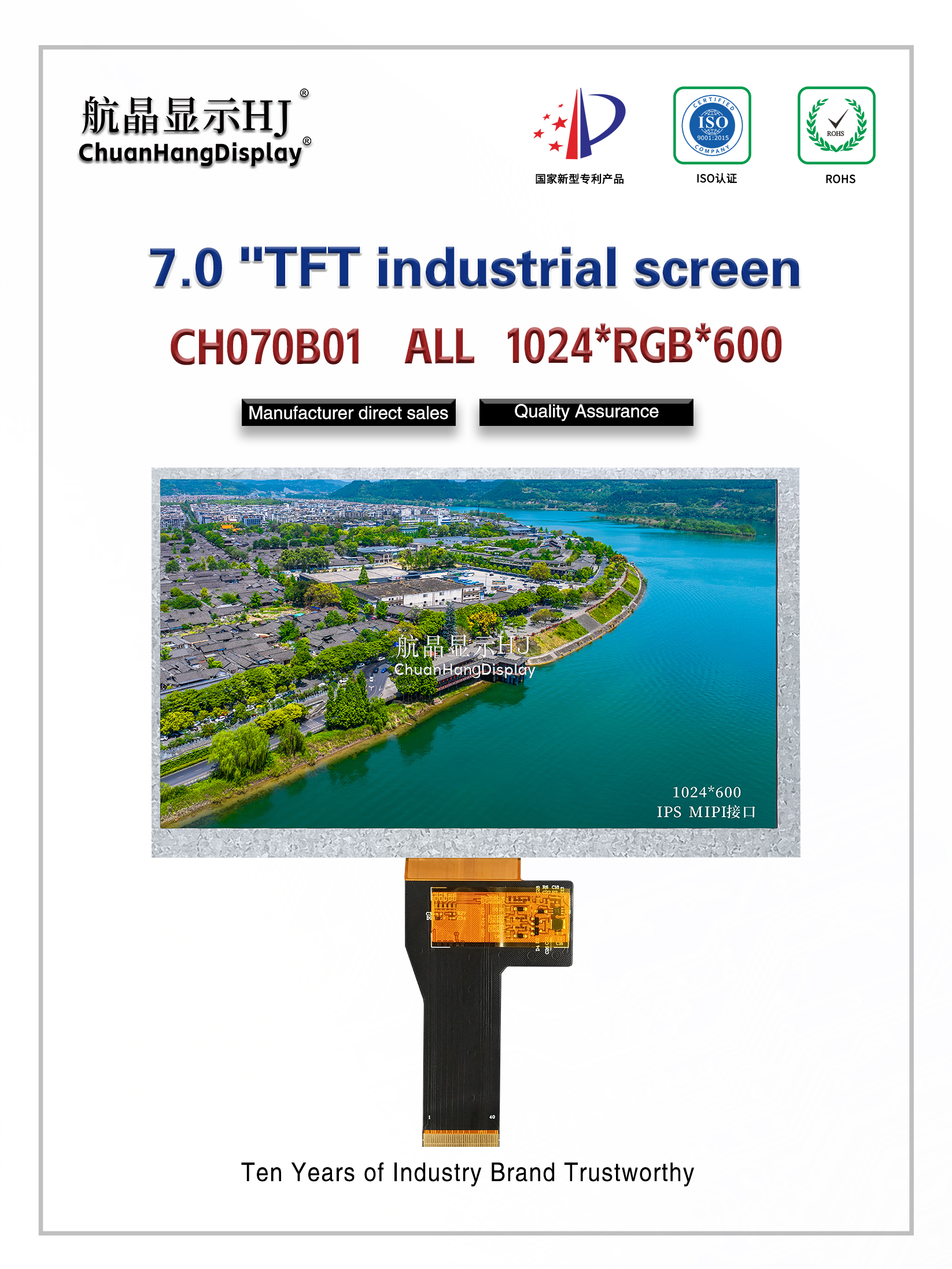

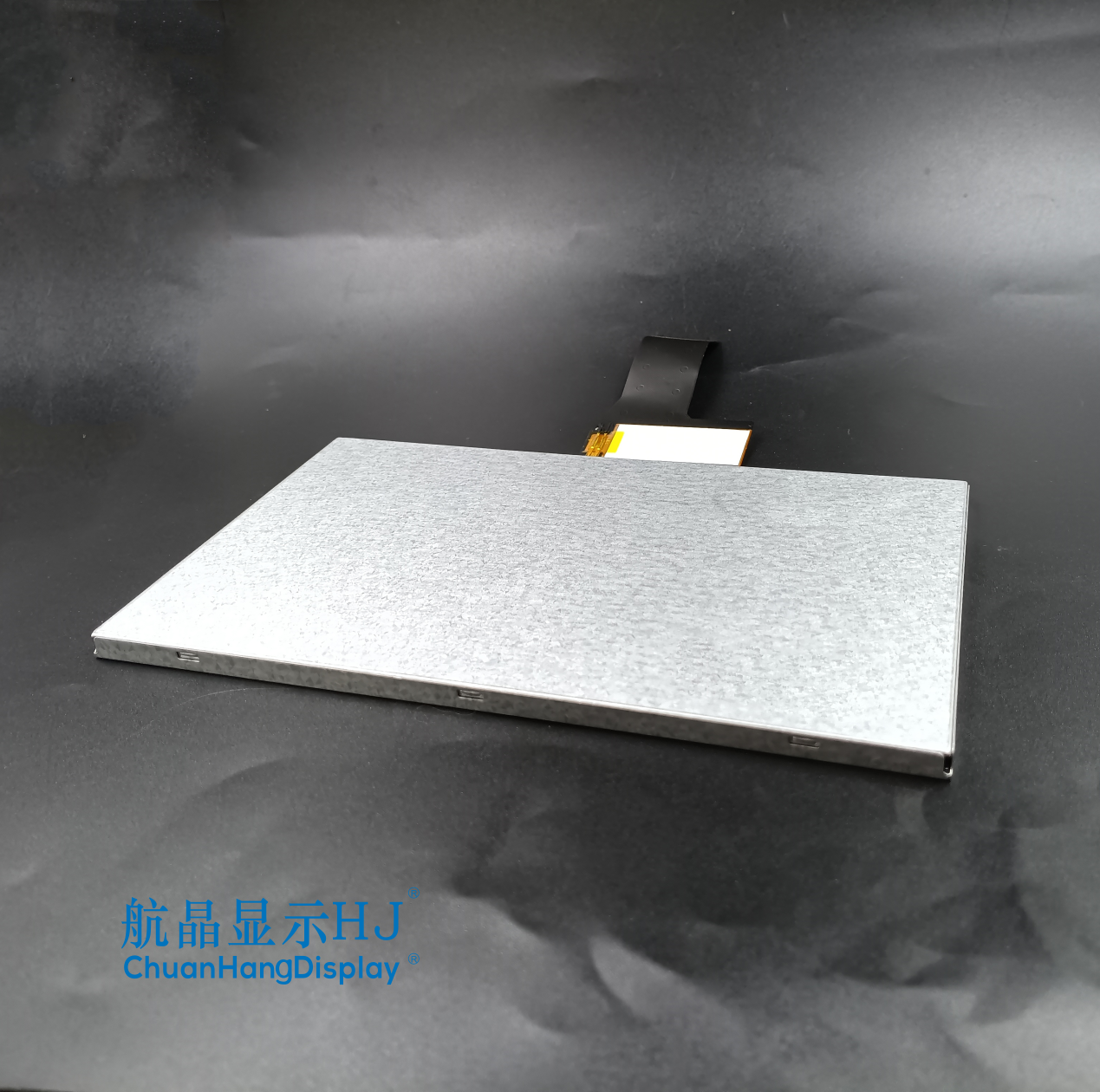

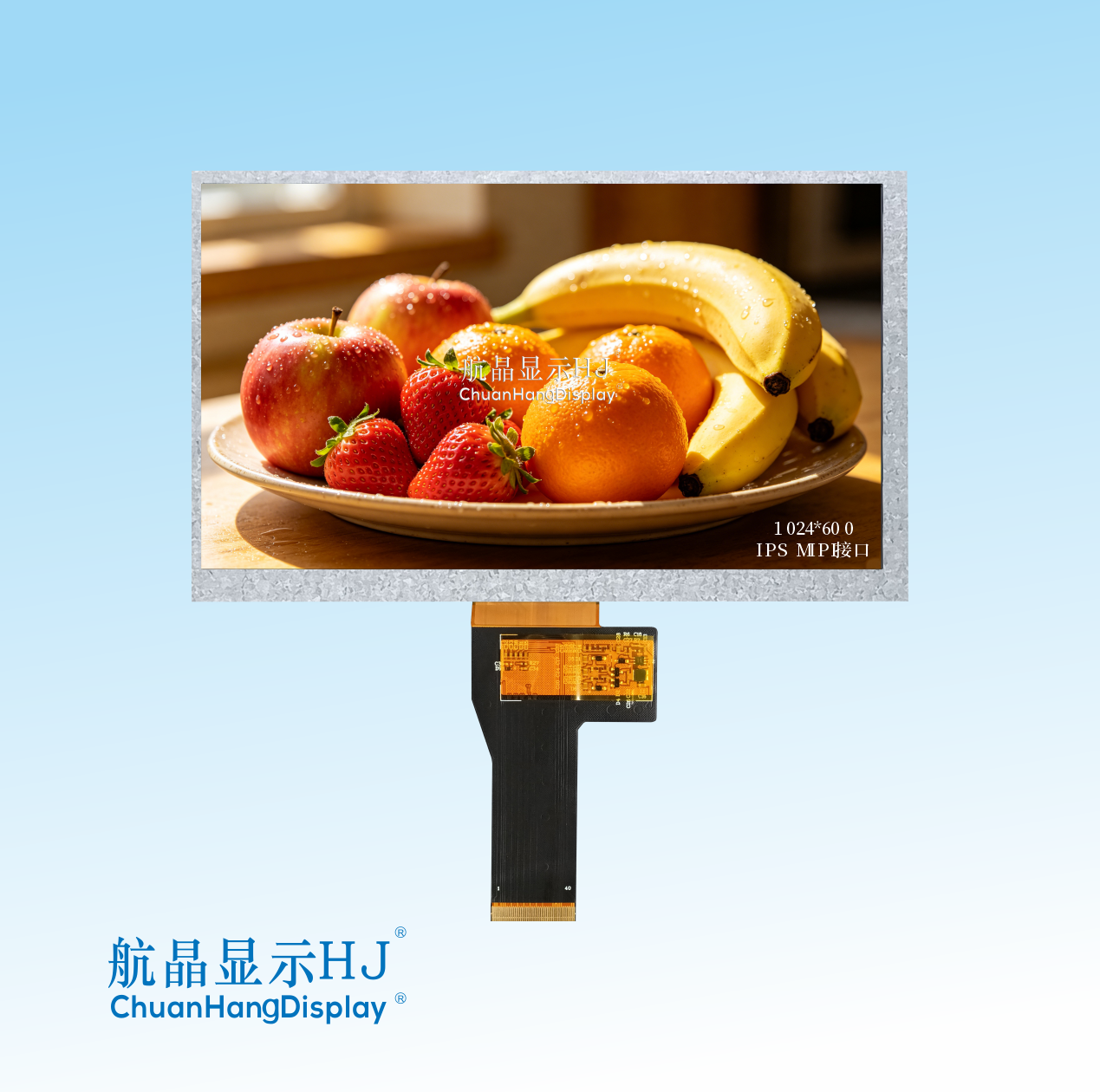

Product Display
