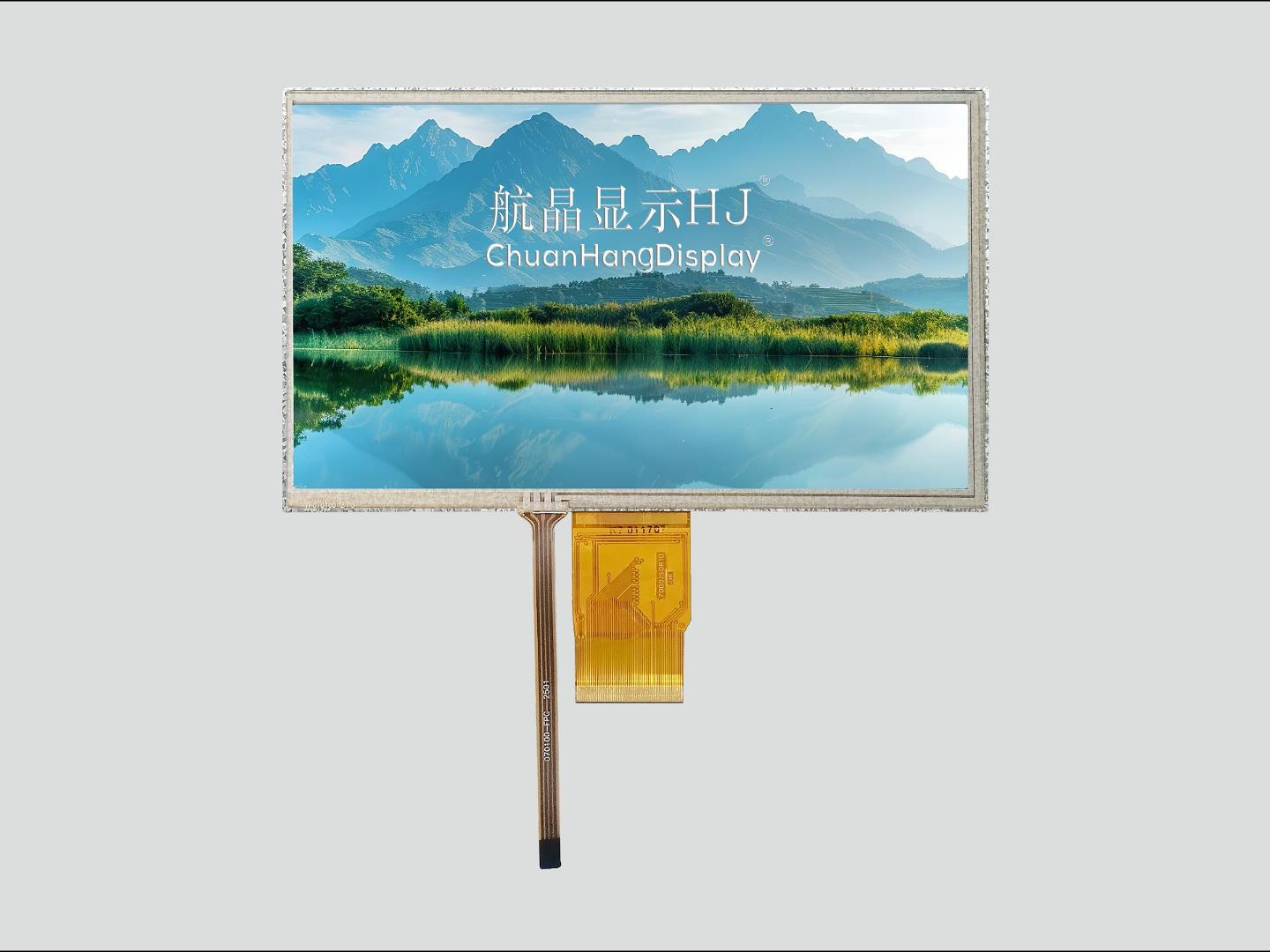

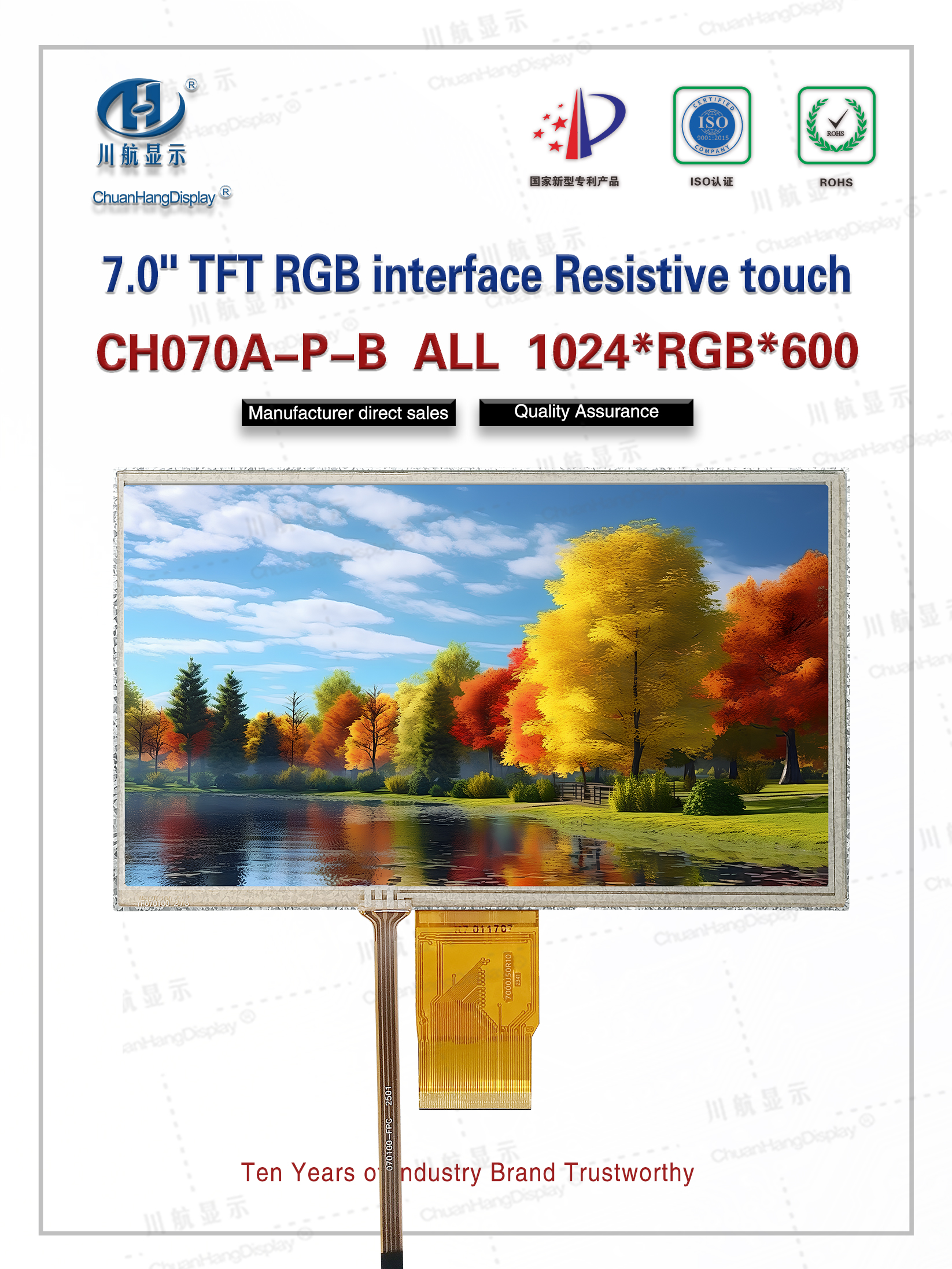

7 Inch 1024x600 with Resistive Touch

Product Description
Product size: 7-inch TFT resistor touch
Resolution: 1024xRGBx600
Viewing angle:IPS full viewing angle
Interface type:RGB
Module size: 165.00X100.00X4.79mm
Active area: 154.21.00X85.92mm
Cable interface: 50 PIN
Resistive touch: 4-wire resistive touch 2046 touch chip
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT
PDF Download Demo code
Video Presentation
Product Parameters
Product Brand ChuanHangDisplay Product Model CH070A-P-B-GP
Resolution 1024xRGBx600 Screen size 7.0”

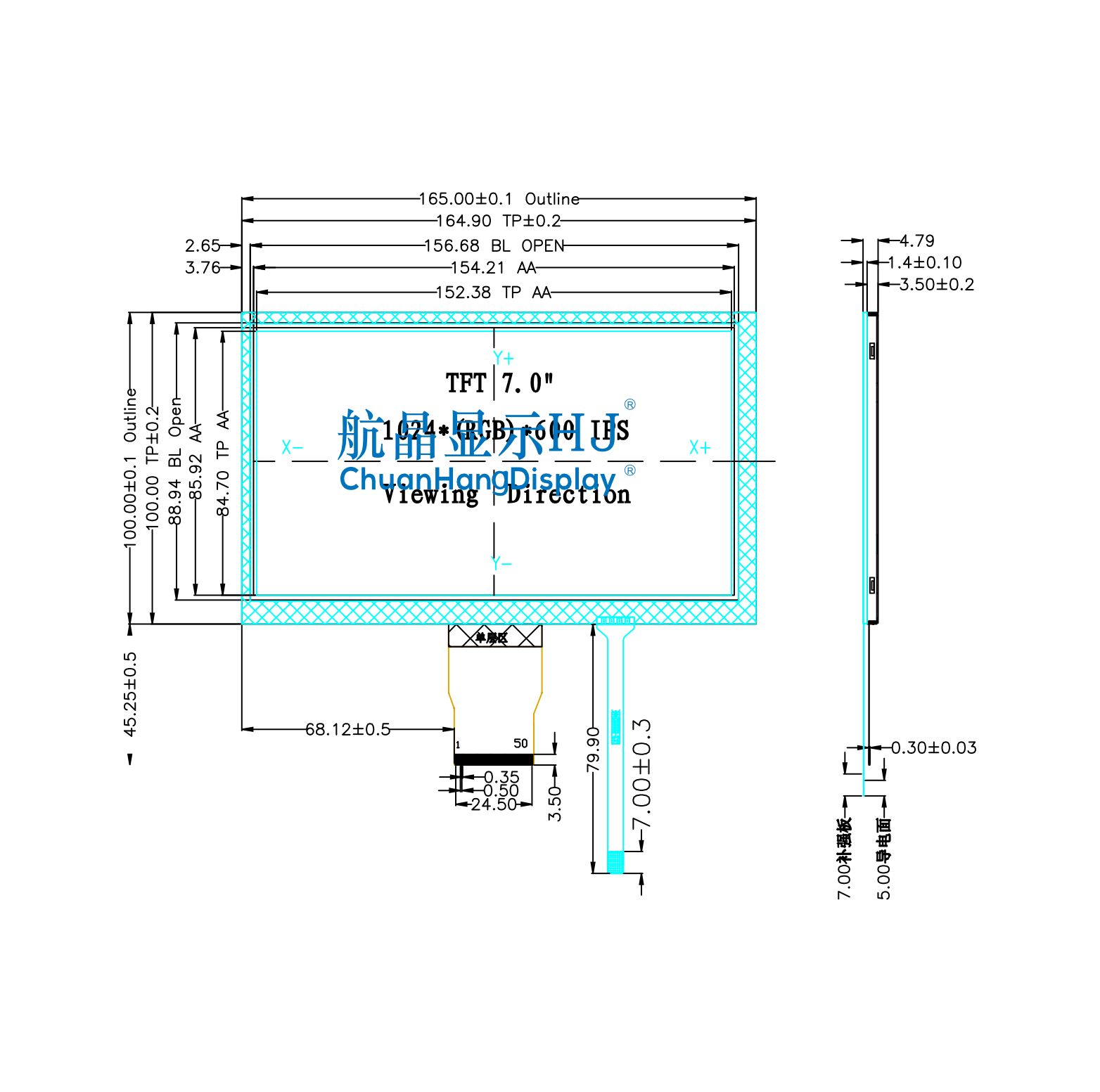

Outline Dimension(L*W*H) 165.00X100.00X4.79mm Active Area(L*W) 154.21X85.92mm
Type COG Communication interface RGB
Operating Voltage 3.3V Interface Type 50PIN
Viewing Direction IPS full viewing angle Display Color TFT
Driver IC Operating Temperature -20℃ --70℃
Storage Temperature -30℃ --80℃ Production capacity Self-produced
Whether to bring PCB NO Connection Method FPC
Product Datasheet

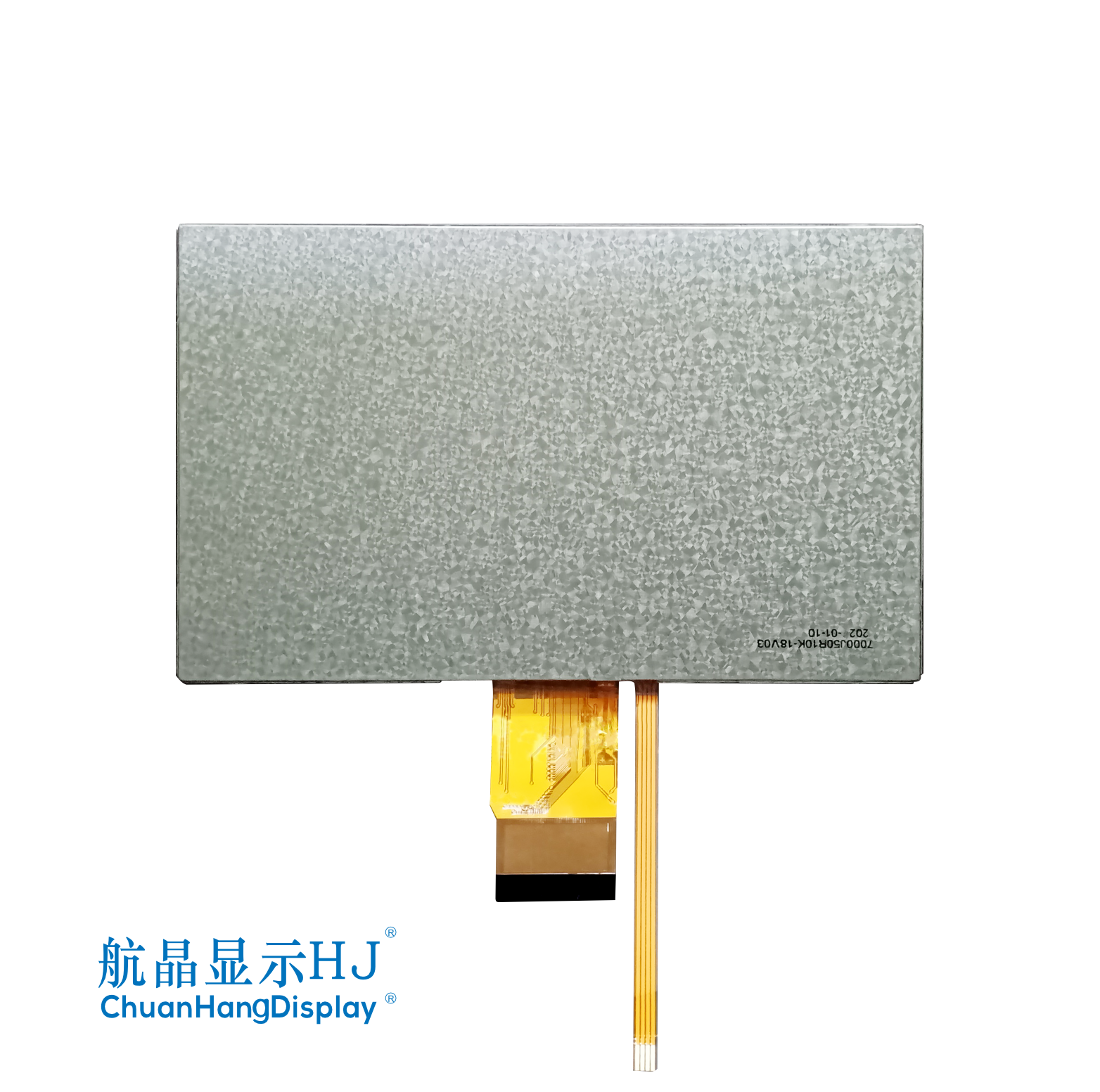

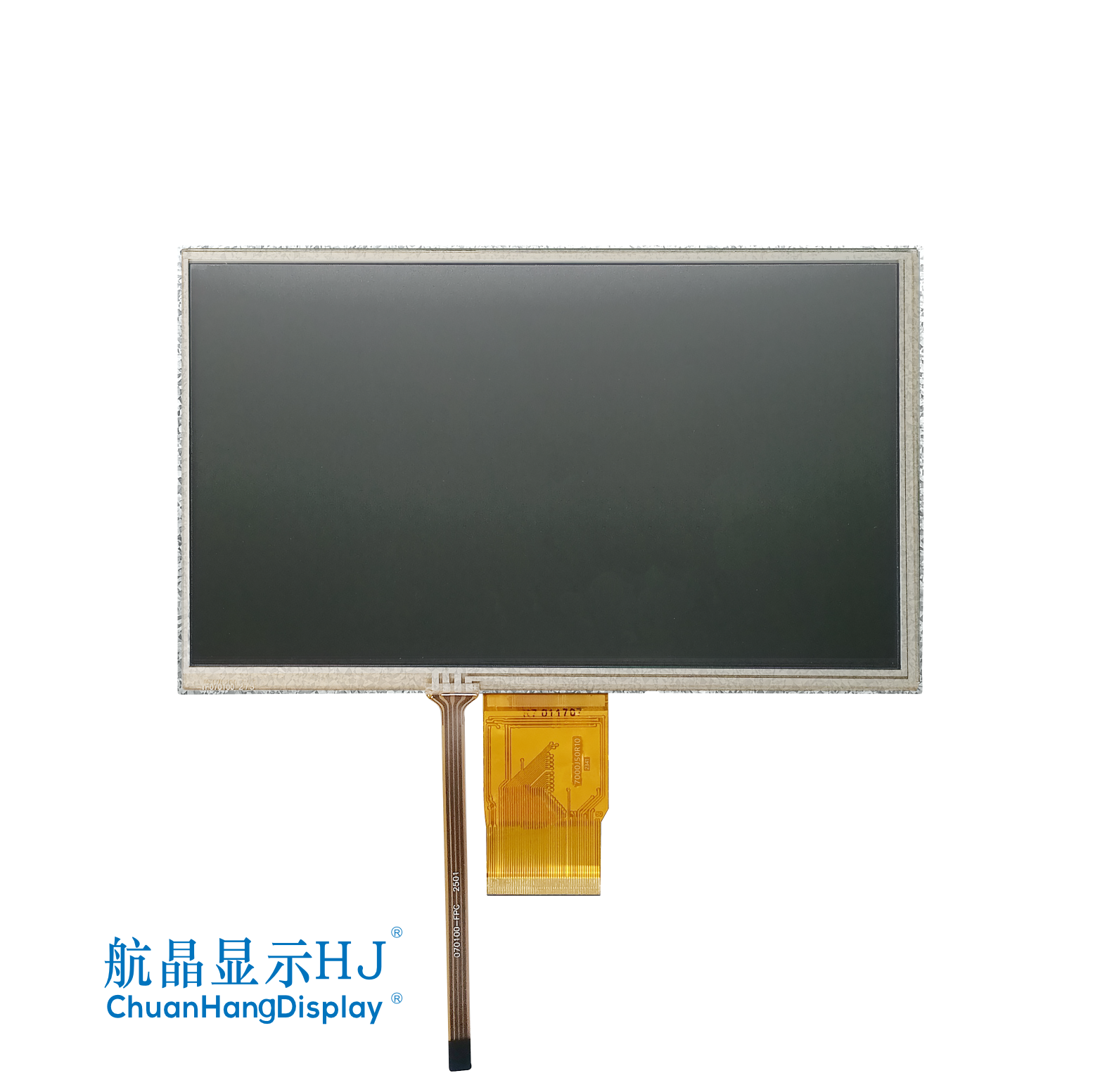

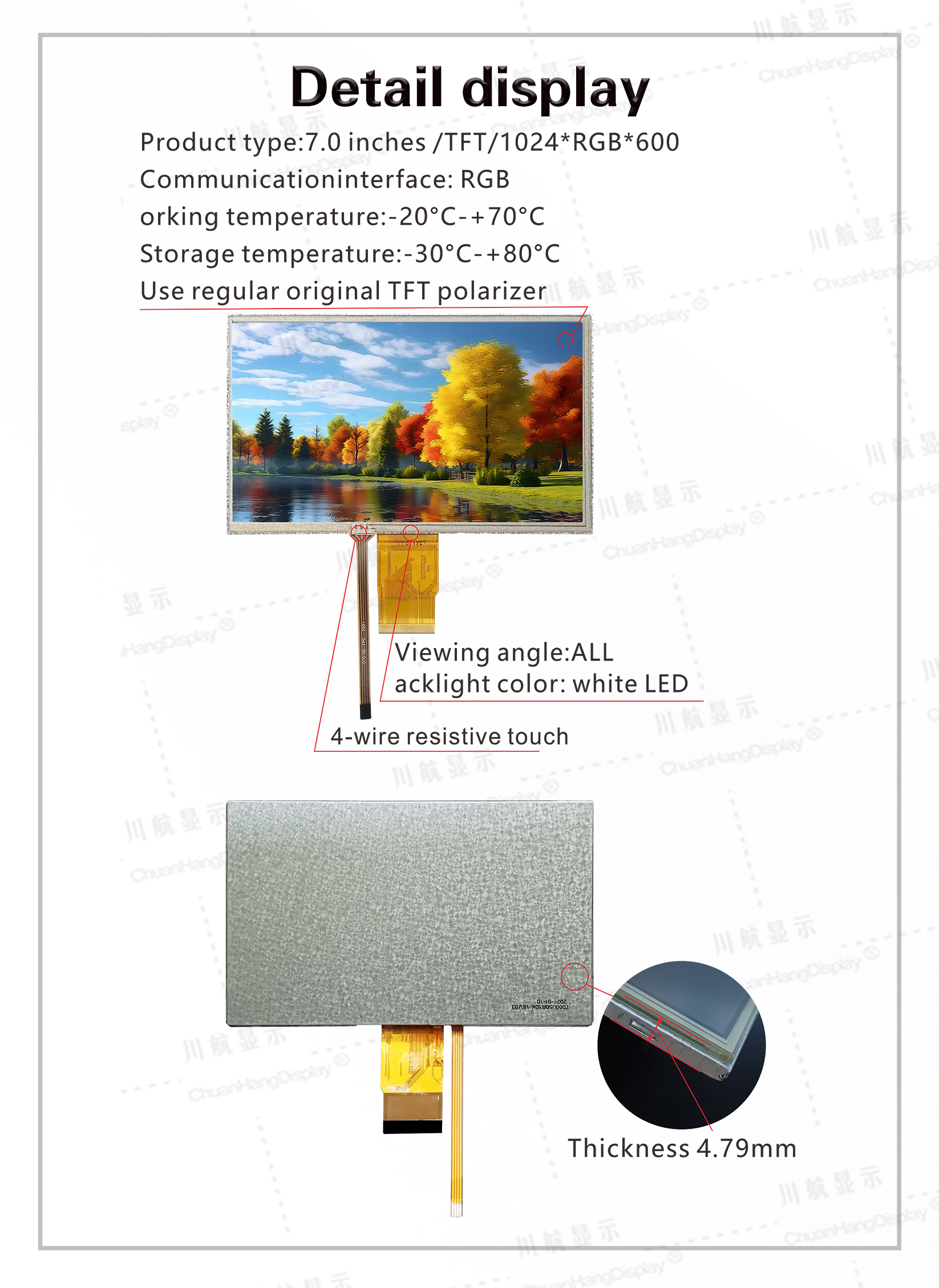

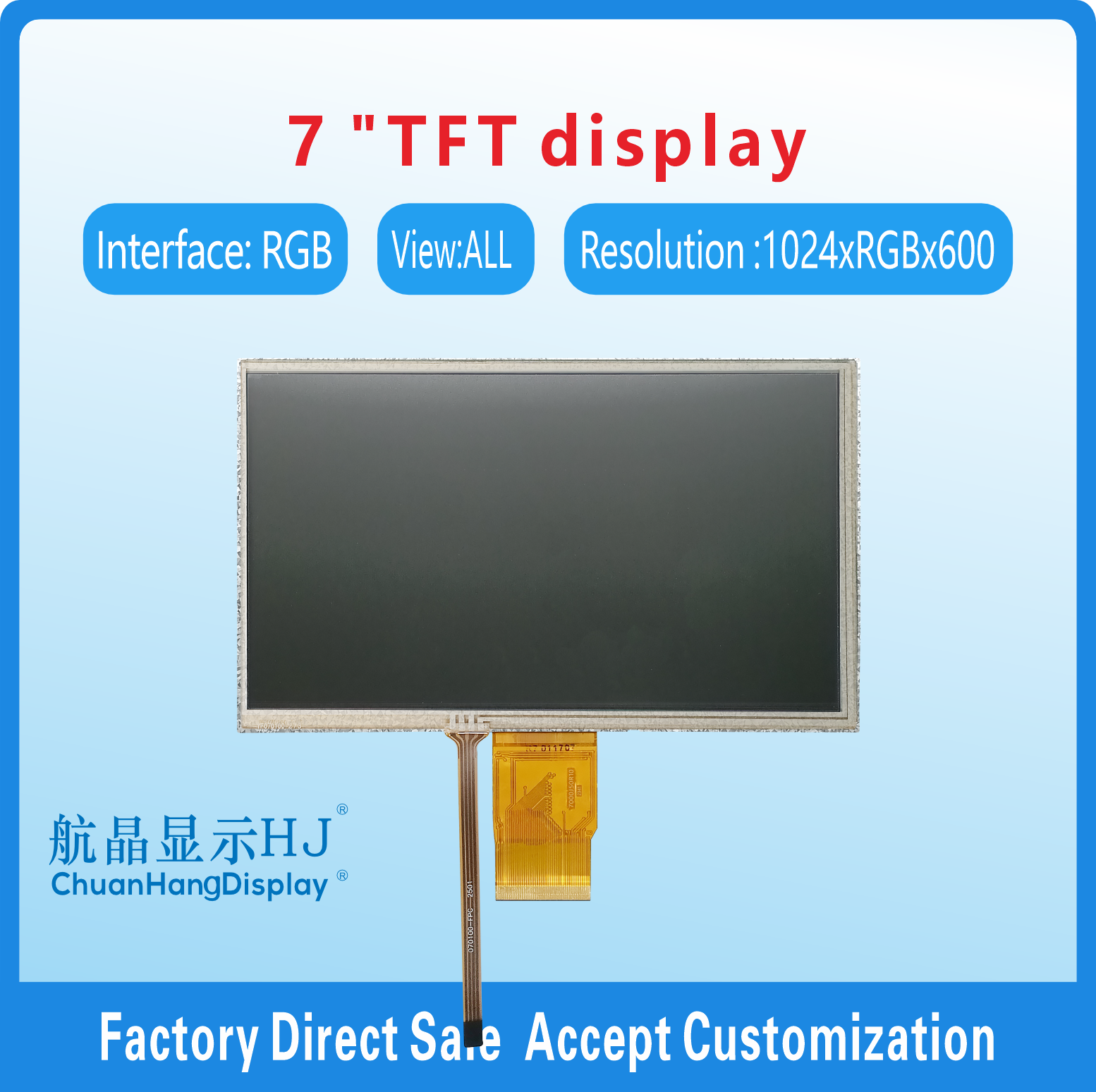

Product Display

Previous：

3.5 Inch TFT LCD Display

Next：

7-inch TFT capacitive touch

Product Label: 7 Inch 1024x600 7 Inch TFT LCD 7 Inch 1024x600 with Resistive Touch LCD Screen with RGB Interface
