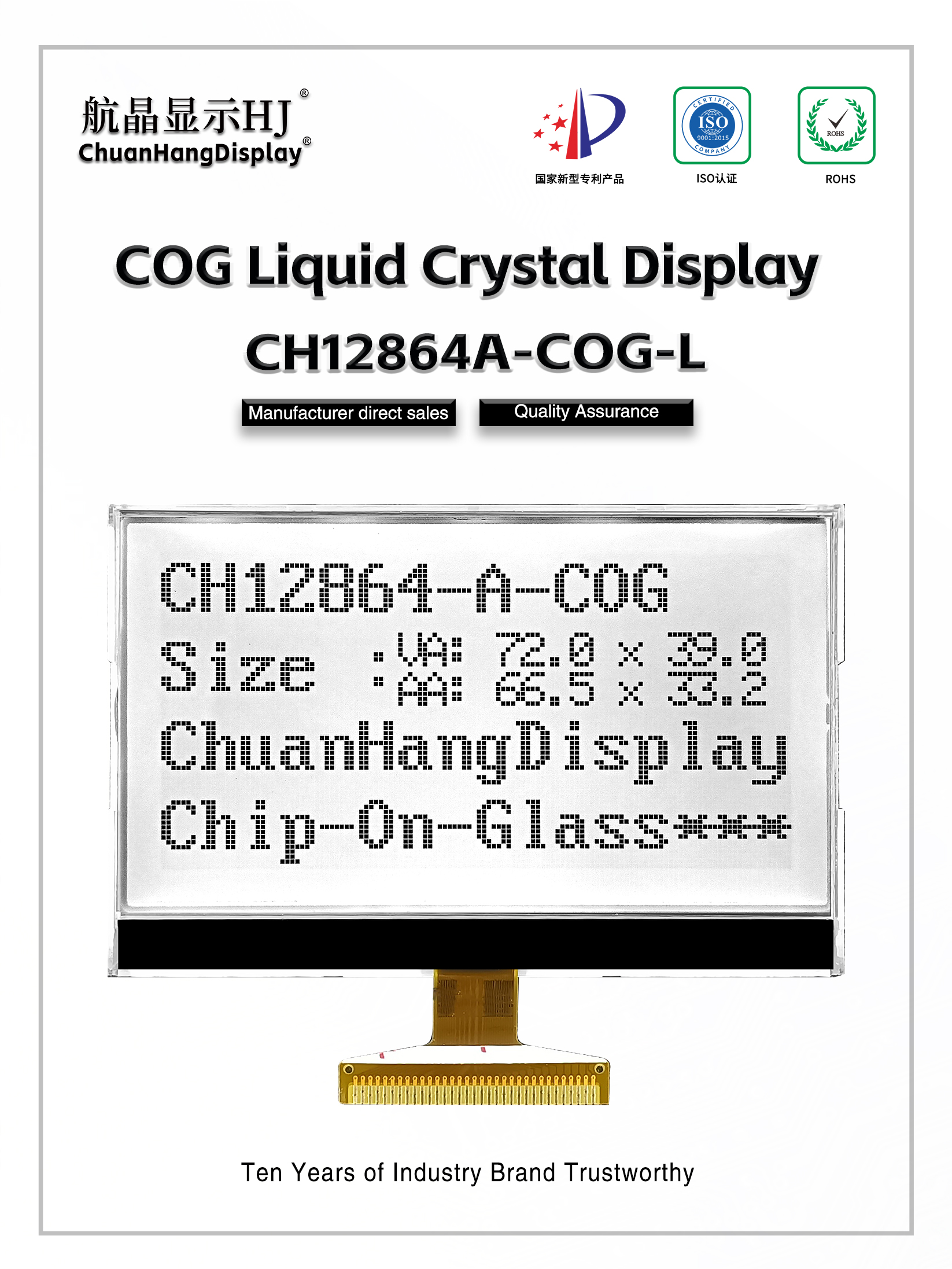

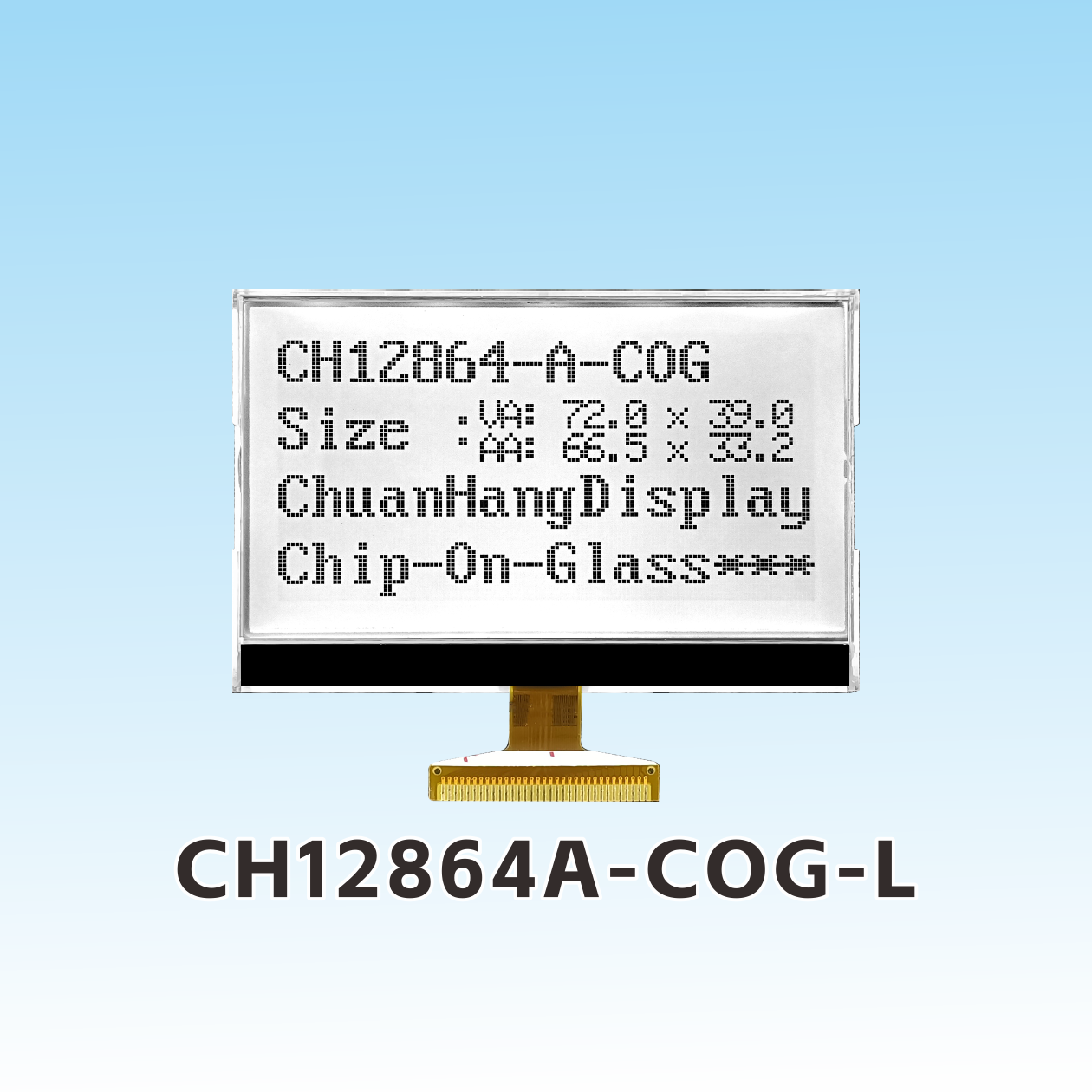

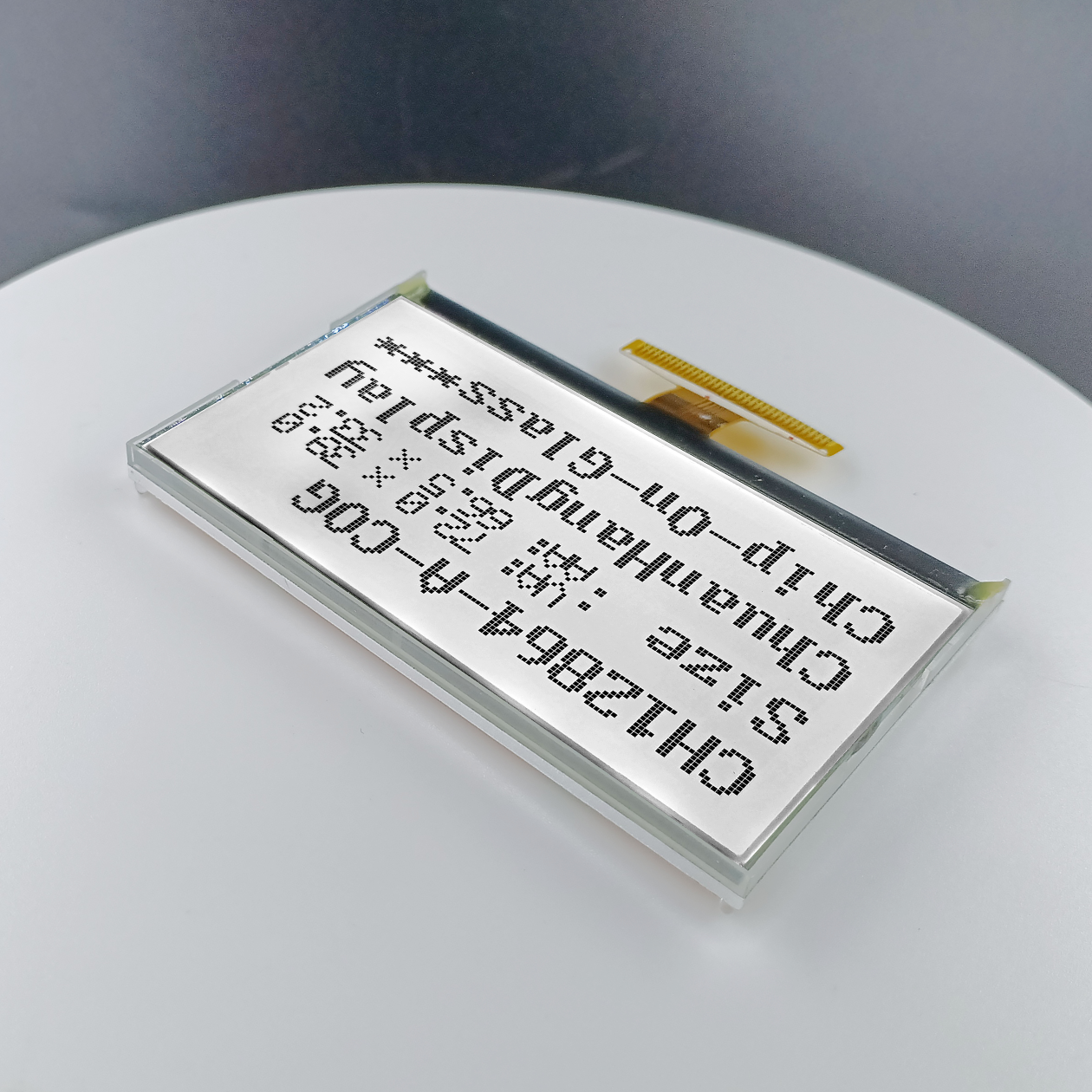

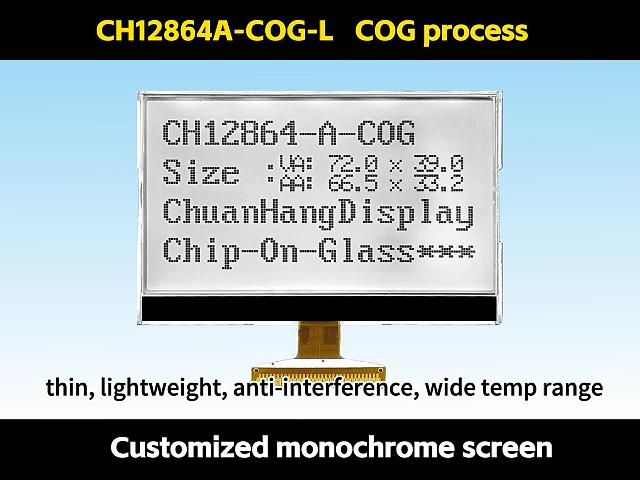

CH12864A-COG-L

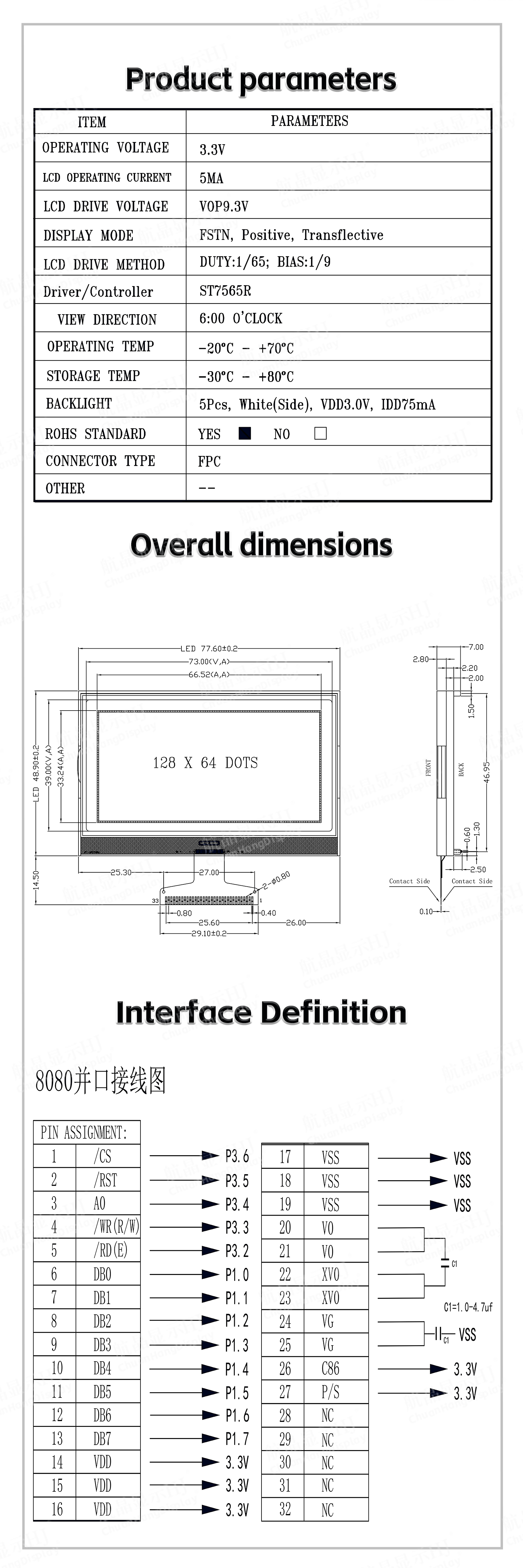

Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH12864A-COG-L |
| Resolution | 128x64 | screen size | 2.9” |

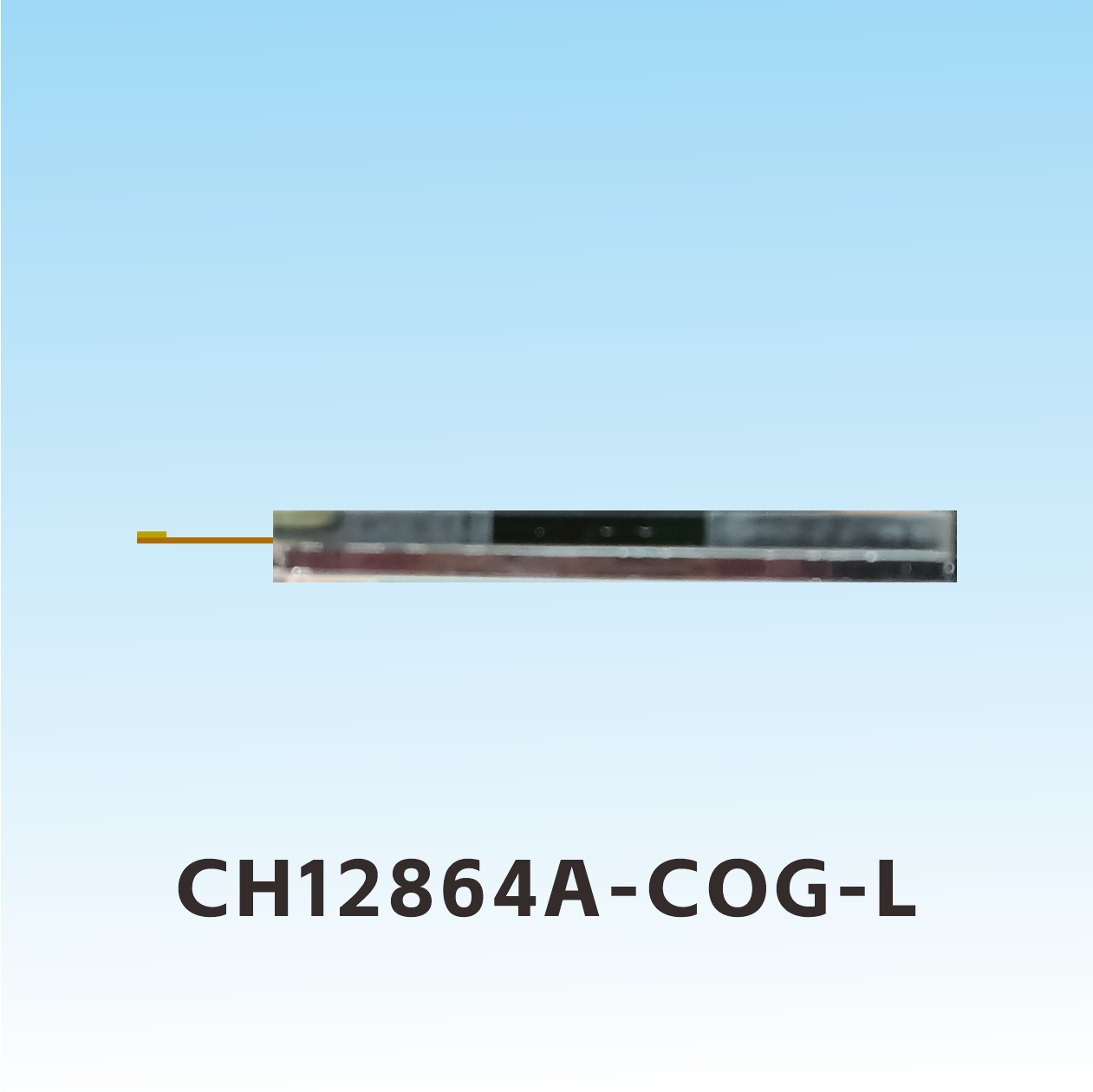

| Outline Dimension(L*W*H) | 77.60x48.90x7.00mm | Visible Area(L*W) | 73.00x39.00mm |
| Active Area(L*W) | 66.52x33.24mm | Dot Size (mm) | 0.48(L)x0.48(W) |
| Type | COG | Connection Method | FPC |
| Supply Voltage | 3.3V | Interface Type | MCU/SPI |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/64Duty |

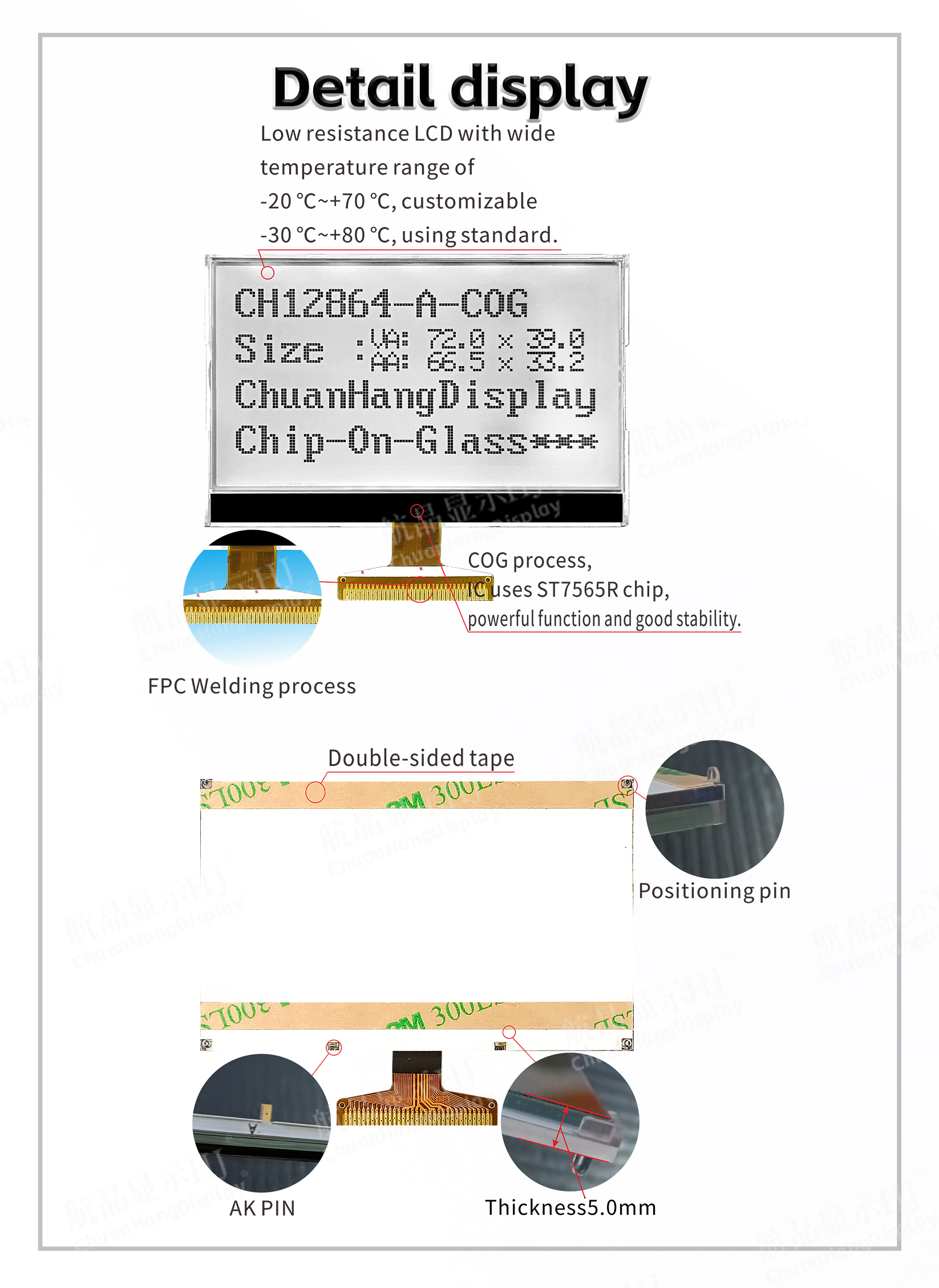

| Display Type | FSTN | Driver IC | ST7567 |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 3.3V | production capacity | Self-produced |
| Character libraries | Whether to bring PCB | NO |
