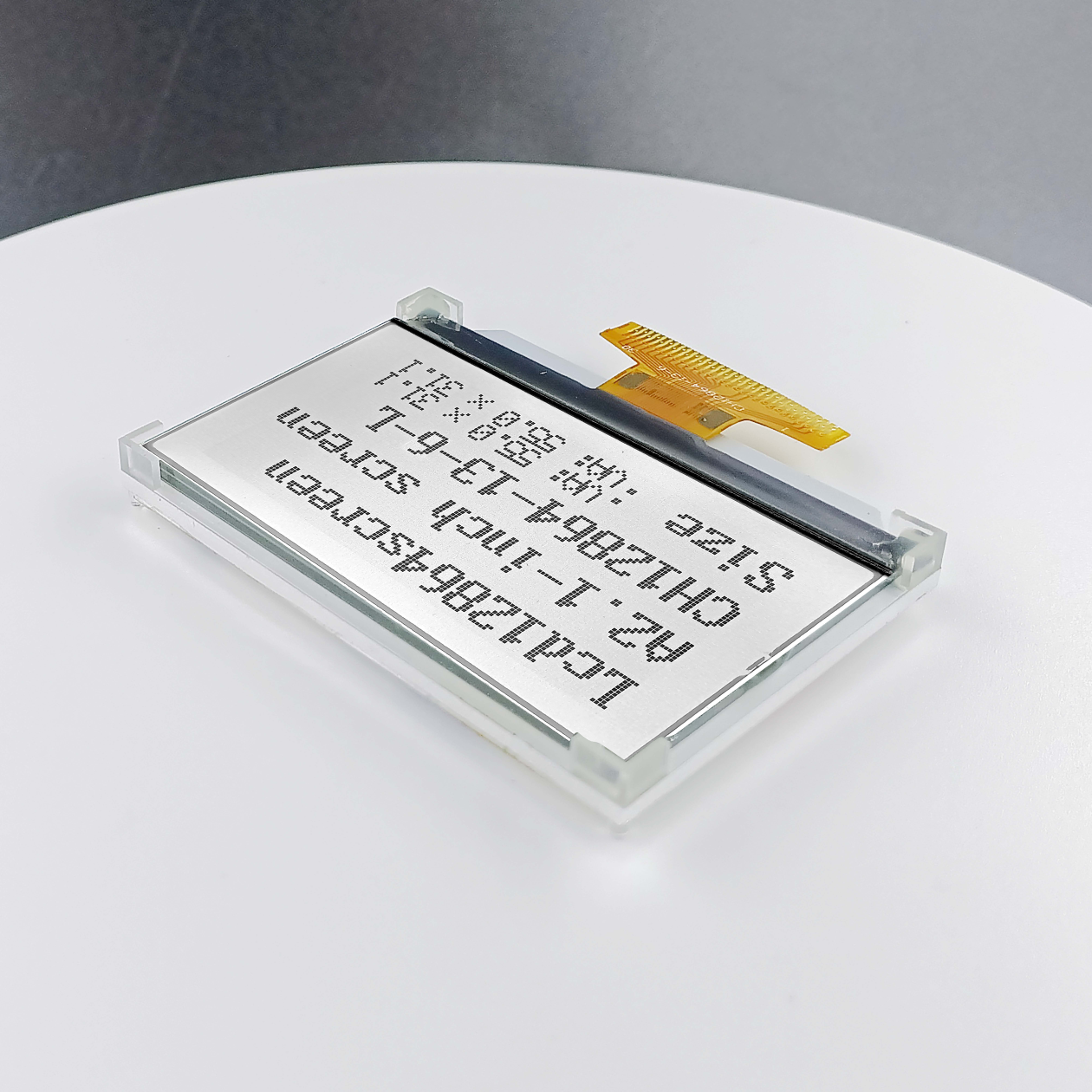

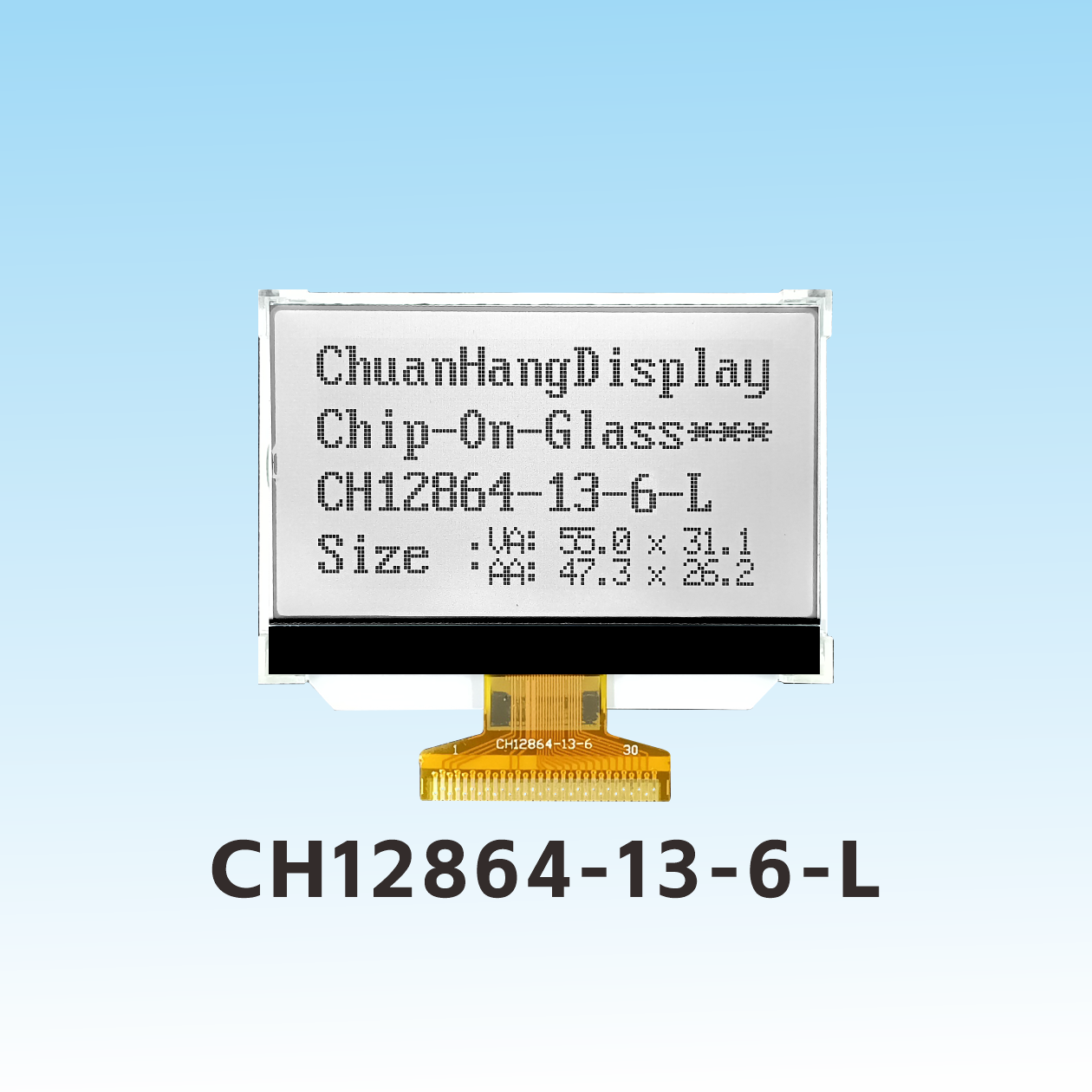

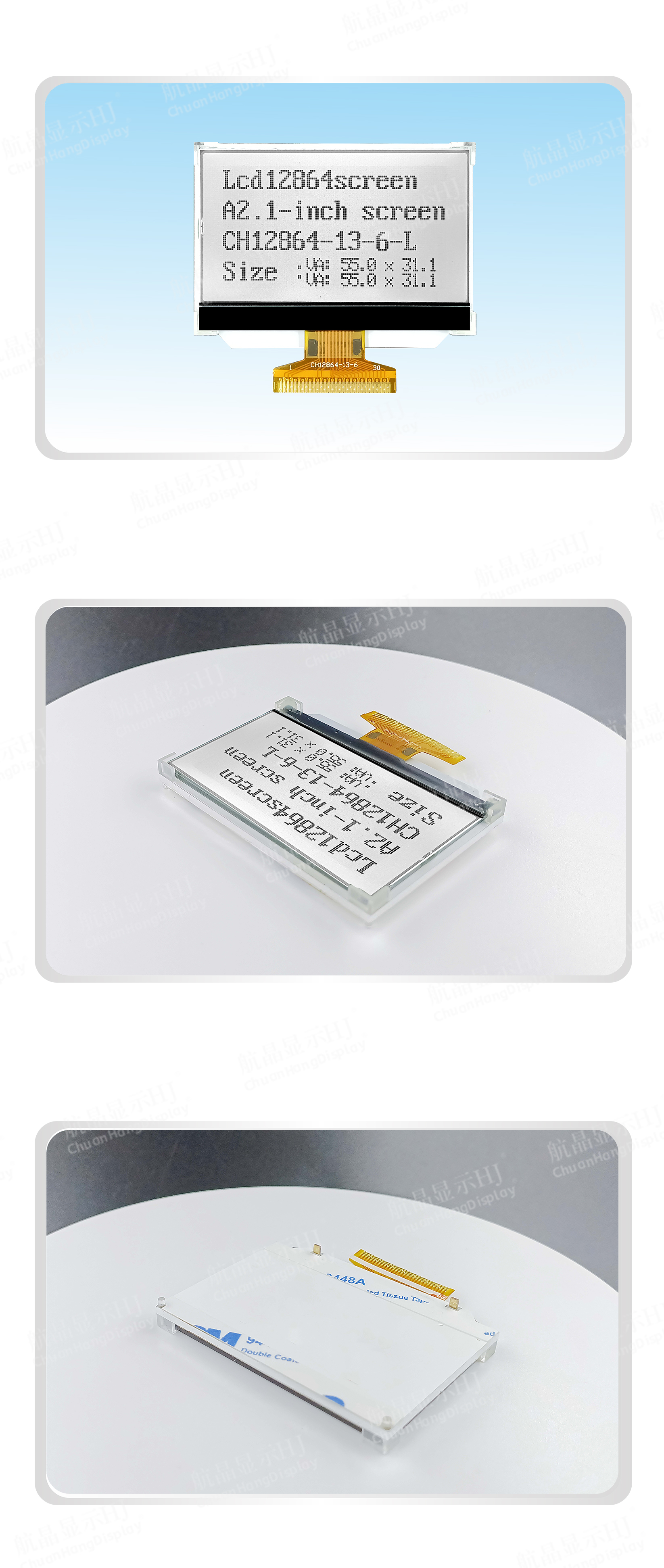

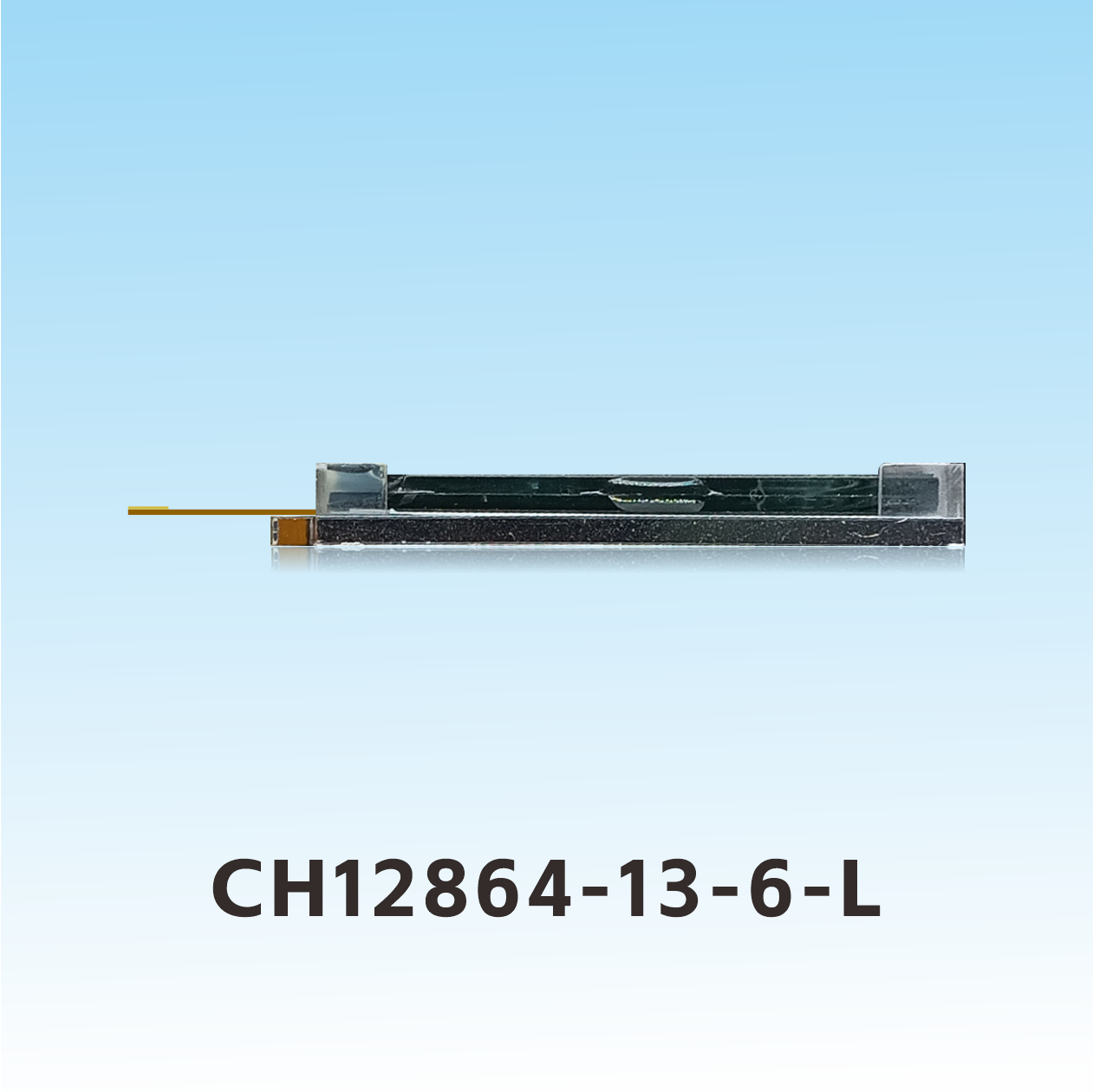

CH12864-13-6-L 128 x 64 old models

Product Description

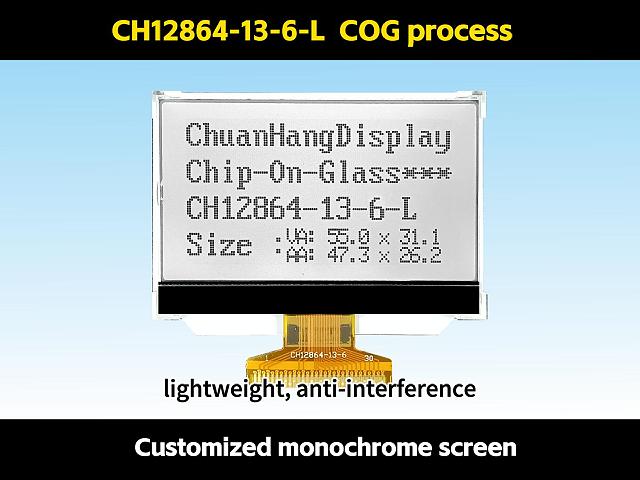

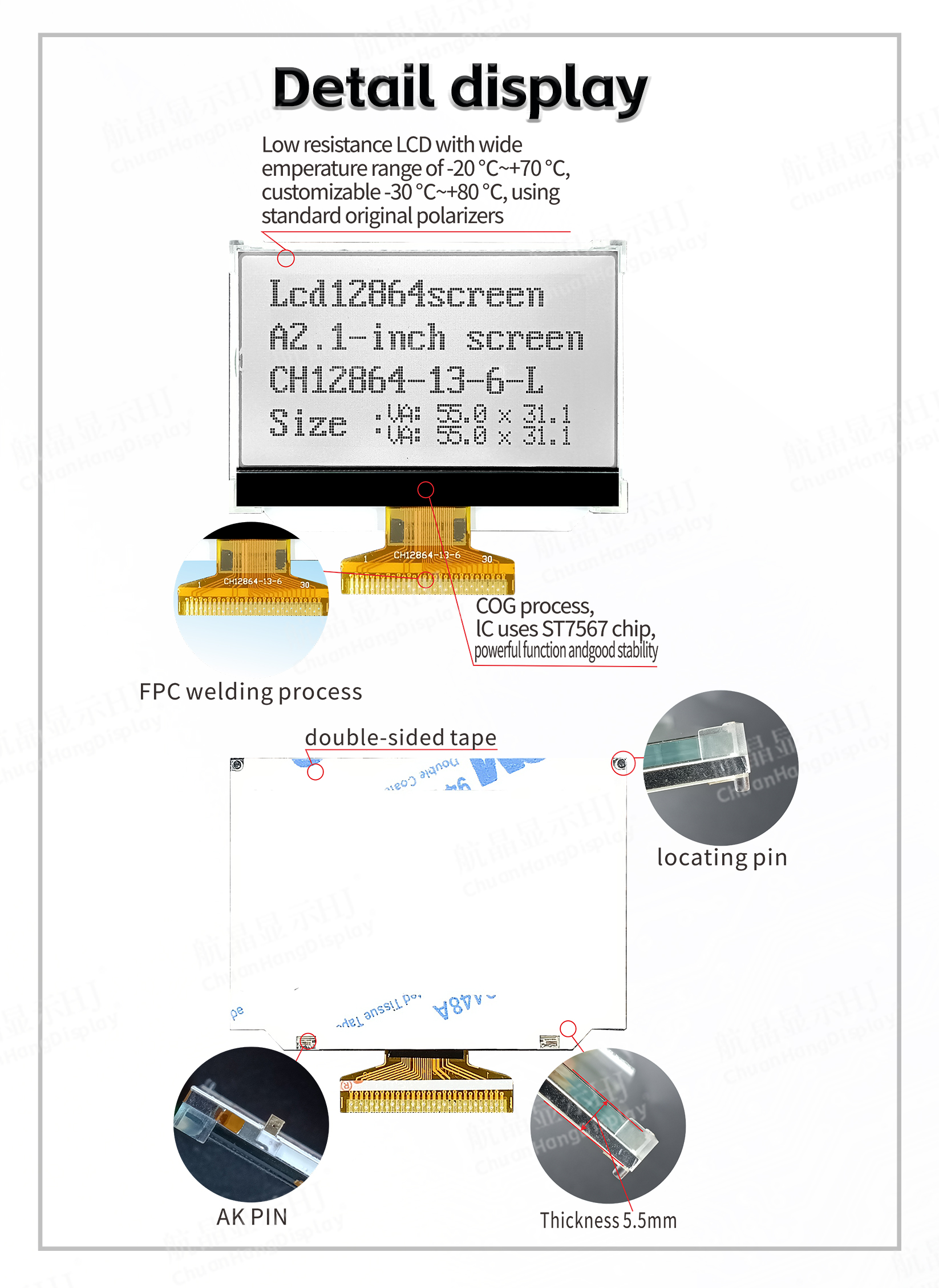

1.1 COG process, FPC flexible wire is welded port, the product is backlit, has been assembled, thin thickness, stable structure.
1.2IC uses ST7567 chip without font library, programmer self-compiled font library.
1.3 Low power consumption, 3.3V power mode, no backlight current within 1mA, with backlight current within 60mA.

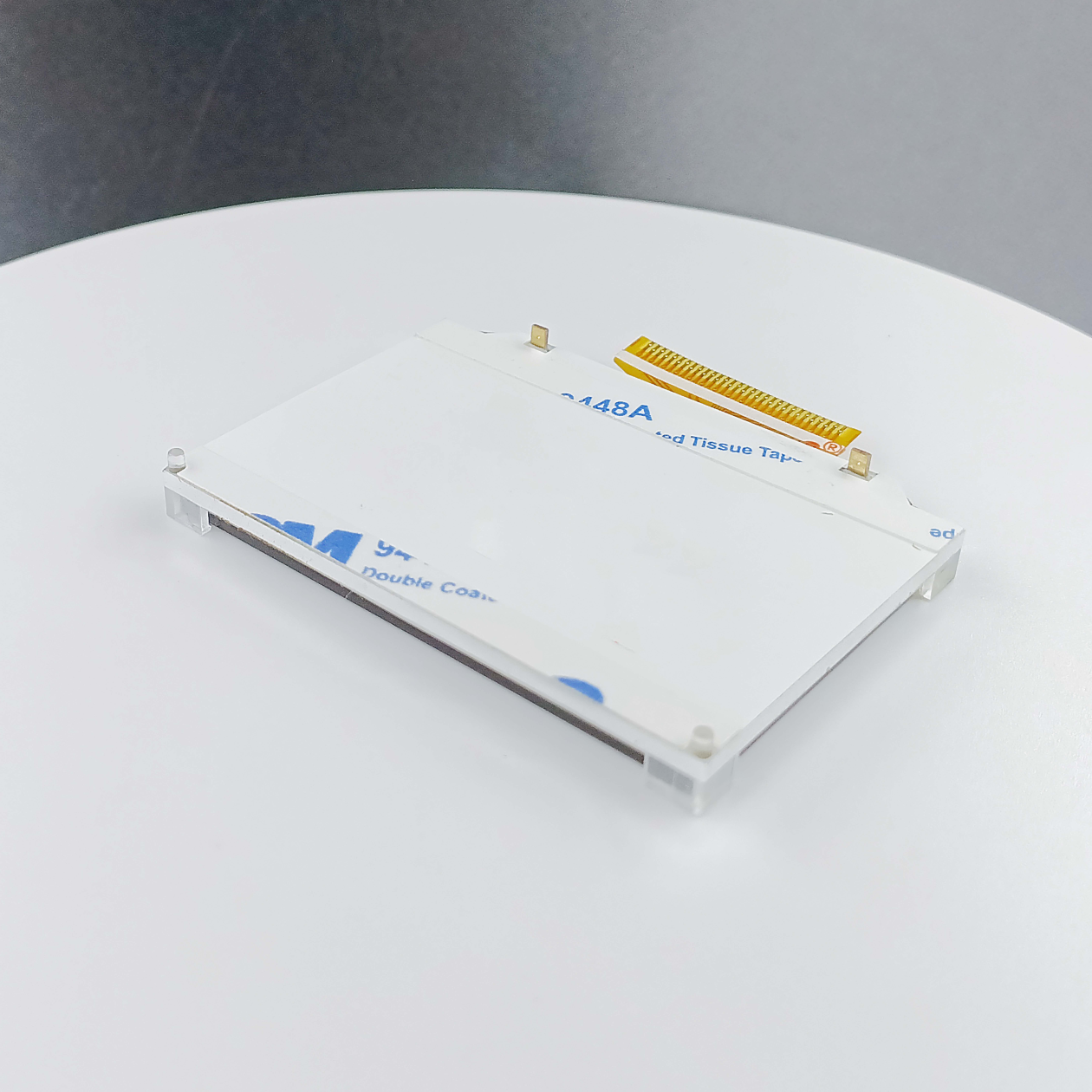

1.4 LED backlights A and K are PCBs, and A and K need to be powered separately by 2.9V ~3.0V.
1.5 Product Features:
• Built-in display data RAM is 64x128 bits.
•An external capacitor generates a boost.
•Contrast is adjusted deeper and lighter by software.
•One screen displays 8 characters x 4 lines (16x16 dot matrix).
•Single picture ≤128x64 dot matrix.
• Parallel port or 4-wire SPI interface communication.
Rich features: The interface displays on/off, positive display/reverse display.

PDF Download Demo code

Video Presentation

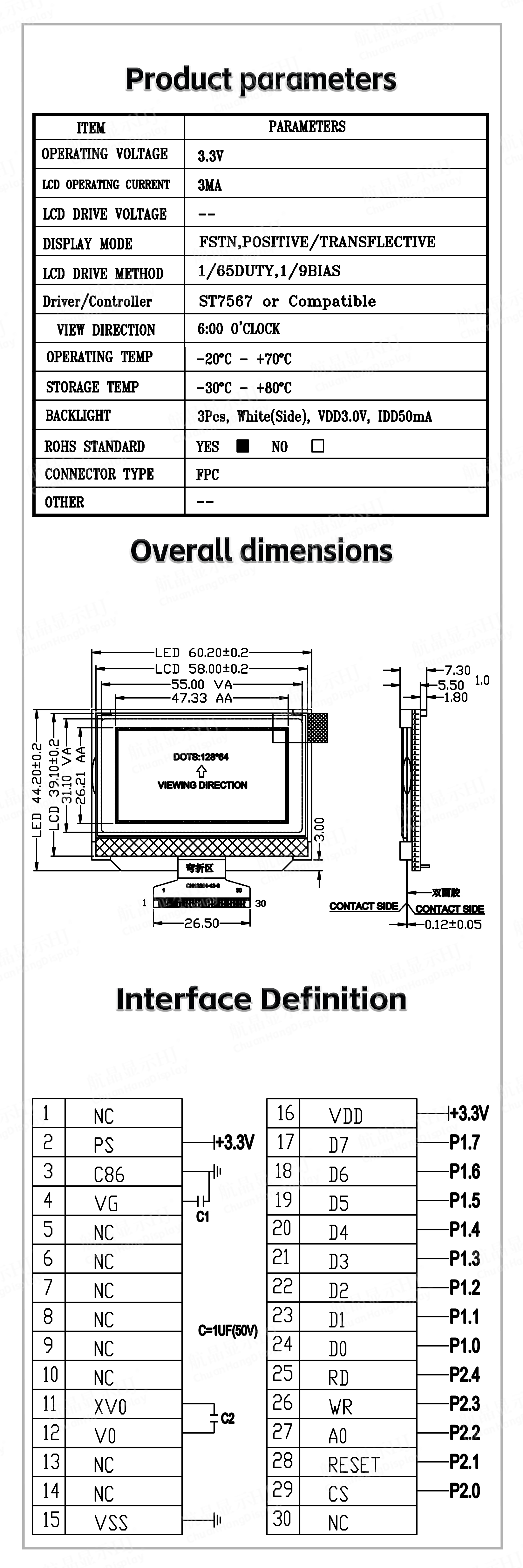

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864-13-3-L
Resolution	128x64	screen size
Outline Dimension(LWH)	60.2x44.2x7.3mm	Visible Area(L*W)	55.00x31.10mm
Active Area(L*W)	47.33x26.21mm	Dot Size (mm)	0.34(L)x0.38(W)
Type	COG	Connection Method	FPC
Supply Voltage	3.3V	Interface Type	MCU/SPI
Viewing Direction	6 O'CLOCK	Driving Method	1/64Duty
Display Type	FSTN	Driver IC	ST7567
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO
