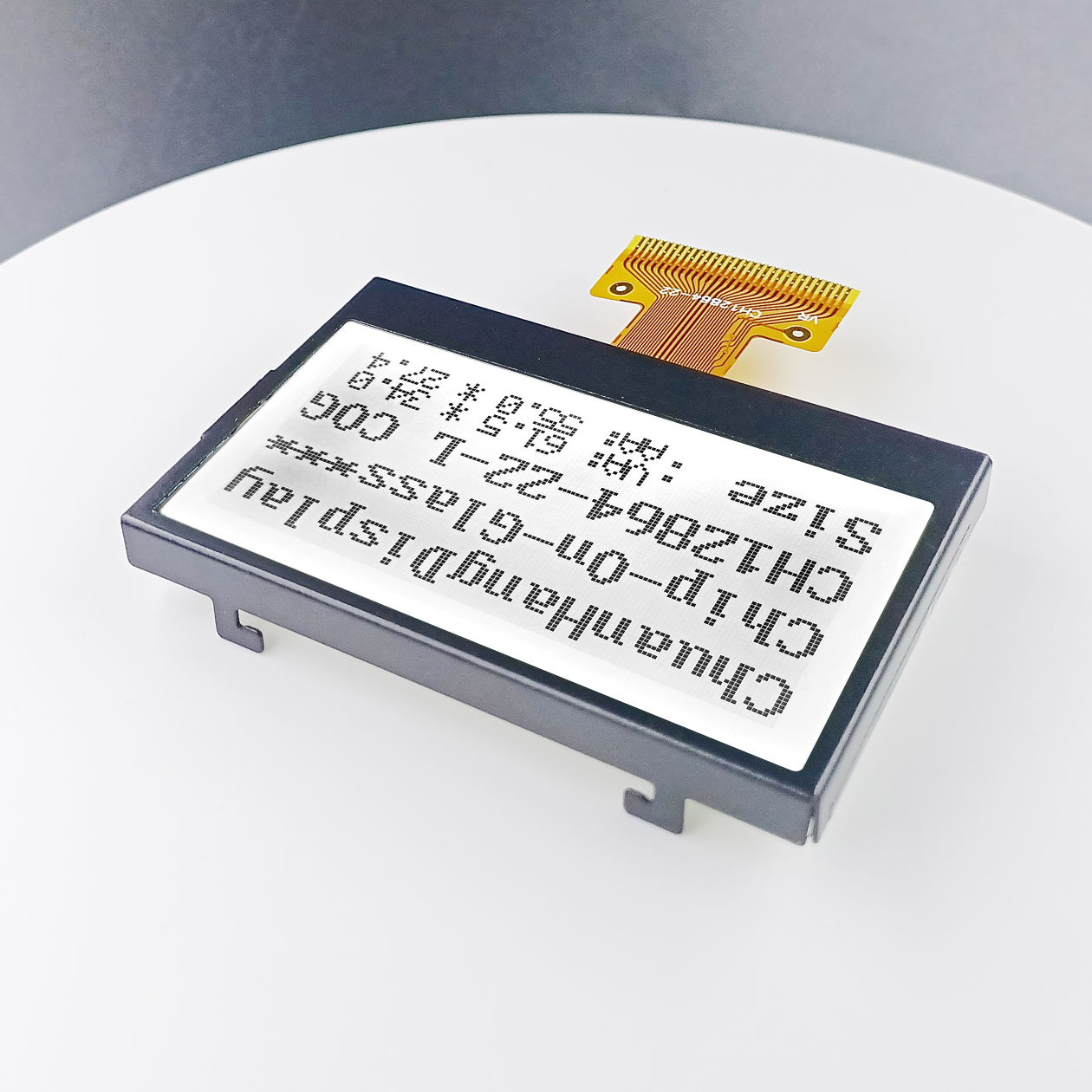

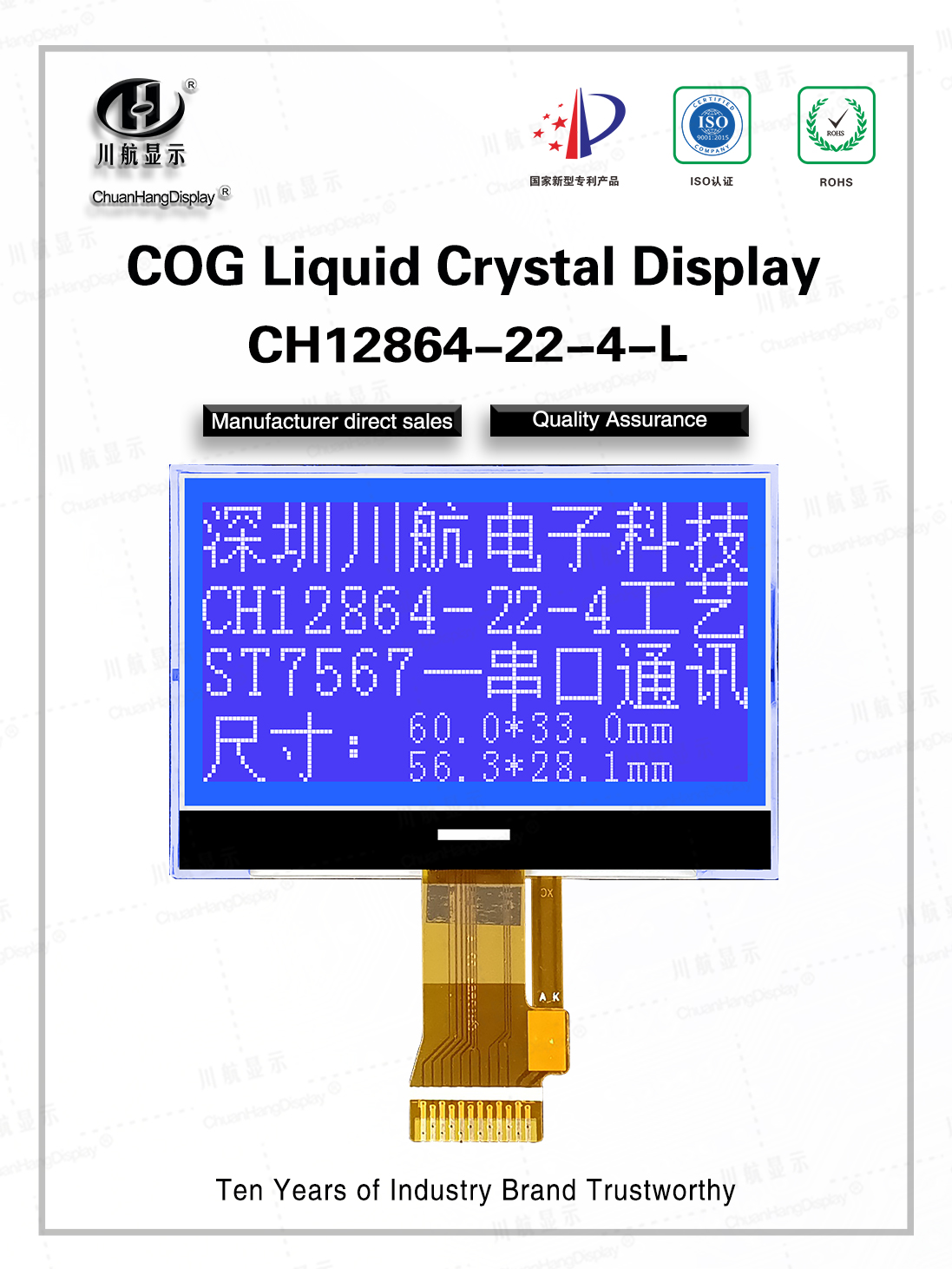

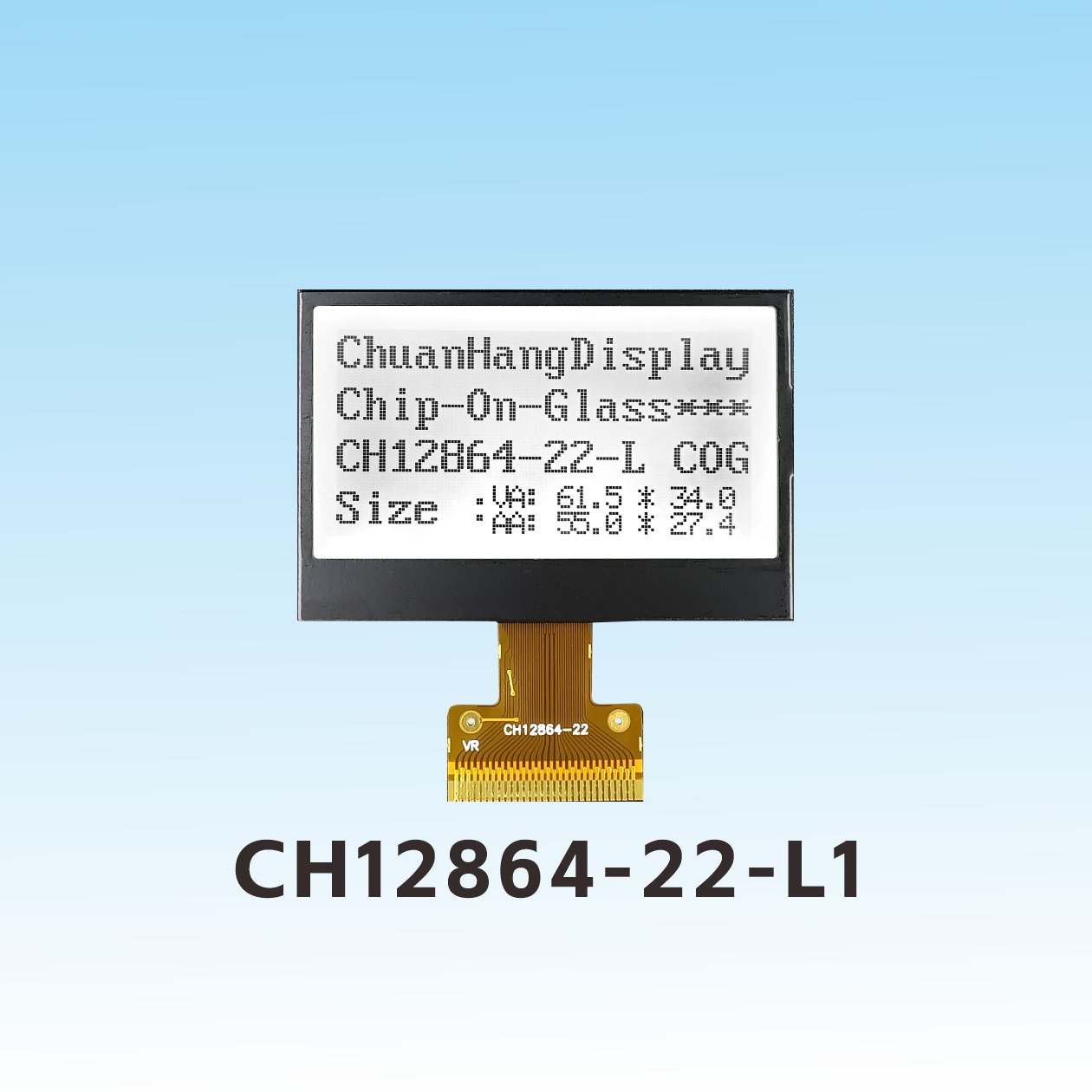

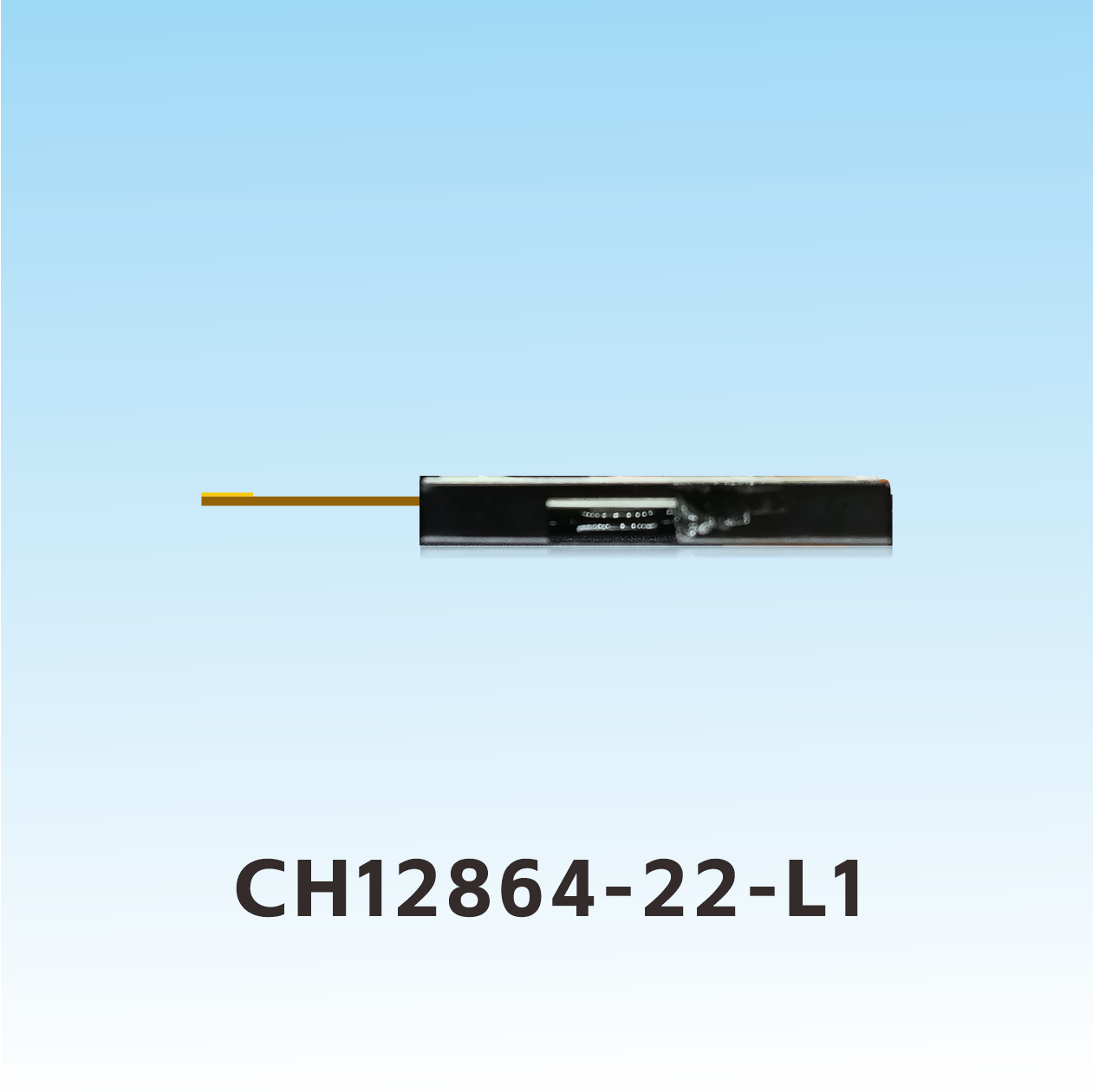

CH12864-22-L1 12864 biscayne blvd

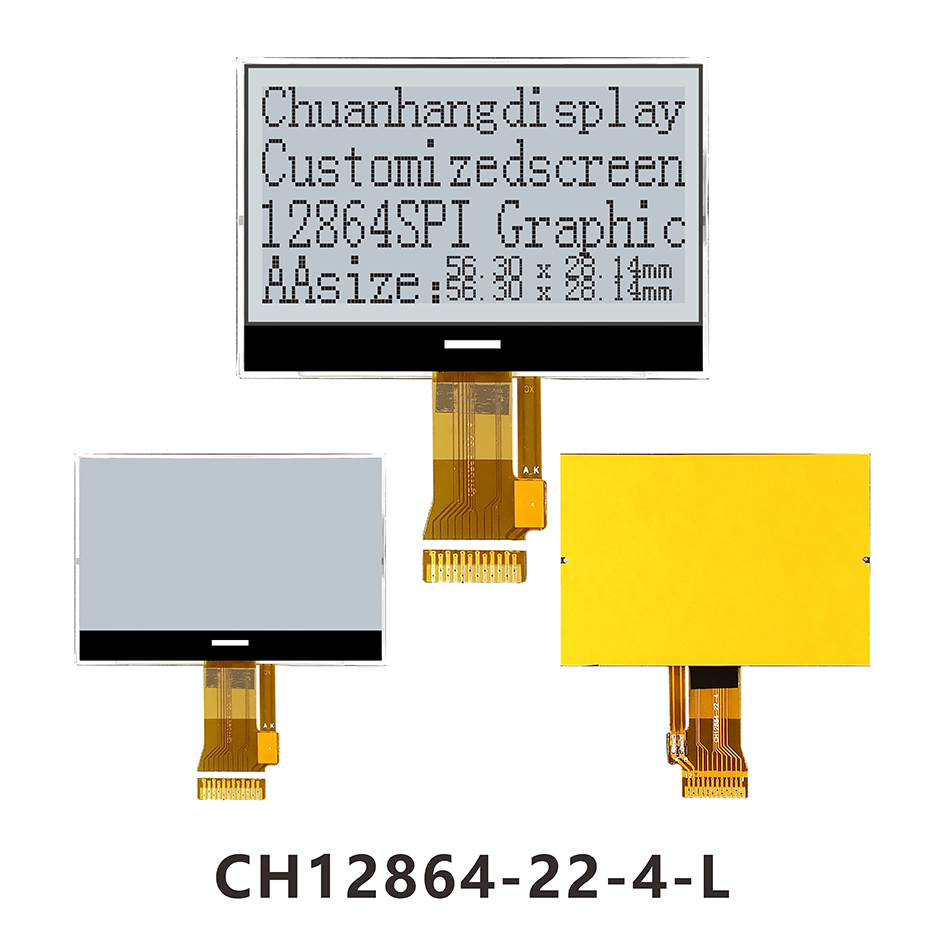

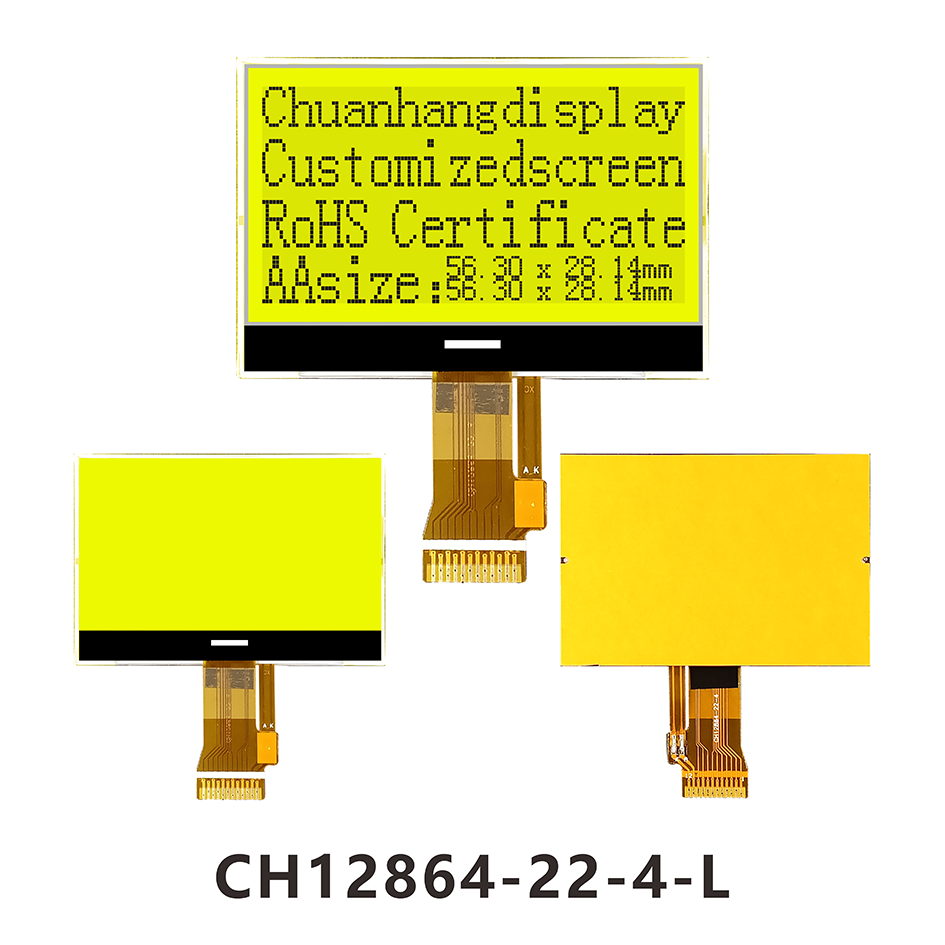

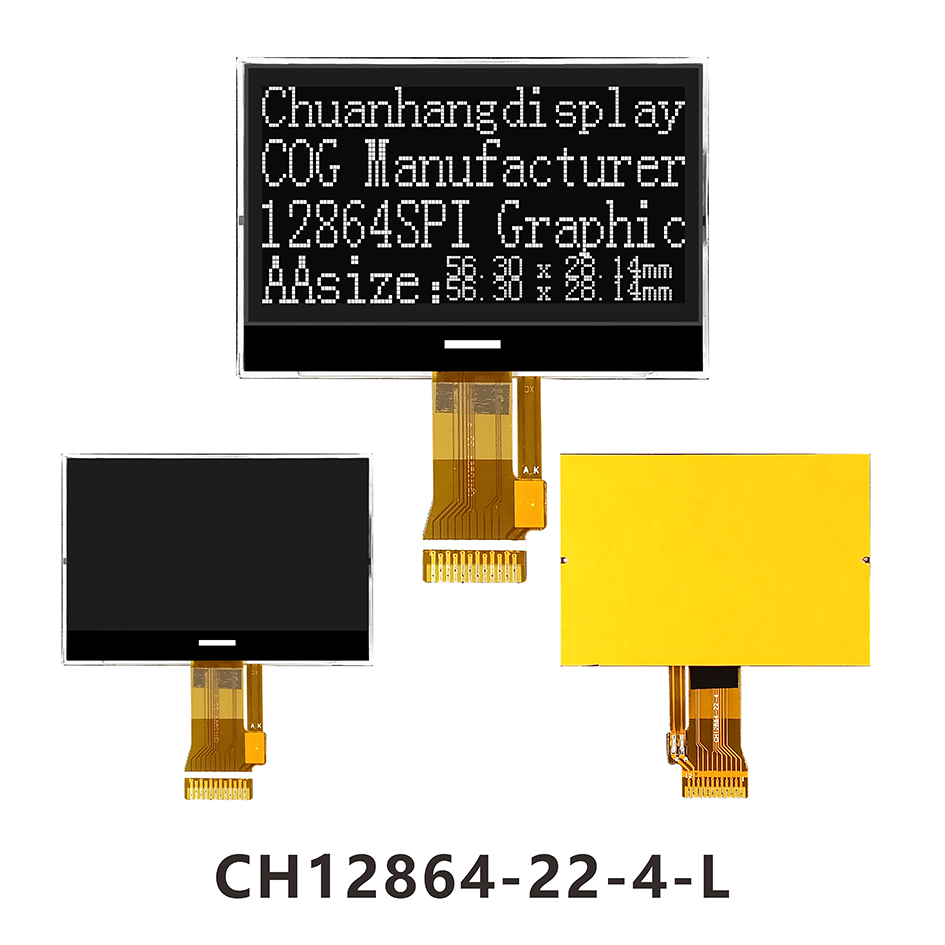

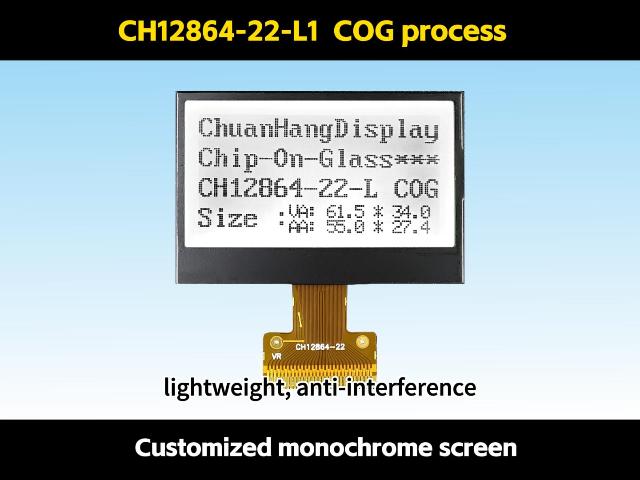

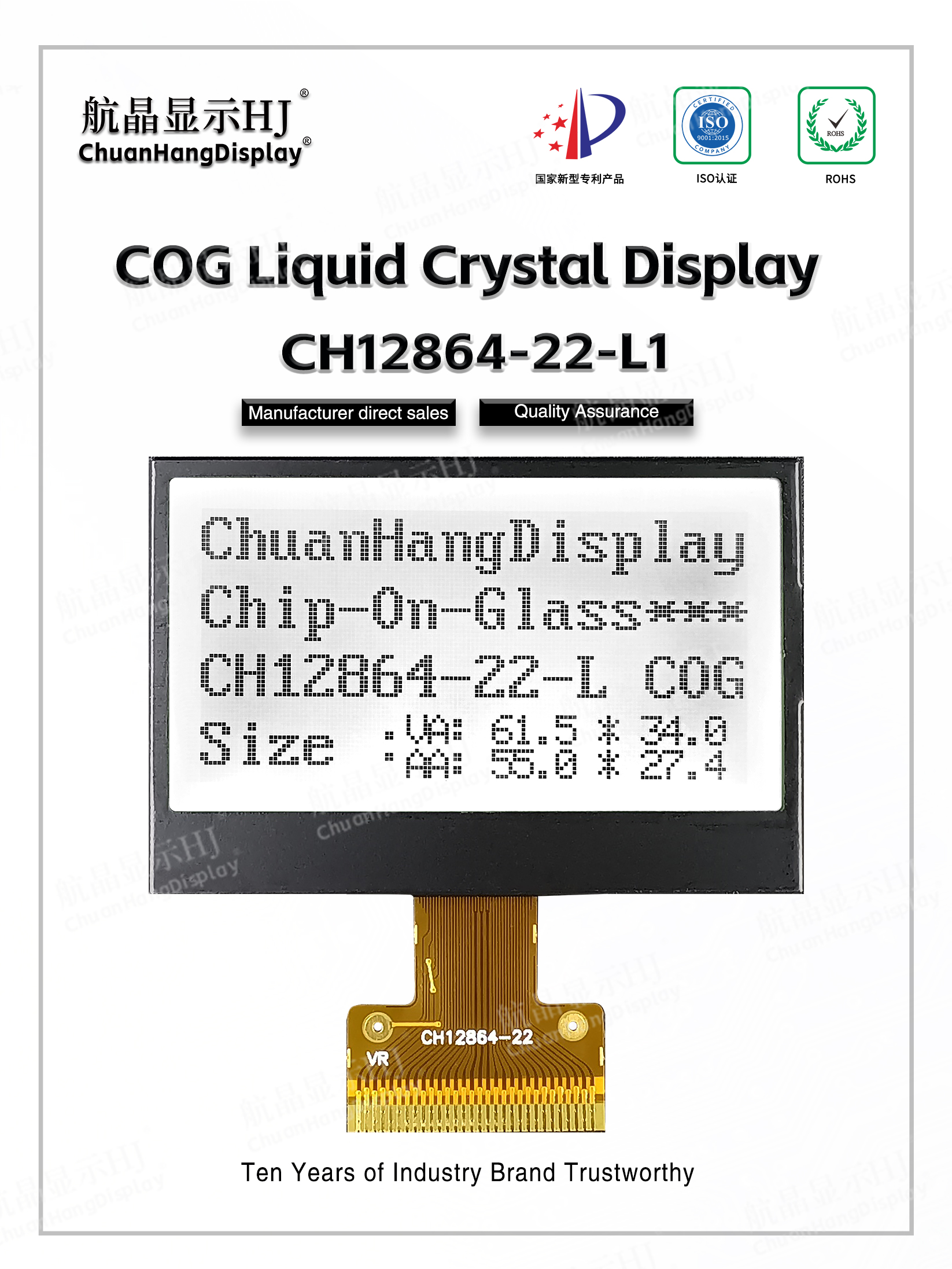

Product Description

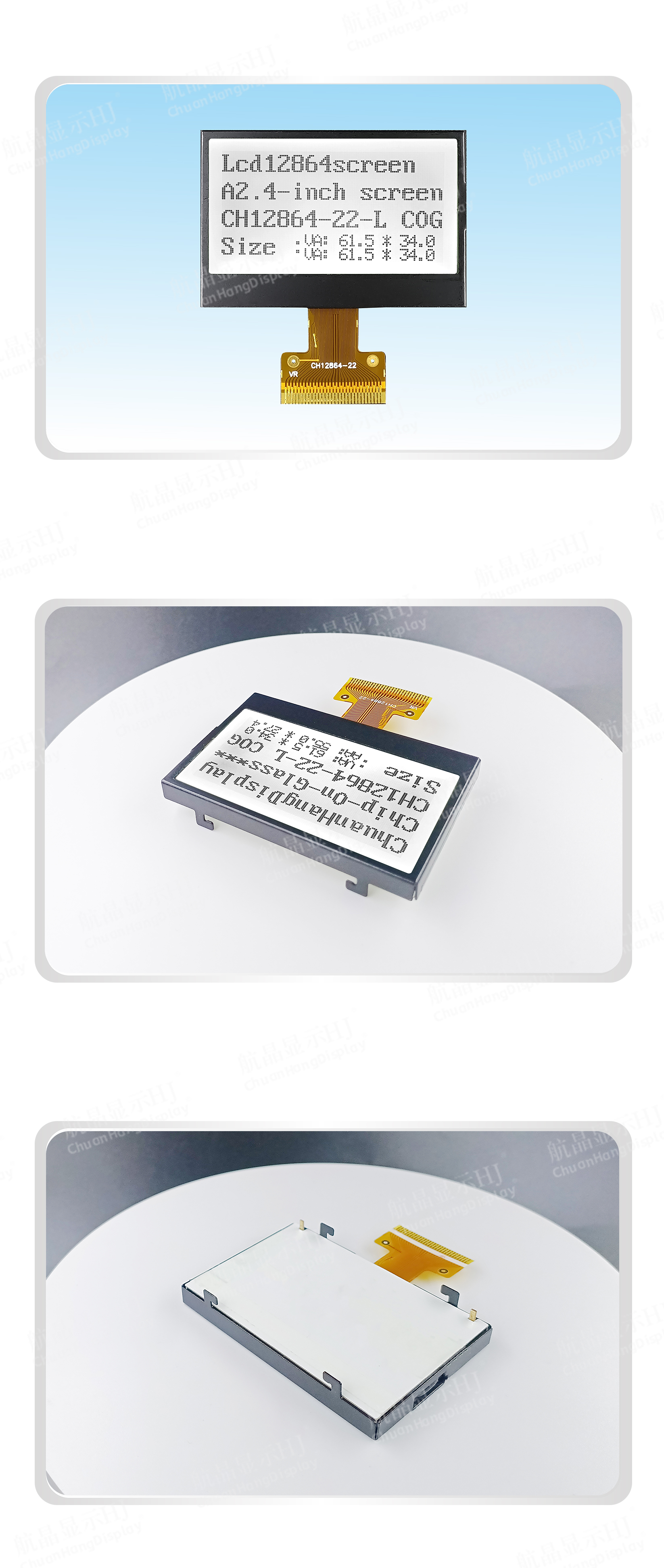

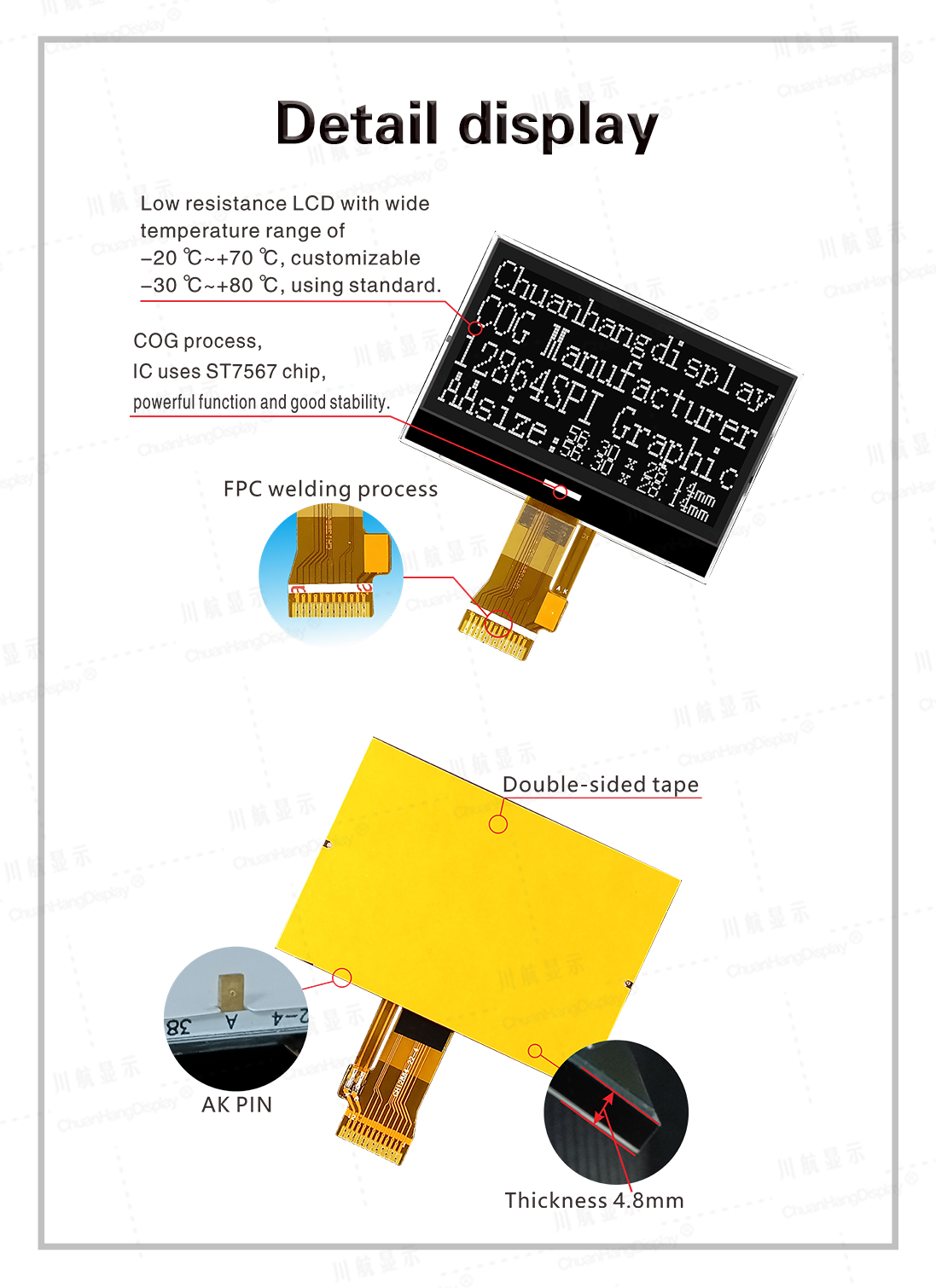

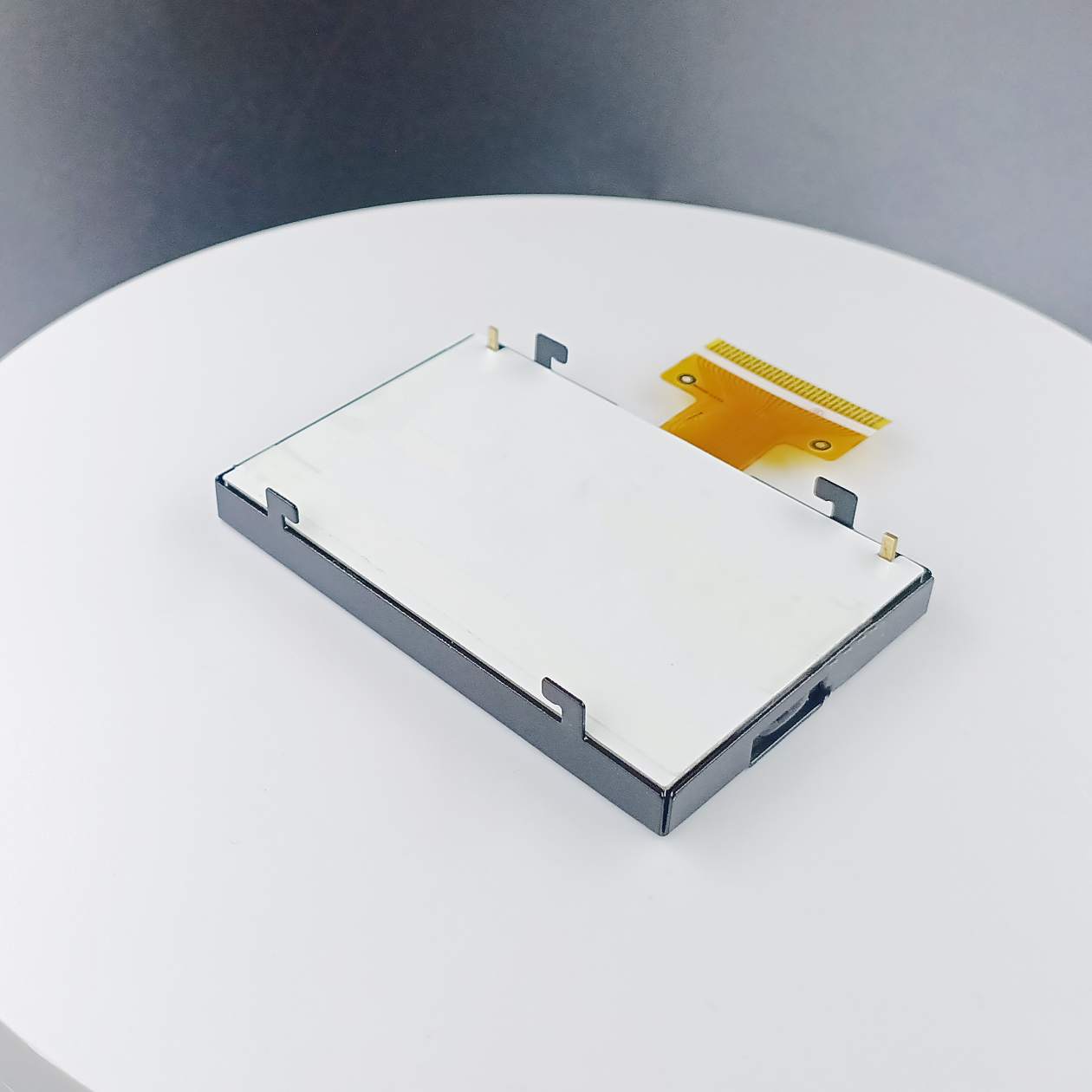

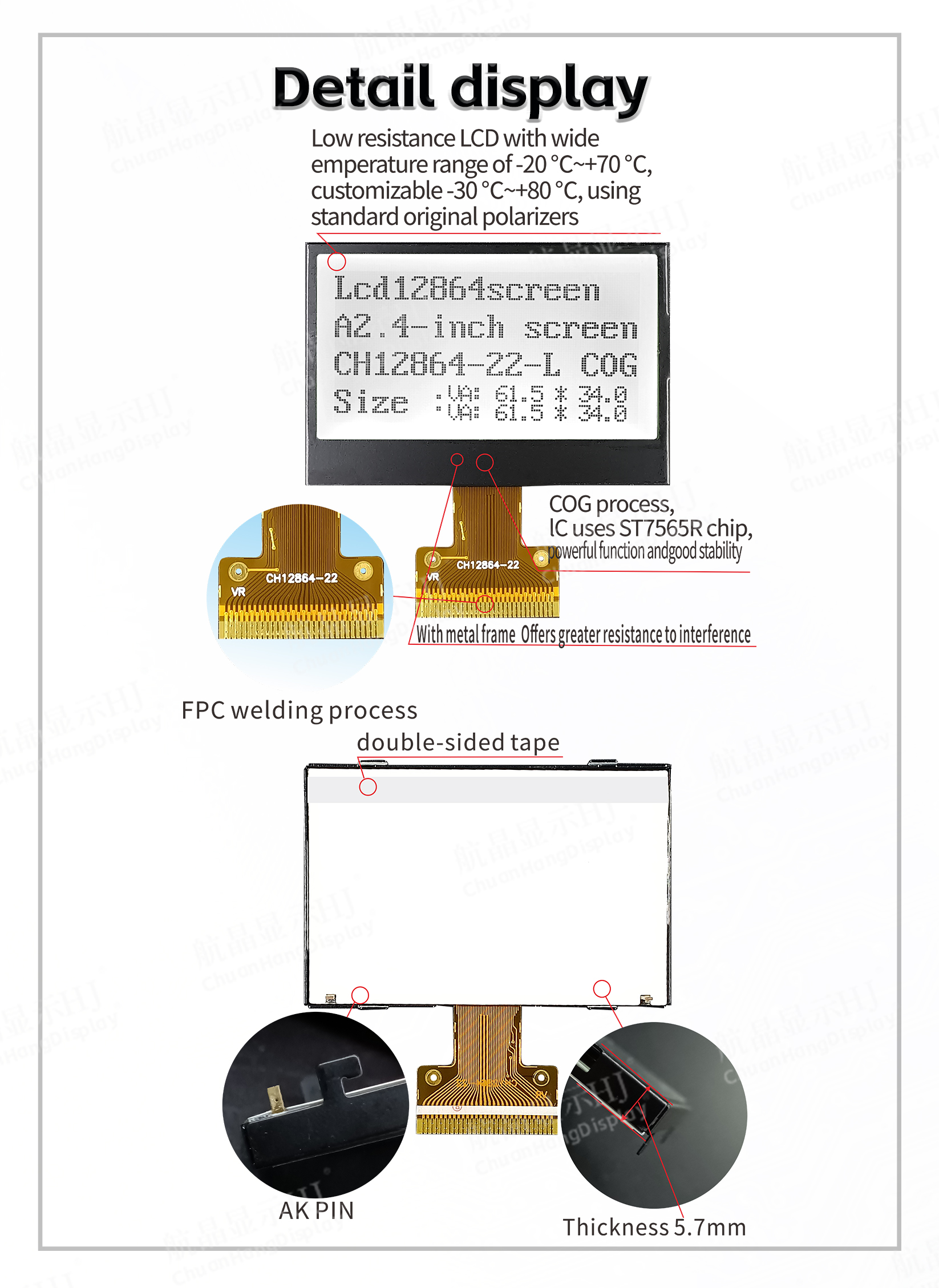

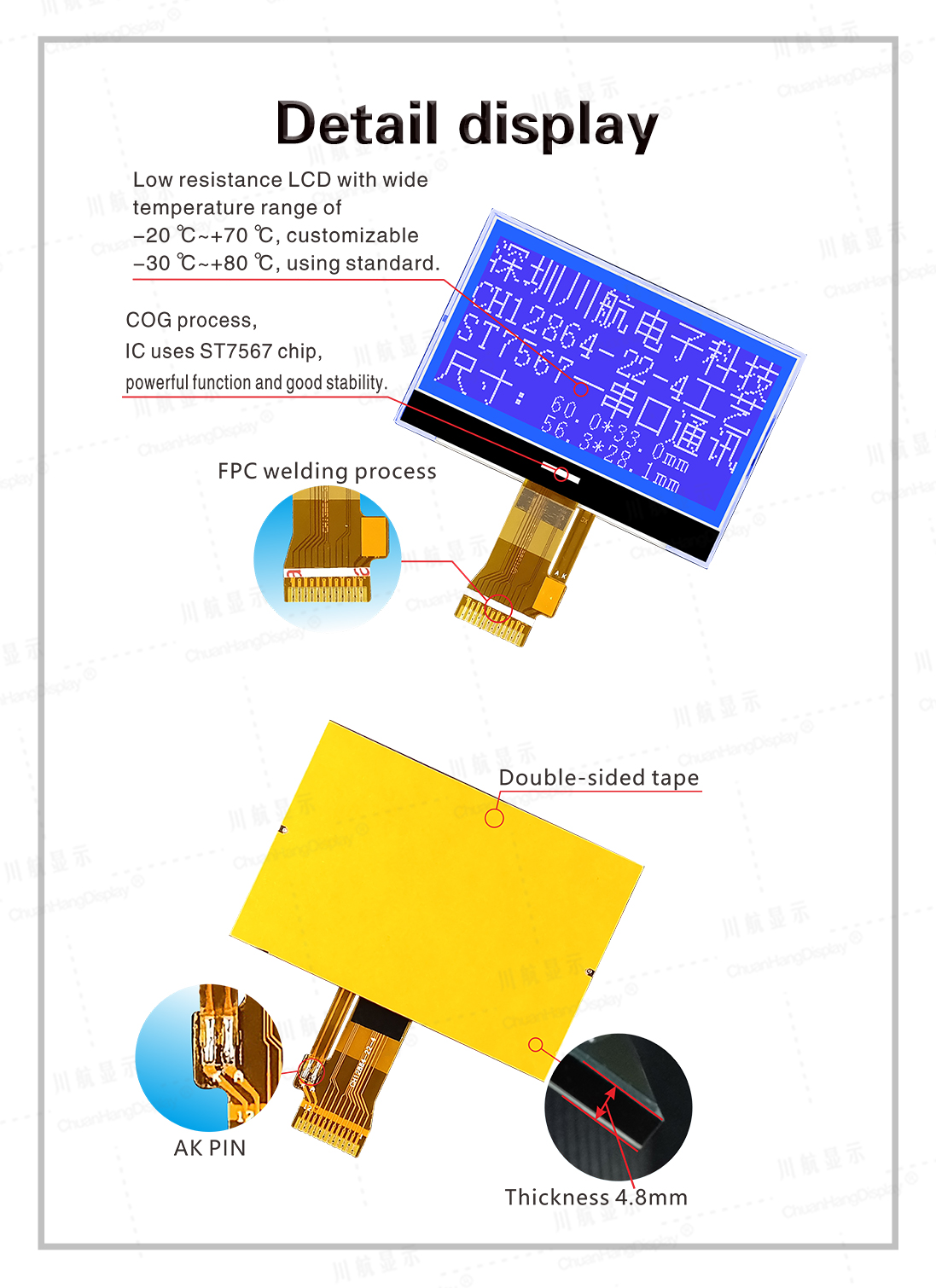

1.1 COG process, FPC flexible wire is welded port, the product is backlit, has been assembled, thin thickness, stable structure.
1.2IC uses ST7567, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, 3.3V power mode, no backlight current within 1mA, with backlight current within 80mA.
1.4 LED backlights A and K are FPC cables, and A and K need to be powered separately by 2.9V ~3.0V.
1.5 Product Features:
The built-in display data RAM is 64x128 bits.
An external capacitor generates a boost.
Contrast is adjusted deeper and lighter by software.
One screen displays 8 characters x 4 lines (16x16 dot matrix).
Single picture ≤128x64 dot matrix.
4-wire SPI interface communication.
Rich functions: interface display on/off, positive display/reverse display.

PDF Download Demo code

Video Presentation

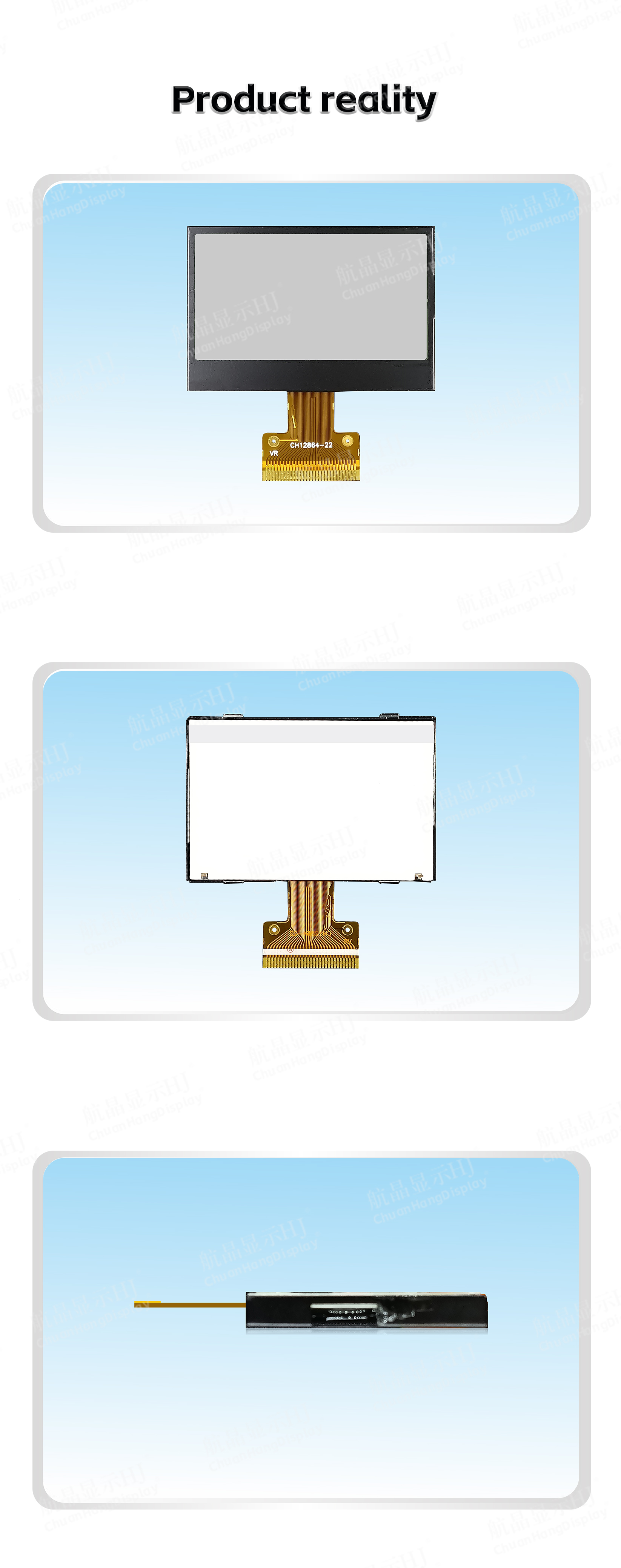

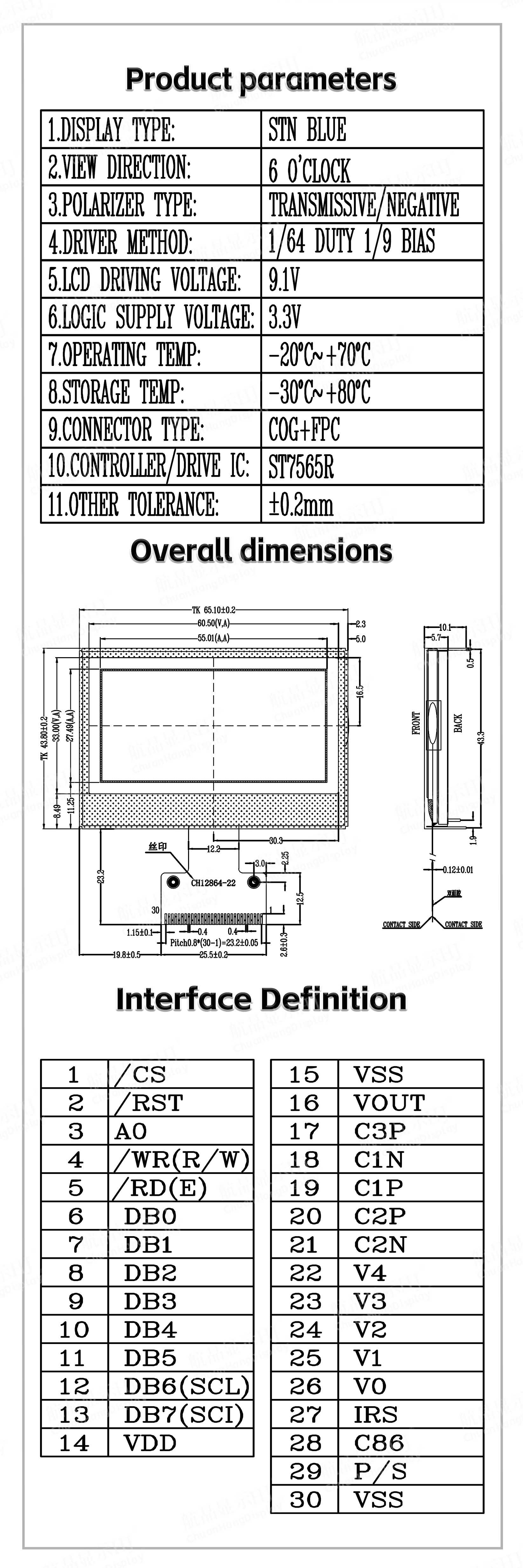

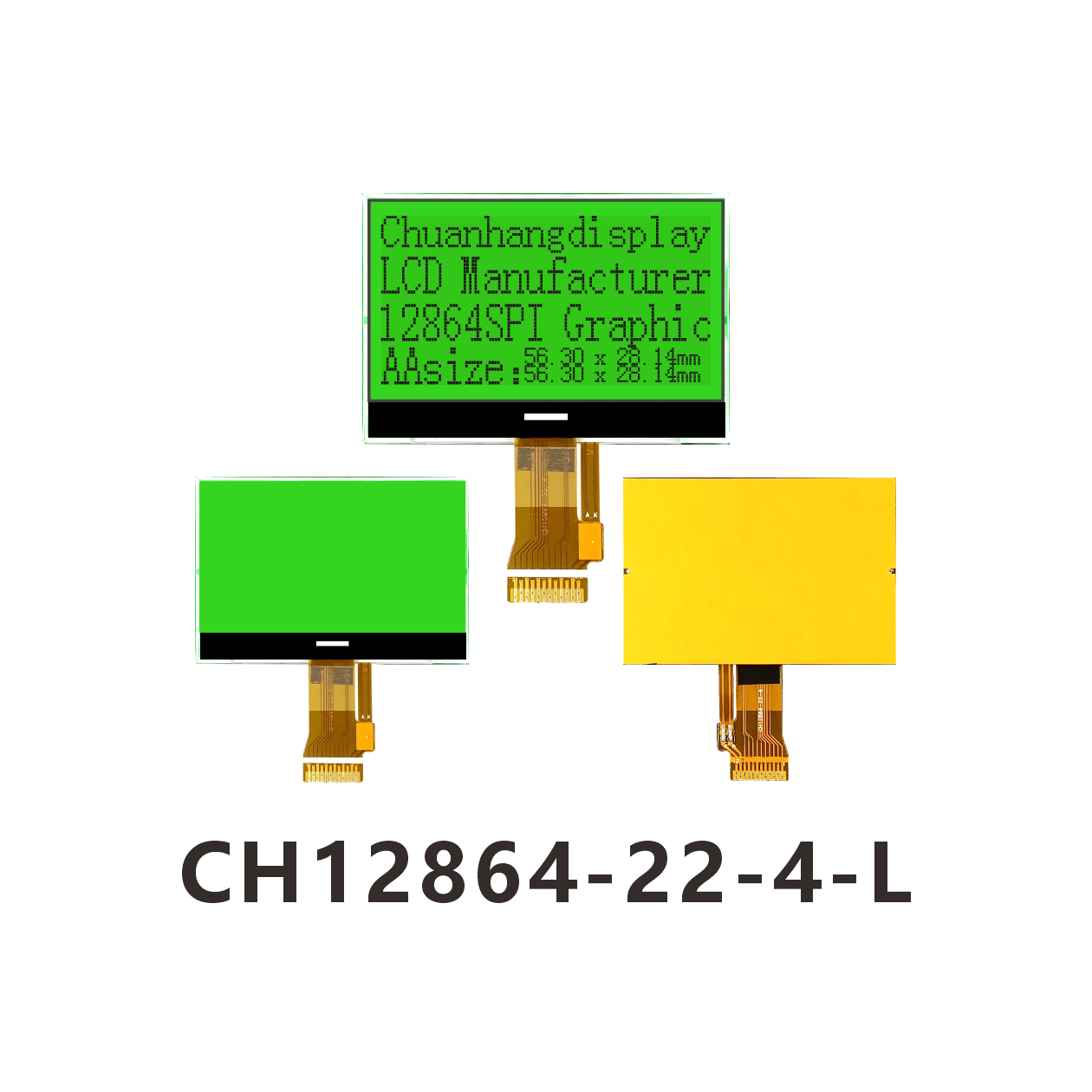

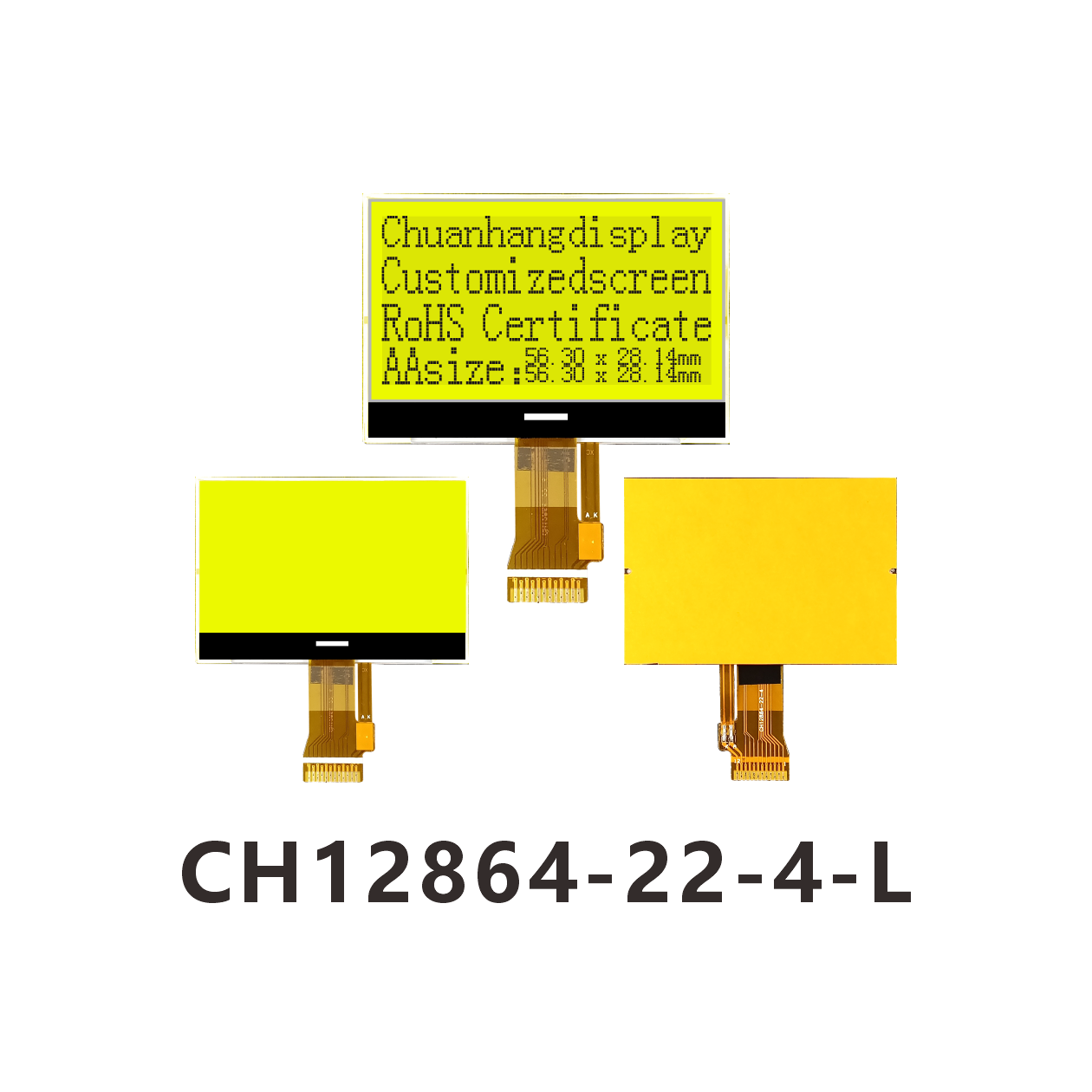

Product Parameters

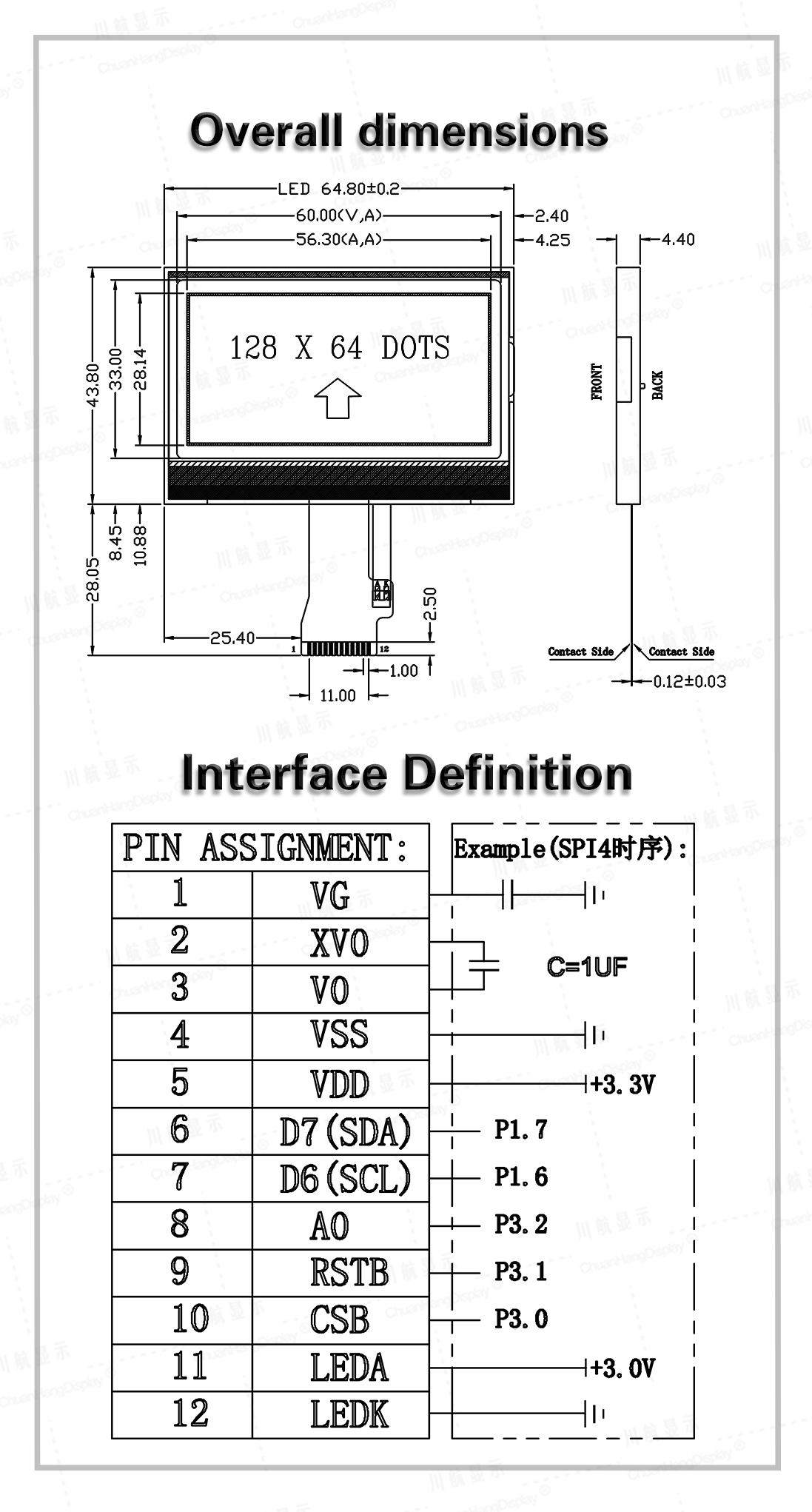

Product Brand	ChuanHangDisplay	Product Model	CH12864-22-L1
Resolution	128x64	screen size
Outline Dimension(LWH)	65.10x43.80x10.1mm	Visible Area(L*W)	60.50x33.00mm
Active Area(L*W)	55.01x27.49mm	Dot Size (mm)	0.48(L)x0.48(W)
Type	COG	Connection Method	FPC
Supply Voltage	3.3V	Interface Type	MCU/SPI
Viewing Direction	6 O'CLOCK	Driving Method	1/64Duty
Display Type	STN	Driver IC	ST7565R
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO
