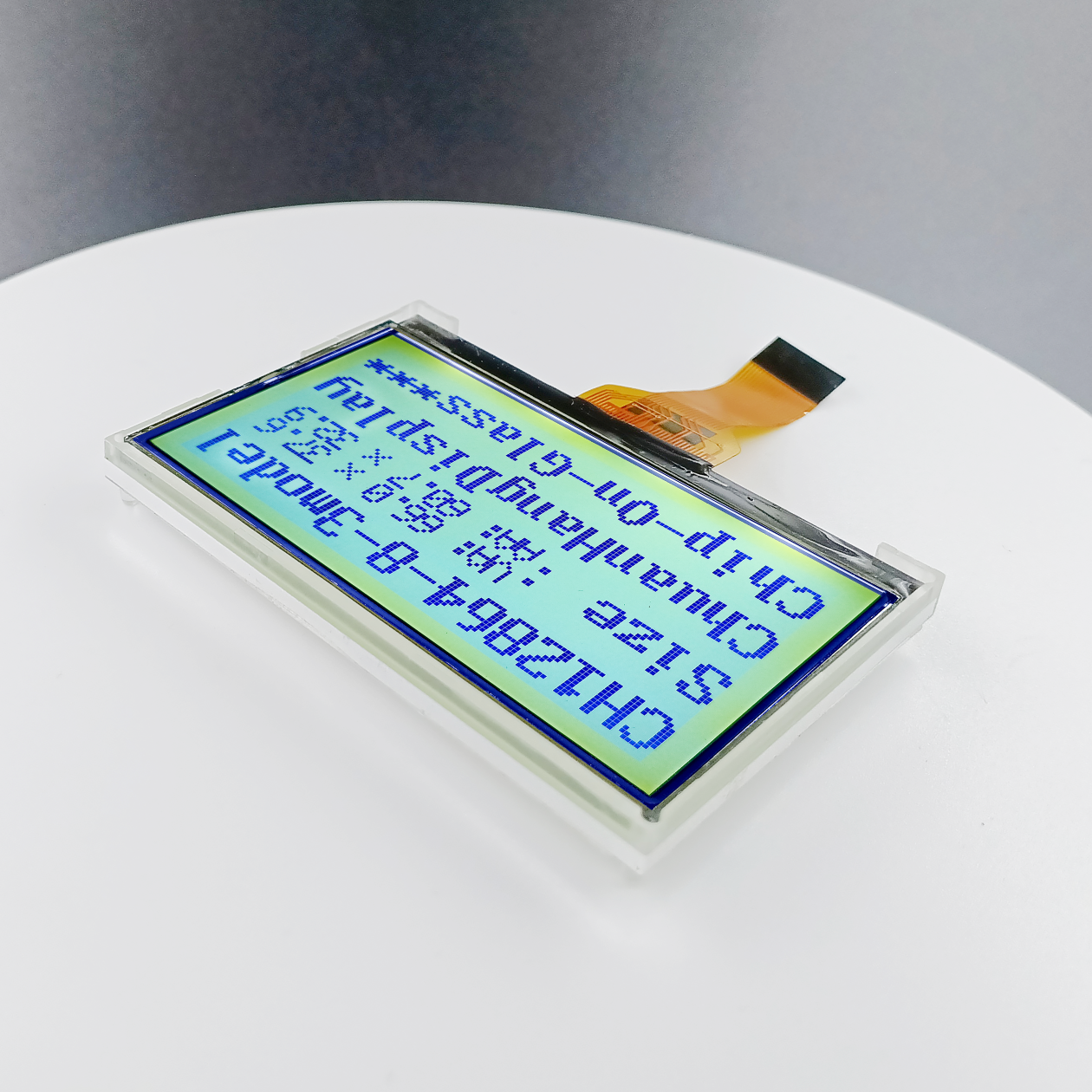

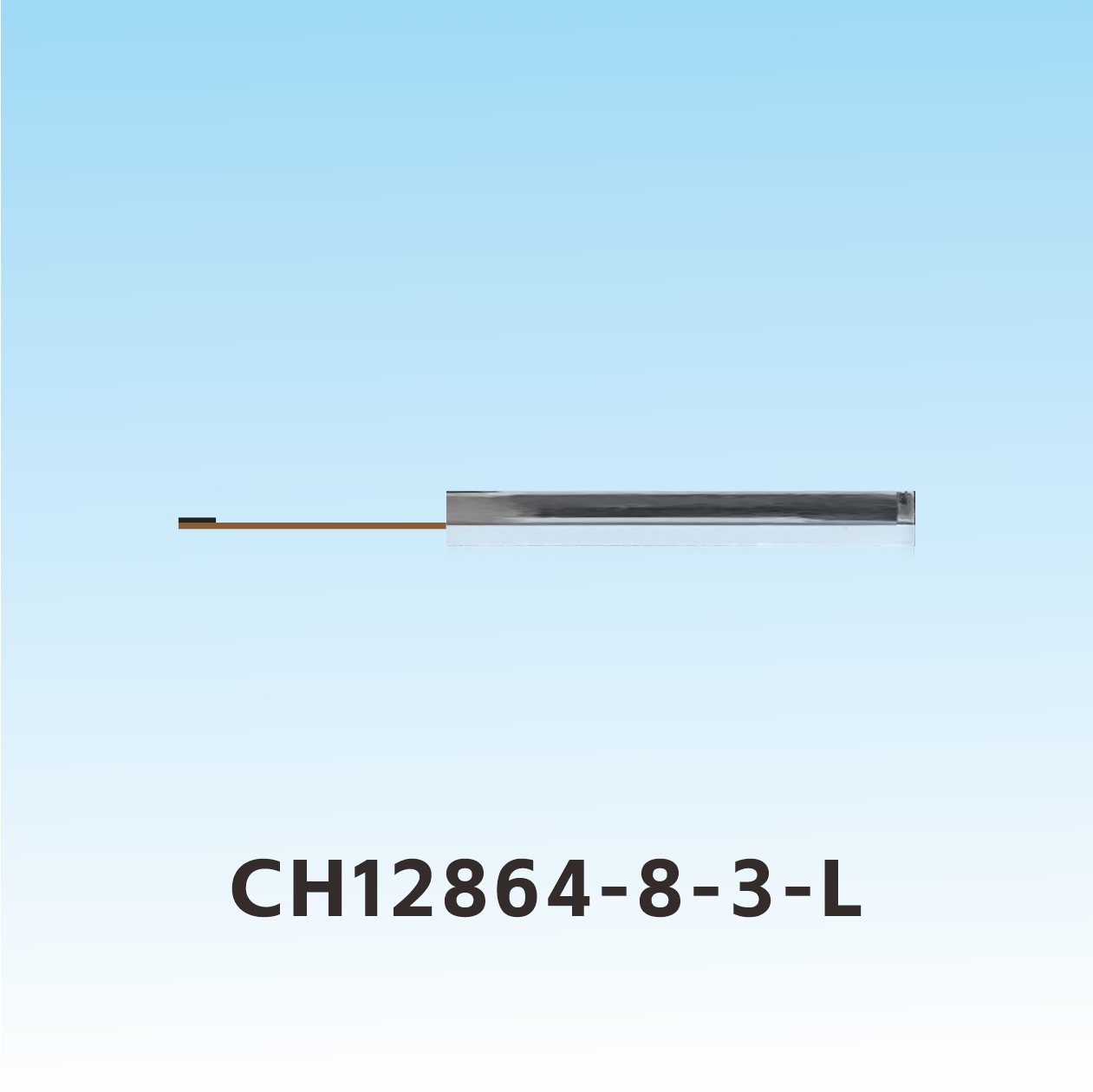

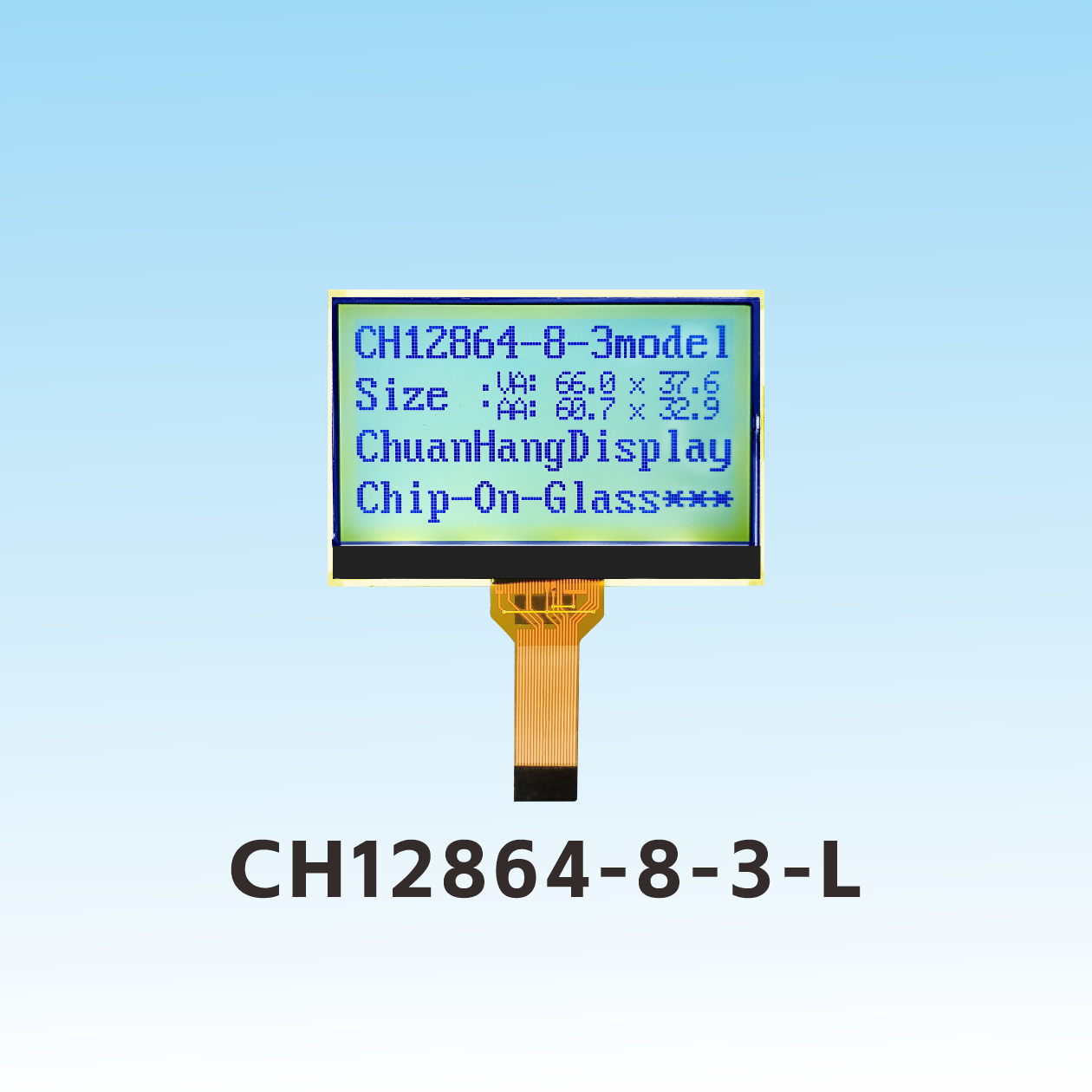

CH12864-8-3-L
Product Description

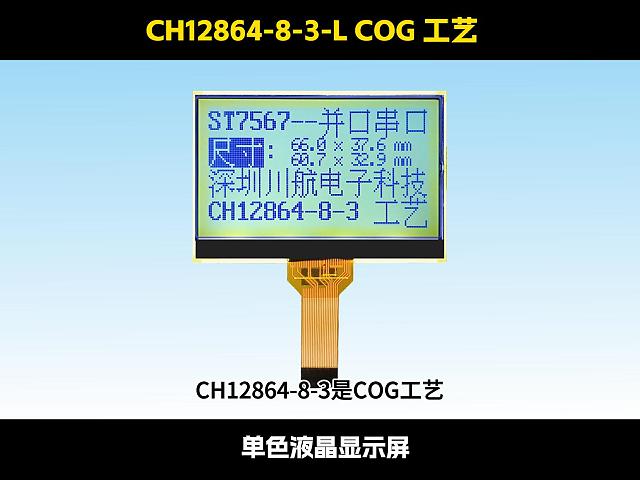

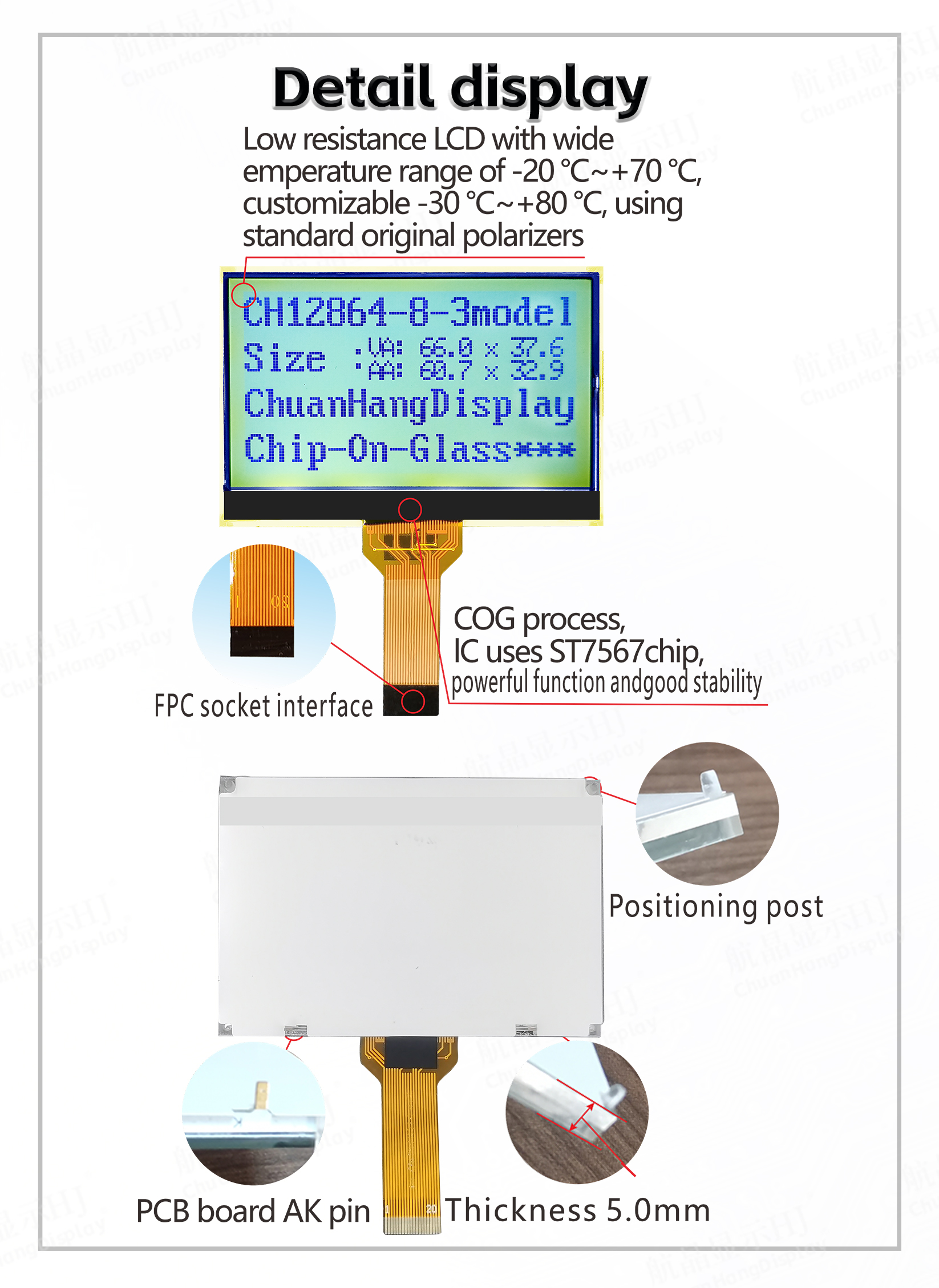

1.1cOG process, FPC soft line is the plug interface, the product has backlight, has been assembled, thin thickness, stable structure.
1.2IC uses ST7567, and there is no font library in the chip. Programmers compile the font library by themselves.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, with backlight current within 80mA.
1.4 LED backlight A and K are PCB boards, and A and K need to be powered separately 2.9V~3. OV.
1.5 Product features:
●The built-in display data RAM is 64x128 bits.
●The external capacitor generates a boost.
●The contrast is deepened and lightened by the software.
●One screen displays 8 characters x 4 lines (16x16 dot matrix). Single picture ≤128x64 dot matrix.
●You can choose 4-wire SPI interface or 8-bit parallel port 6800 timing sequence or 8080 timing sequence, and the circuit can be configured .
●rich functions: interface display on/off, positive display/reverse display, read/modify/write.
