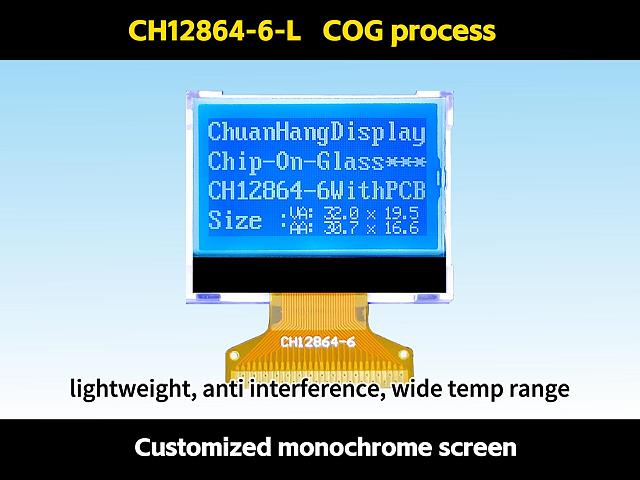

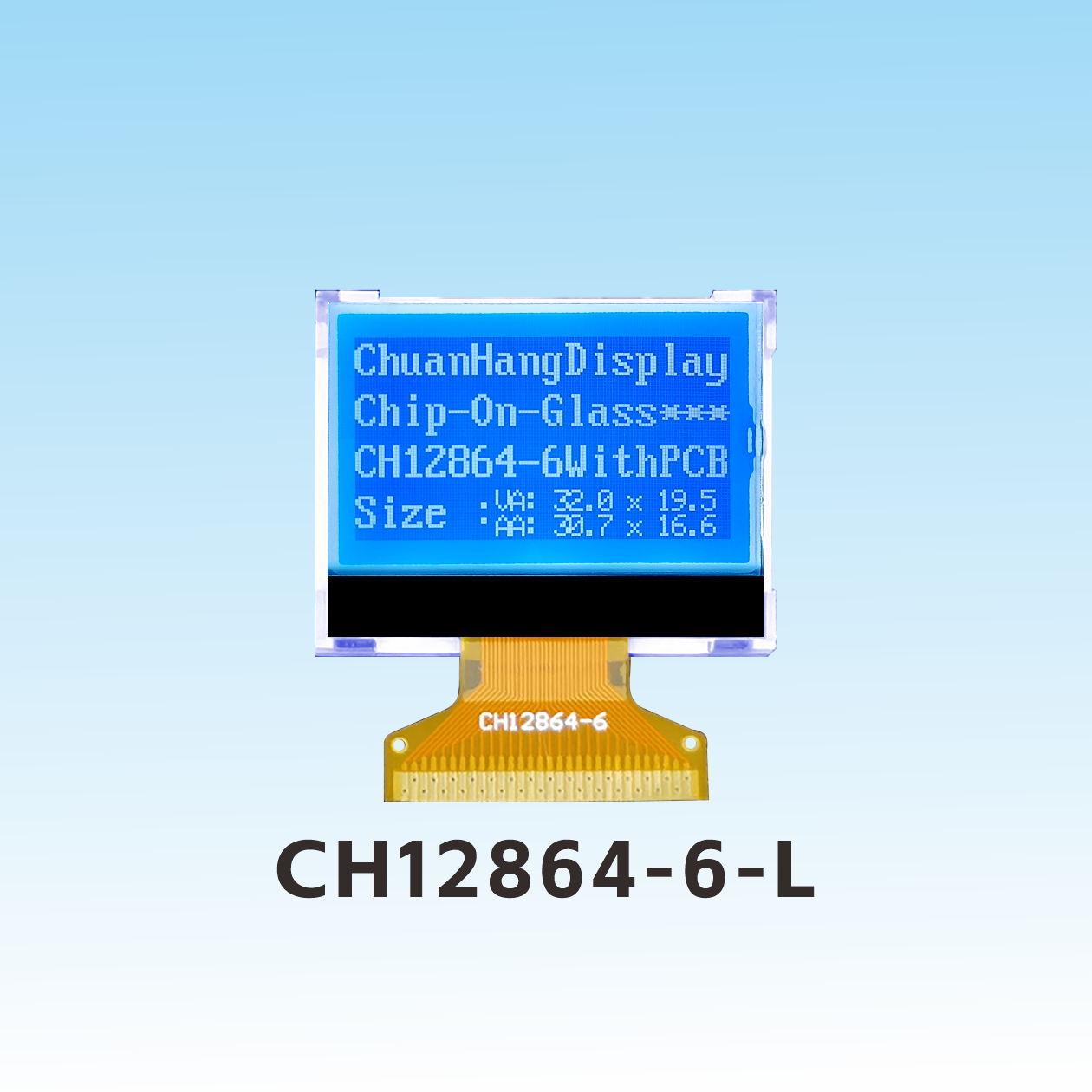

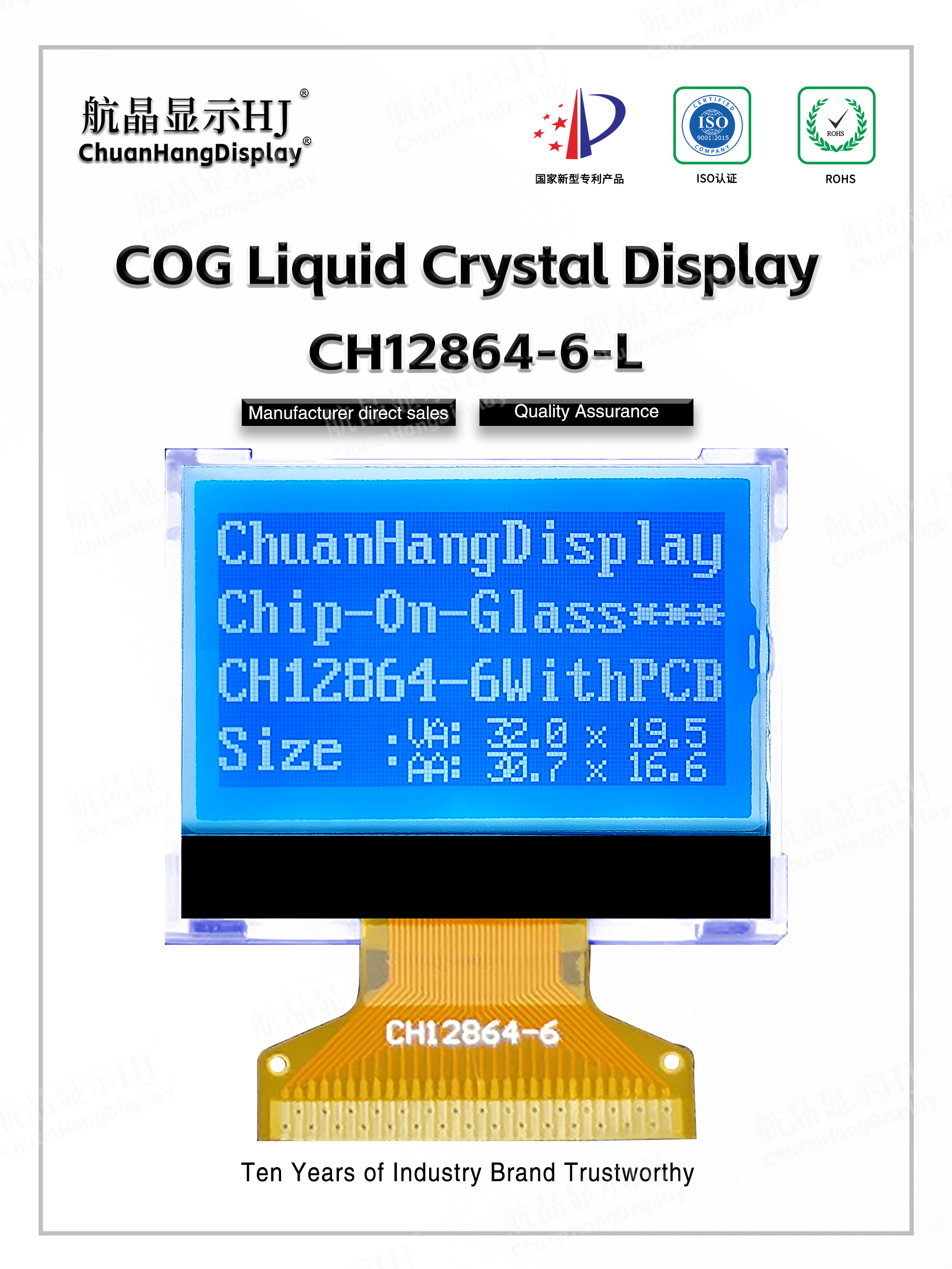

CH12864-6- L

Product Description

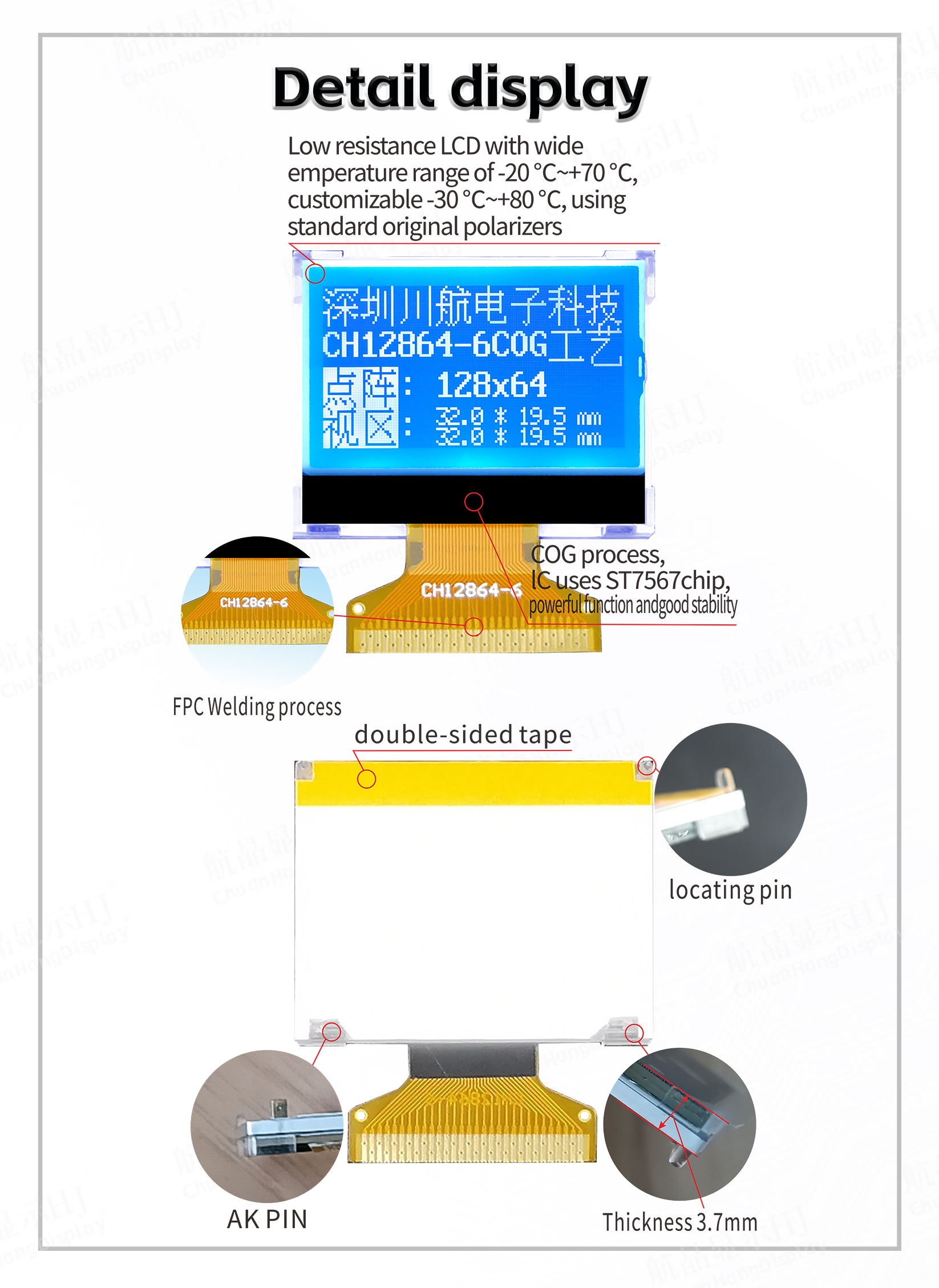

1.1 COG process, FPC soft wire is a welding port, the product is backlit, assembled, thin in thickness and stable structure.
1.2IC uses ST7565. There is no font library in the chip, and the programmer compiles his own font library.
1.3 Low power consumption, 3.3V power mode, no backlight current within 1mA and backlight current within 60mA.
1.4 LED backlights A and K are PCB feet, and A and K need to be powered separately from 2.9V~3.0V.
1.5 Product features:
The built-in display data RAM is 64x128 bits.
External capacitors generate boost. ·
The contrast ratio is deeply to shallow by the software.
One screen displays 8 characters x 4 lines (16x16 dot matrix). ·
Single picture ≤ 128x64 dot matrix. .8-bit parallel port or 4-wire SPI interface communication. ·
Rich functions: The interface shows on/off, forward/reverse.

PDF Download Demo code

Video Presentation

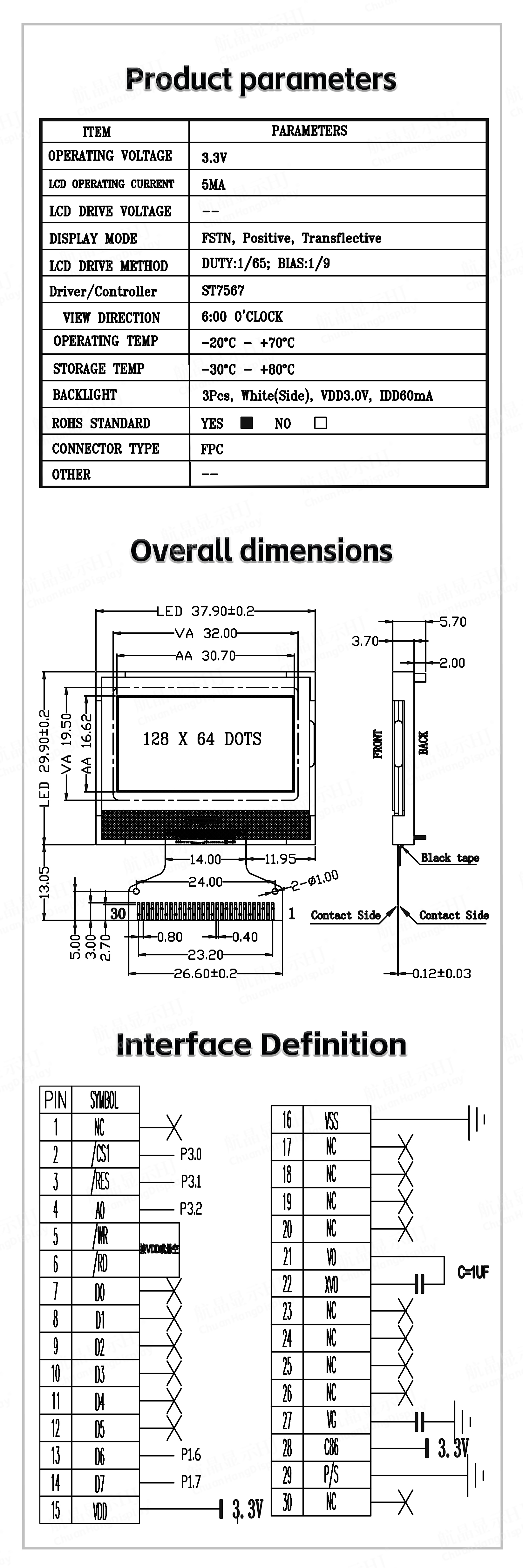

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864-6- L
Resolution	128x64	screen size
Outline Dimension(LWH)	37.90x29.90x3.7mm	Visible Area(L*W)	32.00x19.50mm
Active Area(L*W)	30.70x16.62mm	Dot Size (mm)	0.22(L)x0.24(W)
Type	COG	Connection Method	FPC
Supply Voltage	3.3V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	1/64Duty
Display Type	FSTN	Driver IC	ST7567
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO
