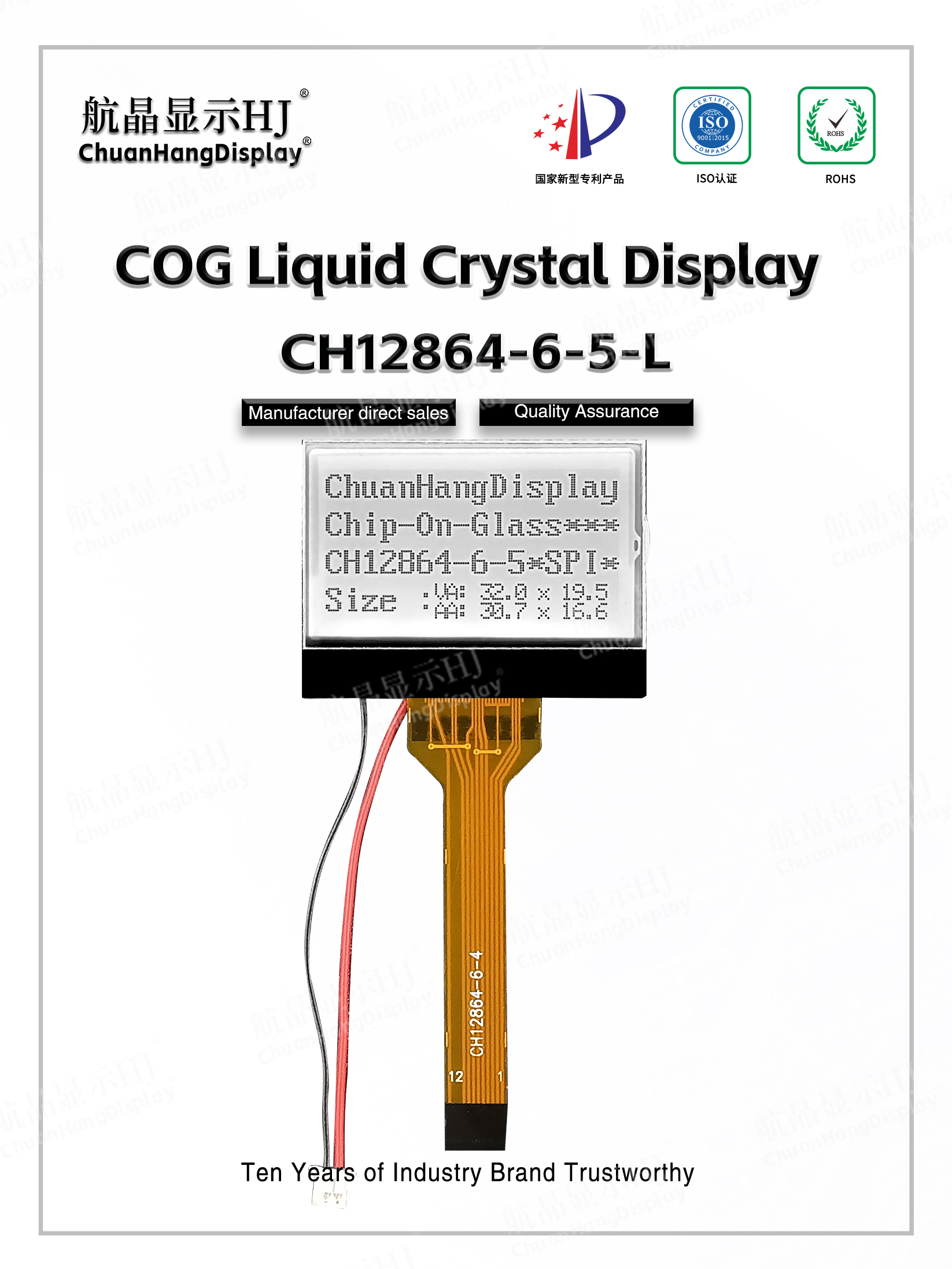

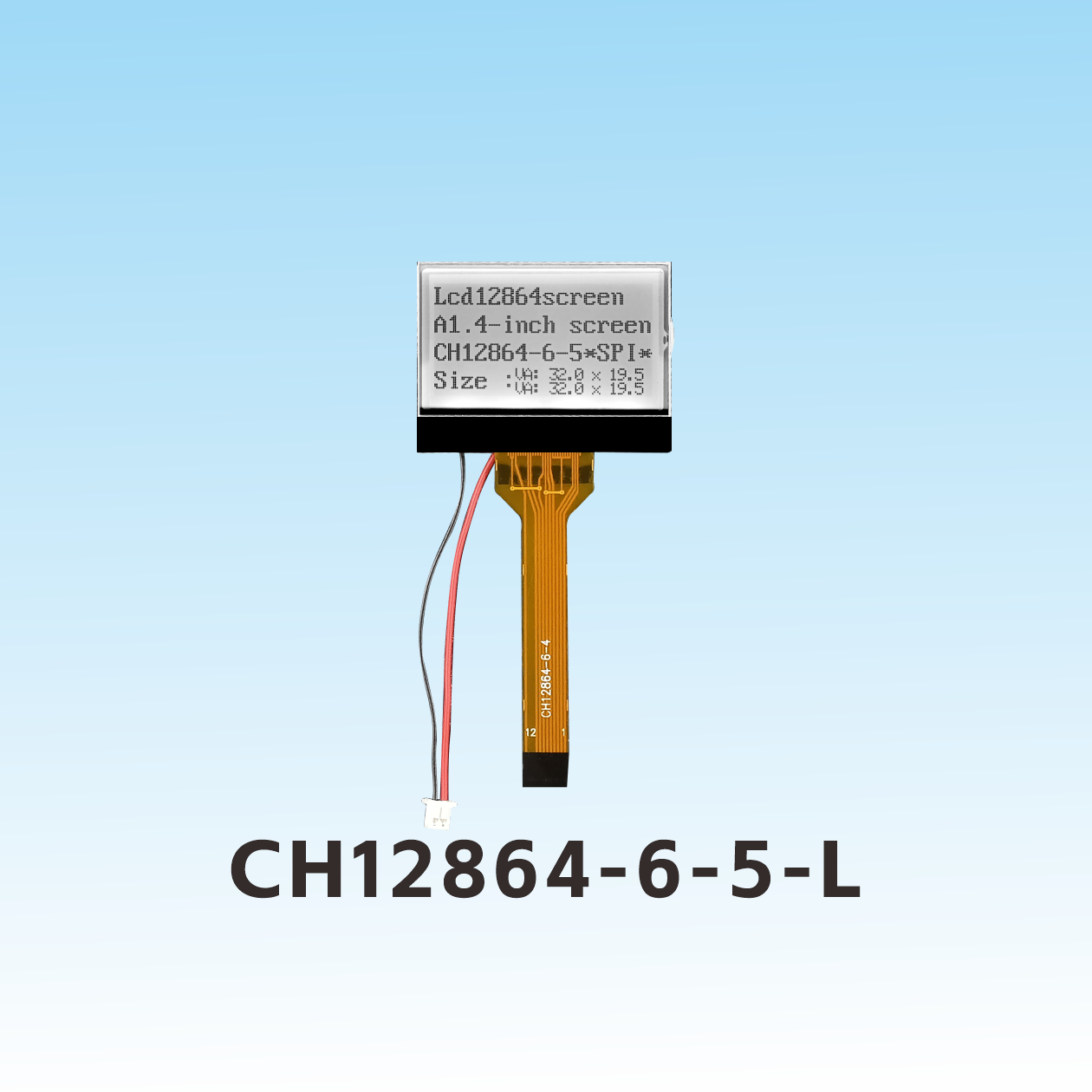

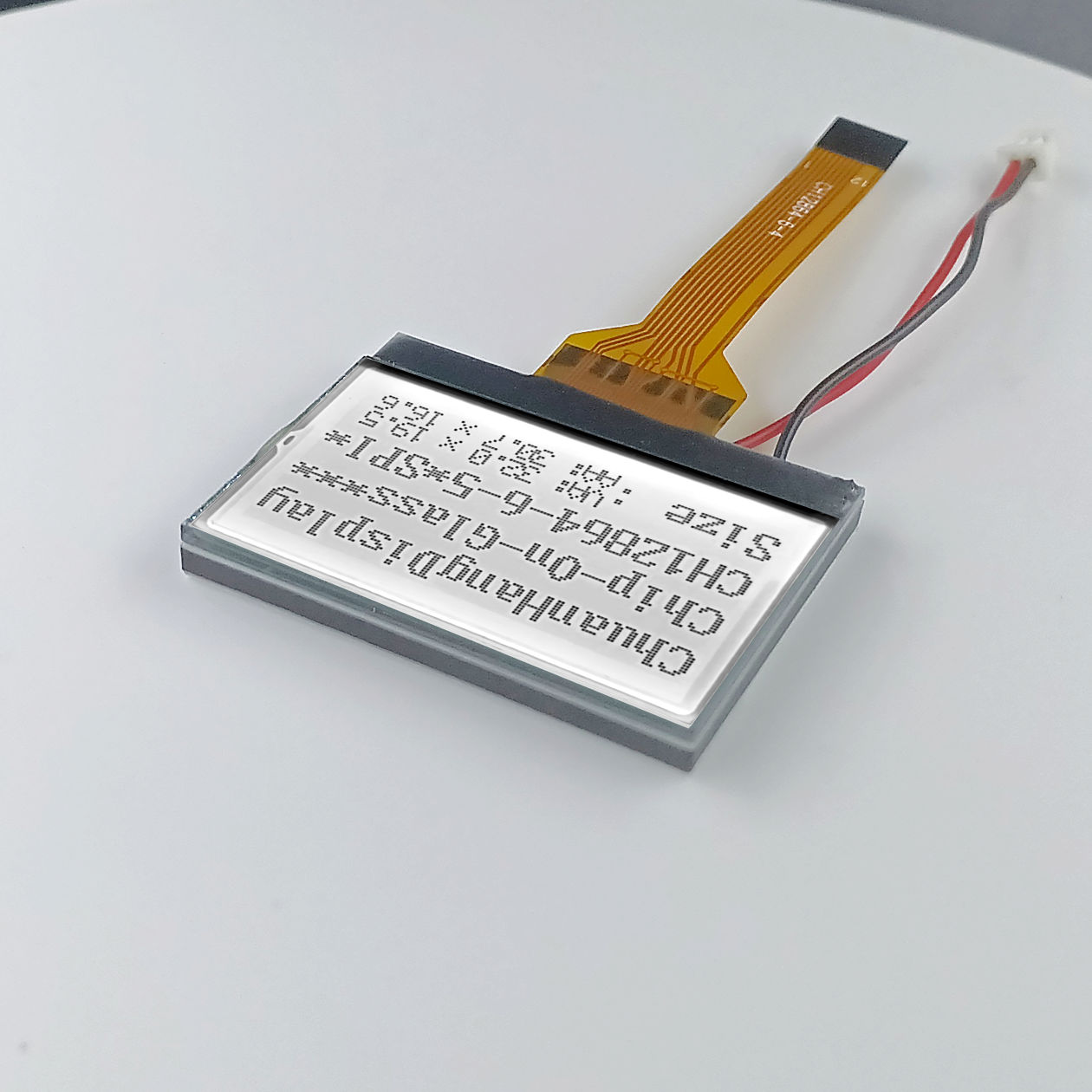

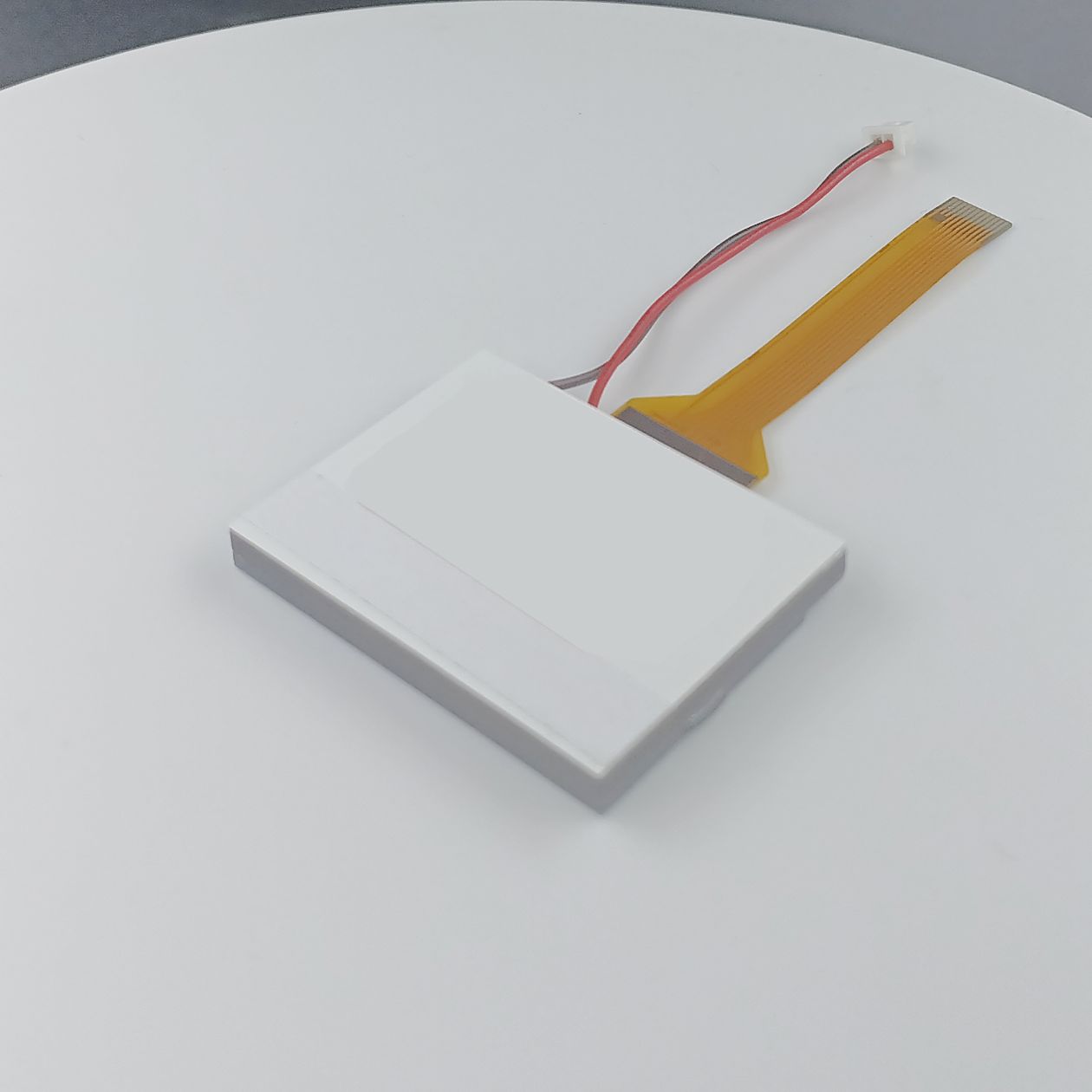

CH12864-6-5- L

Product Description

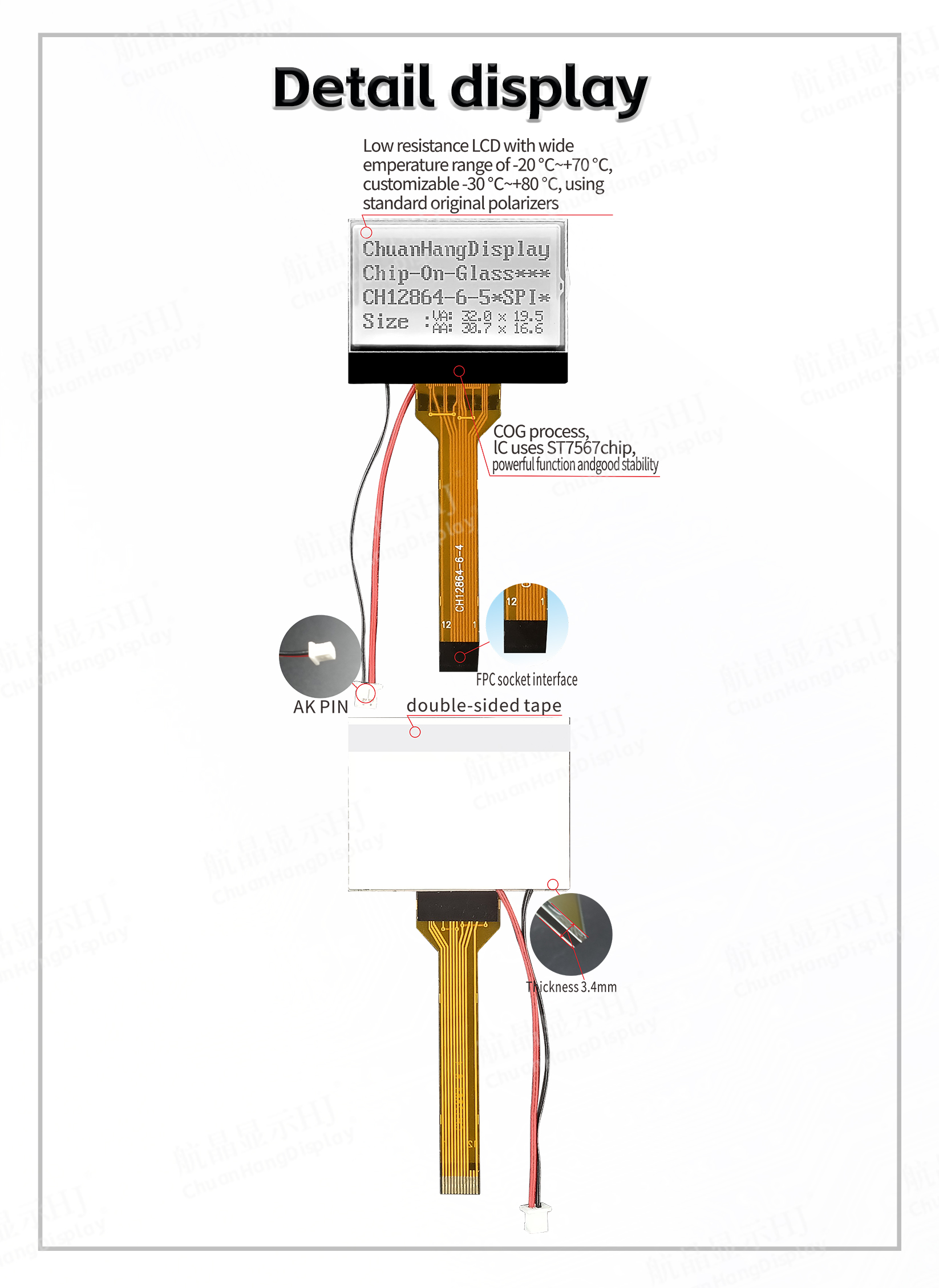

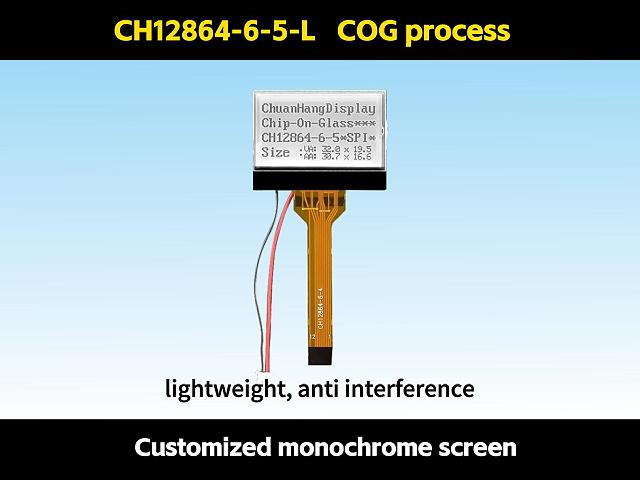

1.1COG process, FPC soft wiring is a plug-in interface, the product has a backlight, has been assembled, the thickness is thin, and the structure is stable.
1.2IC uses ST7567. There is no font library in the chip, and the programmer compiles its own font library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, and backlight current within 60mA.
1.4 LED backlight A and K are red and white lines, and A and K need to be powered separately by 2.9V~3.0V.
1.5 Product features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates a boost.
The contrast ratio is adjusted by the software.
One screen shows 8 characters x 4 lines (16x16 dots). ·
A single picture ≤128x64 dot matrix. · 4-wire SPI interface communication. ·
Rich functions: The interface display is on/off, positive/reverse.

PDF Download Demo code

Video Presentation

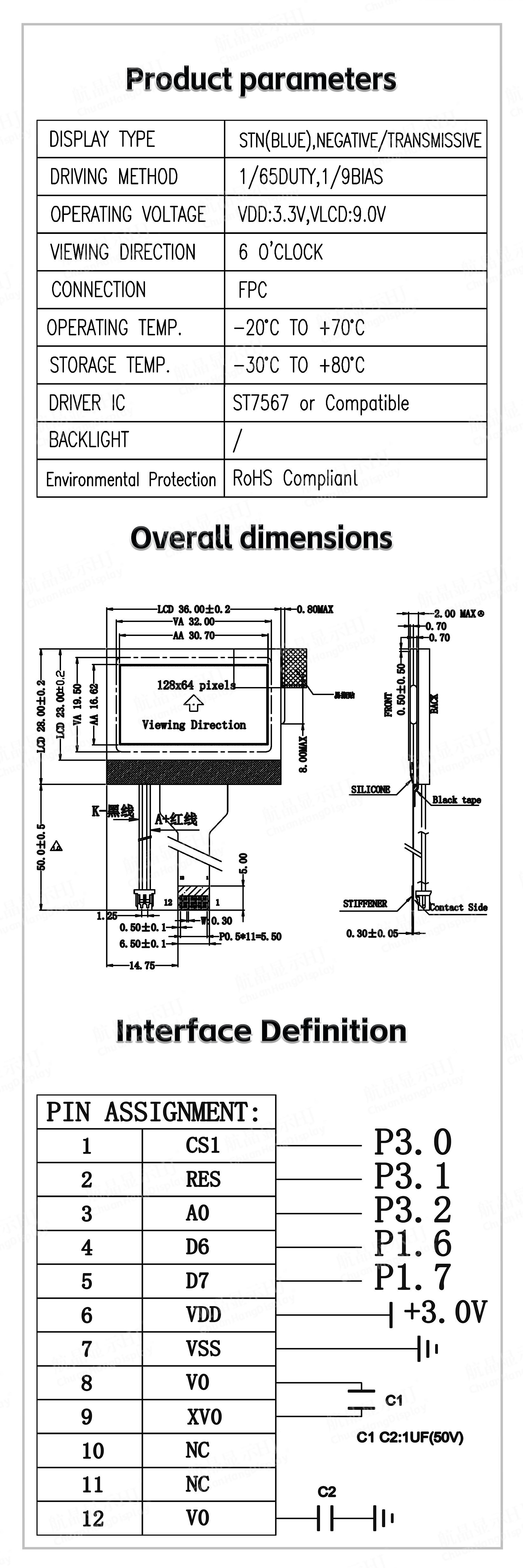

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864-6-5- L
Resolution	128x64	screen size
Outline Dimension(LWH)	36.00x28.00x4.3mm	Visible Area(L*W)	32.00x19.50mm
Active Area(L*W)	30.70x16.62mm	Dot Size (mm)	0.22(L)x0.24(W)
Type	COG	Connection Method	FPC
Supply Voltage	3.3V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	1/64Duty
Display Type	FSTN	Driver IC	ST7567
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO
