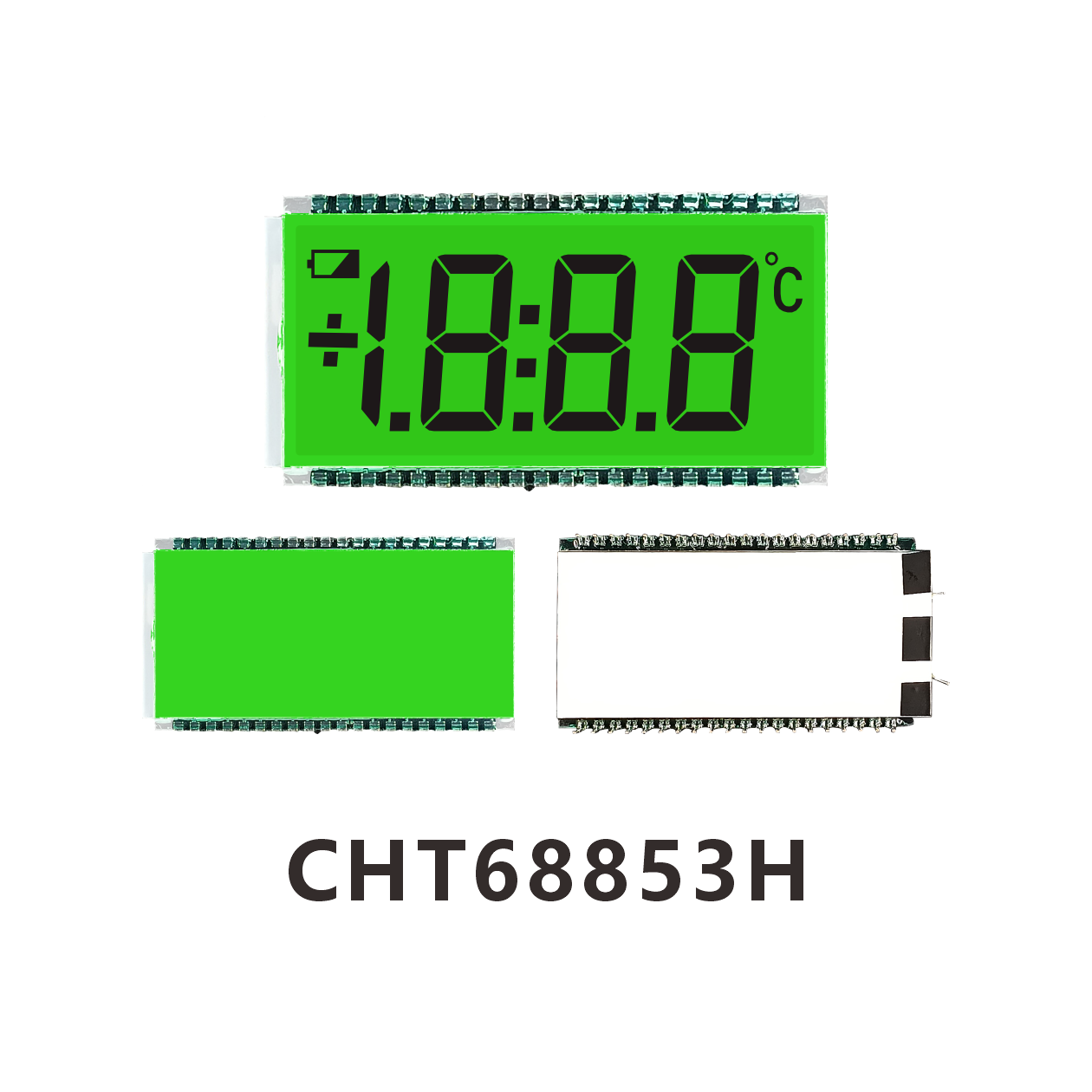

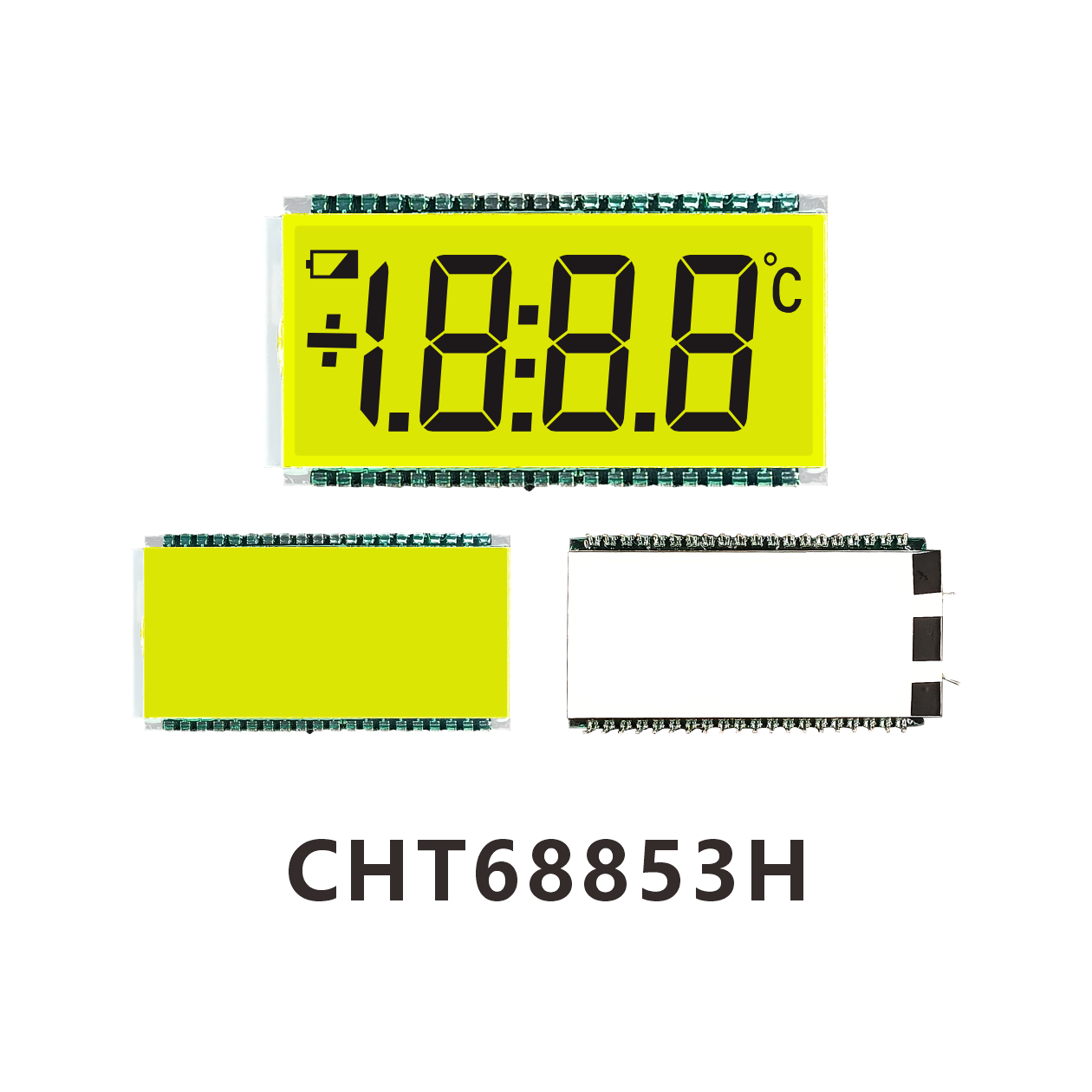

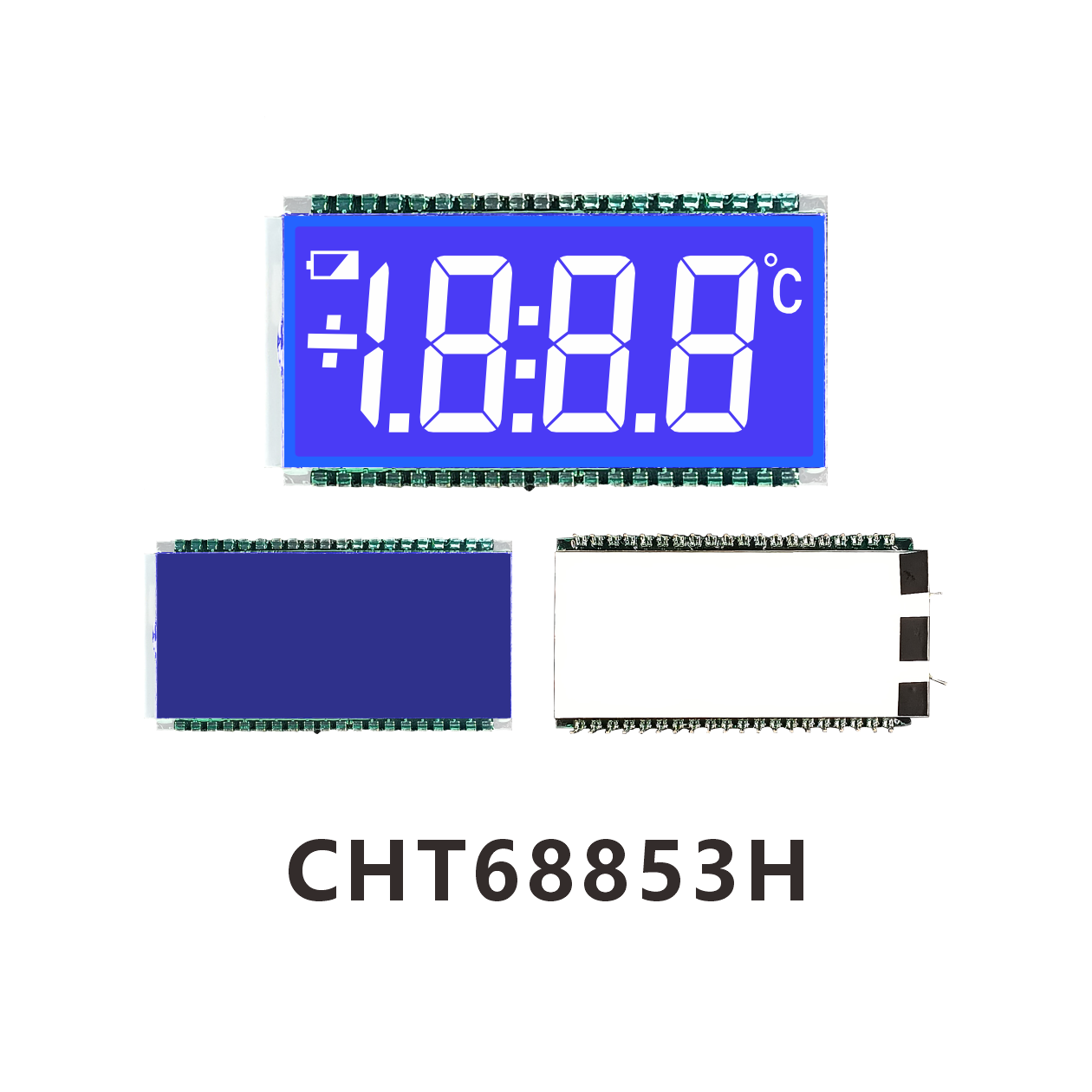

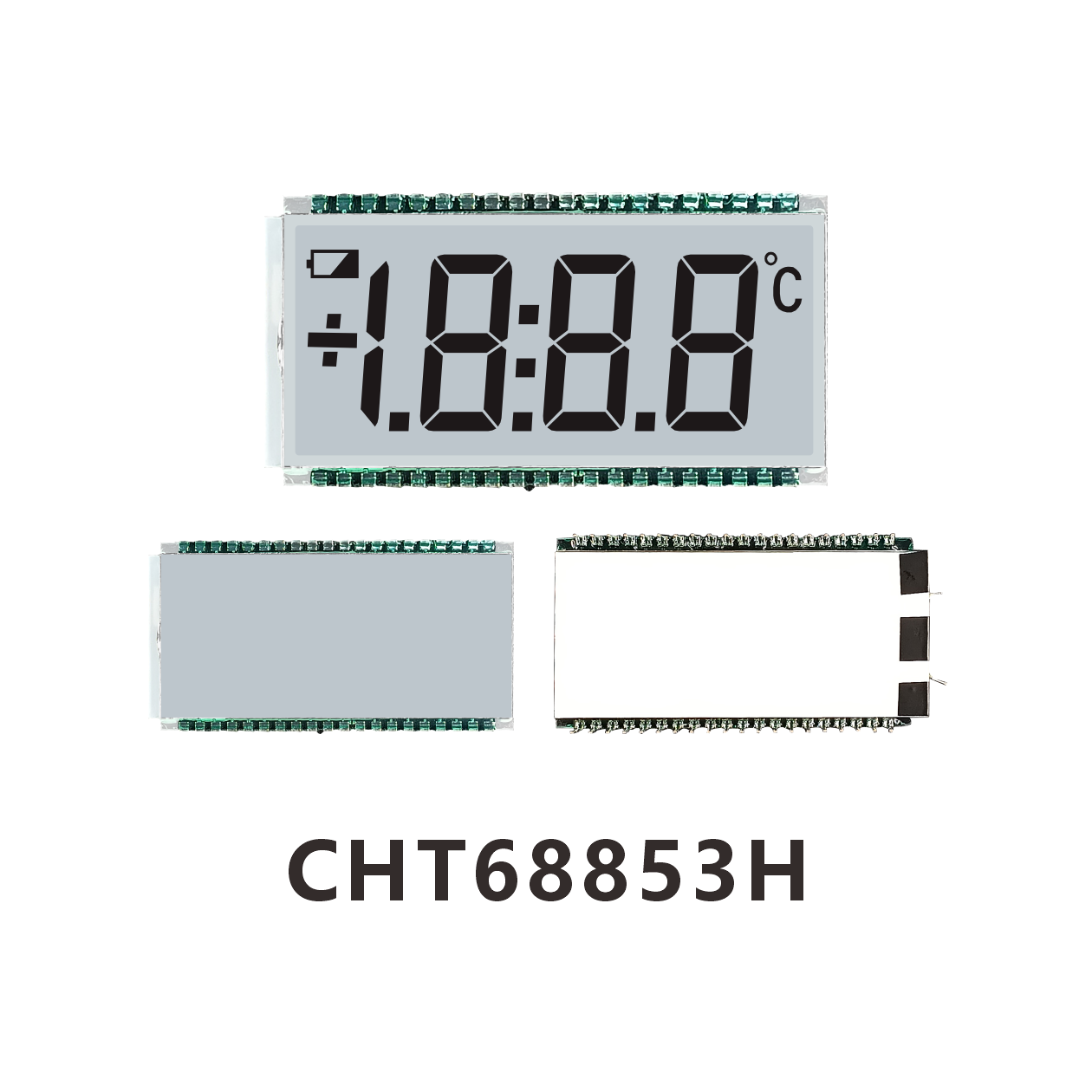

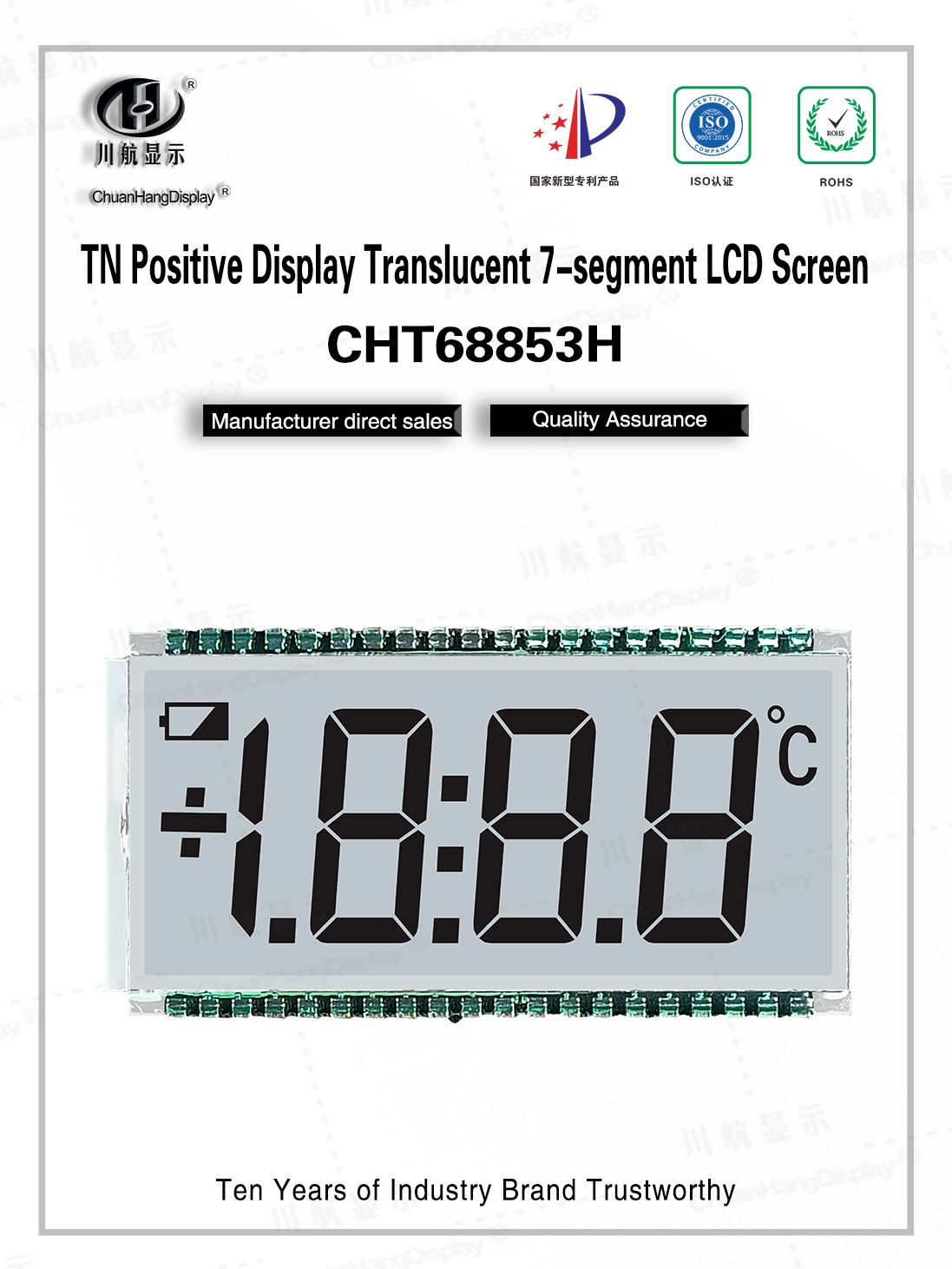

CHT68853H Fire alarm LCD

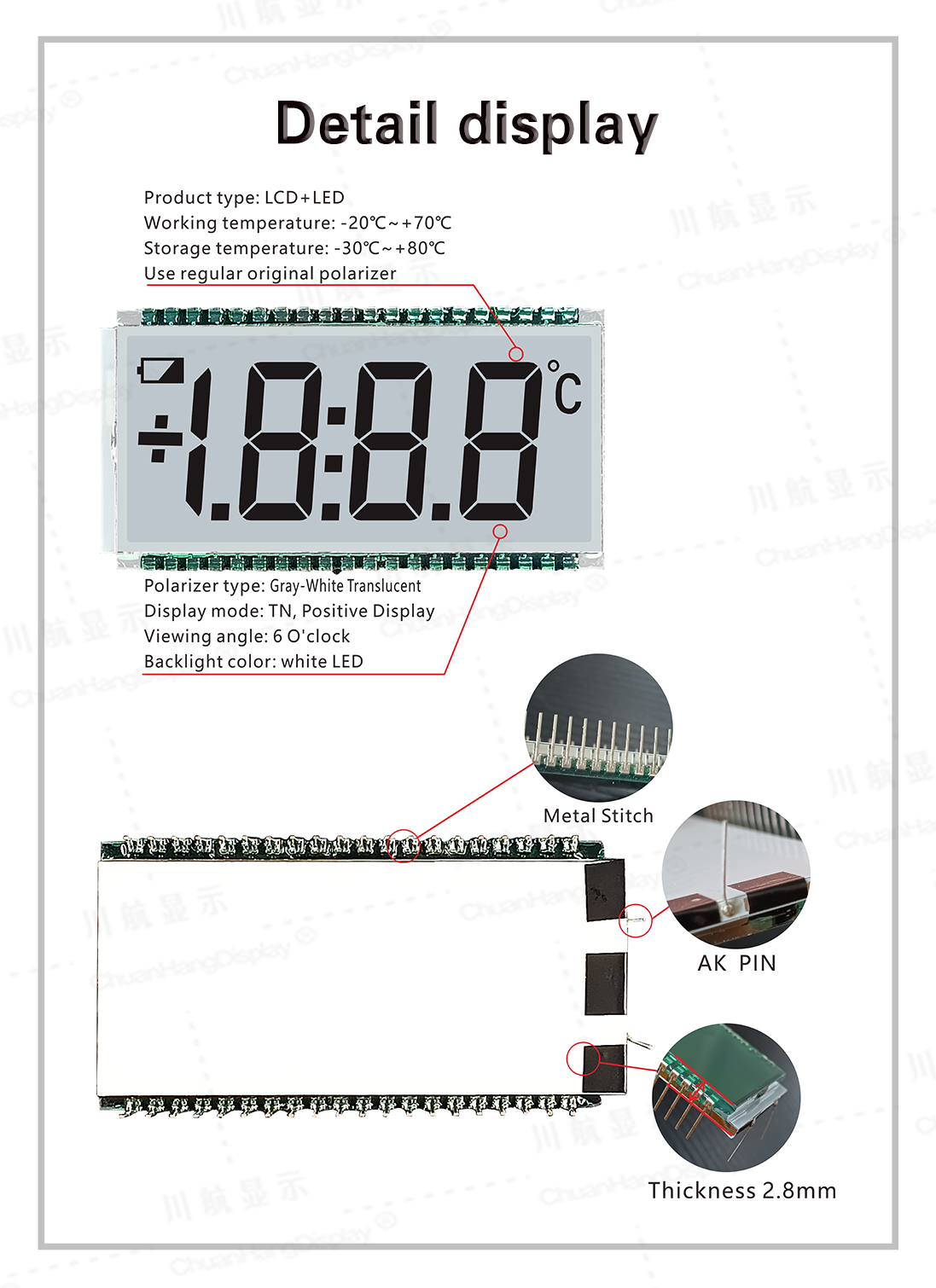

Product Description

LCD Material: TN LCD
Display Mode: TN
Polarizer Type:Grey film/semi-permeable
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 3.5V
Operating Temperature: -20℃~+70℃
Connection Method: PIN
Backlight :White LED
Application industry: Fire alarm

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CHT68853H
Display Mode	TN	Display Size	Customized

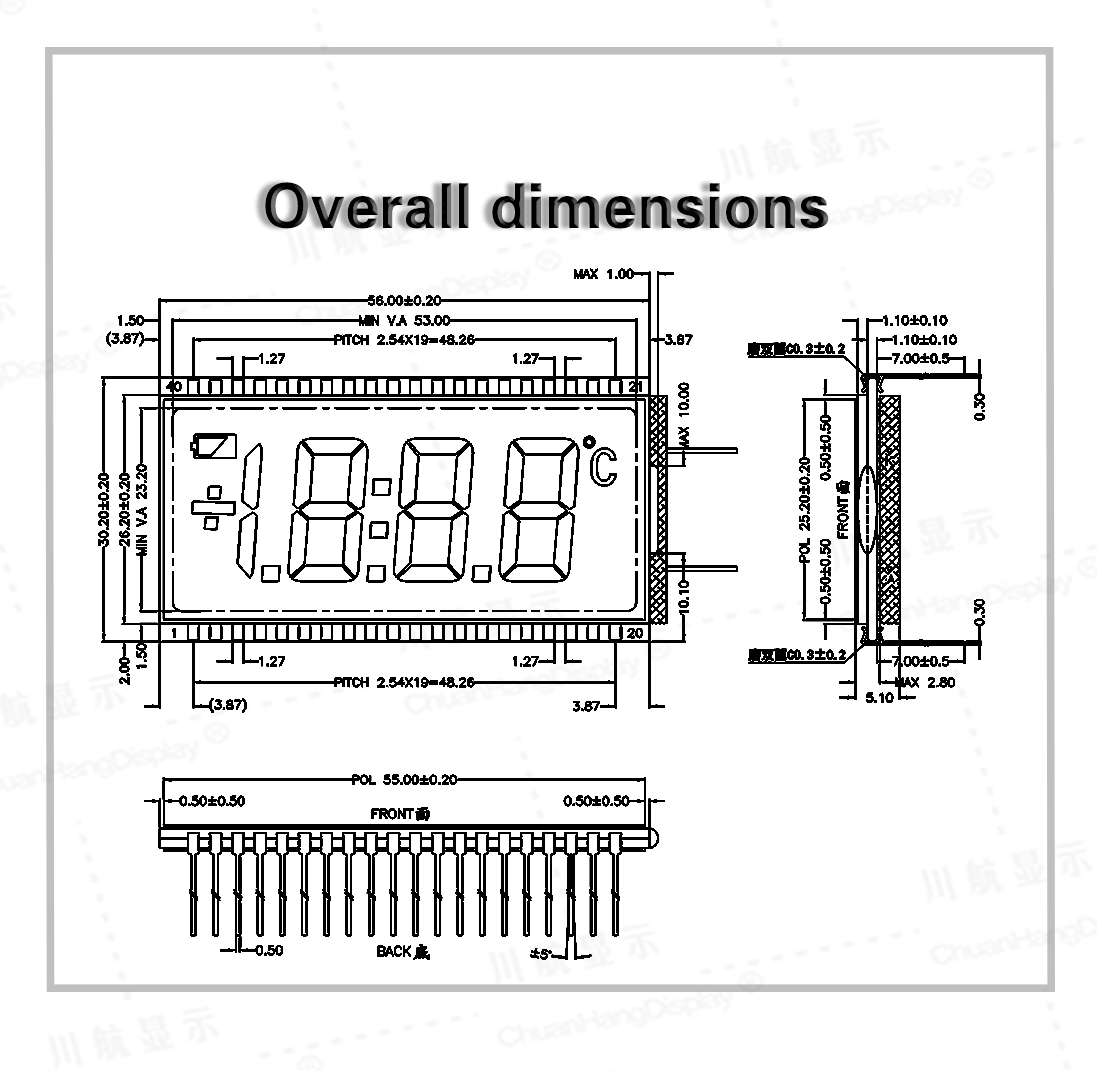

Outline Dimension(LWH)	56.0x30.2x2.8mm	Visible Area(L*W)	/
Active Area(L*W)	53.0x23.2mm	Character Size(L*W)	/
Type	COB	Connection Method	PIN
Supply Voltage	3.5V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	/
Display Type	TN	Driver IC	/
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight	White LED	Production Capacity	Self-produced
Character libraries	/	Whether to bring PCB	NO
