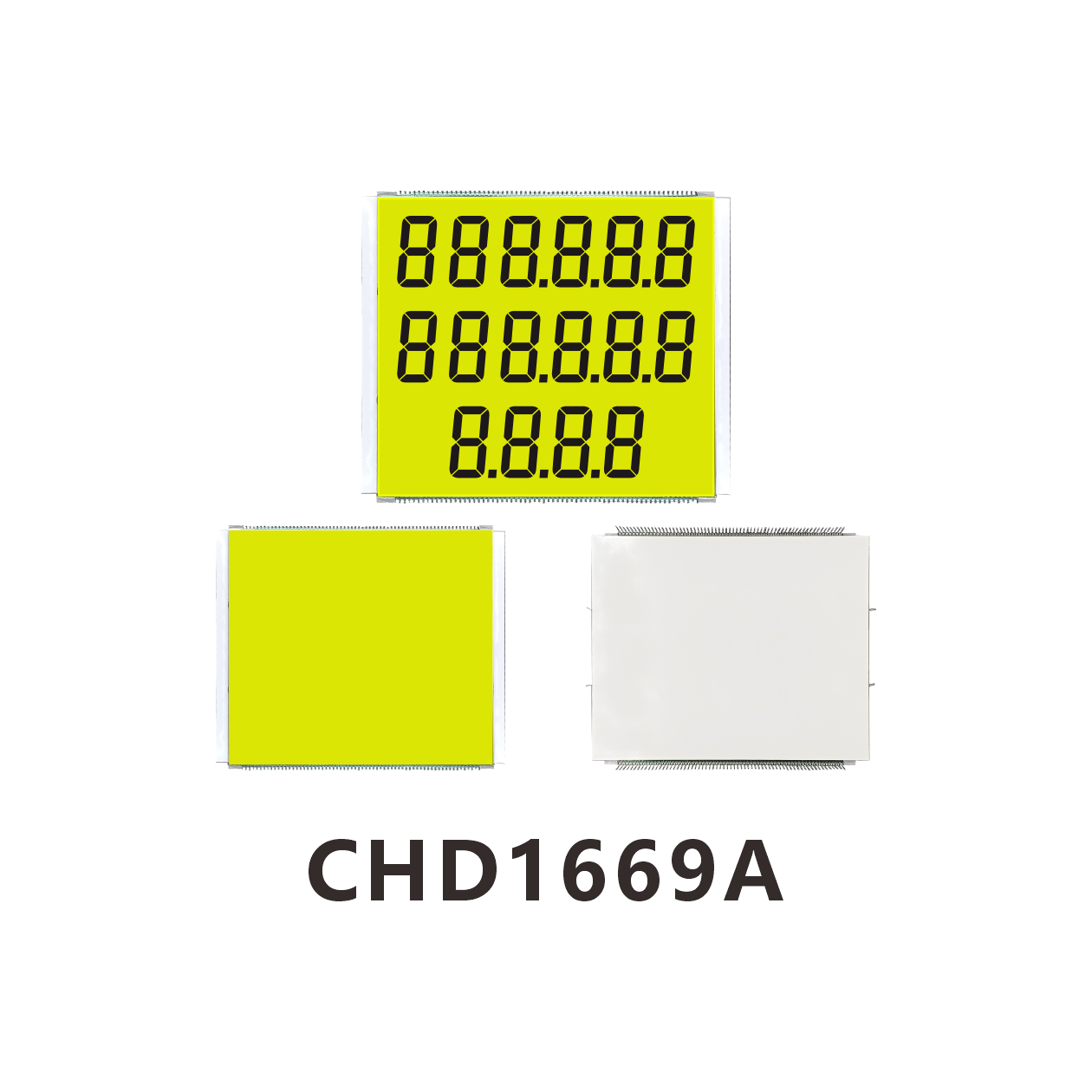

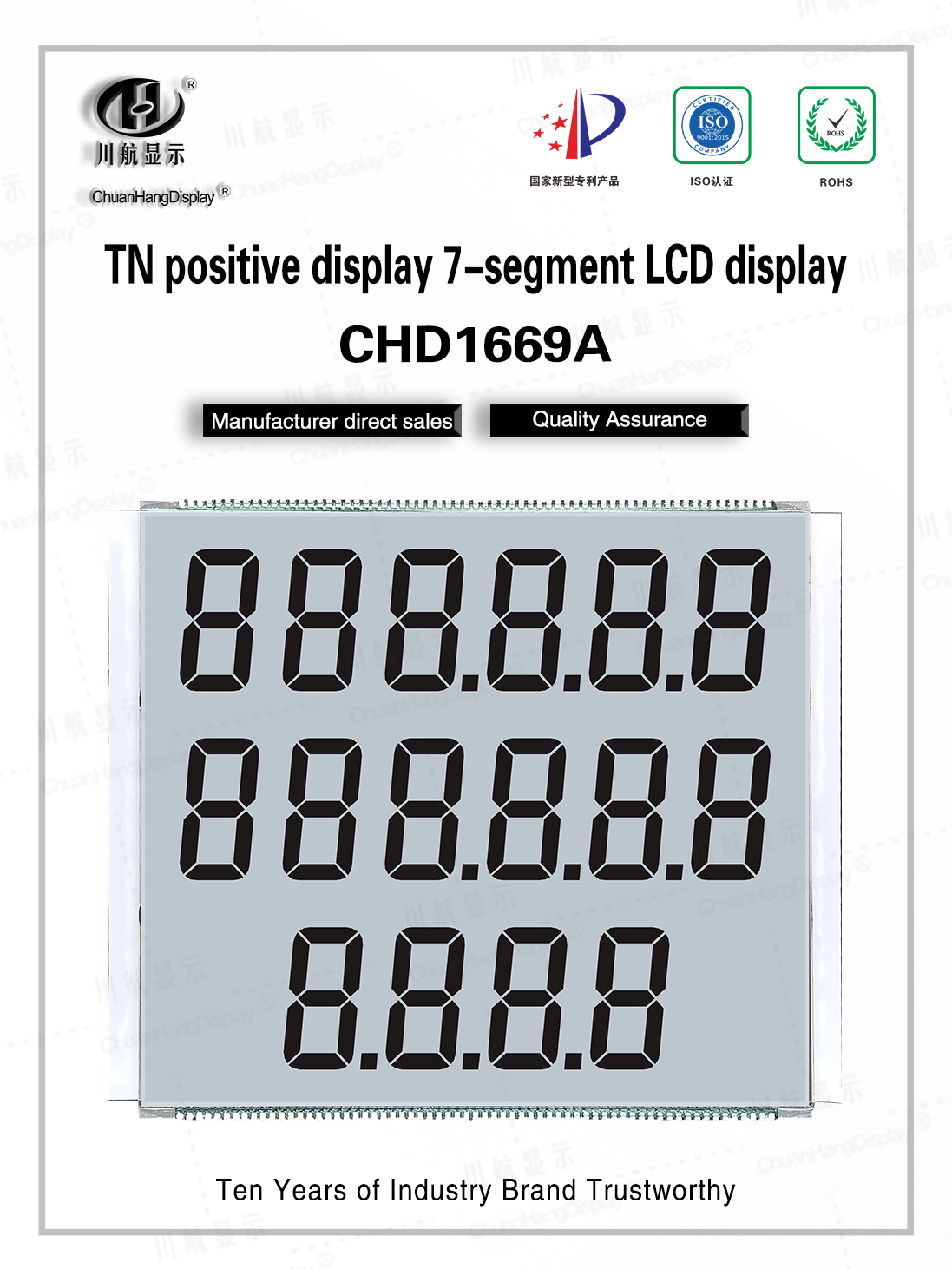

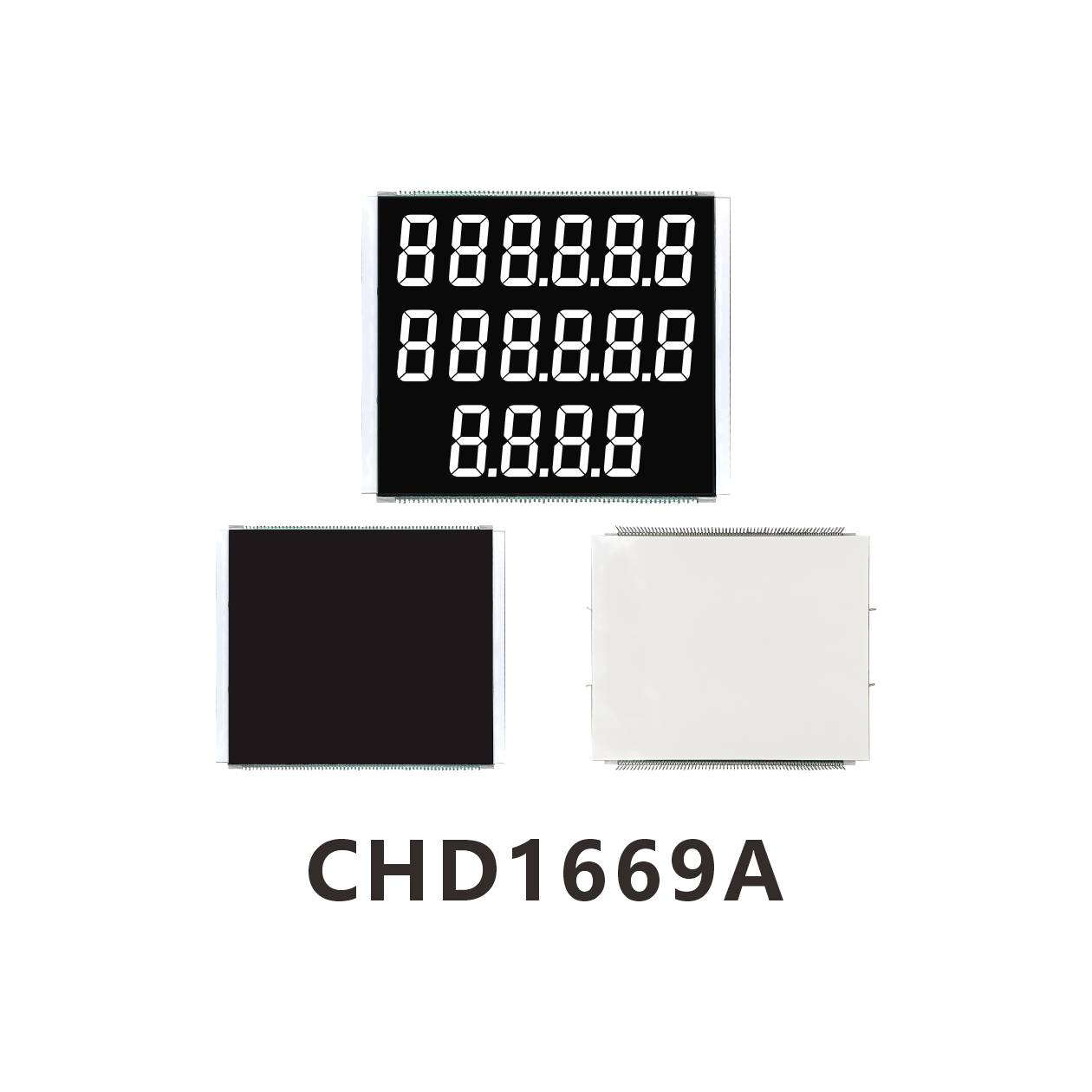

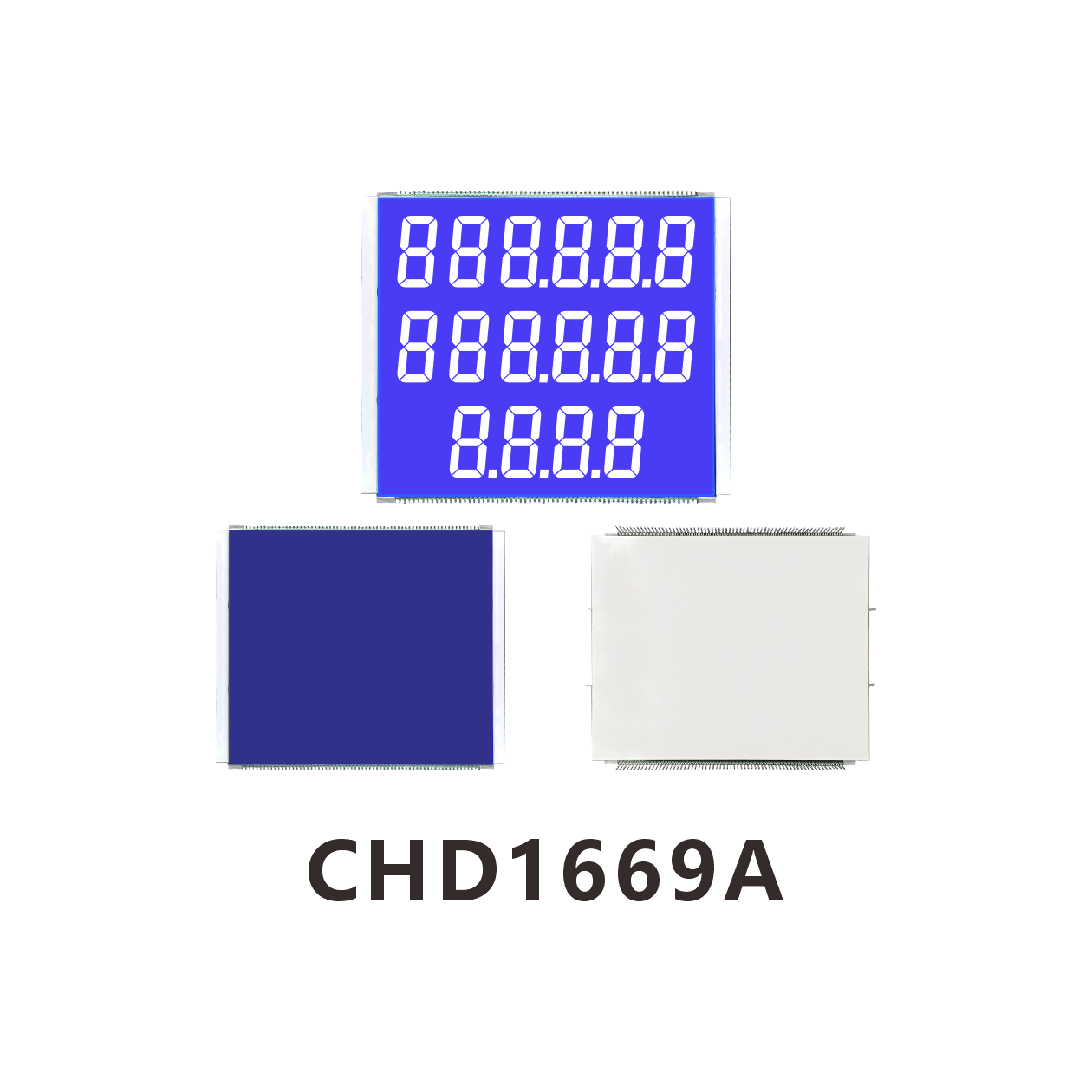

CH-D1669A Refueling machine LCD

Product Description

LCD Material: TN LCD
Display Mode: TN
Polarizer Type:Grey film/fully permeable
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 5V
Operating Temperature: -30℃~+80℃
Connection Method: PIN
Backlight :White LED
Application industry:Refueling machine

PDF Download Demo code

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH-D1669A
Display Mode	TN	Display Size	Customized

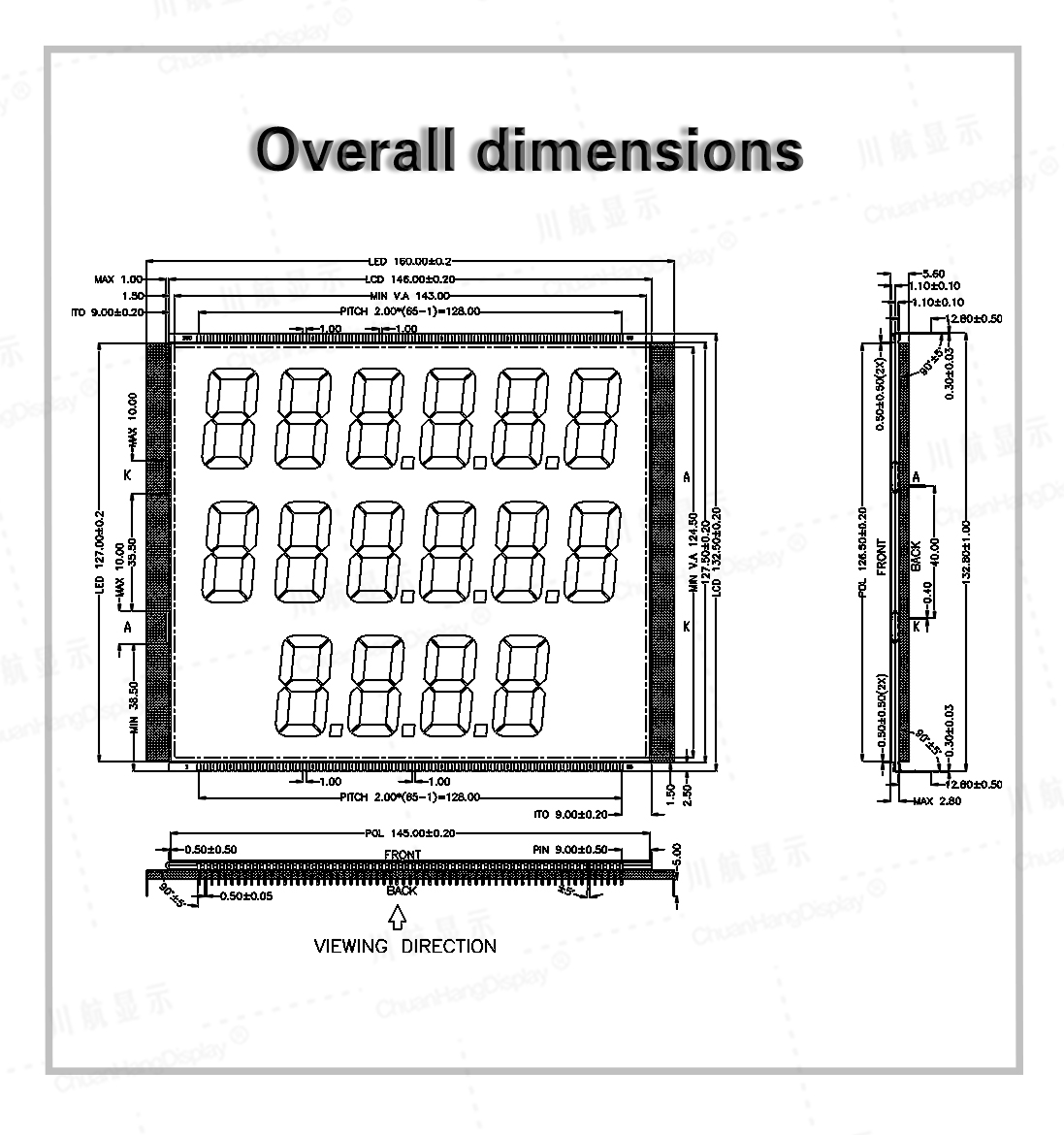

Outline Dimension(LWH)	146.0x123.5x2.8mm	Visible Area(L*W)	/
Active Area(L*W)	143.0x123.5mm	Character Size(L*W)	/
Type	COB	Connection Method	PIN
Supply Voltage	5V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	/
Display Type	TN	Driver IC	/
Operating Temperature	-30℃~+80℃	Storage Temperature	-40℃~+90℃
Backlight	White LED	Production Capacity	Self-produced
Character libraries	/	Whether to bring PCB	NO

Product Datasheet

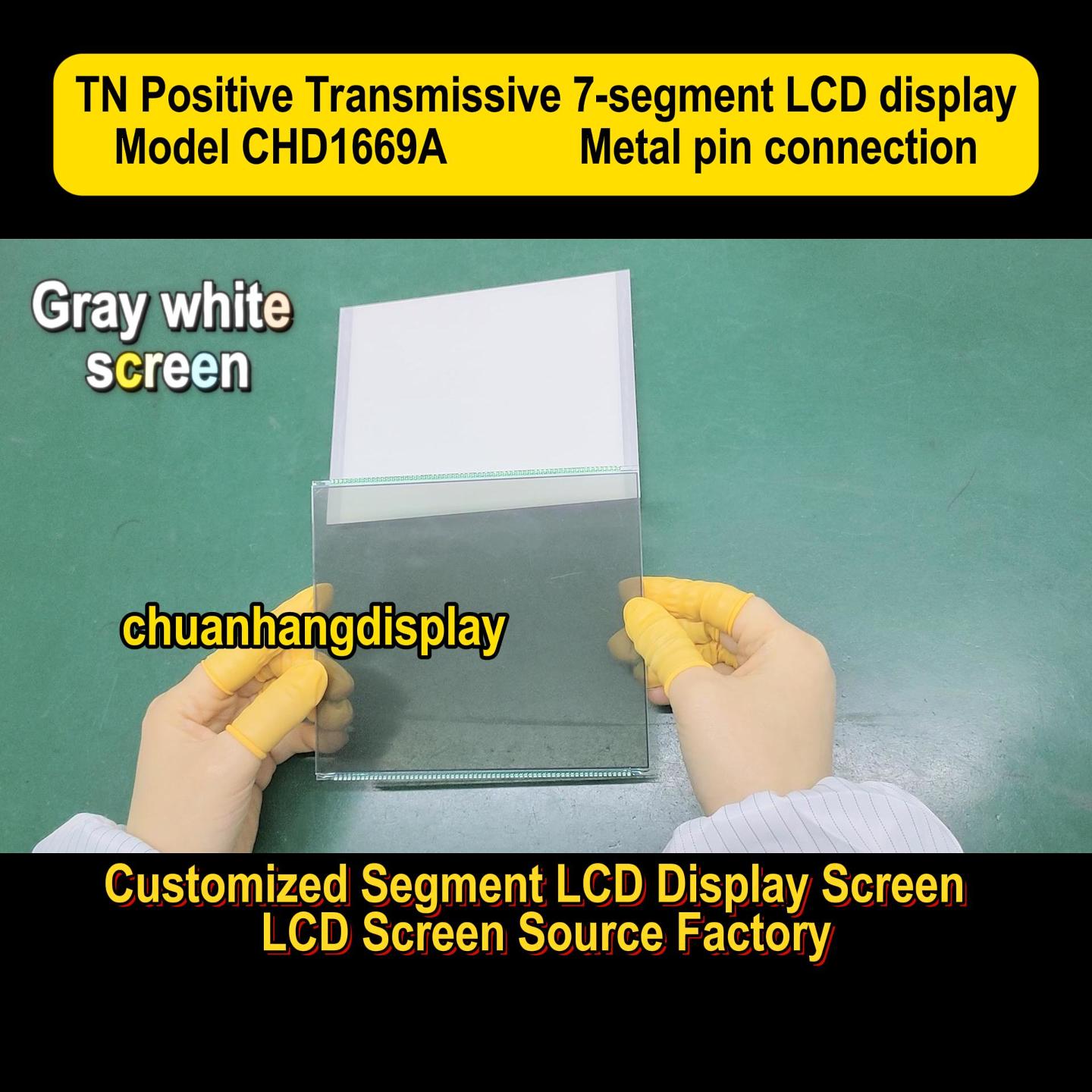

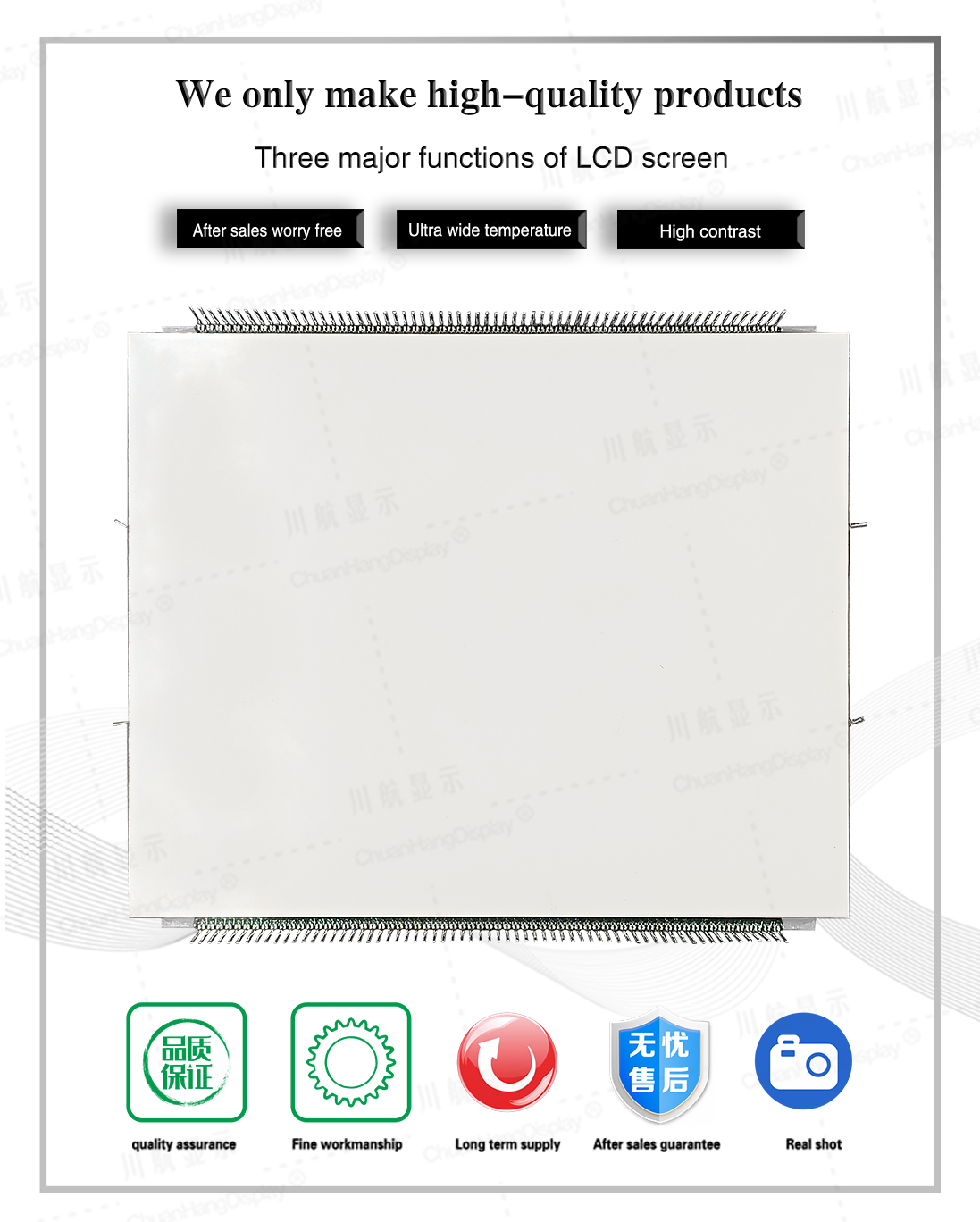

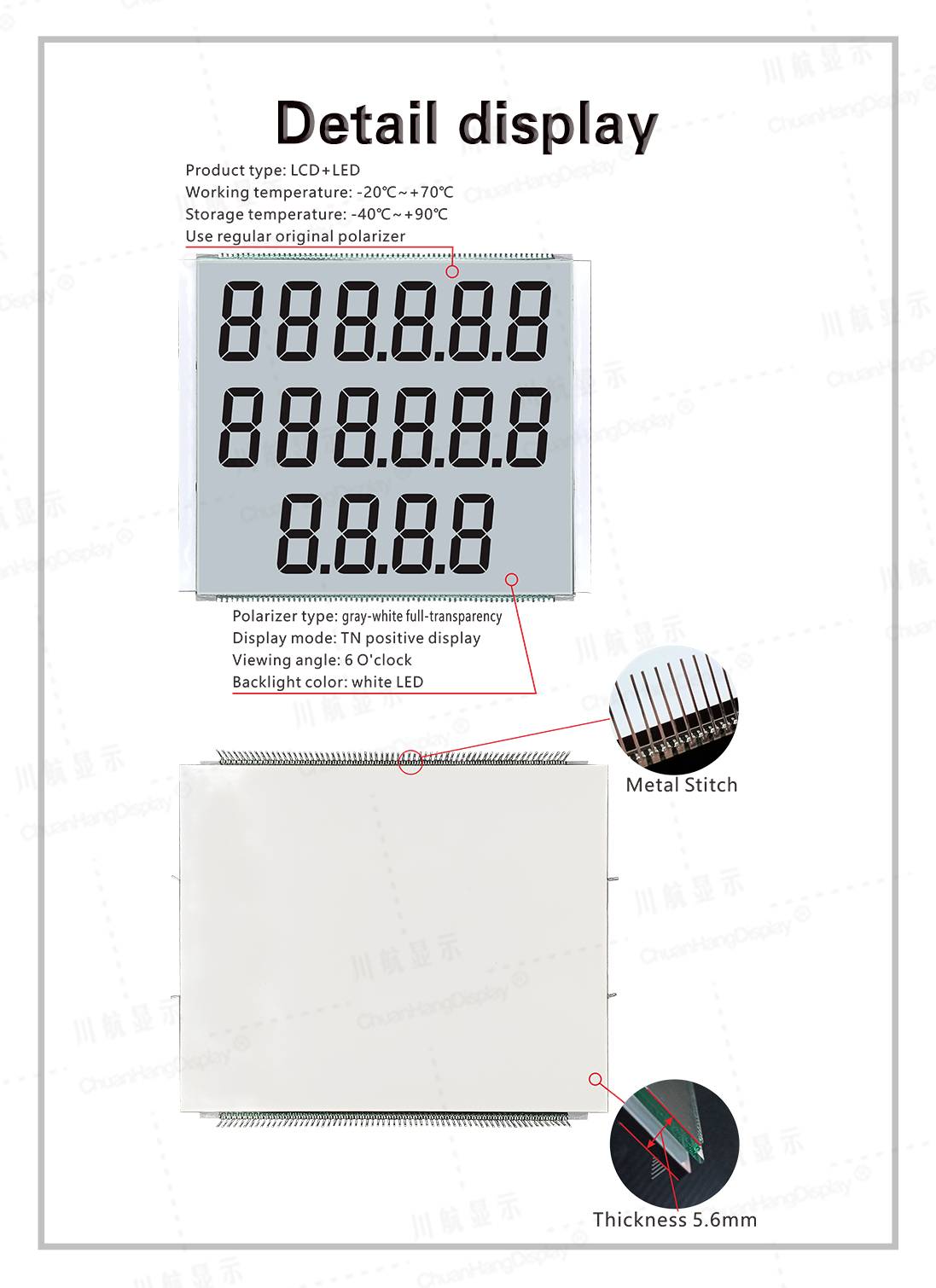

Product Display
