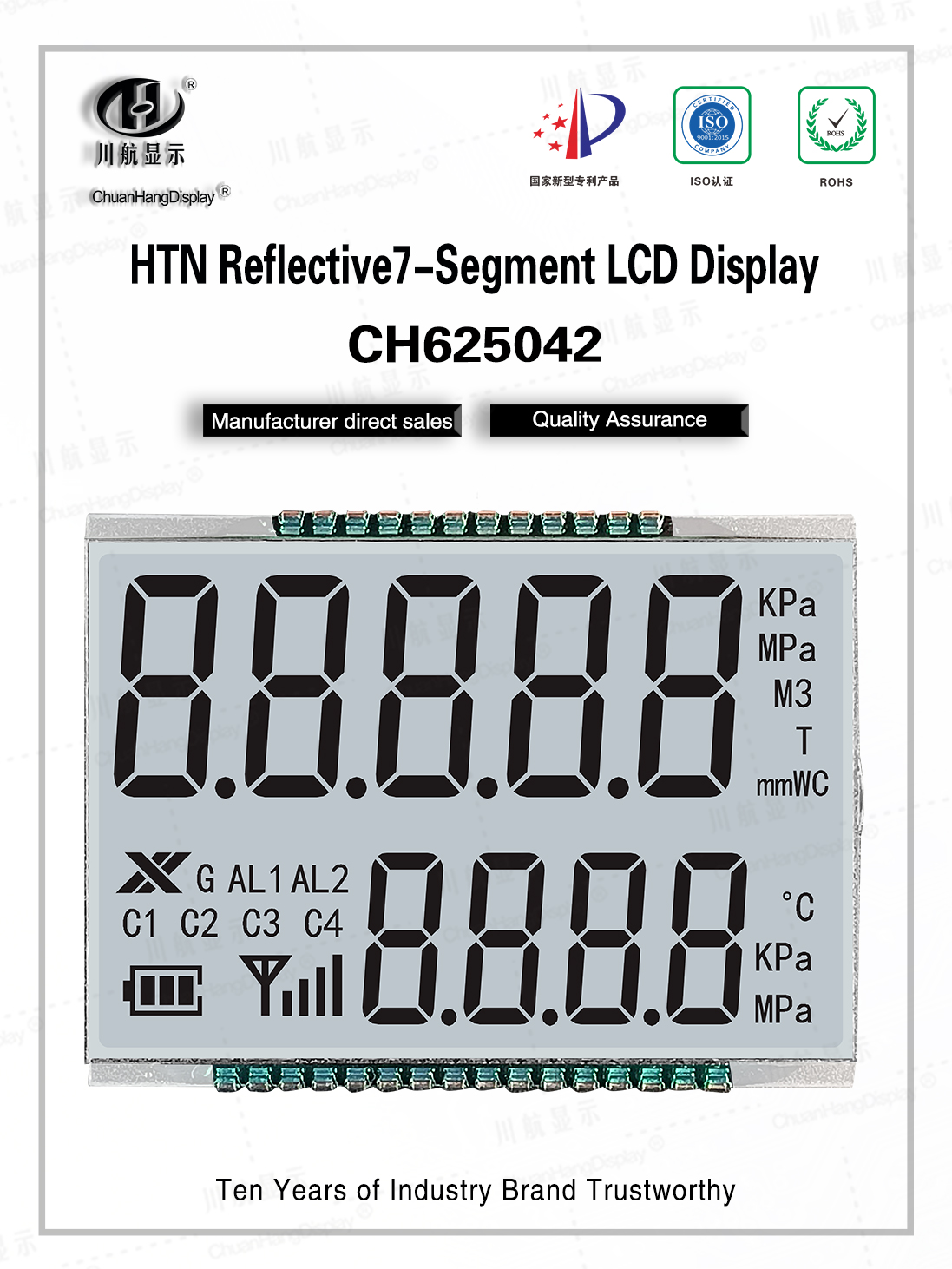

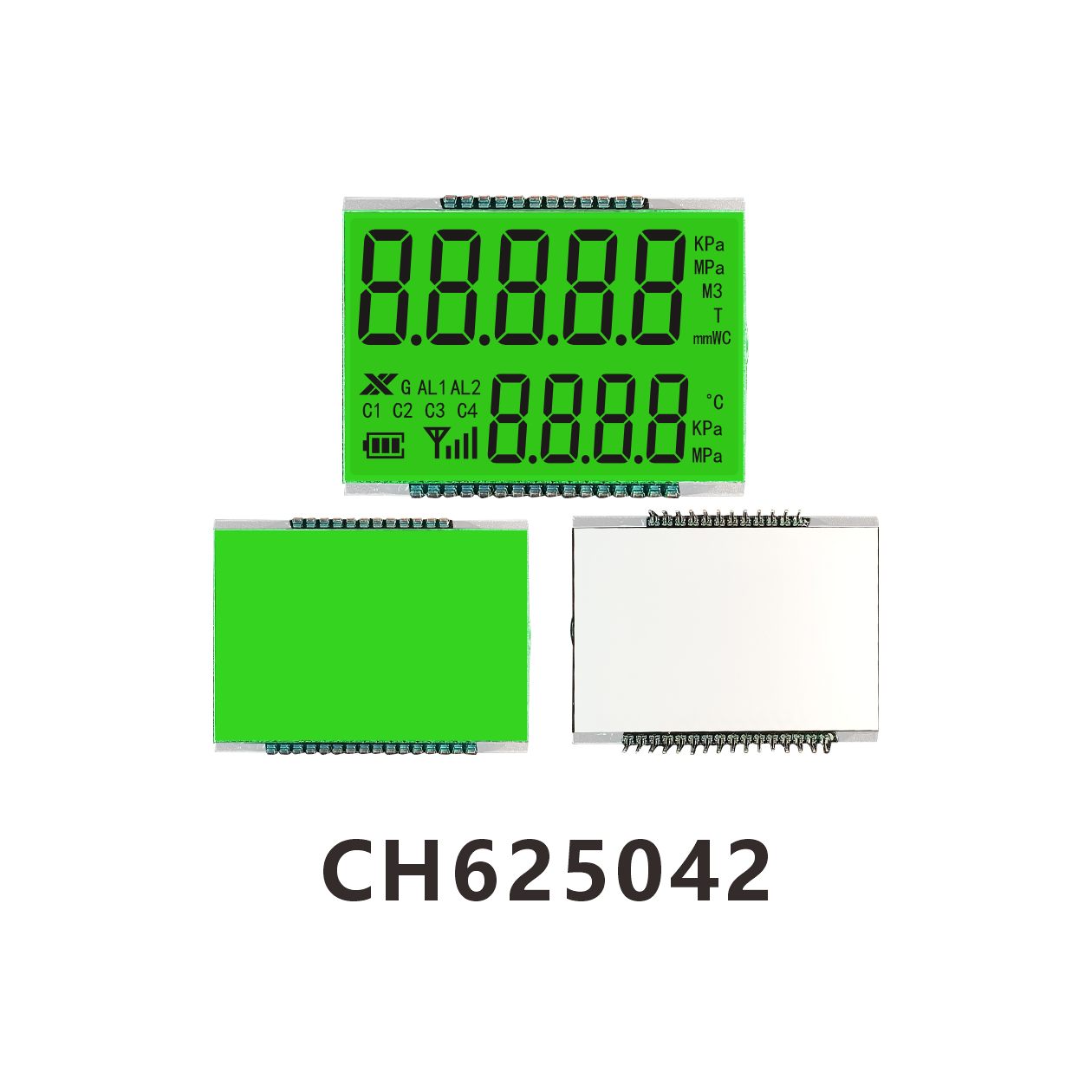

CH625042 Communication equipment LCD

Product Description

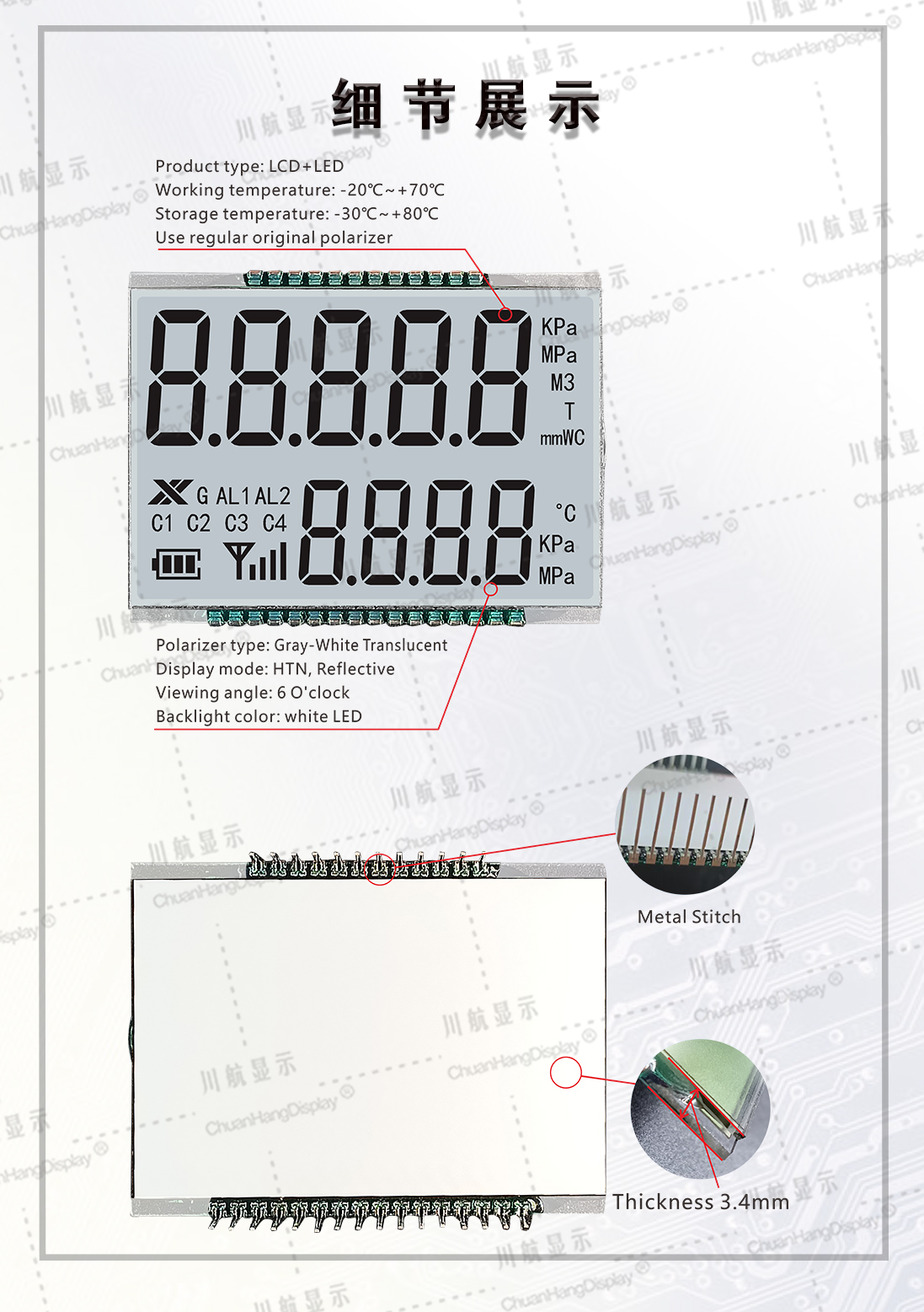

LCD Material: HTN LCD
Display Mode: HTN/REFLECTIVE
Polarizer Type: Grey film/semi-permeable
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 3V
Operating Temperature: -20℃~+70℃
Connection Method: PIN
Backlight ：White LED
Application industry: Communication equipment.

PDF Download Demo code

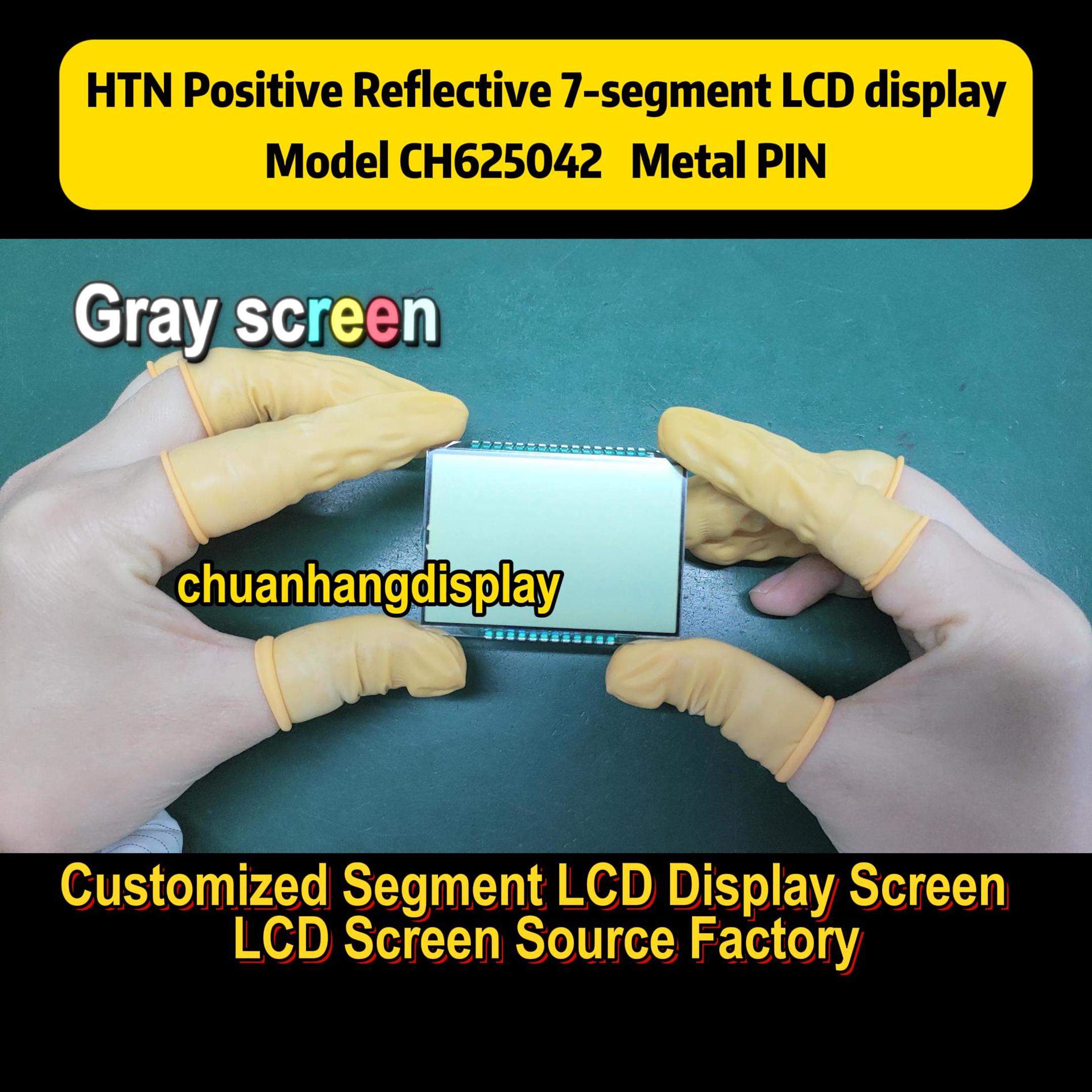

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH625042
Display Mode	HTN/REFLECTIVE	Display Size	Customized

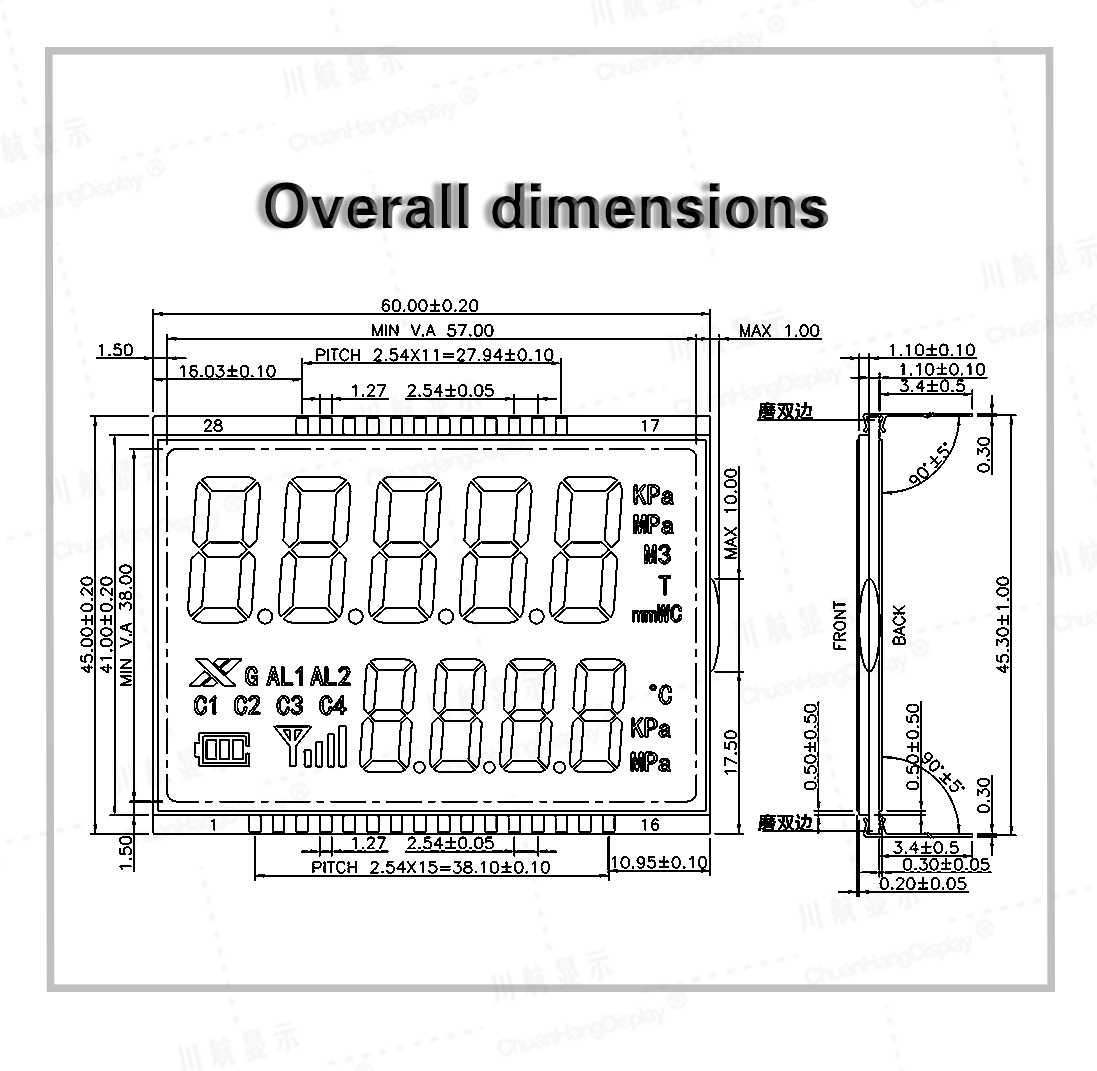

Outline Dimension(LWH)	60.0x45.00x 2.8mm	Visible Area(L*W)	/
Active Area(L*W)	57.00x38.00mm	Character Size(L*W)	/
Type	COB	Connection Method	PIN
Supply Voltage	3V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	/
Display Type	HTN	Driver IC	/
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight	White LED	Production Capacity	Self-produced
Character libraries	/	Whether to bring PCB	NO
