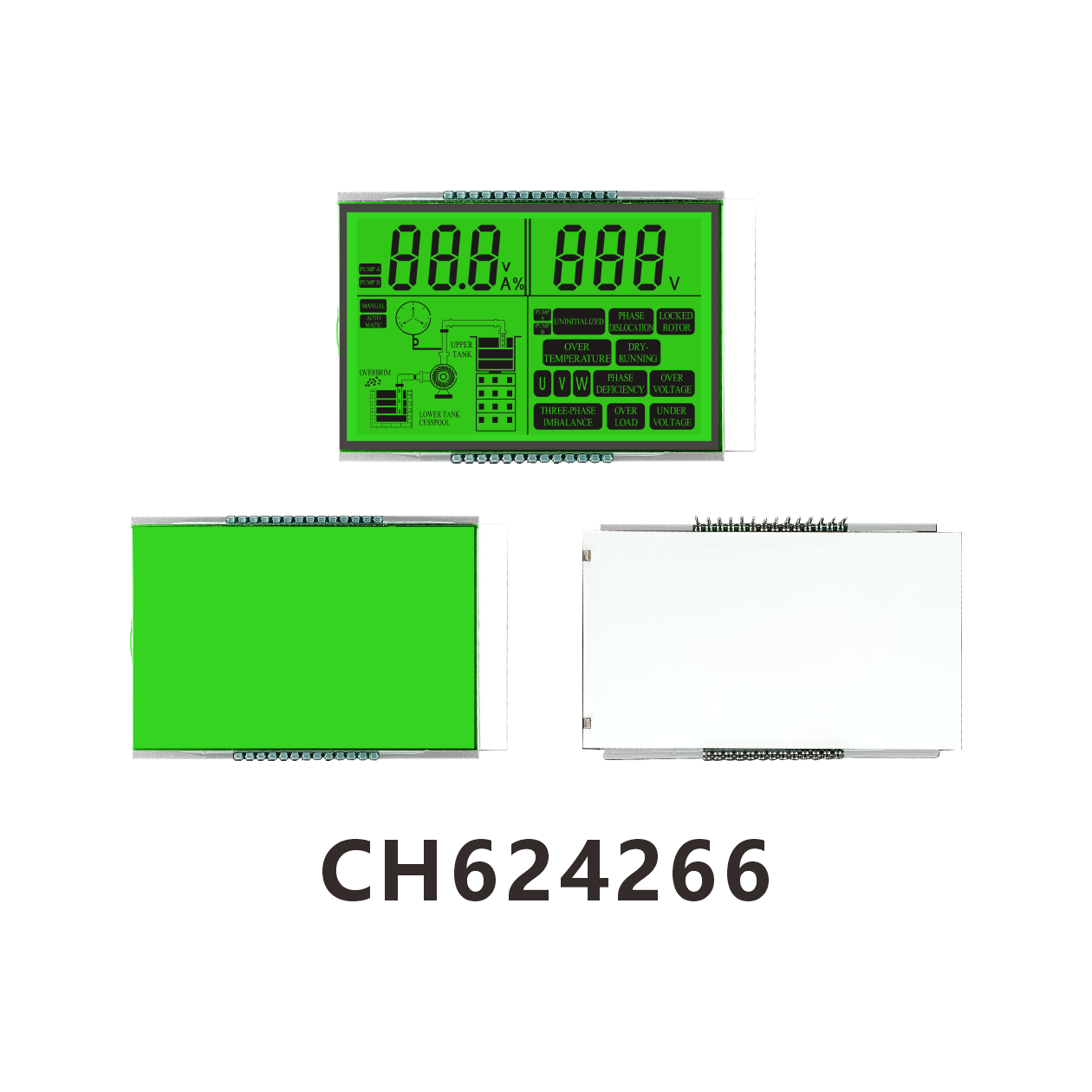

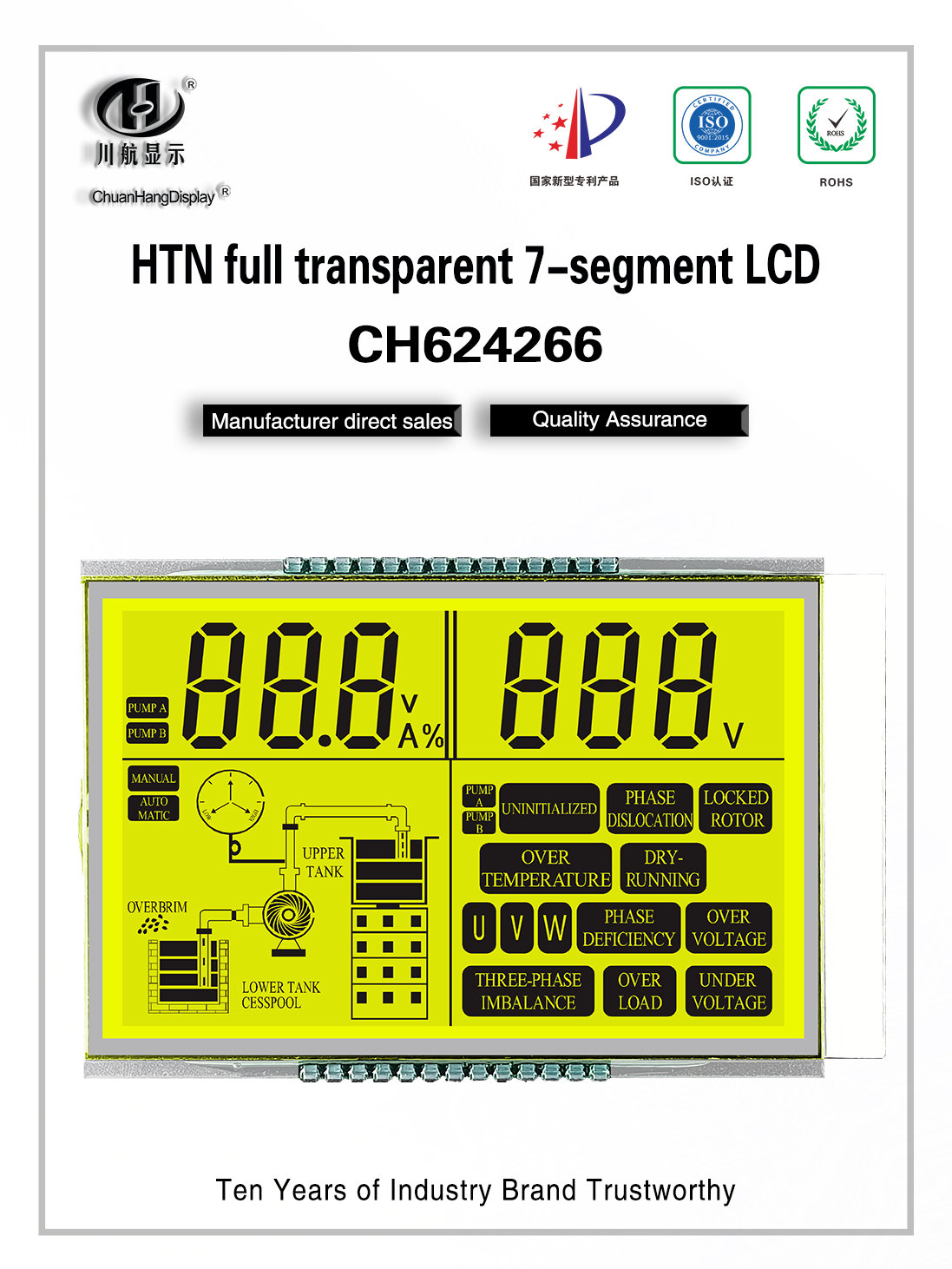

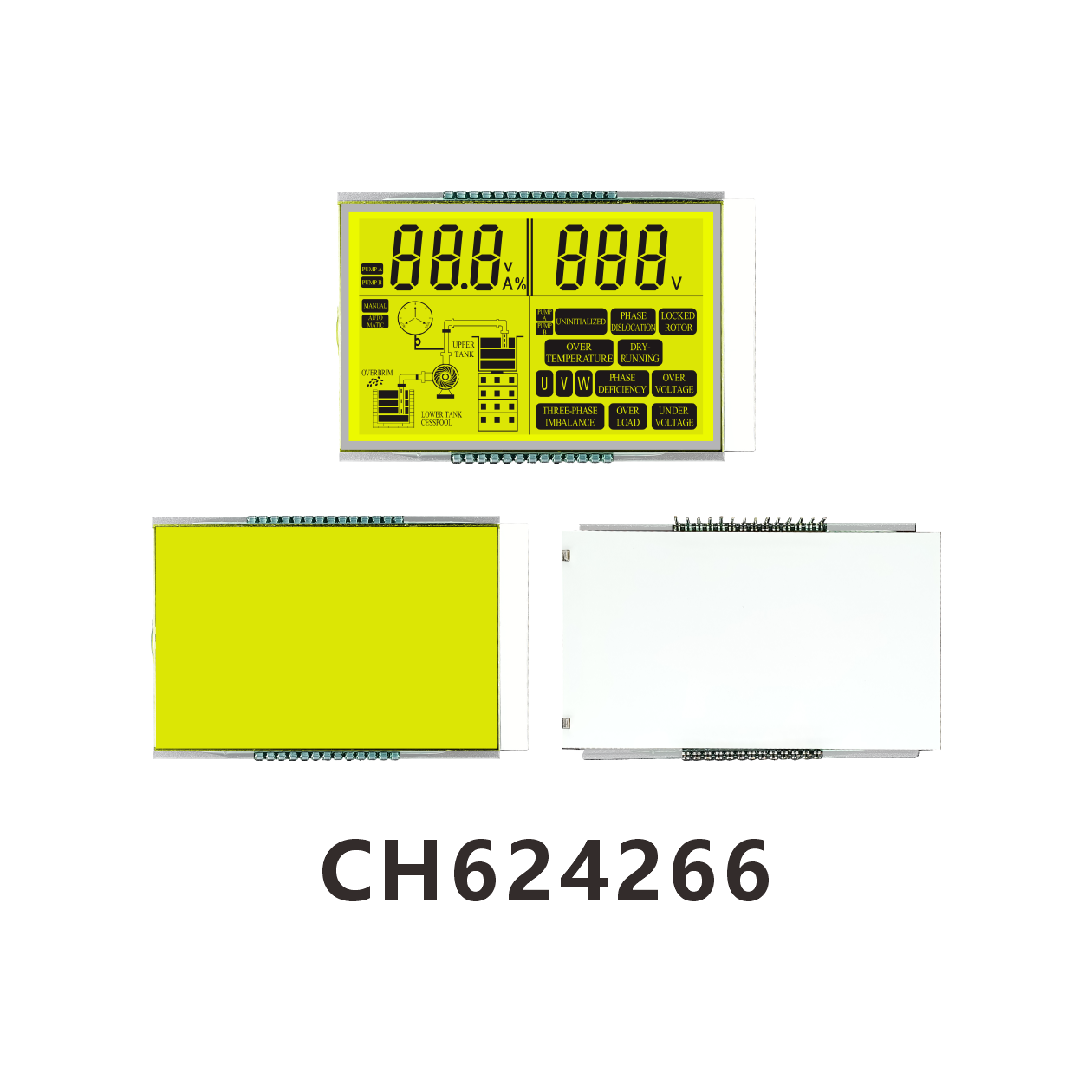

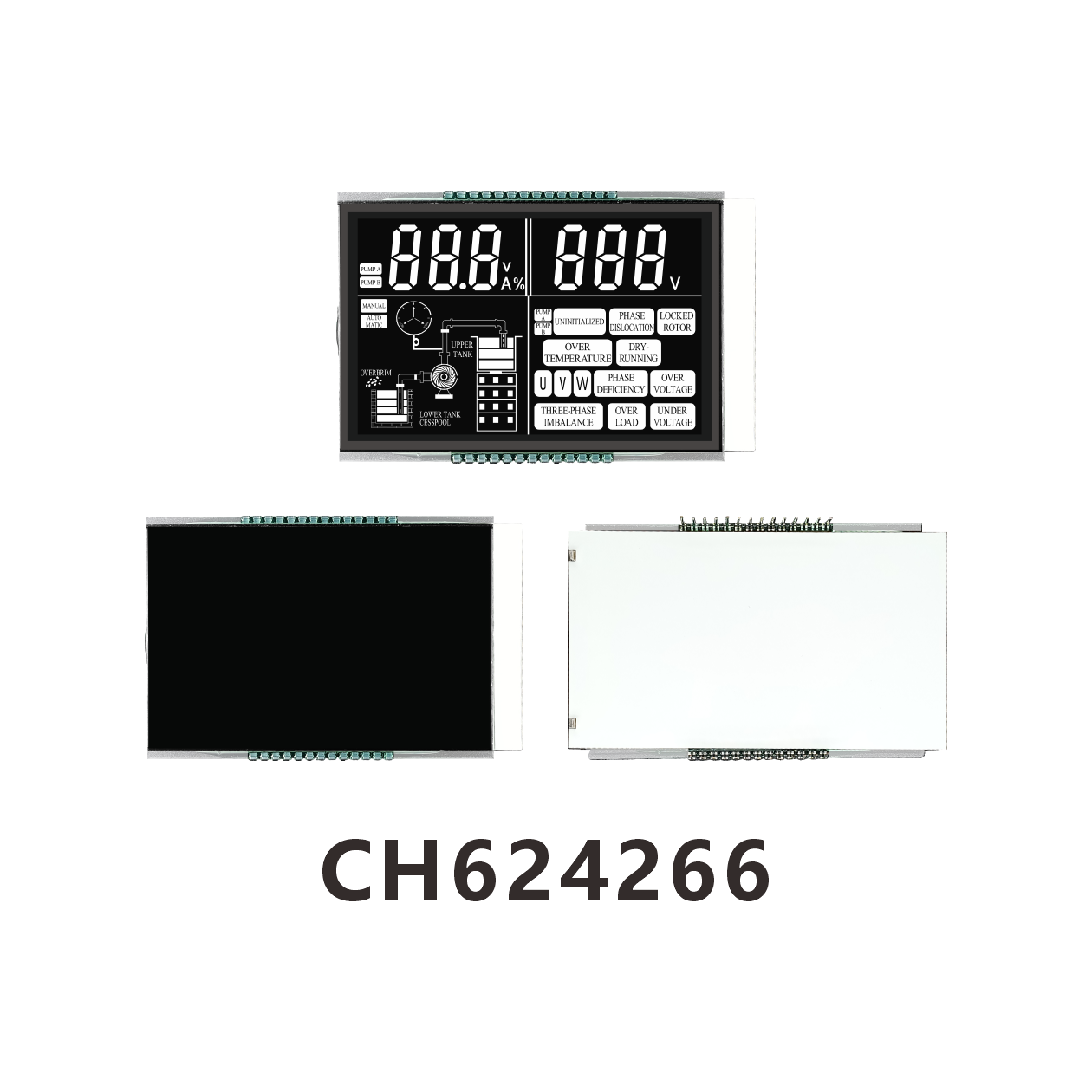

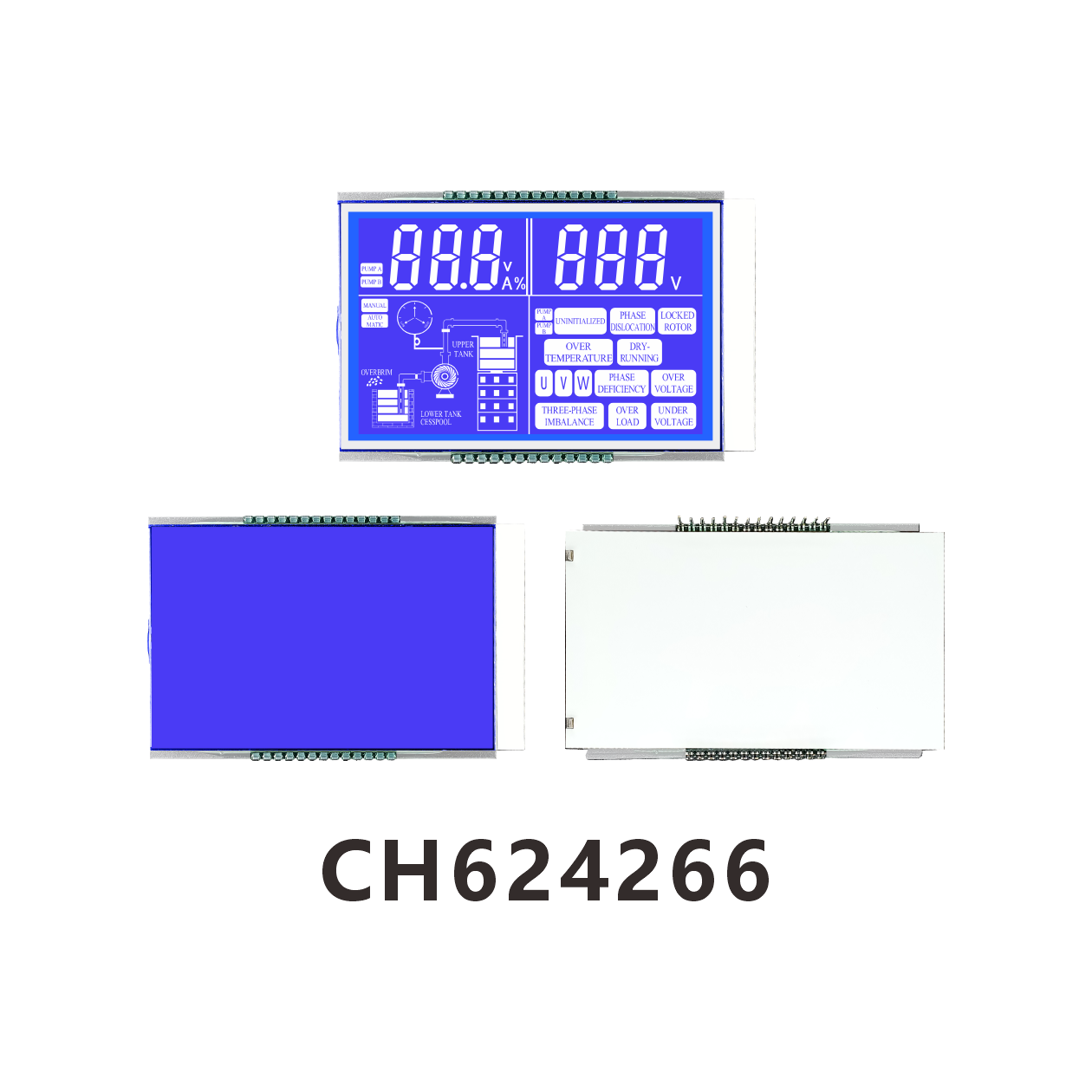

CH624266 Ecological environment monitoring and testing instruments LCD

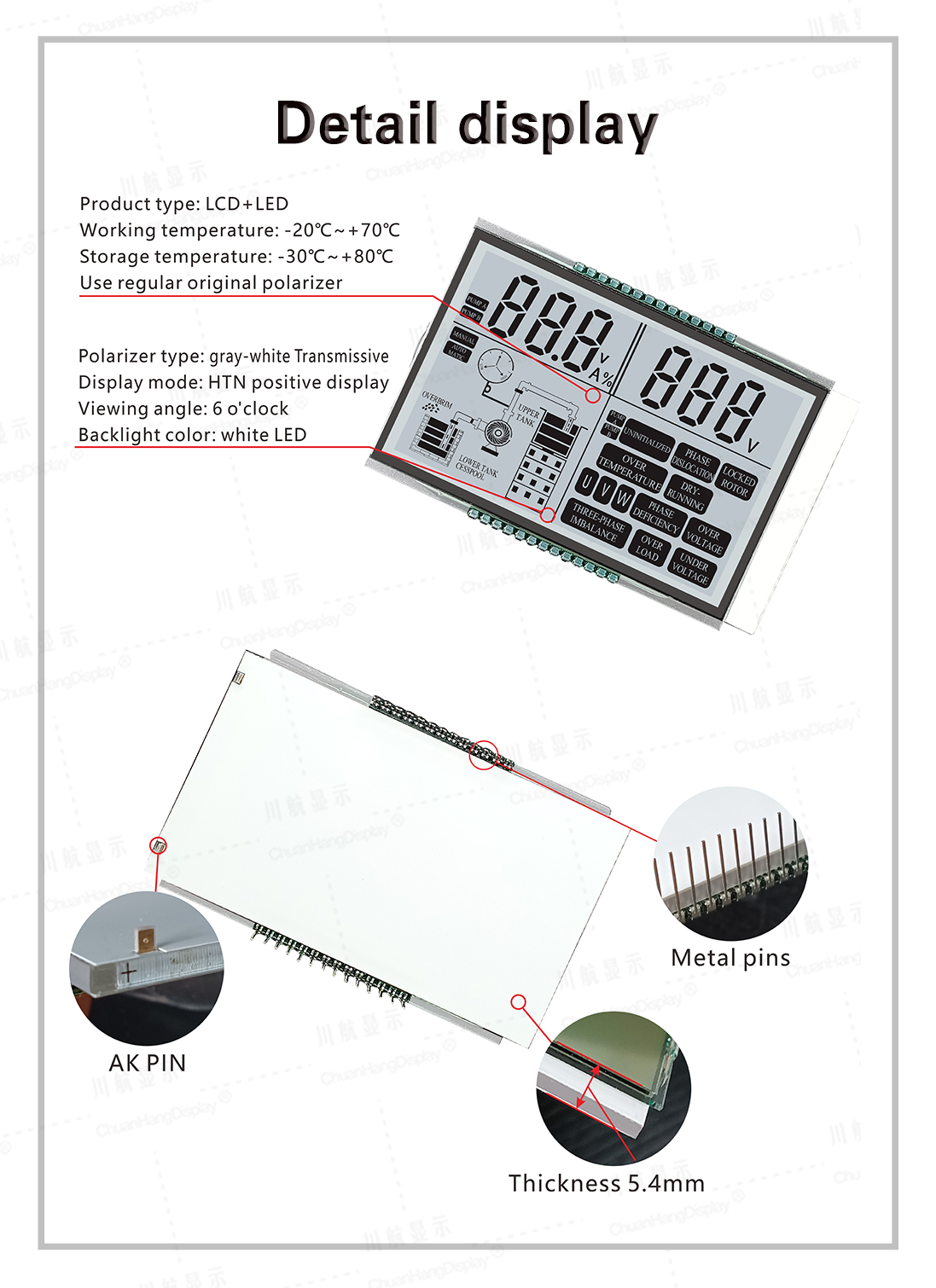

Product Description

LCD Material: HTN LCD
Display Mode: HTN/POSITIVE
Polarizer Type: Grey film/semi-permeable
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 5V
Operating Temperature: -20℃~+70℃
Connection Method: PIN
Backlight ：White LED
Application industry: Ecological environment monitoring and testing instruments

PDF Download Demo code

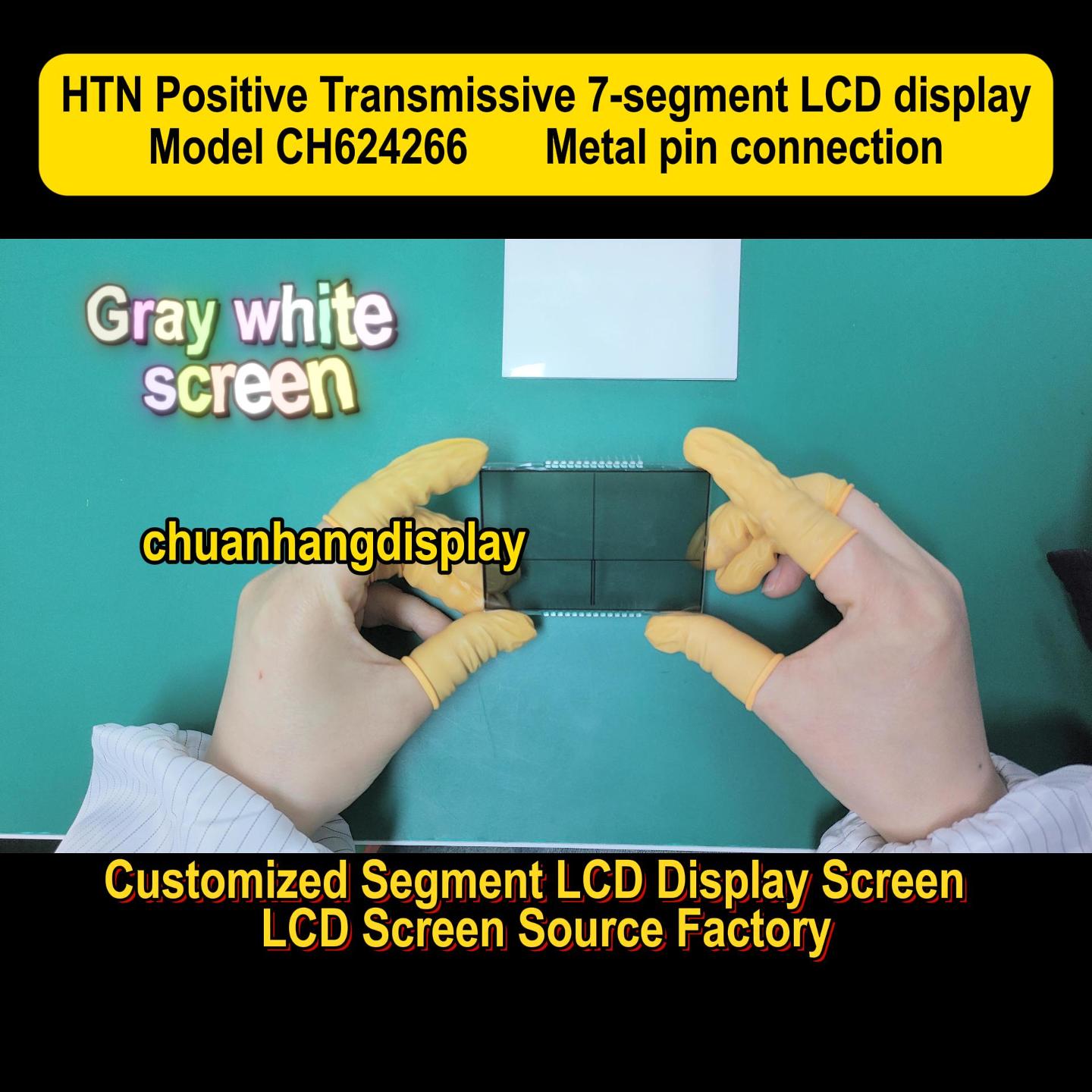

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH624266
Display Mode	HTN/POSITIVE	Display Size	Customized

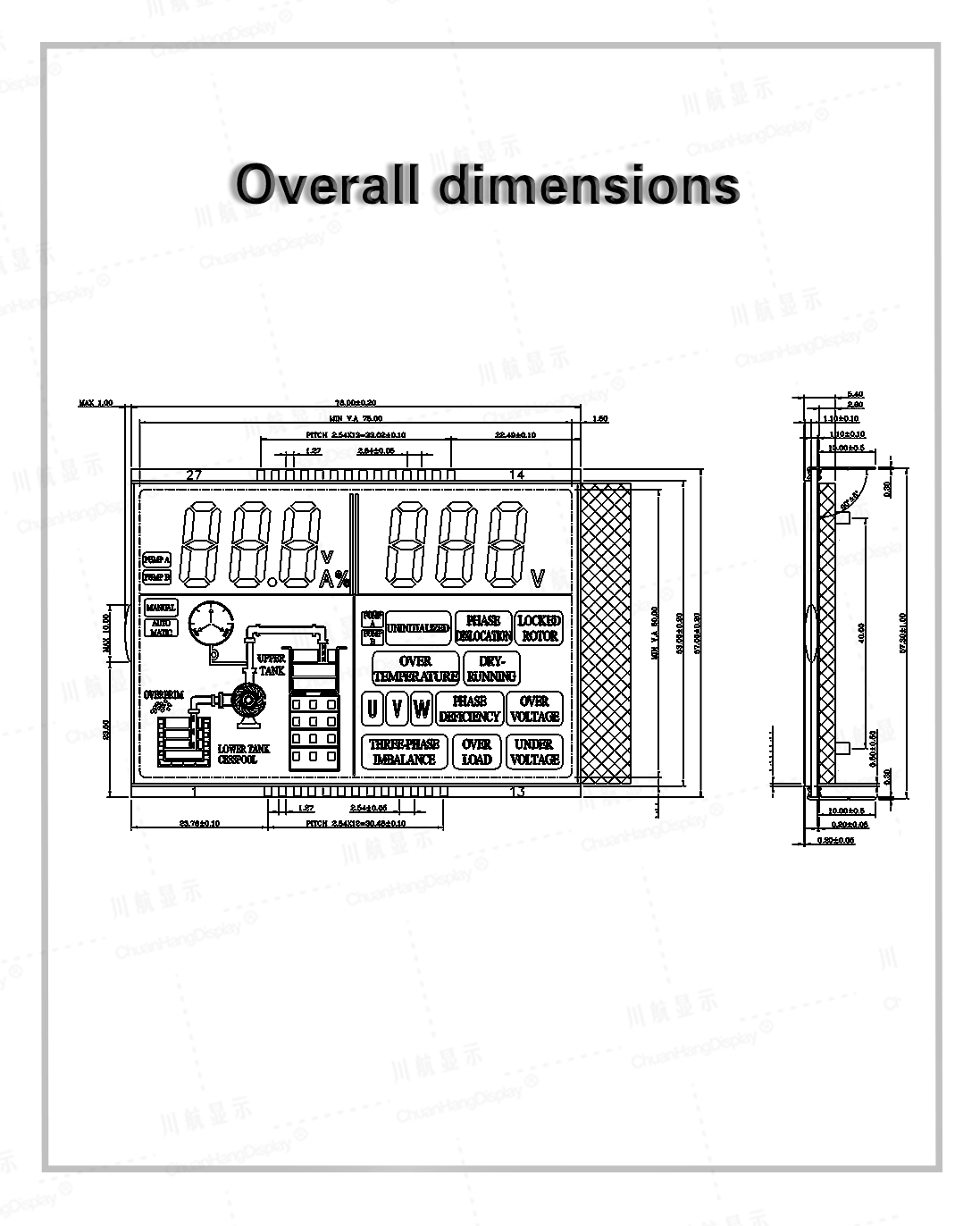

Outline Dimension(LWH)	78.00x57.00x 2.8mm	Visible Area(L*W)	/
Active Area(L*W)	75.00x50.00mm	Character Size(L*W)	/
Type	COB	Connection Method	PIN
Supply Voltage	5V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	/
Display Type	HTN	Driver IC	/
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight	White LED	Production Capacity	Self-produced
Character libraries	/	Whether to bring PCB	NO
