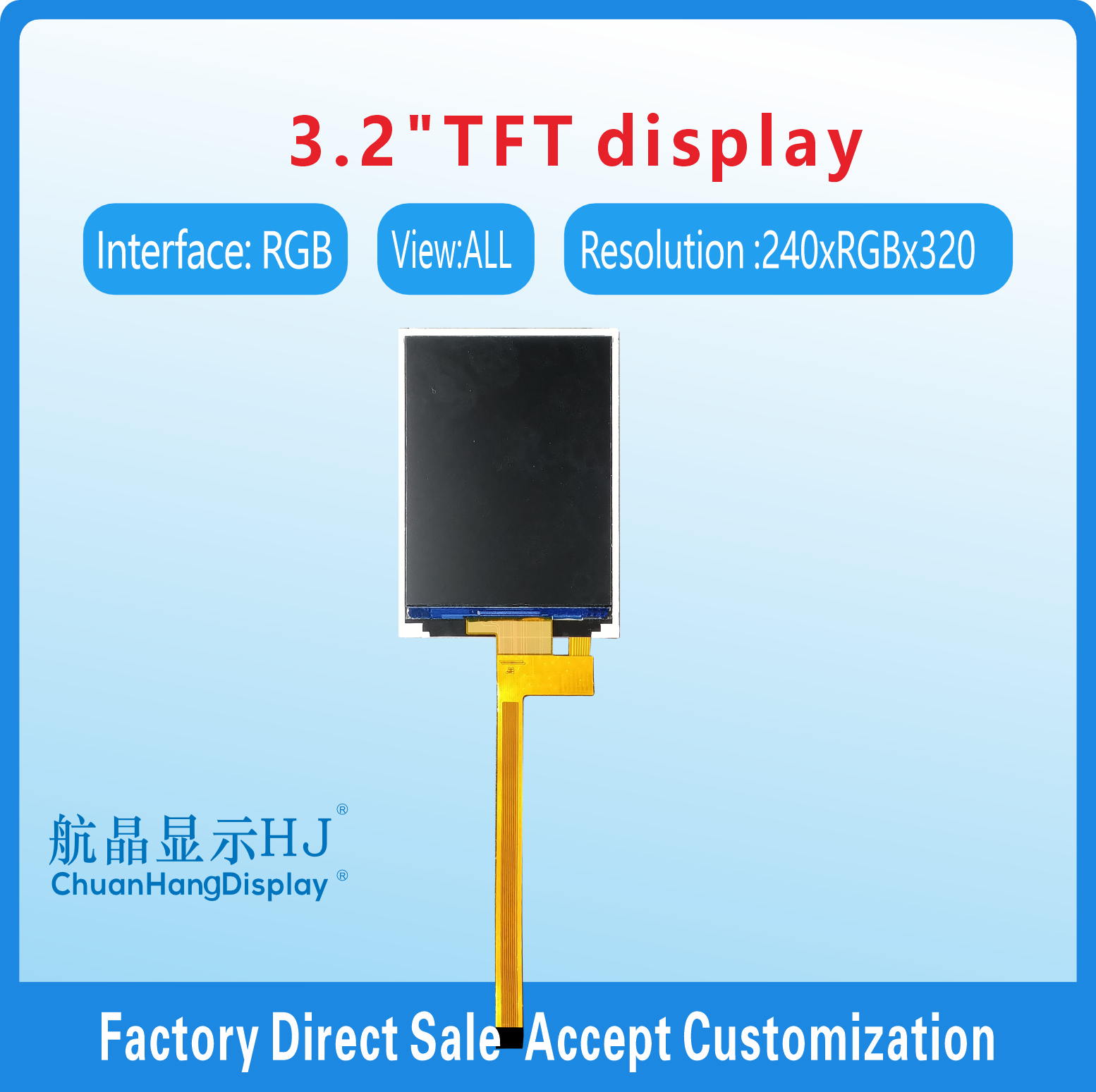

3.2 Inch 240*320 SPI Interface Tft

Product Description

Product size: 3.2 inches
Resolution: 240xRGBx320
Viewing angle:IPS full viewing angle
Interface type:RGB

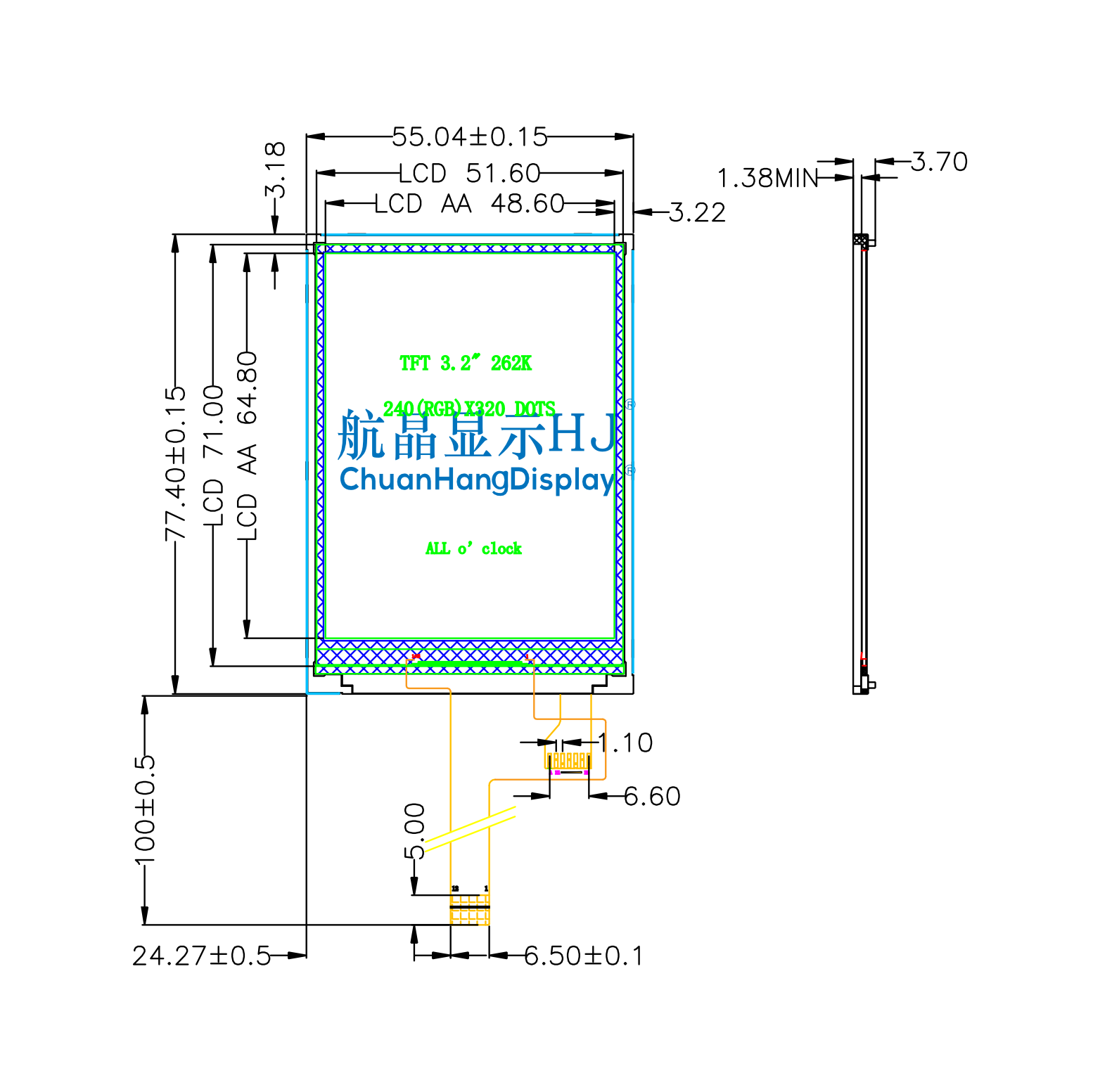

Module size: 55.04X77.40X3.70mm
Active area: 48.60X64.80mm
Cable interface: 12 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT

PDF Download Demo code

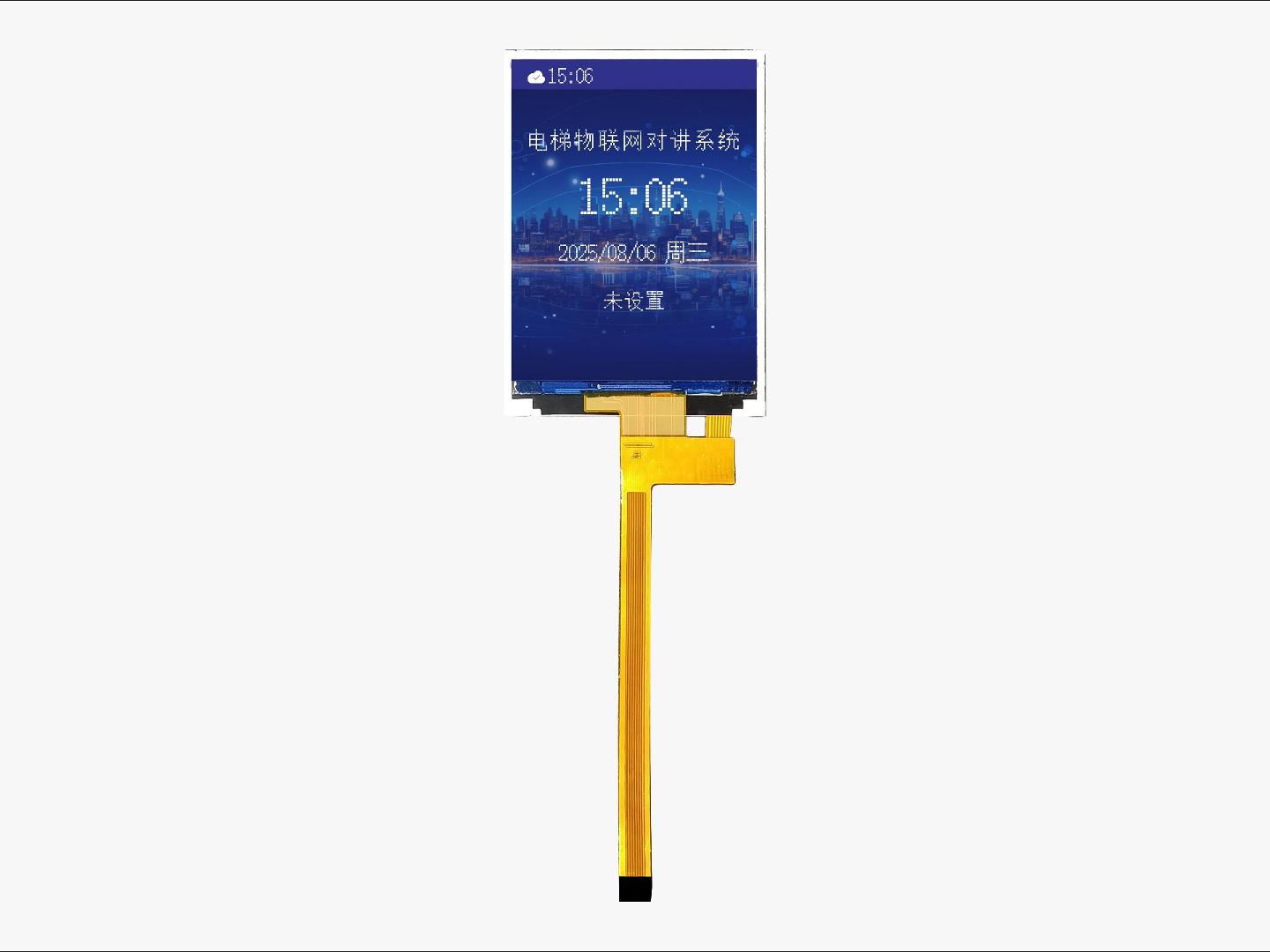

Video Presentation

Product Parameters

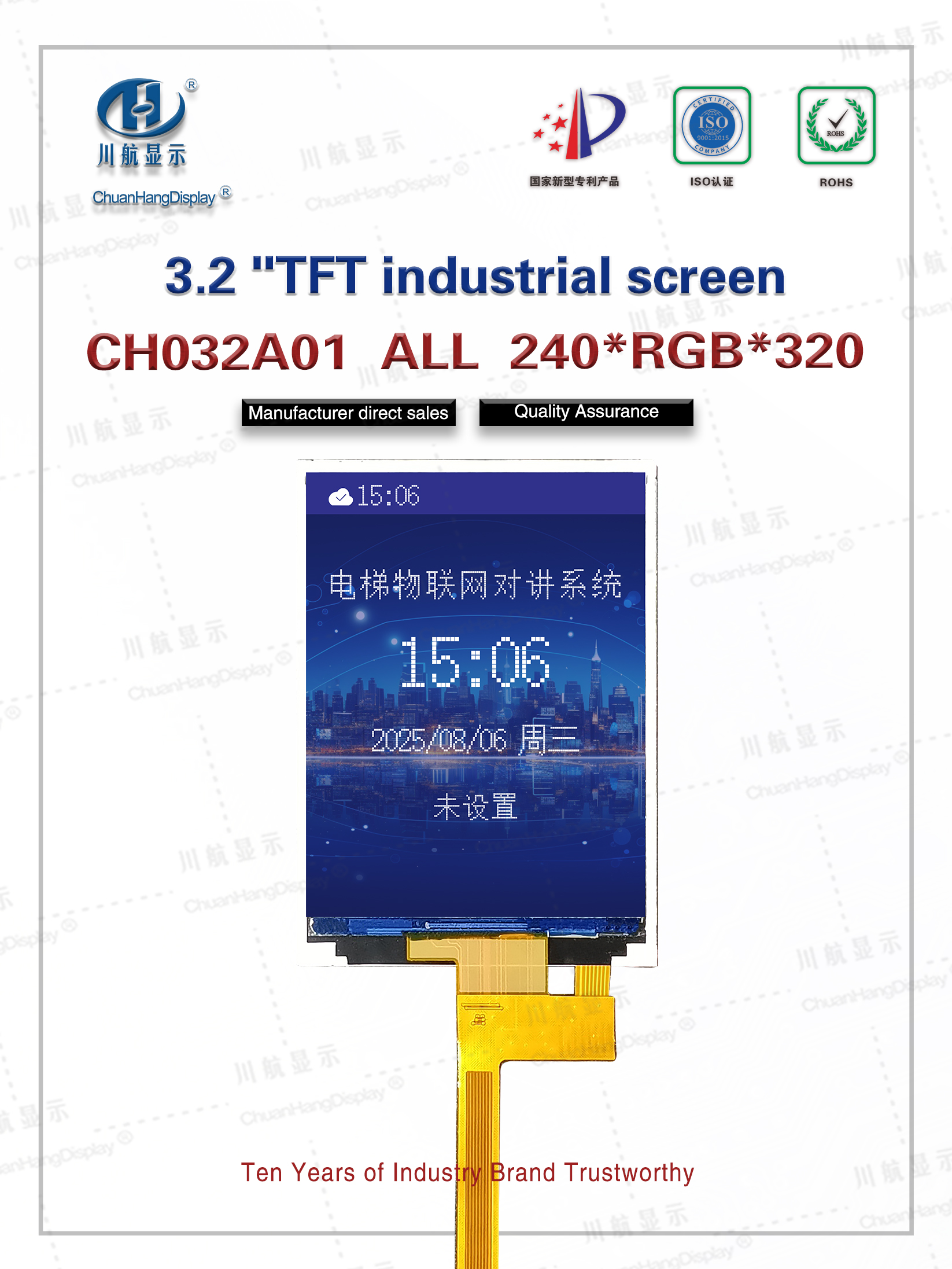

Product Brand	ChuanHangDisplay	Product Model	3.2” CH032A01
Resolution	240xRGBx320	screen size	3.2"
Outline Dimension(LWH)	55.04X77.40X3.70mm	Visible Area(L*W)
Active Area(L*W)	48.60X64.80mm	Type	COG
Connection Method	FPC	Operating Voltage	3.3V
Interface Type	12PIN	Viewing Direction	IPS full viewing angle
Communication interface	RGB	Display Color	TFT
Driver IC	ST7701S-G5	Operating Temperature	-20℃~+70℃
Storage Temperature	-30℃~+80℃	Backlight parameters
production capacity	Self-produced	Whether to bring PCB	NO

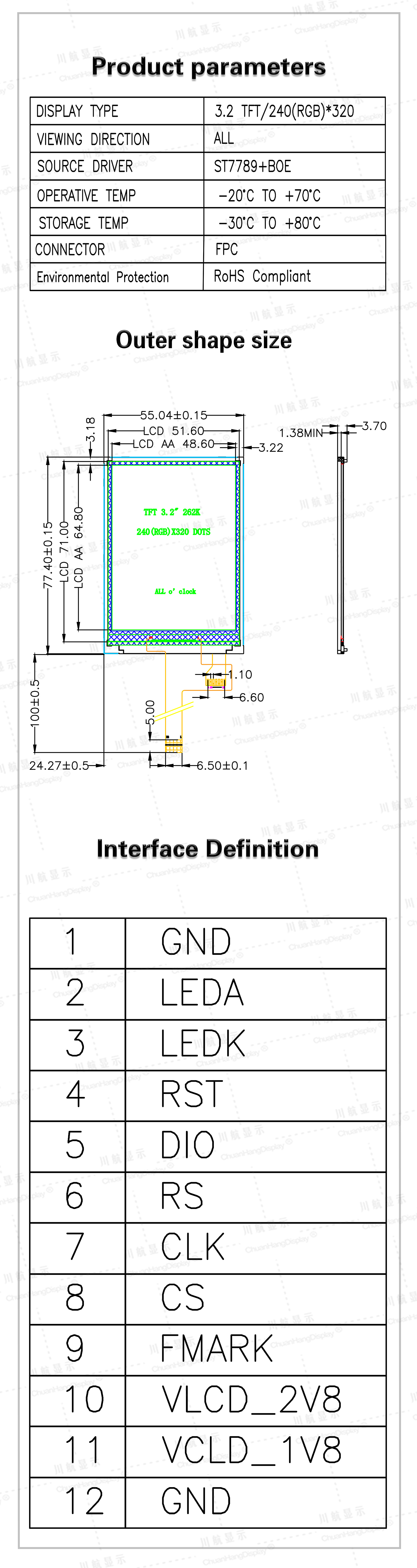

Product Datasheet

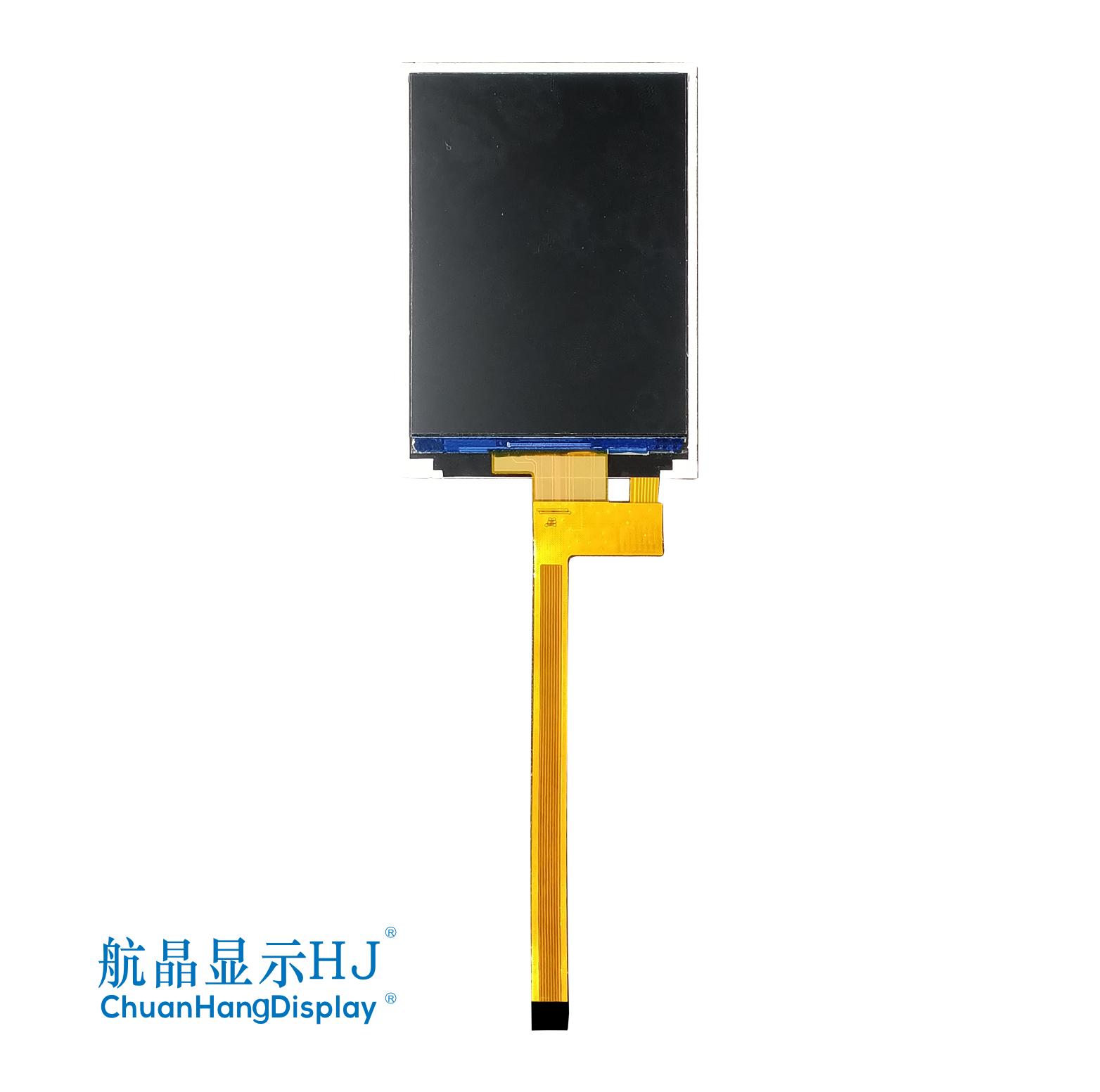

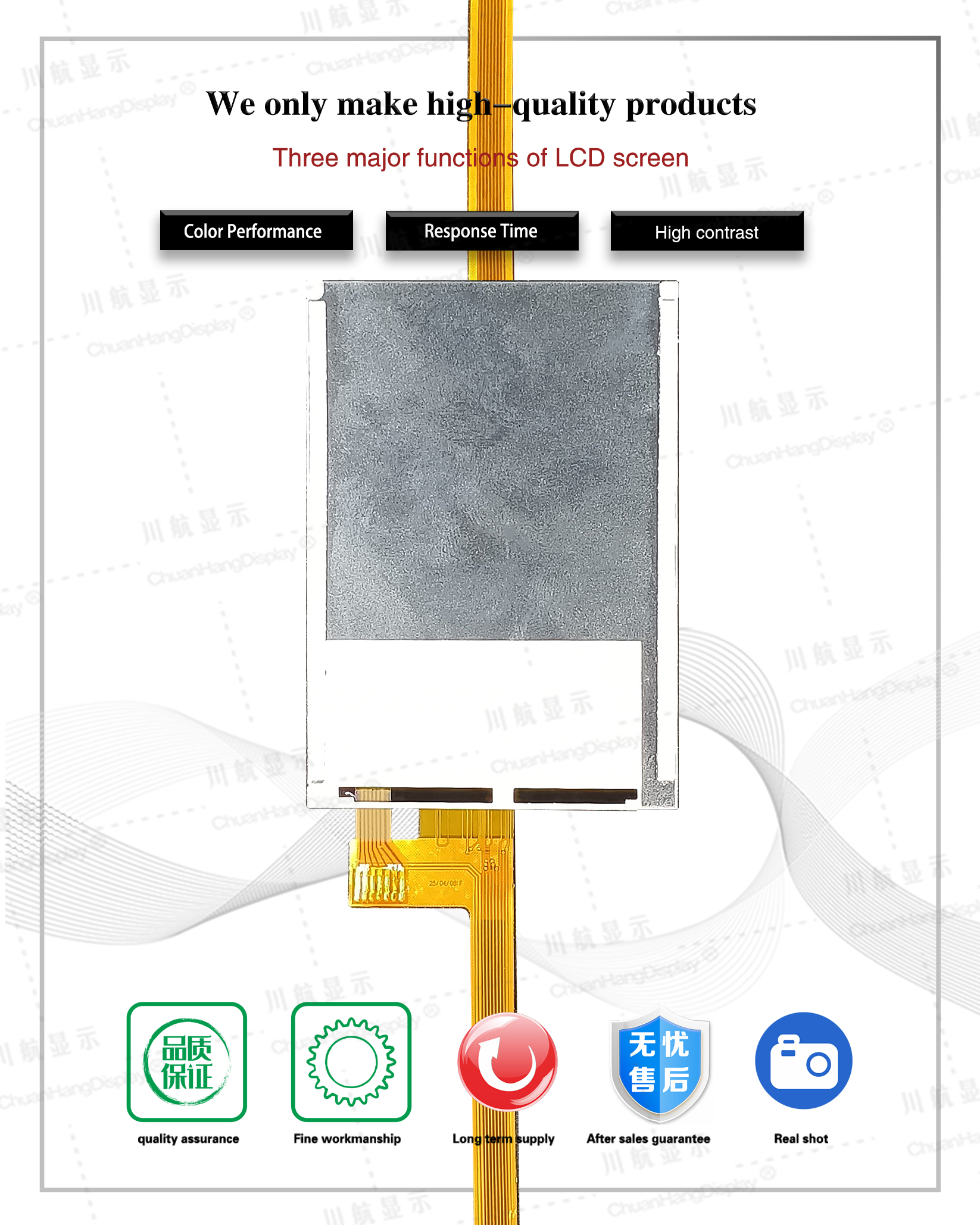

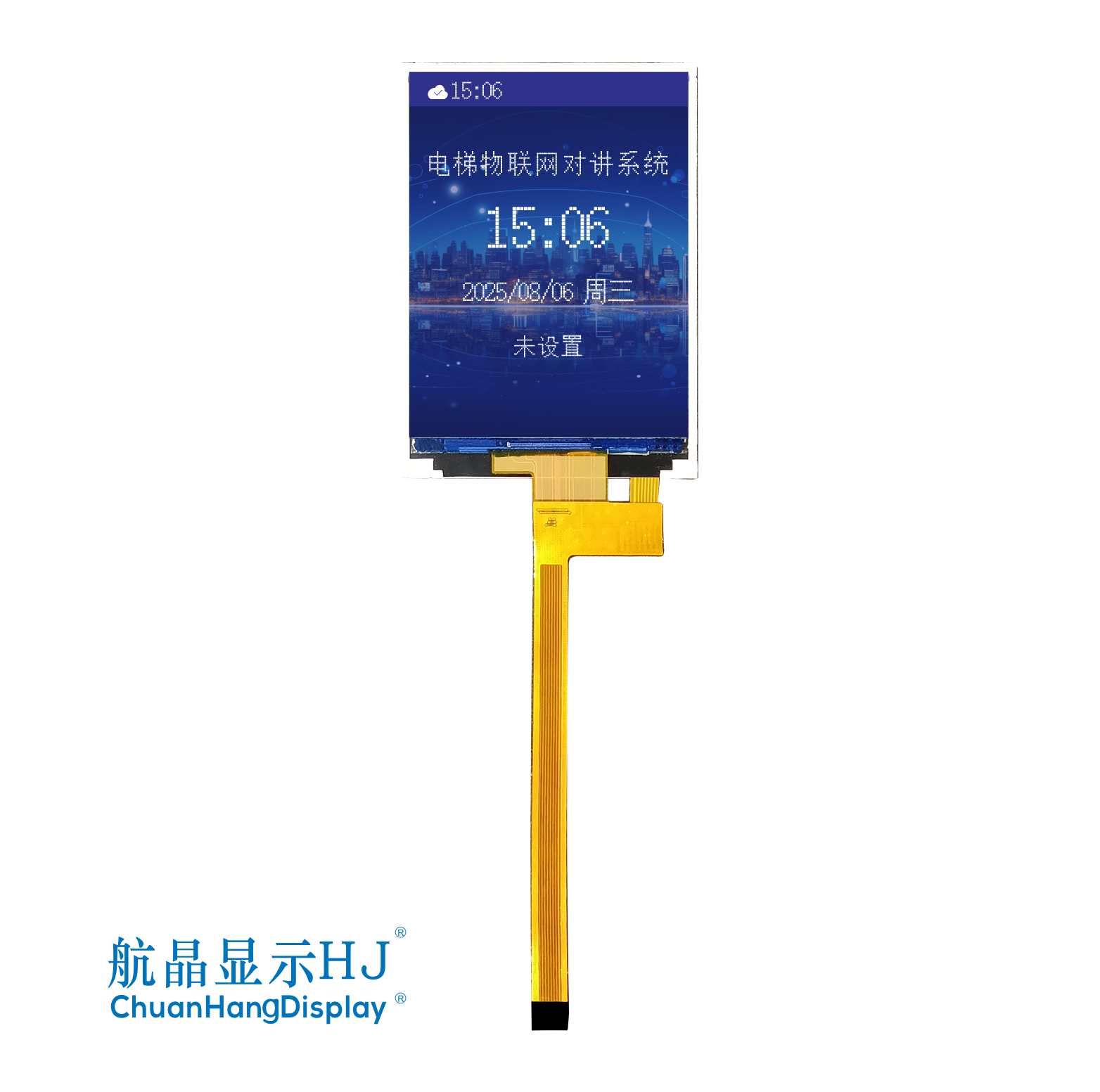

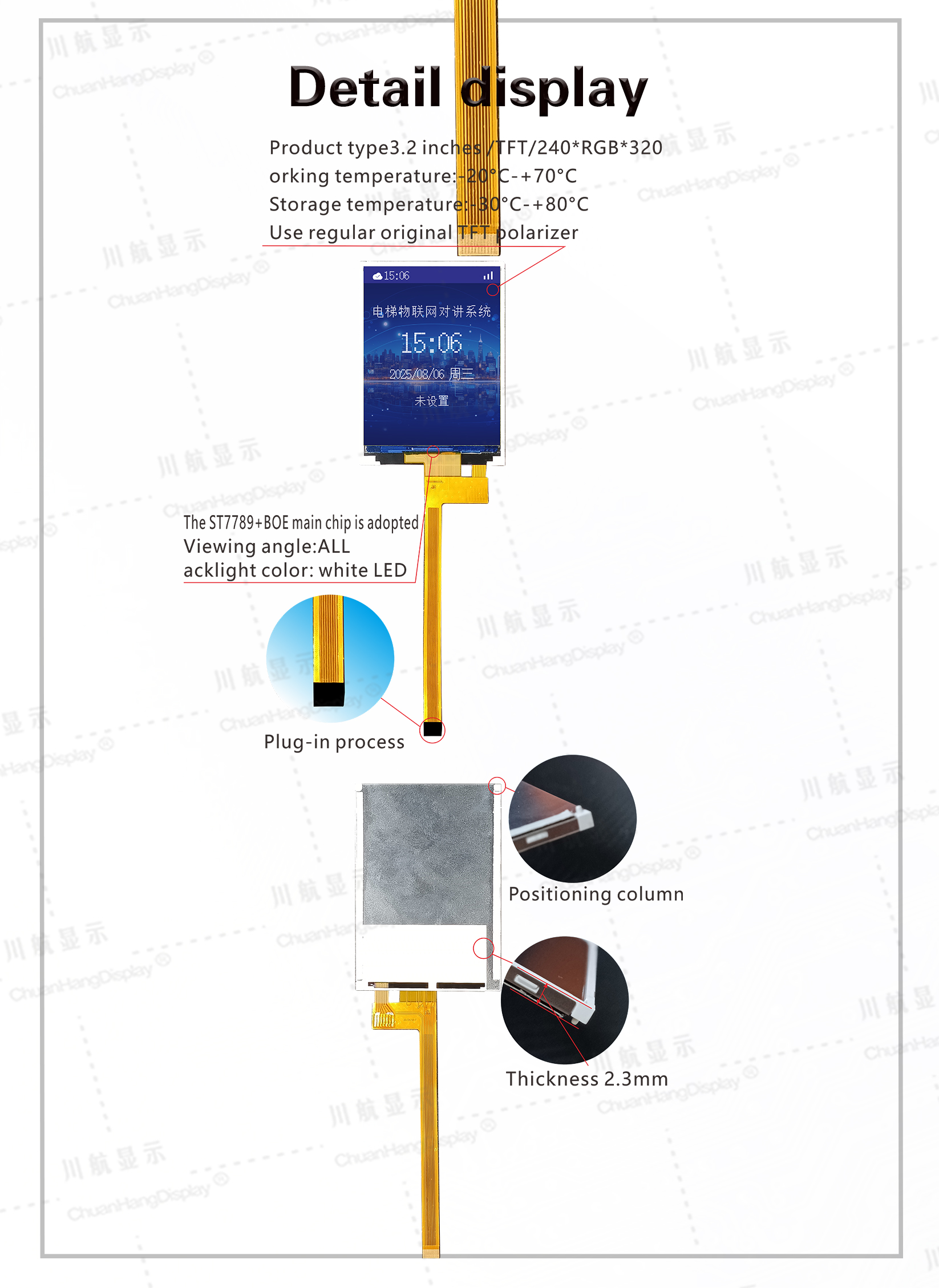

Product Display

Shenzhen ChuanHang Electronic Technology Co., Ltd.

PRODUCTS CENTER

3.2 Inch 240*320 SPI Interface Tft

OEM 10.1 Inch

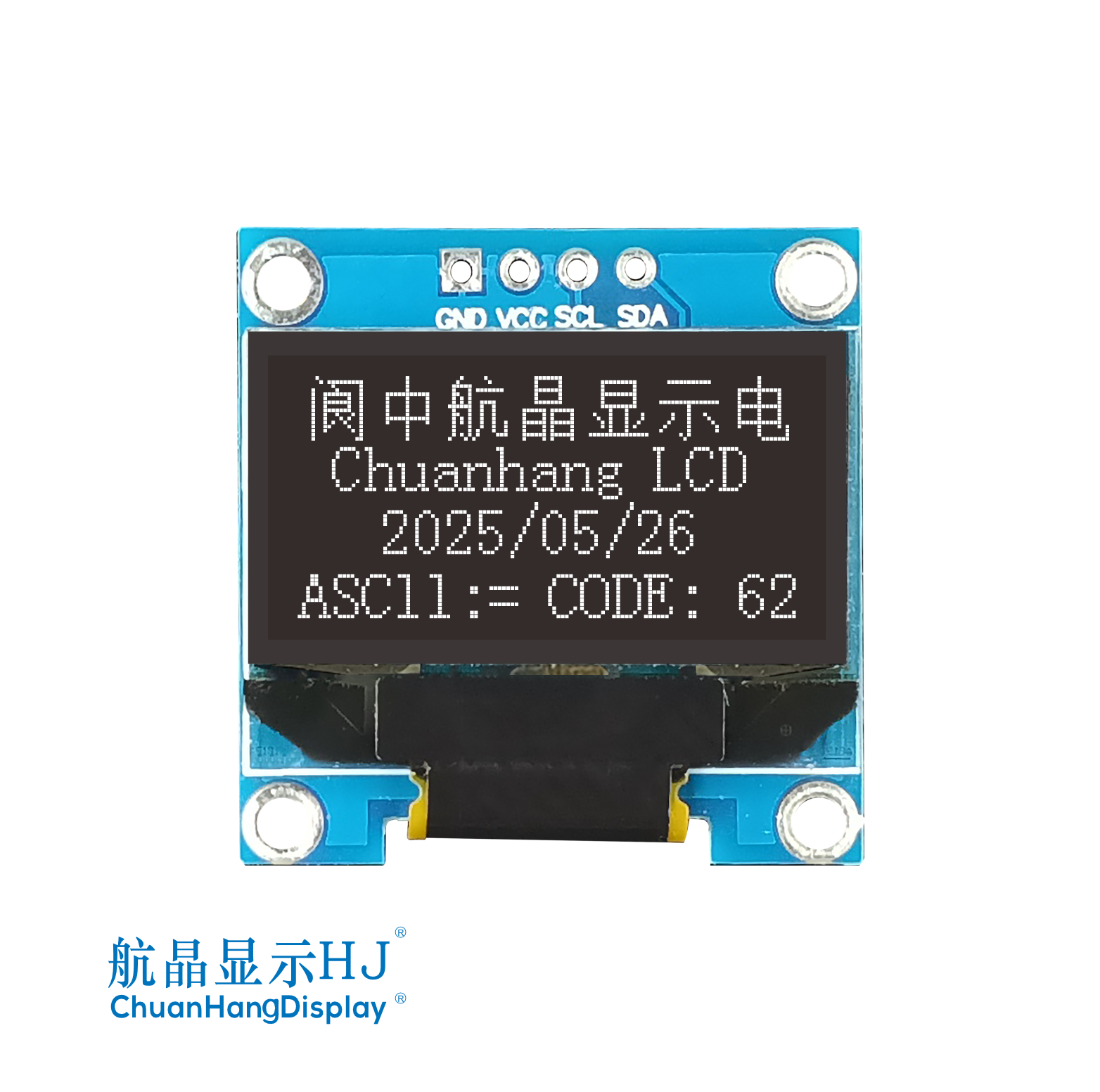

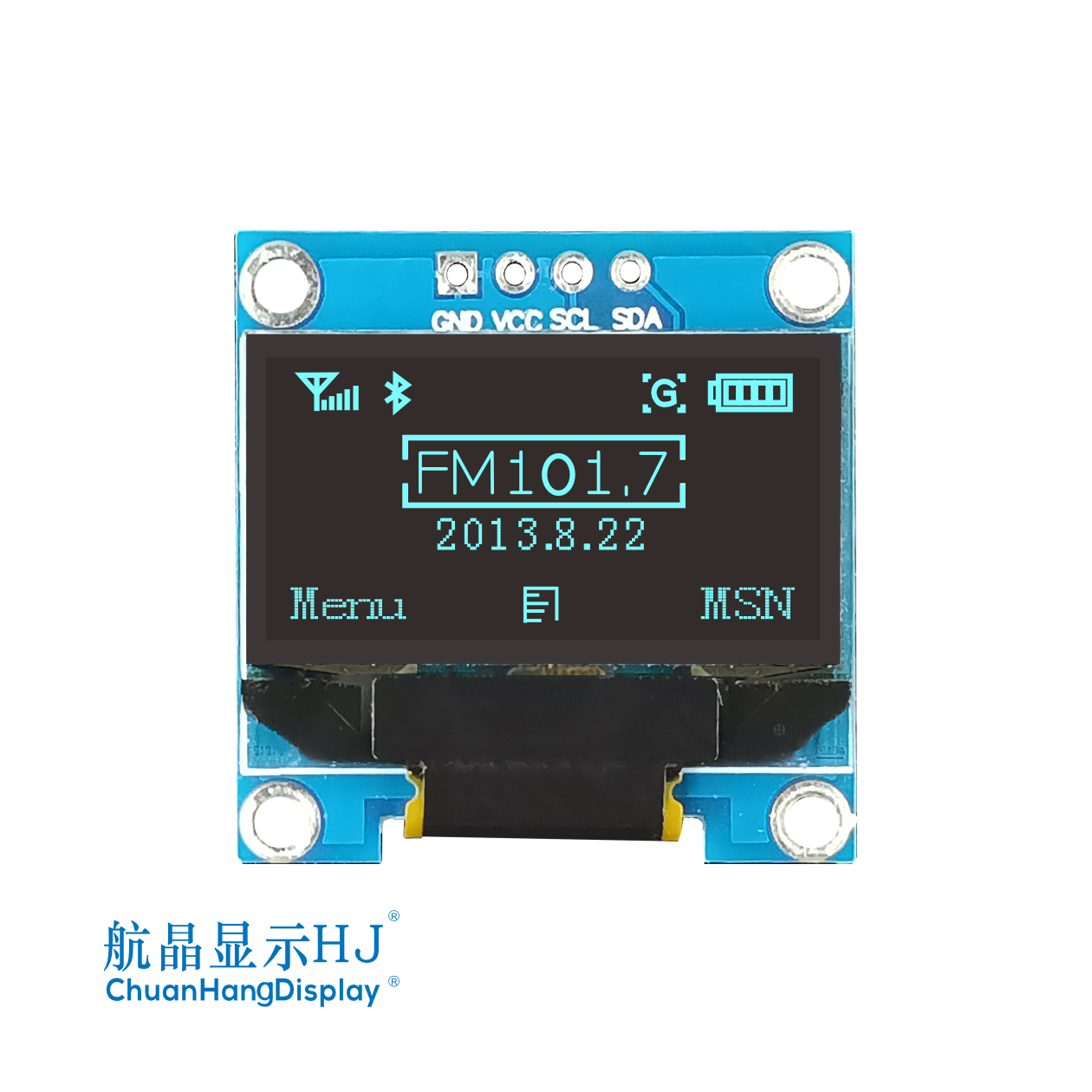

0.96 Inch OLED Display
