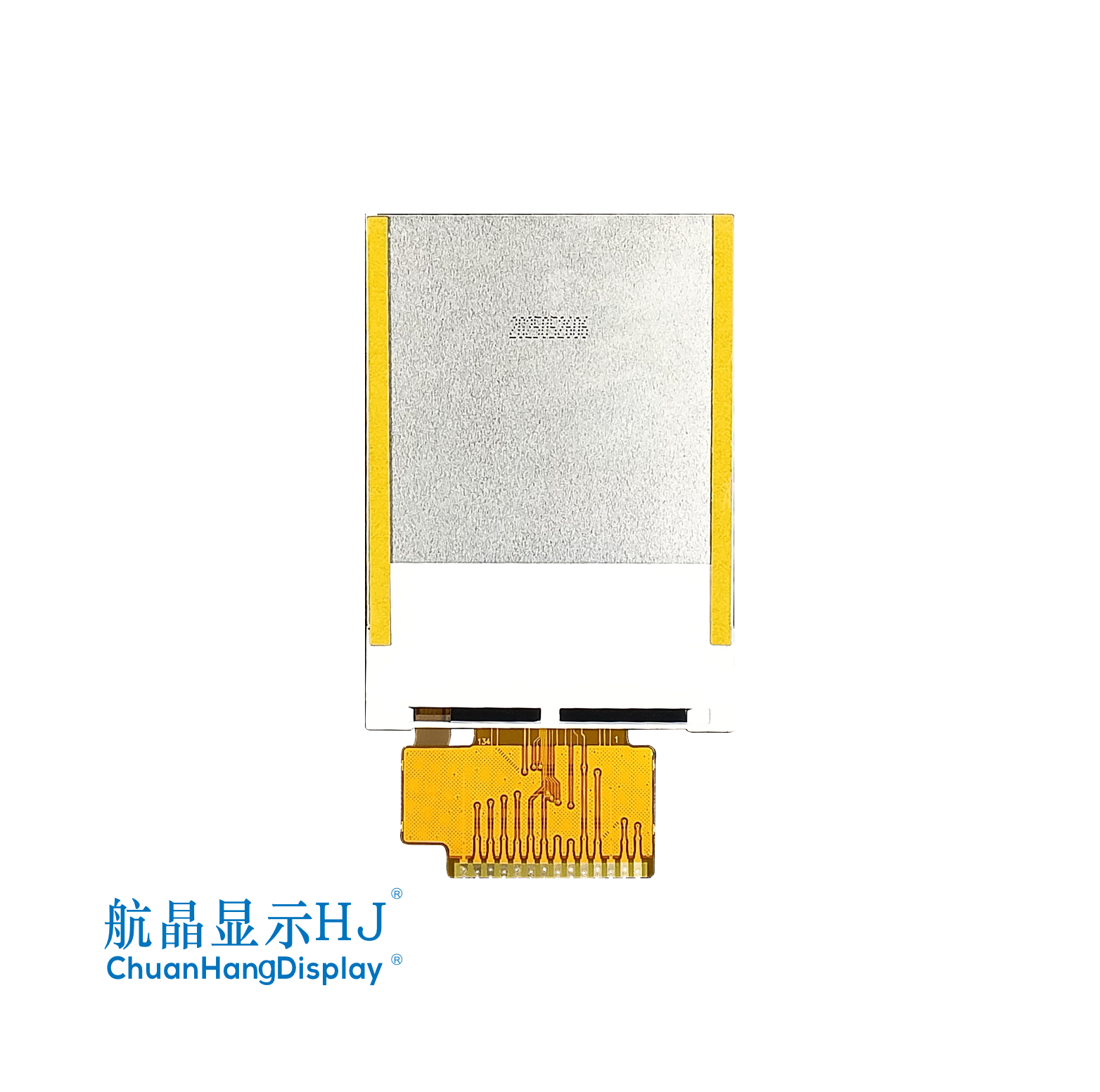

3.2“Single glass CH032A-S

Product Description

1.1 COG (Chip-on-Glass) Process – Integrated backlight, conductive rubber strip connection for stable structure.
1.2 Driver IC – Uses ST7789T3, supports custom font programming (no built-in font library).
1.3 Low Power Consumption – Supports 1.9-3.3V power modes:
1.4 Resolution: 240xRGBx320
1.5 Viewing angle: 6 o'clock viewing angle
1.6 Interface type: Parallel port 8-bit/16-bit

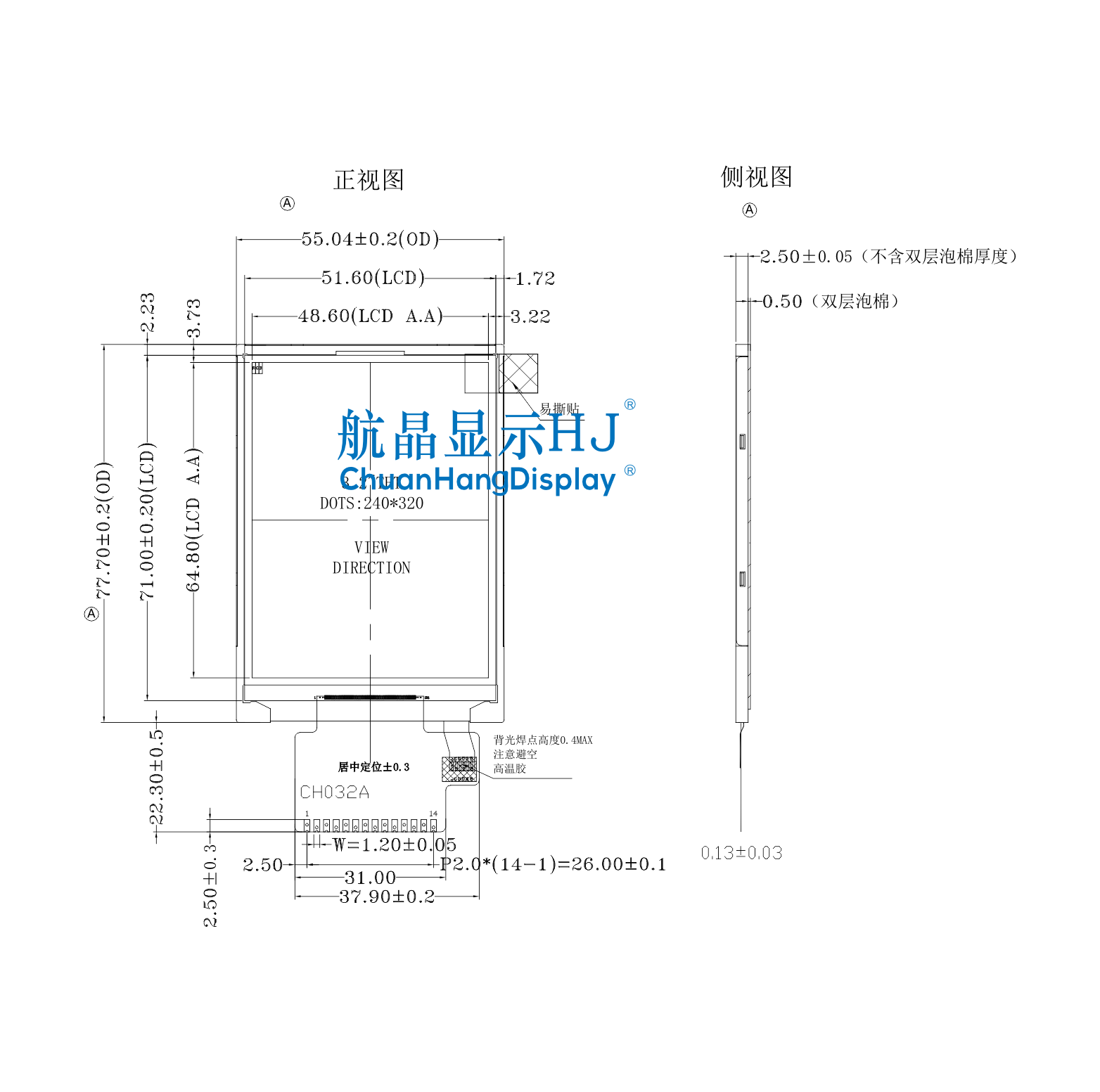

1.7 Module size: 55.04X77.50X2.50mm
Display area: 48.6x64.8mm
1.8 Cable interface: 14 interface positions

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	Single glass CH032A-S
Resolution	240xRGBx320	screen size	3.2"
Outline Dimension(LWH)	55.04X77.50X2.50mm	Visible Area(L*W)
Active Area(L*W)	48.60X64.80mm	Type	COG
Connection Method	FPC	Operating Voltage	3.3V
Interface Type	14PIN	Viewing Direction	6 O'CLOCK
Communication interface	Parallel port 8-bit/16-bit	Display Color	TFT
Driver IC	ST7789T3	Operating Temperature	-20℃~+70℃
Storage Temperature	-30℃~+80℃	Backlight parameters
production capacity	Self-produced	Whether to bring PCB	NO

Product Datasheet

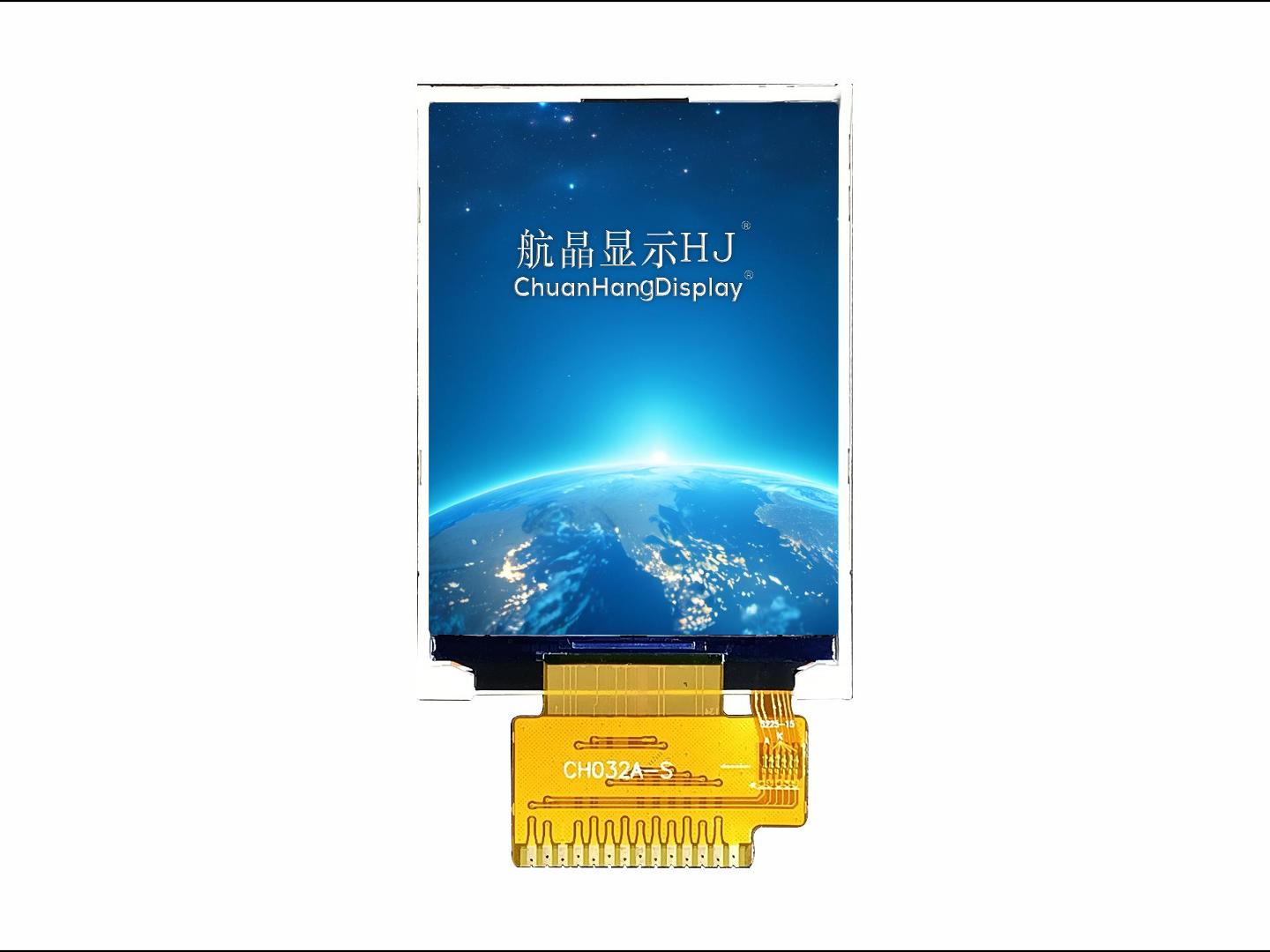

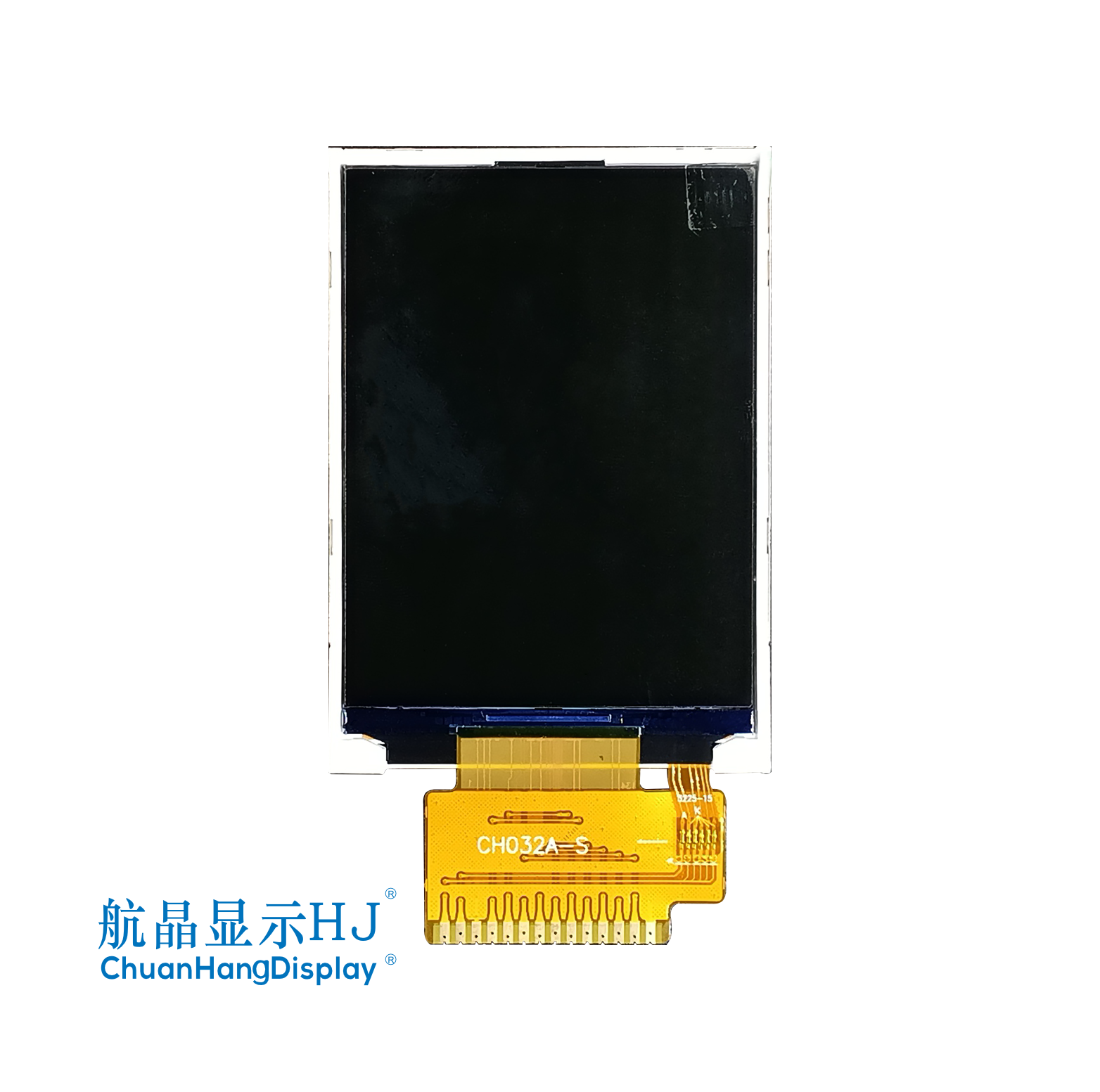

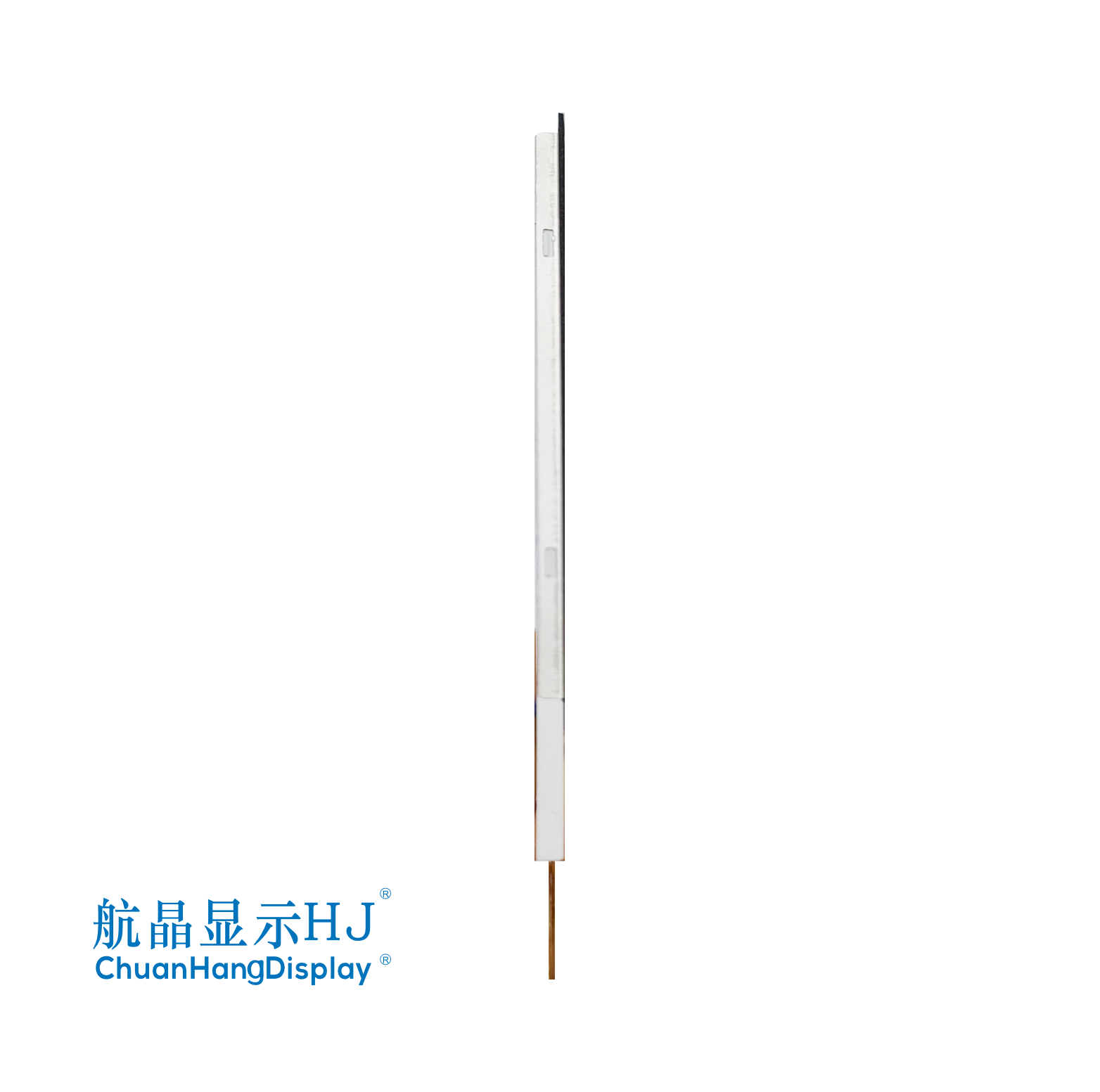

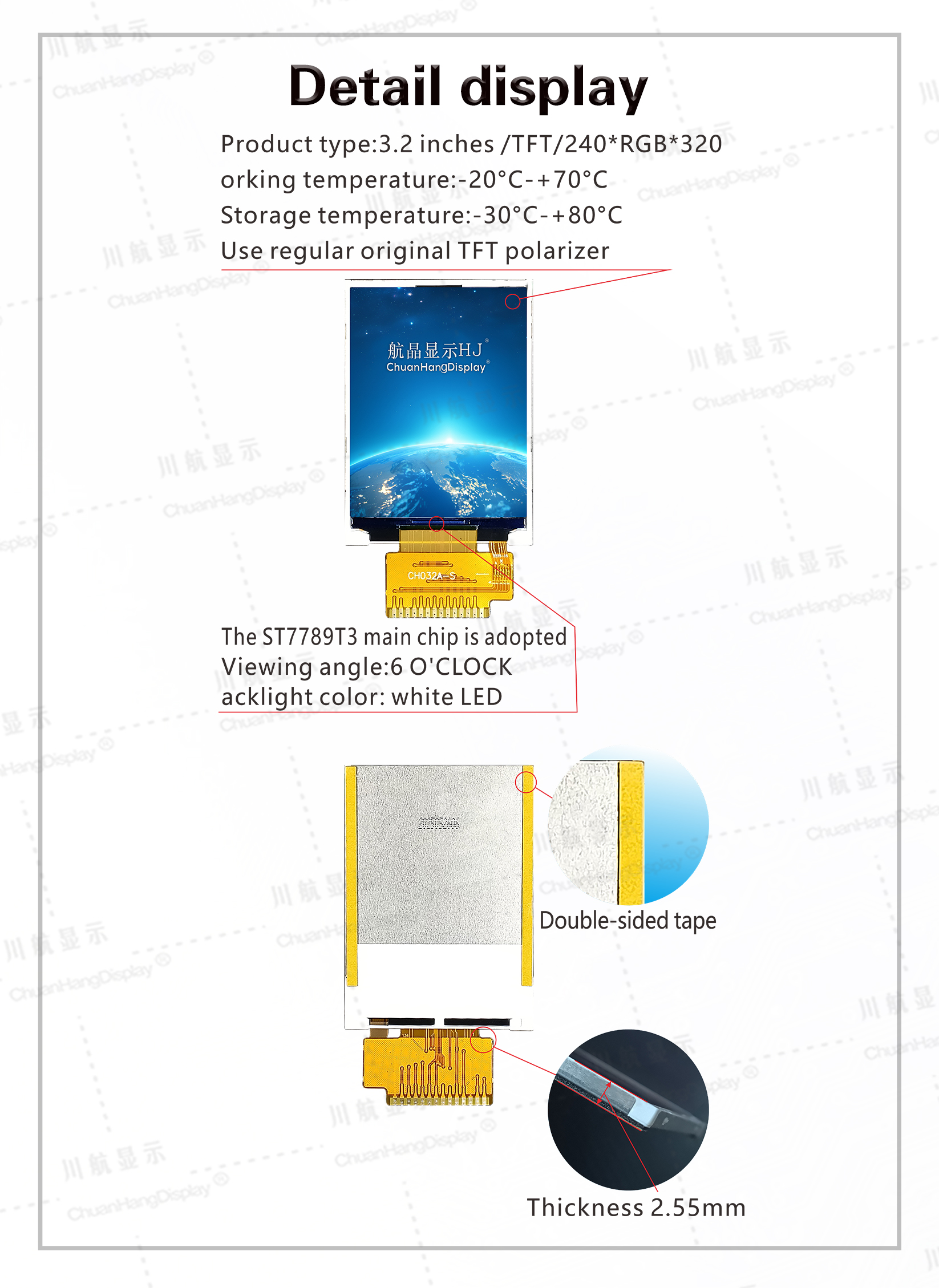

Product Display
