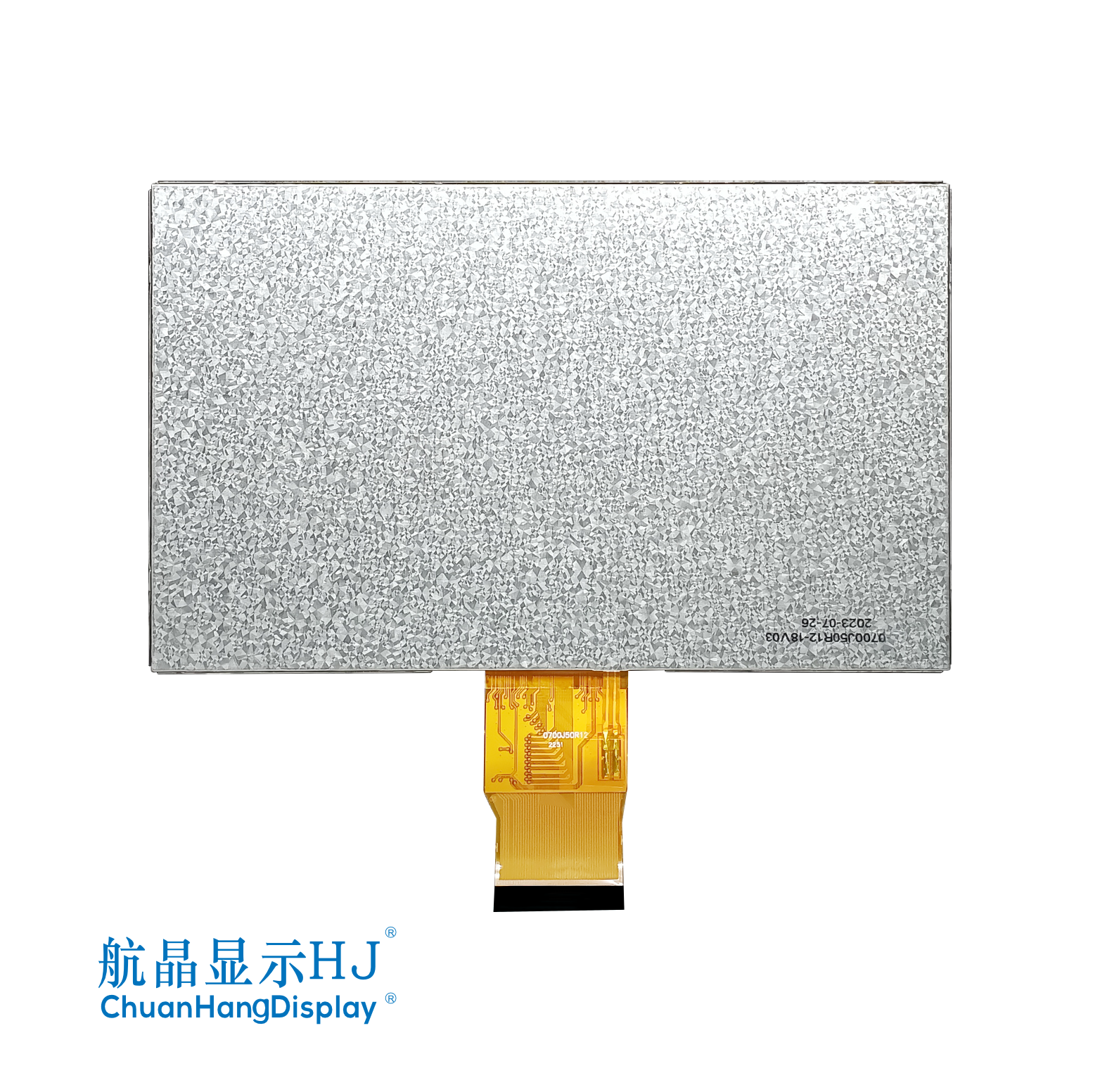

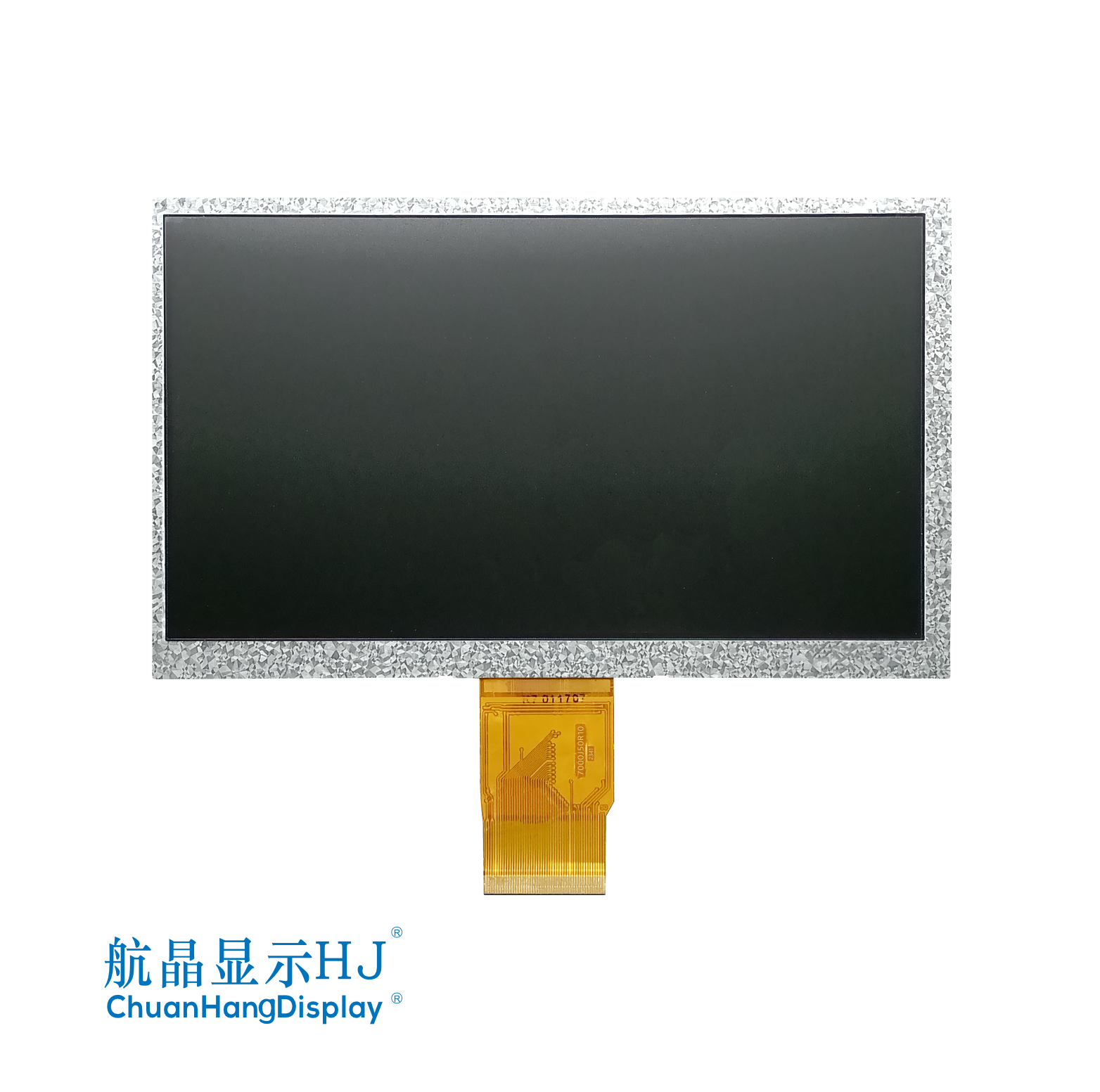

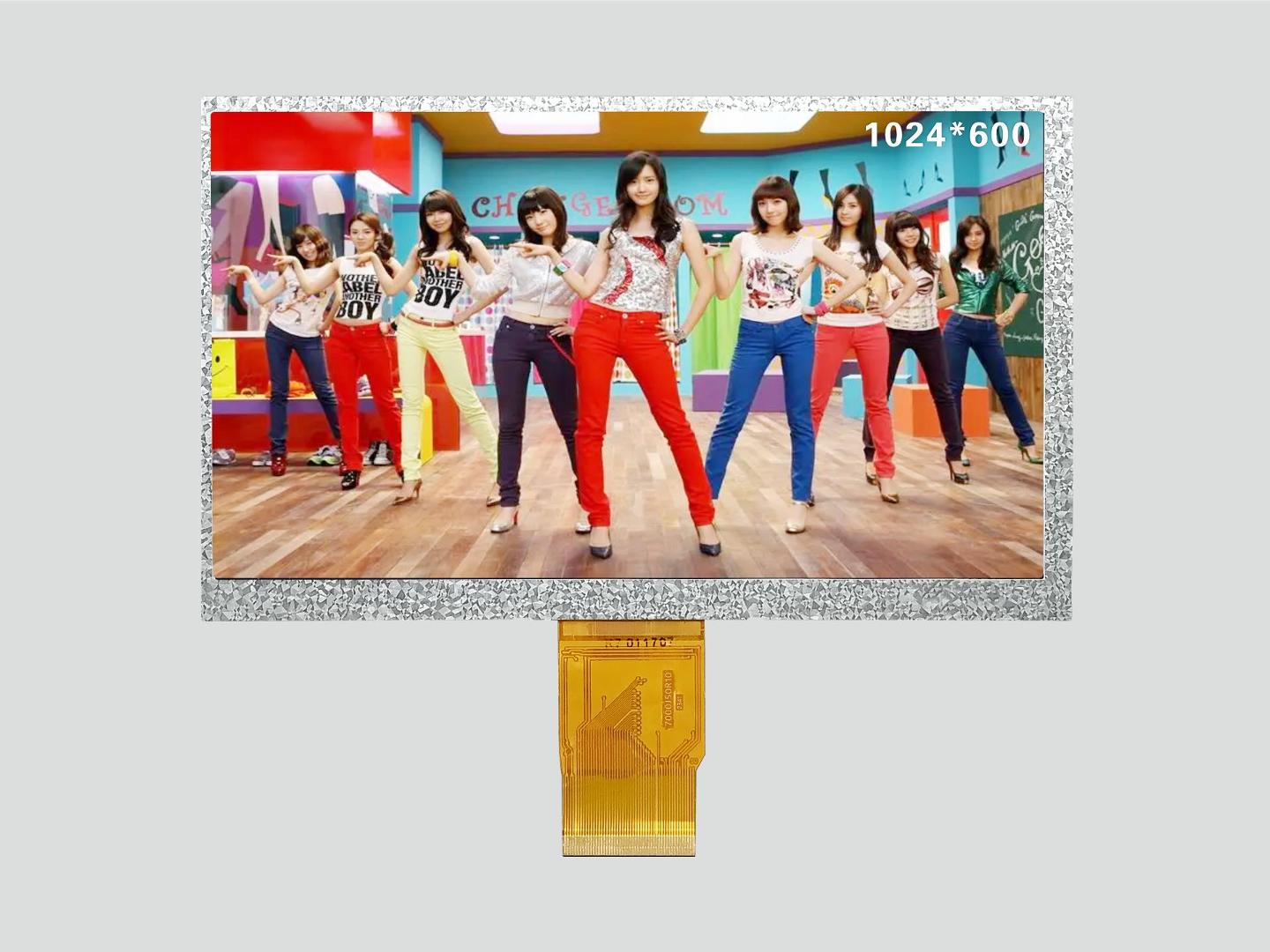

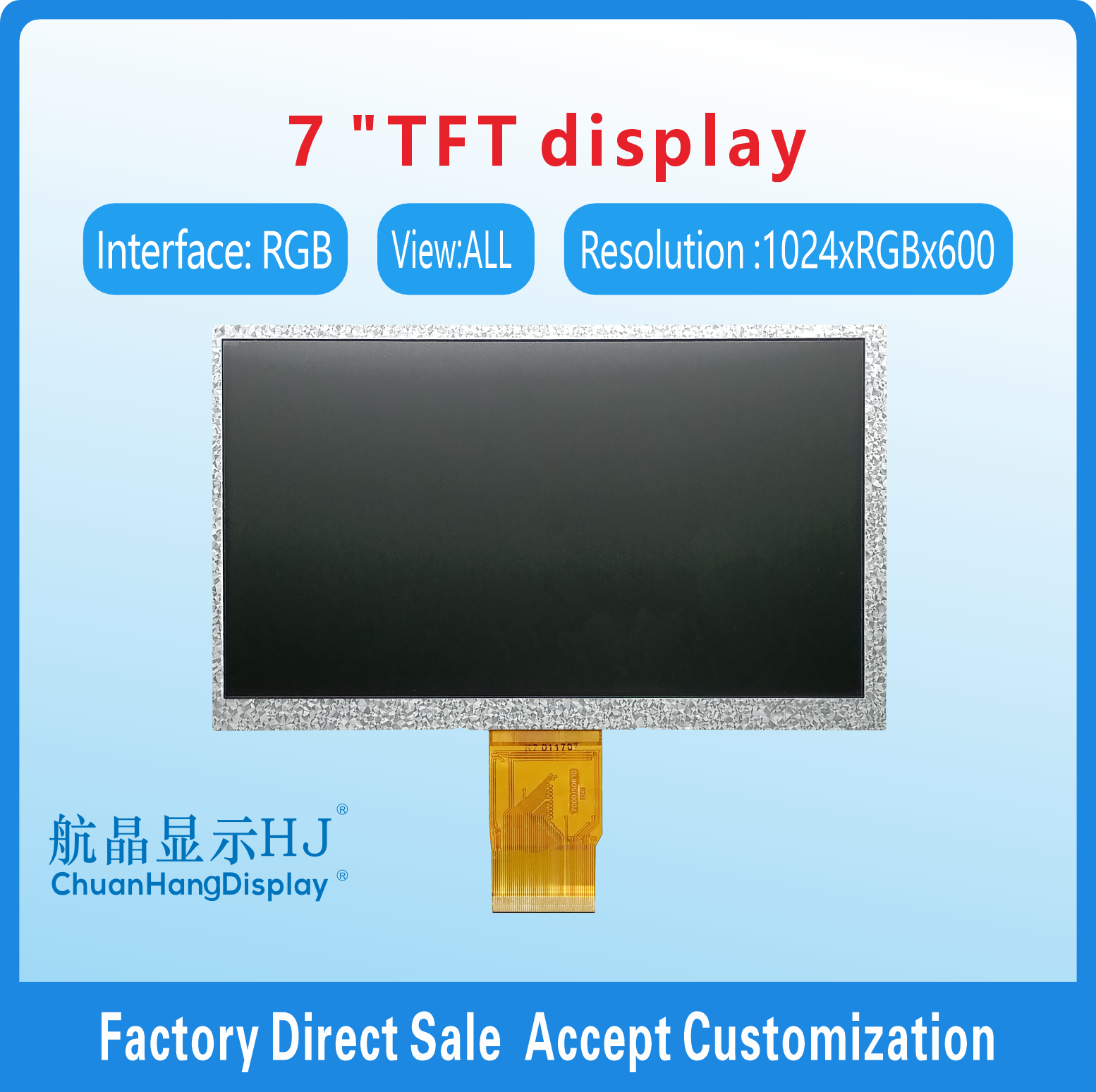

7 inch TFT LCD 1024x600

Product Description

Product size: 7.0 inches
Resolution: 1024xRGBx600
Viewing angle:IPS full viewing angle
Interface type:RGB
Module size: 165.00X100.00X3.5mm
Active area: 154.21.00X85.92mm
Cable interface: 50 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH070A-P-B
Resolution	1024xRGBx600	Screen size	7.0”

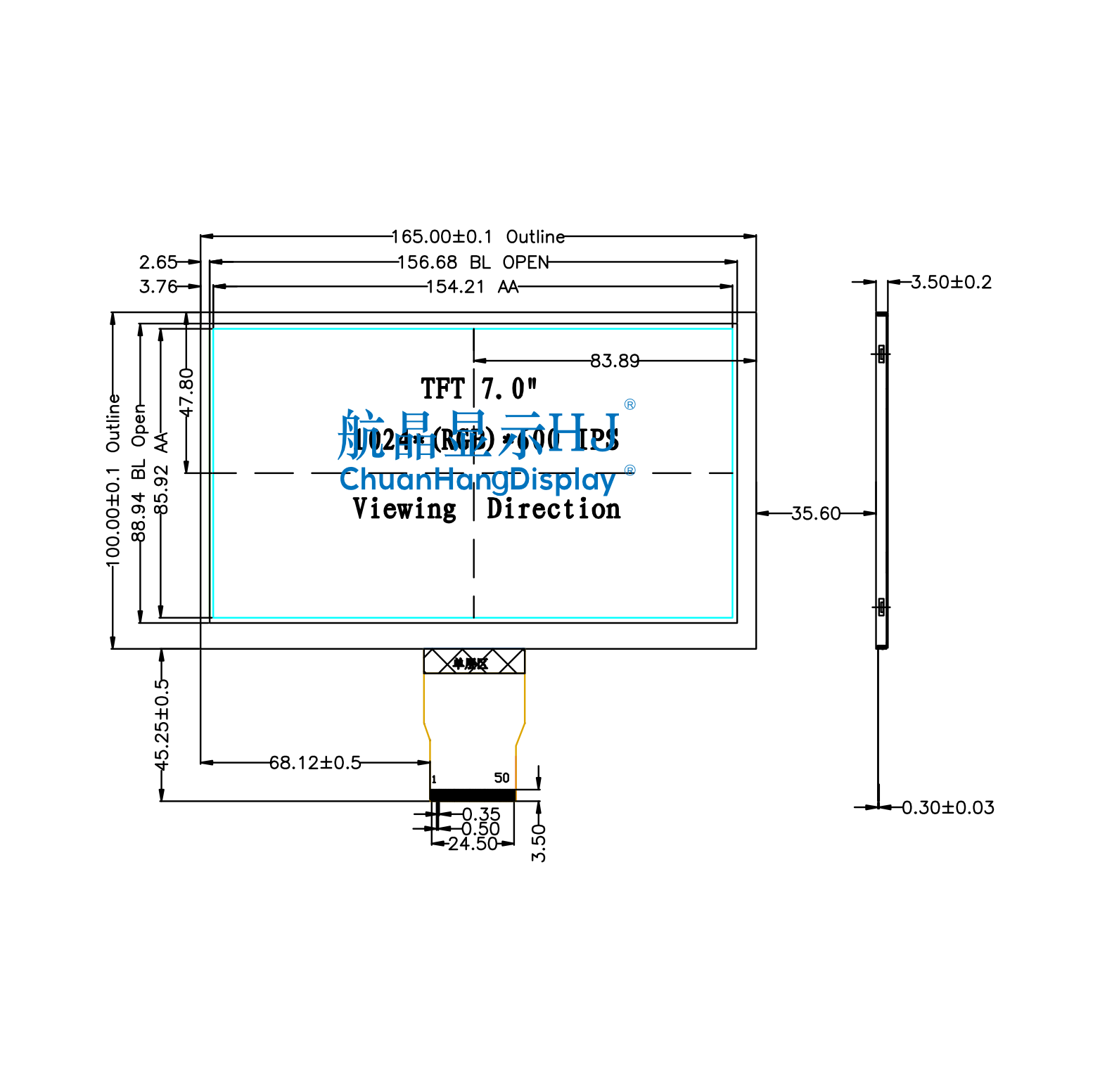

Outline Dimension(LWH)	165.00X100.00X3.5mm	Active Area(L*W)	154.21.00X85.92mm
Type	COG	Communication interface	RGB
Operating Voltage	3.3V	Interface Type	50PIN
Viewing Direction	IPS full viewing angle	Display Color	TFT
Driver IC		Operating Temperature	-20℃ --70℃
Storage Temperature	-30℃ --80℃	Production capacity	Self-produced
Whether to bring PCB	NO	Connection Method	FPC

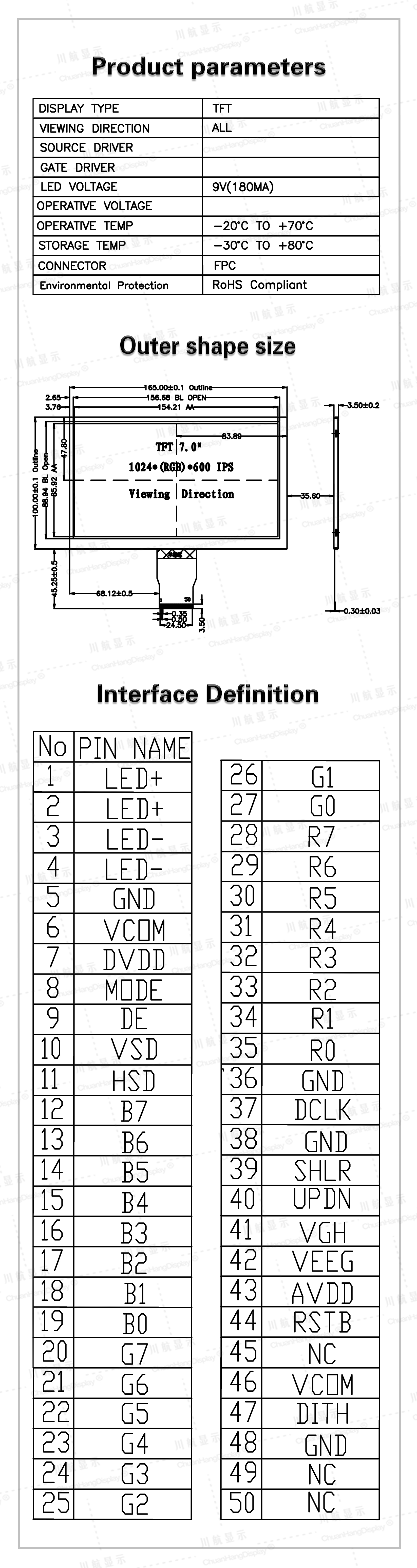

Product Datasheet

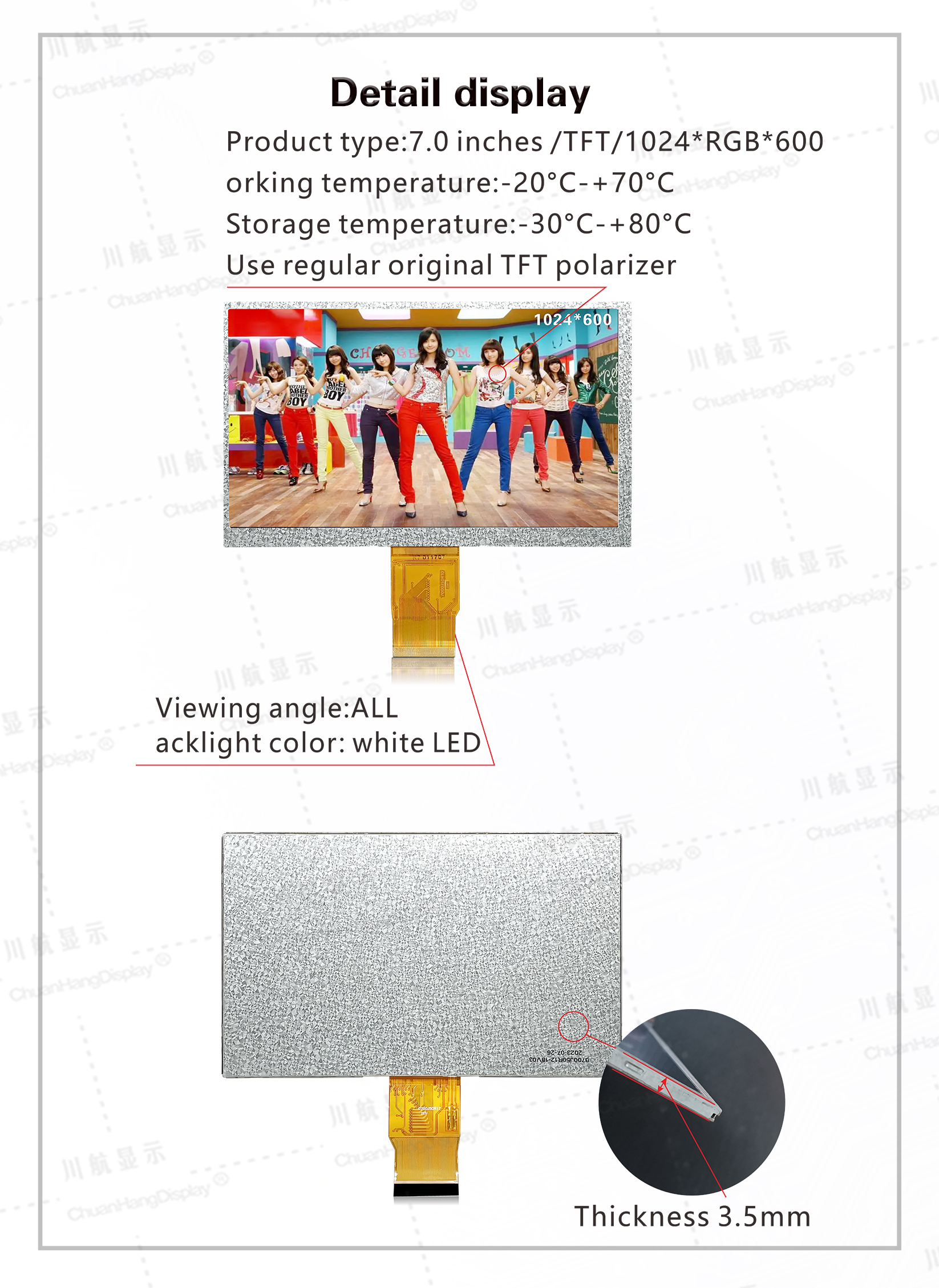

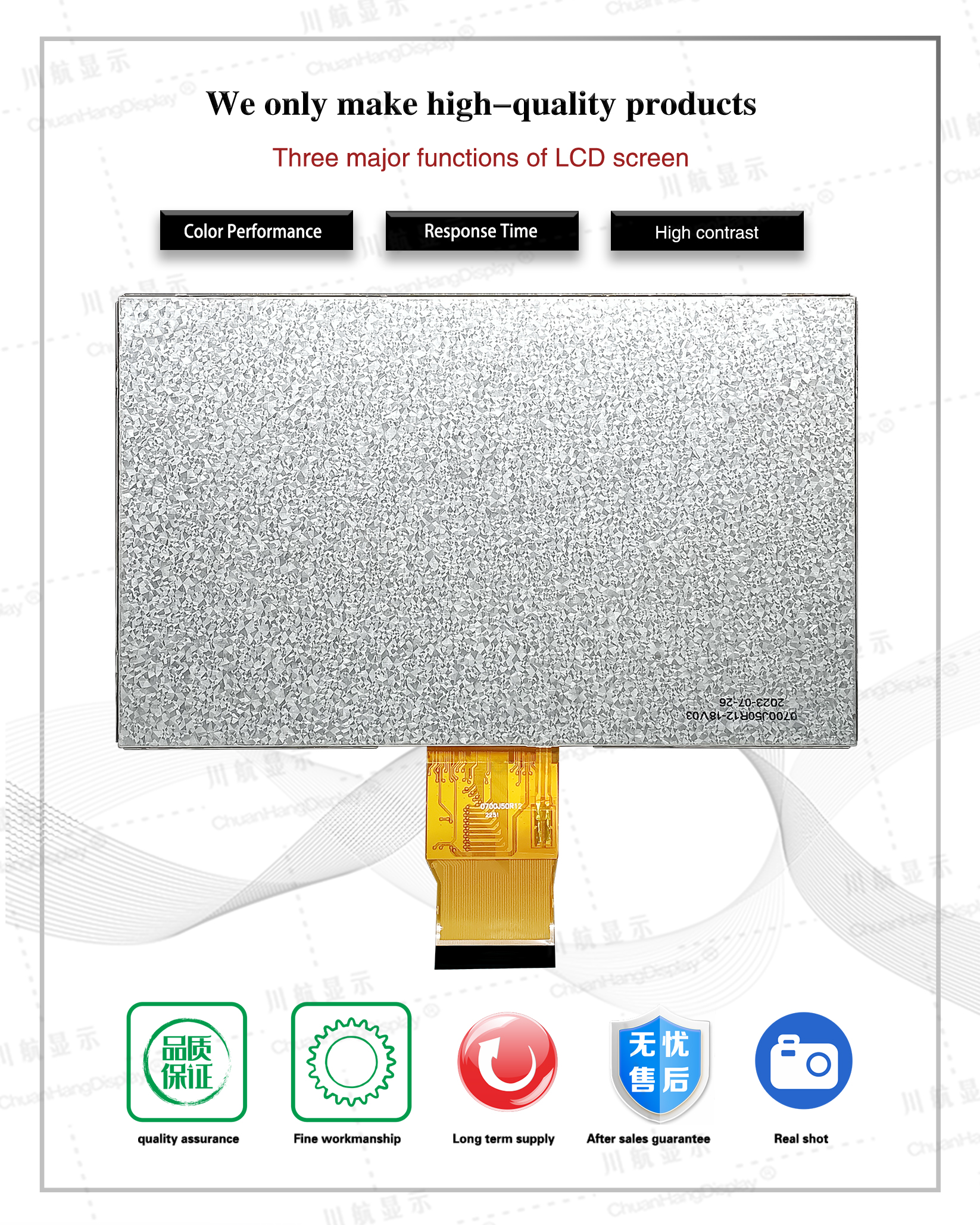

Product Display

Shenzhen ChuanHang Electronic Technology Co., Ltd.

PRODUCTS CENTER

7 inch TFT LCD 1024x600

With Capacitive Touch 5 inch

New Original 7 Inch Display

Product Label: Factory Supply 7 inch TFT LCD 1024x600 IPS Display Full Viewing Angle RGB Interface 7 inch TFT LCD TFT LCD 1024x600
