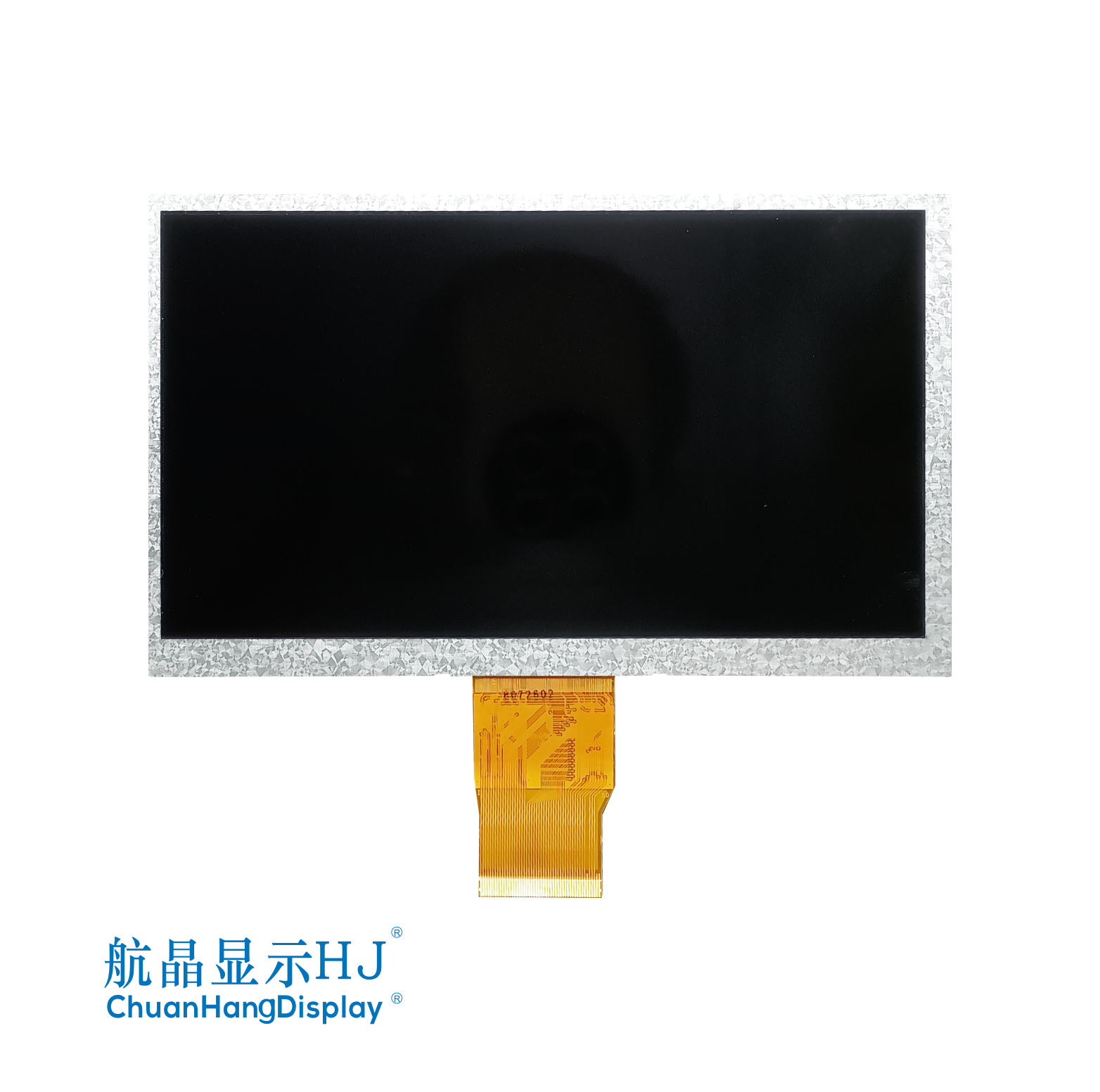

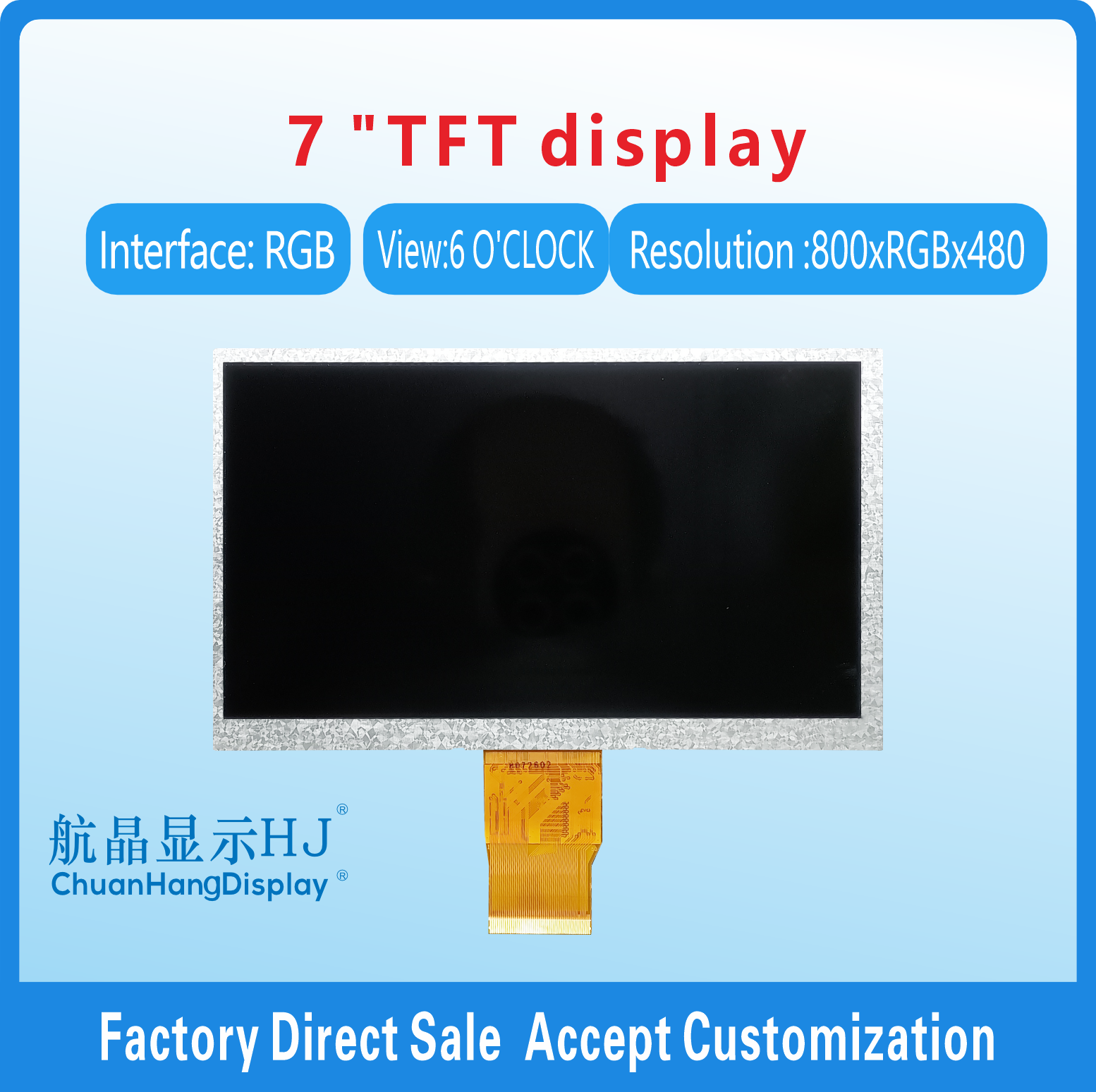

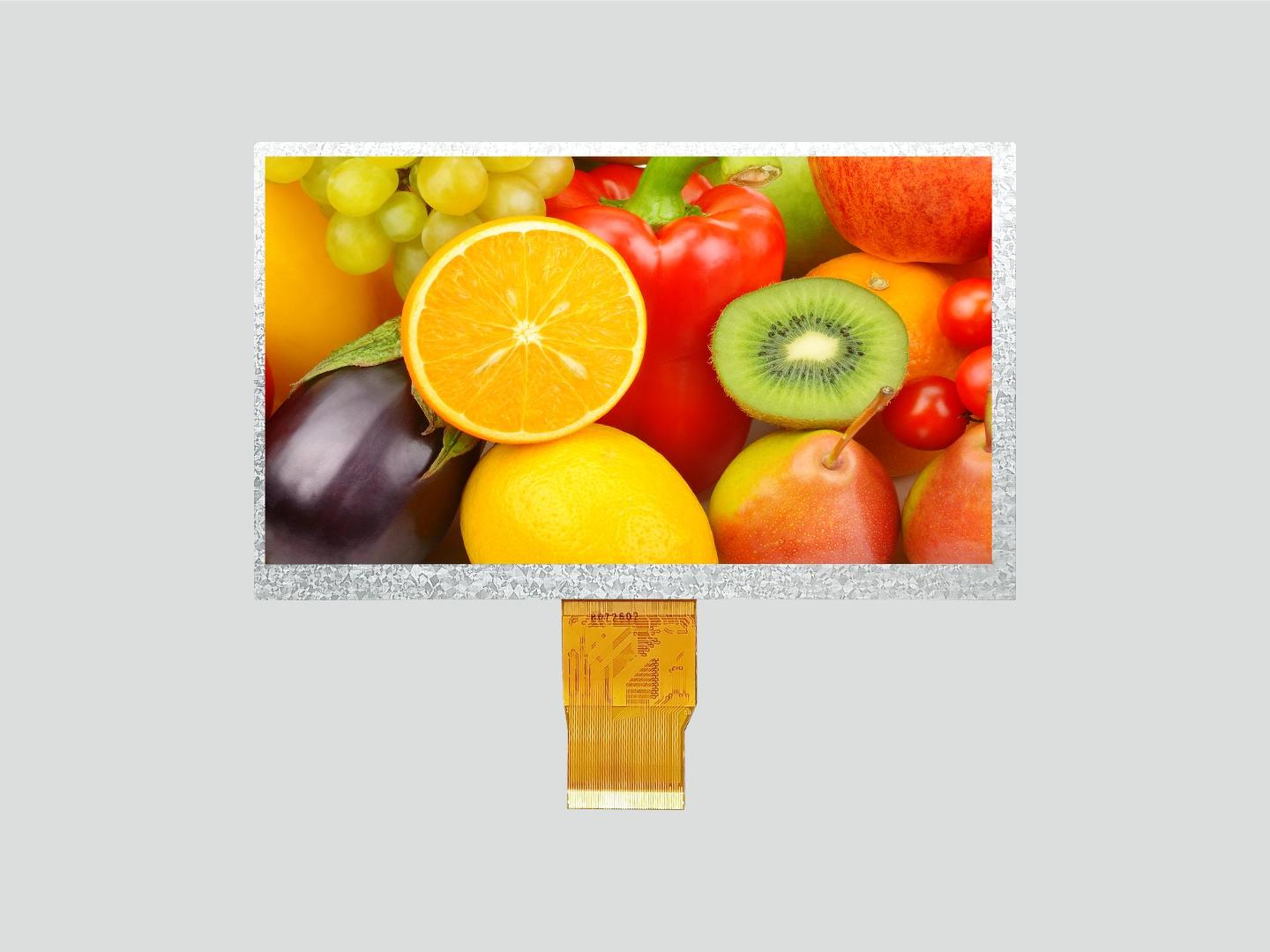

New Original 7 Inch Display

Product Description
Product size: 7.0 inches
Resolution: 800xRGBx480
Viewing angle: 6 o'clock
Interface type:RGB
Module size: 165.00X100.00X3.5mm
Active area: 153.84.00X85.632mm
Cable interface: 50 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT
PDF Download Demo code
Video Presentation
Product Parameters

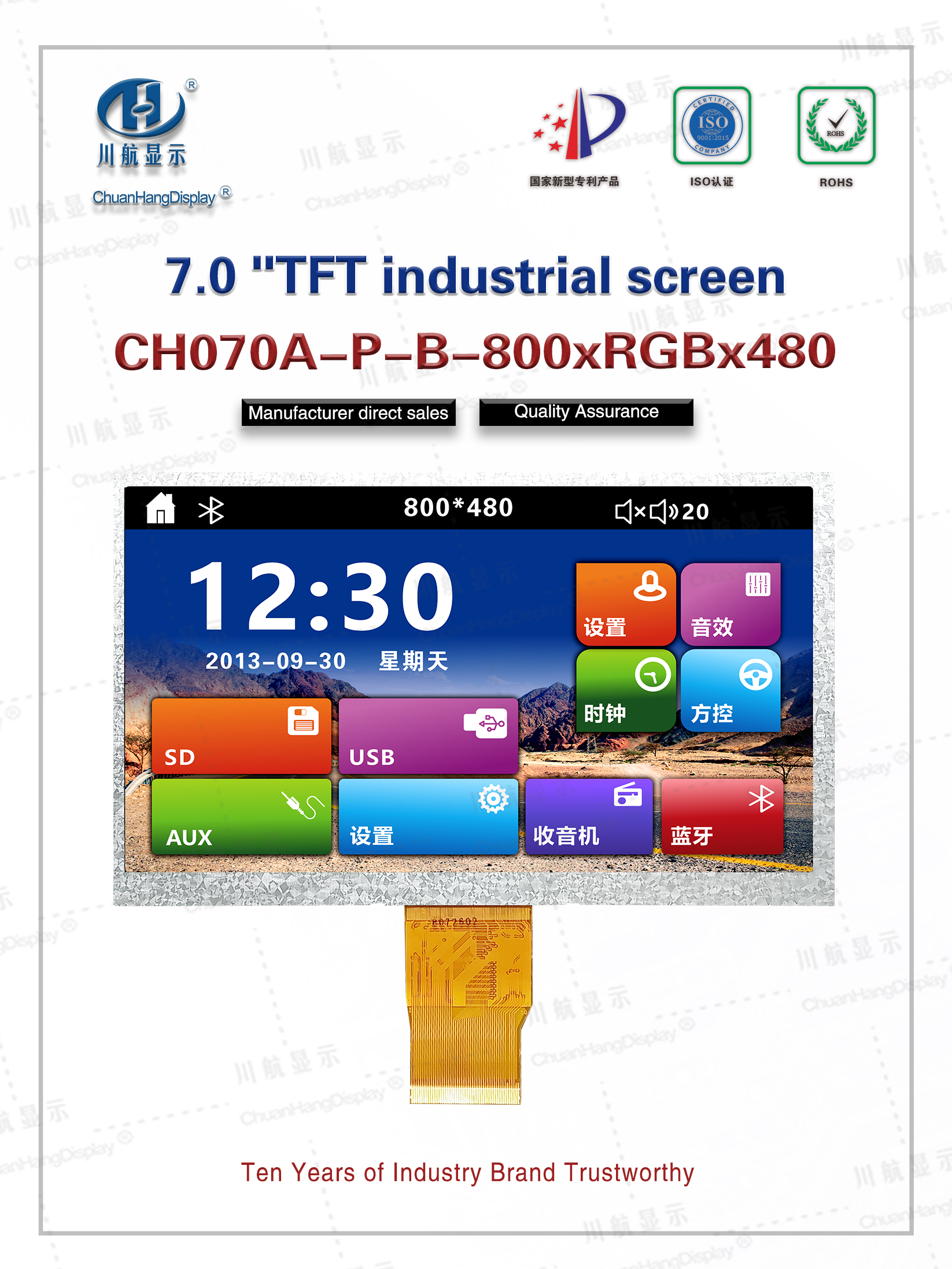

Product Brand ChuanHangDisplay Product Model CH070A-P-B
Resolution 800xRGBx480 Screen size 7.0”
Outline Dimension(L*W*H) 165.00X100.00X3.5mm Active Area(L*W) 153.84.00X85.632mm
Type COG Communication interface RGB
Operating Voltage 3.3V Interface Type 50PIN
Viewing Direction 6 o'clock Display Color TFT
Driver IC Operating Temperature -20℃ --70℃
Storage Temperature -30℃ --80℃ Production capacity Self-produced
Whether to bring PCB NO Connection Method FPC

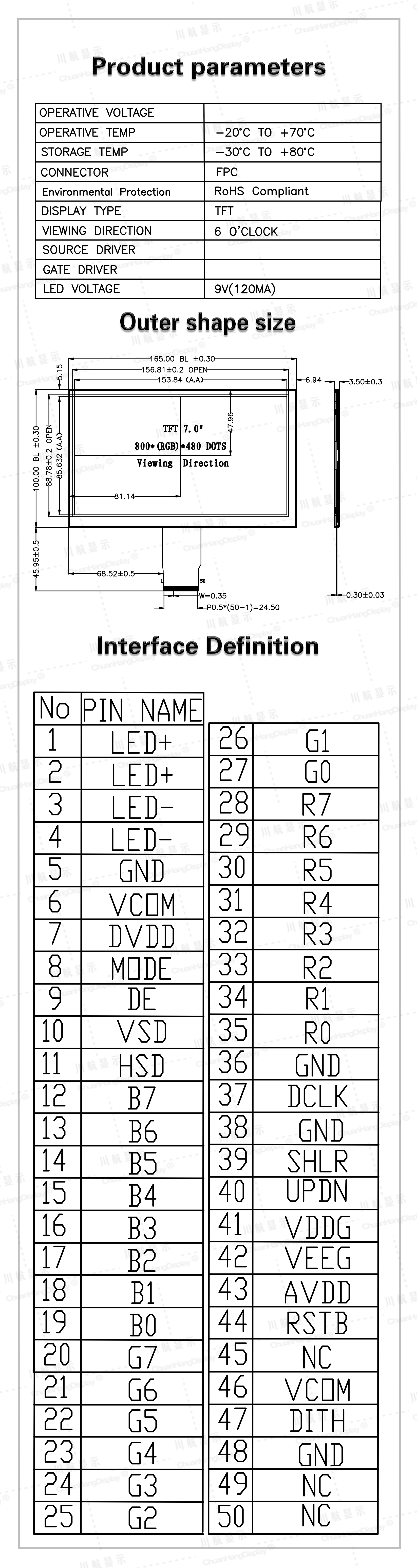

Product Datasheet

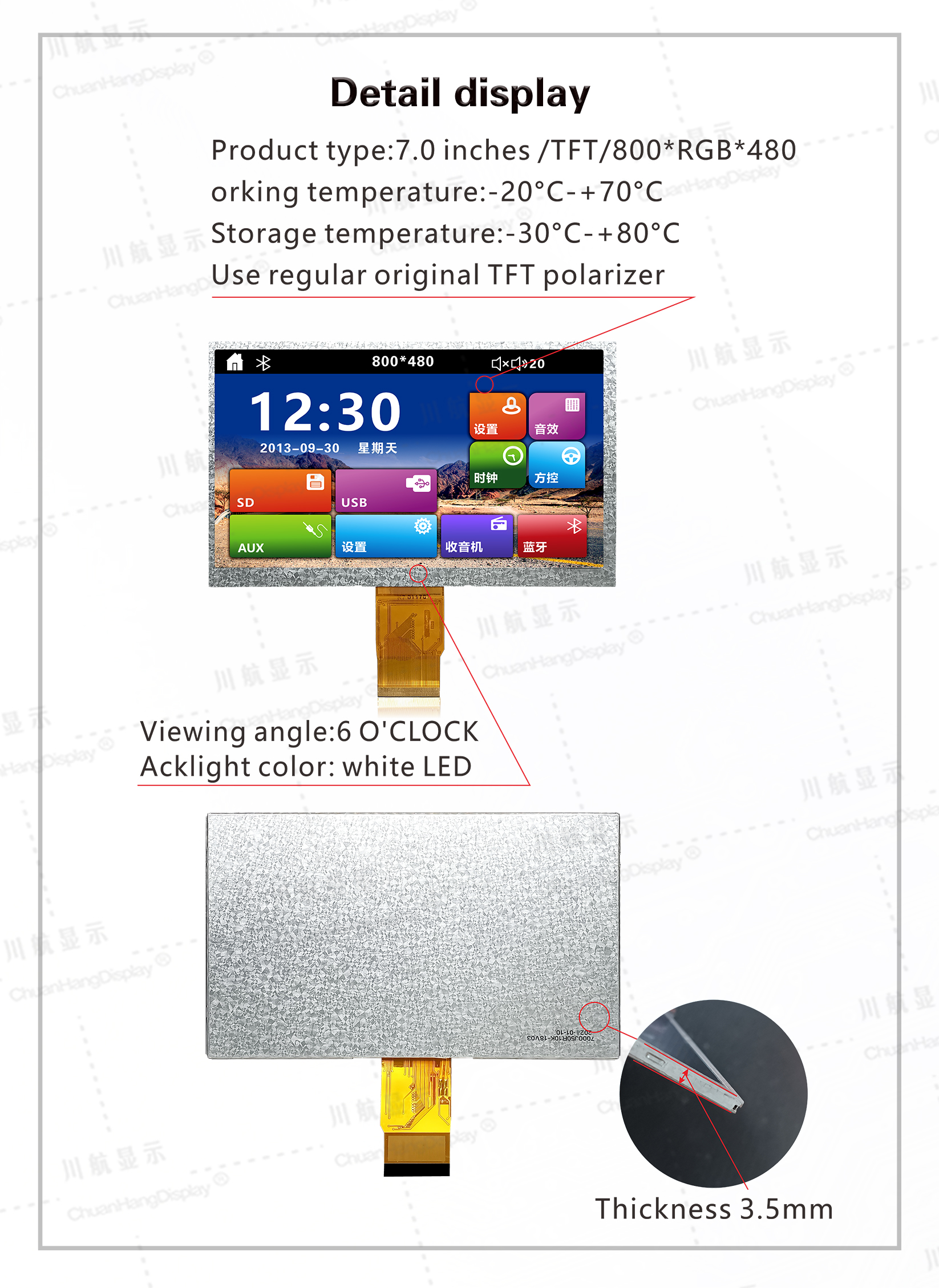

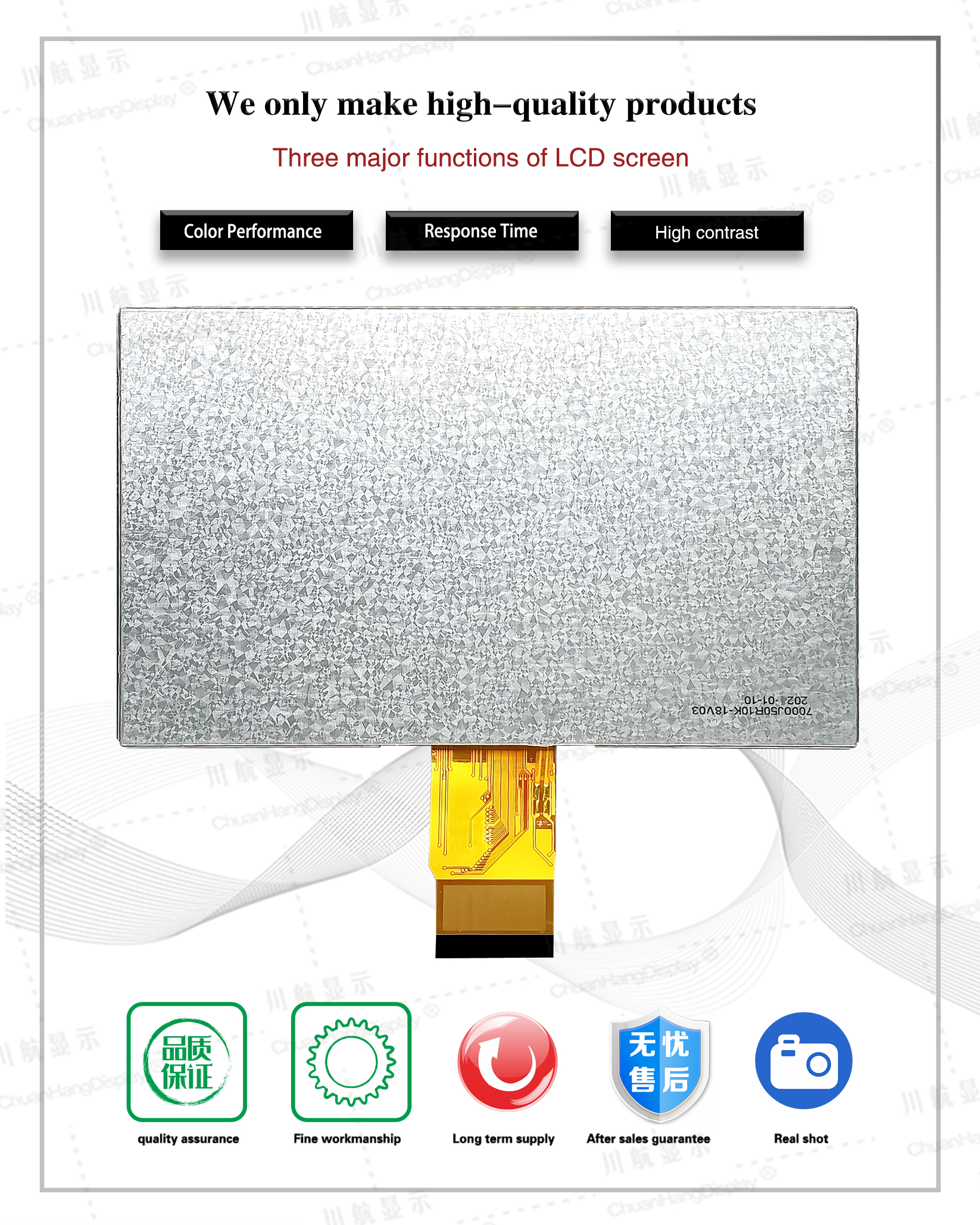

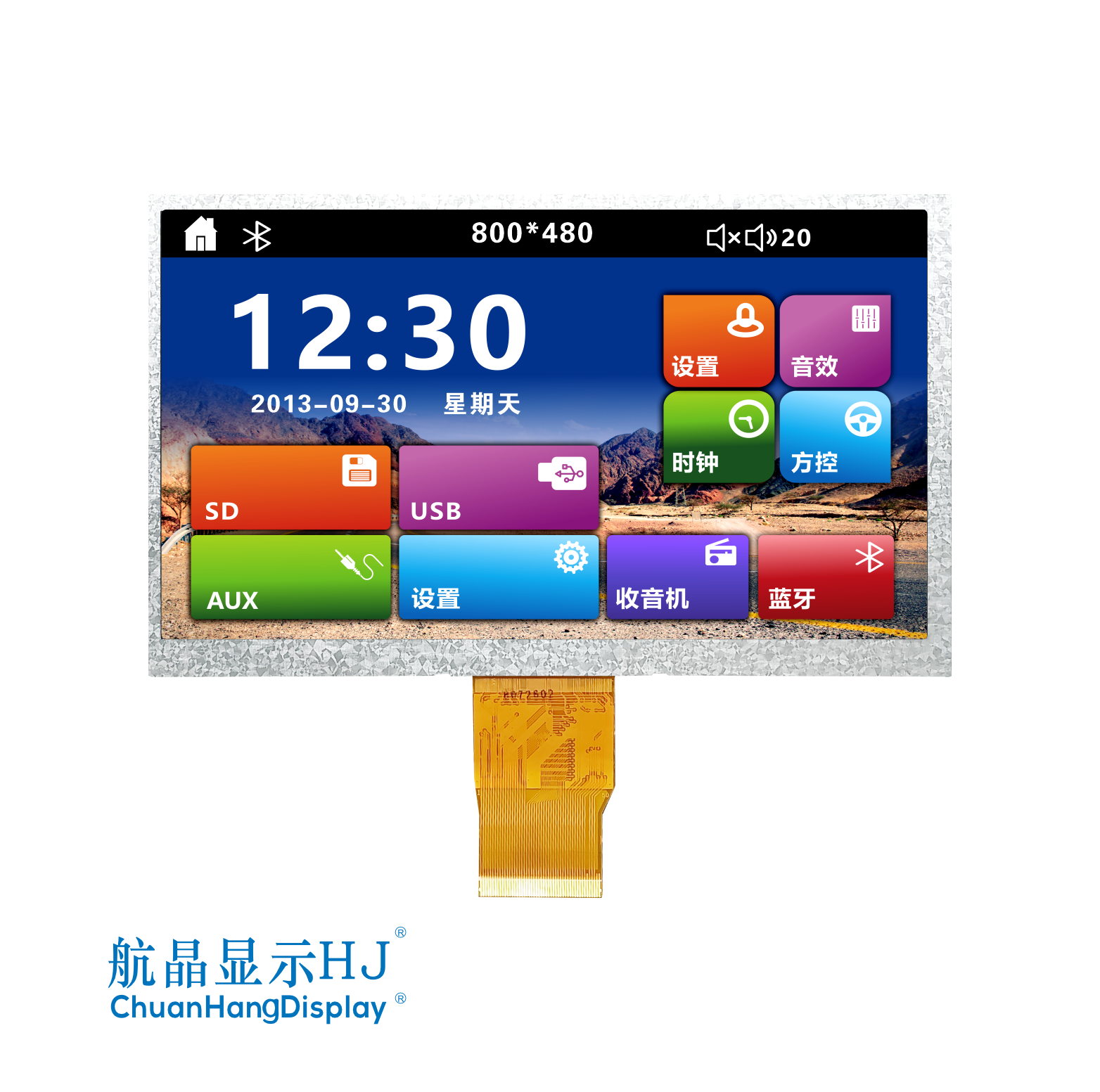

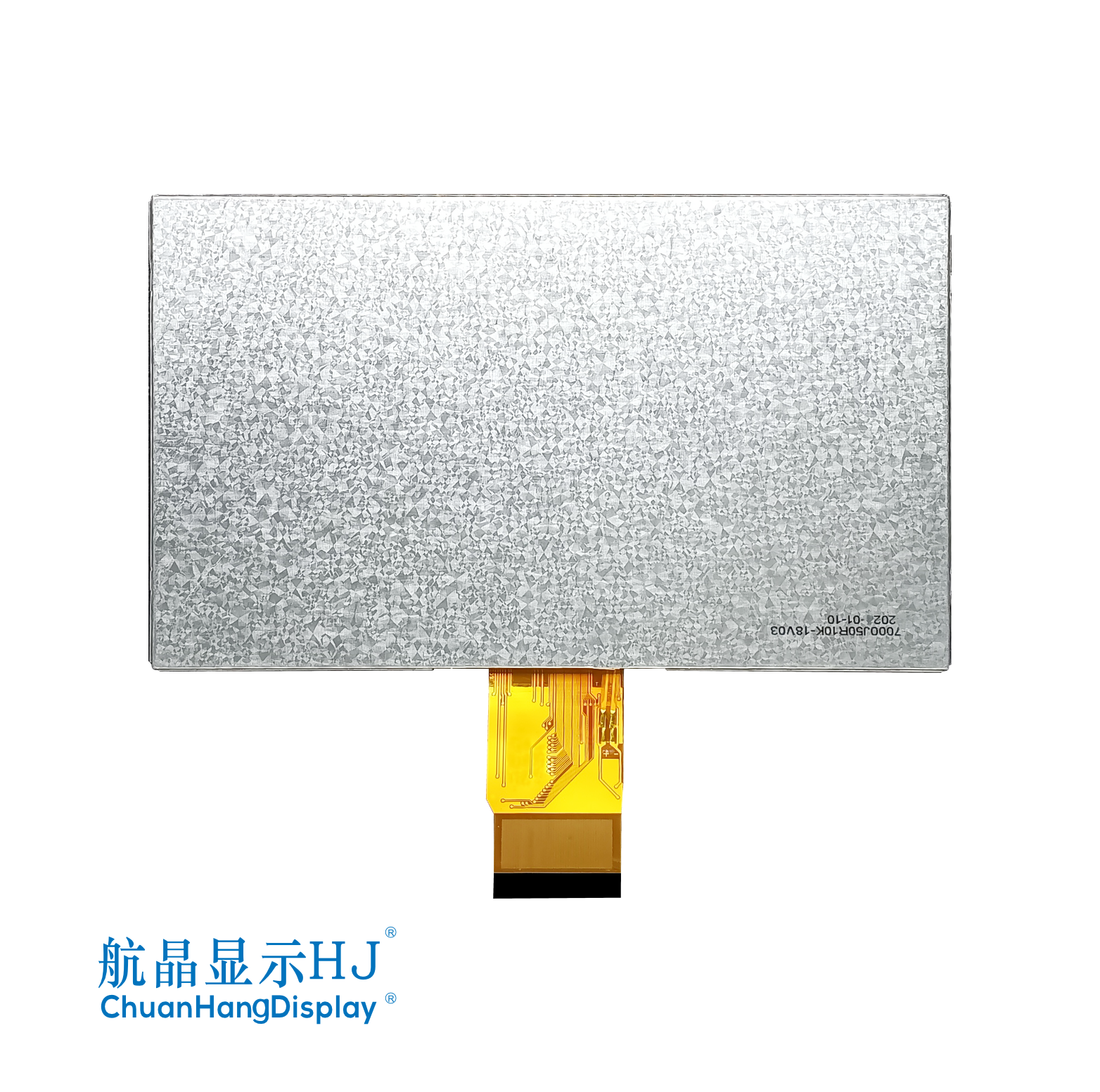

Product Display

Previous：

7 inch TFT LCD 1024x600

Next：

800x480 High Resolution

Product Label: New Original 7 Inch Display 7 Inch Display LCD 800*480 500nits HMI Screen RGB TFT Display Module
