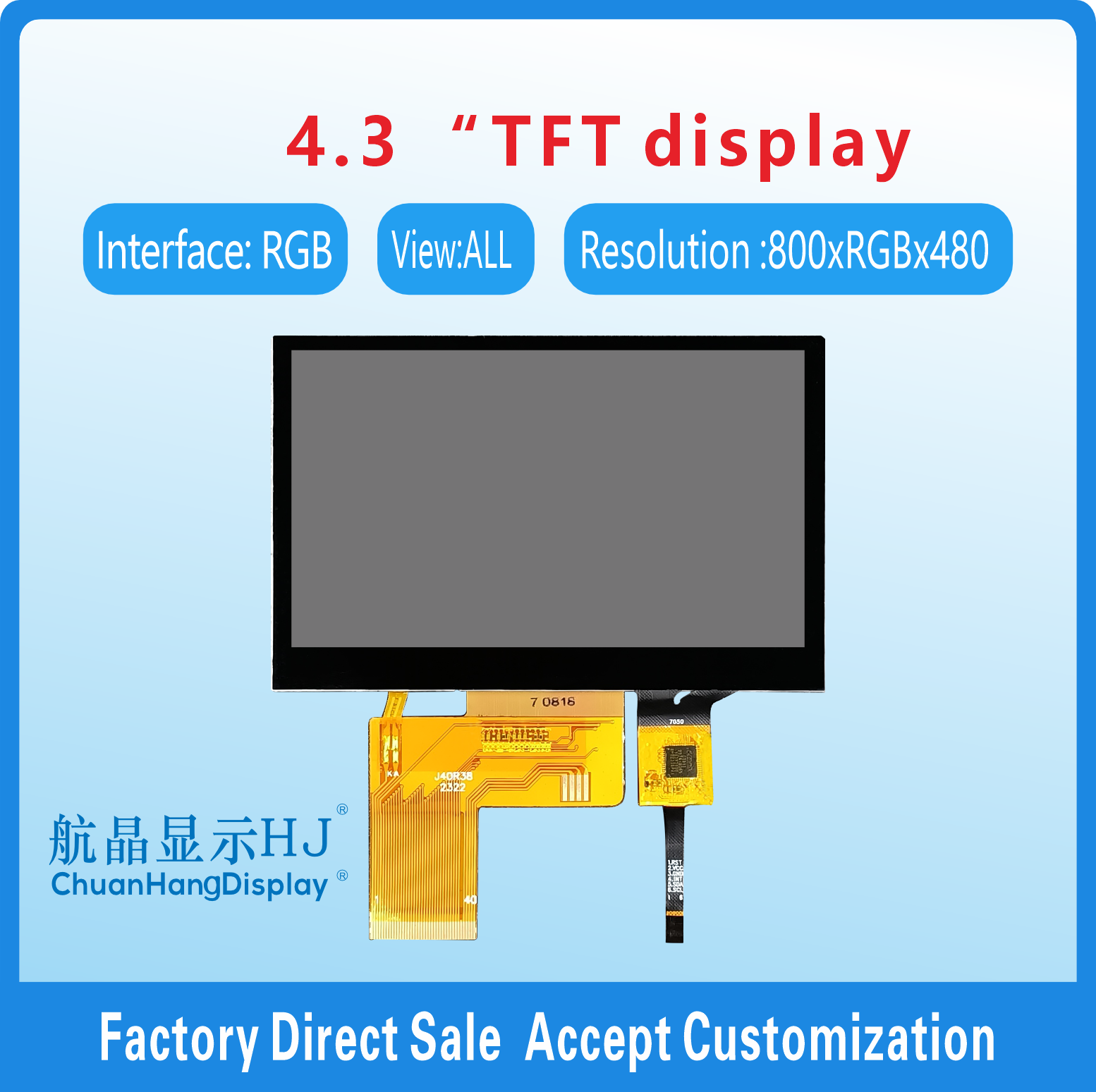

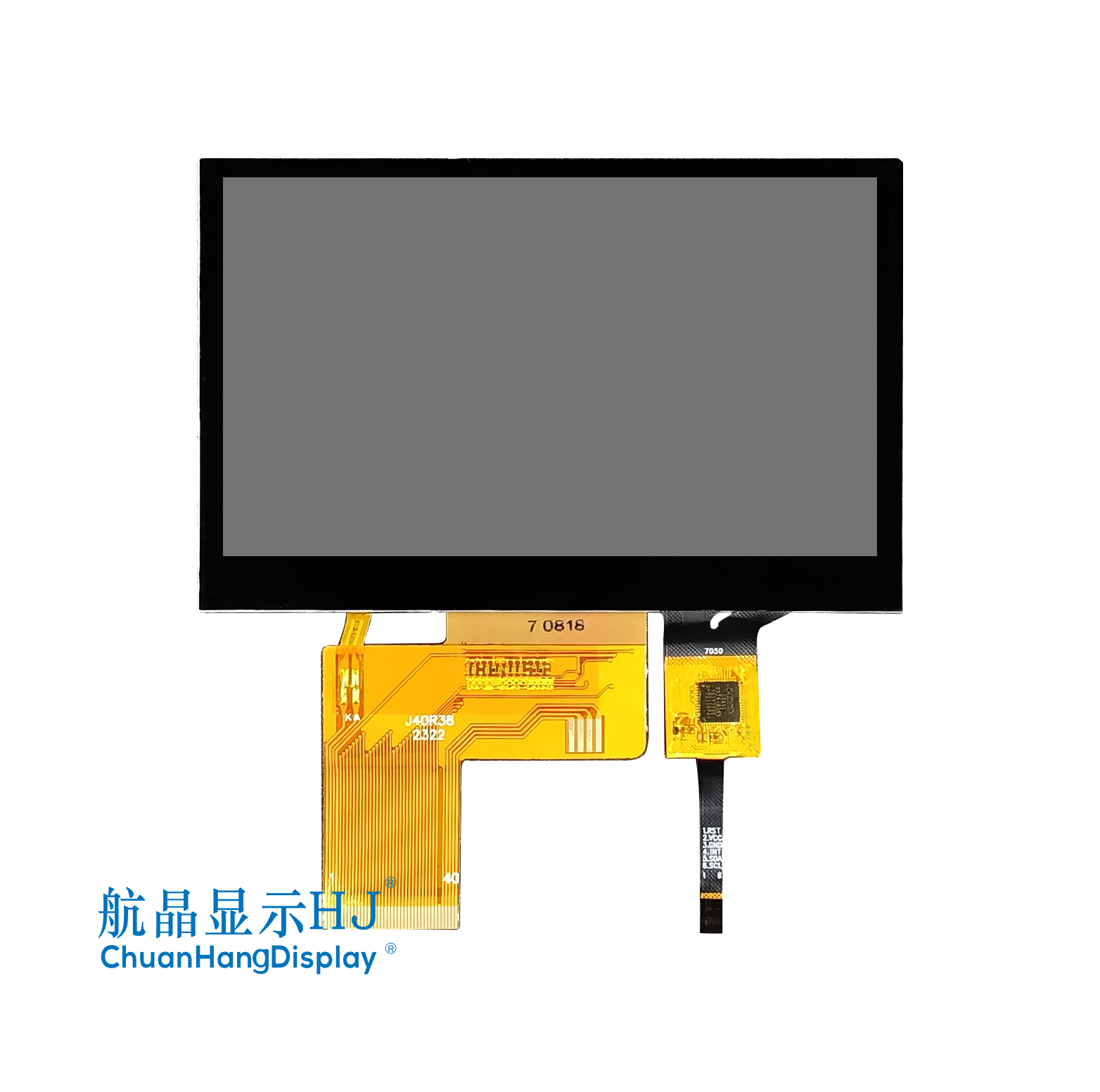

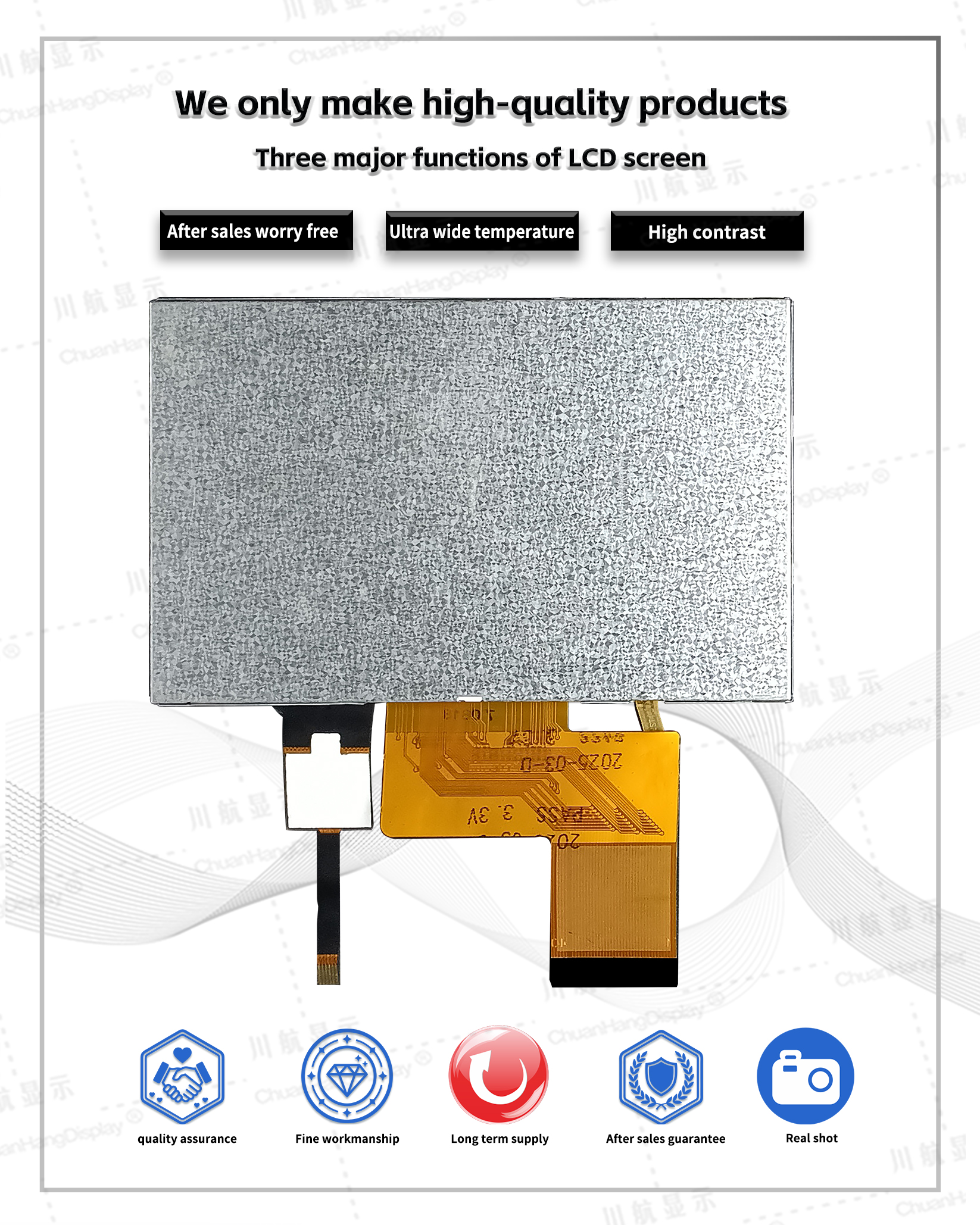

4.3"TFT capacitive touch

Product Description
Product size: 4.3 inches
Resolution: 800xRGBx480
Viewing angle: IPS full viewing angle
Driver chip: ST7262
Interface type: Parallel port 8-bit/16-bit
Module size: 104.9x66.5x2.5mm
Display area: 95.04x53.86 mm
Cable interface: 40 PIN
Operating voltage: 3.3V
Operating temperature: -20℃-70℃
Storage temperature: -30℃-80℃
Display color: TFT
Capacitive touch: GT911 chip
Video Presentation

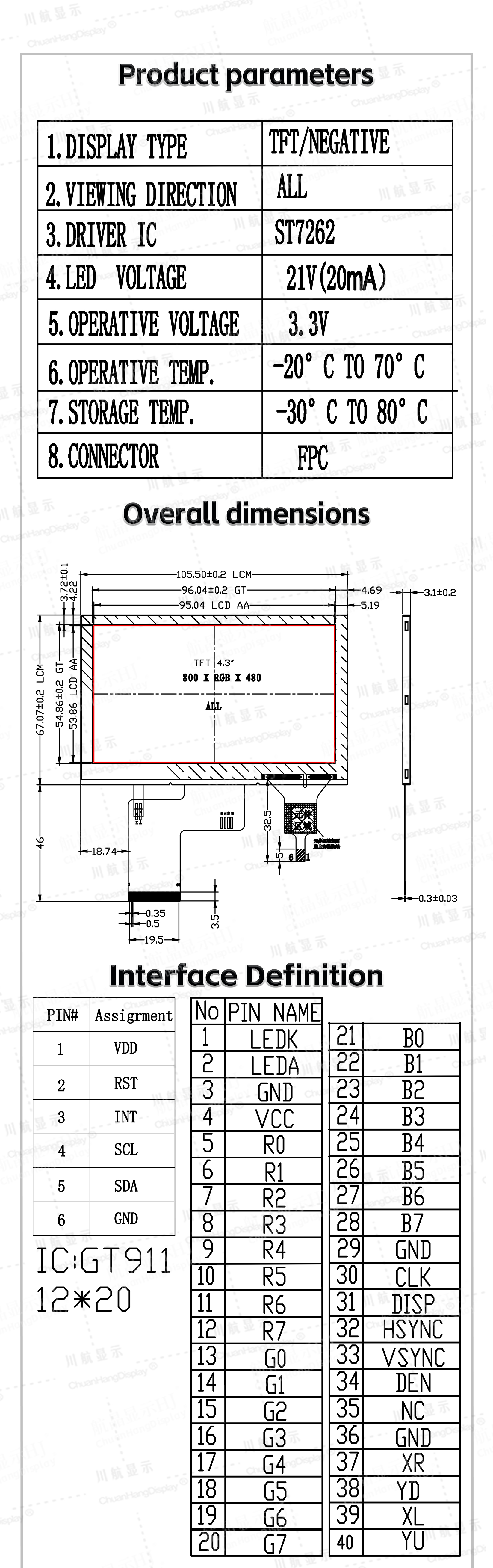

Product Parameters
Product Brand ChuanHangDisplay Product Model CH430ALL800*480GT
Resolution 800xRGBx480 Screen size 4.3”

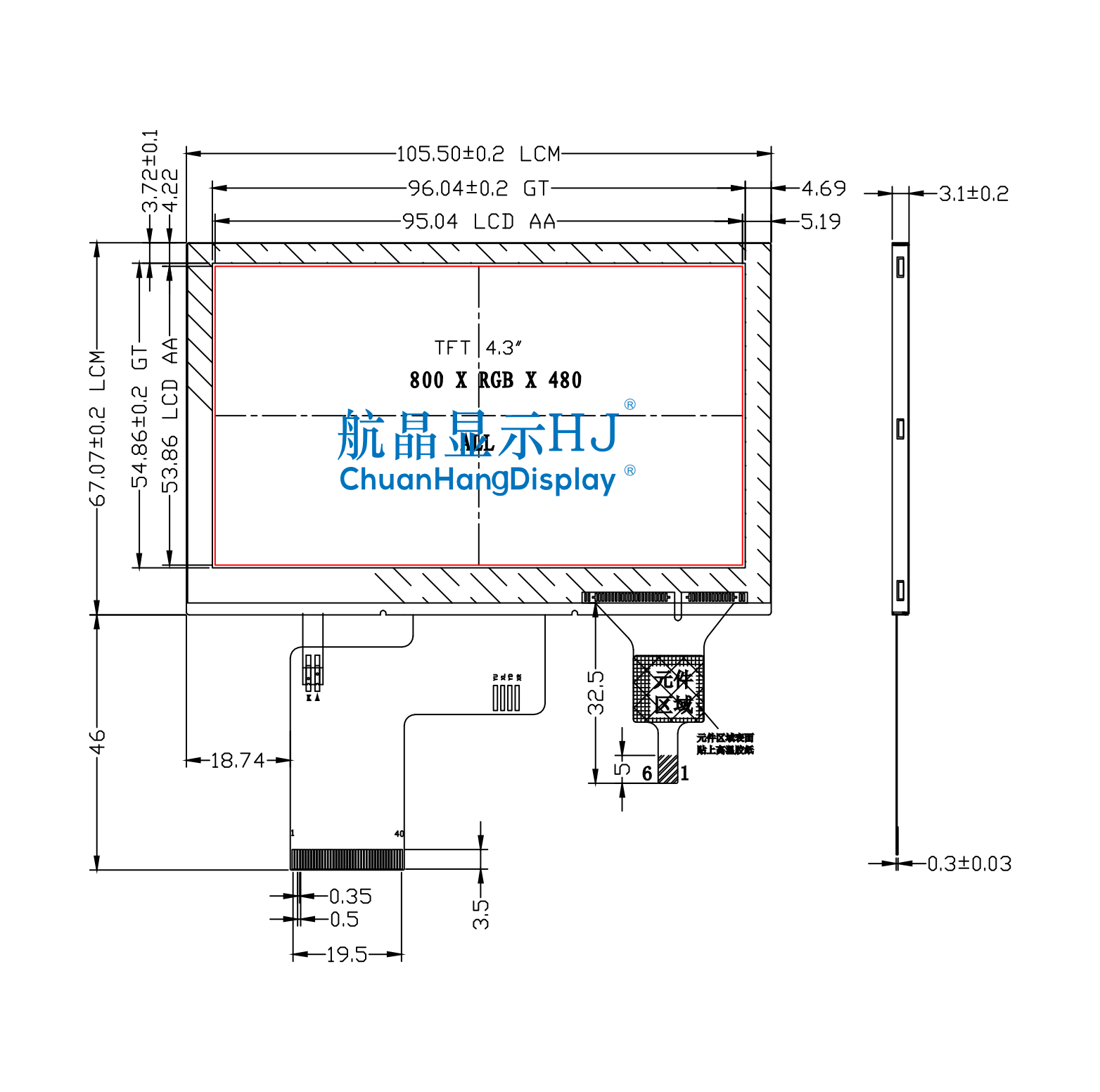

Outline Dimension(L*W*H) 105.50x67.07x3.1mm Visible Area(L*W)
Active Area(L*W) 95.04x53.86mm Type COG
Communication interface Parallel port 8-bit/16-bit Operating Voltage 3.3V
Interface Type 40PIN Viewing Direction IPS Full perspective
Capacitive touch chip GT911 chip Driver IC ST7262
Operating Temperature -20℃~70℃ Storage Temperature -30℃~80℃
Production capacity Self-produced Whether to bring PCB NO

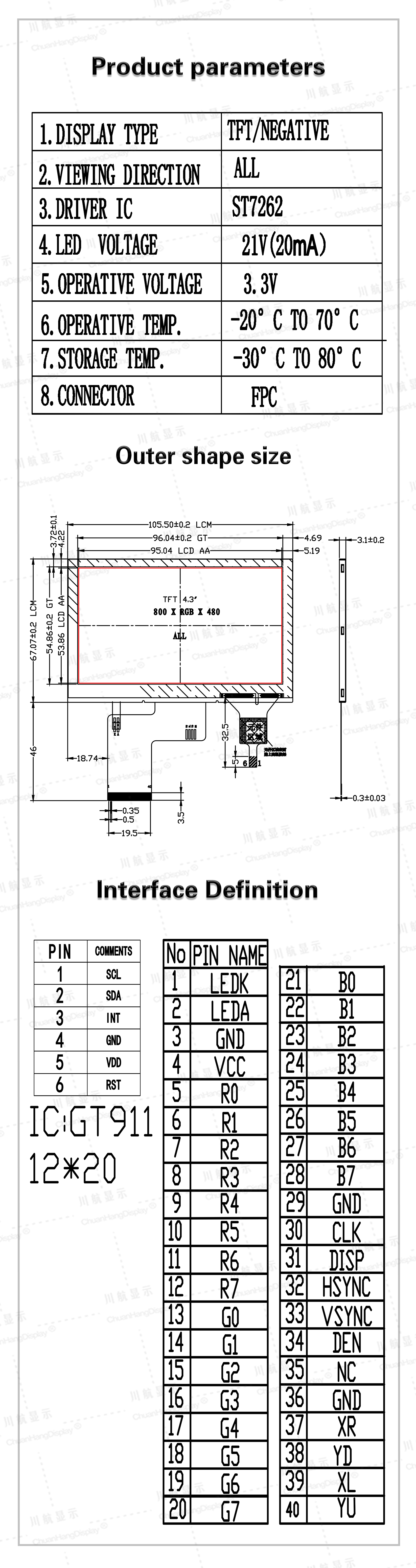

Product Datasheet

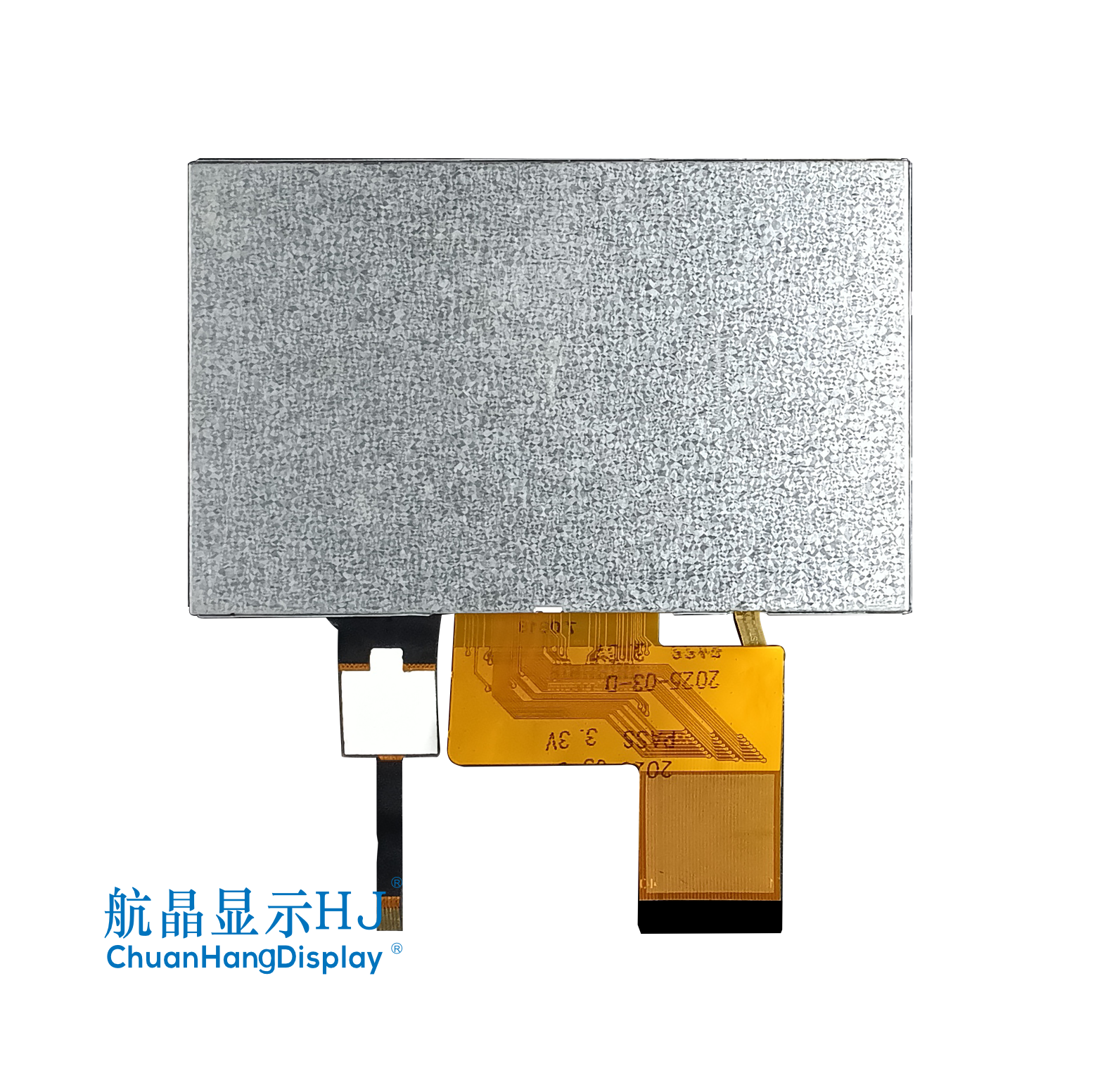

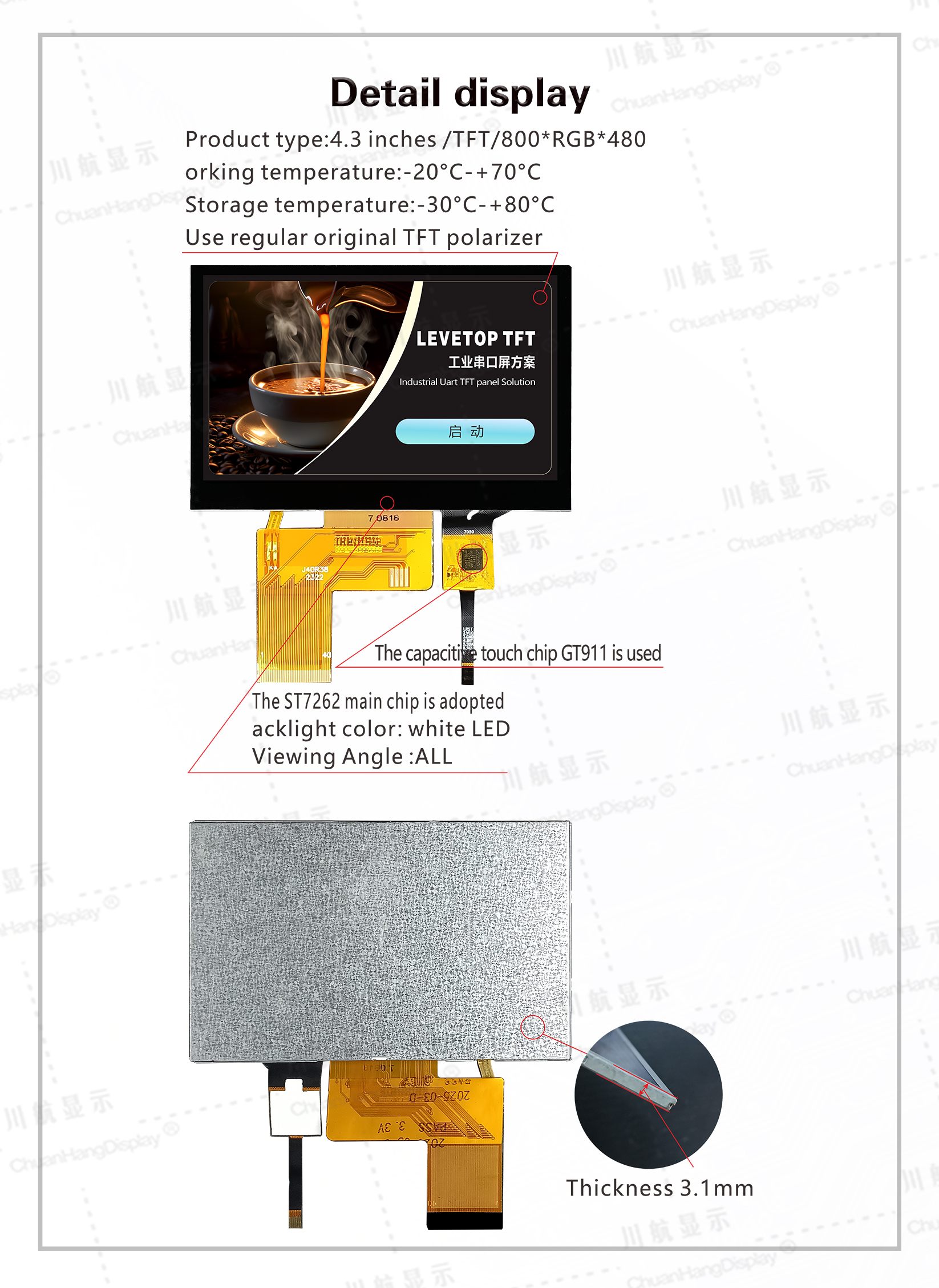

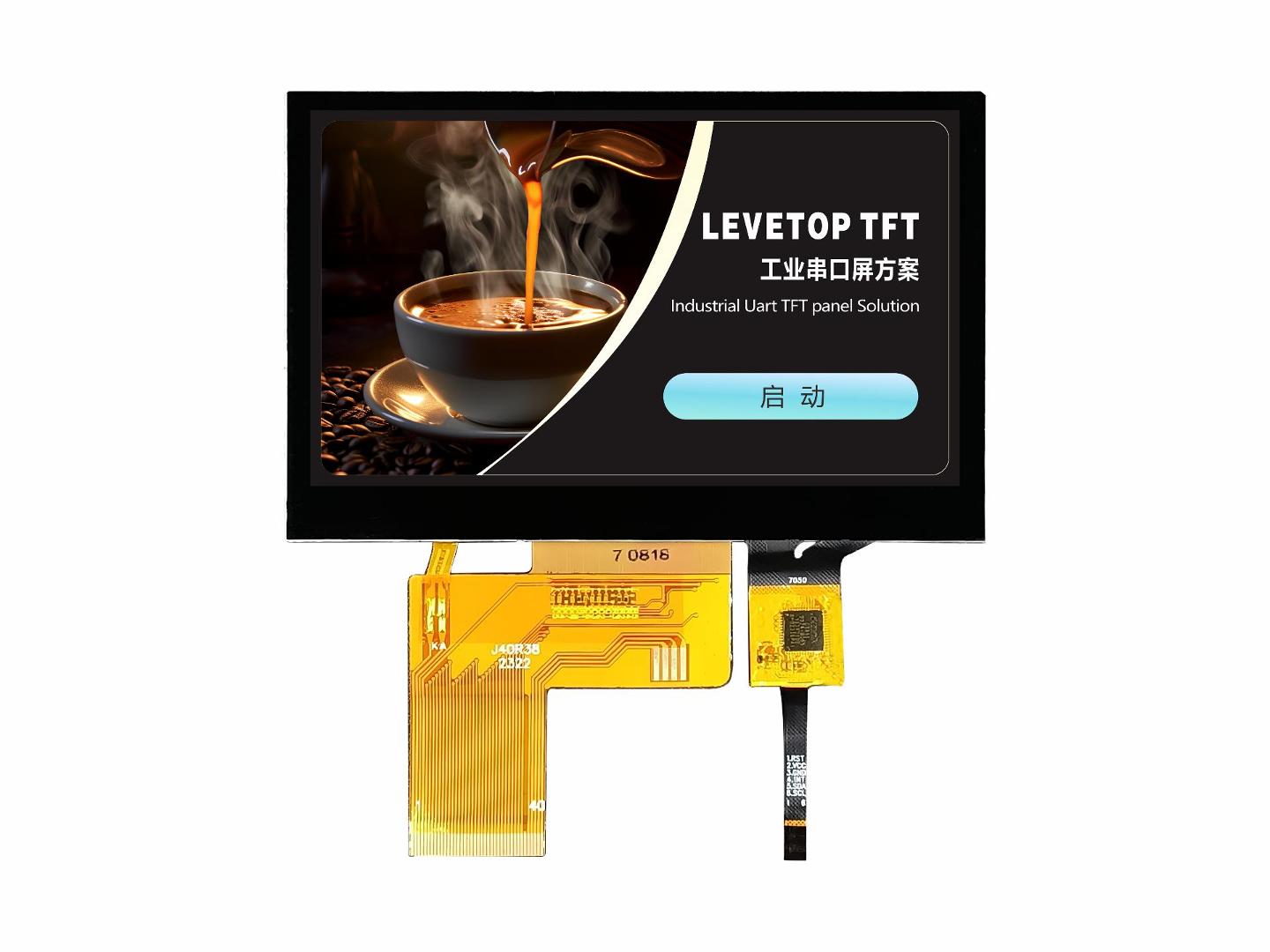

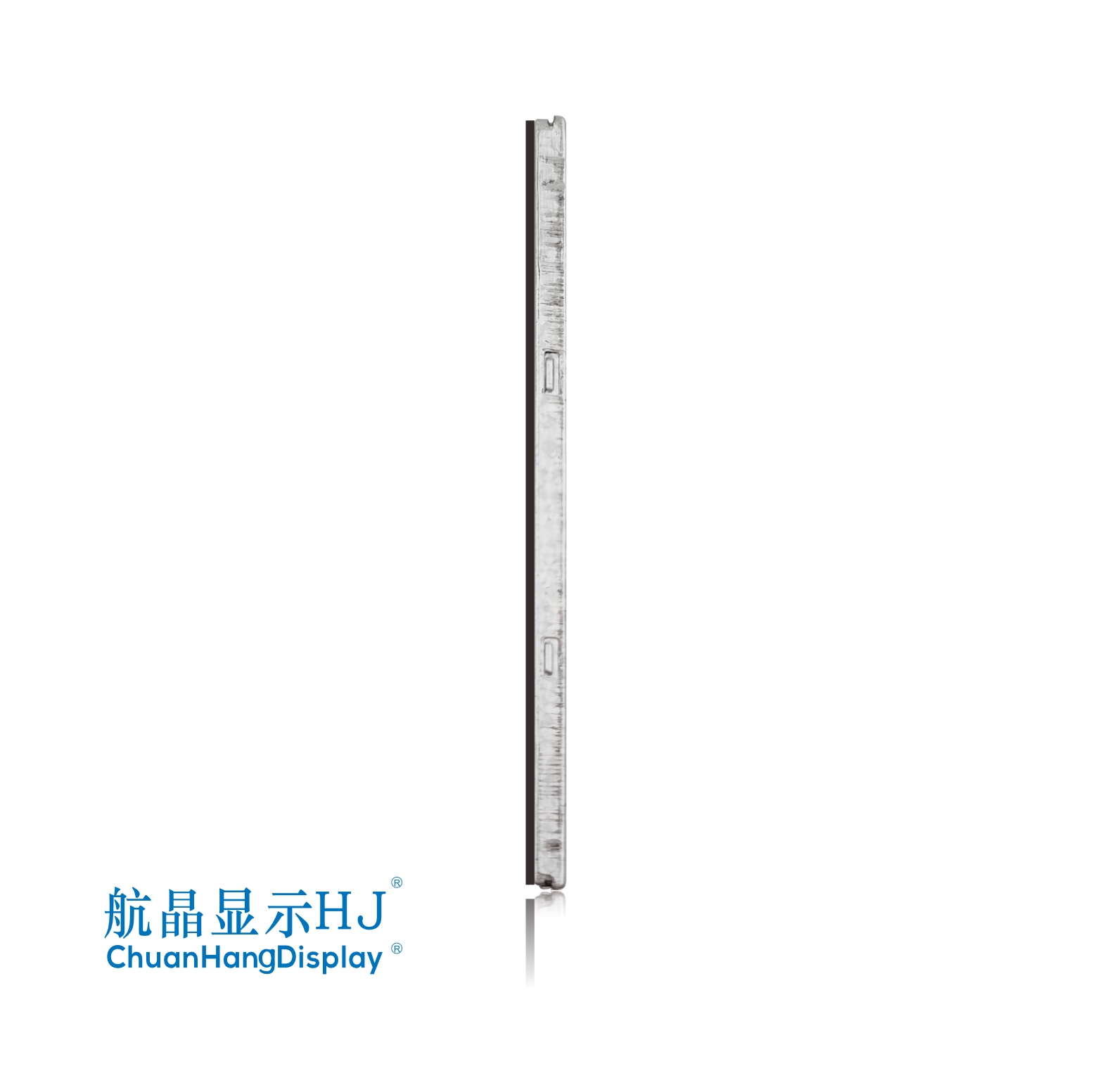

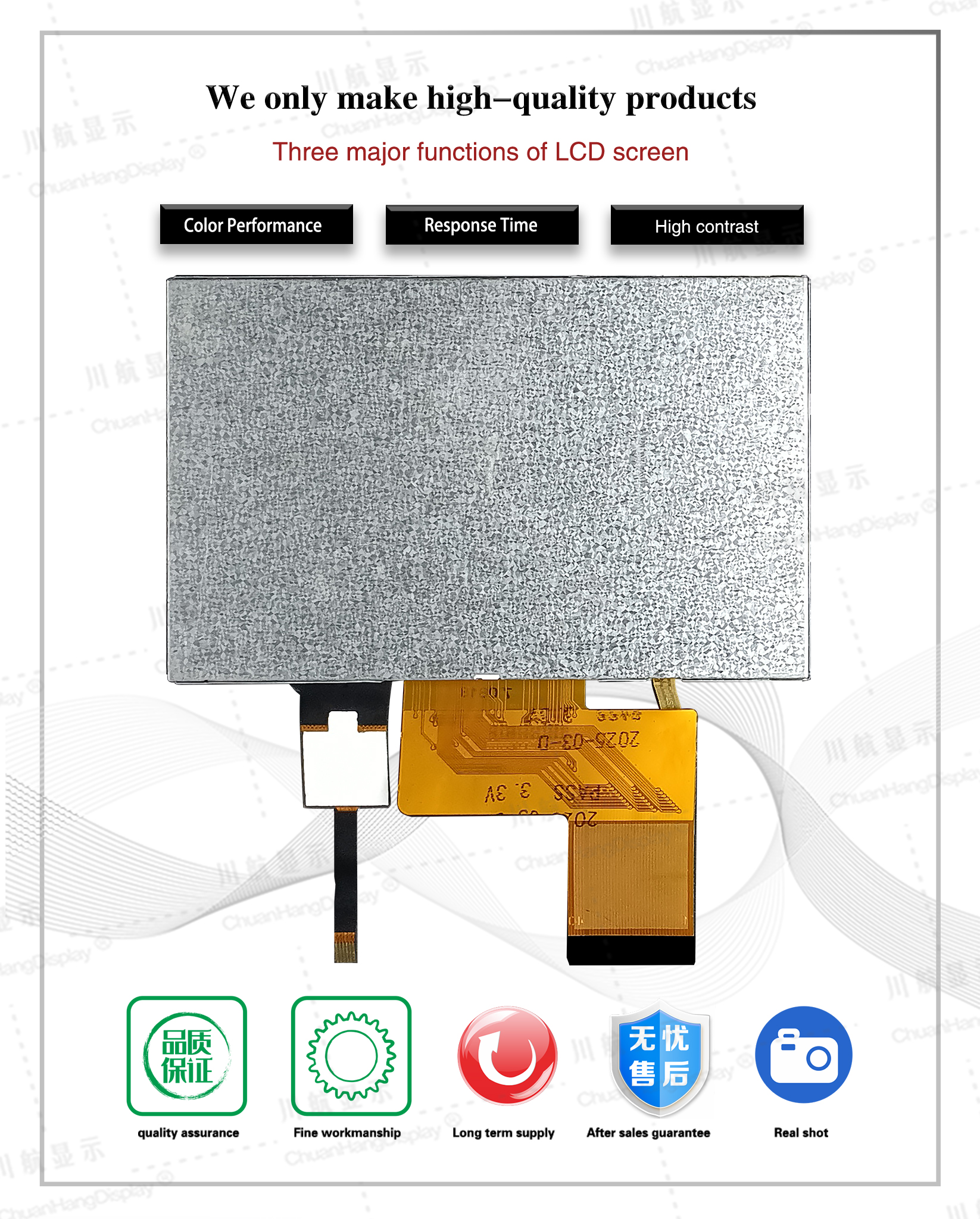

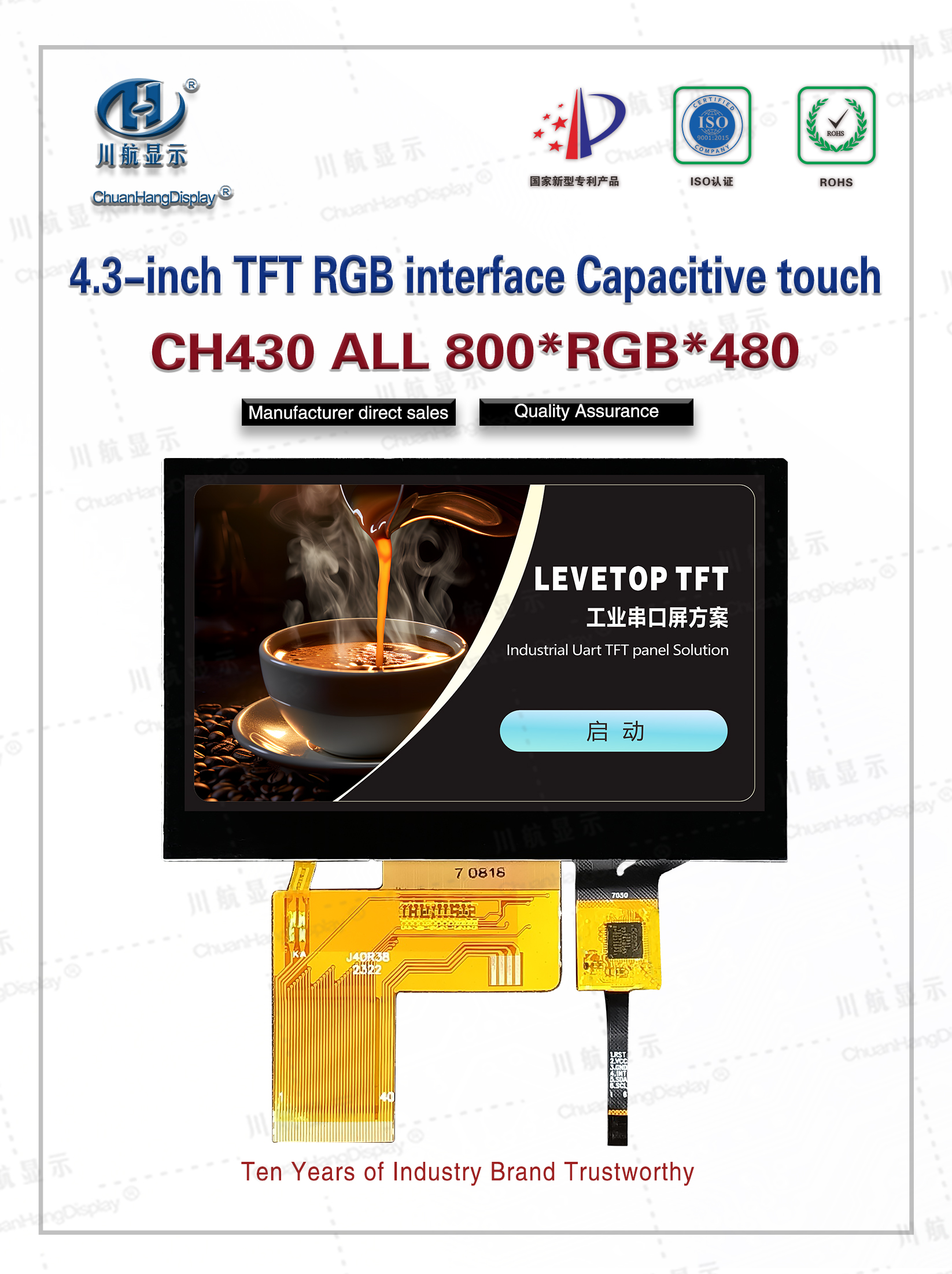

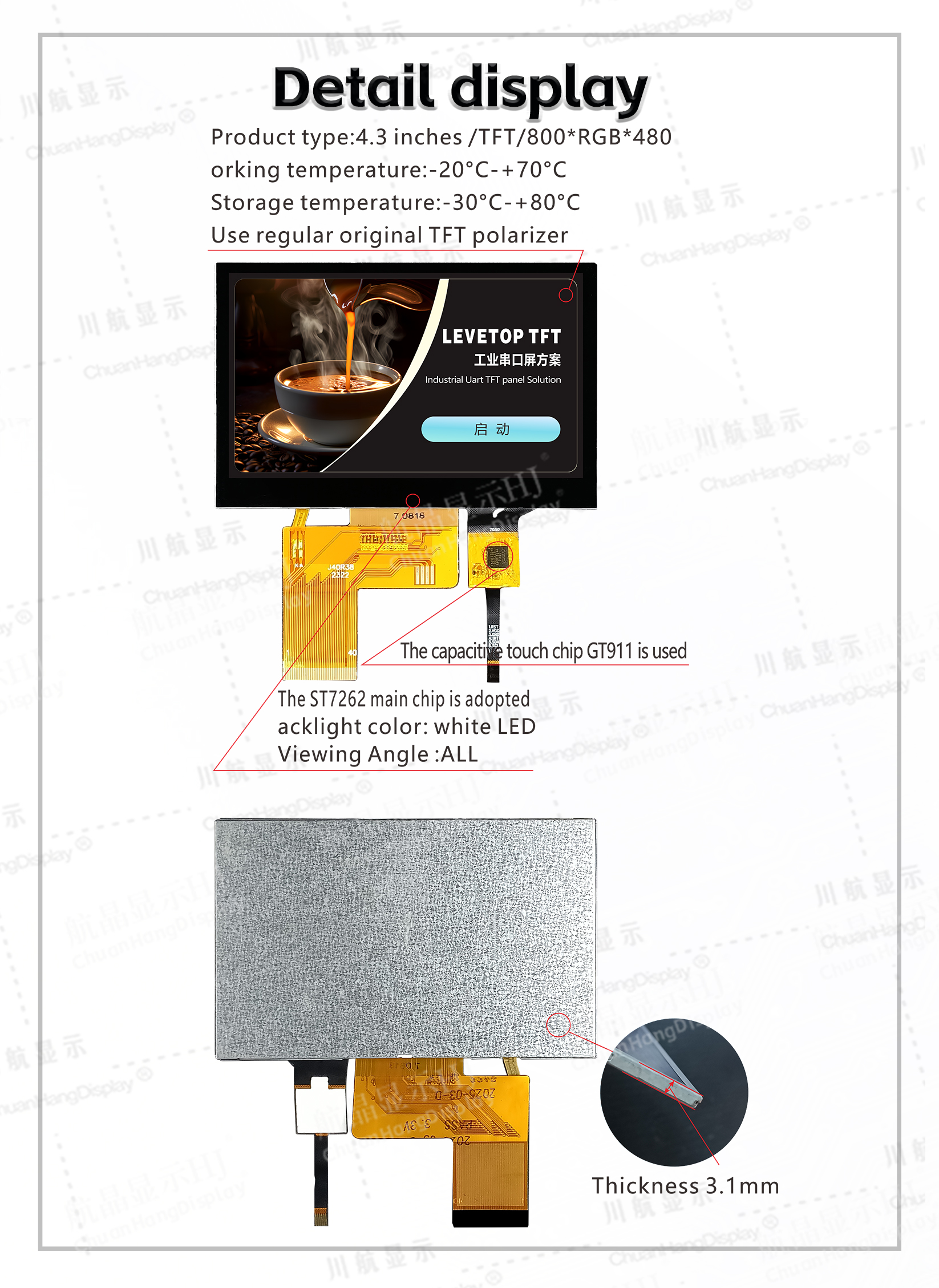

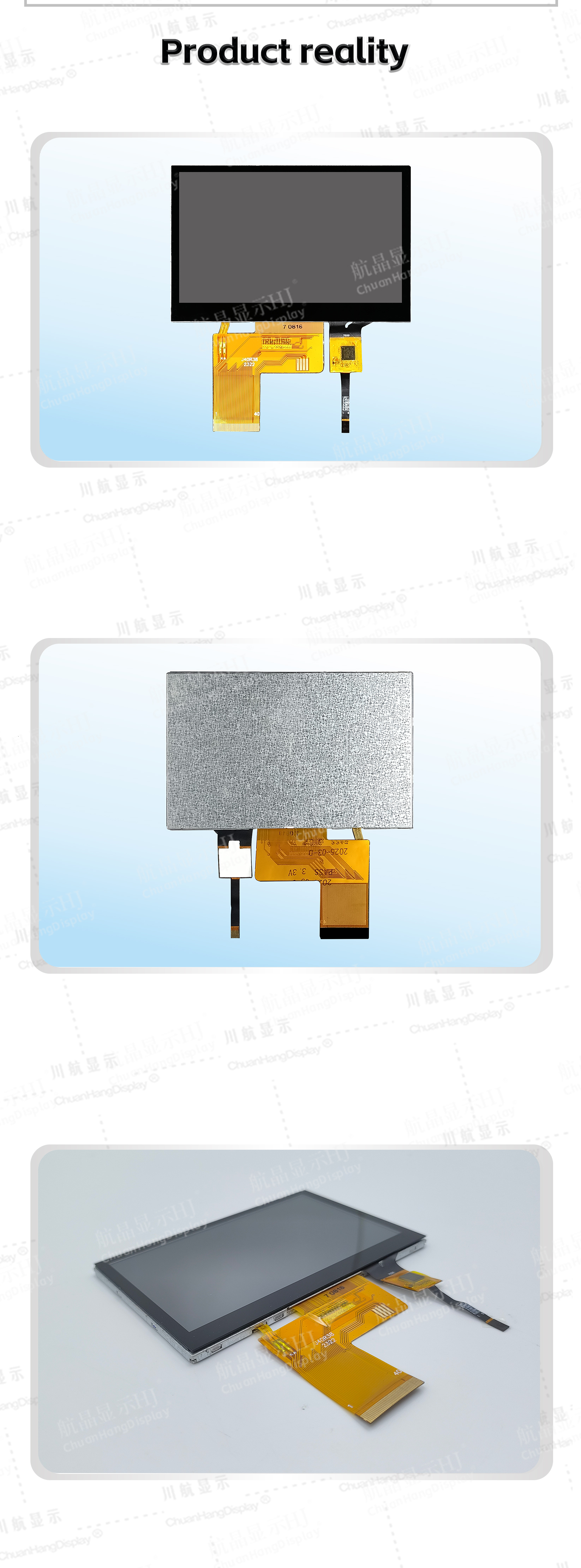

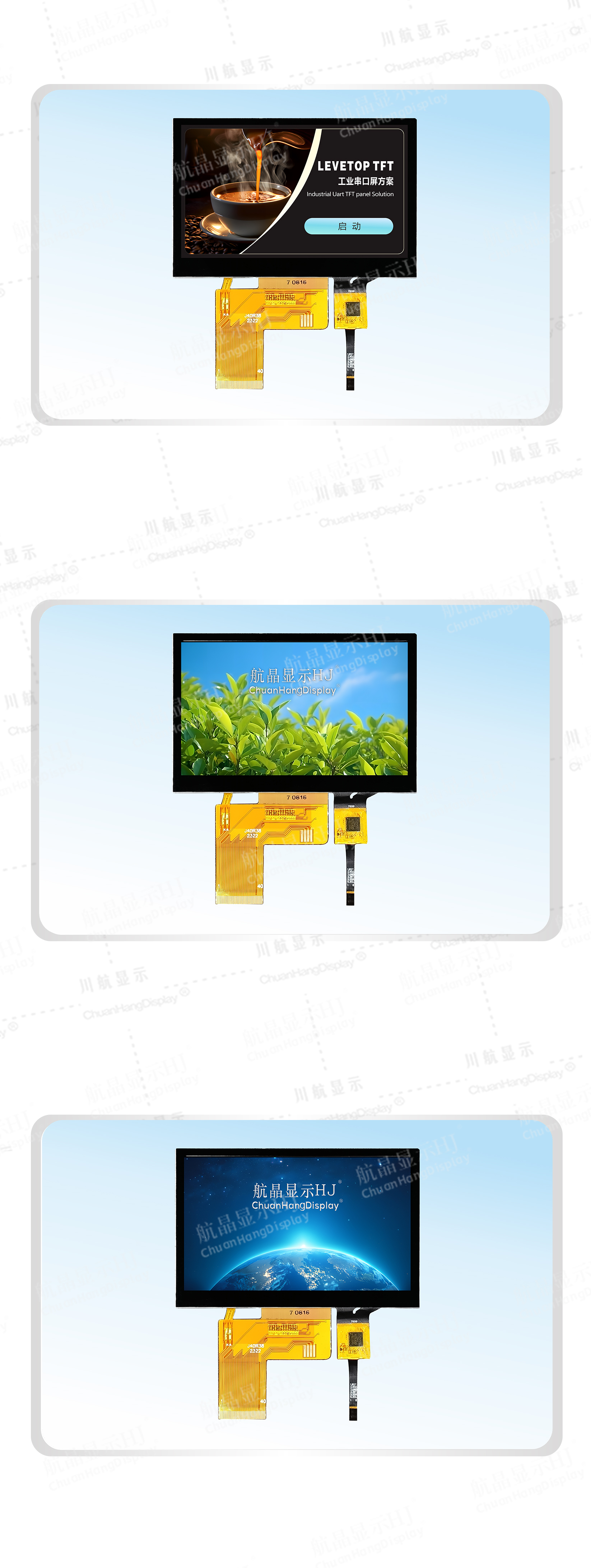

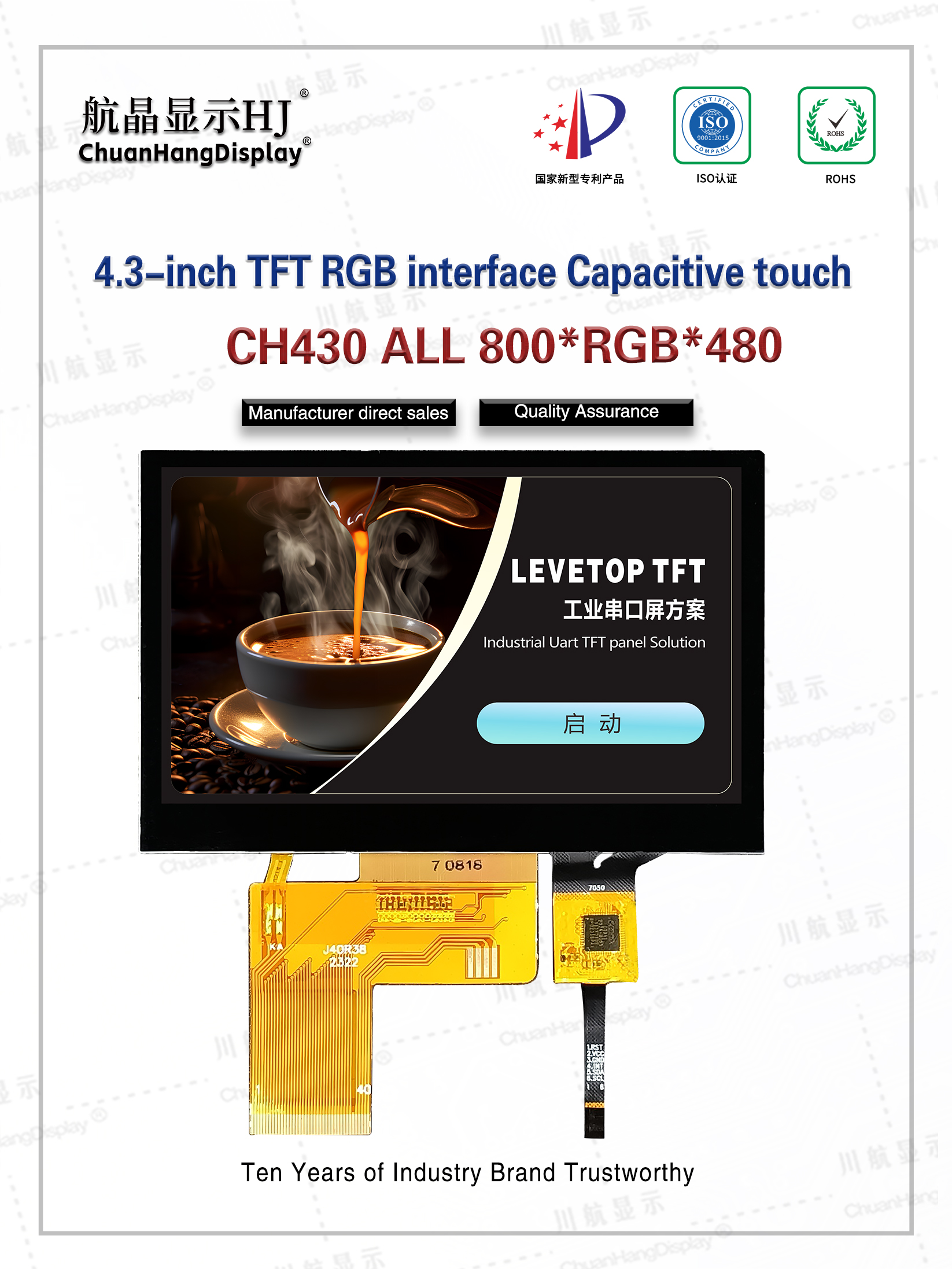

Product Display
