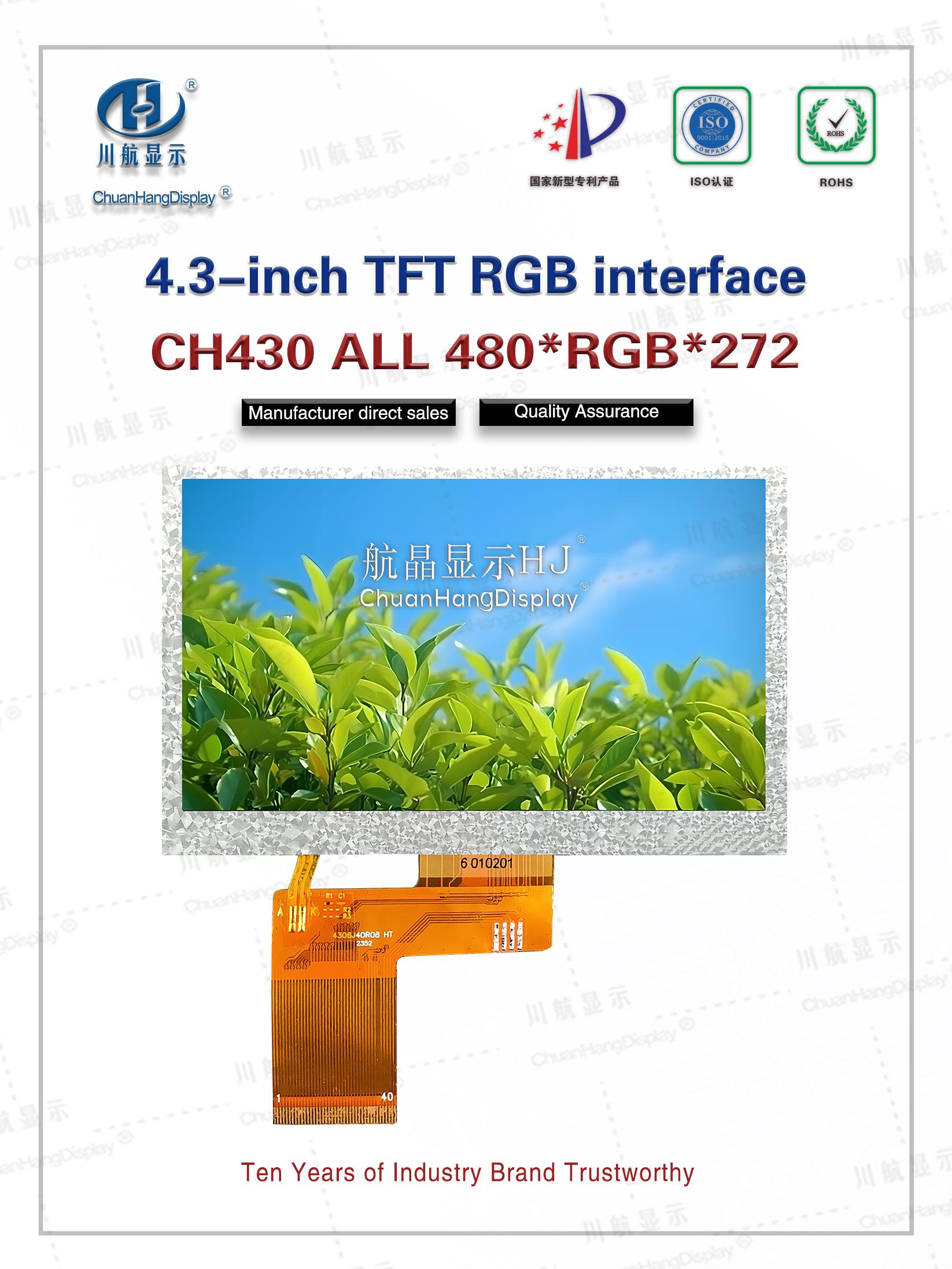

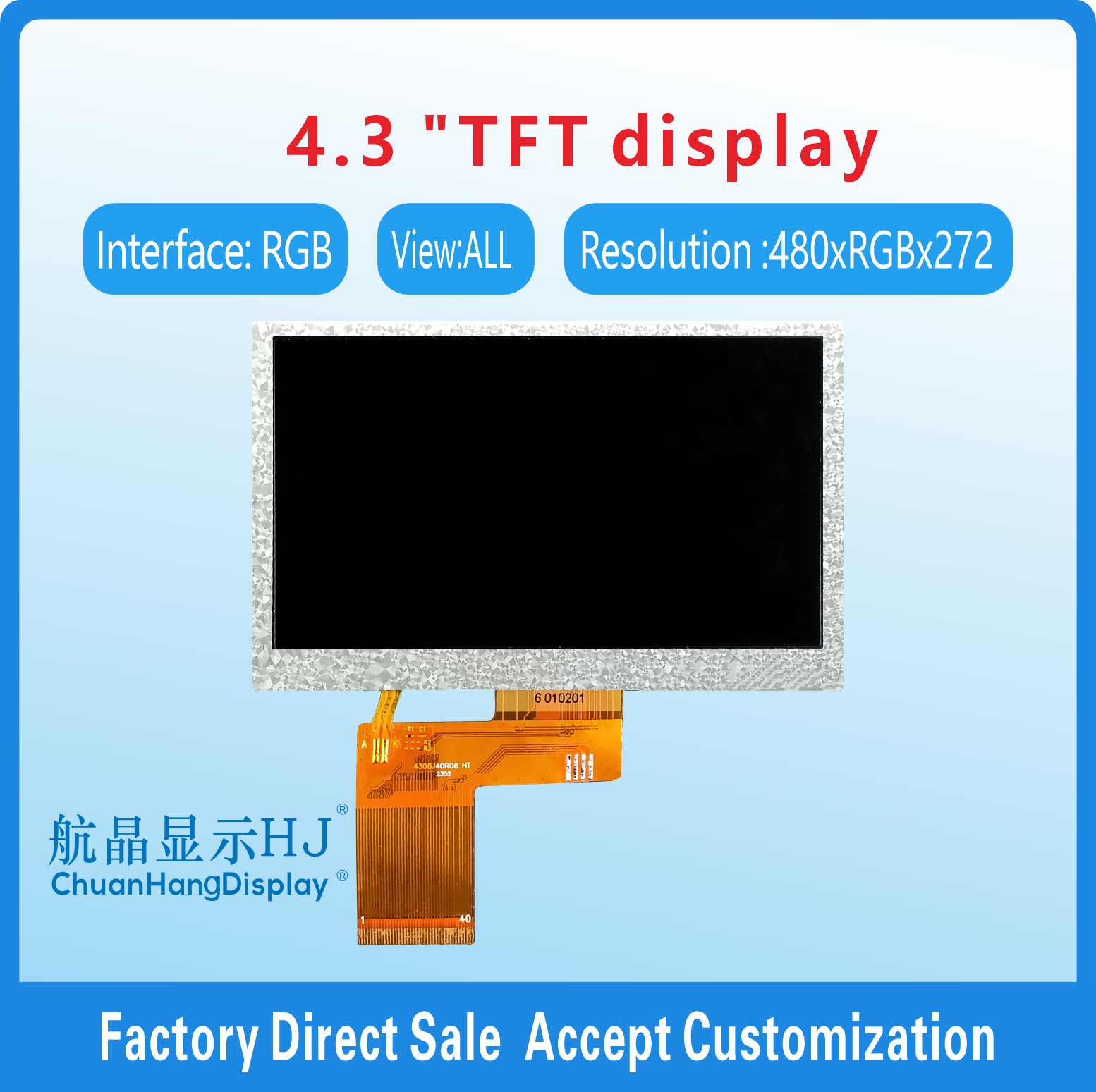

4.3“TFT LCD display

Product Description

Product size: 4.3 inches
Resolution: 480xRGBx272
Viewing angle: IPS full viewing angle
Driver chip: ST7262
Interface type: Parallel port 8-bit/16-bit
Module size: 105.50X67.07X3.1mm
Display area: 95.04*53.86mm
Cable interface: 40 PIN
Operating voltage: 3.3V
Operating temperature: -20℃-70℃
Storage temperature: -30℃-80℃
Display color: TFT

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH430ALL
Resolution	480xRGBx272	screen size	4.3”
Outline Dimension(LWH)	105.50X67.07X3.1mm	Visible Area(L*W)
Active Area(L*W)	95.04*53.86mm	Type	COG
Connection Method	FPC	Operating Voltage	3.3V
Interface Type	40PIN	Viewing Direction	IPS Full perspective
Communication interface	Parallel port 8-bit/16-bit	Display Color	TFT
Driver IC	ST7262	Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃	Backlight parameters
production capacity	Self-produced	Whether to bring PCB	NO

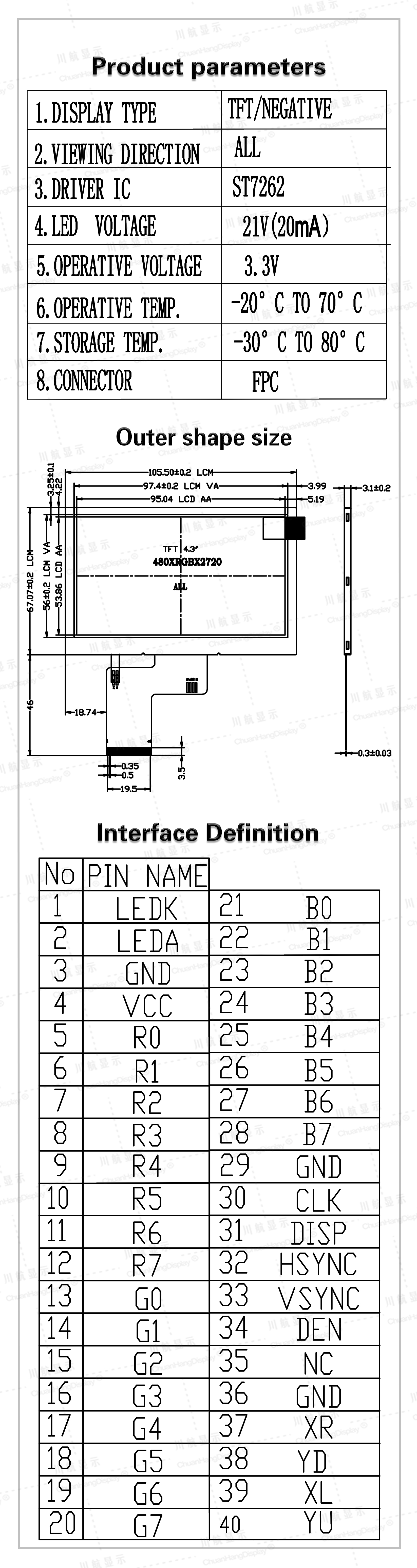

Product Datasheet

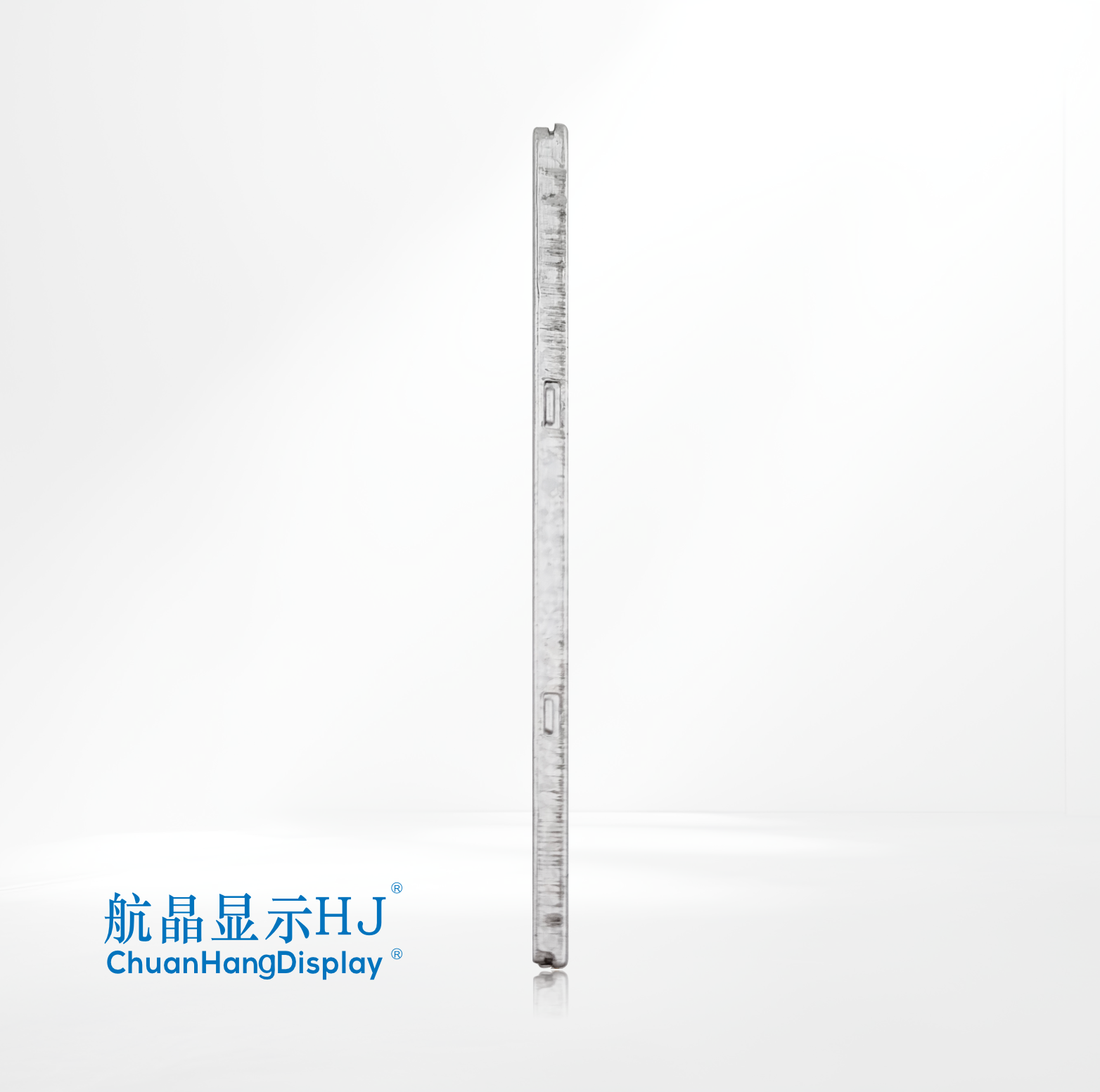

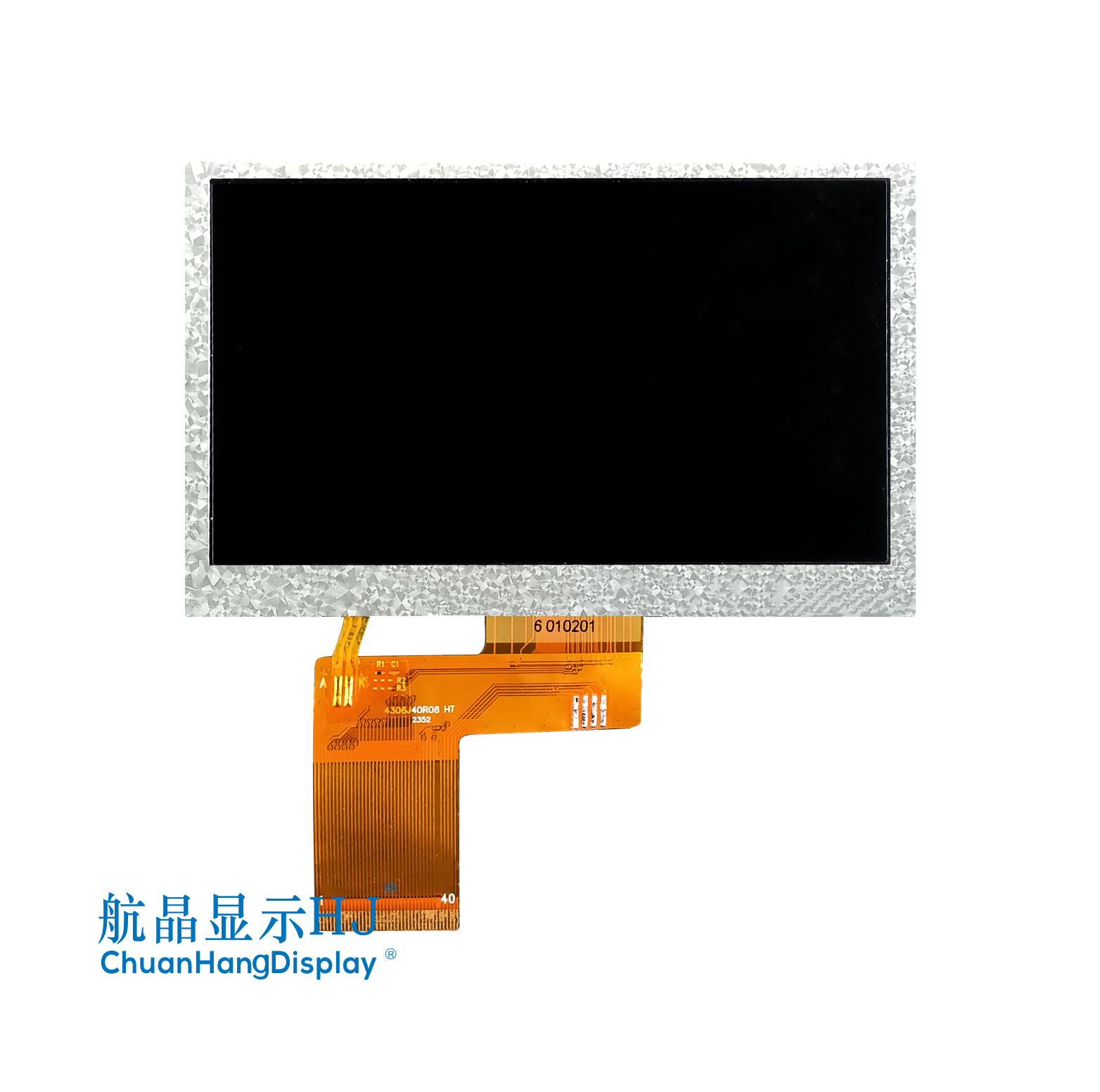

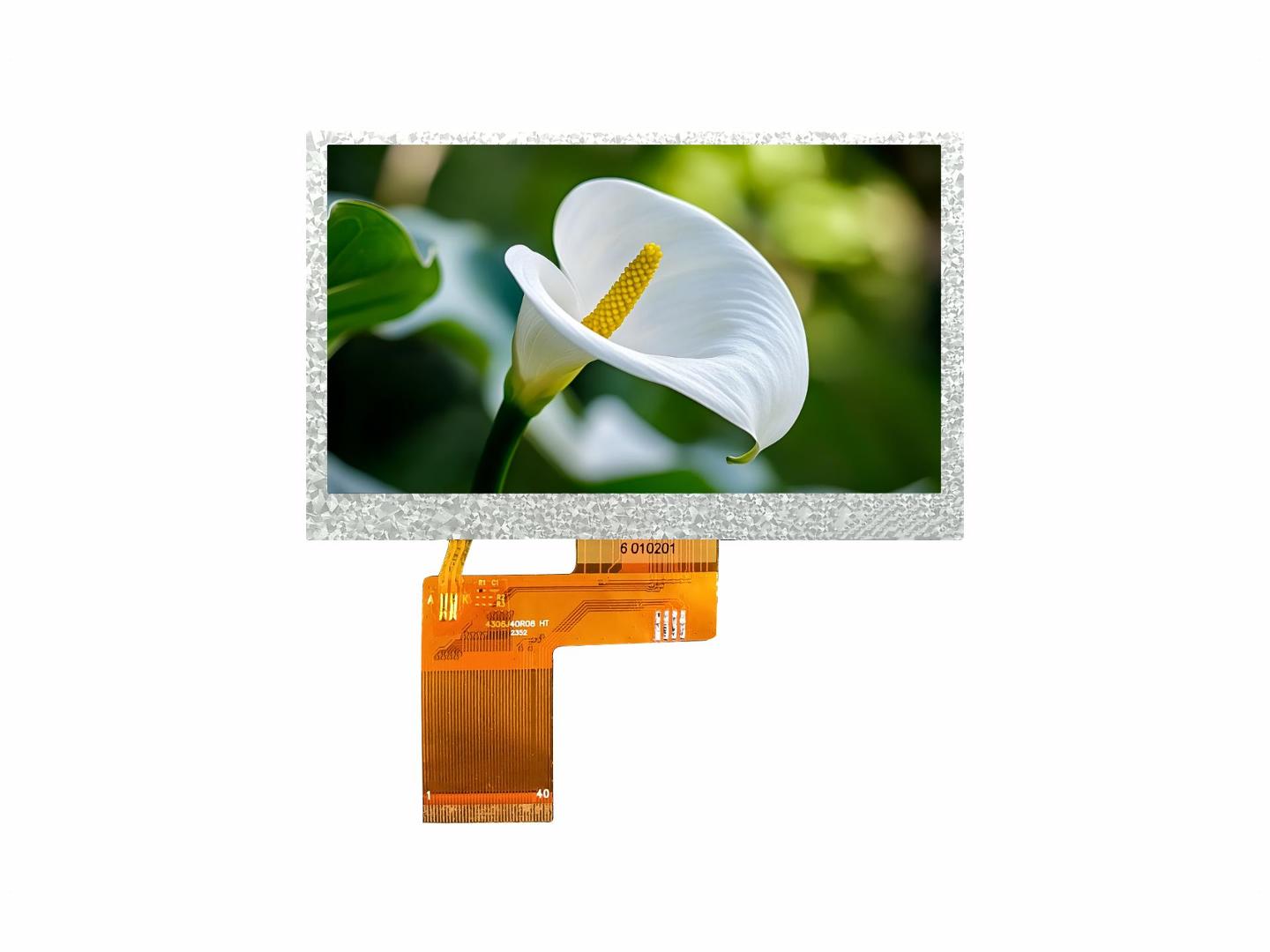

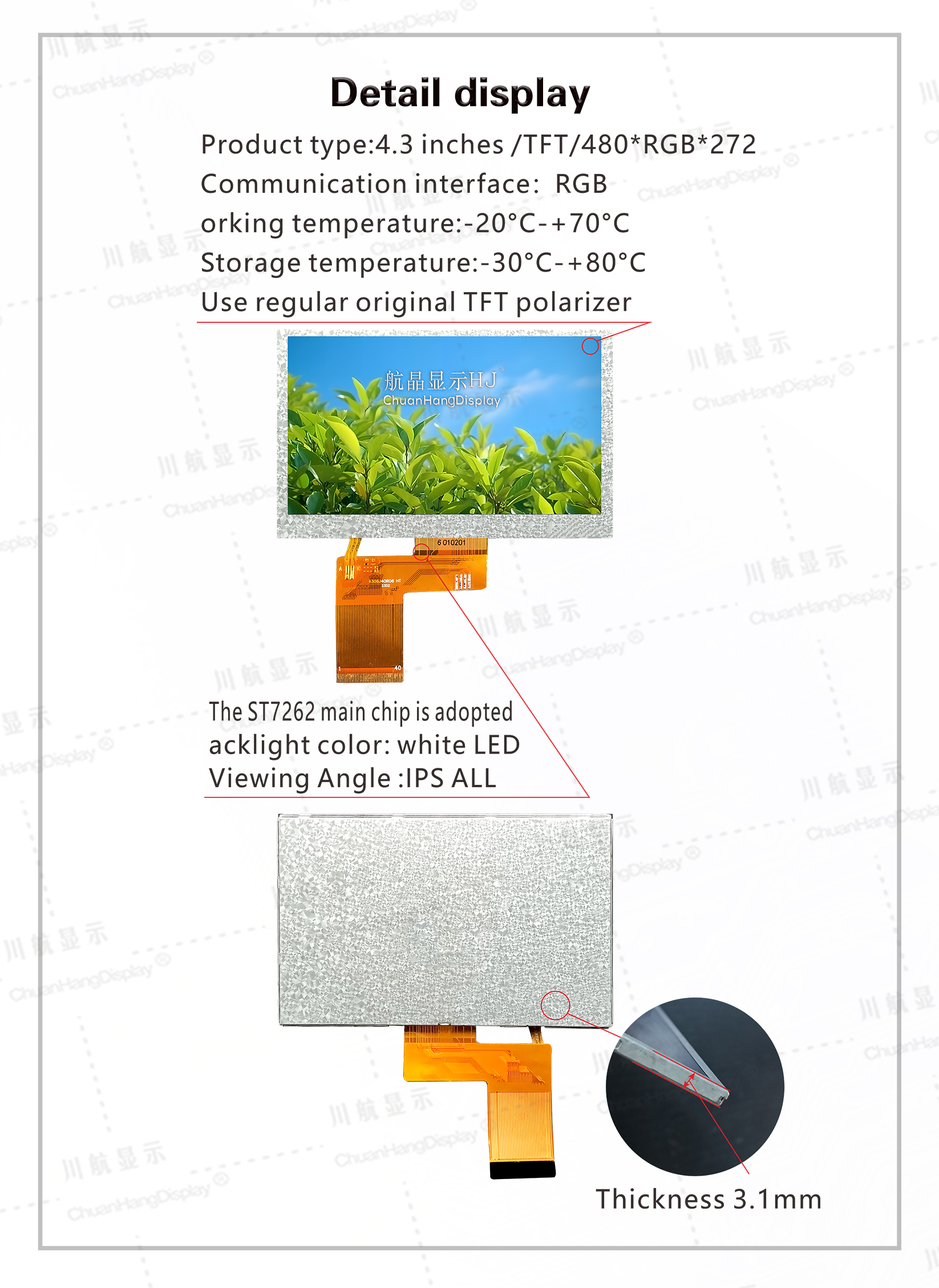

Product Display
