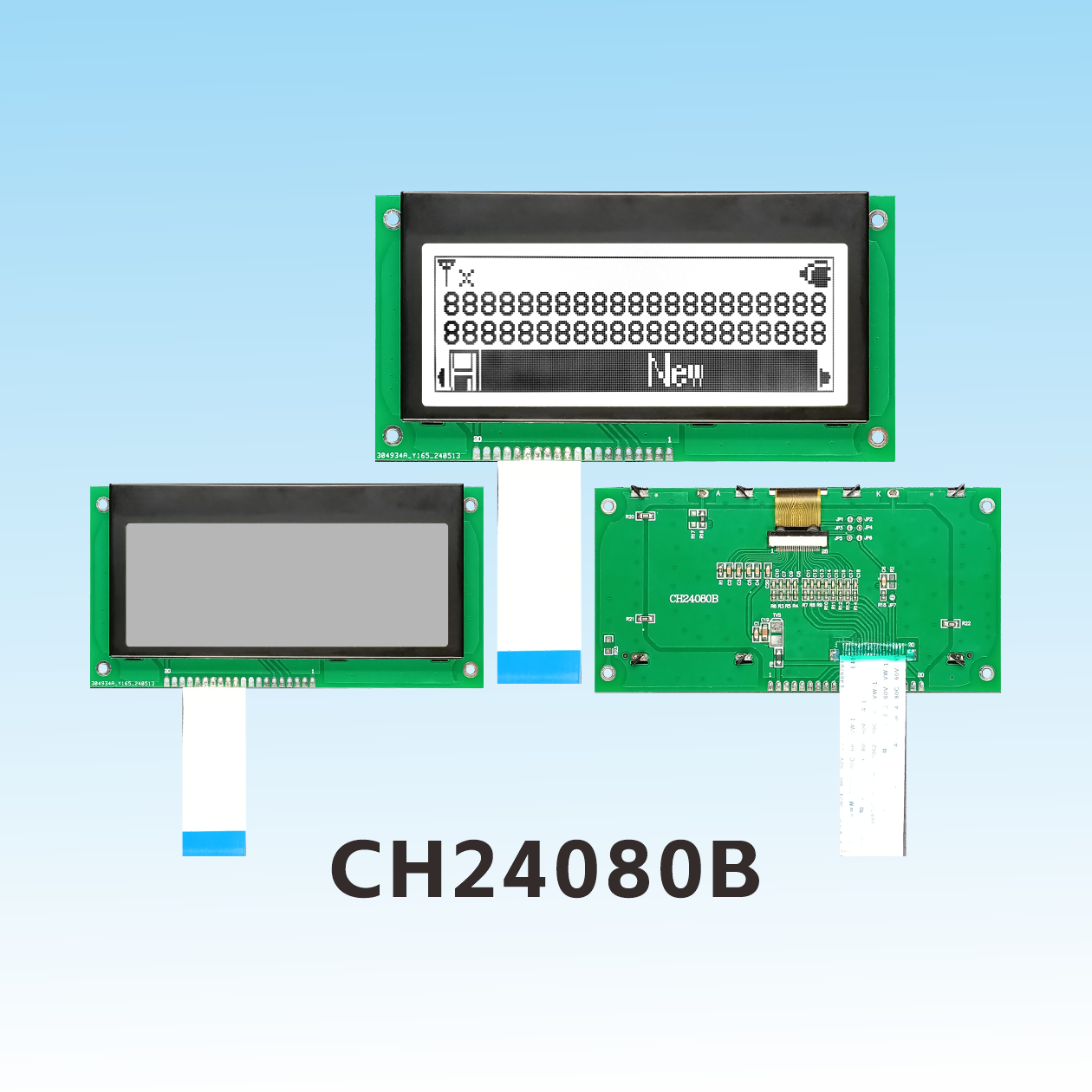

CH24080B 240x80 lcd
Product Description
1.1 COG process, FPC soft wire is plug-in interface, product with backlight, iron frame, assembled, thin thickness, structure Stable.
1.2 IC uses UC1698U. There is no font library in the chip, and the programmer compiles his own font library.
1.3 Low power consumption, 3.3V power mode, no backlight current within 3mA and backlight current within 120mA.
1.4 LED backlights A and K are fixed on the PCB board, and A and K need to be powered separately by 3.3V.
1.5 Product Features:
The built-in display data RAM is 80x240 bits. Built-in boost circuit.
The contrast ratio is deeply to shallow by the software.
One screen displays 15 characters x 5 lines (16x16 dot matrix).
Single picture ≦240x80 dot matrix. Optional 4-wire SPI interface or 8-bit parallel port 6800 timing or 8080 timing, the circuit can be configured.
Rich functions: interface display on/off, positive display/reverse display, read/modify/write.
1.2 IC uses UC1698U. There is no font library in the chip, and the programmer compiles his own font library.
1.3 Low power consumption, 3.3V power mode, no backlight current within 3mA and backlight current within 120mA.
1.4 LED backlights A and K are fixed on the PCB board, and A and K need to be powered separately by 3.3V.
1.5 Product Features:
The built-in display data RAM is 80x240 bits. Built-in boost circuit.
The contrast ratio is deeply to shallow by the software.
One screen displays 15 characters x 5 lines (16x16 dot matrix).
Single picture ≦240x80 dot matrix. Optional 4-wire SPI interface or 8-bit parallel port 6800 timing or 8080 timing, the circuit can be configured.
Rich functions: interface display on/off, positive display/reverse display, read/modify/write.
