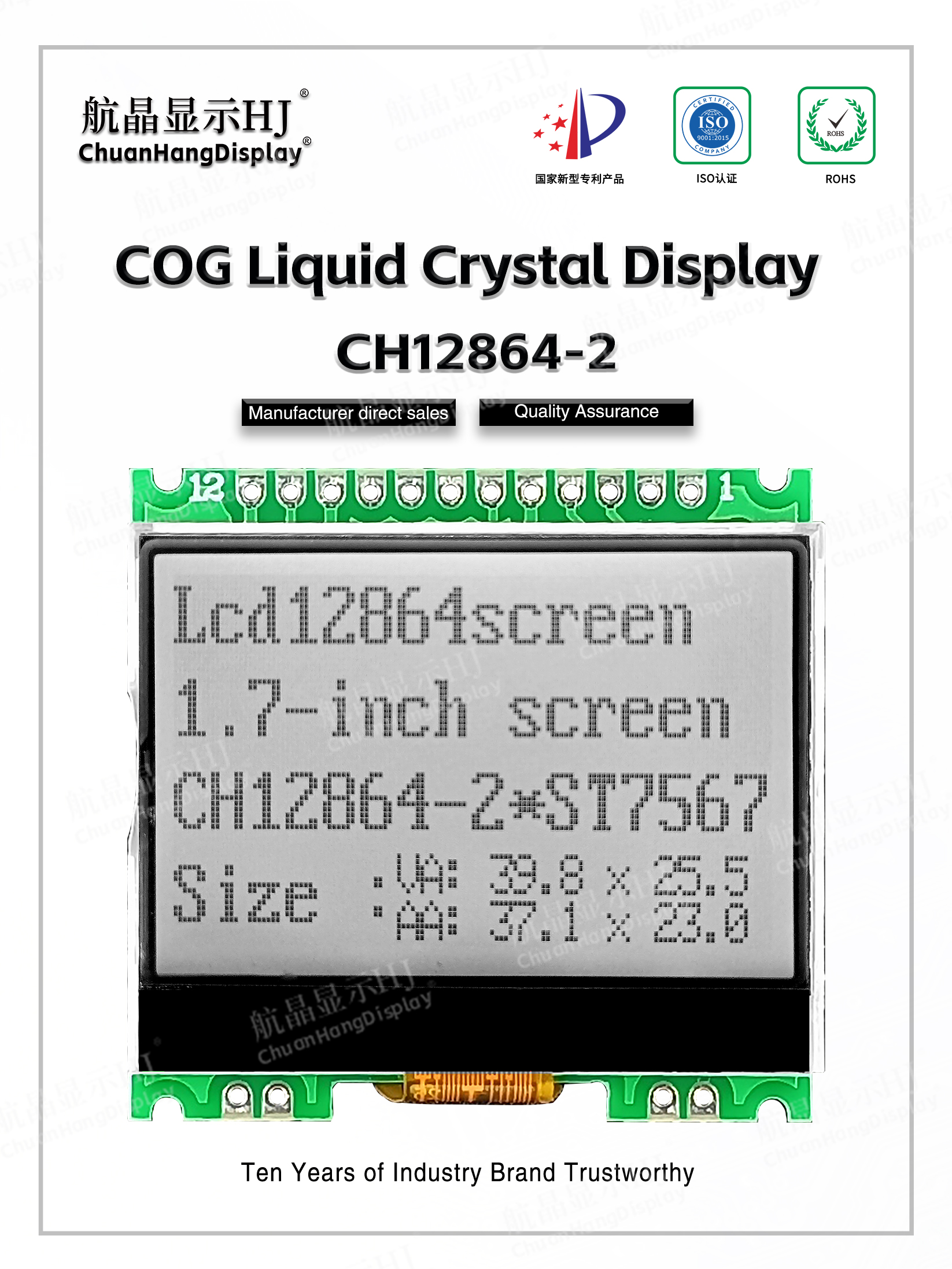

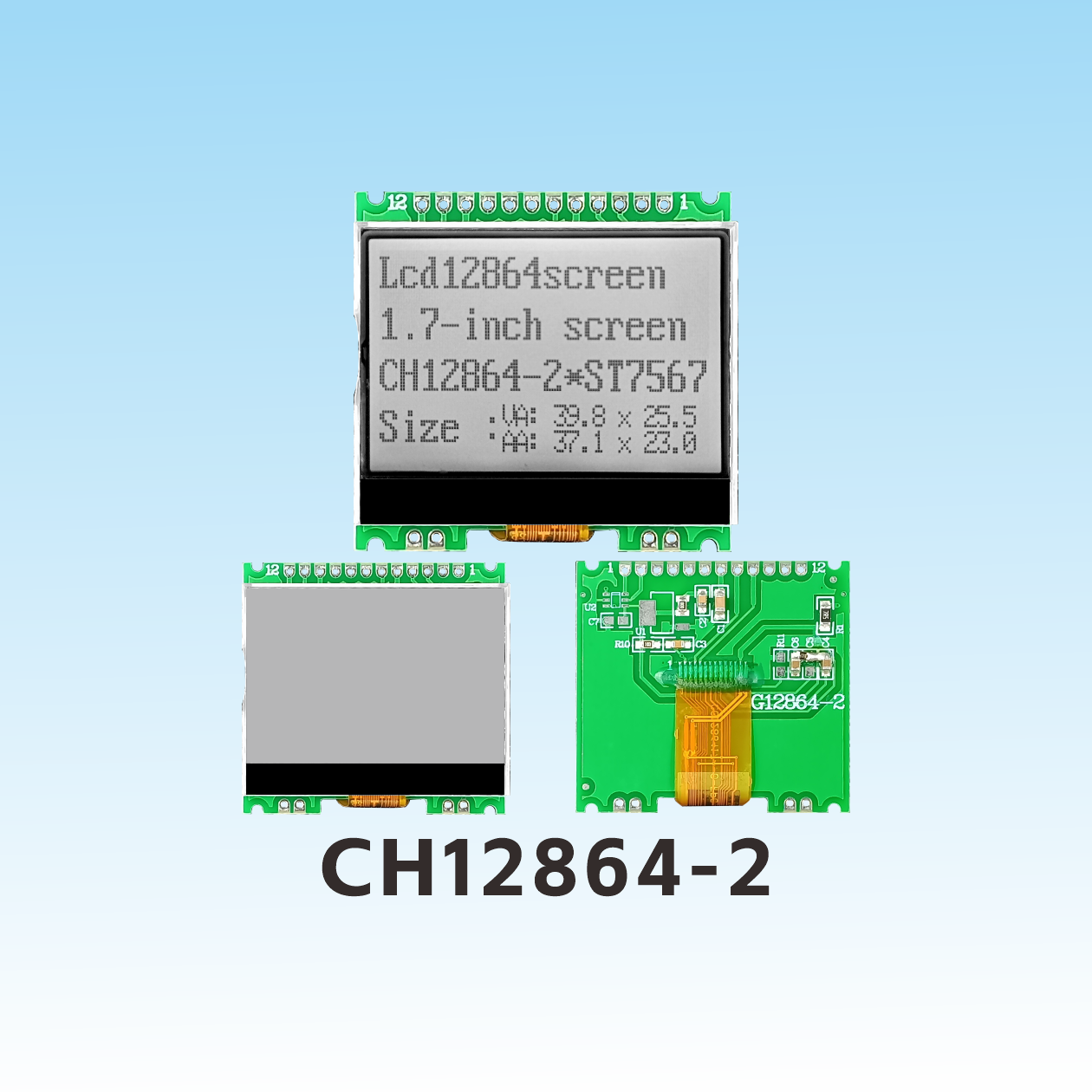

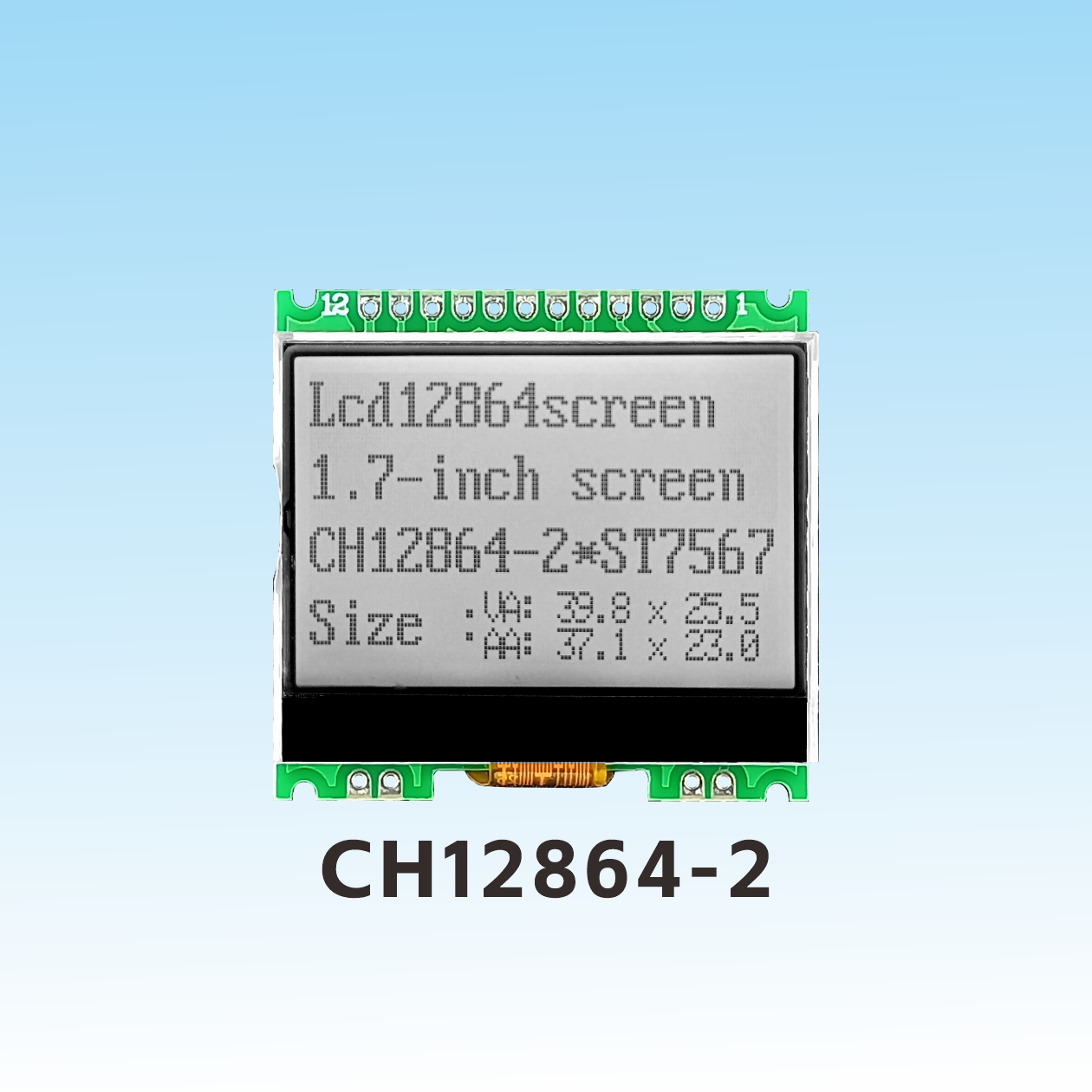

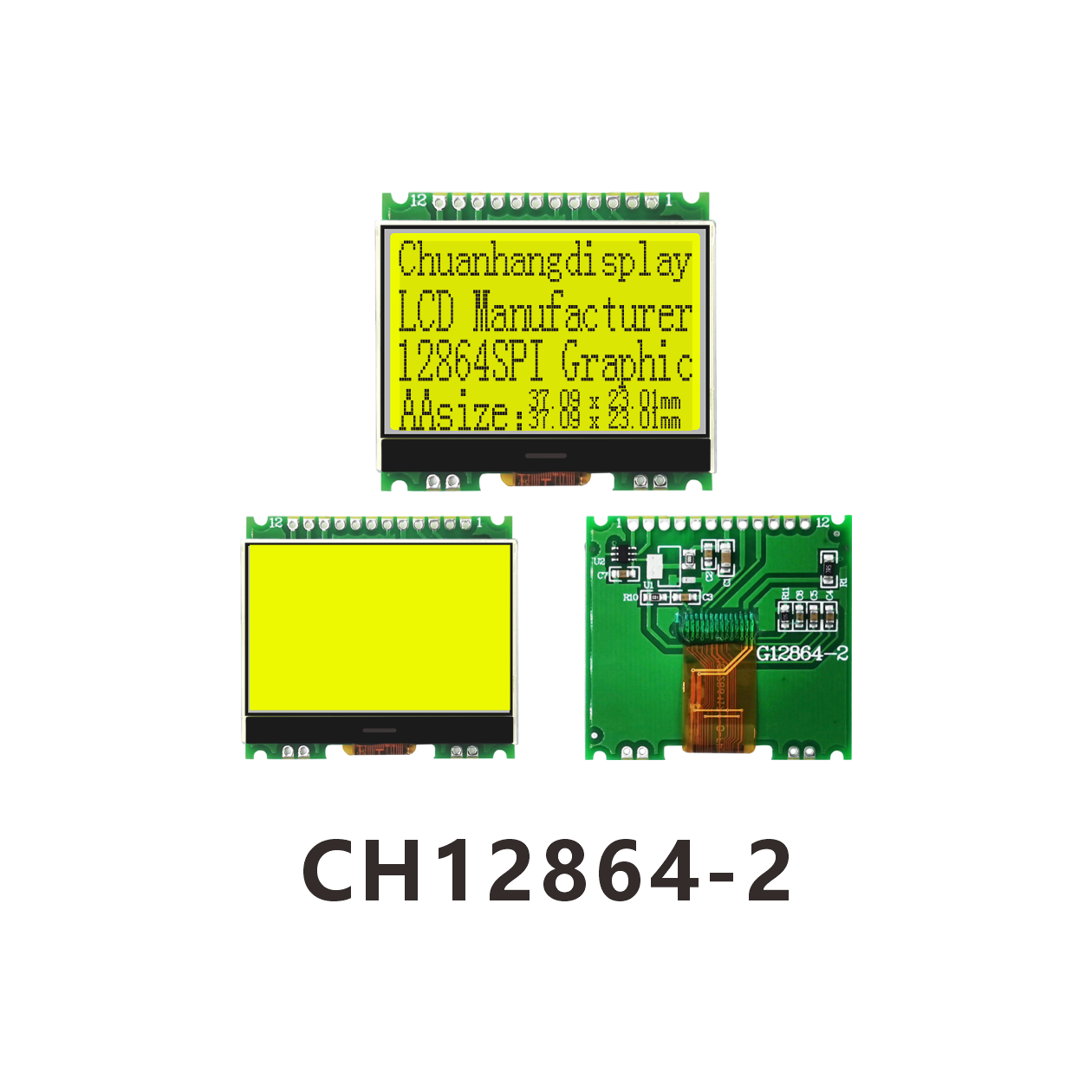

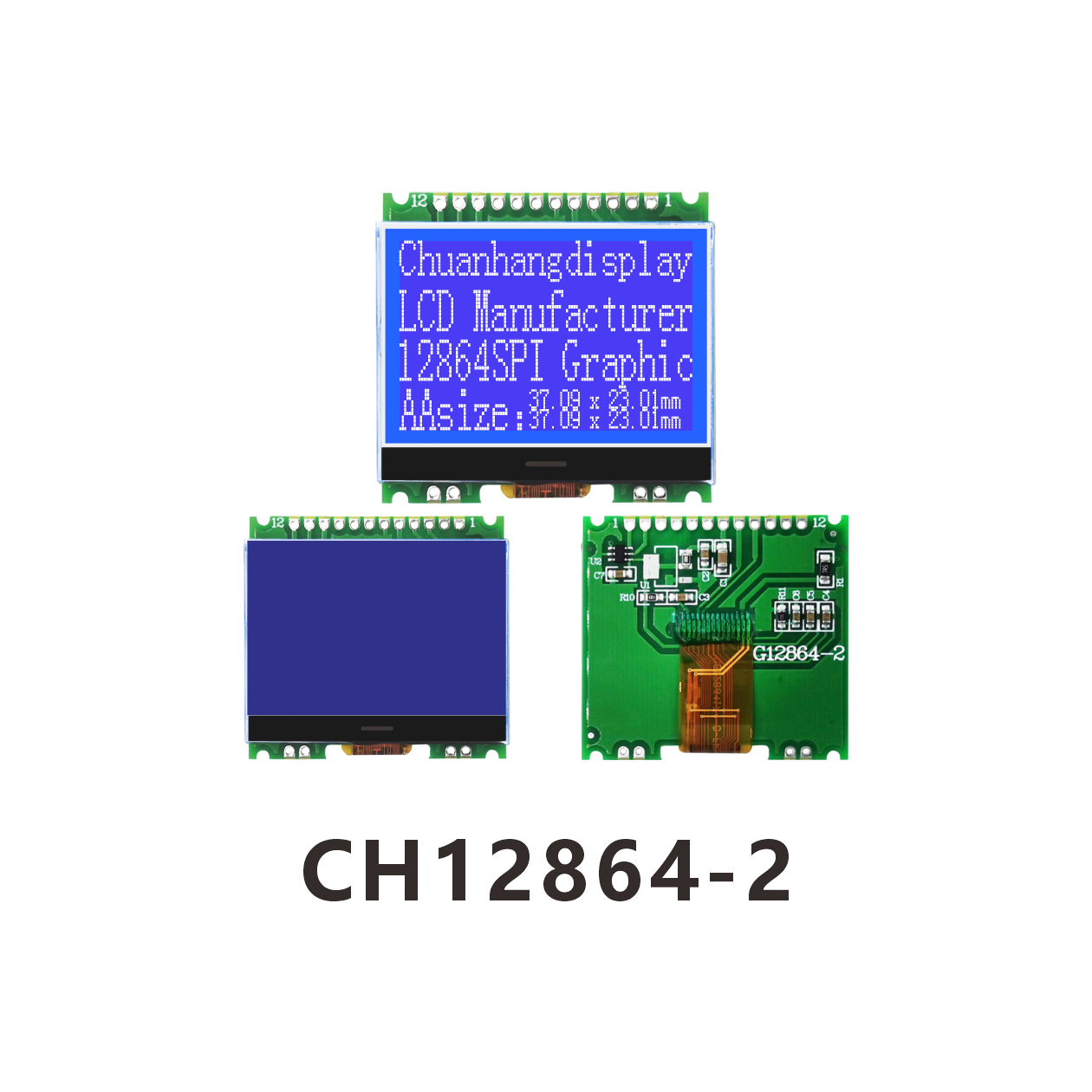

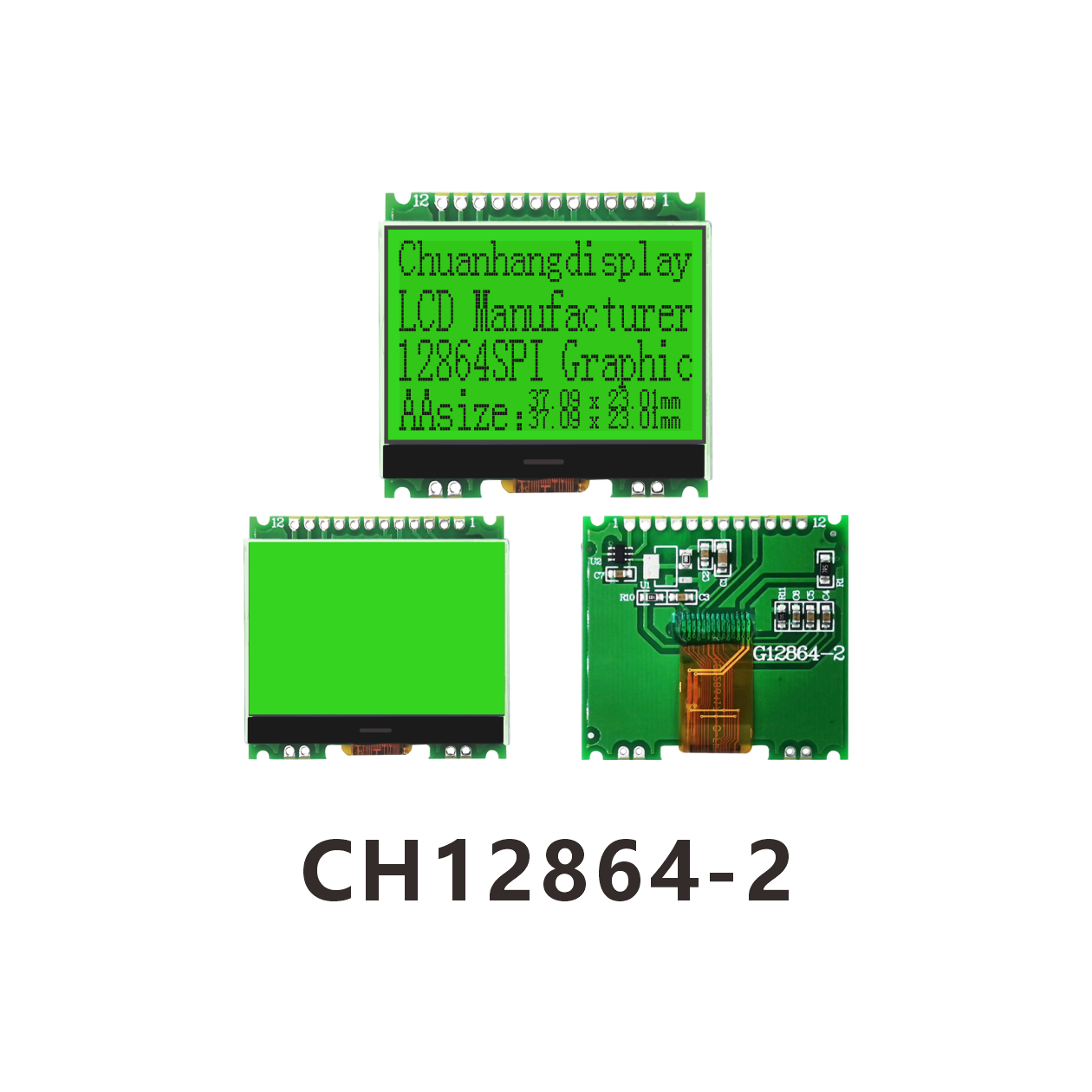

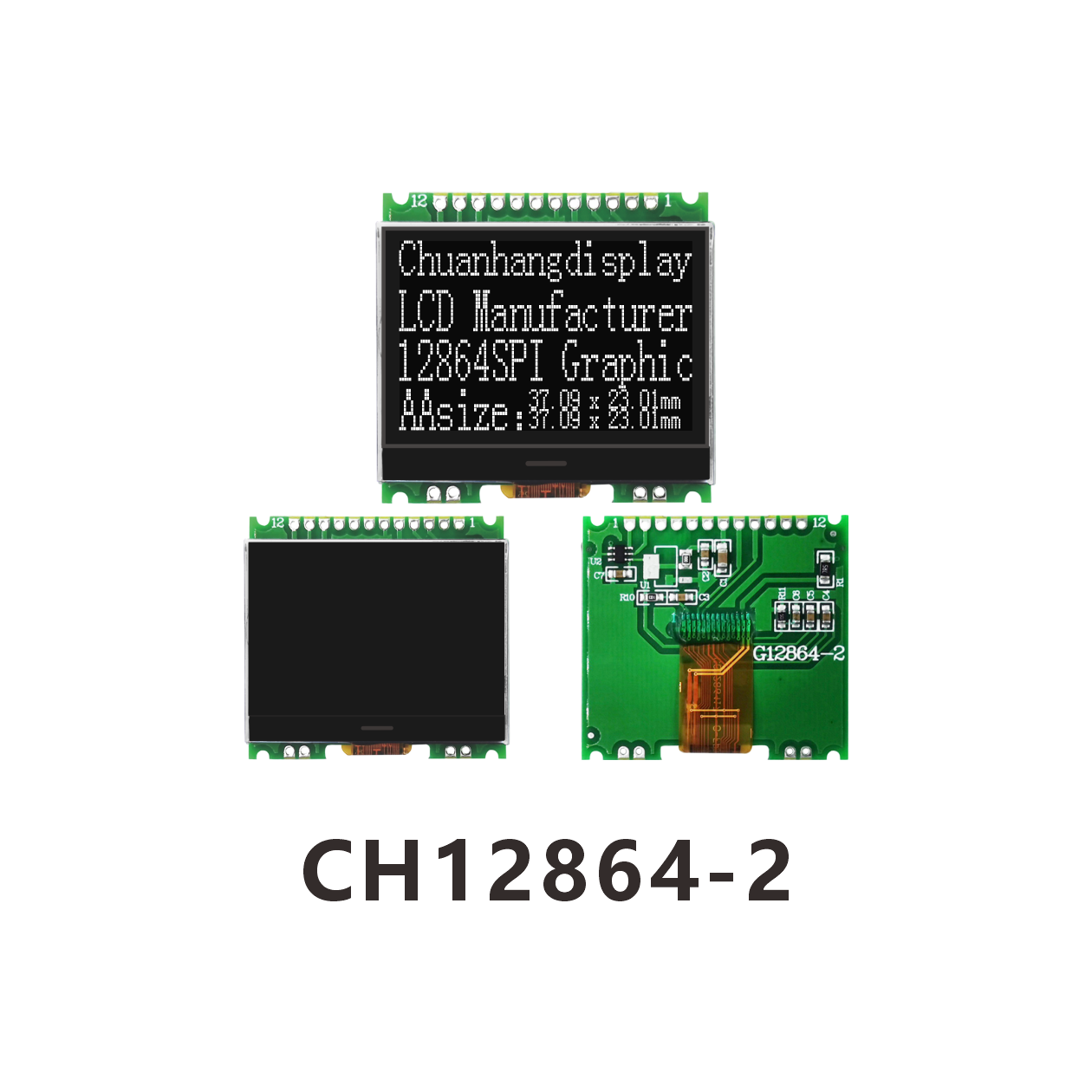

CH12864-2 cog 12864 lcd screen

Product Description

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864-2
Resolution	128x64	screen size
Outline Dimension(LWH)	43.50x40.80x5.50mm	Visible Area(L*W)	39.80x25.50mm
Active Area(L*W)	37.09x23.01mm	Character Size(L*W)
Type	COG	Connection Method	FPC
Supply Voltage	3.3V	Interface Type	4-bit or 8-bit parallel port
Viewing Direction	6 O'CLOCK	Driving Method	1/16Duty,1/5Bias
Display Type		Driver IC	UC1701X
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	Yes

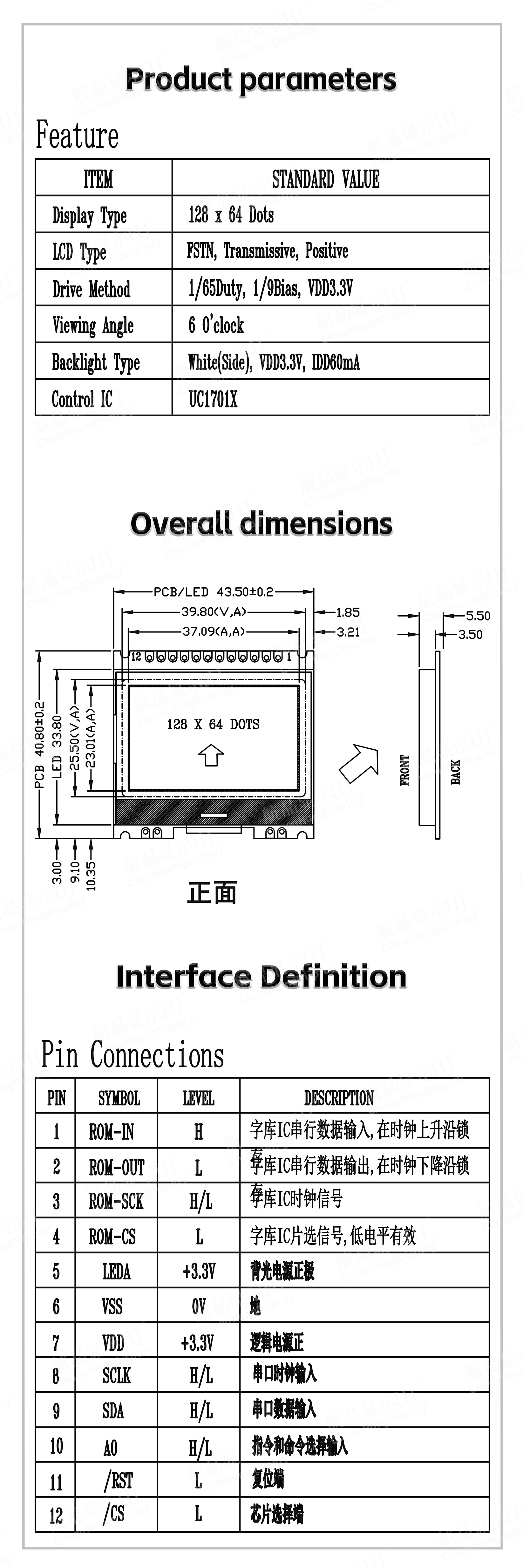

Product Datasheet

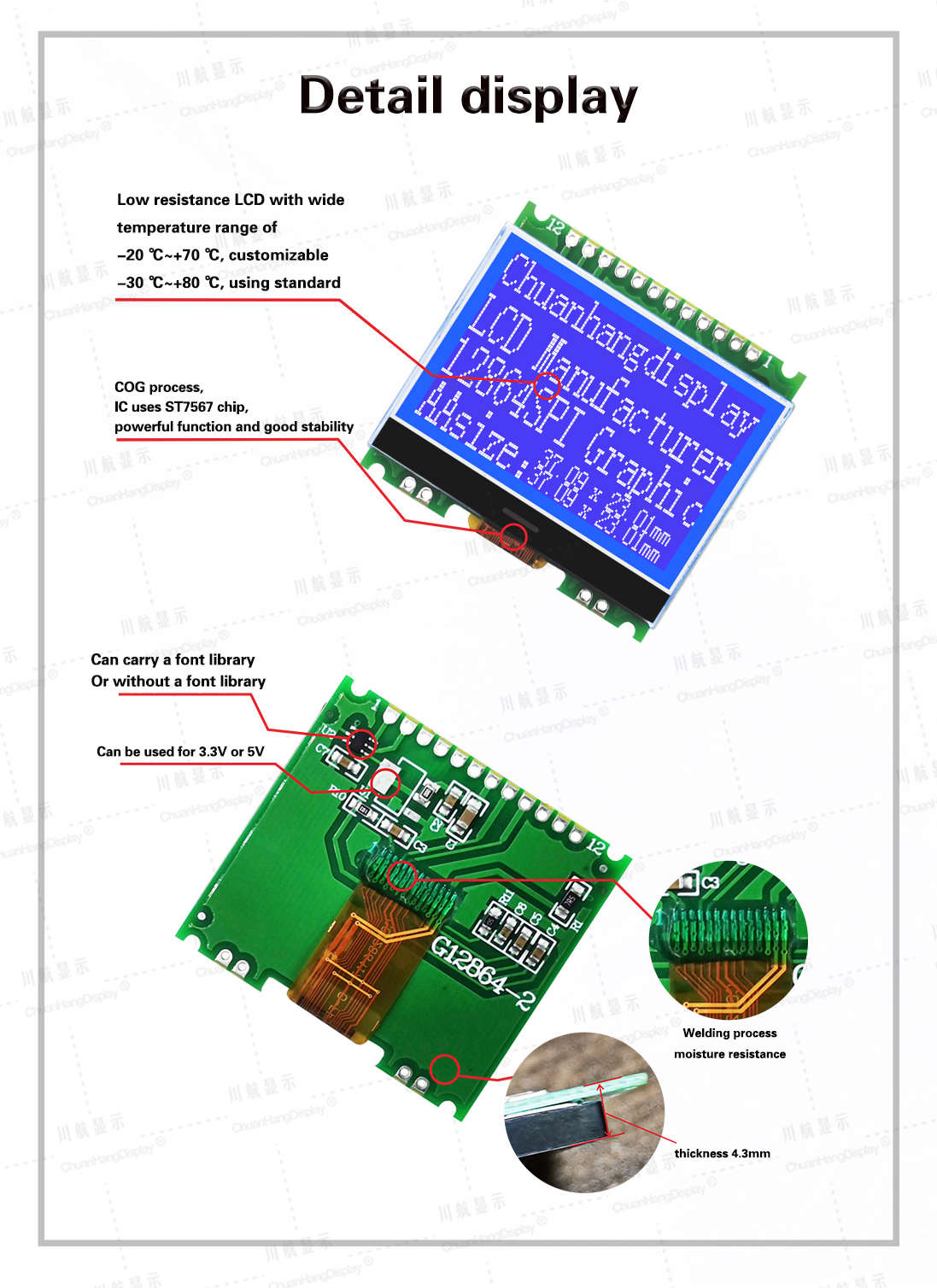

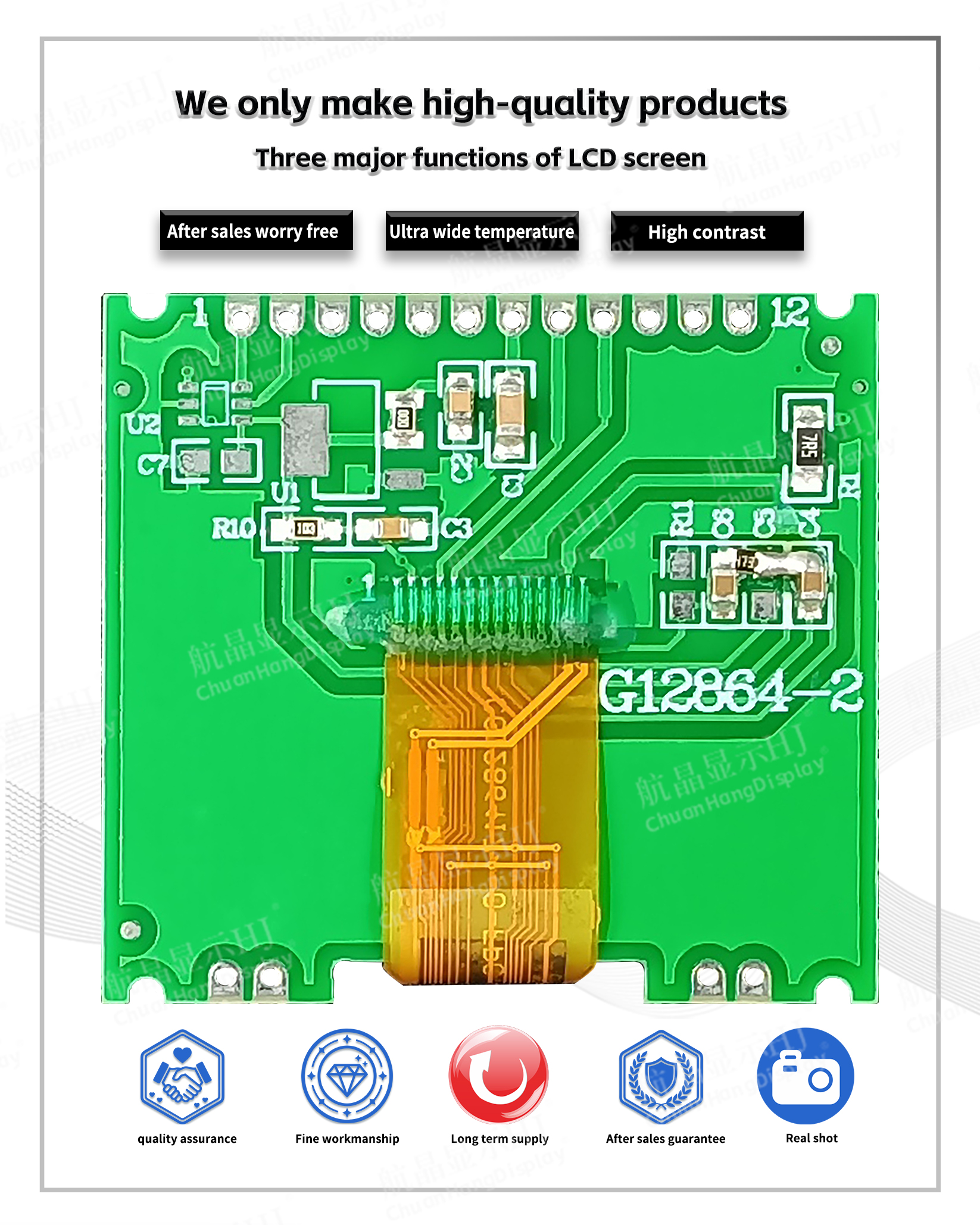

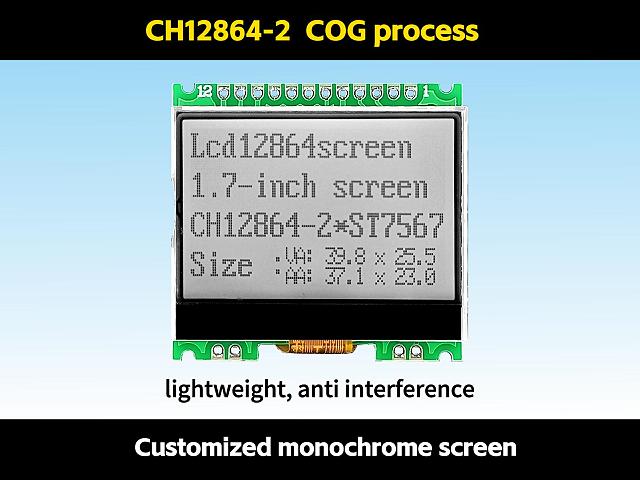

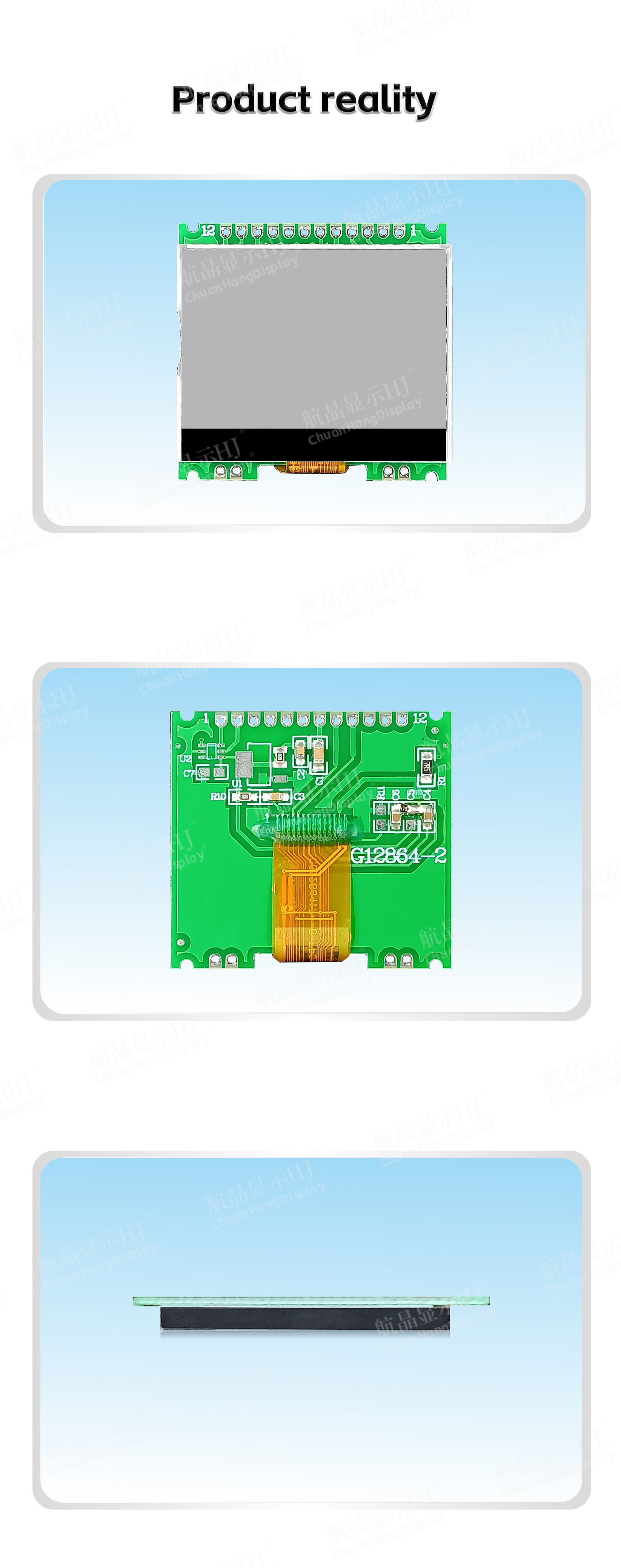

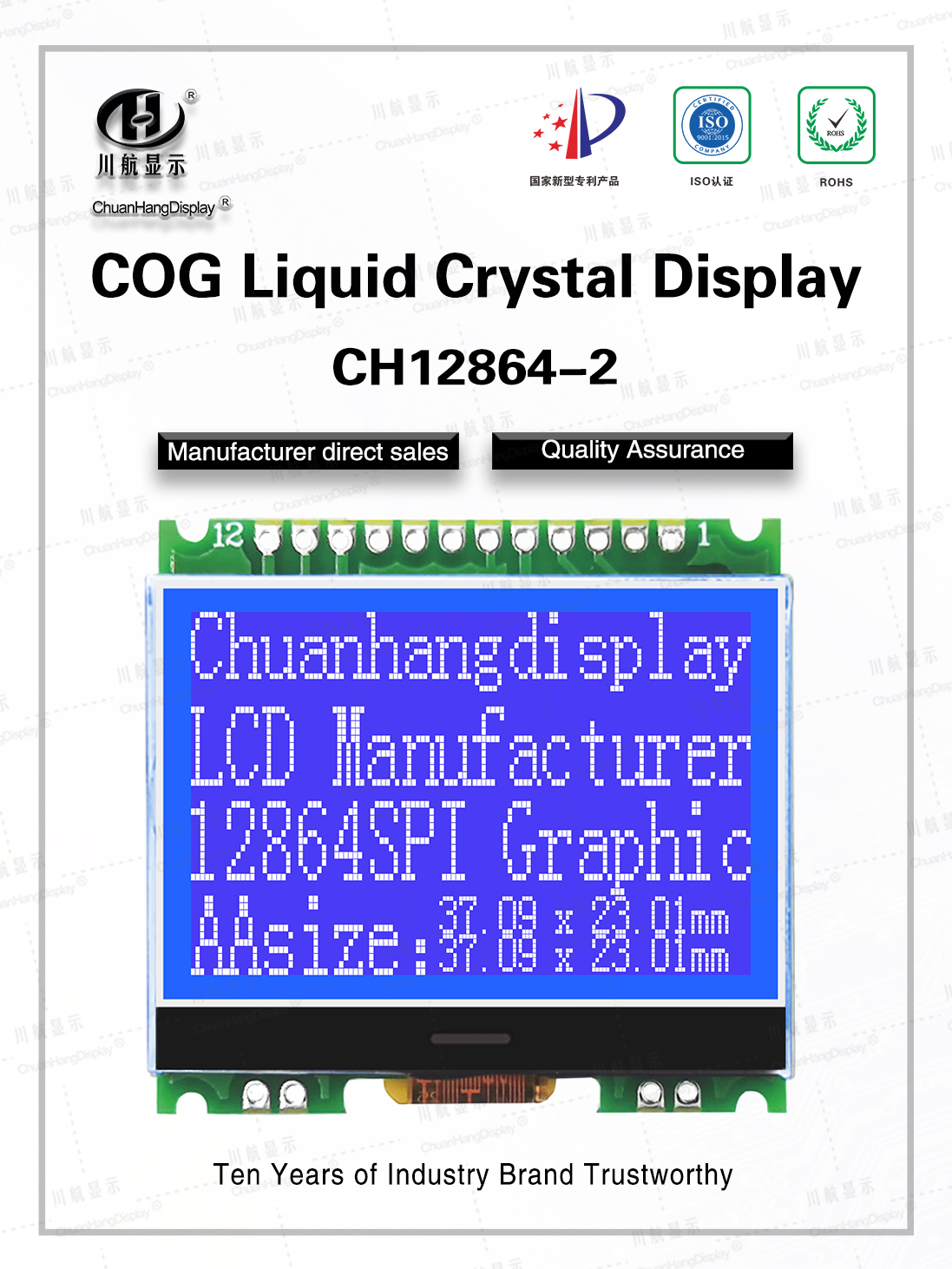

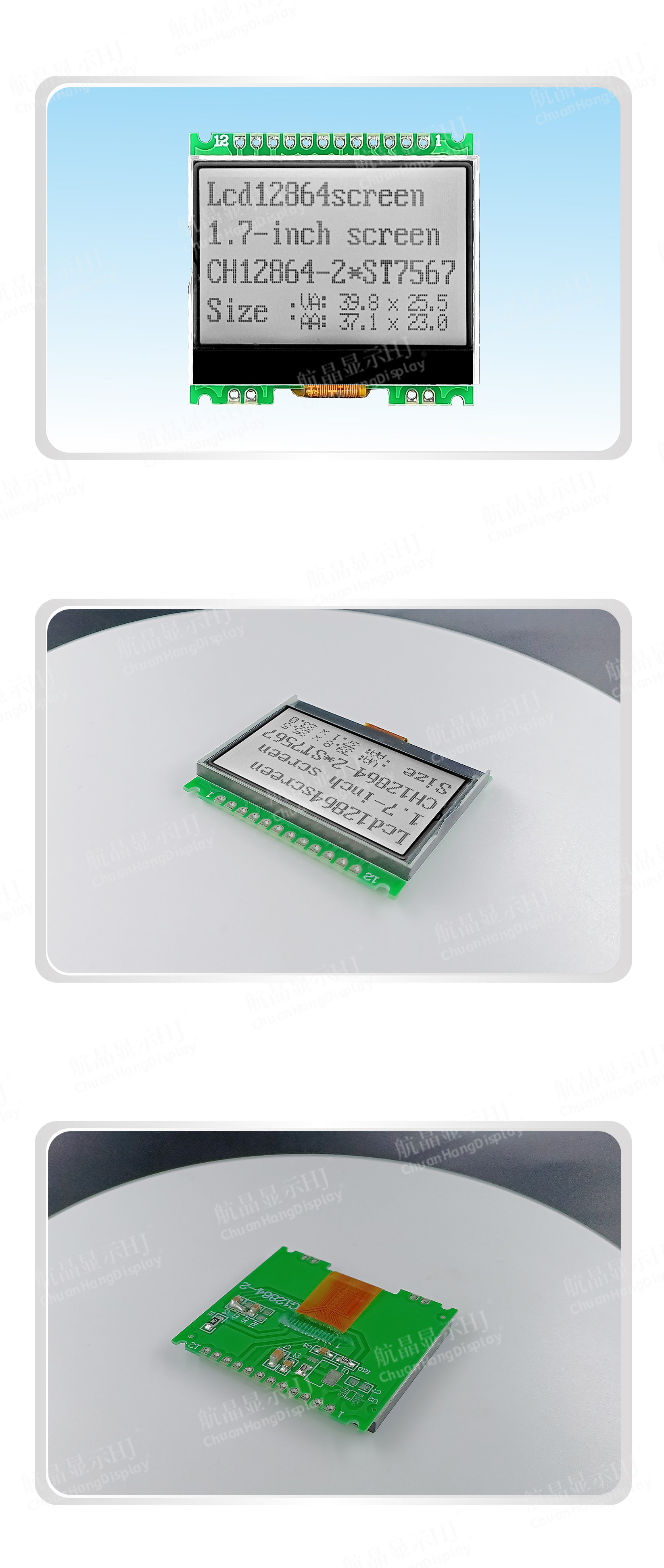

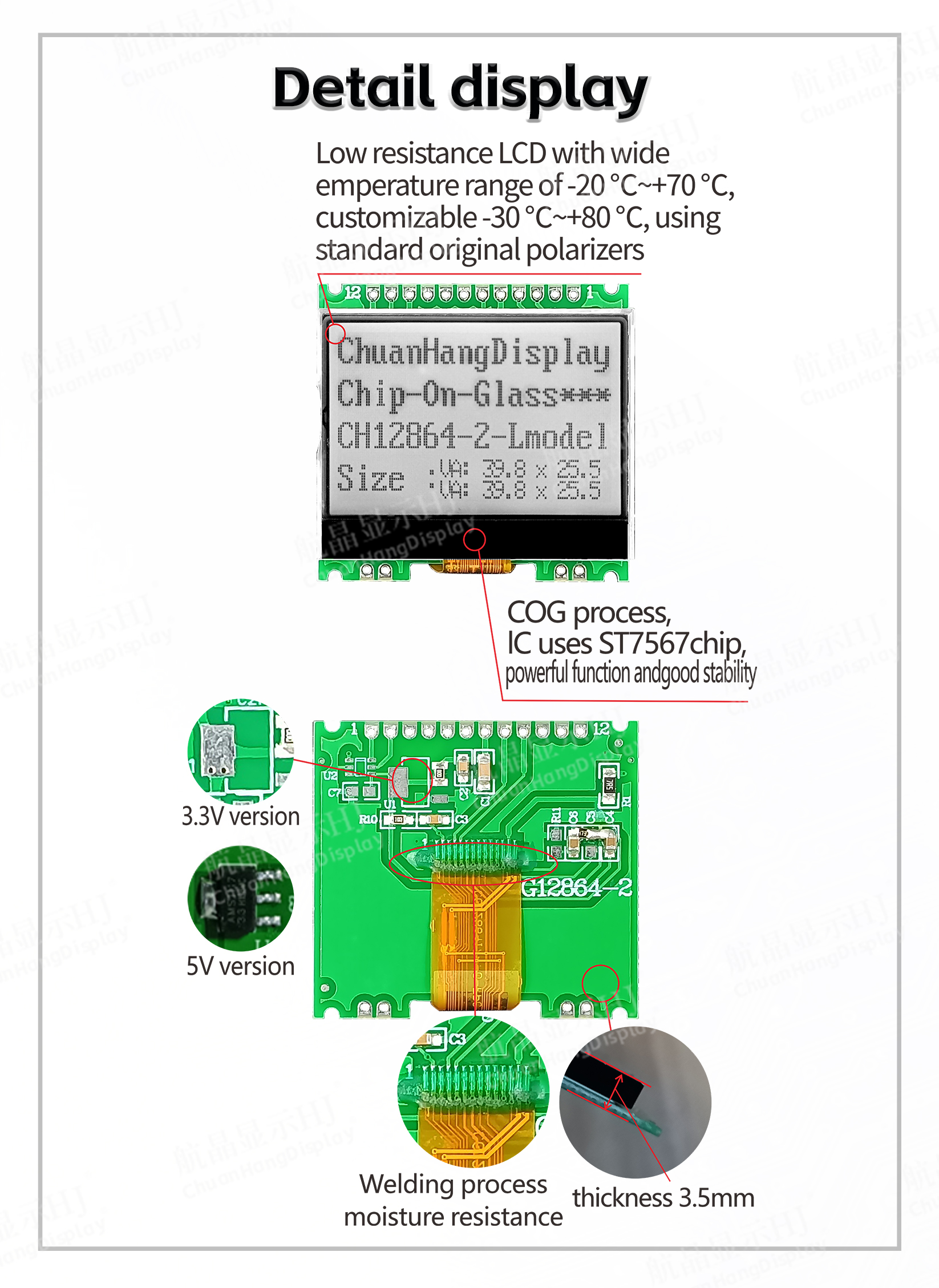

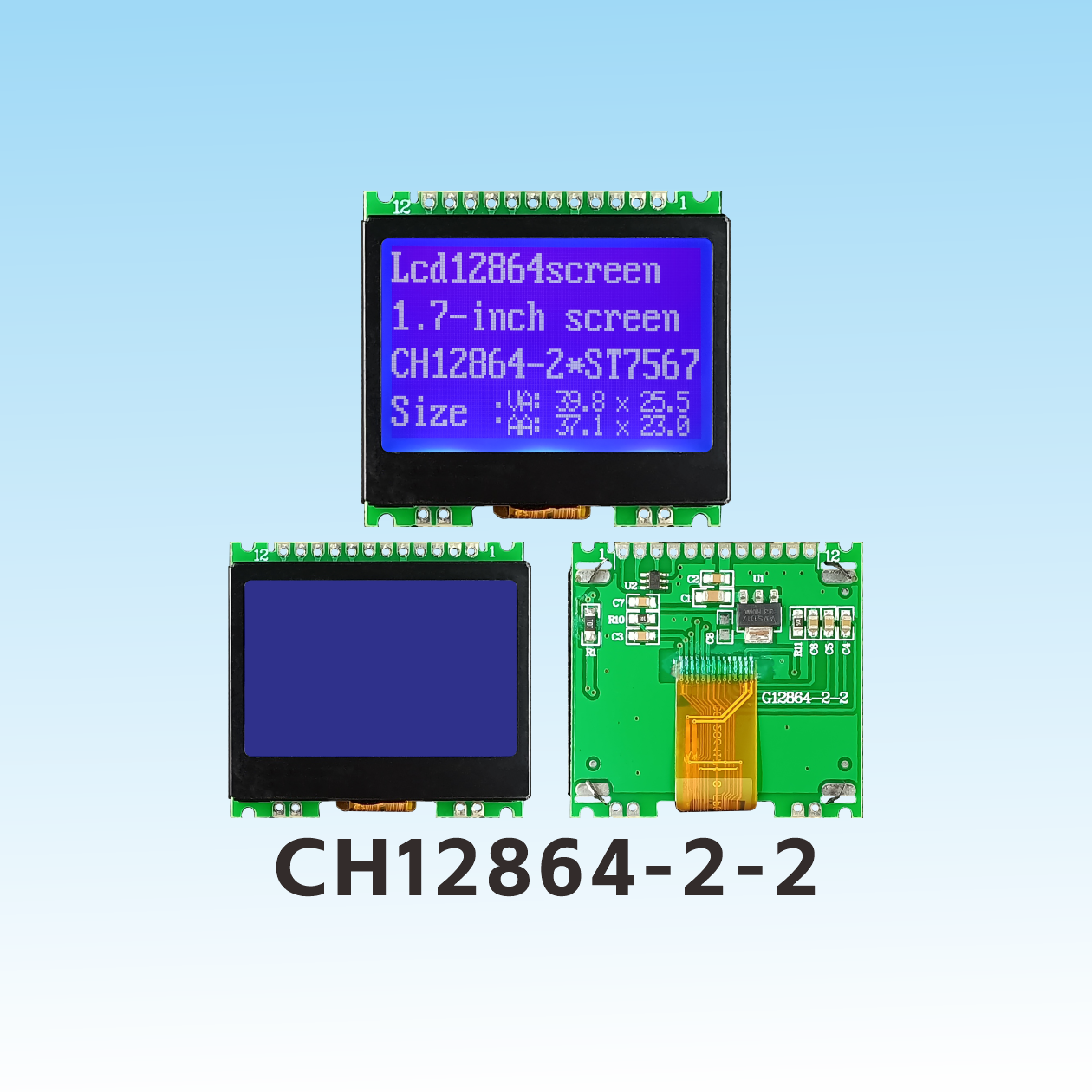

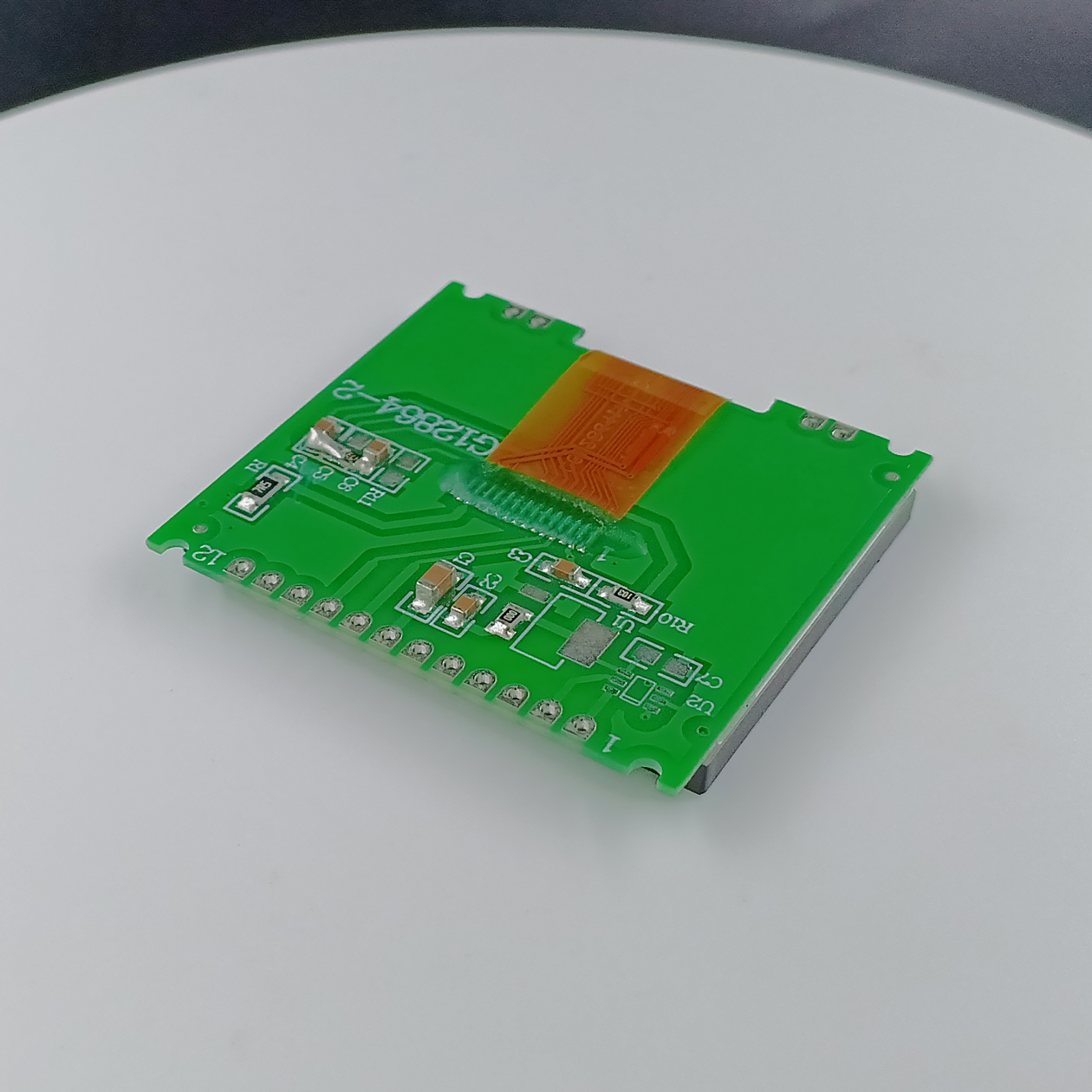

Product Display

Previous：

CH12864-2-2 LCD COG 12864

Next：

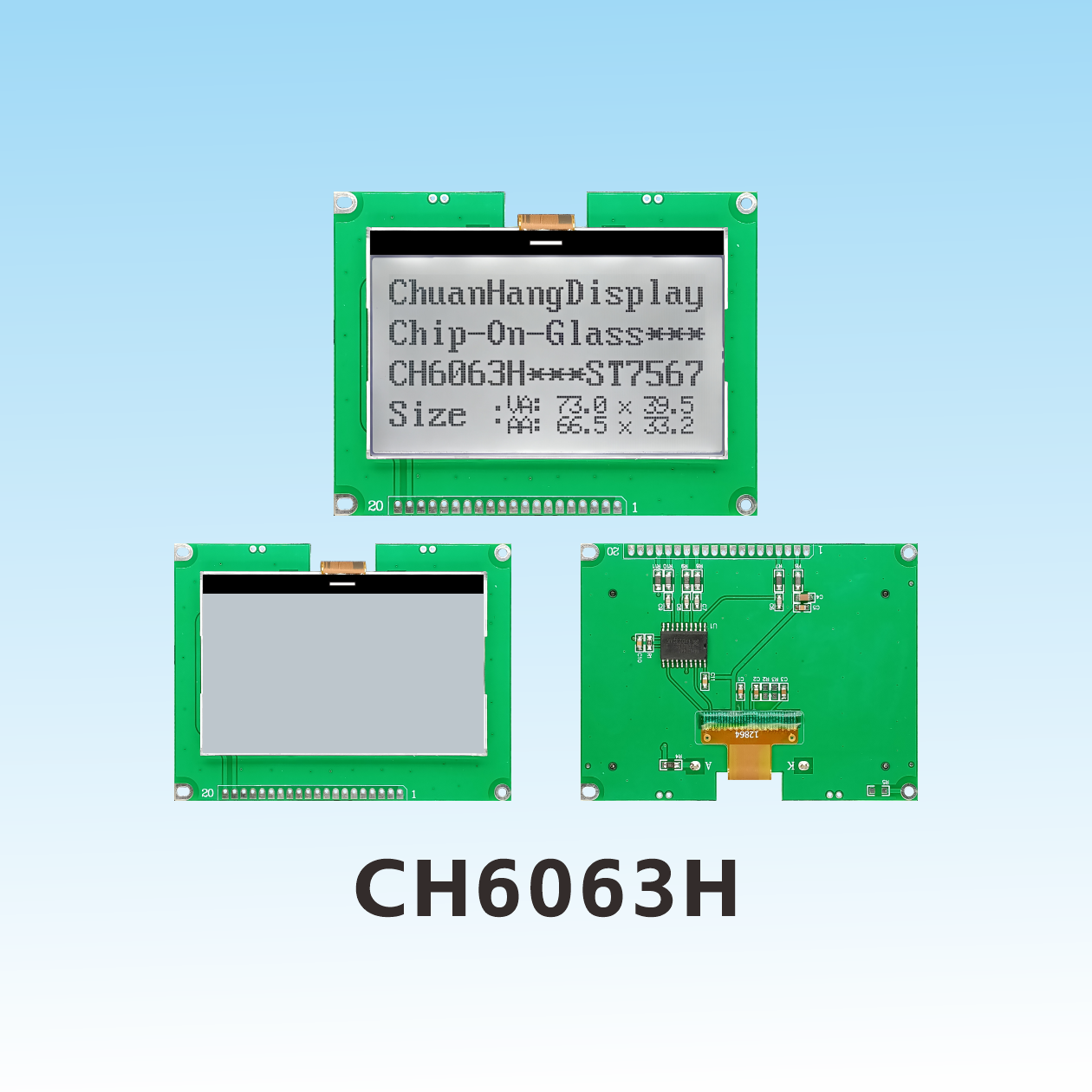

CH6063H 12864 cog lcd factory
