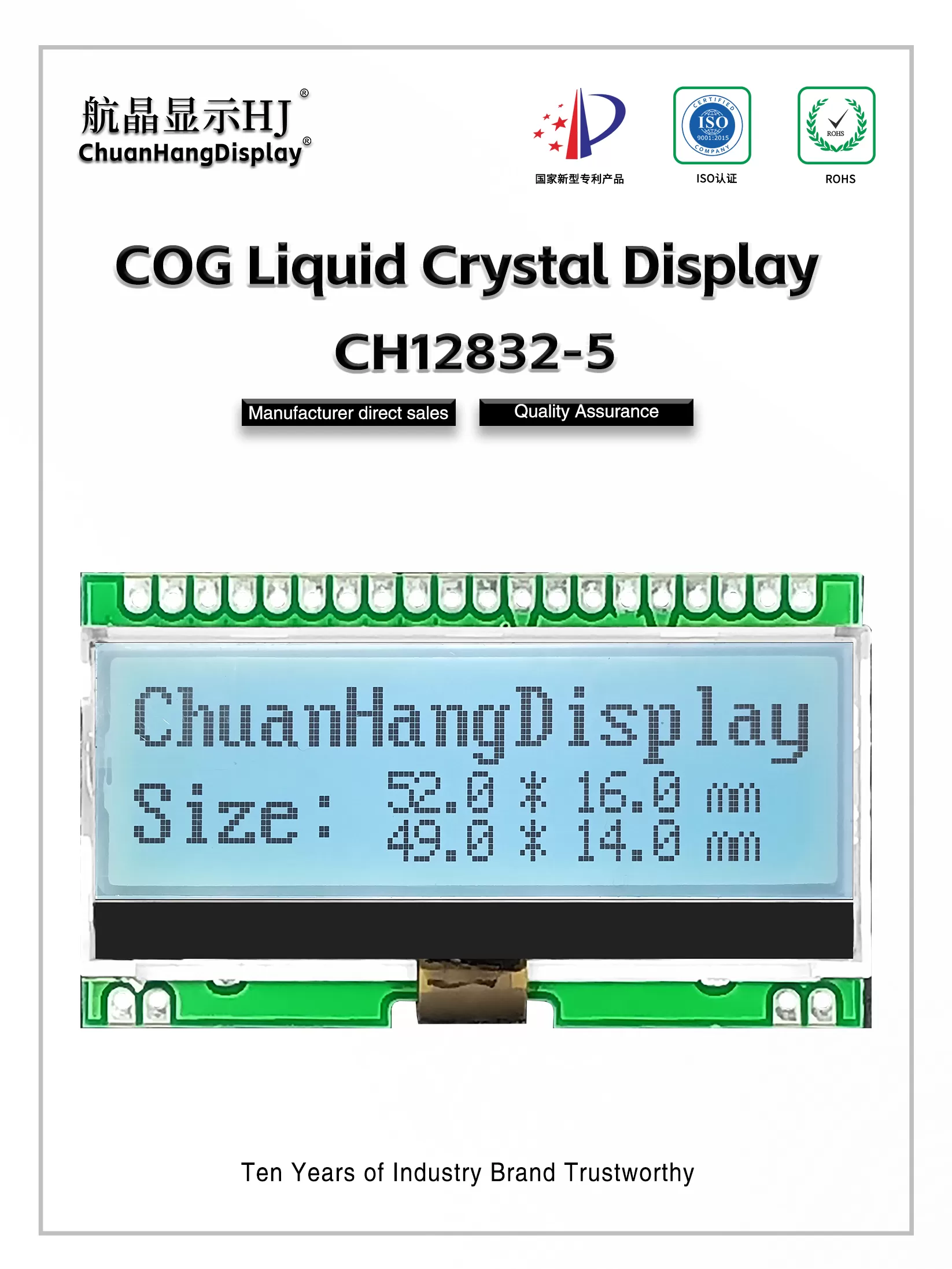

Product Description

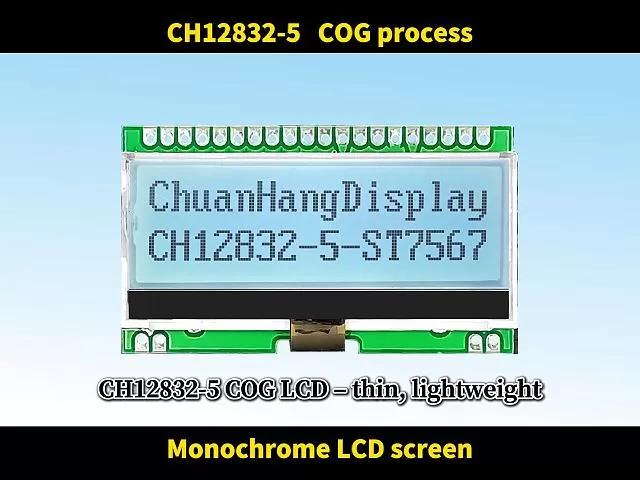

Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH12832-5
Resolution128x32screen size2.1“
Outline Dimension(L*W*H)56.8x33.0x6.6mmVisible Area(L*W)52.0x16.0mm
Active Area(L*W)49.0x14.0 mmDot Size (mm)
0.363(L)x0.418(W)
TypeCOGConnection MethodFPC
Supply Voltage3.3V Interface TypeMCU/SPI
Viewing Direction6 O'CLOCK Driving Method1/33Duty,1/6Bias
Display Type
Driver ICST7567
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight parameters3.3Vproduction capacitySelf-produced
Character libraries
Whether to bring PCBYes

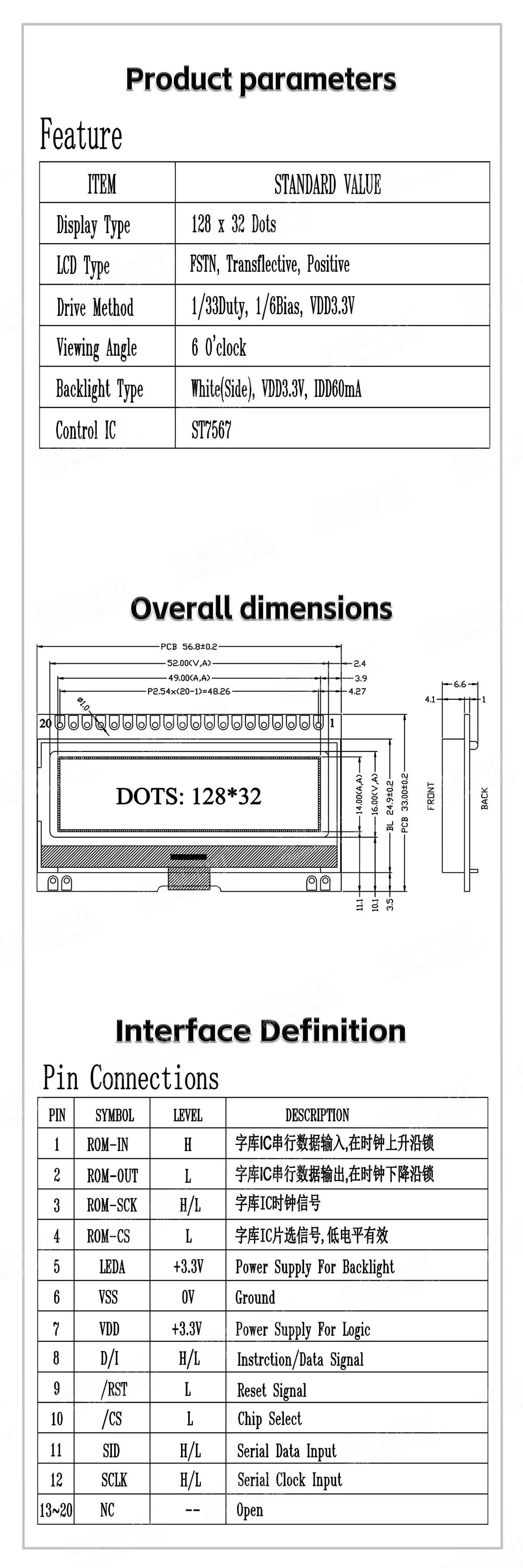

Product Datasheet

CH12832-5-英文版-详情页_04

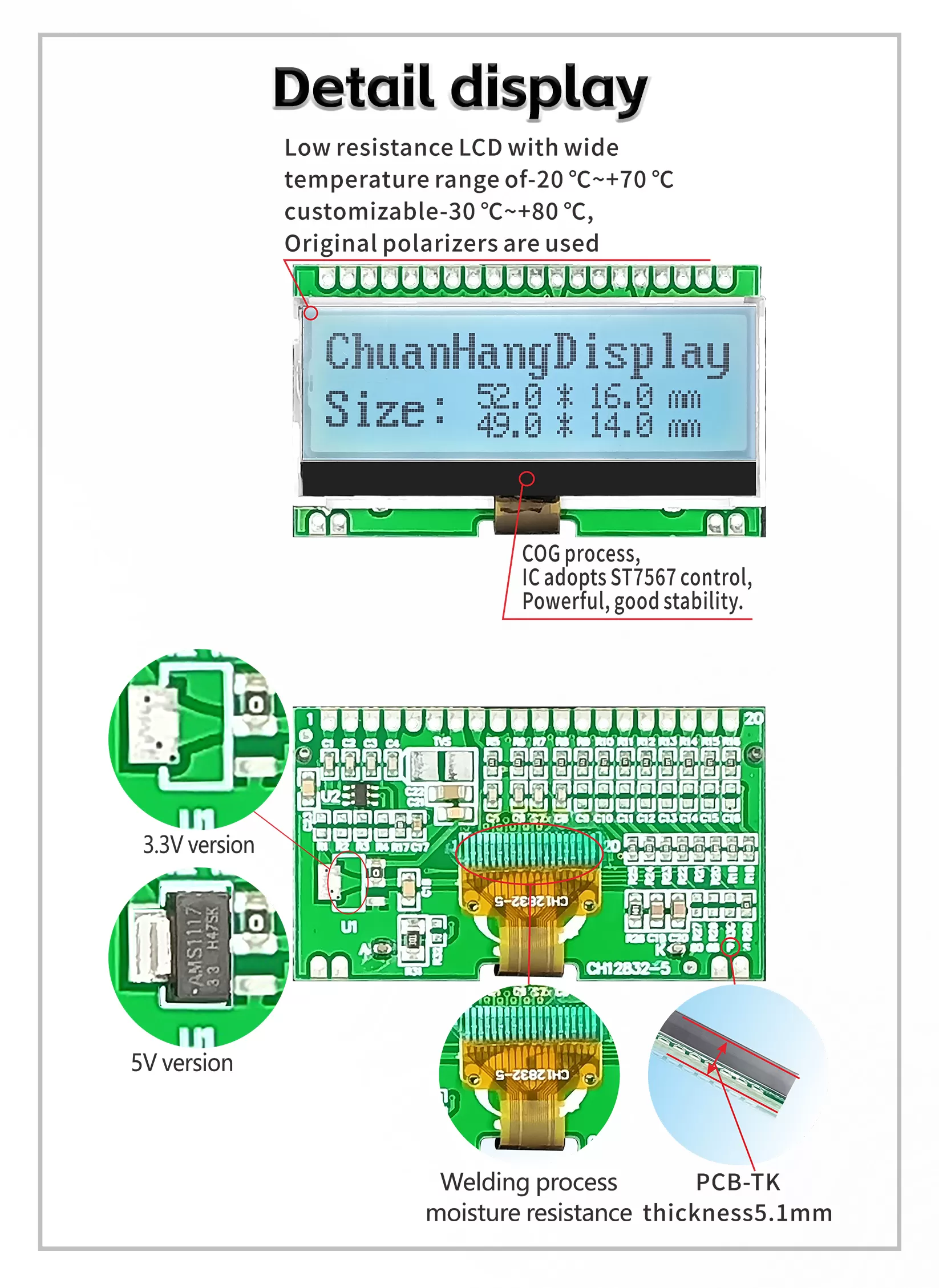

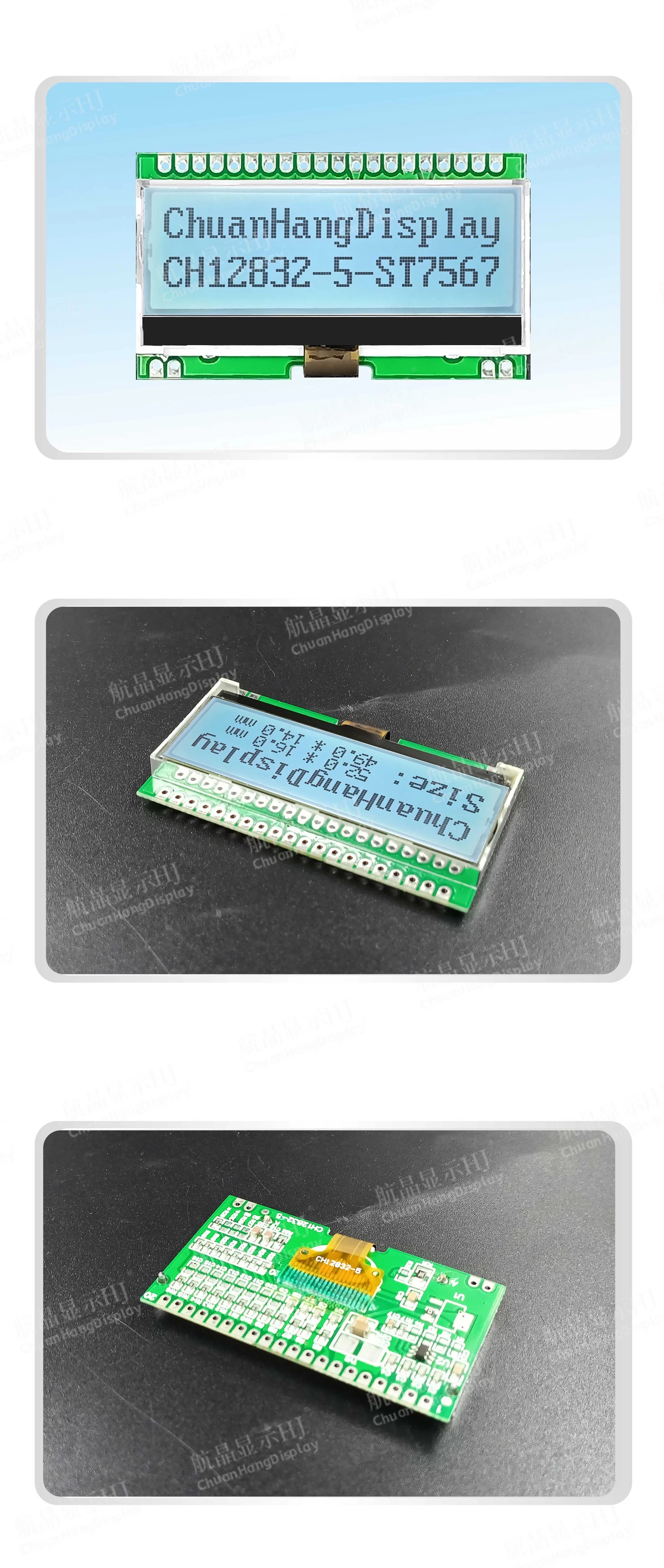

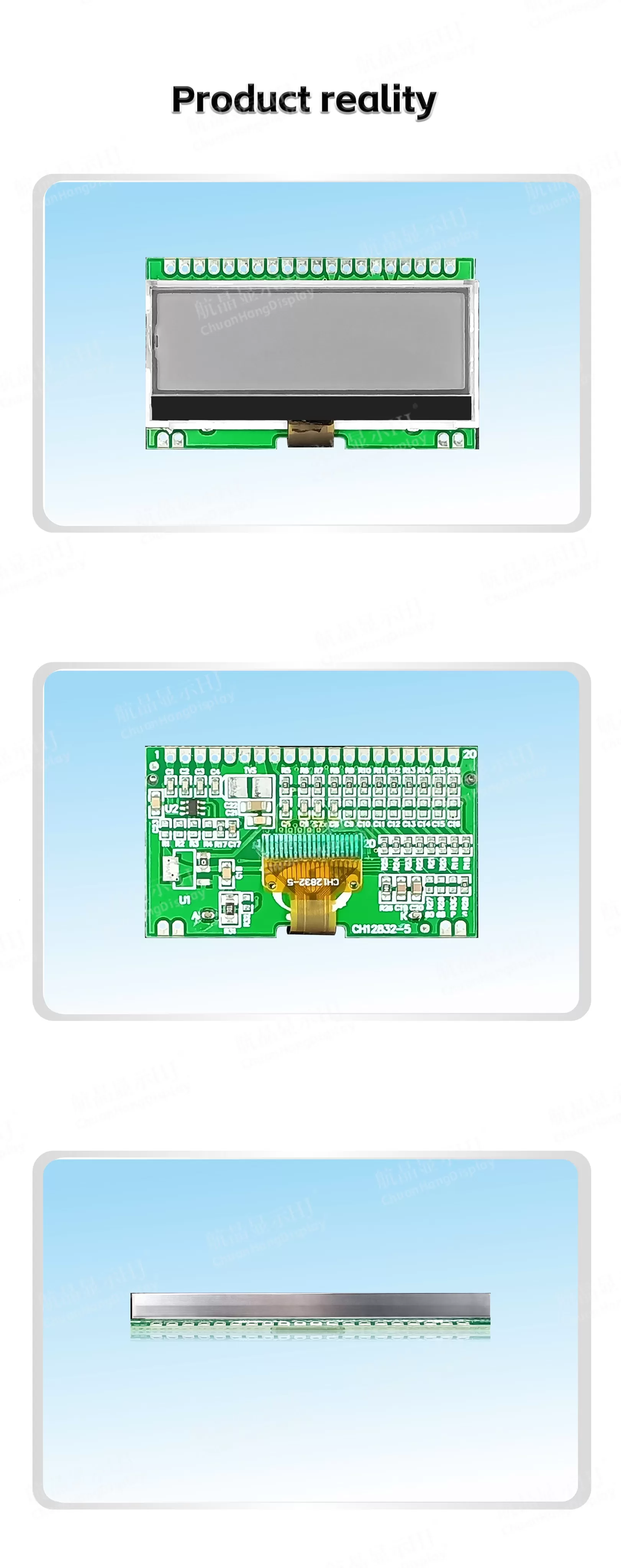

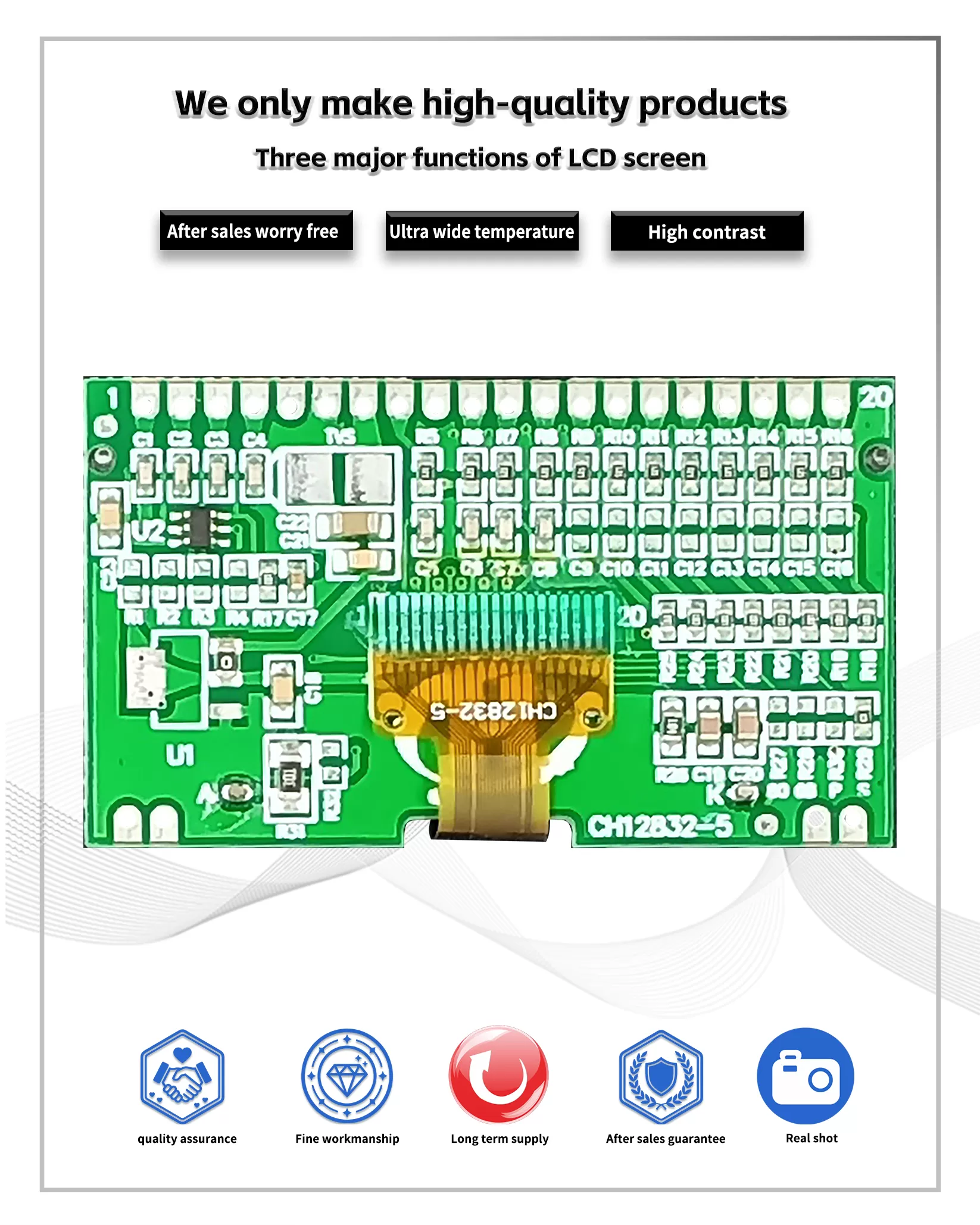

Product Display

CH12832-5-英文版-详情页_01

CH12832-5-英文版-详情页_01

CH12832-5-英文版-详情页_01

CH12832-5-英文版-详情页_01

CH12832-5-英文版-详情页_01
