Product Description

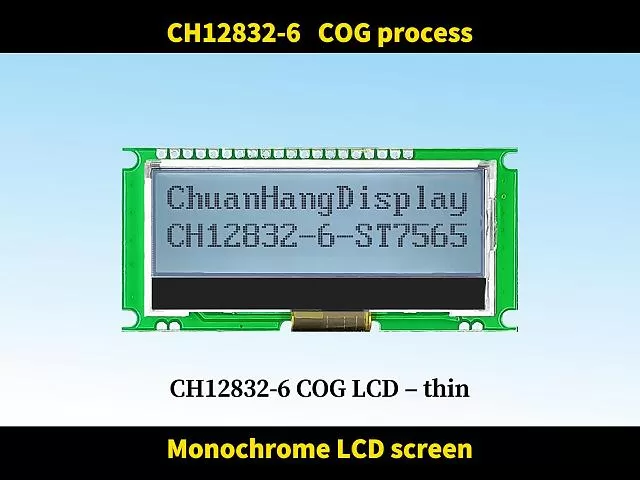

Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH12832-6
Resolution128x32screen size
Outline Dimension(L*W*H)78.0x36.0x6.0mmVisible Area(L*W)62.16x17.14mm
Active Area(L*W)58.82x14.66 mmDot Size (mm)
0.4L)x0.4(W)
TypeCOGConnection MethodFPC
Supply Voltage3.3V Interface TypeMCU/SPI
Viewing Direction6 O'CLOCK Driving Method1/33Duty,1/6Bias
Display Type
Driver ICST7565
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight parameters3.3Vproduction capacitySelf-produced
Character libraries
Whether to bring PCBYes

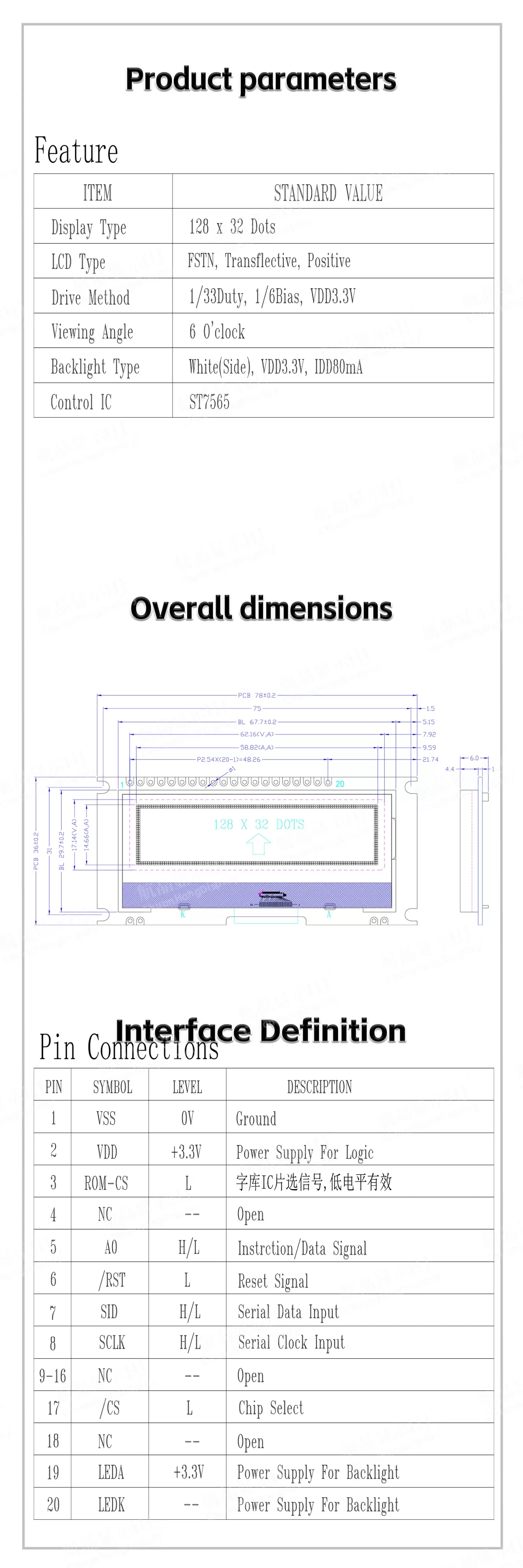

Product Datasheet

CH12832-6-英文版-详情页_04

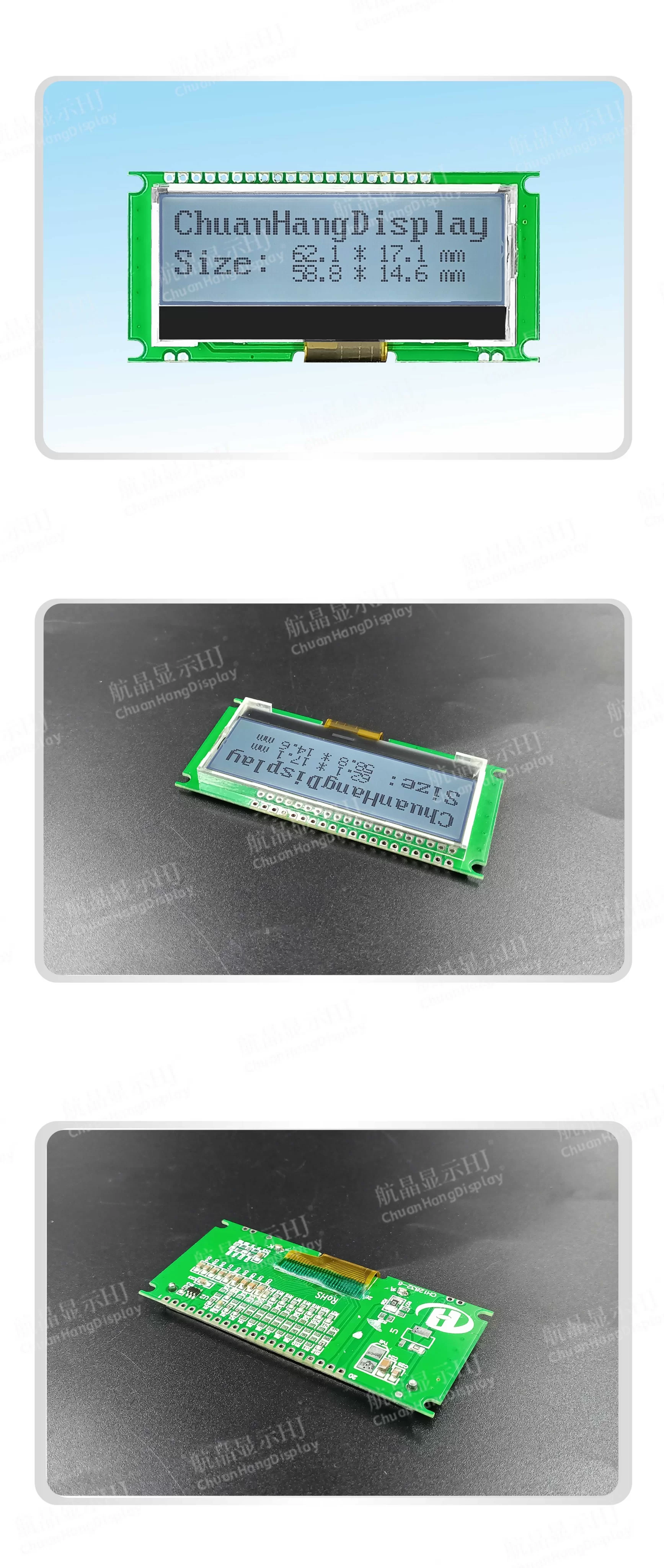

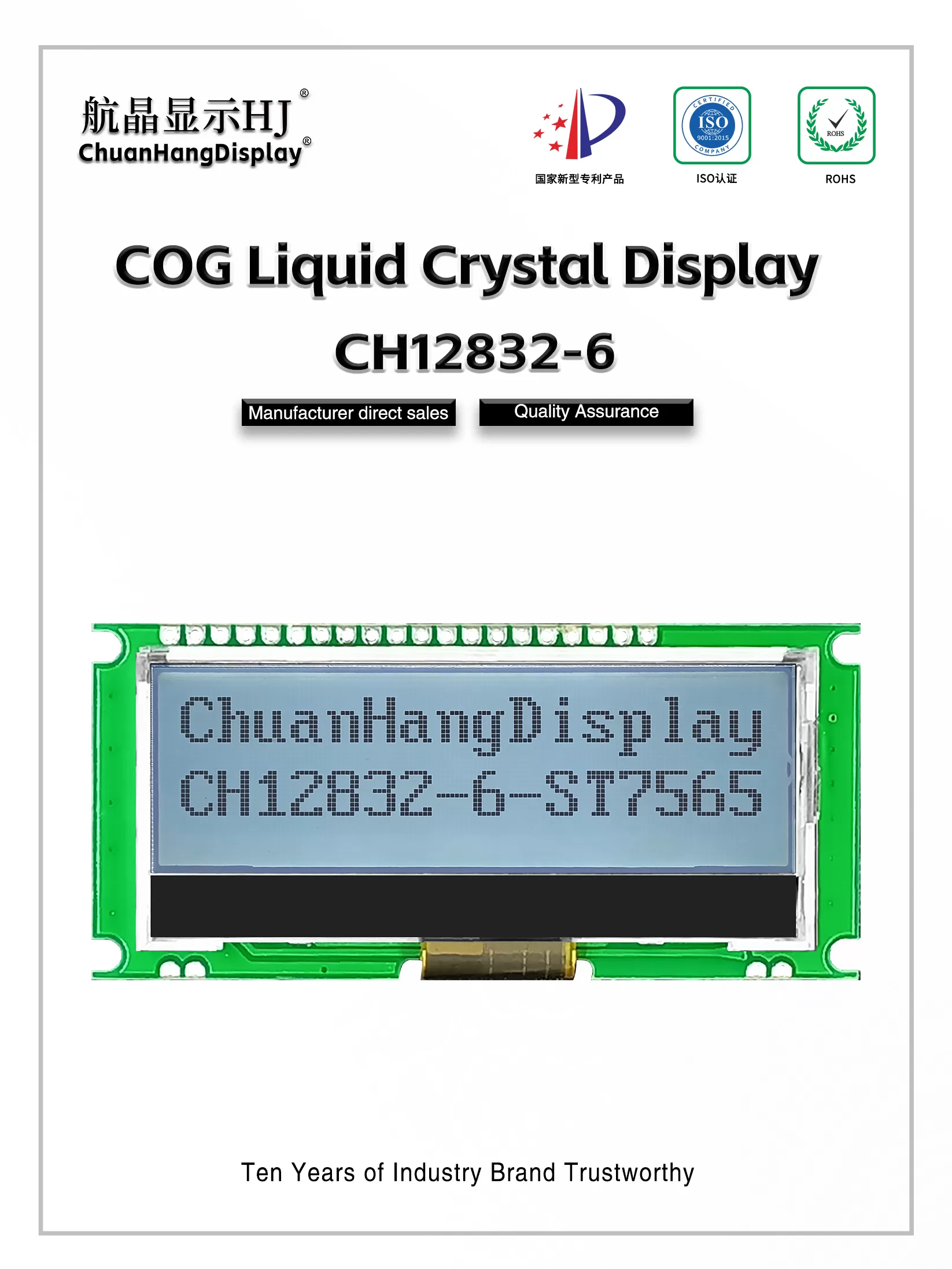

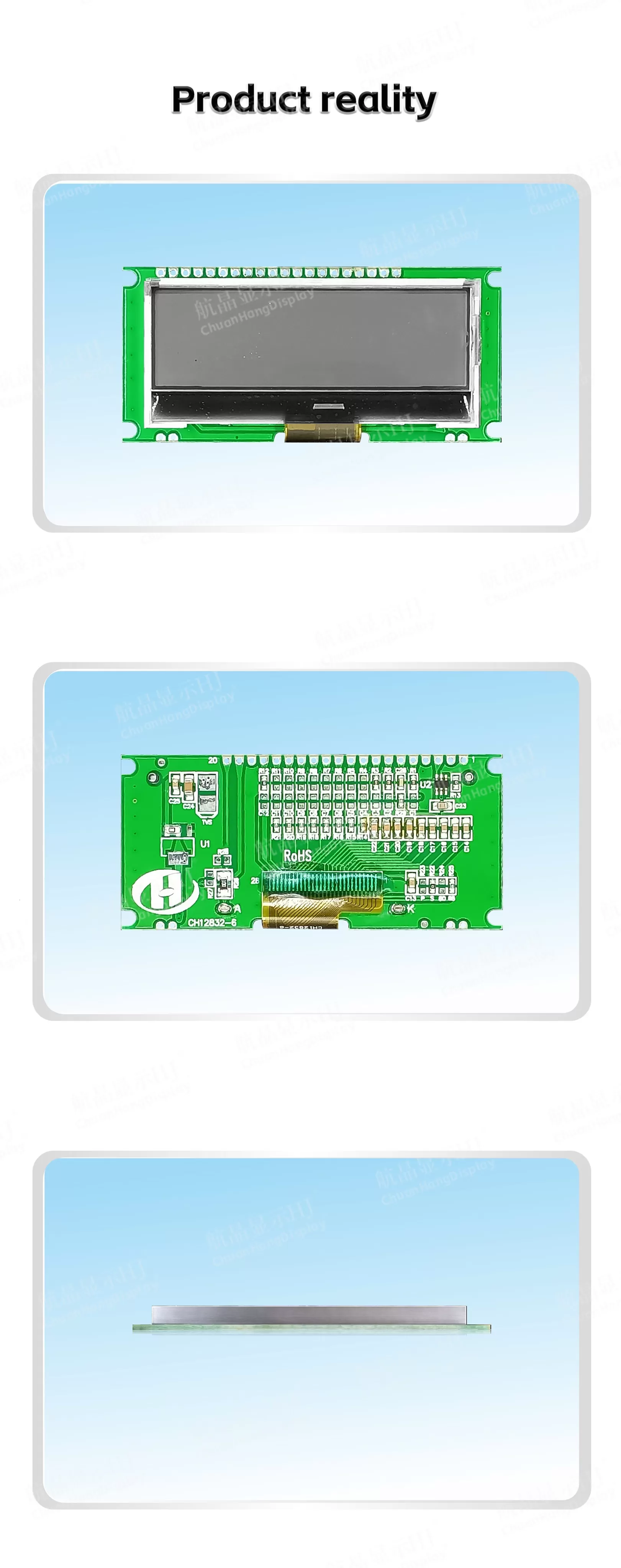

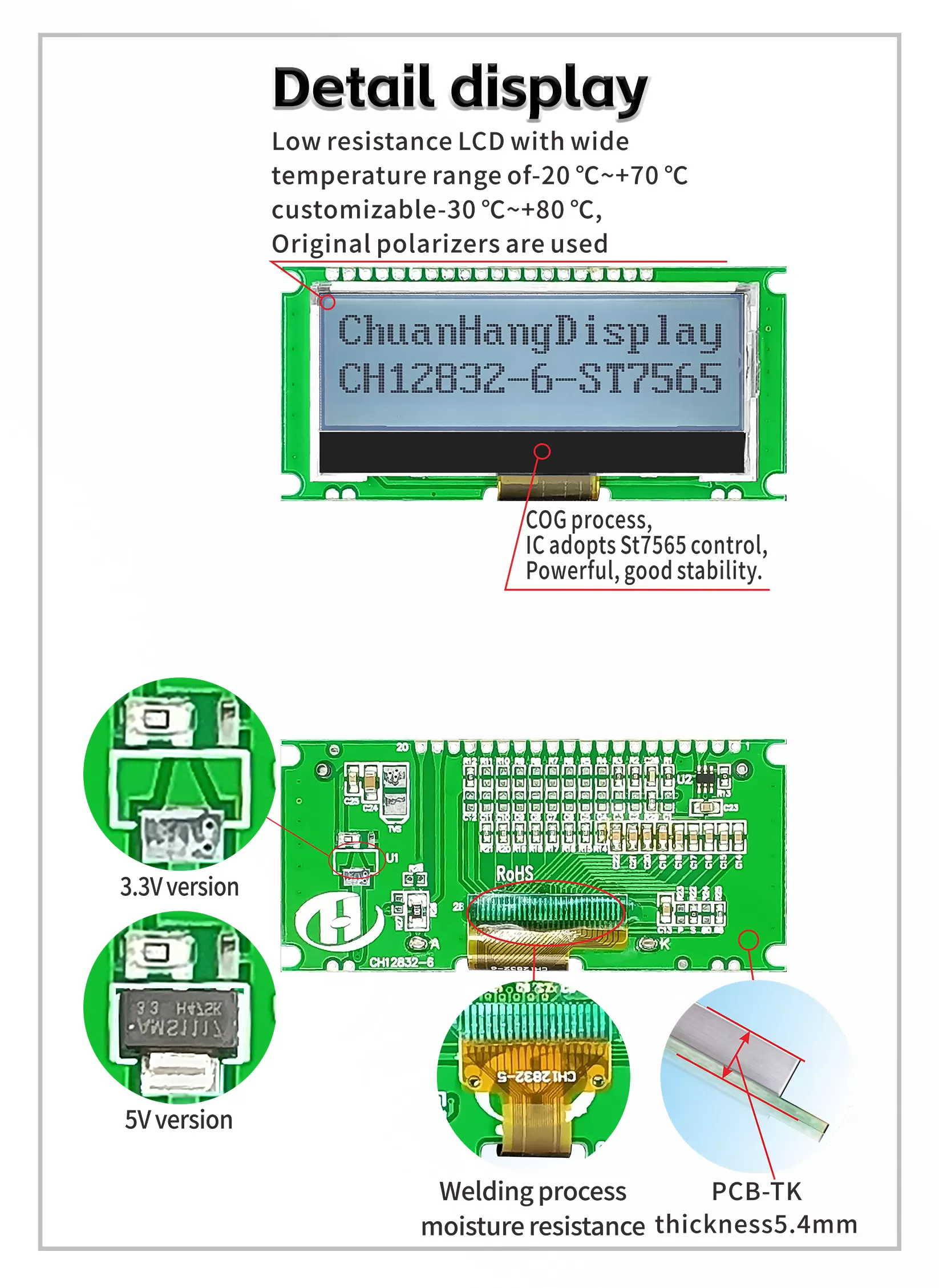

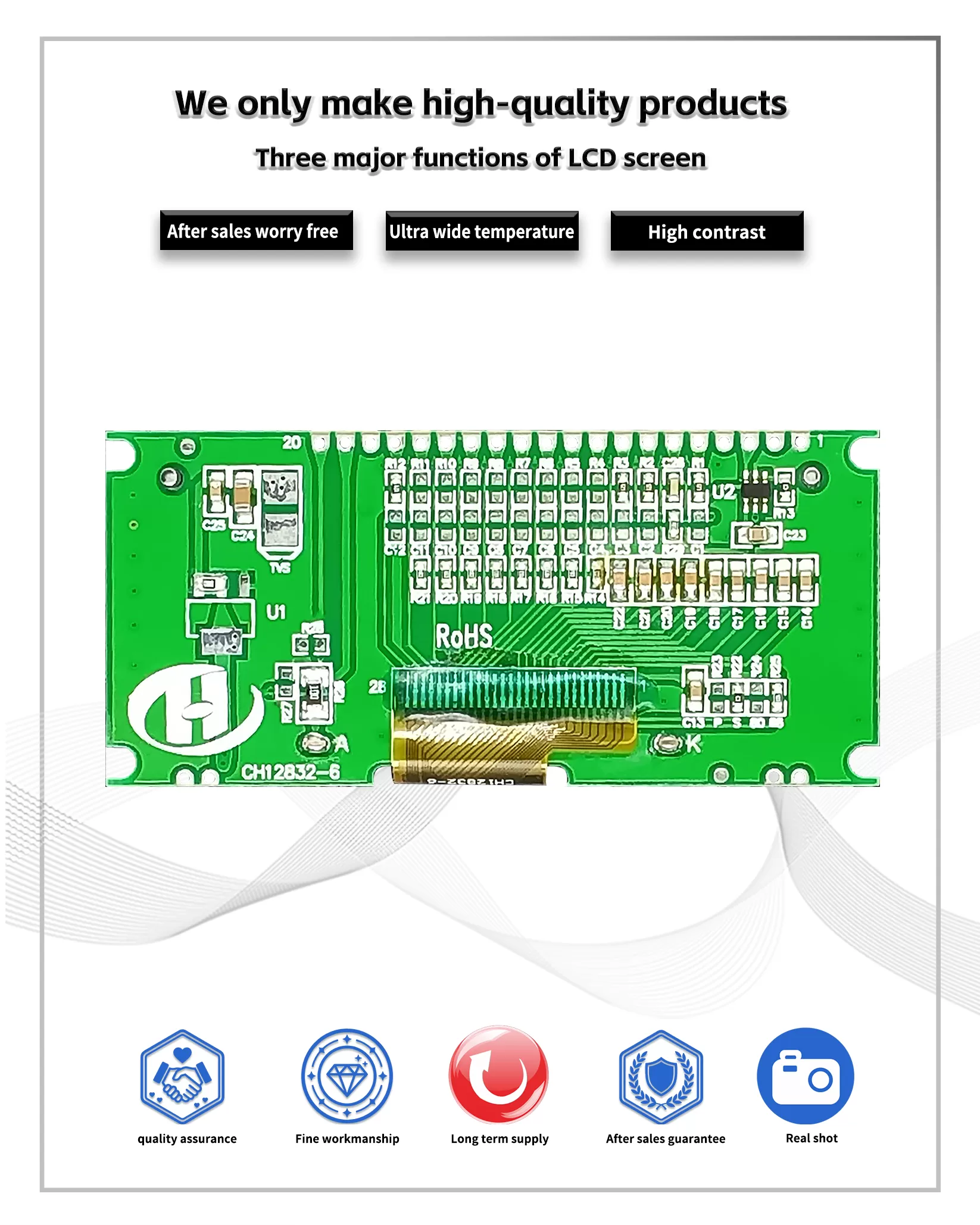

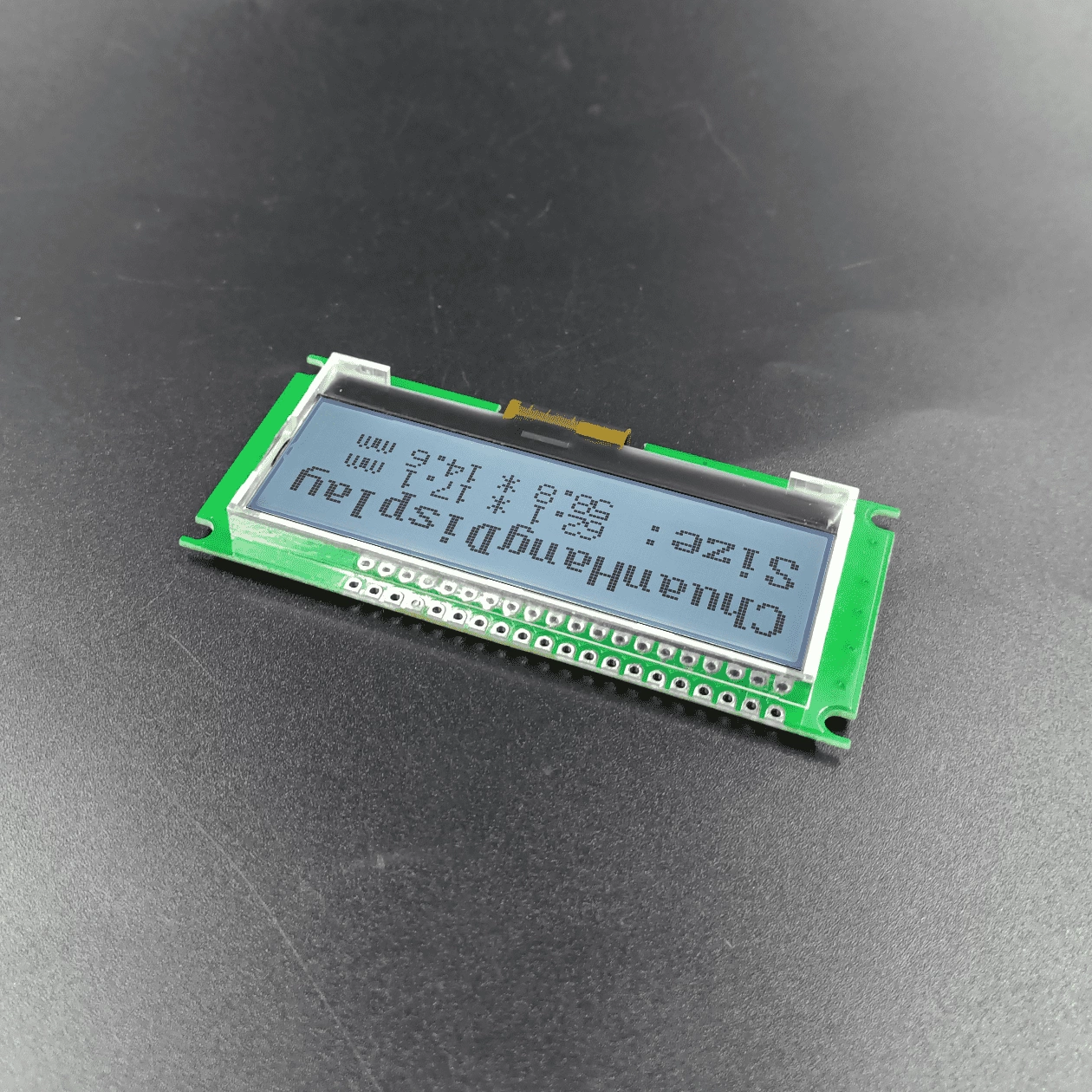

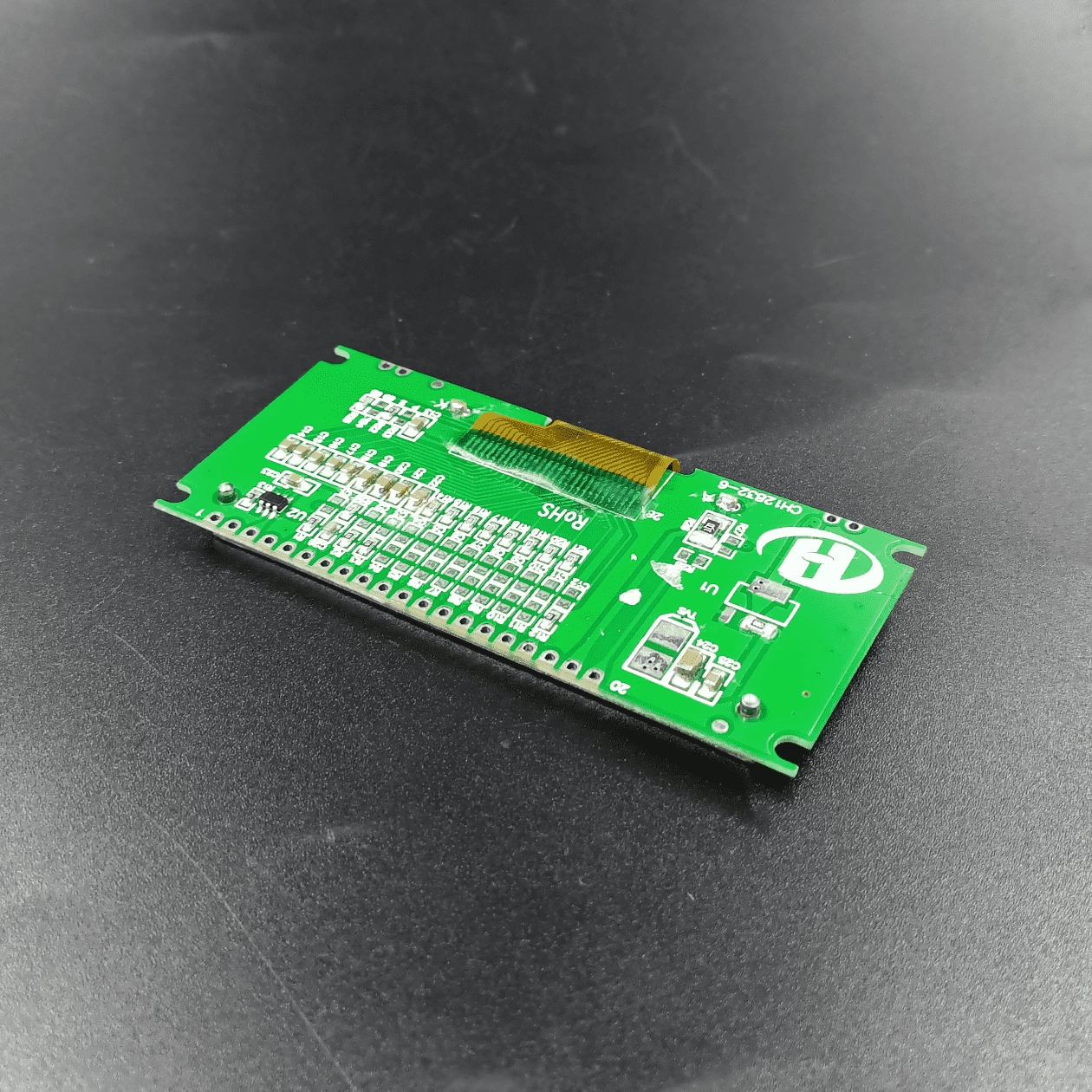

Product Display





CH12832-6-英文版-详情页_01

CH12832-6-英文版-详情页_01

CH12832-6-英文版-详情页_01

CH12832-6-英文版-详情页_01

CH12832-6-英文版-详情页_01
