An industrial graphic LCD display module bridges the gap between fixed-segment limitations and the high power dissipation of full-color displays—rendering complex waveforms, multi-language font sets, and dynamic graphical gauges while consuming microamp-level drive currents. For hardware architects designing medical telemetry, smart energy grids, marine navigation, and industrial automation consoles, sourcing a graphic LCD requires rigorous synchronization between host MCU bandwidth, display data RAM (DDRAM) mapping, and wide-temperature fluid formulations. Established in 2011, Shenzhen Chuanhang Electronic Technology Co., Ltd. (Chuanhang Display) operates a modern 5,000-square-meter facility staffed by 100+ skilled personnel and 10+ R&D specialists. We engineer and manufacture custom graphic LCD modules across automated COG, FOG, COB, COPB, and SMT production lines, guaranteeing long-term form-fit-function availability.
Selecting an industrial graphic LCD display module requires matching resolution density (e.g., 128x64, 192x64, 240x128, 320x240) to three physical benchmarks: controller firmware protocols (ST7565R, ST7920, RA6963, UC1608), electrical packaging architecture (ruggedized Chip-on-Board COB vs. ultra-thin Chip-on-Glass COG), and optical polarizer modes (FSTN black/white transflective for noon sunlight viewability). Chuanhang Display manufactures direct-from-factory graphic display solutions inside its 5,000 m² Shenzhen cleanroom facility, offering custom FPC pinouts, wide-temp fluid (-30°C to +80°C), and guaranteed long-term anti-EOL supply security.
Automated ultrasonic gold-wire COB lines and CCD-guided COG bonding lines operating with ±0.015 mm pitch accuracy.
Film-compensated Super Twisted Nematic (FSTN) optics providing razor-sharp monochrome contrast under high-angle direct sunlight.
Strategic Tier-1 silicon agreements preventing sudden driver IC obsolescence in industrial, medical, and metering product lifecycles.

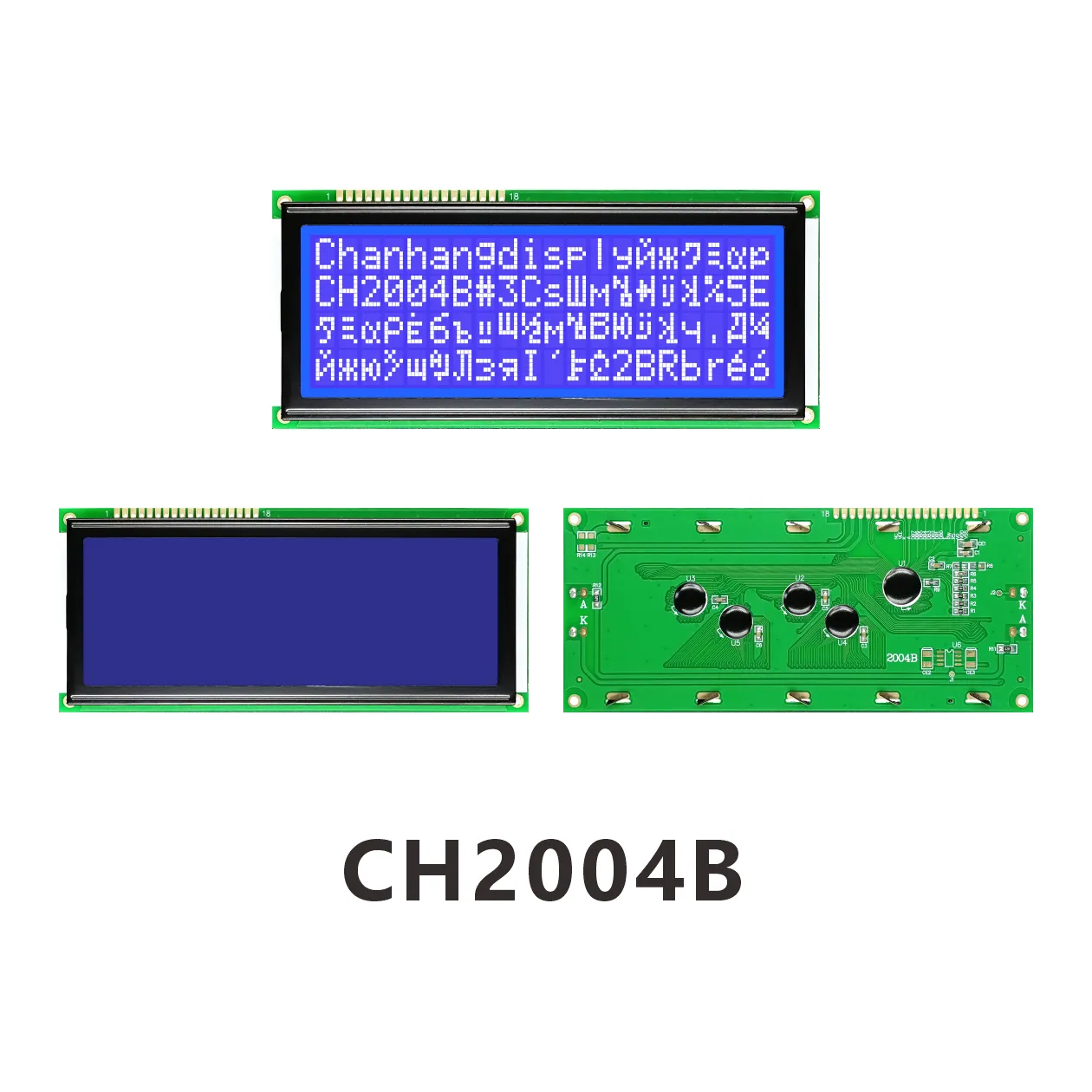

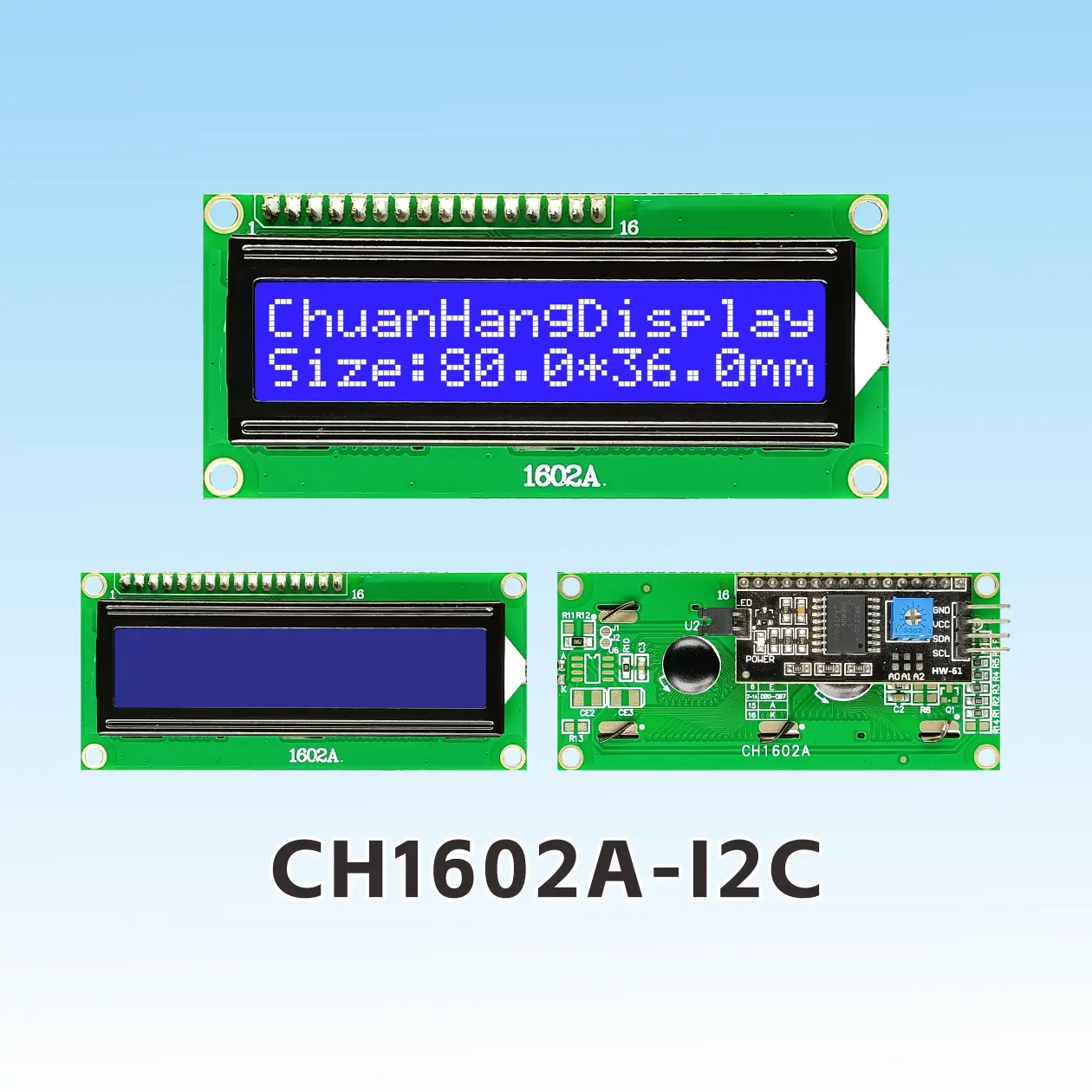

Unlike segment or character displays that rely on pre-cast character generators, a graphic LCD display module addresses every pixel individually through an internal Display Data RAM (DDRAM). The host microcontroller writes bit patterns representing horizontal pages, which the display controller maps continuously to column and row multiplex drivers.
For resource-constrained embedded systems (such as ARM Cortex-M0/M3 microcontrollers or low-power PIC processors), handling high-density graphics without display lag requires careful controller selection. Controllers like the ST7920 integrate dual modes: a built-in Chinese/English character ROM alongside full graphic bitmap support, dramatically reducing host computational overhead.
In accordance with display ergonomics specified in ISO 9241-307 optical standards and electrical performance criteria defined by IEC 61747 liquid crystal specifications, Chuanhang Display supports standard and non-standard graphic configurations:
The global standard for handheld test meters and medical devices. Features 8 pages of 8-dot vertical slices, operating over low-pin-count SPI or 8-bit parallel buses with integrated charge-pump DC-DC power.
Designed for industrial CNC controllers, commercial laundry machines, and power monitoring panels. Supports simultaneous graphic and text layer overlay with hardware cursor control.
Provides quarter-VGA (QVGA) resolution for complex waveform monitors and marine sonar displays, offering wide viewing angles and 1/240 duty high-density multiplexing.
Super Twisted Nematic (STN) liquid crystals naturally produce a yellow-green or blue background due to optical birefringence interference. To achieve crisp, true-monochrome black-and-white graphics with wide viewing angles, Chuanhang Display integrates Film-compensated STN (FSTN) and Double-STN (DFSTN) technologies.
FSTN adds an optical retardation film between the front polarizer and the liquid crystal cell, compensating for wavelength dispersion and neutralizing background tint. When combined with a transflective polarizer mode, an FSTN graphic LCD reflects ambient noon sunlight while transmitting LED backlight illumination at night, delivering exceptional contrast ratios (>15:1) in all lighting environments.
For outdoor solar inverters, agricultural handhelds, and EV charging terminals, sourcing a pure transmissive display is an engineering mistake—ambient sunlight washes out the backlight. Chuanhang Display’s transflective FSTN graphic modules incorporate a semi-reflective rear optical layer. Sunlight entering the front of the display reflects back through the liquid crystal cell, making the display sharper as ambient light intensifies while slashing battery consumption.
Direct ownership of automated assembly machinery defines a premier graphic LCD module factory. Founded in 2011, Chuanhang Display operates fully owned COG (Chip-on-Glass), FOG (Film-on-Glass), COB (Chip-on-Board), COPB, and SMT production lines within its 5,000 m² modern manufacturing hub in Shenzhen.
A critical failure point in high-density graphic modules is micro-pitch interconnect breakdown. Driving a 128x64 or 240x128 display requires dozens of closely spaced conductive traces. If an intermediary outsources bonding to secondary manual shops, Anisotropic Conductive Film (ACF) particles are inadequately compressed, leading to row/column line dropouts under industrial machine vibration.
Precision Automated COG Lines: CCD dual-camera alignment systems bond driver ICs onto the bare glass ledge with pitch tolerances held within ±0.015 mm, eliminating thick PCBs to deliver slim, low-weight form factors.
High-Tension Automated FOG Lines: Pulsed-heat bar bonding creates high-strength ACF joints connecting flexible printed circuits (FPC) to the glass substrate, certified for high tensile pull strength (>1.5 kg/cm).
High-Speed SMT & COB Infrastructure:populates peripheral circuitry, negative voltage generators, and gold-wire bonded controller dies beneath protective glob-top epoxy and sturdy stamped metal bezels.
Drawing upon 13 years of specialized display manufacturing, Chuanhang Display executes a comprehensive 6-stage qualification loop across every graphic LCD module lot, validating electrical open/short integrity, optical contrast, and mechanical durability.
100% optical and electrical probing of bare ITO glass cells to eliminate short circuits and micro-cracks.
Automated optical ACF thermocompression inside ISO 14644-1 cleanrooms with pitch tolerances under ±0.015 mm.
Spectroradiometric calibration confirming contrast ratio (>15:1), response speed, and background chromaticity.
168+ hours at +60°C / 90% RH humidity alongside rapid thermal shock cycling (-30°C to +80°C).
Calibrated photometer mapping confirming >85% luminance uniformity across the entire active graphic area.
High-voltage ESD protection verification and vacuum heat sealing in antistatic conductive trays with lot barcoding.
A1: Yes. Backed by 13+ years of specialized display manufacturing, Chuanhang Display engineers custom Flexible Printed Circuit (FPC) tails. We customize tail length, bend radii, connector pin assignments (ZIF/Hirose), and integrate dedicated EMI shielding to drop directly into your existing motherboard without PCB re-spins.
A2: Chip-on-Glass (COG) bonds the bare silicon controller directly to the display glass substrate, eliminating the thick FR4 PCB to deliver an ultra-thin profile (<2.0 mm) ideal for compact handheld devices. Chip-on-Board (COB) mounts the IC onto a rigid PCB enclosed beneath protective black glob-top epoxy and a stamped metal frame, providing rugged structural rigidity and integrated screw-mounting holes for heavy industrial machinery.
A3: We partner directly with Tier-1 semiconductor foundries (such as Sitronix, Ilitek, and RAIO) committed to 5 to 7+ year industrial lifecycles. If an upstream silicon revision becomes unavoidable, our in-house 10+ member R&D team provides pin-compatible and timing-compatible drop-in replacements, guaranteeing zero mechanical chassis or host code modifications for your product line.
A4: Color TFT and OLED displays require high-power backlights to fight bright sunlight, draining batteries and generating heat. A transflective FSTN graphic LCD module incorporates an internal optical layer that uses ambient sunlight to illuminate characters. The brighter the sun, the sharper the contrast becomes—while consuming less than 1% of the electrical power of an equivalent color screen.
A5: Standard catalog graphic modules (such as 128x64 or 240x128) dispatch within 3 to 5 business days for engineering evaluation with zero MOQ restrictions. Custom OEM/ODM tooling projects (custom glass dimensions, custom FPC tails, or modified backlights) deliver working first-article prototypes within 2 to 3 weeks, supported by mass-production MOQs starting flexibly from 500 to 1,000 units.
A6: Yes. We engineer both 4-wire analog resistive touch panels (RTP) for low-cost glove operation and Projected Capacitive (PCAP) multi-touch panels with customized I2C controller firmware, laminated directly onto the graphic module bezel with full cleanroom optical alignment.
Ready to bypass trading brokers and secure high-reliability, custom-engineered graphic LCD display modules
