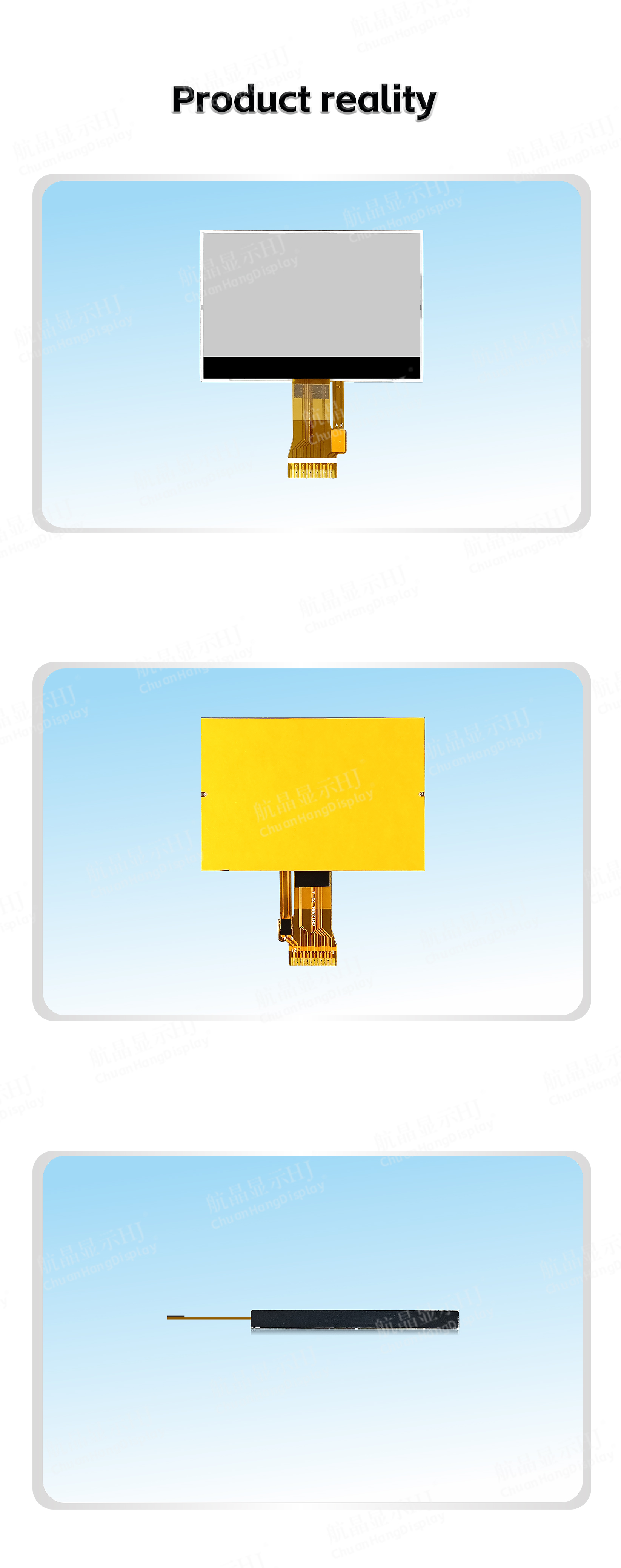

n the modern industrial and commercial sectors, visual interfaces serve as the primary communication bridge between human operators and complex machinery. The underlying technology driving these interfaces relies heavily on active-matrix liquid-crystal advancements. For hardware engineers, procurement managers, and product designers, understanding the deep technical mechanics, material variations, and supply chain dynamics of a tft display screen is a fundamental requirement for successful product development.
This comprehensive guide analyzes the engineering principles of thin-film transistor displays, explores cross-industry application requirements, addresses common manufacturing pain points, and provides actionable strategies for vendor evaluation and pricing optimization.
To make informed sourcing decisions, buyers must first understand the structural components and material science that govern liquid crystal displays. Unlike passive-matrix screens, which suffer from slow response times and ghosting, active-matrix technology provides individual control over every single pixel.
The defining characteristic of thin-film transistor technology is its active-matrix addressing scheme. A microscopic transistor and capacitor are attached to each pixel on the glass substrate. When a row is activated, the exact voltage is applied to the specific column, charging the capacitor. This capacitor holds the charge, keeping the pixel at the desired state until the next refresh cycle. This architecture prevents the electrical crosstalk common in passive-matrix OLEDs (PMOLED) or Super-Twisted Nematic (STN) panels, resulting in superior contrast ratios, faster gray-to-gray (G2G) response times, and the ability to display high-resolution, full-color video.
The behavior of the liquid crystal molecules dictates the optical performance of the module. Manufacturers utilize three primary alignment techniques, each serving specific operational requirements:
Twisted Nematic (TN): The most cost-effective option. The liquid crystal molecules twist at a 90-degree angle. While TN panels offer rapid response times, they suffer from color inversion at narrow viewing angles, making them suitable only for basic human-machine interfaces (HMIs) where the operator stands directly in front of the device.Vertical Alignment (VA): Molecules are aligned vertically to the glass substrates. VA technology blocks light highly effectively when the pixel is turned off, providing exceptionally high contrast ratios (often exceeding 3000:1). This makes VA panels ideal for medical diagnostics or marine equipment used in dark environments.In-Plane Switching (IPS): The liquid crystal molecules rotate parallel to the substrate. IPS provides ultra-wide viewing angles (up to 178 degrees horizontally and vertically) and highly accurate color reproduction. As user expectations rise, IPS has become the standard for premium industrial and automotive interfaces.
The liquid crystal layer does not emit light; it acts as a light valve. Therefore, the Backlight Unit (BLU) is a vital component. B2B applications often require specialized LED string configurations to achieve specific brightness levels, measured in candelas per square meter (cd/m²), or nits.
Furthermore, data transmission protocols must match the resolution and frame rate of the module. Common interfaces include:
SPI/MCU: Used for low-resolution, small-sized panels in simple embedded systems.RGB: A parallel interface suitable for medium resolutions, requiring a large number of pins.LVDS (Low-Voltage Differential Signaling): The industry standard for large industrial panels, offering high bandwidth and excellent noise immunity.MIPI DSI: Originally developed for mobile devices, now widely used in high-resolution, compact B2B displays for its low power consumption and high-speed data transfer.
Deploying a tft display screen in consumer electronics is vastly different from integrating one into professional-grade hardware. B2B applications demand stringent adherence to industry-specific certifications and environmental tolerances.
In factory settings, PLCs (Programmable Logic Controllers) and CNC machine HMIs require ruggedized displays. These panels must withstand heavy vibration, chemical exposure, and continuous 24/7 operation. Manufacturers often apply Anti-Glare (AG) or Anti-Reflection (AR) surface treatments to the cover glass to maintain visibility under harsh factory lighting.
Medical equipment, such as ultrasound machines, patient monitors, and surgical navigation systems, requires exceptional grayscale accuracy. Displays used for diagnostic imaging must comply with the DICOM (Digital Imaging and Communications in Medicine) standard to ensure that X-rays and MRI scans are rendered without missing minute details. Additionally, the touch panels integrated into these screens must support operation while the user is wearing heavy surgical gloves or in the presence of saline solutions.
The automotive sector imposes some of the strictest hardware requirements. Displays used in instrument clusters or center stacks must pass AEC-Q100 standards. They require an extended operating temperature range, typically from -40°C to +85°C, ensuring the screen remains functional whether the vehicle is in the freezing Arctic or a scorching desert.
Engineers and procurement teams often encounter specific technical and logistical hurdles during the product development lifecycle. Addressing these pain points early prevents costly redesigns.
A standard indoor panel typically outputs 250 to 350 nits. If installed in an outdoor kiosk or agricultural machinery, the image will completely wash out under direct sunlight. To solve this, engineers must specify high-brightness panels (1000 to 2500 nits). However, increasing backlight brightness generates excess heat and drains power.
A superior engineering solution is Optical Bonding. Standard displays feature an air gap between the touch sensor and the LCD surface, causing internal light reflection. By filling this gap with Optically Clear Adhesive (OCA) or Optically Clear Resin (OCR), internal reflections are drastically reduced, improving contrast and outdoor visibility without necessarily requiring maximum backlight brightness.
Industrial environments are saturated with electromagnetic noise from large motors and power supplies. This interference can cause display flickering or phantom touches on capacitive screens. Incorporating EMI shielding layers, such as indium tin oxide (ITO) coatings or micro-fine conductive meshes, is a vital step for robust hardware design.
Consumer-grade panels are often discontinued within 12 to 18 months. Industrial B2B equipment, however, may have a product lifecycle of 5 to 10 years. Securing a panel with strict longevity guarantees prevents the need for continuous mechanical redesigns and software driver updates.
Procurement involves more than simply finding the lowest unit price. Total Cost of Ownership (TCO) and supply chain reliability are paramount.
When requesting a quote, several factors influence the final price:
Standard vs. Customization: Using a standard glass cell but customizing the FPC (Flexible Printed Circuit) or the backlight structure is a common, cost-effective compromise. Full custom glass cells require massive Non-Recurring Engineering (NRE) fees and high Minimum Order Quantities (MOQs).Driver ICs: The specific integrated circuit used to drive the panel (e.g., ILI9341, ST7789) impacts both cost and software integration complexity.Touch Panel Integration: Adding a Projected Capacitive (PCAP) touch panel with a custom cover glass (for branding or vandal resistance) increases tooling costs but adds significant value to the end product.
Evaluating an LCD manufacturer requires auditing their production capabilities and quality assurance protocols. Buyers should look for ISO 9001 and ISO 14001 certifications, highly controlled cleanroom environments (Class 100 or Class 1000), and comprehensive testing laboratories. Modules should undergo thermal shock testing, high-temperature/high-humidity operating tests, and vibration analysis.
Working with a dedicated and experienced partner like Chuanhang Display ensures that hardware teams receive accurate technical documentation, localized engineering support, and transparent supply chain communication. Reliable manufacturers will openly share their component sourcing channels and provide Product Change Notifications (PCN) well in advance of any material shifts.
Q1: What is the typical operating lifespan of an industrial-grade display module?
A1: Industrial panels are generally rated for an MTBF (Mean Time Between Failures) of 50,000 to 100,000 hours to half-brightness. This means the backlight will retain at least 50% of its original luminance after years of continuous 24/7 operation, far outlasting consumer alternatives.
Q2: How do I know if my project needs a custom tft display screen or a standard off-the-shelf module?
A2: If your mechanical enclosure is strictly limited by specific dimensions, or if you require unique interface pinouts to match a legacy PCB, a custom FPC is highly recommended. However, if you are in the early design phase, designing your enclosure around a standard off-the-shelf glass cell will drastically reduce tooling costs and lead times.
Q3: Can capacitive touch panels work reliably in wet environments?
A3: Yes, but it requires specialized touch controller tuning. Industrial PCAP controllers (such as those from EETI or Ilitek) can be programmed with sophisticated firmware algorithms to differentiate between a human finger and water droplets, preventing false triggers in marine or outdoor settings.
Q4: What is the difference between a commercial temperature range and an industrial temperature range?
A4: Commercial panels typically operate between 0°C and +50°C. Industrial-grade liquid crystal fluids and electronic components are engineered to function reliably in extreme conditions, usually spanning from -20°C to +70°C, with automotive grades extending from -40°C to +85°C.
Q5: How can a manufacturer assist in reducing overall project costs?
A5: An experienced supplier like Chuanhang Display can analyze your technical requirements and suggest alternative, readily available Driver ICs or standard backlight designs that achieve the same optical performance without the heavy NRE fees associated with ground-up customization.
Specifying the correct visual interface is an exacting science that directly impacts user experience, hardware durability, and long-term product viability. From analyzing the molecular alignment of IPS panels to understanding the bandwidth requirements of MIPI interfaces, every engineering decision shapes the final outcome. Whether your application involves a sterile medical operating room or a vibration-heavy factory floor, integrating a high-quality tft display screen ensures that vital data is communicated accurately and reliably.
If your engineering or procurement team is currently evaluating display options for an upcoming project, expert guidance is paramount to avoiding costly design iterations. Partnering with a proven manufacturer guarantees that your optical, mechanical, and budgetary requirements are met with precision.
