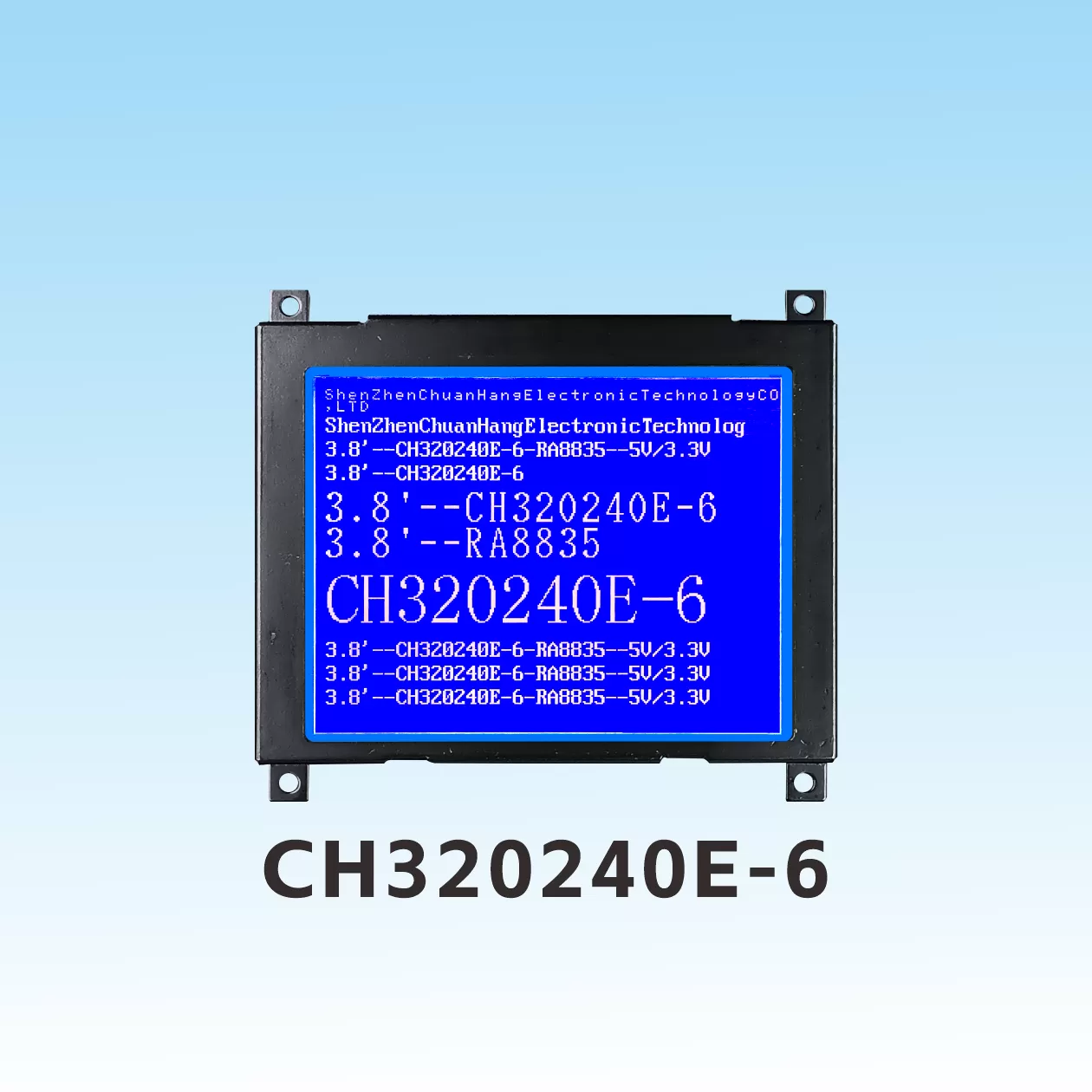

CH320240E-6

Product Description

PDF Download Demo code

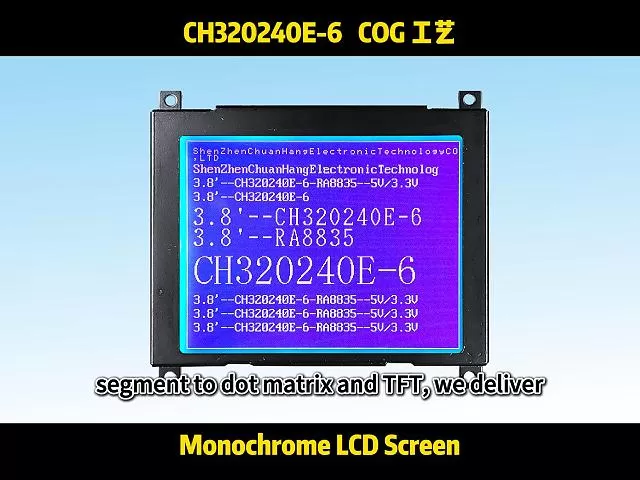

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH320240E-6
Resolution	320x240	screen size	3.8"
Outline Dimension(LWH)	94.7x83.3x12.0 mm	Visible Area(L*W)	79.2x60.0 mm
Active Area(L*W)	76.78x57.58 mm	Dot Size (mm)	0.225(L)x0.225(W)
Type	COG	Connection Method	FPC
Supply Voltage	5V/3.3V	Interface Type	MCU
Viewing Direction	6 O'CLOCK	Driving Method	1/240Duty,1/16Bias
Display Type		Driver IC	RA8835
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	5V/3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	Yes

Product Datasheet

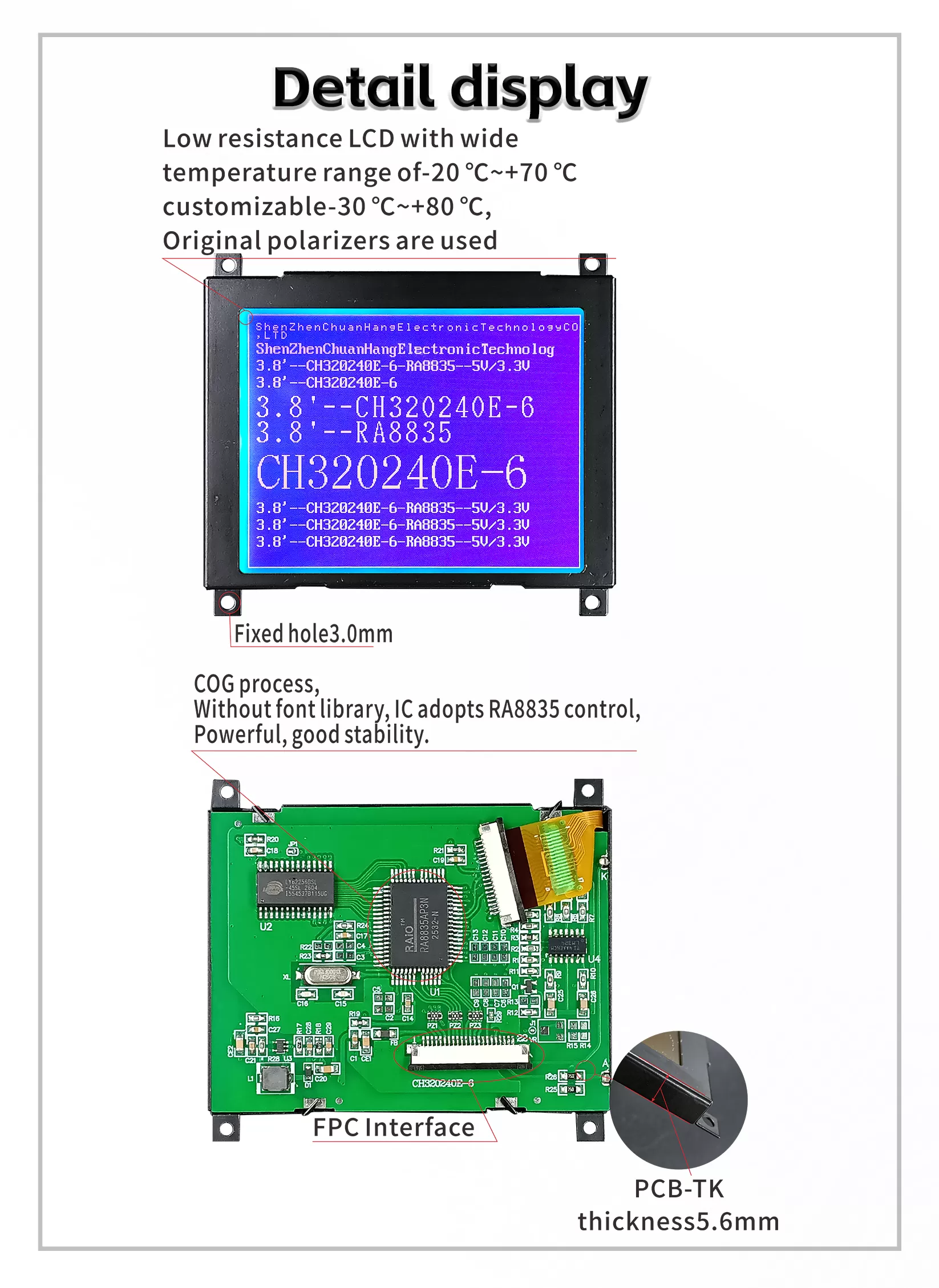

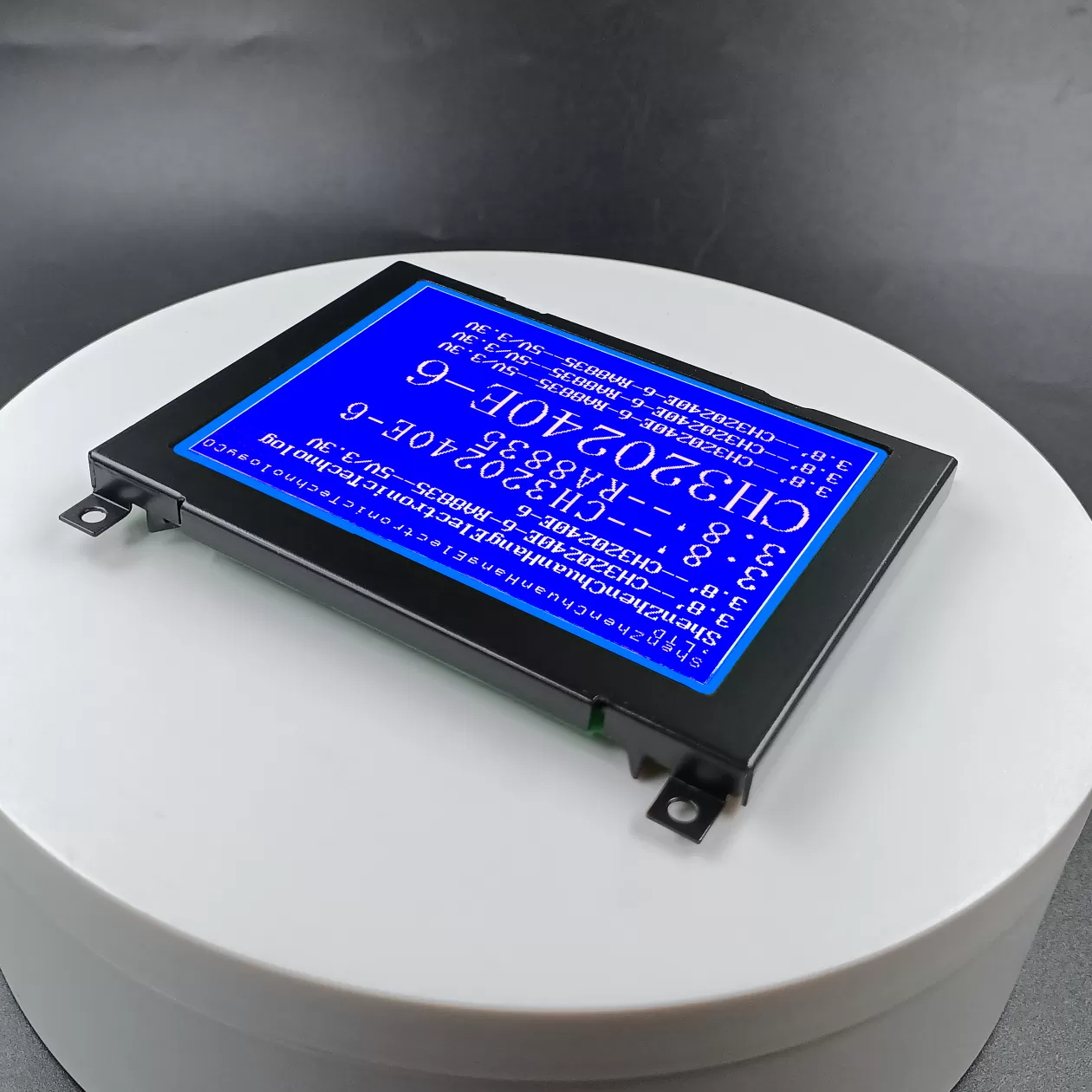

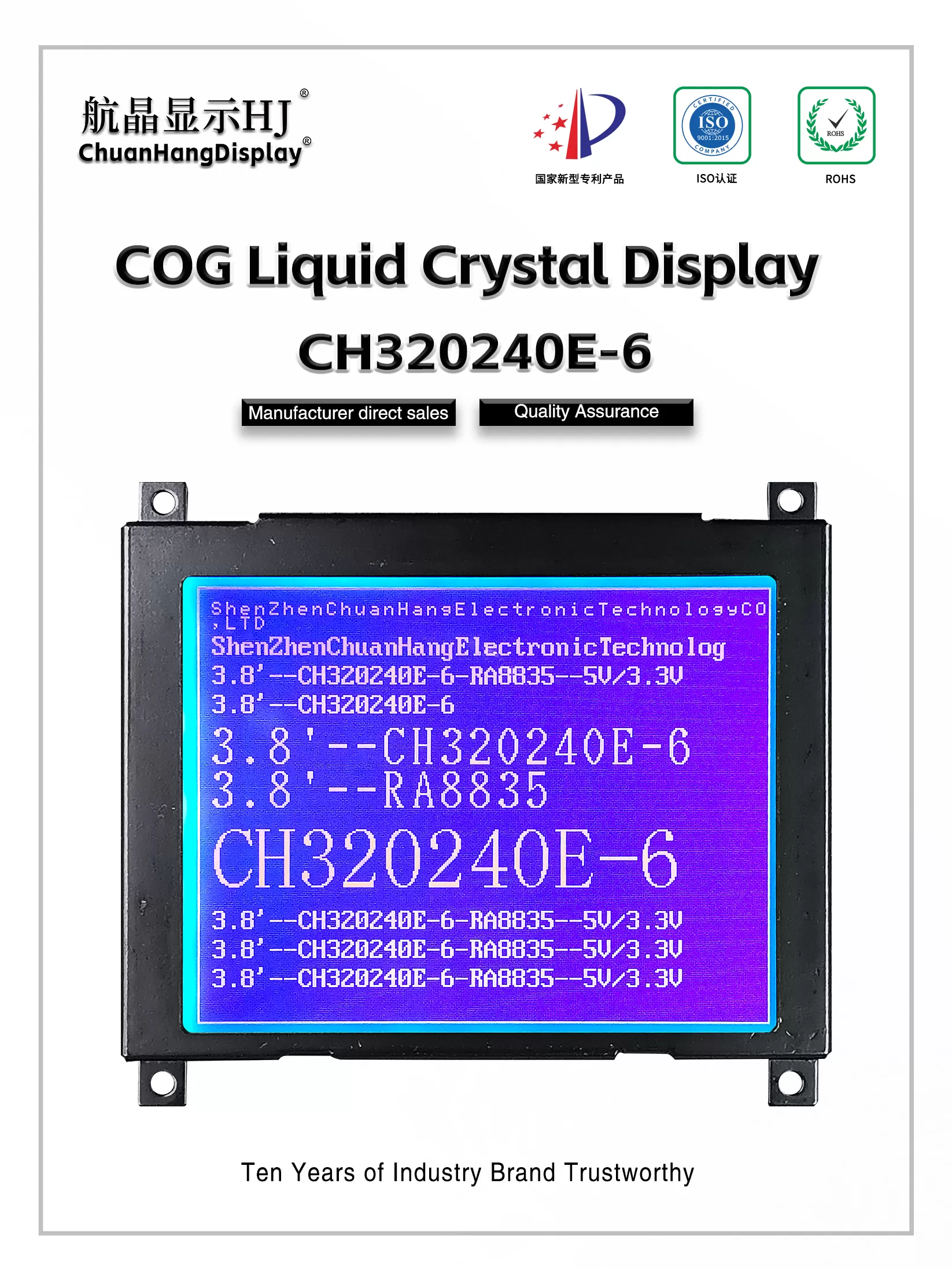

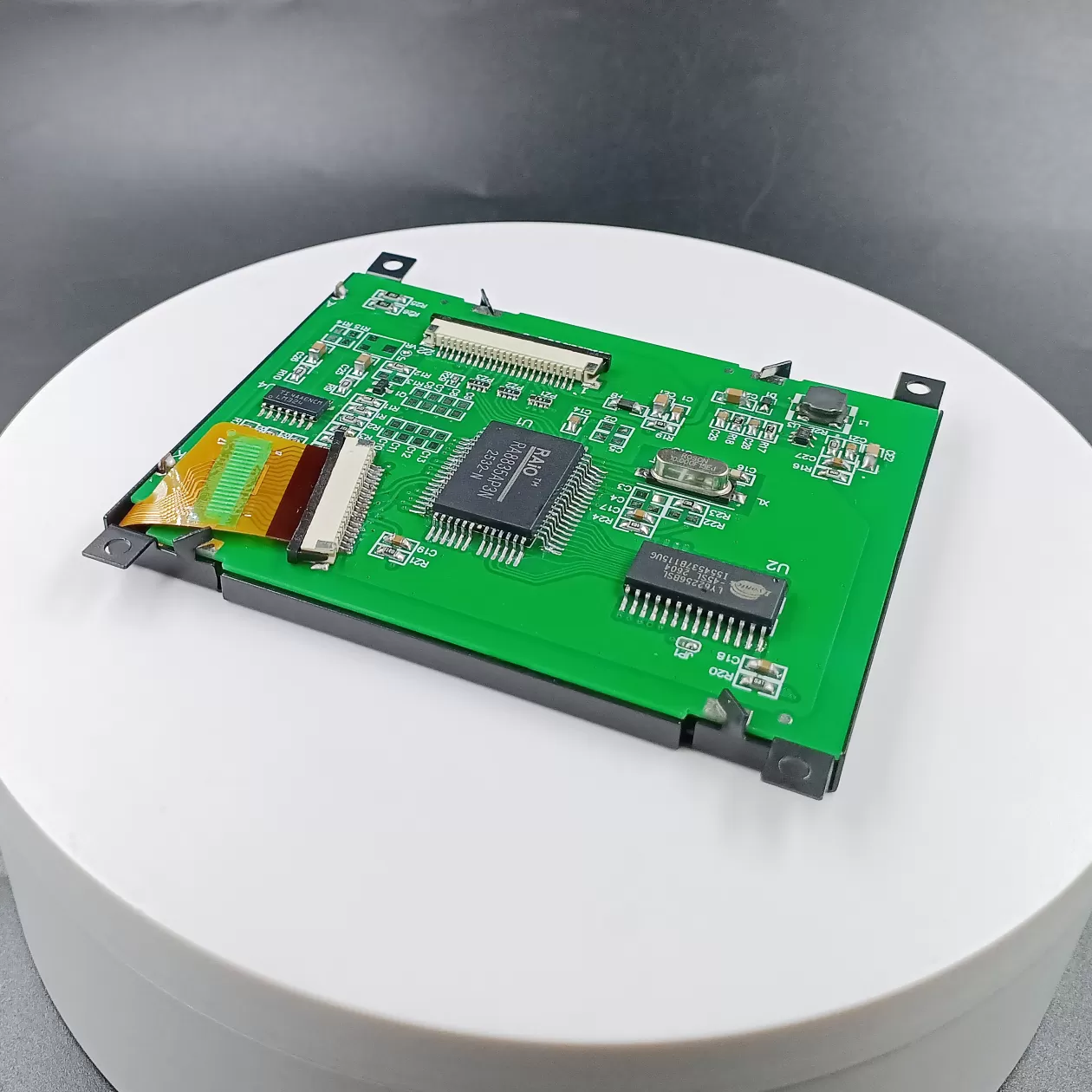

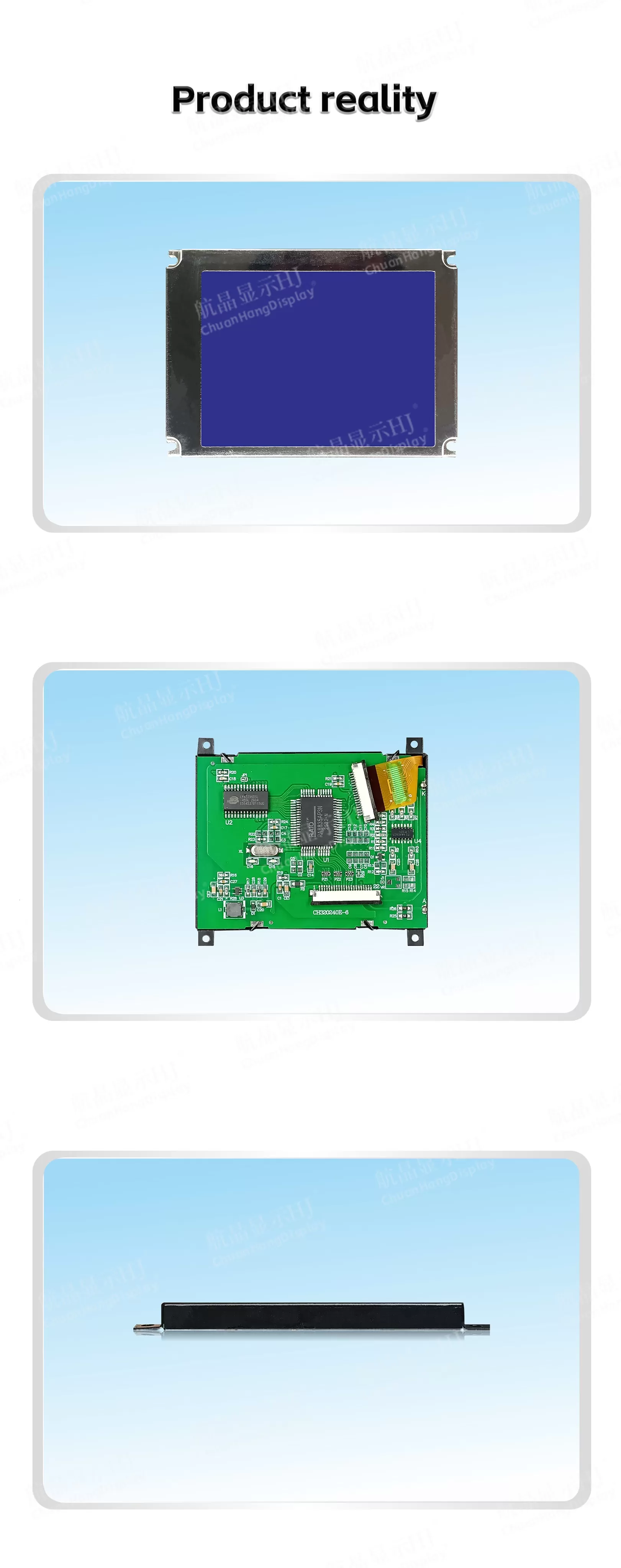

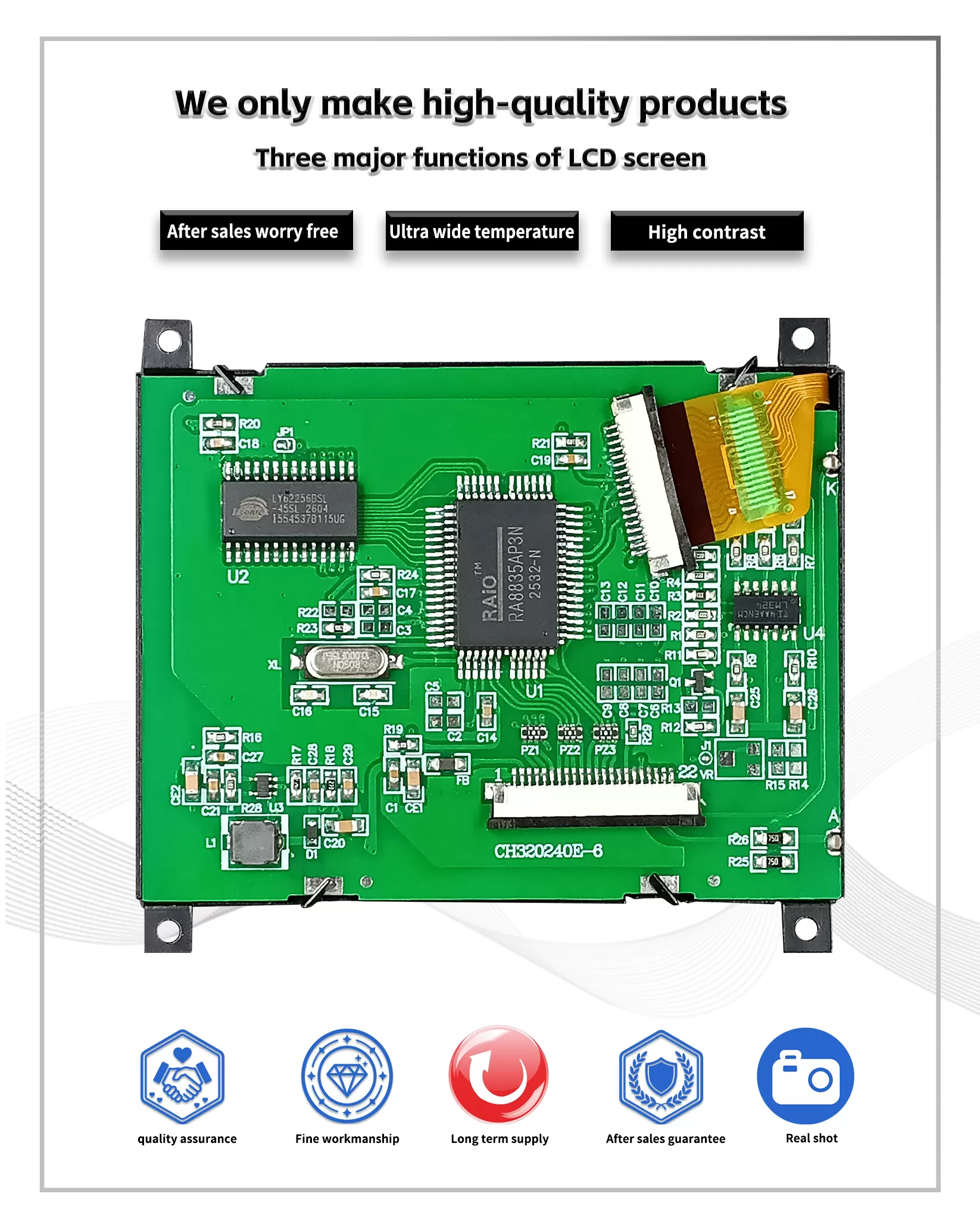

Product Display
