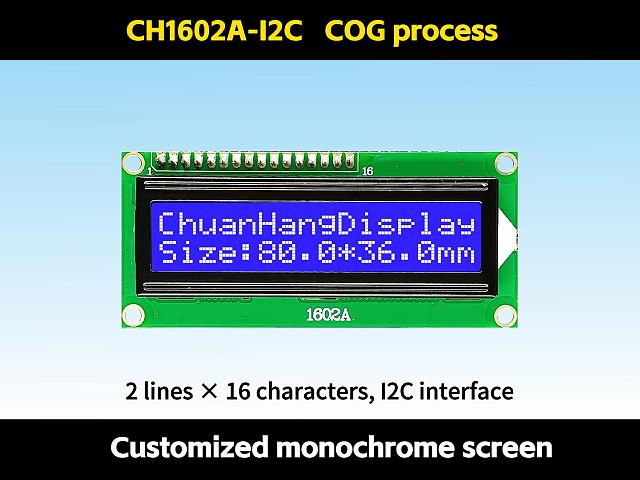

CH1602A-I2C

Product Description

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH1602A-I2C
Resolution	16*2	screen size	2.5 inches
Outline Dimension(LWH)	80.0x36.0x12.7mm	Visible Area(L*W)	64.5x14.6 mm
Active Area(L*W)	55.7x11.0 mm	Character Size(L*W)	2.90x5.15mm
Type	COB	Connection Method	Conductive strip
Supply Voltage	5V/3.3V	Interface Type	MCU
Viewing Direction	6 O'CLOCK	Driving Method	1/16Duty,1/5Bias
Display Type	STN	Driver IC	AIP31066
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	5V/3.3V	production capacity	Self-produced
Character libraries	Default English and Japanese font library	Whether to bring PCB	Yes

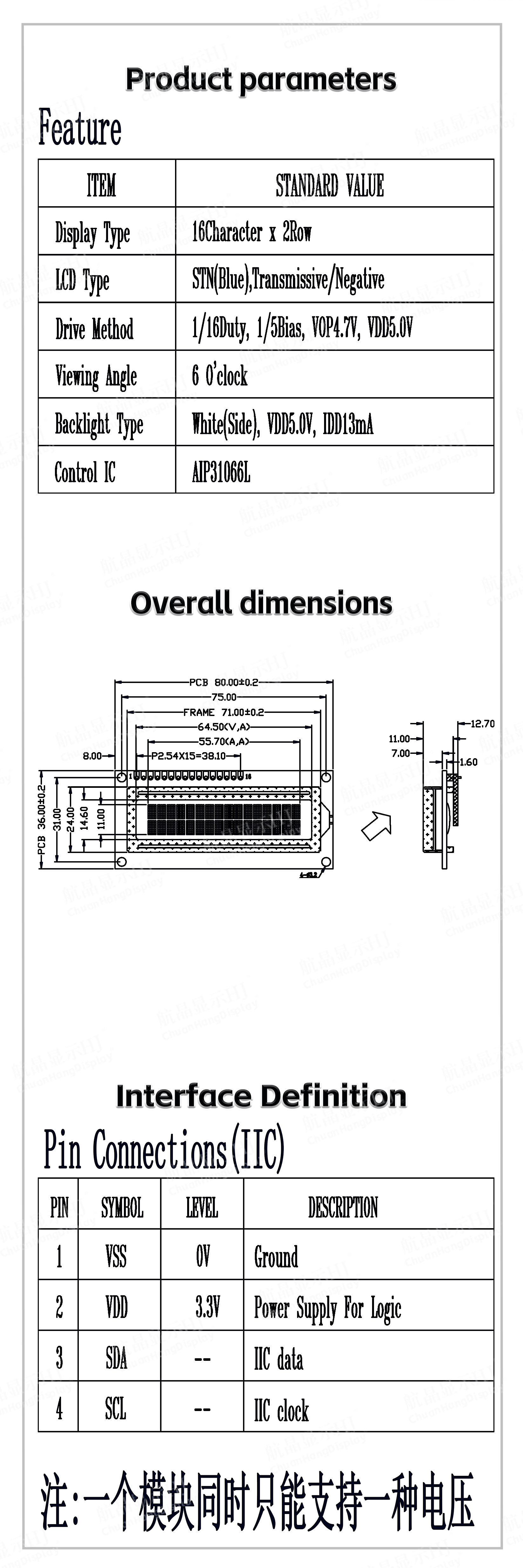

Product Datasheet

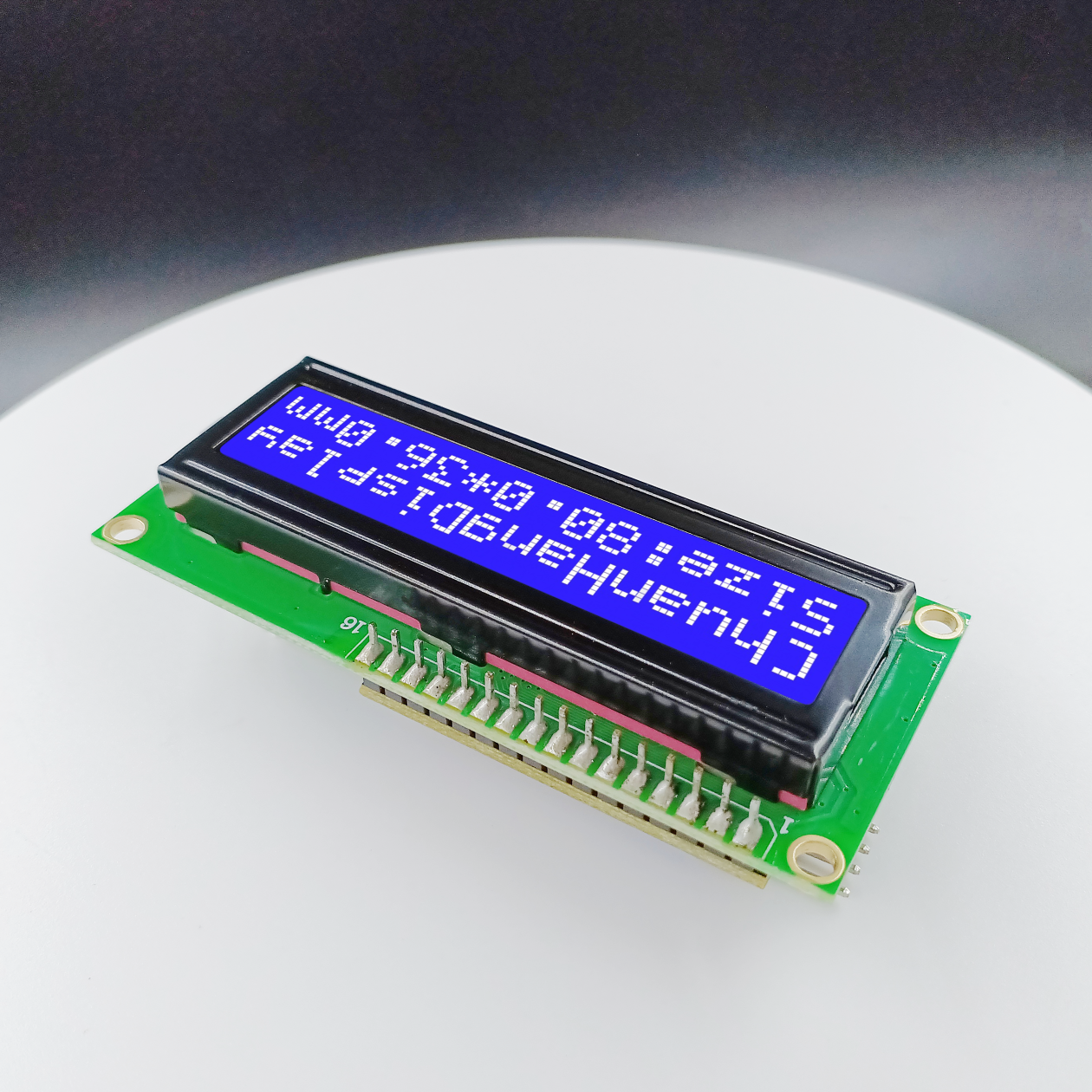

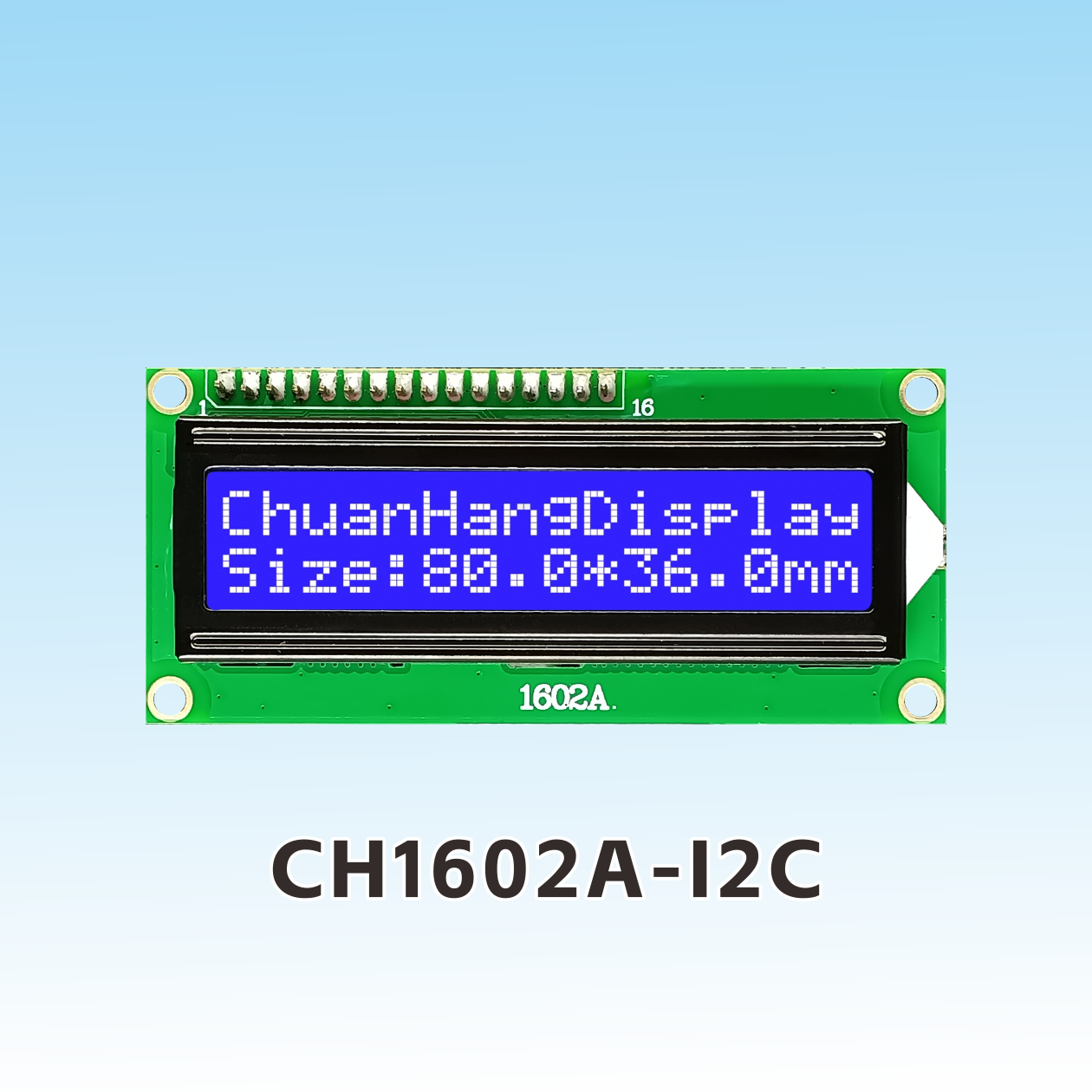

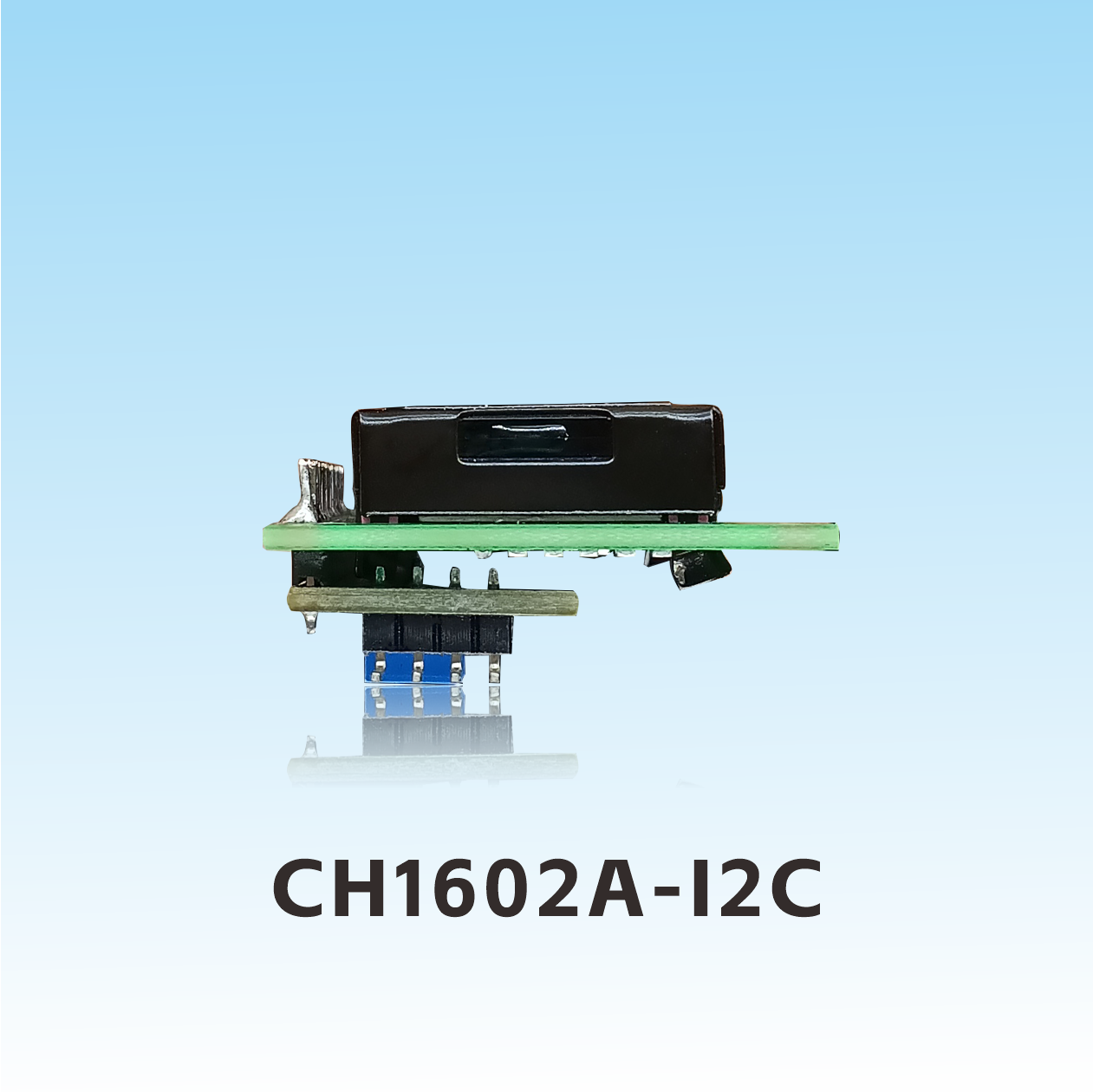

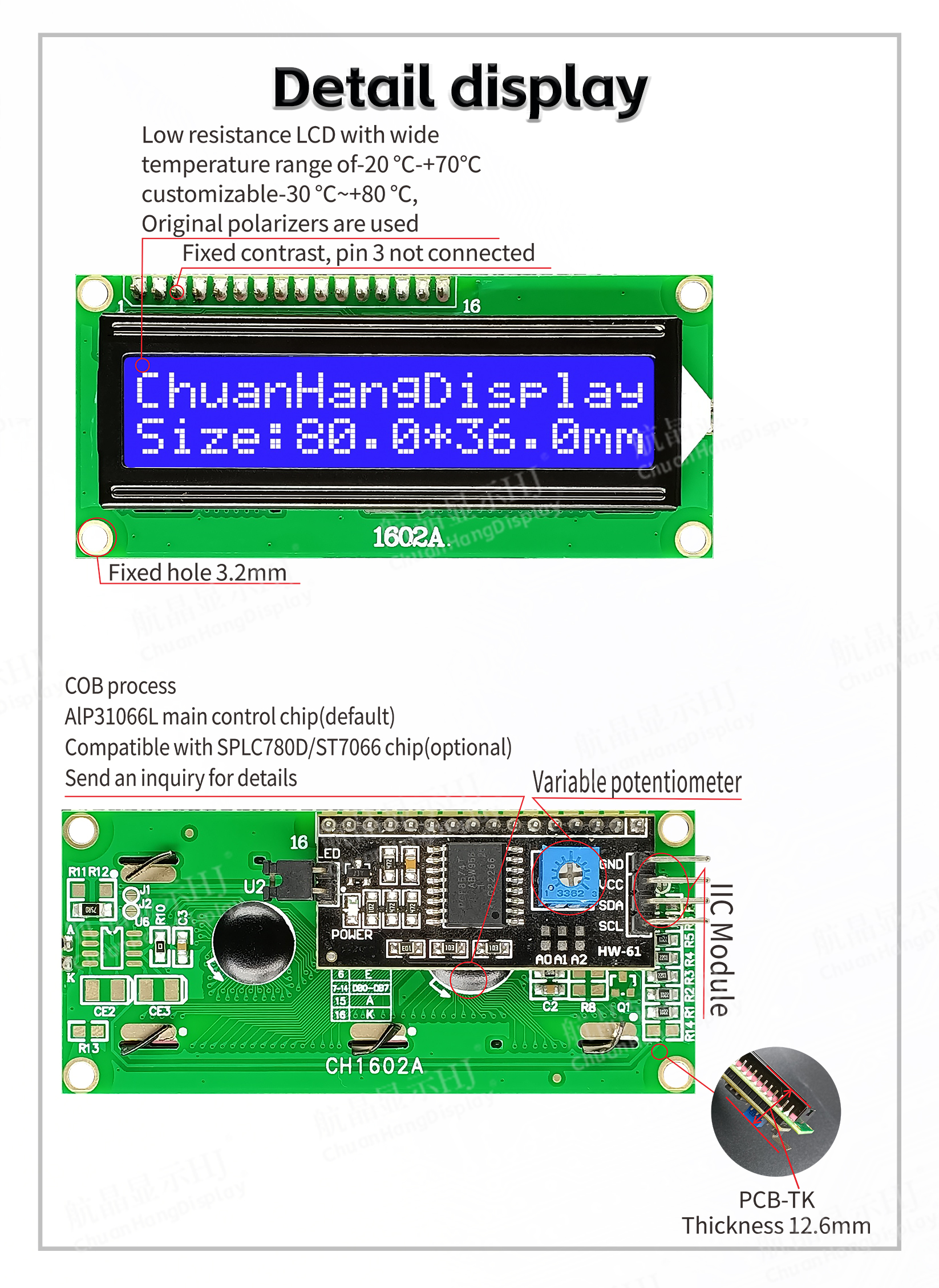

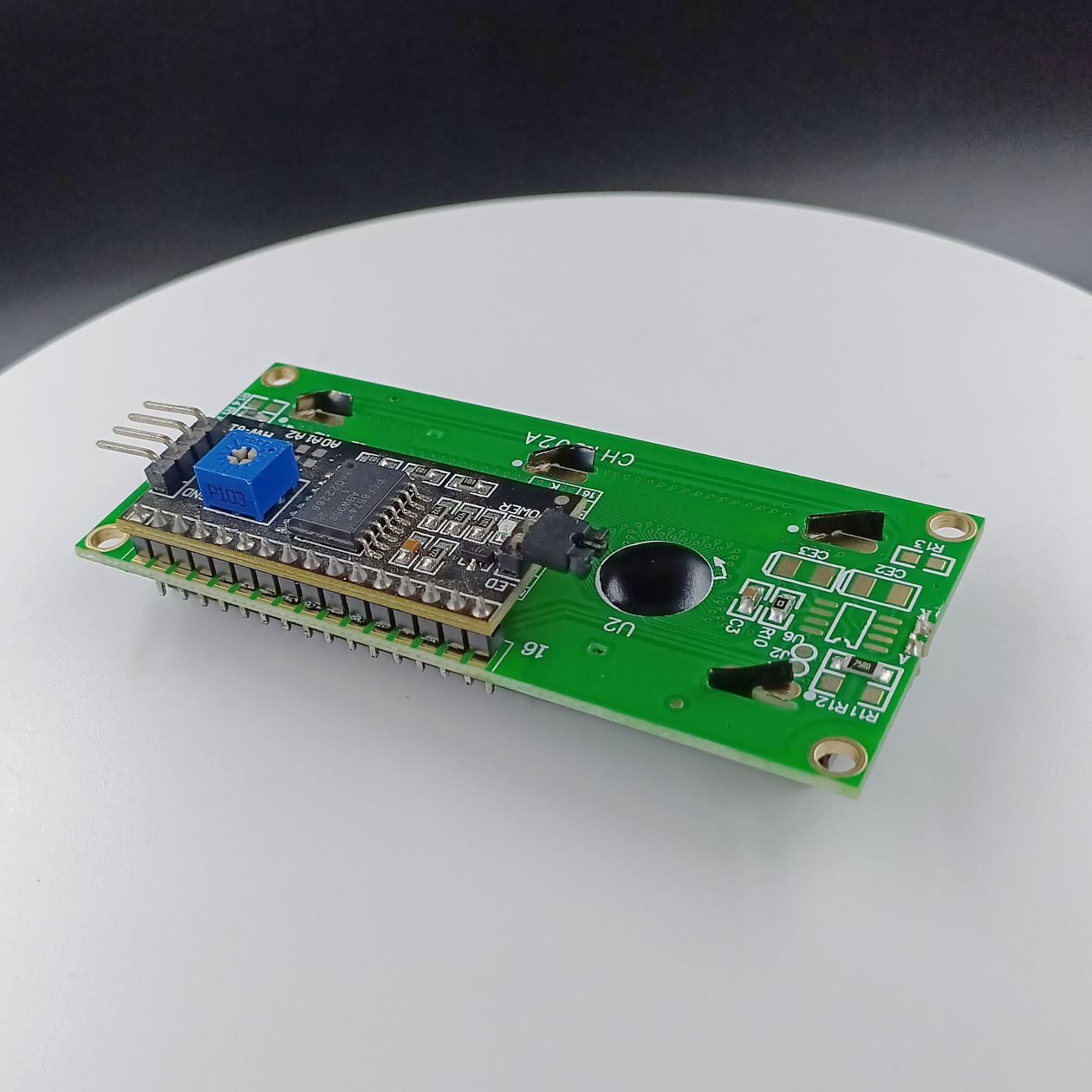

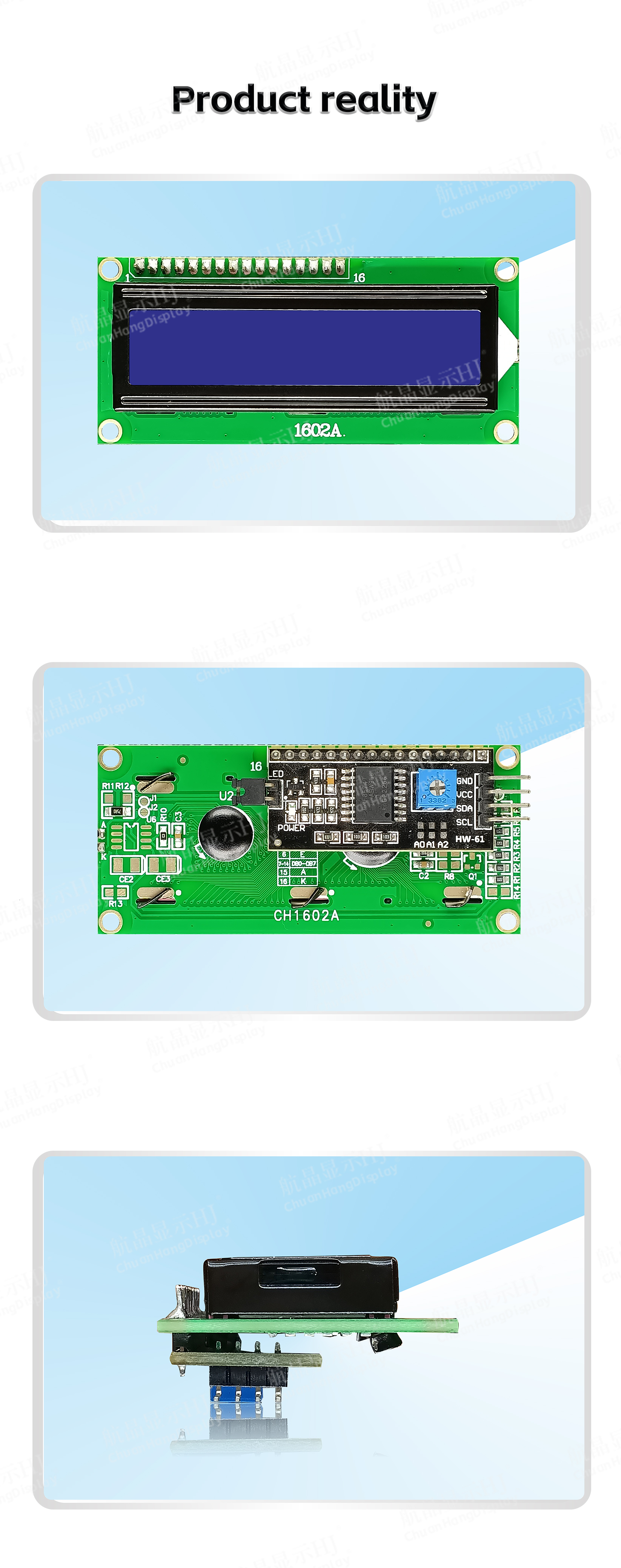

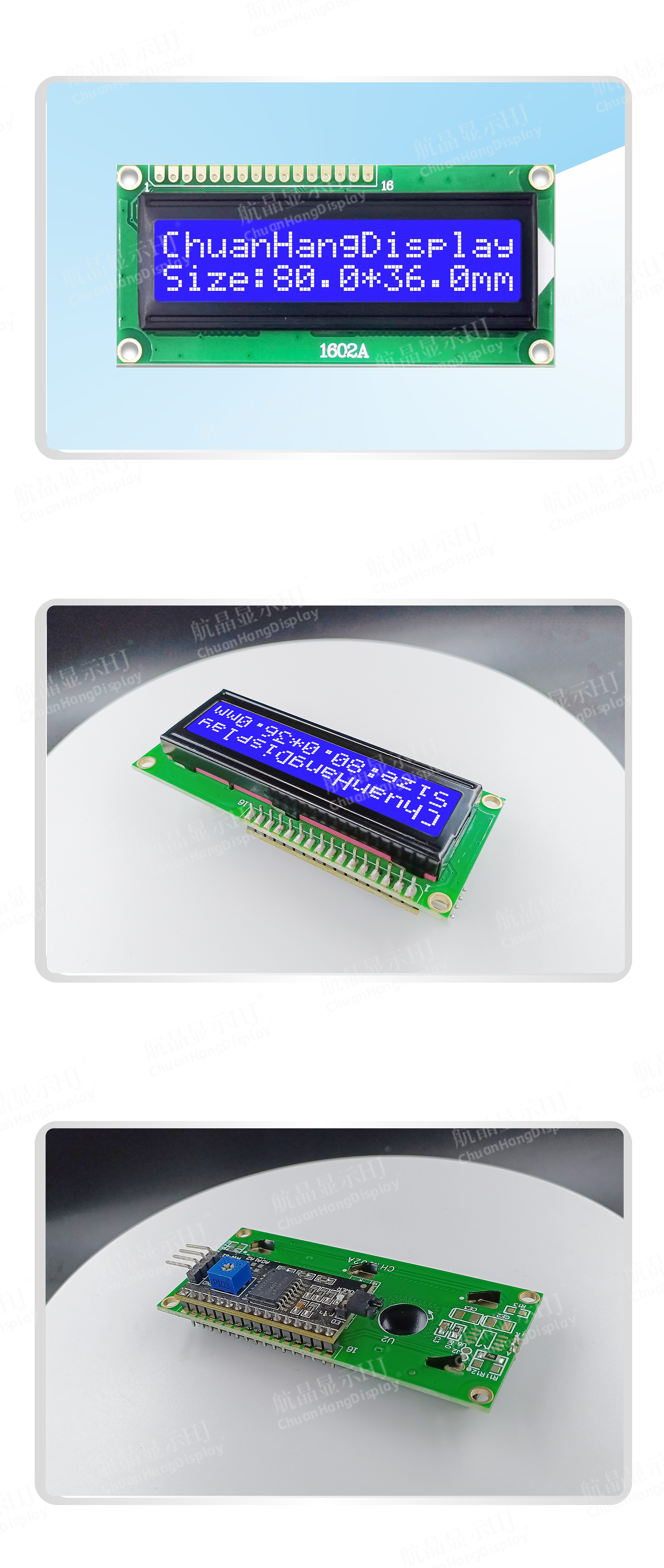

Product Display
