CH256128B-L-焊接式

Product Description

PDF Download Demo code

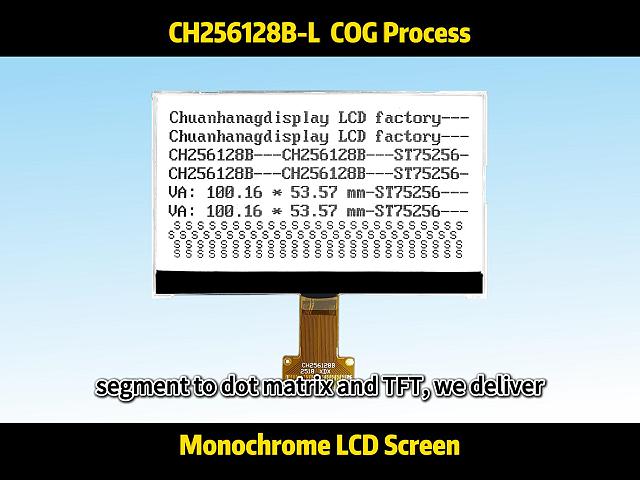

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH256128B-L-焊接式
Resolution	256x128	screen size
Outline Dimension(LWH)	104.92x64.83x9.30mm	Visible Area(L*W)	100.16x53.57mm
Active Area(L*W)	93.16x46.57mm	Dot Size (mm)	0.213(L)x0.233(W)
Type	COG	Connection Method	FPC
Supply Voltage	3.3V	Interface Type	MCU/SPI
Viewing Direction	6 O'CLOCK	Driving Method	1/128Duty,1/10Bias
Display Type	STN	Driver IC	ST75256
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO

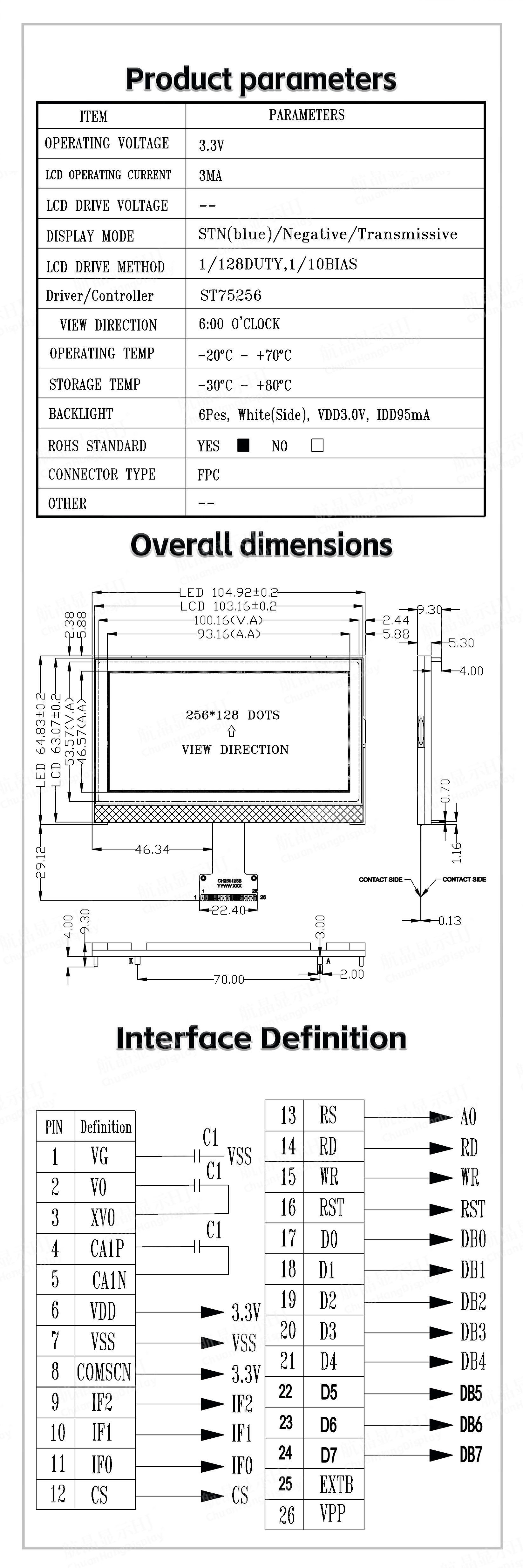

Product Datasheet

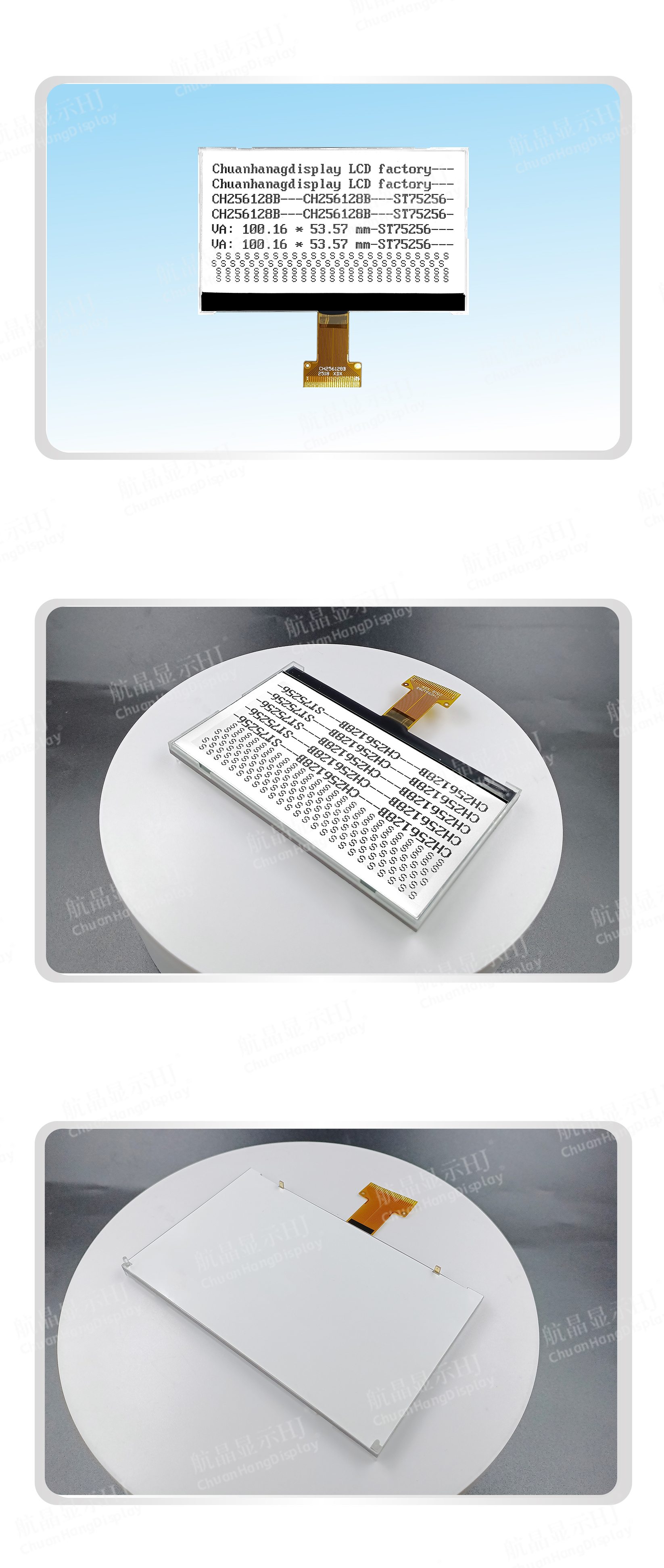

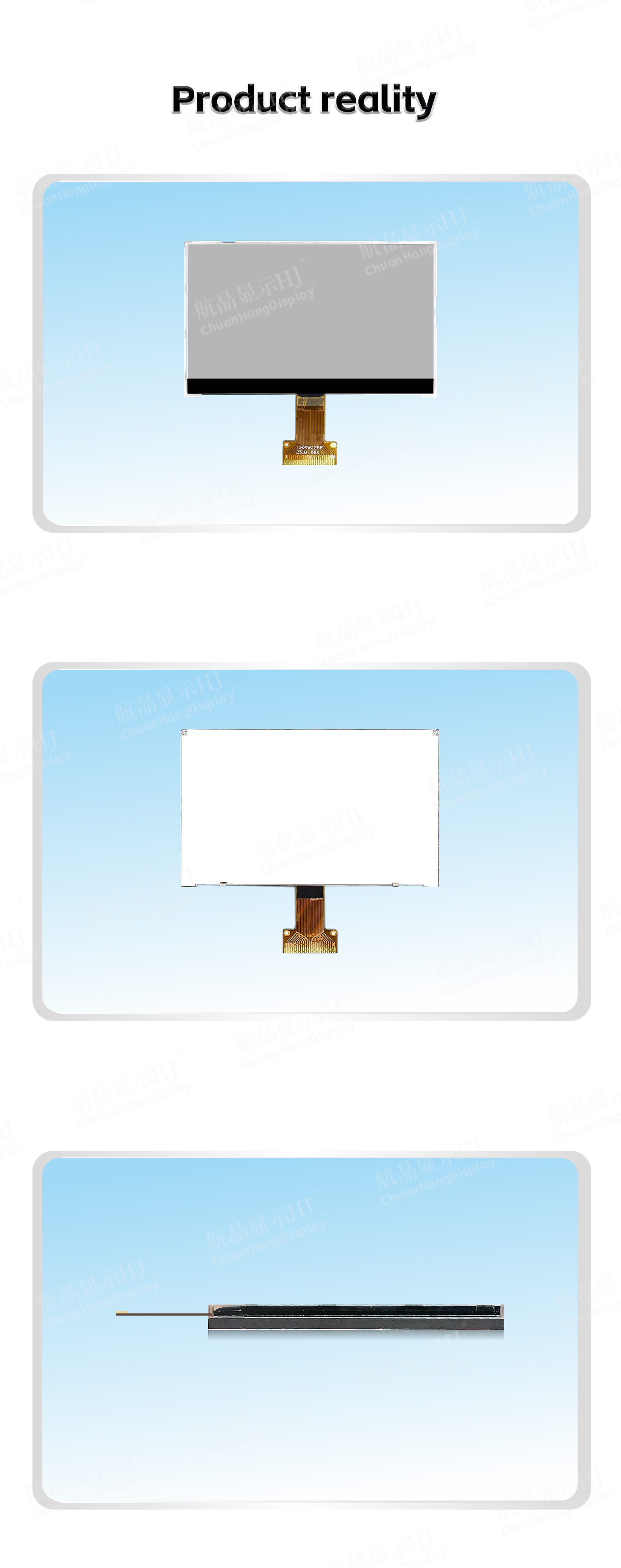

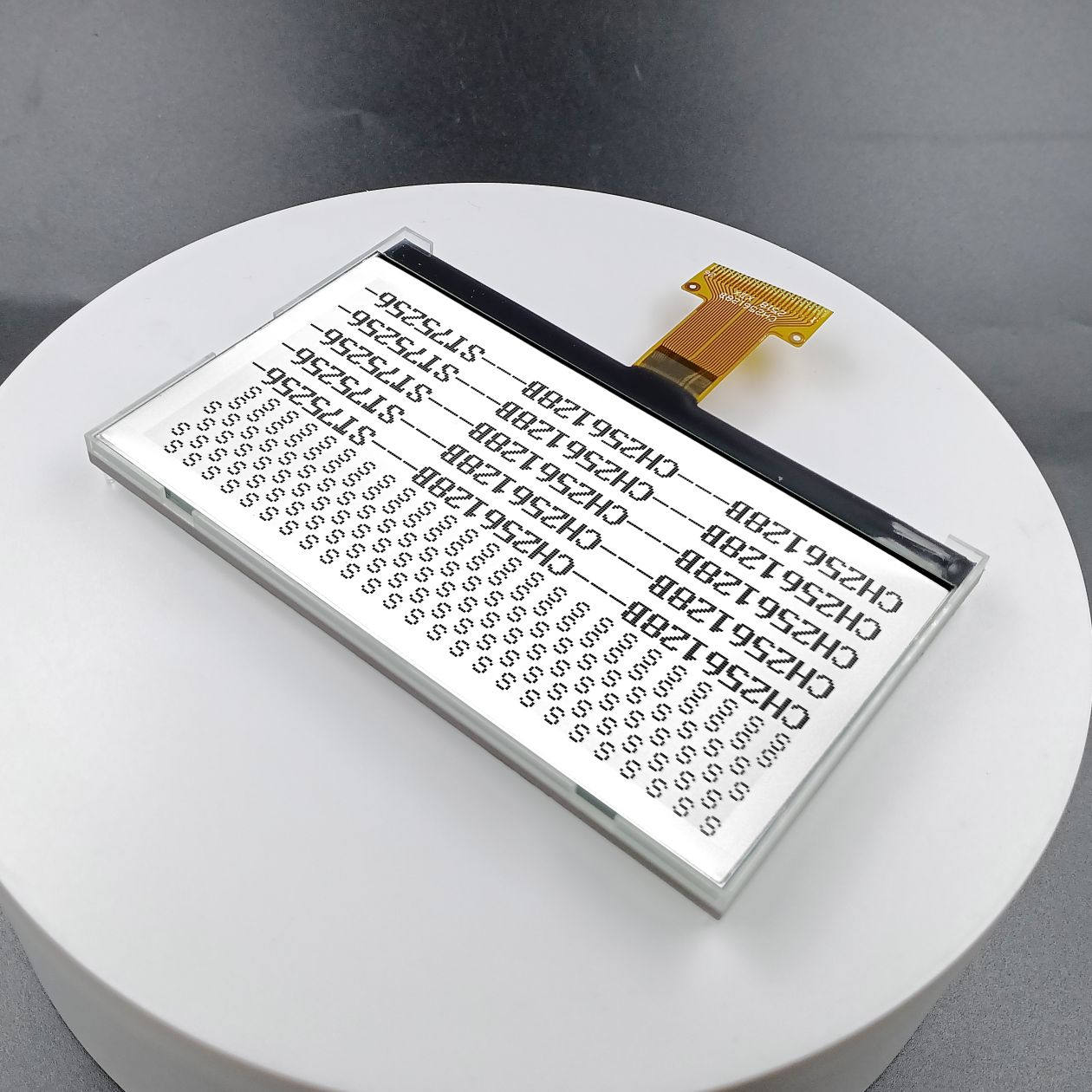

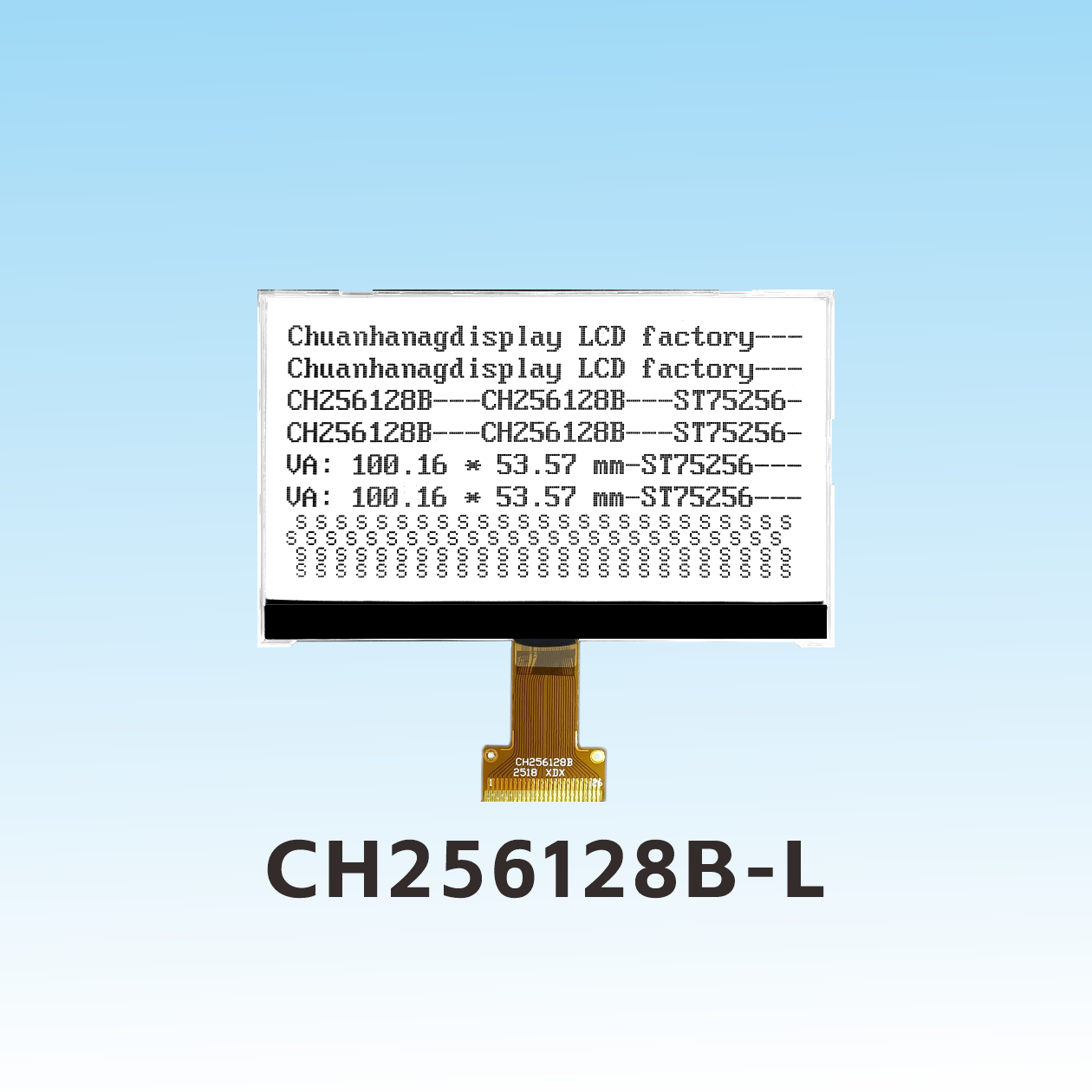

Product Display
